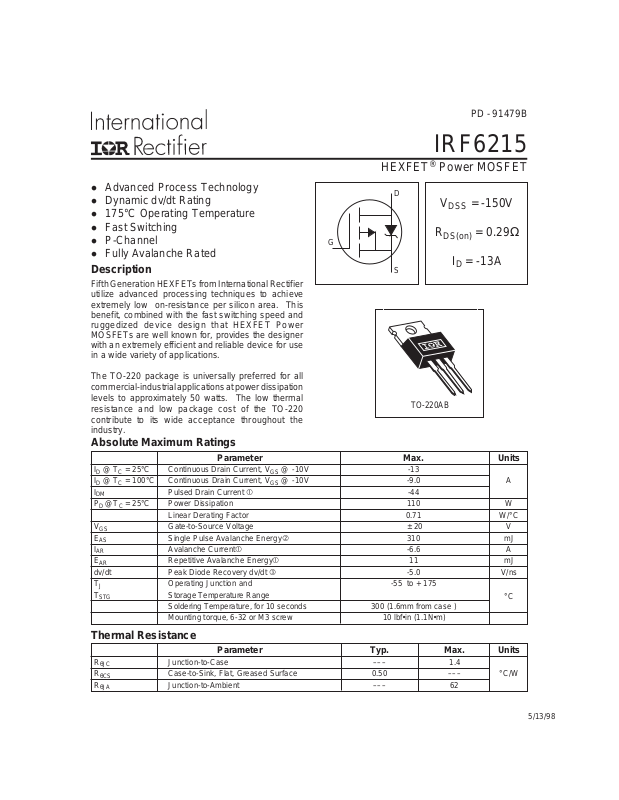

Page 1
PD - 91479B
IRF6215
HEXFET® Power MOSFET
l Advanced Process Technology
l Dynamic dv/dt Rating
l 175°C Operating Temperature
l Fast Switching
l P-Channel
l Fully Avalanche Rated
Description
G
D
V
= -150V
DSS
R
S
= 0.29Ω
DS(on)
ID = -13A
Fifth Generation HEXFETs from International Rectifier
utilize advanced processing techniques to achieve
extremely low on-resistance per silicon area. This
benefit, combined with the fast switching speed and
ruggedized device design that HEXFET Power
MOSFETs are well known for, provides the designer
with an extremely efficient and reliable device for use
in a wide variety of applications.
The TO-220 package is universally preferred for all
commercial-industrial applications at power dissipation
levels to approximately 50 watts. The low thermal
resistance and low package cost of the TO-220
TO-220AB
contribute to its wide acceptance throughout the
industry.
Absolute Maximum Ratings
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ -10V -13
ID @ TC = 100°C Continuous Drain Current, VGS @ -10V -9.0 A
I
DM
PD @TC = 25°C Power Dissipation 110 W
V
GS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt -5.0 V/ns
T
J
T
STG
Pulsed Drain Current -44
Linear Derating Factor 0.71 W/°C
Gate-to-Source Voltage ± 20 V
Single Pulse Avalanche Energy 310 mJ
Avalanche Current -6.6 A
Repetitive Avalanche Energy 11 mJ
Operating Junction and -55 to + 175
Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )
Mounting torque, 6-32 or M3 screw 10 lbf•in (1.1N•m)
°C
Thermal Resistance
R
θJC
R
θCS
R
θJA
Junction-to-Case ––– 1.4
Case-to-Sink, Flat, Greased Surface 0.50 ––– °C/W
Junction-to-Ambient ––– 62
Parameter Typ. Max. Units
5/13/98
Page 2
IRF6215
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
Drain-to-Source Breakdown Voltage -150 ––– ––– V VGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– -0.20 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance
––– ––– 0.29 VGS = -10V, ID = -6.6A , TJ = 25°C
––– ––– 0.58
Ω
VGS = -10V, ID = -6.6A , TJ = 150°C
Gate Threshold Voltage -2.0 ––– -4.0 V VDS = VGS, ID = -250µA
Forward Transconductance 3.6 ––– ––– S VDS = -50V, ID = -6.6A
Drain-to-Source Leakage Current
––– ––– -25
––– ––– -250 VDS = -120V, VGS = 0V, TJ = 150°C
Gate-to-Source Forward Leakage ––– ––– 100
Gate-to-Source Reverse Leakage ––– ––– -100 VGS = -20V
VDS = -150V, VGS = 0V
µA
VGS = 20V
nA
Total Gate Charge ––– ––– 66 ID = -6.6A
Gate-to-Source Charge ––– ––– 8.1 nC VDS = -120V
Gate-to-Drain ("Miller") Charge ––– ––– 35 VGS = -10V, See Fig. 6 and 13
Turn-On Delay Time ––– 14 ––– VDD = -75V
Rise Time ––– 36 –––
Turn-Off Delay Time ––– 53 ––– RG = 6.8Ω
ns
ID = -6.6A
Fall Time ––– 37 ––– RD = 12Ω, See Fig. 10
Internal Drain Inductance ––– 4.5 –––
Internal Source Inductance ––– 7.5 –––
Between lead,
6mm (0.25in.)
nH
from package
and center of die contact
Input Capacitance ––– 860 ––– VGS = 0V
Output Capacitance ––– 220 ––– pF VDS = -25V
Reverse Transfer Capacitance –– – 130 ––– ƒ = 1.0MHz, See Fig. 5
D
G
S
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
Starting T
RG = 25Ω, I
Continuous Source Current MOSFET symbol
(Body Diode)
Pulsed Source Current integral reverse
(Body Diode)
––– –––
––– –––
Diode Forward Voltage ––– ––– -1.6 V TJ = 25°C, IS = -6.6A, VGS = 0V
Reverse Recovery Time ––– 160 240 ns TJ = 25°C, IF = -6.6A
Reverse RecoveryCharge ––– 1.2 1.7 µ C di/dt = -100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
I
SD
TJ ≤ 175°C
= 25°C, L = 14mH
J
= -6.6A. (See Figure 12)
AS
Pulse width ≤ 300µs; duty cycle ≤ 2%.
-13
-44
showing the
A
p-n junction diode.
≤ -6.6A, di/dt ≤ -620A/µs, V
DD
≤ V
(BR)DSS
D
G
S
,
Page 3
IRF6215
A
A
)
A
A
100
VGS
TOP - 15V
- 10V
- 8.0V
- 7.0V
- 6.0V
- 5.5V
- 5.0V
BOTTOM - 4.5V
10
D
-I , Drain -to-S ou rce C urre nt (A )
-4.5V
1
1 10 100
-V , Drain-to-Source Voltage (V)
DS
20µs PULSE WIDTH
T = 25 °C
c
J
Fig 1. Typical Output Characteristics,
100
100
VGS
TOP - 15V
- 10V
- 8.0V
- 7.0V
- 6.0V
- 5.5V
- 5.0V
BOTTOM - 4.5V
10
D
-I , Drain -to-S ou rce C urre nt (A )
-4. 5V
20µs PULSE WIDTH
T = 175°C
J
1
1 10 100
-V , Dra in-t o -S o u rc e Vo ltage (V
DS
C
Fig 2. Typical Output Characteristics,
2.5
I = -11 A
D
T = 25°C
J
T = 175°C
10
D
-I , Drain-to-Source C urrent (A)
1
45678910
-V , G ate -to-S o u rce Vo ltage (V)
GS
J
V = - 5 0V
DS
20µs PULSE WIDTH
Fig 3. Typical Transfer Characteristics
2.0
1.5
1.0
(N orma l i z ed)
0.5
DS (on)
R , D ra in-to -S o u rc e O n R e s is ta nc e
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160 180
T , Junction Temperature (°C)
J
Fig 4. Normalized On-Resistance
Vs. Temperature
V = -1 0V
GS
Page 4
IRF6215
A
)
A
A
)
g
A
)
2000
1600
1200
800
C, Capacitance (pF)
400
0
1 10 100
V = 0V, f = 1M Hz
GS
C = C + C , C S H O RTE D
is s gs gd ds
C = C
rss gd
C = C + C
oss ds gd
C
iss
C
oss
C
rss
-V , Dra in- to -S o u rc e Voltage (V
DS
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
100
T = 175°C
10
J
T = 25°C
J
20
I = -6 .6A
16
12
8
4
GS
D
V = - 12 0 V
DS
V = - 75 V
DS
V = - 30 V
DS
-V , G a te- to-Sou rc e Vo ltag e ( V )
FOR TEST CIRCU IT
0
0 20406080
Q , To ta l Ga te C h a rge (nC
G
SE E F IG U R E 13
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
100
OP ER A T IO N IN T H IS A R E A L IMITED
BY R
10
DS(on)
10µs
100µs
1
SD
-I , Reverse Drain Current (A)
0.1
0.2 0.6 1.0 1.4 1.8
-V , Source-to-Drain Voltage (V)
SD
V = 0V
Fig 7. Typical Source-Drain Diode
GS
D
-I , Drain C urren t (A )
T = 25 °C
C
T = 17 5 °C
J
Sin
le P uls e
1
1 10 100 1000
-V , Dra in -to -So urce Vo ltage (V
DS
Fig 8. Maximum Safe Operating Area
1ms
10ms
Forward Voltage
Page 5
IRF6215
15
12
9
6
D
-I , Drain Current (A)
3
0
25 50 75 100 125 150 175
T , Case Temperature ( C)
C
°
Fig 9. Maximum Drain Current Vs.
Case Temperature
10
R
D.U.T.
D
-
+
V
DS
V
GS
R
G
-10V
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
Fig 10a. Switching Time Test Circuit
V
GS
10%
90%
V
DS
t
d(on)tr
t
d(off)tf
Fig 10b. Switching Time Waveforms
V
DD
thJC
1
D = 0.50
0.20
0.10
0.05
0.1
0.02
Thermal Response (Z )
0.01
0.01
0.00001 0.0001 0.001 0.01 0.1 1
SINGLE PULSE
(THERMAL RESPONSE)
Notes:
1. Duty factor D = t / t
2. Peak T =P x Z + T
t , Rectangular Pulse Duration (sec)
1
J DM thJC C
1 2
P
DM
t
1
t
2
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
Page 6
IRF6215
(BR)
A
)
L
D.U.T
I
AS
0.01
t
p
DRIVER
Ω
15V
V
DD
R
-20V
V
DS
G
Fig 12a. Unclamped Inductive Test Circuit
I
AS
t
p
V
DSS
800
I
TO P -2.7 A
D
-4 .7A
BOT TOM -6.6 A
A
600
400
200
AS
E , S ingle Pu lse A valanc he E n ergy (m J)
0
25 50 75 100 125 150 175
Starting T , Junction Temperature (°C
J
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
Fig 12b. Unclamped Inductive Waveforms
Q
G
-10V
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
Current Regulator
Same Type as D.U.T.
50KΩ
.2µF
12V
V
GS
.3µF
D.U.T .
-3mA
I
G
Current Sampling Resistors
V
DS
+
I
D
Fig 13b. Gate Charge Test Circuit
Page 7
IRF6215
Peak Diode Recovery dv/dt Test Circuit
D.U.T*
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
+
-
-
+
R
G
V
GS
• dv/dt controlled by R
• ISD controlled by Duty Factor "D"
G
• D.U.T. - Device Under Test
+
V
DD
-
* Reverse Polarity of D.U.T for P-Channel
Driver Gate Drive
P.W.
Period
D =
P.W.
Period
VGS=10V
[ ] ***
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. ISDWaveform
Body Diode Forward
Current
D.U.T. VDSWaveform
Body Diode Forward Drop
Inductor Curent
Ripple ≤ 5%
*** V
= 5.0V for Logic Level and 3V Drive Devices
GS
di/dt
Diode Recovery
dv/dt
Fig 14. For P-Channel HEXFETS
V
DD
[ ]
I
[ ]
SD
Page 8
IRF6215
A
A
Package Outline
TO-220AB Outline
Dimensions are shown in millimeters (inches)
10.54 (.415)
2.87 (.113)
2.62 (.103)
15.24 (.600)
14.84 (.584)
14.09 (.555)
13.47 (.530)
10.29 (.405)
1 2 3
6.47 (.255)
6.10 (.240)
4
1.15 (.045)
M IN
4.06 (.160)
3.55 (.140)
3.78 (.149)
3.54 (.139)
- A -
4.69 (.185)
4.20 (.165)
- B -
1.32 (.052)
1.22 (.048)
LEAD ASSIGNMENTS
1 - GA T E
2 - DR A IN
3 - SO U RC E
4 - DR A IN
1.40 (.055)
3X
1.15 (.045)
2.54 (.100)
NOTES:
1 DIM E N S IO N IN G & T O L E R A N C IN G P E R A N S I Y 1 4 . 5 M , 1 9 82 . 3 O U T L IN E C O N F O R M S T O J E D E C O U T LIN E T O -2 20 A B .
2 CONTROLLING DIMENSION : INCH 4 HEATSINK & LEAD MEASUREMENTS DO NOT INCLUDE BURRS.
2X
Part Marking Information
TO-220AB
EXAMPLE : THIS IS AN IRF1010
EXAMPLE : THIS IS AN IRF1010
W ITH A SSEMBL Y
W ITH A SSEMBL Y
LOT COD E 9 B1M
LOT COD E 9 B1M
0.93 (.037)
3X
0.69 (.027)
0.36 (.01 4) M B A M
INTERN A TION A L
INTERN A TION A L
RE CTIFIER
RE CTIFIER
L OGO
L OGO
ASSEMBLY
ASSEMBLY
LOT CODE
LOT CODE
I RF1010
I RF1010
9246
9B 1M
9B 1M
0.55 (.022)
3X
0.46 (.018)
2.92 (.115)
2.64 (.104)
9246
PART NUMB ER
PART NUMB ER
DATE CODE
DATE CODE
(YYWW)
(YYWW)
YY = YEAR
YY = YEAR
WW = WEEK
WW = WEEK
WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331
EUROPEAN HEADQUARTERS: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020
IR CANADA: 7321 Victoria Park Ave., Suite 201, Markham, Ontario L3R 2Z8, Tel: (905) 475 1897
IR GERMANY: Saalburgstrasse 157, 61350 Bad Homburg Tel: ++ 49 6172 96590
IR ITALY: Via Liguria 49, 10071 Borgaro, Torino Tel: ++ 39 11 451 0111
IR FAR EAST: K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo Japan 171 Tel: 81 3 3983 0086
IR SOUTHEAST ASIA: 315 Outram Road, #10-02 Tan Boon Liat Building, Singapore 0316 Tel: 65 221 8371
http://www.irf.com/ Data and specifications subject to change without notice. 5/98
Loading...
