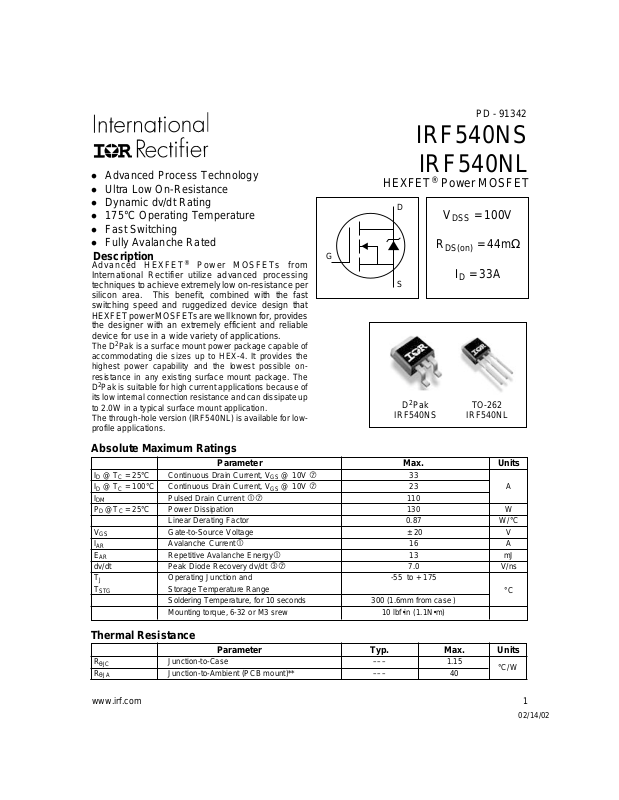

Page 1
PD - 91342
IRF540NS
l Advanced Process Technology
l Ultra Low On-Resistance
l Dynamic dv/dt Rating
l 175°C Operating Temperature
l Fast Switching
l Fully Avalanche Rated
Description
Advanced HEXFET® Power MOSFETs from
International Rectifier utilize advanced processing
techniques to achieve extremely low on-resistance per
HEXFET® Power MOSFET
G
IRF540NL
D
S
V
R
DS(on)
DSS
= 100V
= 44mΩ
ID = 33A
silicon area. This benefit, combined with the fast
switching speed and ruggedized device design that
HEXFET power MOSFETs are well known for, provides
the designer with an extremely efficient and reliable
device for use in a wide variety of applications.
The D2Pak is a surface mount power package capable of
accommodating die sizes up to HEX-4. It provides the
highest power capability and the lowest possible onresistance in any existing surface mount package. The
D2Pak is suitable for high current applications because of
its low internal connection resistance and can dissipate up
to 2.0W in a typical surface mount application.
The through-hole version (IRF540NL) is available for lowprofile applications.
D2Pak
IRF540NS
TO-262
IRF540NL
Absolute Maximum Ratings
Parameter Max. Units
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 33
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 23 A
I
DM
PD @TC = 25°C Power Dissipation 130 W
V
GS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt 7.0 V/ns
T
J
T
STG
Pulsed Drain Current 110
Linear Derating Factor 0.87 W/°C
Gate-to-Source Voltage ± 20 V
Avalanche Current 16 A
Repetitive Avalanche Energy 13 mJ
Operating Junction and -55 to + 175
Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case )
Mounting torque, 6-32 or M3 srew 10 lbf•in (1.1N•m)
°C
Thermal Resistance
Parameter Typ. Max. Units
R
θJC
R
θJA
www.irf.com 1
Junction-to-Case ––– 1.15
Junction-to-Ambient (PCB mount)** ––– 40
°C/W
02/14/02
Page 2
IRF540NS/IRF540NL
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter Min. Typ. Max. Units Conditions
V
(BR)DSS
∆V
(BR)DSS
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
E
AS
Drain-to-Source Breakdown Voltage 100 ––– ––– VVGS = 0V, ID = 250µA
/∆T
Breakdown Voltage Temp. Coefficient ––– 0.12 ––– V/°C Reference to 25°C, ID = 1mA
J
Static Drain-to-Source On-Resistance ––– ––– 44 mΩ VGS = 10V, ID = 16A
Gate Threshold Voltage 2.0 ––– 4.0 V VDS = VGS, ID = 250µA
Forward Transconductance 21 ––– ––– SVDS = 50V, ID = 16A
Drain-to-Source Leakage Current
––– ––– 25
––– ––– 250 VDS = 80V, VGS = 0V, TJ = 150°C
Gate-to-Source Forward Leakage ––– ––– 100 V
Gate-to-Source Reverse Leakage ––– ––– -100
VDS = 100V, VGS = 0V
µA
= 20V
GS
nA
VGS = -20V
Total Gate Charge ––– ––– 71 ID = 16A
Gate-to-Source Charge ––– ––– 14 nC VDS = 80V
Gate-to-Drain ("Miller") Charge ––– ––– 21 VGS = 10V, See Fig. 6 and 13
Turn-On Delay Time ––– 11 ––– VDD = 50V
Rise Time ––– 35 ––– ID = 16A
Turn-Off Delay Time ––– 39 ––– RG = 5.1Ω
ns
Fall Time ––– 35 ––– VGS = 10V, See Fig. 10
4.5
Internal Drain Inductance
Internal Source Inductance ––– –––
––– –––
7.5
Between lead,
6mm (0.25in.)
nH
from package
and center of die contact
Input Capacitance ––– 1960 ––– VGS = 0V
Output Capacitance ––– 250 ––– VDS = 25V
Reverse Transfer Capacitance ––– 40 ––– pF ƒ = 1.0MHz, See Fig. 5
Single Pulse Avalanche Energy ––– 700 185 mJ I
= 16A, L = 1.5mH
AS
D
G
S
Source-Drain Ratings and Characteristics
Parameter Min. Typ. Max. Units Conditions
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Continuous Source Current MOSFET symbol
(Body Diode)
Pulsed Source Current integral reverse
(Body Diode)
––– –––
––– –––
33
110
showing the
A
p-n junction diode.
G
Diode Forward Voltage ––– ––– 1.2 V TJ = 25°C, IS = 16A, VGS = 0V
Reverse Recovery Time ––– 115 170 ns TJ = 25°C, IF = 16A
Reverse Recovery Charge ––– 505 760 nC di/dt = 100A/µs
Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. (See fig. 11)
Starting T
RG = 25Ω, I
I
SD
= 25°C, L =1.5mH
J
= 16A. (See Figure 12)
AS
≤ 16A, di/dt ≤ 340A/µs, V
DD
≤ V
(BR)DSS
TJ ≤ 175°C
Pulse width ≤ 400µs; duty cycle ≤ 2%.
This is a typical value at device destruction and represents
operation outside rated limits.
This is a calculated value limited to T
Uses IRF540N data and test conditions.
,
**When mounted on 1" square PCB (FR-4 or G-10 Material). For
recommended footprint and soldering techniques refer to application
note #AN-994
= 175°C .
J
2 www.irf.com
D
S
Page 3
IRF540NS/IRF540NL
1000
100
10
D
I , Drain-to-Source Current (A)
1
0.1 1 10 100
1000
VGS
TOP
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM
4.5V
4.5V
20µs PULSE WIDTH
T = 25 C
J
V , Drain-to-Source Voltage (V)
DS
°
1000
100
10
D
I , Drain-to-Source Current (A)
1
0.1 1 10 100
VGS
TOP
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM
4.5V
20µs PULSE WIDTH
T = 175 C
V , Drain-to-Source Voltage (V)
DS
J
4.5V
°
Fig 2. Typical Output CharacteristicsFig 1. Typical Output Characteristics
3.5
33A
I =
D
3.0
2.5
°
T = 25 C
100
D
I , Drain-to-Source Current (A)
10
4.0 5.0 6.0 7.0 8.0 9.0
J
°
T = 175 C
J
V = 50V
DS
20µs PULSE WIDTH
V , Gate-to-Source Voltage (V)
GS
Fig 3. Typical Transfer Characteristics
2.0
1.5
(Normalized)
1.0
0.5
DS(on)
R , Drain-to-Source On Resistance
0.0
-60 -40 -20 0 20 40 60 80 100 120 140 160 180
T , Junction Temperature ( C)
J
Fig 4. Normalized On-Resistance
V =
10V
GS
°
Vs. Temperature
www.irf.com 3
Page 4
IRF540NS/IRF540NL
3000
2500
2000
1500
1000
C, Capacitance (pF)
500
0
1 10 100
V
=
0V,
C
C
C
C
C
C
iss
oss
rss
f = 1MHz
+ C
+ C
C SHORTED
GS
C
=
issgsgd , ds
C
=
rssgd
C
=
oss dsgd
V , Drain-to-Source Voltage (V)
DS
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
1000
20
I =
16A
D
V = 80V
DS
V = 50V
DS
16
12
8
4
GS
V , Gate-to-Source Voltage (V)
0
0 20 40 60 80
Q , Total Gate Charge (nC)
G
V = 20V
DS
FOR TEST CIRCUIT
SEE FIGURE
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
OPERATION IN THIS AREA
LIMITED BY RDS(on)
13
100
°
T = 175 C
J
10
°
T = 25 C
J
1
SD
I , Reverse Drain Current (A)
V = 0 V
0.1
0.2 0.6 1.0 1.4 1.8
V ,Source-to-Drain Voltage (V)
SD
GS
Fig 7. Typical Source-Drain Diode
100
10
1
, Drain-to-Source Current (A)
I
TA = 25°C
D
TJ = 175°C
Single Pulse
0.1
1 10 100 1000
V
, Drain-toSource Voltage (V)
DS
100µsec
1msec
10msec
Fig 8. Maximum Safe Operating Area
Forward Voltage
4 www.irf.com
Page 5
IRF540NS/IRF540NL
(
)
35
30
25
20
15
D
10
I , Drain Current (A)
5
0
25 50 75 100 125 150 175
T , Case Temperature ( C)
C
°
Fig 9. Maximum Drain Current Vs.
Case Temperature
10
R
V
DS
V
GS
R
G
V
GS
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
D
D.U.T.
Fig 10a. Switching Time Test Circuit
V
DS
90%
10%
V
GS
t
d(on)tr
t
d(off)tf
Fig 10b. Switching Time Waveforms
+
V
DD
-
thJC
1
D = 0.50
0.20
0.10
0.1
0.05
0.02
Thermal Response (Z )
0.01
0.01
0.00001 0.0001 0.001 0.01 0.1 1
SINGLE PULSE
THERMAL RESPONSE
Notes:
1. Duty factor D = t / t
2. Peak T = P x Z + T
t , Rectangular Pulse Duration (sec)
1
J DM thJC C
P
DM
t
1
1 2
t
2
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com 5
Page 6
IRF540NS/IRF540NL
A
15V
DRIVER
R
20V
V
DS
G
t
L
D.U.T
I
AS
0.01
p
Ω
Fig 12a. Unclamped Inductive Test Circuit
V
(BR)DSS
t
p
I
AS
Fig 12b. Unclamped Inductive Waveforms
400
TOP
300
+
V
DD
-
200
100
AS
E , Single Pulse Avalanche Energy (mJ)
0
25 50 75 100 125 150 175
Starting T , Junction Temperature ( C)
J
BOTTOM
I
D
6.5A
11.3A
16A
°
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
Current Regulator
Same Type as D.U.T.
50KΩ
Q
G
V
GS
Q
GS
V
G
Q
GD
Charge
Fig 13a. Basic Gate Charge Waveform
12V
Fig 13b. Gate Charge Test Circuit
.2µF
V
GS
.3µF
D.U.T.
3mA
I
G
Current Sampling Resistors
I
D
6 www.irf.com
+
V
DS
-
Page 7
IRF540NS/IRF540NL
Peak Diode Recovery dv/dt Test Circuit
D.U.T*
+
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
-
+
-
-
+
R
G
V
GS
• dv/dt controlled by R
• ISD controlled by Duty Factor "D"
G
• D.U.T. - Device Under Test
+
V
DD
-
* Reverse Polarity of D.U.T for P-Channel
Driver Gate Drive
P.W.
Period
D =
P.W.
Period
VGS=10V
[ ] ***
D.U.T. ISDWaveform
Reverse
Recovery
Current
Re-Applied
Voltage
D.U.T. VDSWaveform
Inductor Curent
*** V
= 5.0V for Logic Level and 3V Drive Devices
GS
Fig 14. For N-channel HEXFET
Body Diode Forward
Current
di/dt
Diode Recovery
dv/dt
Body Diode Forward Drop
Ripple ≤ 5%
®
power MOSFETs
V
DD
[ ]
I
[ ]
SD
www.irf.com 7
Page 8
IRF540NS/IRF540NL
A
D2Pak Package Outline
10.54 (.415)
1.40 (.055)
MA X.
1.78 (.070)
1.27 (.050)
1.40 (.055)
3X
1.14 (.045)
5.08 (.200)
NOTE S:
1 DIMENSIONS AFTER SOLDER DIP.
2 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982.
3 CONTROLLING DIMENSION : INCH.
4 HEATSINK & LEAD DIMENSIONS DO NOT INCLUDE BURRS.
2
Pak Part Marking Information
D
10.29 (.405)
- A 2
1 3
15.49 (.610)
14.73 (.580)
0.93 (.037)
3X
0.69 (.027)
0.25 (.010 ) M B A M
4.69 (.185)
4.20 (.165)
5.28 (.208)
4.78 (.188)
0.55 (.022)
0.46 (.018)
- B -
1.32 (.052)
1.22 (.048)
2.79 (.110)
2.29 (.090)
1.39 (.055)
1.14 (.045)
LEAD ASSIGNM E N TS
1 - G A TE
2 - D RAIN
3 - SOURCE
10.16 (.400)
REF.
6.47 (.255)
6.18 (.243)
2.61 (.103)
2.32 (.091)
8.89 (.350)
REF.
MINIMUM RECOMMENDED FOOTPRINT
11.43 (.450)
8.89 (.350)
17.78 (.700)
3.81 (.150)
2.08 (.082)
2X
2.54 (.100)
2X
INTERNATIONAL
RE CTIFIE R
LO G O
A S SEMBLY
LO T CO D E
F530S
9246
9 B 1 M
PART NUMB ER
DATE CODE
(Y Y W W)
YY = YEAR
WW = WEEK
8 www.irf.com
Page 9

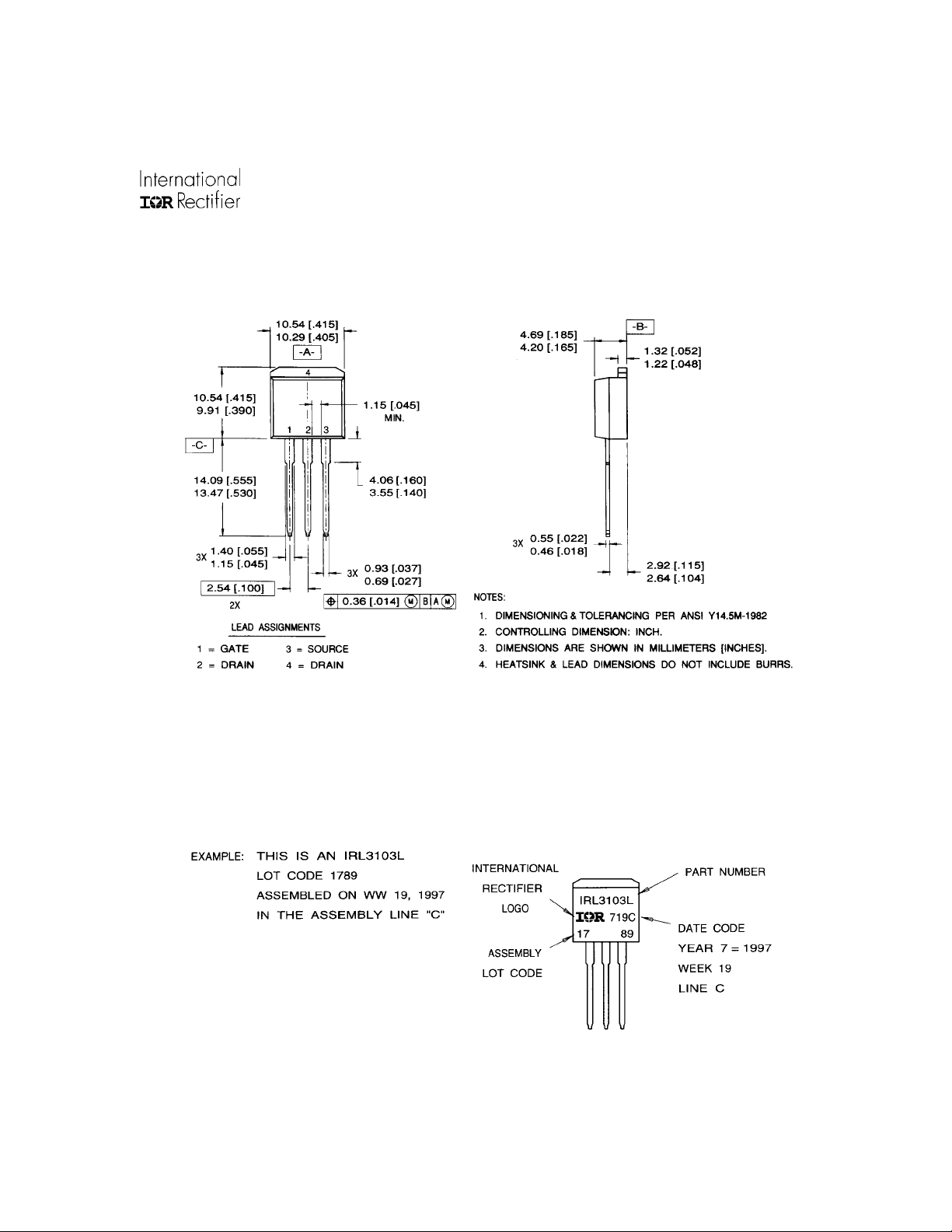

TO-262 Package Outline
IRF540NS/IRF540NL
TO-262 Part Mar king Information
www.irf.com 9
Page 10
IRF540NS/IRF540NL
D2Pak Tape & Reel Information
TRR
4.10 (.161)
3.90 (.153)
FEED DIRECTION
TRL
FEED DIRECTION
1.85 (.0 73)
1.65 (.0 65)
10.90 (.429)
10.70 (.421)
1.60 (.063)
1.50 (.059)
11.60 (.457)
11.40 (.449)
1.75 (.069)
1.25 (.049)
16.10 (.634)
15.90 (.626)
1.60 (.063)
1.50 (.059)
15.42 (.609)
15.22 (.601)
0.368 (.0145)
0.342 (.0135)
24.30 (.957)
23.90 (.941)
4.72 (.136)
4.52 (.178)
13.50 (.532)
12.80 (.504)
330.00
(14.173)
MAX.
NOTES :
1. COMFORMS TO EIA-418.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION MEASURED @ HUB.
4. INCLUDES FLANGE DISTORTION @ OUTER EDGE.
27.40 (1.079)
23.90 (.941)
4
26.40 (1.039)
24.40 (.961)
3
60.00 (2.362)
MIN.
30.40 (1.197)
MAX.
4
Data and specifications subject to change without notice.
This product has been designed and qualified for the industrial market.
Qualification Standards can be found on IR’s Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information.02/02
10 www.irf.com
Loading...
