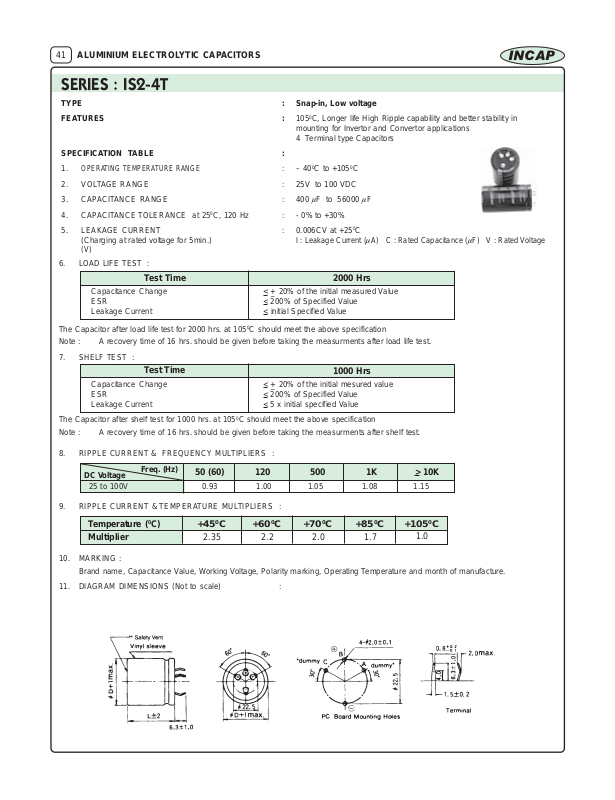

41 ALUMINIUM ELECTROLYTIC CAPACITORS
SERIES : IS2-4T
TYPE : Snap-in, Low voltage
0
FEATURES : 105
SPECIFICATION TABLE :
OPERATING TEMPERATURE RANGE
1.
2. VOLTAGE RANGE : 25V to 100 VDC
3. CAPACITANCE RANGE : 400 µF to 56000 µF
4. CAPACITANCE TOLERANCE at 250C, 120 Hz : - 0% to +30%
5. LEAKAGE CURRENT : 0.006CV at +250C
(Charging at rated voltage for 5min.)
(V)
6. LOAD LIFE TEST :
Test Time 2000 Hrs
Capacitance Change < +_ 20% of the initial measured Value
ESR
Leakage Current
The Capacitor after load life test for 2000 hrs. at 105
Note : A recovery time of 16 hrs. should be given before taking the measur ments after load life test.
7. SHELF TEST :
< 200% of Specified Value
< initial Specified Value
0
C should meet the above specification
Test Time
Capacitance Change < +_ 20% of the initial mesured value
ESR
Leakage Current
The Capacitor after shelf test for 1000 hrs. at 105
Note : A recovery time of 16 hrs. should be given before taking the measur ments after shelf test.
< 200% of Specified Value
< 5 x initial specified Value
0
C should meet the above specification
C, Longer life High Ripple capability and better stability in
mounting for Invertor and Convertor applications
4 Terminal type Capacitors
:– 400C to +1050C
I : Leakage Current (µA) C : Rated Capacitance (µF) V : Rated Voltage
1000 Hrs
INCAP
8. RIPPLE CURRENT & FREQUENCY MULTIPLIERS :
DC Voltage
25 to 100V 0.93 1.00 1.05 1.08 1.15
9. RIPPLE CURRENT & TEMPERATURE MULTIPLIERS :
Temperature (0C)
Multiplier
10. MARKING :
Brand name, Capacitance Value, Working Voltage, Polarity marking, Operating Temperature and month of manufacture.
11. DIAGRAM DIMENSIONS (Not to scale) :
Freq. (Hz)
+450C
2.35
+600C
2.2
+700C
2.0
1K50012050 (60)
+850C +1050C
1.7
> 10K
1.0
Page 2
40 ALUMINIUM ELECTROLYTIC CAPACITORS
12. DIMENSIONS Vs ESR and RIPPLE CURRENT
Rated Capacitance Nominal Maximum ESR Maximum Ripple Current
Voltage (µF) Case Size (Ω) at + 250C (A rms) at +850C
(WVDC) DxL (mm)
120Hz 20KHz 120Hz 20KHz
33000 40x40 0.018 0.016 9.35 10.75
25 47000 40x50 0.019 0.015 10.50 12.07
56000 40x63 0.015 0.012 11.40 13.11
35 22000 40x40 0.023 0.017 8.5 9.77
15000 40x40 0.022 0.018 8.16 9.38
50 22000 40x50 0.026 0.019 8.67 9.97
27000 40x63 0.021 0.016 9.52 10.95
*4000 35x63 0.016 0.011 13.9 15.6
4700 40x40 0.020 0.018 6.5 7.47
63 12000 40x40 0.03 0.028 7.68 8.83
15000 40x50 0.033 0.025 7.82 8.99
18000 40x63 0.028 0.020 8.50 9.77
4700 40x40 0.053 0.04 6.46 7.43
100 6800 40x50 0.049 0.038 7.14 8.21
8200 40x63 0.040 0.030 7.8 8.97
INCAP
*Specially Designed to match the specification of popular MNC
