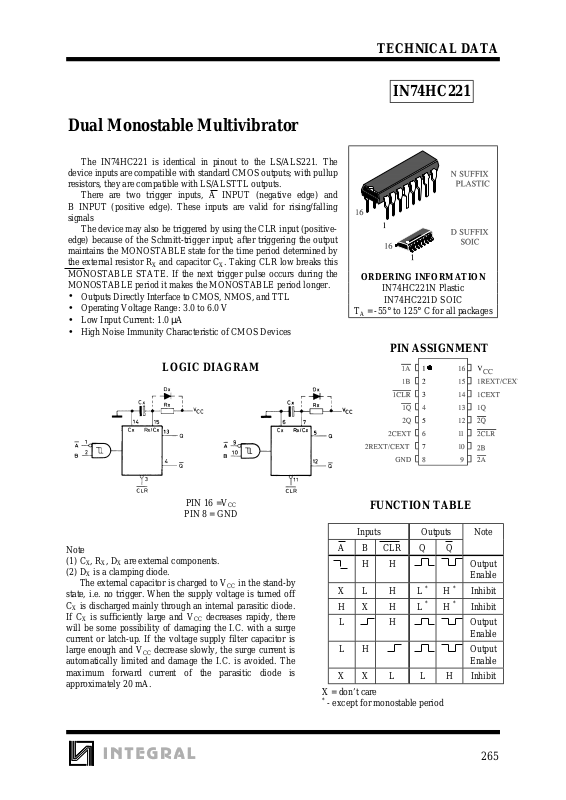

TECHNICAL DATA

265

Dual Monostable Multivibrator

The IN74HC221 is identical in pinout to the LS/ALS221. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.

There are two trigger inputs, A INPUT (negative edge) and B INPUT (positive edge). These inputs are valid for rising/falling signals

The device may also be triggered by using the CLR input (positiveedge) because of the Schmitt-trigger input; after triggering the output maintains the MONOSTABLE state for the time period determined by the external resistor R

X

and capacitor CX. Taking CLR low breaks this MONOSTABLE STATE. If the next trigger pulse occurs during the MONOSTABLE period it makes the MONOSTABLE period longer.

•

Outputs Directly Interface to CMOS, NMOS, and TTL

•

Operating Voltage Range: 3.0 to 6.0 V

•

Low Input Current: 1.0 µA

•

High Noise Immunity Characteristic of CMOS Devices

IN74HC221

ORDERING INFORMATION

IN74HC221N Plastic

IN74HC221D SOIC

TA = -55° to 125° C for all packages

PIN ASSIGNMENT

LOGIC DIAGRAM

PIN 16 =V

CC

PIN 8 = GND

FUNCTION TABLE

Inputs Outputs Note

ABCLRQ Q

HH Output

Enable XL H L *H *Inhibit HX H L *H *Inhibit LH Output

Enable LH Output

Enable X X L L H Inhibit

X = don’t care

*

- except for monostable period

Note (1) C

X

, RX, DX are external components.

(2) D

X

is a clamping diode.

The external capacitor is charged to V

CC

in the stand-by state, i.e. no trigger. When the supply voltage is turned off C

X

is discharged mainly through an internal parasitic diod e.

If C

X

is sufficiently large and VCC decreases rapidy, there will be some possibility of damaging the I.C. with a surge current or latch-up. If the voltage supply filter capacitor is large enough and V

CC

decrease slowly, the surge current is automatically limited and damage the I.C. is avoided. T he maximum forward current of the parasitic diode is approximately 20 mA.

IN74HC221

266

MAXIMUM RATINGS

*

Symbol Parameter Value Unit

V

CC

DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V

V

IN

DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V

V

OUT

DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V

I

IN

DC Input Current, per Pin A, B, CLR

C

X

, R

X

±

20

±

30

mA

I

OUT

DC Output Current, per Pin

±

25

mA

I

CC

DC Supply Current, VCC and GND Pins

±

50

mA

P

D

Power Dissipation in Still Air, Plastic DIP+ SOIC Package+

750 500

mW

Tstg Storage Temperature -65 to +150

°

C

T

L

Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package)

260

°

C

*

Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions. +Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C

SOIC Package: : - 7 mW/°C from 65° to 125°C

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Min Max Unit

V

CC

DC Supply Voltage (Referenced to GND) 3.0

**

6.0 V

VIN, V

OUT

DC Input Voltage, Output Voltage (Referenced to GND) 0 V

CC

V

T

A

Operating Temperature, All Package Types -55 +125

°

C

tr, t

f

Input Rise and Fall Time - CLR (Figure 2)

VCC =2.0 V V

CC

=4.5 V

V

CC

=6.0 V

0 0 0

1000

500 400

ns

A or B - No

Limit

R

X

External Timing Resistor VCC <4.5 V

V

CC

≥ 4.5 V

10

2.0

1000 1000

k

Ω

C

X

External Timing Capacitor 0 No

Limit

µ

F

**

The In74HC123 will function at 2.0 V but for optimum pulse width stability, VCC should be above

3.0 V.

This device c ontains p rote ction ci rcuitr y to guard a gainst damage d ue to high st atic voltages or electr ic fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, V

IN

and V

OUT

should be constrained to the range

GND≤(V

IN

or V

OUT

)≤VCC.

Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V

CC

).

Unused outputs must be left open.

IN74HC221

267

DC ELECTRICAL CHARACTERISTICS

(Voltages Referenced to GND)

V

CC

Guaranteed Limit

Symbol Parameter Test Conditions V

25 °C

to

-55°C

≤

85

°

C

≤

125

°

C

Unit

V

IH

Minimum HighLevel Input Voltage

V

OUT

=0.1 V or VCC-0.1 V



I

OUT

≤

20 µA

2.0

4.5

6.0

1.5

3.15

4.2

1.5

3.15

4.2

1.5

3.15

4.2

V

IL

Maximum Low Level Input Voltage

V

OUT

=0.1 V or VCC-0.1 V



I

OUT

 ≤

20 µA

2.0

4.5

6.0

0.5

1.35

1.8

0.5

1.35

1.8

0.5

1.35

1.8

V

OH

Minimum HighLevel Output Voltage

VIN=VIH or V

IL



I

OUT

 ≤

20 µA

2.0

4.5

6.0

1.9

4.4

5.9

1.9

4.4

5.9

1.9

4.4

5.9

V

VIN=VIH or V

IL



I

OUT

 ≤

4.0 mA



I

OUT

 ≤

5.2 mA

4.5

6.0

3.98

5.48

3.84

5.34

3.7

5.2

V

OL

Maximum LowLevel Output Voltage

VIN=VIH or V

IL



I

OUT

 ≤

20 µA

2.0

4.5

6.0

0.1

V

VIN=VIH or V

IL



I

OUT

 ≤

4.0 mA



I

OUT

 ≤

5.2 mA

4.5

6.0

0.26

0.33

0.4

I

IN

Maximum Input Leakage Current (A, B, CLR)

VIN=VCC or GND 6.0

±

0.1

±

1.0

±

1.0

µ

A

I

IN

Maximum Input Leakage Current (R

X

, CX)

V

IN=VCC

or GND 6.0

±

50

±

500

±

500

nA

I

CC

Maximum Quiescent Supply Current (per Package) Standby State

V

IN=VCC

or GND Q1 and Q2 = Low I

OUT

=0µA

6.0 130 220 350

µ

A

25°C-45°C

to 85°C

-55°C to

125°C

I

CC

Maximum Supply Current (per Package) Active State

V

IN=VCC

or GND Q1 and Q2 = High I

OUT

=0µA

Pins 15 and 7 = 0.5 V

CC

6.0 400 600 800

µ

A

IN74HC221

268

AC ELECTRICAL CHARACTERISTICS

(CL=50pF,Input tr=tf=6.0 ns)

V

CC

Guaranteed Limit

Symbol Parameter V

25 °C

to

-55°C

≤85°

C≤125°C

Unit

t

PLH

, t

PHL

Maximum Propagation Delay, Input A or B to Q or Q (Figures 1 and 3)

2.0

4.5

6.0

255

50 45

320

65 55

385

75 65

ns

t

PLH

, t

PHL

Maximum Propagation Delay , CLR to Q or Q (Figures 2 and 3)

2.0

4.5

6.0

215

45 35

270

55 45

325

65 55

ns

t

TLH

, t

THL

Maximum Output Transition Time, Any Output(Figures 2 and 3)

2.0

4.5

6.0

75 16 14

95 20 17

110

22 20

ns

C

IN

Maximum Input Capacitance A, B, CLR

C

X

, R

X

-102510 25

10 25

pF

Power Dissipation Capacitance (Per Multivibrator)

Typical @25°C,V

CC

=5.0 V

C

PD

Used to determine the no-load dynamic power consumption: P

D=CPDVCC

2

f+ICCV

CC

150 pF

TIMING REQUIREMENTS

(CL=50pF,Input tr=tf=6.0 ns)

V

CC

Guaranteed Limit

Symbol Parameter V

25 °C to

-55°C

≤85°

C

≤

125°C

Unit

t

rec

Minimum Recovery Time, Inactive to A or B (Figure 2)

2.0

4.5

6.0

0 0 0

ns

t

w

Minimum Pulse Width, Input A or B (Figure 1)

2.0

4.5

6.0

100

20 17

125

25 20

150

30 25

ns

t

w

Minimum Pulse Width, CLR (Figure 2)

2.0

4.5

6.0

100

20 17

125

25 20

150

30 25

ns

t

r, tr

Maximum Input Rise and Fall Times, CLR (Figure 2)

2.0

4.5

6.0

1000

500 400

1000

500 400

1000

500 400

ns

A or B (Figure 2) 2.0

4.5

6.0

No Limit

IN74HC221

269

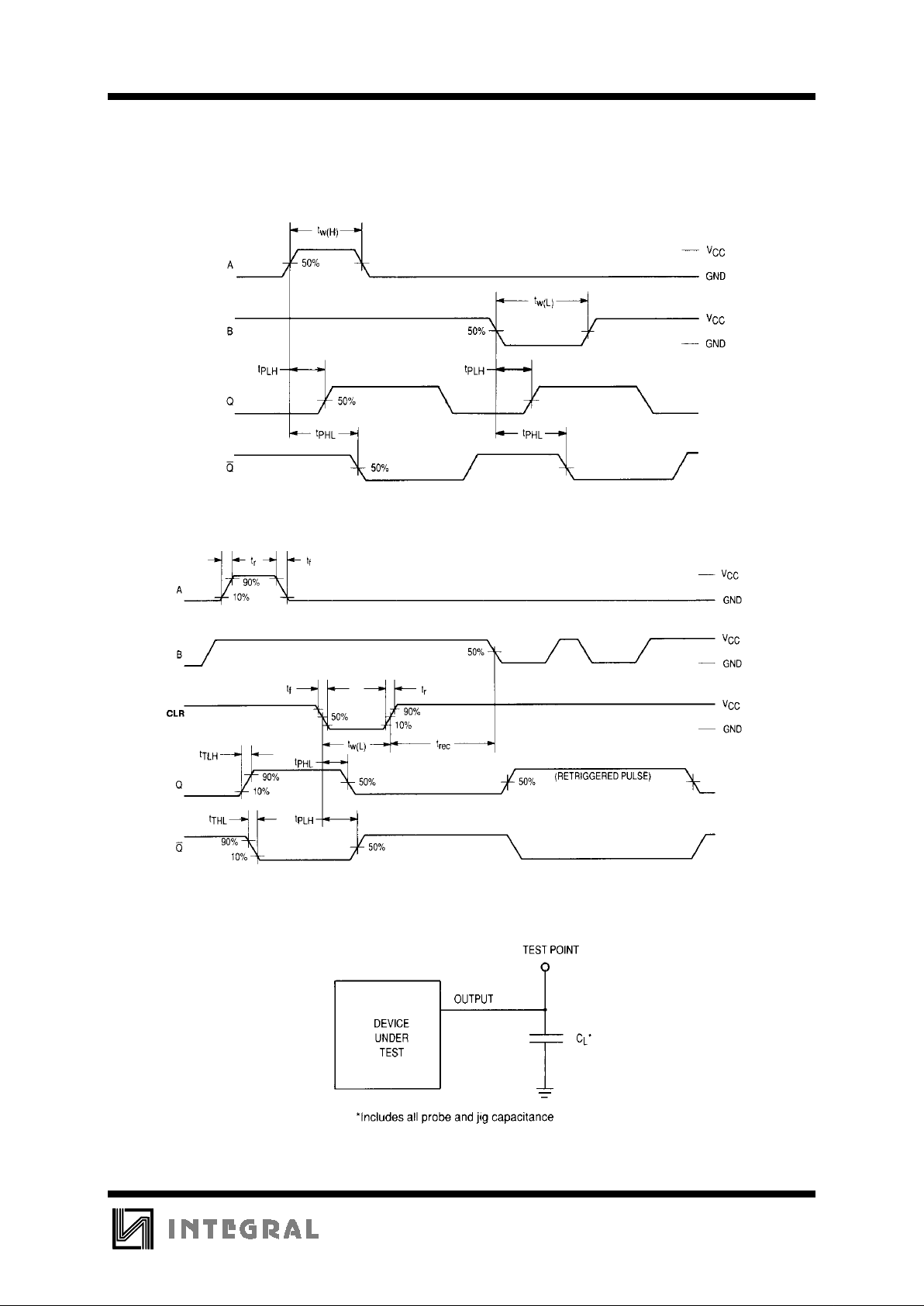

Figure 1. Switching Waveforms

Figure 2. Switching Waveforms

Figure 3. Test Circuit

IN74HC221

270

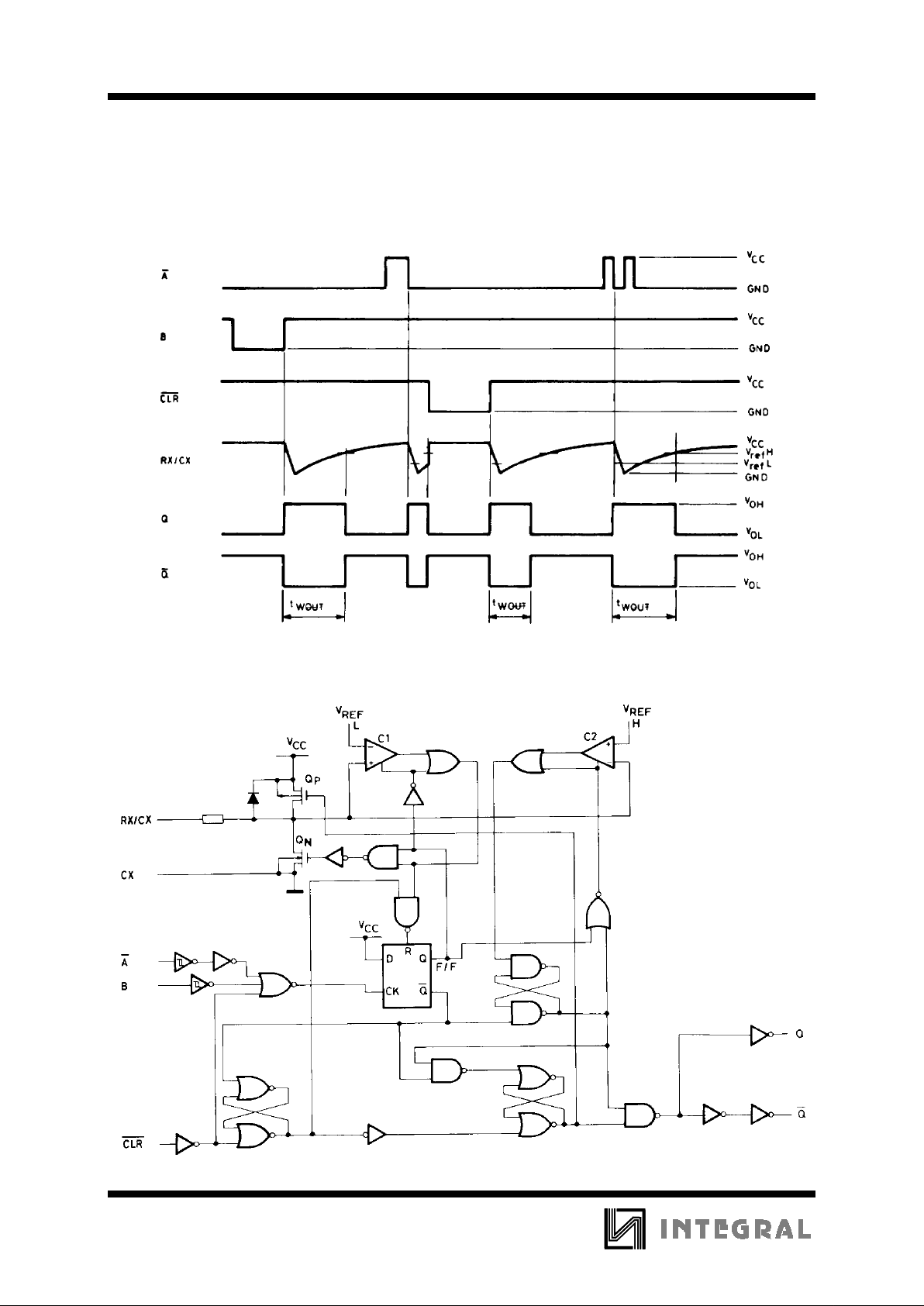

TIMING DIAGRAM

EXPANDED LOGIC DIAGRAM
