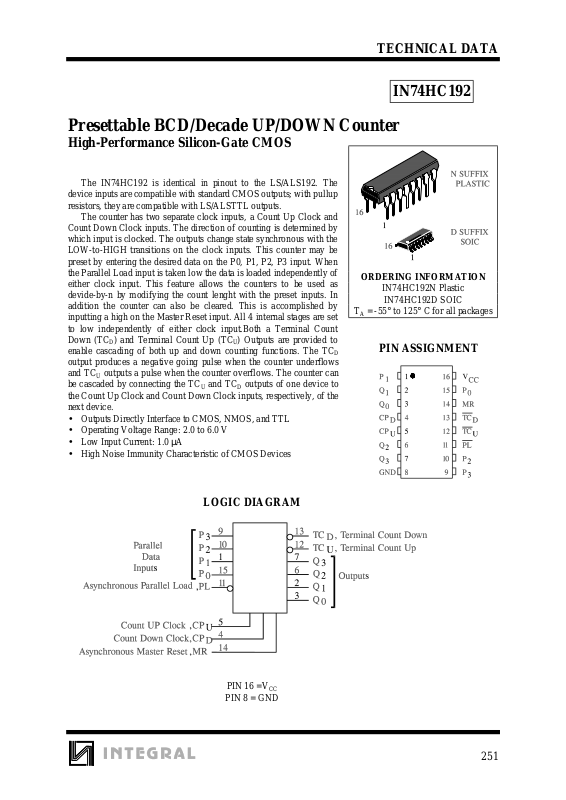

TECHNICAL DATA
251
Presettable BCD/Decade UP/DOWN Counter
High-Performance Silicon-Gate CMOS
The IN74HC192 is identical in pinout to the LS/ALS192. The
device inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LS/ALSTTL outputs.
The counter ha s two separate clo ck inputs, a Co unt Up Cloc k and
Count Down Clock inputs. The direction of counting is determined by
which input is clocked. The outputs change state synchronous with the
LOW-to-HIGH transitions on the clock inputs. This counter may be
preset by entering the desired data on the P0, P1, P2, P3 input. When
the Parallel Load input is taken low the data is loaded independently of
either clock input. This feature allows the counters to be used as
devide-by-n by modifying the count lenght with the preset i nputs. In
addition the counter can also be cleared. This is accomplished by
inputting a high on the Master Reset input. All 4 internal stages are set
to low independently of either clock input.Both a Terminal Count
Down (TC
D
) and Terminal Count Up (TCU) Outputs are provided to
enable cascading of both up and down counting functions. The TC
D
output produces a negative going pulse when the counter underflows
and TC
U
outputs a pulse when the counter overflows. The counter can
be cascaded by connecting the TC
U
and TCD outputs of one device to
the Count Up Clock and Count Down Clock inputs, respectively, of the
next device.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0 µA
•
High Noise Immunity Characteristic of CMOS Devices
IN74HC192
ORDERING INFORMATION
IN74HC192N Plastic
IN74HC192D SOIC
TA = -55° to 125° C for all packages

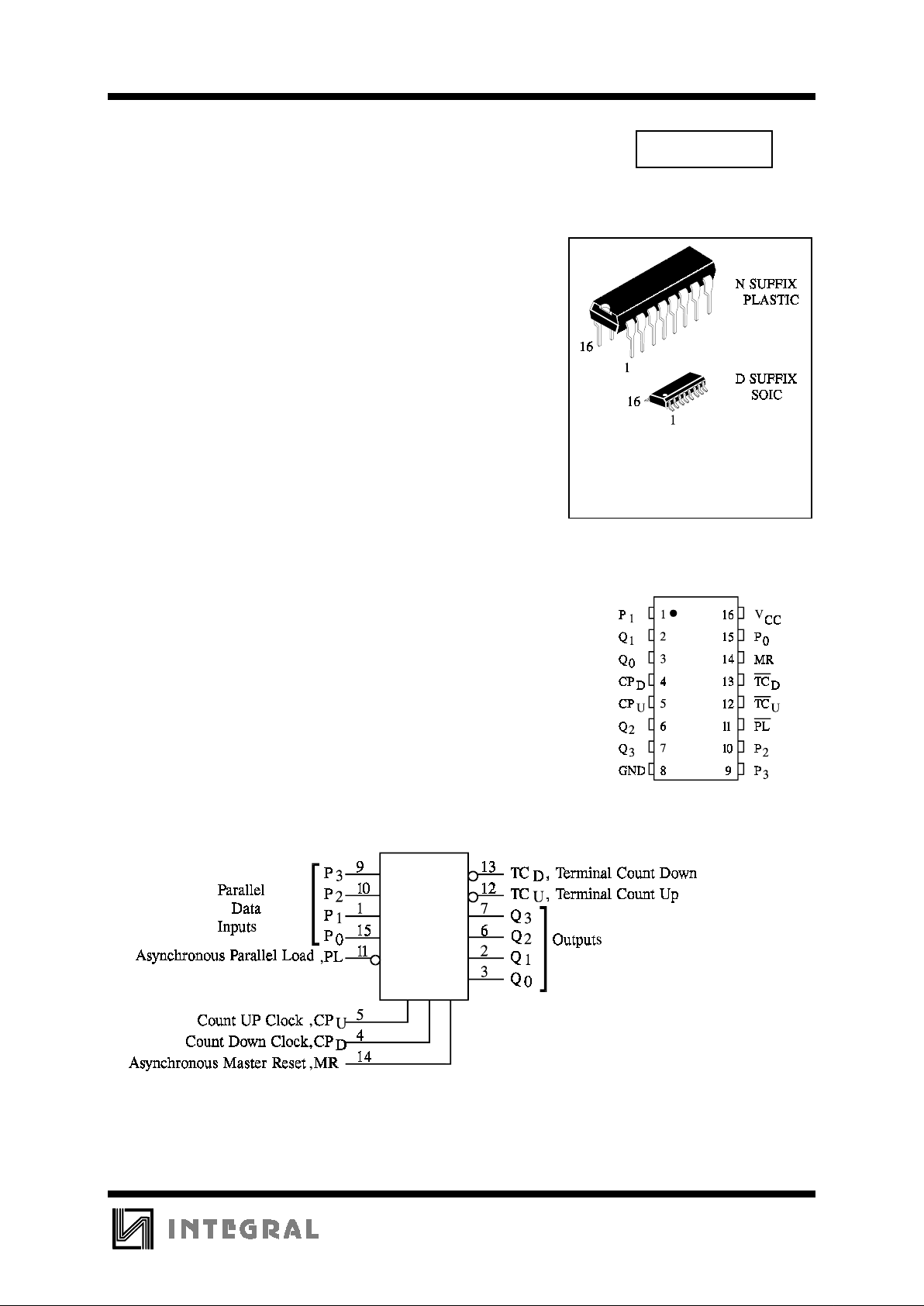

PIN ASSIGNMENT
LOGIC DIAGRAM
PIN 16 =V
CC
PIN 8 = GND
Page 2
IN74HC192
252
MAXIMUM RATINGS
*
Symbol Parameter Value Unit
V
CC
DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V
V
IN
DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V
V
OUT
DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V
I
IN
DC Input Current, per Pin
±
20
mA
I
OUT
DC Output Current, per Pin
±
25
mA
I
CC
DC Supply Current, VCC and GND Pins
±
50
mA
P
D
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
750
500
mW
Tstg Storage Temperature -65 to +150
°
C
T
L
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
260
°
C
*
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Min Max Unit
V
CC
DC Supply Voltage (Referenced to GND) 2.0 6.0 V
VIN, V
OUT
DC Input Voltage, Output Voltage (Referenced to GND) 0 V
CC
V
T
A
Operating Temperature, All Package Types -55 +125
°
C
tr, t
f
Input Rise and Fall Time (Figure 1) VCC =2.0 V
V
CC
=4.5 V
V
CC
=6.0 V
0
0
0
1000
500
400
ns
This device c ontains p rote ction ci rcuitr y to guard a gainst damage d ue to high st atic voltages or electr ic
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range
GND≤(V
IN
or V
OUT
)≤VCC.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
).
Unused outputs must be left open.
Page 3
IN74HC192
253
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Guaranteed Limit
Symbol Parameter Test Conditions V
25 °C
to
-55°C
≤
85
°
C
≤
125
°
C
Unit
V
IH
Minimum High-Level
Input Voltage
V
OUT
=0.1 V or VCC-0.1 V
I
OUT
≤
20 µA
2.0
4.5
6.0
1.5
3.15
4.2
1.5
3.15
4.2
1.5
3.15
4.2
V
V
IL
Maximum Low Level Input Voltage
V
OUT
=0.1 V or VCC-0.1 V
I
OUT
≤
20 µA
2.0
4.5
6.0
0.3
0.9
1.2
0.3
0.9
1.2
0.3
0.9
1.2
V
V
OH
Minimum High-Level
Output Voltage
VIN=VIH or V
IL
I
OUT
≤
20 µA
2.0
4.5
6.0
1.9
4.4
5.9
1.9
4.4
5.9
1.9
4.4
5.9
V
VIN=VIH or V
IL
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
4.5
6.0
3.98
5.48
3.84
5.34
3.7
5.2
V
OL
Maximum Low- Level
Output Voltage
VIN=VIH or V
IL
I
OUT
≤
20 µA
2.0
4.5
6.0
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
VIN=VIH or V
IL
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
4.5
6.0
0.26
0.26
0.33
0.33
0.4
0.4
I
IN
Maximum Input
Leakage Current
VIN=VCC or GND 6.0
±
0.1
±
1.0
±
1.0
µ
A
I
CC
Maximum Quiescent
Supply Current
(per Package)
VIN=VCC or GND
I
OUT
=0µA
6.0 8.0 80 160
µ
A
FUNCTION TABLE
Inputs Mode
MR PL CP
U
CP
D
HX X X Reset(Asyn.)
L L X X Preset(Asyn.)
L H H No Count
L H H Count Up
L H H Count Down
L H H No Count
X = don’t care
The IN74HC192 can be preset to any state, but
will not count beyond 9. If preset to state 10, 11, 12,
13, 14 or 15, it will follow the sequence 10, 11, 6: 12,
13, 4: 14, 15, 2 if counting Up, and follow the
sequence 15, 14, 13, 12, 11, 10, 9 if counting Down.
Logic equati ons
For Terminal Count:
TC
U
= Q0 • Q3 • CP
U
TCD = Q0 • Q1 • Q2 • Q3 • CP
D
Page 4
IN74HC192
254
AC ELECTRICAL CHARACTERISTICS
(CL=50pF,Input tr=tf=6.0 ns)
V
CC
Guaranteed Limit
Symbol Parameter V
25 °C to
-55°C
≤85°C≤
125°C
Unit
f
max
Minimum Clock Frequency (50 % D ut y Cycle)
(Figures 1 and 6)
2.0
4.5
6.0
12
36
43
3.2
16
19
2.6
13
15
MHz
t
PLH
, t
PHL
Maximum Propagati on Delay, Clock to Q
(Figures 1 and 6)
2.0
4.5
6.0
215
43
37
270
54
46
325
65
55
ns
t
PLH
, t
PHL
Maximum Propagation Delay, PL to Q
(Figures 3 and 6)
2.0
4.5
6.0
215
43
37
270
54
46
325
65
55
ns
t
PLH
, t
PHL
Maximum Propagation Delay, Clock to Terminal
Count (Figures 2 and 6)
2.0
4.5
6.0
125
25
21
155
31
26
190
38
32
ns
t
TLH
, t
THL
Maximum Output Transition Time,Any Output
(Figures 1 and 6)
2.0
4.5
6.0
75
15
13
95
20
18
110
23
20
ns
C
IN
Maximum Input Capacitance - 10 10 10 pF
Power Dissipation Capacitance (Per Package)
Typical @25°C,V
CC
=5.0 V
C
PD
Used to determine the no-load dynamic power
consumption: P
D=CPDVCC
2
f+ICCV
CC
60 pF
TIMING REQUIREMENTS
(CL=50pF,Input tr=tf=6.0 ns)
V
CC
Guaranteed Limit
Symbol Parameter V
25 °C to -55°C
≤85°
C
≤
125°C
Unit
t
su
Minimum Setup Time, Pn to PL
(Figure 4)
2.0
4.5
6.0
100
20
18
125
35
22
150
30
26
ns
t
h
Minimum Hold Time, P n to PL
(Figure 4)
2.0
4.5
6.0
0
0
0
0
0
0
0
0
0
ns
t
w
Minimum Pulse Width, Clock (Figure1)2.0
4.5
6.0
150
30
26
190
38
33
225
45
38
ns
t
w
Minimum Pul se Width, PL
(Figure 3)
2.0
4.5
6.0
100
20
17
125
25
26
150
30
26
ns
t
w
Minimum Pul se Width, MR
(Figure 5)
2.0
4.5
6.0
100
20
17
125
25
26
150
30
26
ns
tr, t
f
Minimum Inp ut Ris e and Fall Times
(Figure 1)
2.0
4.5
6.0
100
500
400
100
500
400
100
500
400
ns
Page 5
IN74HC192
255

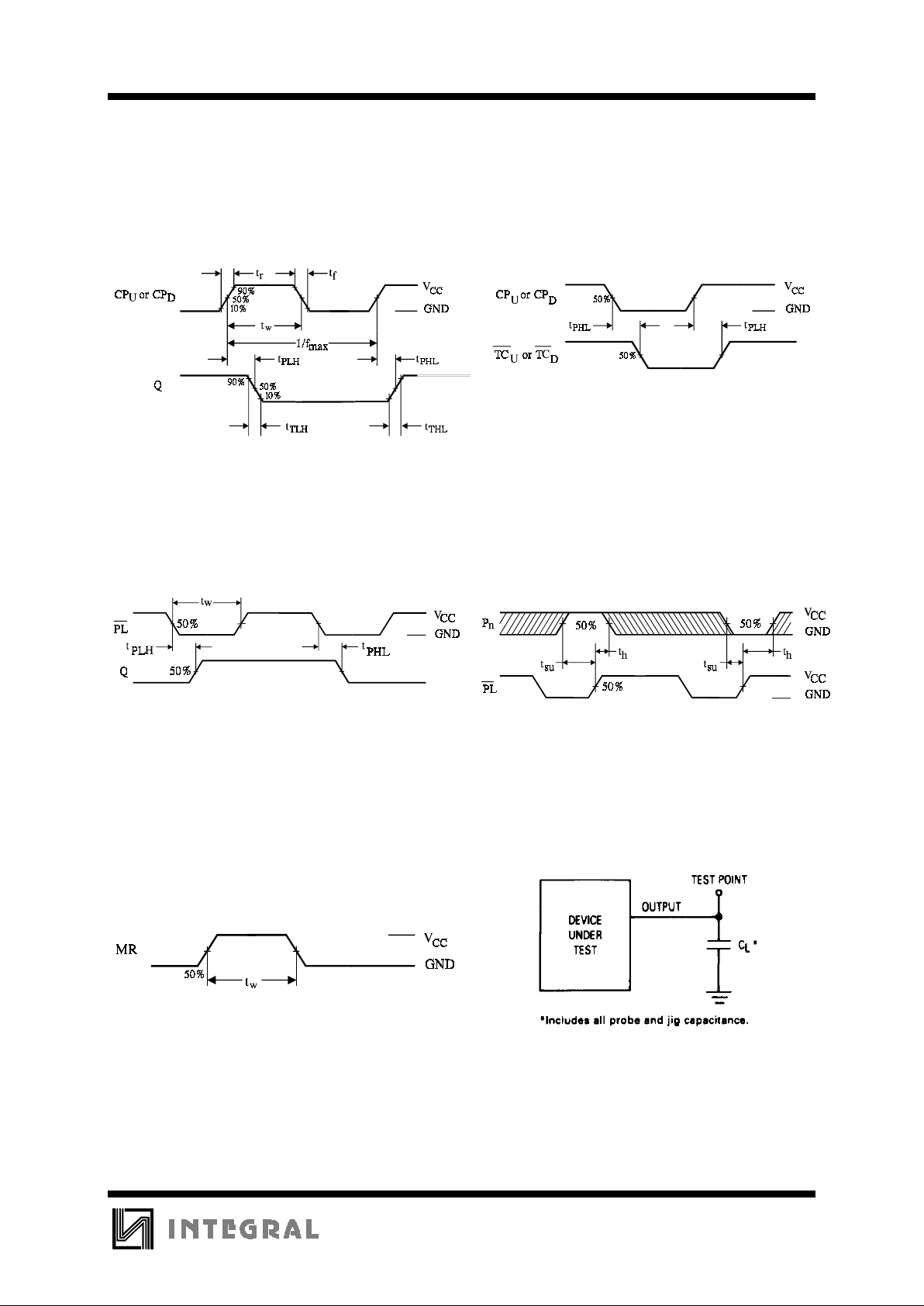

Figure 1. Switching Waveforms Figure 2. Switching Waveforms
Figure 3. Switching Waveforms Figure 4. Switching Waveforms
Figure 5. Switching Waveforms Figure 6. Test Circuit
Page 6
IN74HC192
256

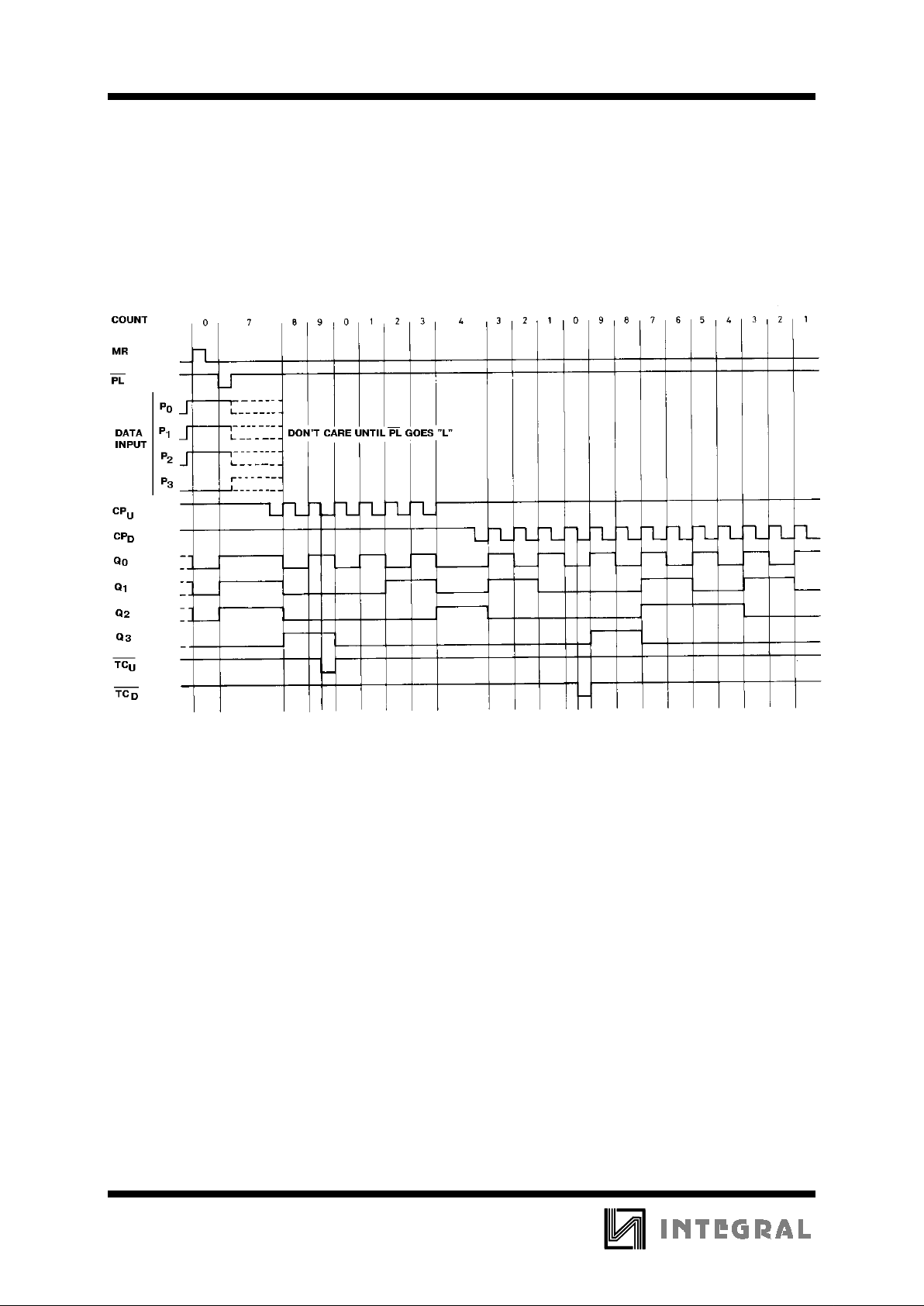

TIMING DIAGRAM
Page 7
IN74HC192
257

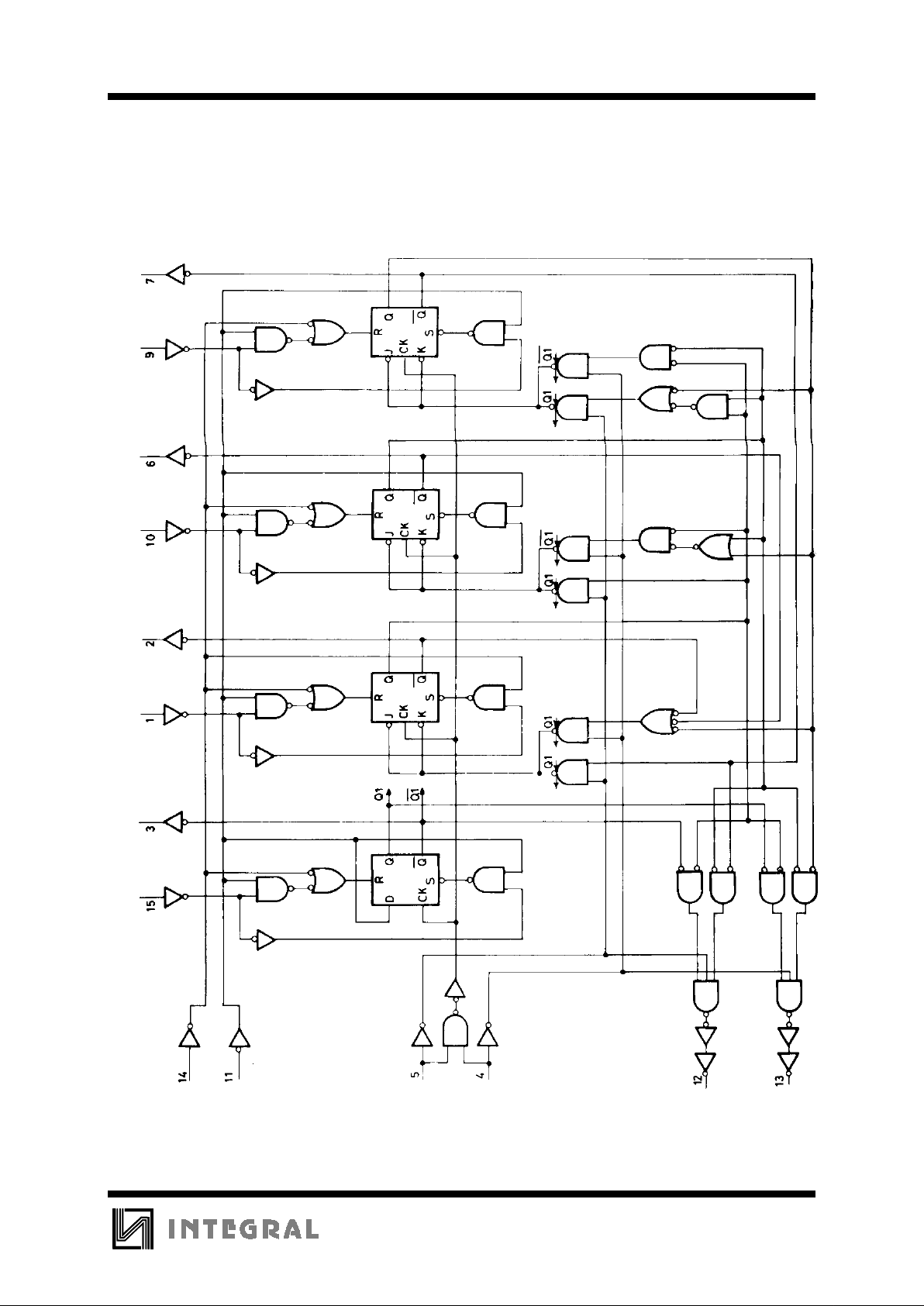

EXPANDED LOGIC DIAGRAM
