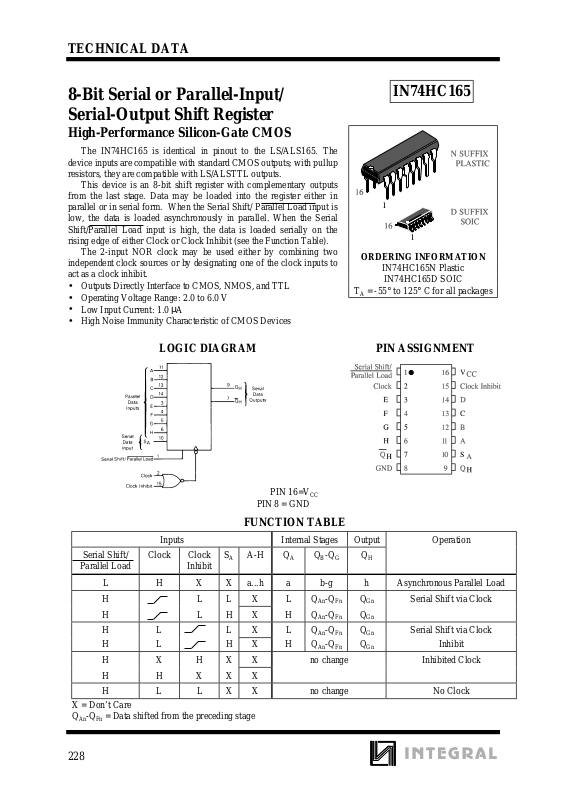

Page 1
TECHNICAL DATA
228
8-Bit Serial or Parallel-Input/
Serial-Output Shift Register
High-Performance Silicon-Gate CMOS
The IN74HC165 is identical in pinout to the LS/ALS165. The
device inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LS/ALSTTL outputs.
This device is an 8-bit shift register with complementary outputs
from the last stage. Data may be loaded into the register either in
parallel or in serial form. When the Serial Shift/ Parallel Load input is
low, the data is loaded asynchronously in parallel. When the Serial
Shift/Parallel Load input is high, the data is loaded serially on the
rising edge of eit her Clock or Clo ck Inhibit (see the Function Table).
The 2-input NOR clock may be used either by combining two
independent clock sources or by designating one of the clock inputs to
act as a clock inhibit.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0 µA
•
High Noise Immunity Characteristic of CMOS Devices
IN74HC165
ORDERING INFORMATION
IN74HC165N Plastic
IN74HC165D SOIC
TA = -55° to 125° C for all packages
LOGIC DIAGRAM
PIN 16=V
CC
PIN 8 = GND
FUNCTION TABLE
Inputs Internal Stages Output Operation
Serial Shift/
Parallel Load
Clock Clock
Inhibit
SAA-H Q
A
QB-Q
G
Q
H
L H X X a...h a b-g h Asynchronous Parallel Load
HLLXLQ
An-QFn
Q
Gn
Serial Shift via Clock
HLHXHQ
An-QFn
Q
Gn
HL LXLQ
An-QFn
Q
Gn
Serial Shift via Clock
HL HXHQ
An-QFn
Q
Gn
Inhibit
H X H X X no change Inhibited Clock
HHXXX
H L L X X no change No Clock
X = Don’t Care
Q
An-QFn
= Data shifted from the preceding stage
PIN ASSIGNMENT
Page 2
IN74HC165
229
MAXIMUM RATINGS
*
Symbol Parameter Value Unit
V
CC
DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V
V
IN
DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V
V
OUT
DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V
I
IN
DC Input Current, per Pin
±
20
mA
I
OUT
DC Output Current, per Pin
±
25
mA
I
CC
DC Supply Current, VCC and GND Pins
±
50
mA
P
D
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
750
500
mW
Tstg Storage Temperature -65 to +150
°
C
T
L
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
260
°
C
*
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Min Max Unit
V
CC
DC Supply Voltage (Referenced to GND) 2.0 6.0 V
VIN, V
OUT
DC Input Voltage, Output Voltage (Referenced to GND) 0 V
CC
V
T
A
Operating Temperature, All Package Types -55 +125
°
C
tr, t
f
Input Rise and Fall Time (Figure 1) VCC =2.0 V
V
CC
=4.5 V
V
CC
=6.0 V
0
0
0
1000
500
400
ns
This device c ontains p rote ction ci rcuitr y to guard a gainst damage d ue to high st atic voltages or electr ic
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range
GND≤(V
IN
or V
OUT
)≤VCC.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
).
Unused outputs must be left open.
Page 3
IN74HC165
230
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Guaranteed Limit
Symbol Parameter Test Conditions V
25 °C
to
-55°C
≤
85
°
C
≤
125
°
C
Unit
V
IH
Minimum High-Level
Input Voltage
V
OUT
=0.1 V or VCC-0.1 V
I
OUT
≤
20 µA
2.0
4.5
6.0
1.5
3.15
4.2
1.5
3.15
4.2
1.5
3.15
4.2
V
V
IL
Maximum Low Level Input Voltage
V
OUT
=0.1 V or VCC-0.1 V
I
OUT
≤
20 µA
2.0
4.5
6.0
0.3
0.9
1.2
0.3
0.9
1.2
0.3
0.9
1.2
V
V
OH
Minimum High-Level
Output Voltage
VIN=VIH or V
IL
I
OUT
≤
20 µA
2.0
4.5
6.0
1.9
4.4
5.9
1.9
4.4
5.9
1.9
4.4
5.9
V
VIN=VIH or V
IL
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
4.5
6.0
3.98
5.48
3.84
5.34
3.7
5.2
V
OL
Maximum Low-Leve l
Output Voltage
VIN= VIL or V
IH
I
OUT
≤
20 µA
2.0
4.5
6.0
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
VIN= VIL or V
IH
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
4.5
6.0
0.26
0.26
0.33
0.33
0.4
0.4
I
IN
Maximum Input
Leakage Current
VIN=VCC or GND 6.0
±
0.1
±
1.0
±
1.0
µ
A
I
CC
Maximum Quiescent
Supply Current
(per Package)
VIN=VCC or GND
I
OUT
=0µA
6.0 8 .0 80 160
µ
A
Page 4
IN74HC165
231
AC ELECTRICAL CHARACTERISTICS
(CL=50pF,Input tr=tf=6.0 ns)
V
CC
Guaranteed Limit
Symbol Parameter V
25 °C
to
-55°C
≤85°C≤
125°C
Unit
f
max
Maximum Clock Frequency (50 % Duty Cycle)
(Figures 1 and 8)
2.0
4.5
6.0
6.0
30
35
4.8
24
28
4.0
20
24
MHz
t
PLH
, t
PHL
Maximum Propagation Delay, Clock (o r Clock
Inhibit) to Q
H
or QH (Figures 1 and 8)
2.0
4.5
6.0
150
30
26
190
38
33
225
45
38
ns
t
PLH
, t
PHL
Maximum Propagat i on Delay ,
SerialShift./.Parallel Load to Q
H
or Q
H
(Figures 2 and 8)
2.0
4.5
6.0
175
35
30
220
44
37
265
53
45
ns
t
PLH
, t
PHL
Maximum Propagation Delay, Input H to QH or
Q
H
(Figures 3 and 8)
2.0
4.5
6.0
150
30
26
190
38
33
225
45
38
ns
t
TLH
, t
THL
Maximum Output Transition Time, Any Output
(Figures 1 and 8)
2.0
4.5
6.0
75
15
13
95
19
16
110
22
19
ns
C
IN
Maximum Input Capacitance - 10 10 10 pF
Power Dissipation Capacitance (Per Package)
Typical @25°C,V
CC
=5.0 V
C
PD
Used to determine the no-load dynamic power
consumption:
P
D=CPDVCC
2
f+ICCV
CC
85 pF
Page 5
IN74HC165
232
TIMING REQUIREMENTS
(CL=50pF,Input tr=tf=6.0 ns)
V
CC
Guaranteed Limit
Symbol Parameter V
25 °C to
-55°C
≤85°
C
≤
125°C
Unit
t
SU
Minimum Setup Time, Parallel
Data Inputs to Serial
Shift/Parallel Load (Figure 4)
2.0
4.5
6.0
100
20
17
125
25
21
150
30
26
ns
t
SU
Minimum Setup Time, Input
S
A
to Clock (or Clock Inhibit)
(Figure 5)
2.0
4.5
6.0
100
20
17
125
25
21
150
30
26
ns
t
SU
Minimum Setup Time, S erial
Shift/Parallel Load to Clock
(or Clock Inhibit) (Figure 6)
2.0
4.5
6.0
100
20
17
125
25
21
150
30
26
ns
t
SU
Minimum Setup Time, Clock
to Clock Inhib i t (Figure 7)
2.0
4.5
6.0
100
20
17
125
25
21
150
30
26
ns
t
h
Minimum Hold Time, Serial
Shift/Parallel Load to Parallel
Data Inputs (Figure 4)
2.0
4.5
6.0
5
5
5
5
5
5
5
5
5
ns
t
h
Minimum Hold Time, Clock
(or Clock Inhibit) to Input S
A
(Figure 5)
2.0
4.5
6.0
5
5
5
5
5
5
5
5
5
ns
t
h
Minimum Hold Time, Clock
(or Clock Inhibit) to Serial
Shift/Parallel Load (Figure 6)
2.0
4.5
6.0
5
5
5
5
5
5
5
5
5
ns
t
rec
Minimum Recovery Time,
Clock to Clock Inhibit
(Figure 7)
2.0
4.5
6.0
100
20
17
125
25
21
150
30
26
ns
t
w
Minimum Pul se Width, Clock
(or Clock Inhibit) (Figure 1)
2.0
4.5
6.0
80
16
14
100
20
17
120
24
20
ns
t
w
Minimum Pul se Width, Serial
Shift/Parallel Load (Figure 2)
2.0
4.5
6.0
80
16
14
100
20
17
120
24
20
ns
t
r, tf
Maximum Input Rise and Fall
Times (Figure 1)
2.0
4.5
6.0
1000
500
400
1000
500
400
1000
500
400
ns
Page 6
IN74HC165
233

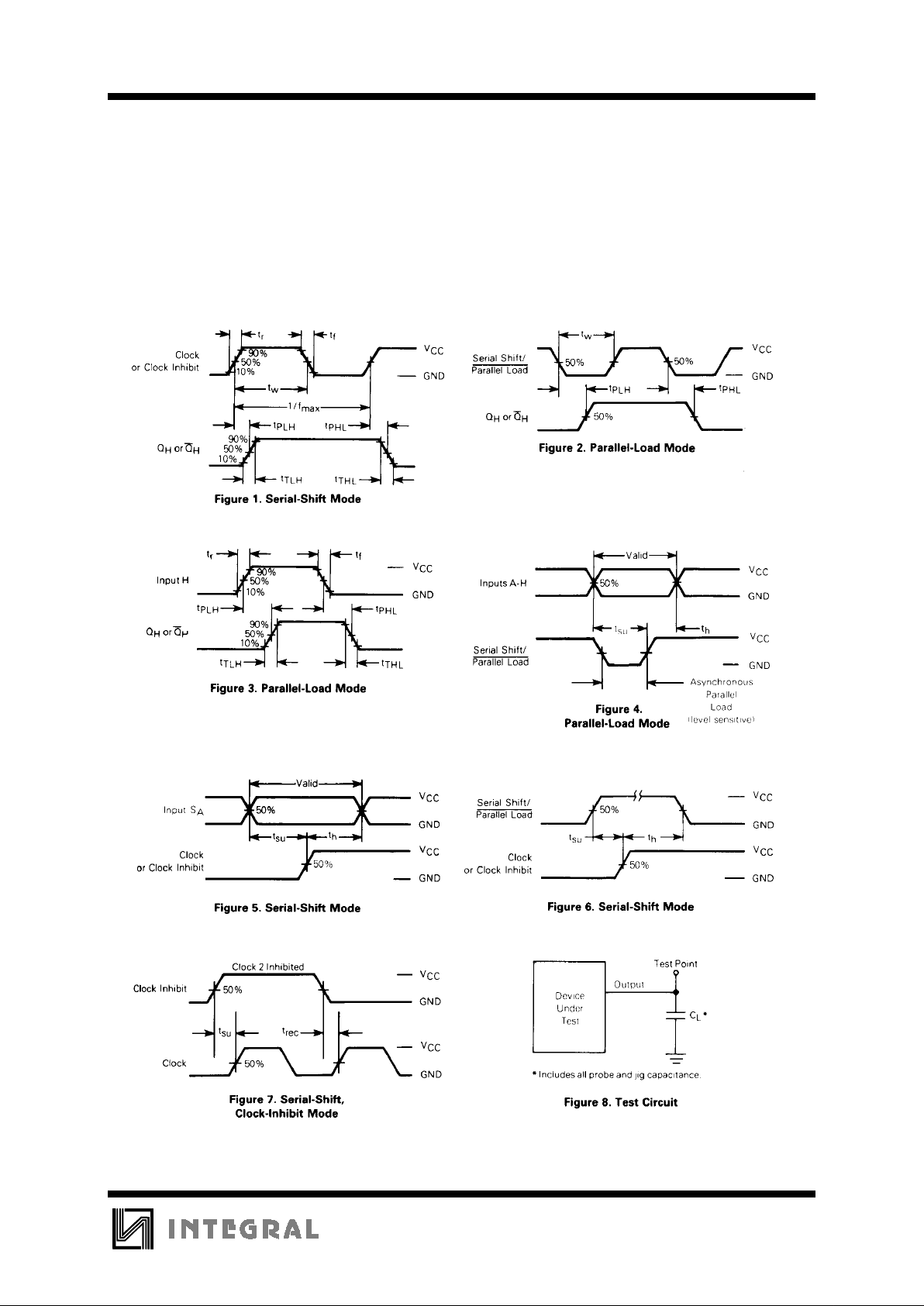

SWITCHING WAVEFORMS
Page 7
IN74HC165
234

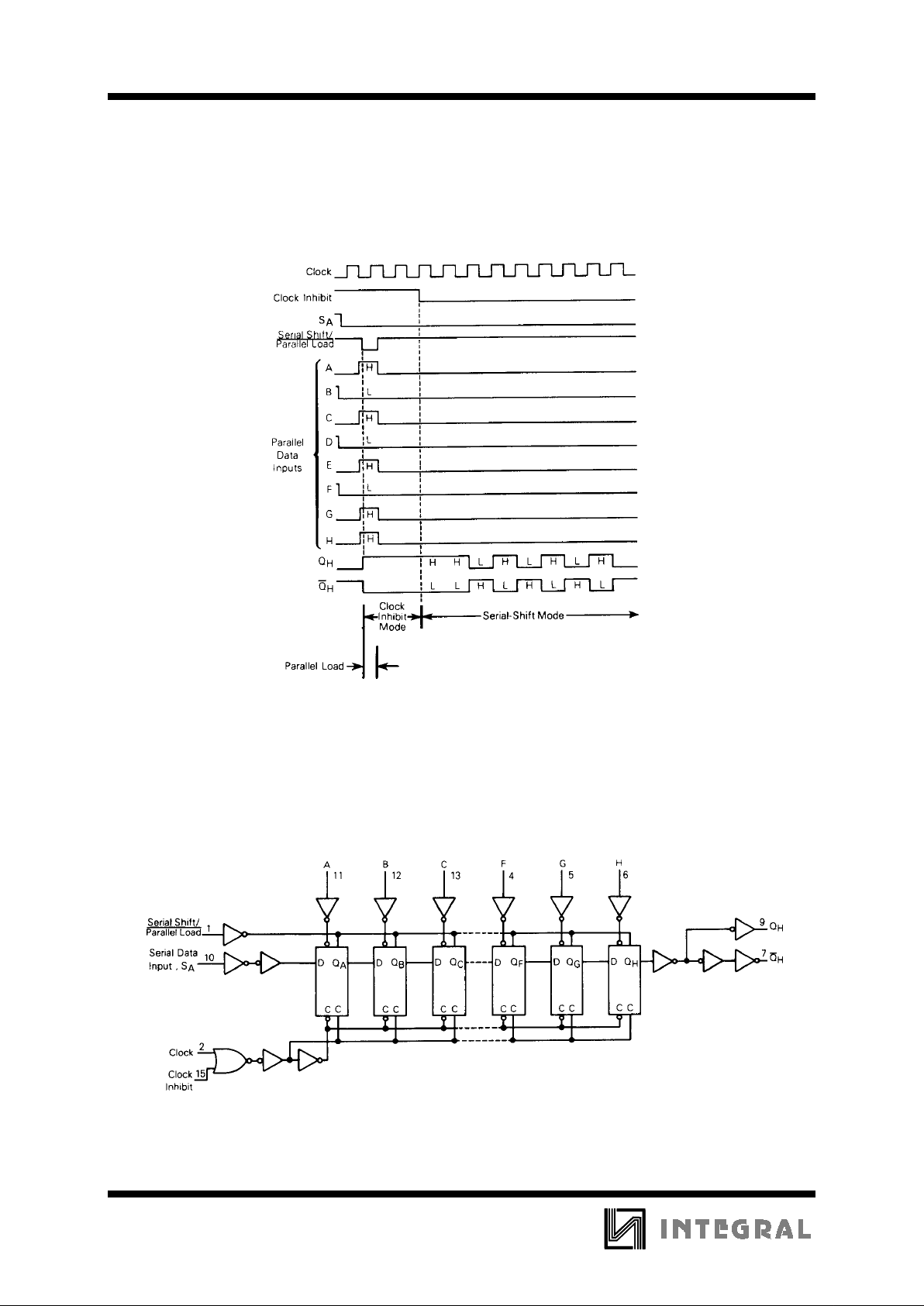

TIMING DIAGRAM
EXPANDED LOGIC DIAGRAM
