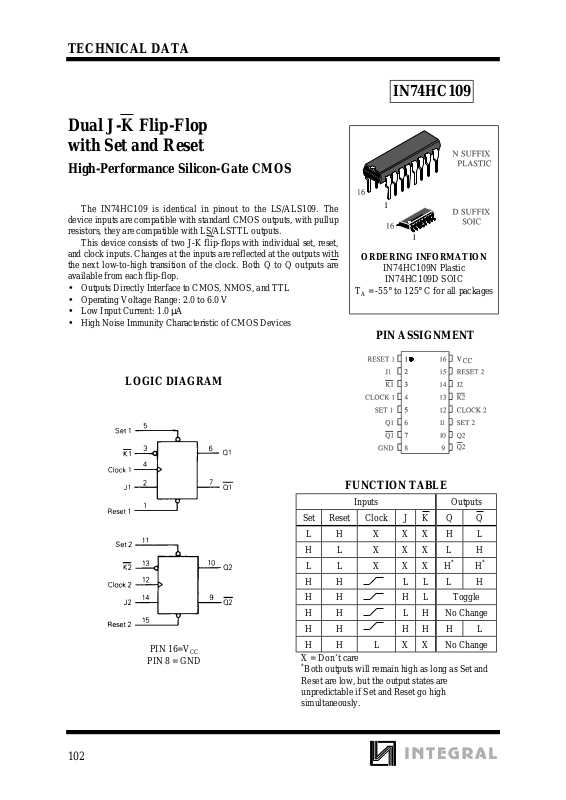

Page 1
TECHNICAL DATA
102
Dual J-K Flip-Flop
with Set and Reset
High-Performance Silicon-Gate CMOS
The IN74HC109 is identical in pinout to the LS/ALS109. The
device inputs are compatible with standard CMOS outputs, with pullup
resistors, they are compatible with LS/ALSTTL outputs.
This device consists of two J-K flip-flops with individual set, reset,
and clock inputs. Changes at the inputs are reflected at the outputs with
the next low-to-high transition of the clock. Both Q to Q outputs are
available from each flip-flop.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0 µA
•
High Noise Immunity Characteristic of CMOS Devices
IN74HC109
ORDERING INFORMATION
IN74HC109N Plastic
IN74HC109D SOIC
TA = -55° to 125° C for all packages
PIN ASSIGNMENT
FUNCTION TABLE
Inputs Outputs
Set Reset Clock J K Q Q
LH XXXHL
HL XXXLH
LL XXXH*H
*
HH LLLH
H H H L Toggle
H H L H No Change
HH HHHL
H H L X X No Change
X = Don’t care
*
Both outputs will remain high as long as Set and
Reset are low, but the output states are
unpredictable if Set and Reset go high
simultaneously.
LOGIC DIAGRAM
PIN 16=V
CC
PIN 8 = GND
Page 2
IN74HC109
103
MAXIMUM RATINGS
*
Symbol Parameter Value Unit
V
CC
DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V
V
IN
DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V
V
OUT
DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V
I
IN
DC Input Current, per Pin
±
20
mA
I
OUT
DC Output Current, per Pin
±
25
mA
I
CC
DC Supply Current, VCC and GND Pins
±
50
mA
P
D
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
750
500
mW
Tstg Storage Temperature -65 to +150
°
C
T
L
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
260
°
C
*
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Min Max Unit
V
CC
DC Supply Voltage (Referenced to GND) 2.0 6.0 V
VIN, V
OUT
DC Input Voltage, Output Voltage (Referenced to GND) 0 V
CC
V
T
A
Operating Temperature, All Package Types -55 +125
°
C
tr, t
f
Input Rise and Fall Time (Figure 1) VCC =2.0 V
V
CC
=4.5 V
V
CC
=6.0 V
0
0
0
1000
500
400
ns
This device c ontains p rote ction ci rcuitr y to guard a gainst damage d ue to high st atic voltages or electr ic
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range
GND≤(V
IN
or V
OUT
)≤VCC.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
).
Unused outputs must be left open.
Page 3
IN74HC109
104
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Guaranteed Limit
Symbol Parameter Test Conditions V
25 °C
to
-55°C
≤
85
°
C
≤
125
°
C
Unit
V
IH
Minimum High-Level
Input Voltage
V
OUT
=0.1 V or VCC-0.1 V
I
OUT
≤
20 µA
2.0
4.5
6.0
1.5
3.15
4.2
1.5
3.15
4.2
1.5
3.15
4.2
V
V
IL
Maximum Low Level Input Voltage
V
OUT
=0.1 V or VCC-0.1 V
I
OUT
≤
20 µA
2.0
4.5
6.0
0.3
0.9
1.2
0.3
0.9
1.2
0.3
0.9
1.2
V
V
OH
Minimum High-Level
Output Voltage
VIN=VIH or V
IL
I
OUT
≤
20 µA
2.0
4.5
6.0
1.9
4.4
5.9
1.9
4.4
5.9
1.9
4.4
5.9
V
VIN=VIH or V
IL
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
4.5
6.0
3.98
5.48
3.84
5.34
3.7
5.2
V
OL
Maximum Low-Level
Output Voltage
VIN= VIL or V
IH
I
OUT
≤
20 µA
2.0
4.5
6.0
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
VIN= VIL or V
IH
I
OUT
≤
4.0 mA
I
OUT
≤
5.2 mA
4.5
6.0
0.26
0.26
0.33
0.33
0.4
0.4
I
IN
Maximum Inp ut
Leakage Current
VIN=VCC or GND 6.0
±
0.1
±
1.0
±
1.0
µ
A
I
CC
Maximum Quiescent
Supply Current
(per Package)
VIN=VCC or GND
I
OUT
=0µA
6.0 4 .0 40 80
µ
A
Page 4
IN74HC109
105
AC ELECTRICAL CHARACTERISTICS
(CL=50pF,Input tr=tf=6.0 ns)
V
CC
Guaranteed Limit
Symbol Parameter V
25 °C
to
-55°C
≤85°C≤
125°C
Unit
f
max
Maximum Clock Frequency (50 % Duty Cycle)
(Figures 1 and 4)
2.0
4.5
6.0
6
30
35
4.8
24
28
4.0
20
24
MHz
t
PLH
, t
PHL
Maximum Propagati on Delay, Clock to Q or Q
(Figures 1 and 4)
2.0
4.5
6.0
175
35
30
220
44
37
265
53
45
ns
t
PLH
, t
PHL
Maximum Propagation Delay , Set or Reset to Q
or Q (Figures 2 and 4)
2.0
4.5
6.0
230
46
39
290
58
49
345
69
59
ns
t
TLH
, t
THL
Maximum Output Transition Time, Any Output
(Figures 1 and 4)
2.0
4.5
6.0
75
15
13
95
19
16
110
22
19
ns
C
IN
Maximum Input Capacitance - 10 10 10 pF
Power Dissipation Capacitance (Per Flip-Flop)
Typical @25°C,V
CC
=5.0 V
C
PD
Used to determine the no-load dynamic power
consumption: P
D=CPDVCC
2
f+ICCV
CC
40 pF
TIMING REQUIREMENTS
(CL=50pF,Input tr=tf=6.0 ns)
V
CC
Guaranteed Limit
Symbol Parameter V
25 °C to -55°C
≤85°
C
≤
125°C
Unit
t
SU
Minimum Setup Time, J or K
to Clock (Figur e 3)
2.0
4.5
6.0
100
20
17
125
25
21
150
30
26
ns
t
h
Minimum Hol d Time, Clock
to J or K (Figure 3)
2.0
4.5
6.0
5
5
5
5
5
5
5
5
5
ns
t
rec
Minimum Recovery Time, Set
or Reset Inactive to Clock
(Figure 2)
2.0
4.5
6.0
5
5
5
5
5
5
5
5
5
ns
t
w
Minimum Pulse Wi dth, Set or
Reset (Figure 2)
2.0
4.5
6.0
80
16
14
100
20
17
12
24
20
ns
t
w
Minimum Pulse Wi dth,Clock
(Figure 1)
2.0
4.5
6.0
80
16
14
100
20
17
12
24
20
ns
t
r, tf
Maximum Inp ut Rise and Fall
Times (Figure 1)
2.0
4.5
6.0
1000
500
400
1000
500
400
1000
500
400
ns
Page 5
IN74HC109
106

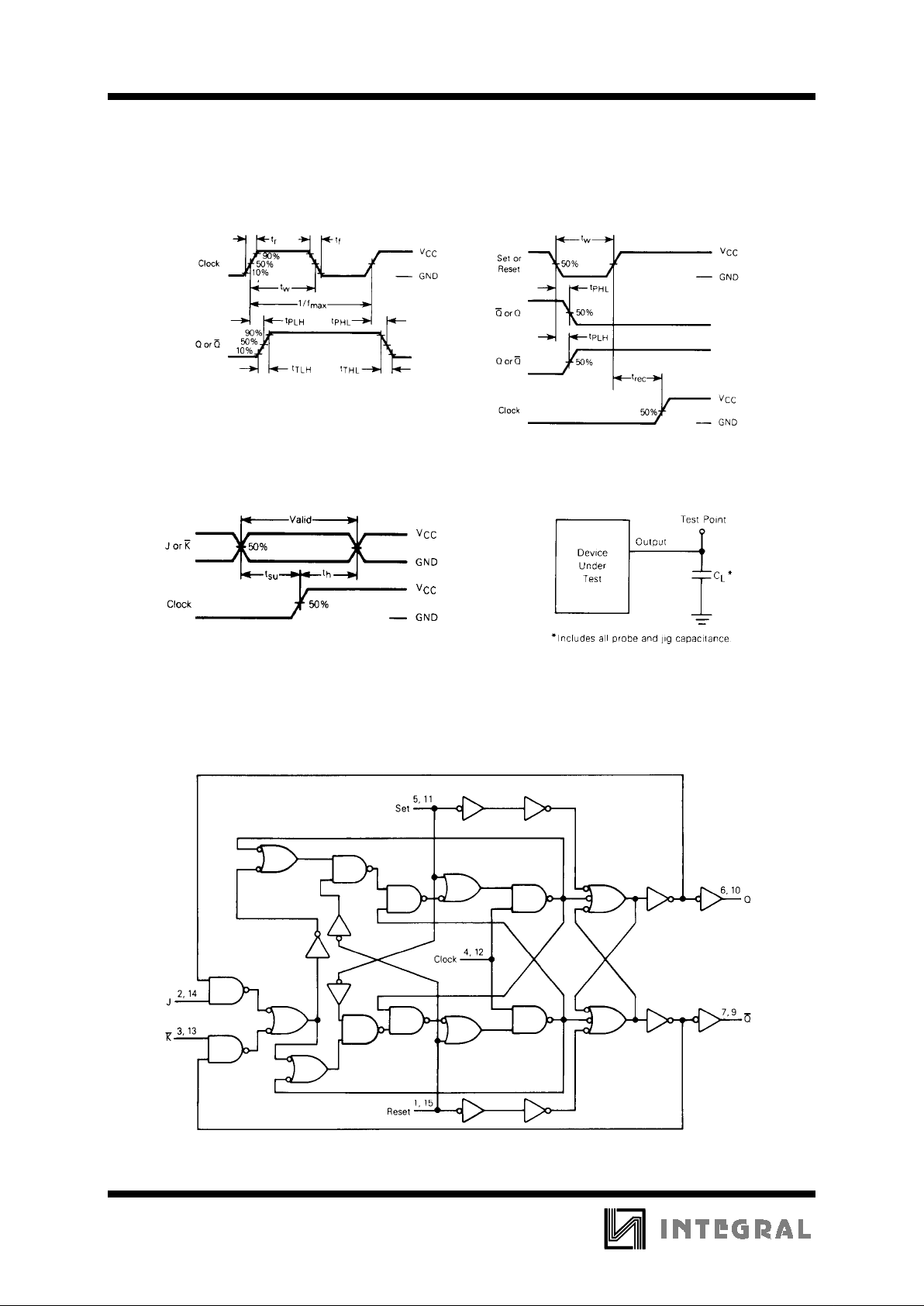

Figure 1. Switching Waveforms Figure 2. Switching Waveforms
Figure 3. Switching Waveforms Figure 4. Test Circuit
EXPANDED LOGIC DIAGRAM
