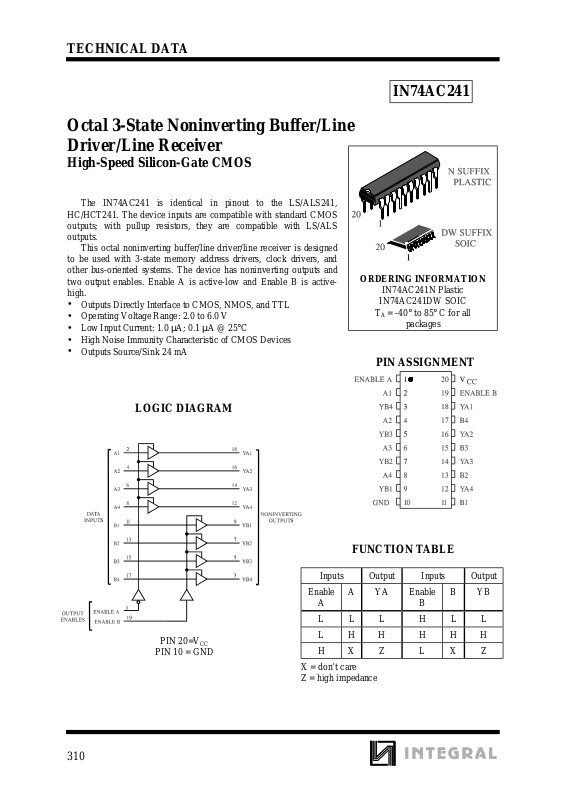

Page 1
TECHNICAL DATA
Octal 3-State Noninverting Buffer/Line
Driver/Line Receiver
High-Speed Silicon-Gate CMOS
The IN74AC241 is identical in pinout to the LS/ALS241,
HC/HCT241. The device inputs are compatible with standard CMOS
outputs; with pullup resistors, they are compatible with LS/ALS
outputs.
This octal noninverting buffer/line driver/line receiver is designed
to be used with 3-state memory address drivers, clock drivers, and
other bus-oriented systems. The de vice has noninverting outputs and
two output enables. Enable A is active-low and Enable B is activehigh.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0 µA; 0.1 µA @ 25°C
•
High Noise Immunity Characteristic of CMOS Devices
•
Outputs Source/Sink 24 mA
IN74AC241
ORDERING INFORMATION
IN74AC241N Plastic
IN74AC241DW SOIC
TA = -40° to 85° C for all
packages
PIN ASSIGNMENT
LOGIC DIAGRAM
PIN 20=V
PIN 10 = GND
CC
FUNCTION TABLE
Inputs Output Inputs Output
EnableAAYAEnableBBYB
LLL HLL
LHH HHH
HXZ LXZ
X = don’t care
Z = high impedance
310
Page 2
IN74AC241
MAXIMUM RATINGS
*
Symbol Parameter Value Unit
V
CC
V
V
OUT
I
IN
I
OUT
I
CC
P
DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V
DC Input Voltage (Referenced to GND) -0.5 to VCC +0.5 V
IN
DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V
DC Input Current, per Pin
DC Output Sink/Source Current, per Pin
DC Supply Current, VCC and GND Pins
Power Dissipation in Still Air, Plastic DIP+
D
SOIC Package+
±
20
±
50
±
50
750
500
Tstg Storage Temperature -65 to +150
T
Lead Temperature, 1 mm from Case for 10 Seconds
L
260
(Plastic DIP or SOIC Package)
*
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
mA
mA
mA
mW
°
C
°
C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Min Max Unit
V
CC
VIN, V
T
J
T
A
I
OH
I
OL
tr, t
f
*
VIN from 30% to 70% V
This device c ontains p rote ction ci rcuitr y to guard a gainst damage d ue to high st atic voltages or electr ic
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, V
GND≤(V
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
Unused outputs must be left open.
DC Supply Voltage (Referenced to GND) 2.0 6.0 V
DC Input Voltage, Output Voltage (Referenced to GND) 0 V
OUT
Junction Temperature (PDIP) 140
Operating Temperature, All Package Types -40 +85
Output Current - High -24 mA
Output Current - Low 24 mA
Input Rise and Fall Time
(except Schmitt Inputs)
IN
or V
OUT
)≤VCC.
CC
*
V
V
V
=3.0 V
CC
=4.5 V
CC
=5.5 V
CC
and V
IN
0
0
0
should be constrained to the range
OUT
CC
150
40
25
V
°
C
°
C
ns/V
CC
).
311
Page 3
IN74AC241
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
Symbol Parameter Test Conditions V
V
Minimum High-Level
IH
V
= VCC-0.1 V 3.0
OUT
Input Voltage
V
Maximum Low -
IL
V
= 0.1 V 3.0
OUT
Level Input Voltage
V
OH
Minimum High-Level
I
OUT
≤ -50 µA
Output Voltage
*
VIN= V
IH
IOH=-12 mA
I
=-24 mA
OH
I
=-24 mA
OH
V
OL
Maximum Low-Level
I
OUT
≤ 50 µA
Output Voltage
*
VIN=V
IL
IOL=12 mA
I
=24 mA
OL
I
=24 mA
OL
I
IN
Maximum Input
VIN=VCC or GND 5.5
Leakage Current
I
I
OZ
OLD
Maximum ThreeState Leakage
Current
+Minimum Dynamic
V
(OE)= VIH or V
IN
V
V
V
or GND
IN =VCC
OUT =VCC
OLD
or GND
=1.65 V Max 5.5 75 mA
IL
Output Current
I
OHD
+Minimum Dynamic
V
=3.85 V Min 5.5 -75 mA
OHD
Output Current
I
CC
Maximum Qui escent
VIN=VCC or GND 5.5 8.0 80
Supply Current
(per Package)
*
All outputs loaded; thresholds on input associated with output under test.
+Maximum test duration 2.0 ms, one output loaded at a time.
Note: I
IN
and I
@ 3.0 V are guaranteed to be less than or equal to the respective limit @ 5.5 V V
CC
V
4.5
5.5
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
3.0
4.5
5.5
5.5
CC
Guaranteed Limits
25 °C-40
2.1
3.15
3.85
0.9
1.35
1.65
2.9
4.4
5.4
2.56
3.86
4.86
0.1
0.1
0.1
0.36
0.36
0.36
±
0.1
±
0.5
°
C to
85°C
2.1
3.15
3.85
0.9
1.35
1.65
2.9
4.4
5.4
2.46
3.76
4.76
0.1
0.1
0.1
0.44
0.44
0.44
±
1.0
±
5.0
CC
Unit
V
V
V
V
µ
A
µ
A
µ
A
312
Page 4
IN74AC241
AC ELECTRICAL CHARACTERISTICS
(CL=50pF, Input tr=tf=3.0 ns)
Symbol Parameter V
t
PLH
Propagation Delay, A to YA or B to YB
(Figure 1)
t
PHL
Propagation Delay, A to YA or B to YB
(Figure 1)
t
PZH
Propagation Delay, Output Enable to YA or
YB (Figure 2)
t
PZL
Propagation Delay, Output Enable to YA or
YB (Figure 2)
t
PHZ
Propagation Delay, Output Enable to YA or
YB (Figure 2)
t
PLZ
Propagation Delay, Output Enable to YA or
YB (Figure 2)
C
IN
C
PD
*
Voltage Range 3.3 V is 3.3 V ±0.3 V
Maximum Input Capacitance 5.0 4.5 4.5 pF
Power Dissipation Capacitance 45 pF
Voltage Range 5.0 V is 5.0 V ±0.5 V
*
V
CC
Guaranteed Limits
25 °C-40
Min Max Min Max
3.3
5.0
3.3
5.0
3.3
5.0
3.3
5.0
3.3
5.0
3.3
5.0
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
2.0
1.5
1.5
1.5
9.0
7.0
9.0
7.0
12.5
9.0
12.0
9.0
12.0
10.0
12.5
10.0
Typical @25°C,VCC=5.0 V
1.5
1.0
1.0
1.0
1.0
1.0
1.5
1.0
2.0
1.0
1.0
1.0
°
C to
85°C
10.0
7.5
10.5
7.5
13.0
9.5
13.0
9.5
12.5
10.5
13.5
10.5
Unit
ns
ns
ns
ns
ns
ns
Figure 1. Switching Waveforms Figure 2. Switching Waveforms
313
