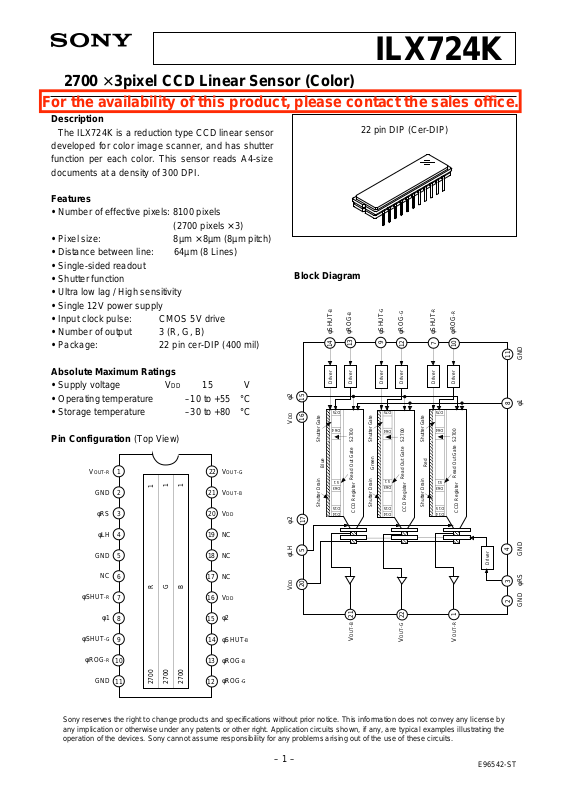

Page 1
2700 × 3pixel CCD Linear Sensor (Color)
For the availability of this product, please contact the sales office.
Description
The ILX724K is a reduction type CCD linear sensor
developed for color image scanner, and has shutter
function per each color. This sensor reads A4-size
documents at a density of 300 DPI.
Features
• Number of effective pixels: 8100 pixels
(2700 pixels × 3)
• Pixel size: 8µm × 8µm (8µm pitch)
• Distance between line: 64µm (8 Lines)
• Single-sided readout
• Shutter function
• Ultra low lag / High sensitivity
• Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Number of output 3 (R, G, B)
• Package: 22 pin cer-DIP (400 mil)
Block Diagram
ILX724K
22 pin DIP (Cer-DIP)
φSHUT-B
φROG-B
13
14
φSHUT-G
9
-R
φROG-G
12
φROG
φSHUT-R
7
10
11
Absolute Maximum Ratings
• Supply voltage VDD 15 V
• Operating temperature –10 to +55 °C
• Storage temperature –30 to +80 °C
Pin Configuration (Top View)
VOUT-R
GND
φRS
GND
φSHUT
φSHUT
φLH
NC
1
2
3
4
5
6
-R
7
φ1
8
-G
9
19
18
17
16
15
14
22
21
20
VOUT-G
VOUT-B
VDD
NC
NC
NC
DD
V
φ2
φSHUT
Green
Shutter Drain Shutter Gate
CCD Register
Driver
D75
D64
S1
D63
D15
D14
Driver
S2700
Red
Read Out Gate
Shutter Drain Shutter Gate
CCD Register
22
VOUT-G
Driver
D75
D64
S1
D63
D15
D14
Driver
S2700
Read Out Gate
CCD Register
1
VOUT-R
Driver
8
4
GND
3
2
GND φRS φ1 GND
Driver
Driver
15
D75
16
17
5
DD φLH VDD φ2φ2
20
V
-B
D64
Blue
S1
D63
D15
Shutter Drain Shutter Gate
D14
S2700
Read Out Gate
21
VOUT-B
φROG-R
GND
10
11
2700 G 1
2700 R 1
2700 B 1
13
12
φROG-B
φROG-G
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
– 1 –
E96542-ST
Page 2
Pin Description
Pin No. Symbol Description Pin No. Symbol Description
ILX724K
1
2
3
4
5
6
7
8
9
10
11
VOUT-R
GND
φRS
φLH
GND
NC
φSHUT-R
φ1
φSHUT-G
φROG-R
GND
Signal out (red)
GND
Clock pulse input
Clock pulse input
GND
NC
Clock pulse input
Clock pulse input
Clock pulse input
Clock pulse input
GND
Recommended Supply Voltage
Item
VDD
Min.
11.4
Typ.
12
Max.
12.6
Unit
V
12
13
14
15
16
17
18
19
20
21
22
φROG-G
φROG-B
φSHUT-B
φ2
VDD
NC
NC
NC
VDD
VOUT-B
VOUT-G
Clock pulse input
Clock pulse input
Clock pulse input
Clock pulse input
12V power supply
NC
NC
NC
12V power supply
Signal out (blue)
Signal out (green)
Clock Characteristics
Item
Input capacity of φ1, φ2
Input capacity of φLH
Input capacity of φRS
Input capacity of φROG
Input capacity of φSHUT
∗1
It indicates that φROG-R, φROG-G, φROG-B as φROG, φSHUT-R, φSHUT-G, φSHUT-B as φSHUT.
∗1
∗1
Symbol
Cφ1, Cφ2
CφLH
CφRS
CφROG
CφSHUT
Min.
—
—
—
—
—
Typ.
400
10
10
10
10
Max.
—
—
—
—
—
Unit
pF
pF
pF
pF
pF
Clock Frequency
Item Symbol
φ1, φ2, φLH, φRS fφ1, fφ2, fφLH, fφRS
Min.
—
Typ.
1
Max.
5
Unit
MHz
Input Clock Pulse Voltage Condition
Item
φ1, φ2, φLH, φRS, φROG,
φSHUT pulse voltage
High level
Low level
Min.
4.75
—
Typ.
5.0
0
Max.
5.25
0.1
Unit
V
V
– 2 –
Page 3
ILX724K
Electrooptical Characteristics (Note 1)
Ta = 25°C, VDD = 12V, fφRS = 1MHz, Input clock = 5Vp-p, Light source = 3200K, IR cut filter CM-500S (t = 1.0mm)
Item Symbol Min. Typ. Max. Unit Remarks
Red
Sensitivity
Green
Blue
Sensitivity nonuniformity
Saturation output voltage
Red
Saturation
exposure
Green
Blue
Dark voltage average
Dark signal nonuniformity
Image lag
Supply current
Total transfer efficiency
Output impedance
Offset level
Dynamic range
RR
RG
RB
PRNU
VSAT
SER
SEG
SEB
VDRK
DSNU
IL
IVDD
TTE
ZO
VOS
DR
1.3
2.1
1.6
—
2
0.74
0.46
0.58
—
—
—
—
92
—
—
1000
2.0
3.2
2.5
4
3.2
1.6
1
1.28
0.3
1.5
0.02
26
98
250
6.5
10670
2.7
4.3
3.4
20
—
—
—
—
2
5
—
50
—
—
—
—
V/(lx · s)
%
V
lx · s
mV
mV
%
mA
%
Ω
V
—
Note 2
Note 3
Note 4
Note 5
Note 6
Note 6
Note 7
—
—
—
Note 8
Note 9
Note
1) In accordance with the given electrooptical characteristics, the black level is defined as the average value
of D2, D3 to D12.
2) For the sensitivity test light is applied with a uniform intensity of illumination.
3) PRNU is defined as indicated below. Ray incidence conditions are the same as for Note 2.
VOUT-G = 500mV (Typ.)
PRNU = × 100 [%]
(VMAX – VMIN) /2
VAVE
Where the 2700 pixels are divided into blocks of 100. The maximum output of each block is set to VMAX,
the minimum output to VMIN and the average output to VAVE.
4) Use below the minimum value of the saturation output voltage.
5) Saturation exposure is defined as follows.
SE =
VSAT
R
Where R indicates RR, RG, RB, and SE indicates SER, SEG, SEB.
6) Optical signal accumulated time τ int stands at 10ms.
7) VOUT-G = 500mV (Typ.)
VOUT
8) Vos is defined as indicated bellow.
VOUT indicates VOUT-R, VOUT-G, and VOUT-B.
9) Dynamic range is defined as follows.
DR =
VSAT
VDRK
GND
VOS
When the optical signal accumulated time is shorter, the dynamic range gets wider because the optical
signal accumulated time is in proportion to the dark voltage.
– 3 –
Page 4
ILX724K
2775
D75
D71
D70
D65
D64
S2700
S2699
S2698
S2
S1
D63
D62
D61
D15
D14
Optical black (49 pixels)
D13
1-line output period (2775 pixels)
Clock Timing Chart 1
5
0
φROG
4
3
2
1
5
0
5
0
5
0
D3
D2
D1
Dummy signal (63 pixels)
OUT indicates VOUT-R, VOUT-G, VOUT-B.
V
Note) The transfer pulses (φ1, φ2, φLH) must have more than 2775 cycles.
φ1
φLH
φ2
φRS
OUT
V
– 4 –
Page 5
Clock Timing Chart 2
φROG
ILX724K
t4 t5
t6
t2
t7
φ1
φ2
Clock Timing Chart 3
φ1
φLH
φ2
φRS
t1 t3
t7
t9
t6
t10 t11
t8
t13
OUT
V
t12
– 5 –
Page 6
2775
ILX724K
Integration Time
4
3
2
1
5
0
5
0
5
φROG
φ1
φLH
Clock Timing Chart 4 (Shutter Operation)
0
5
0
Note) Shutter pulse must not be low level during from 2 to 2775 of φ1.
φ2
φRS
φSHUT
– 6 –
Page 7
Clock Pulse Recommended Timing
ILX724K
Item
φROG, φ1 pulse timing
φROG pulse high level period
φROG, φ1 pulse timing
φROG pulse rise time
φROG pulse fall time
φ1 pulse rise time /φ2 pulse fall time
φ1 pulse fall time /φ2 pulse rise time
φRS pulse high level period
φRS, φLH pulse timing
φRS pulse rise time
φRS pulse fall time
Signal output delay time
∗1
These timing is the recommended condition under fφRS = 1MHz.
Symbol
t1
t2
t3
t4
t5
t6
t7
t8
t9
t10
t11
t12
t13
Min.
50
800
800
0
0
0
0
45
45
0
0
—
—
Typ.
100
1000
1000
5
5
20
20
250
250
10
10
10
10
Max.
—
—
—
10
10
60
60
∗
1
—
∗
1
—
30
30
—
—
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
– 7 –
Page 8
IC1
ILX724K
IC1: 74AC04
Tr1: 2SC2785
-GφROG-B
φSHUT-B
φ2 φROG
OUT-B
V
Tr1
φROG
-G
12
φROG
-B
13
φSHUT
-B
14
φ2
15
2Ω
DD
V
16
NC
17
NC
18
NC
19
GND
11
φROG
-R
10
IC1
φROG-R
φSHUT-
G
9
φ1
8
φ1
2Ω100Ω 100Ω100Ω
φSHUT-
R
7
φSHUT-R φSHUT-G
NC
6
GND
5
φLH
4
5.1kΩ 5.1kΩ
∗
VOUT-G
Application Circuit
Tr1
20
21
DD
V
OUT-B
V
φRS
GND
3
φRS φLH
Application circuits shown are typical examples illustrating the operation of the devices. Sony cannot assume responsibility for
any problems arising out of the use of these circuits or for any infringement of third party patent and other right due to same.
2
Tr1
V
22
V
OUT-G
OUT-R
1
5.1kΩ
100Ω 100Ω
VOUT-R
RS = 1MHz
12V
0.1µF 47µF/16V
Data rate fφ
∗
– 8 –
Page 9
Example of Representative Characteristics (VDD = 12V, Ta = 25°C)
Spectral sensitivity characteristics (Standard characteristics)
1
0.8
0.6
0.4
Relative sensitivity
0.2
0
450400 550500 650600 700
Wavelength [nm]
ILX724K
Dark signal output temperature characteristics
(Standard characteristics)
10
5
1
0.5
Output voltage rate
0.1
10 20 30 40 50 60 1
0
Ta – Ambient temperature [°C]
Offset level vs. VDD characteristics
(Standard characteristics)
12
Ta = 25°C
10
Integration time output voltage characteristics
(Standard characteristics)
1
0.5
Output voltage rate
0.1
510
τ int – Integration time [ms]
Offset level vs. temperature characteristics
(Standard characteristics)
12
10
8
6
– Offset level [V]
4
OS
V
2
0
11.4 12.6
V
∆VOS
∆VDD
12
DD [V]
0.3
– Offset level [V]
OS
V
– 9 –
8
6
∆VOS
4
2
0
0
10 20 30 40 50 60
Ta – Ambient temperature [°C]
∆Ta
–0.5mV/°C
Page 10
Notes of Handling
1) Static charge prevention
CCD image sensors are easily damaged by static discharge. Before handling be sure to take the following
protective measures.
a) Either handle bare handed or use non chargeable gloves, clothes or material. Also use conductive shoes.
b) When handling directly use an earth band.
c) Install a conductive mat on the floor or working table to prevent the generation of static electricity.
d) Ionized air is recommended for discharge when handling CCD image sensor.
e) For the shipment of mounted substrates, use boxes treated for prevention of static charges.

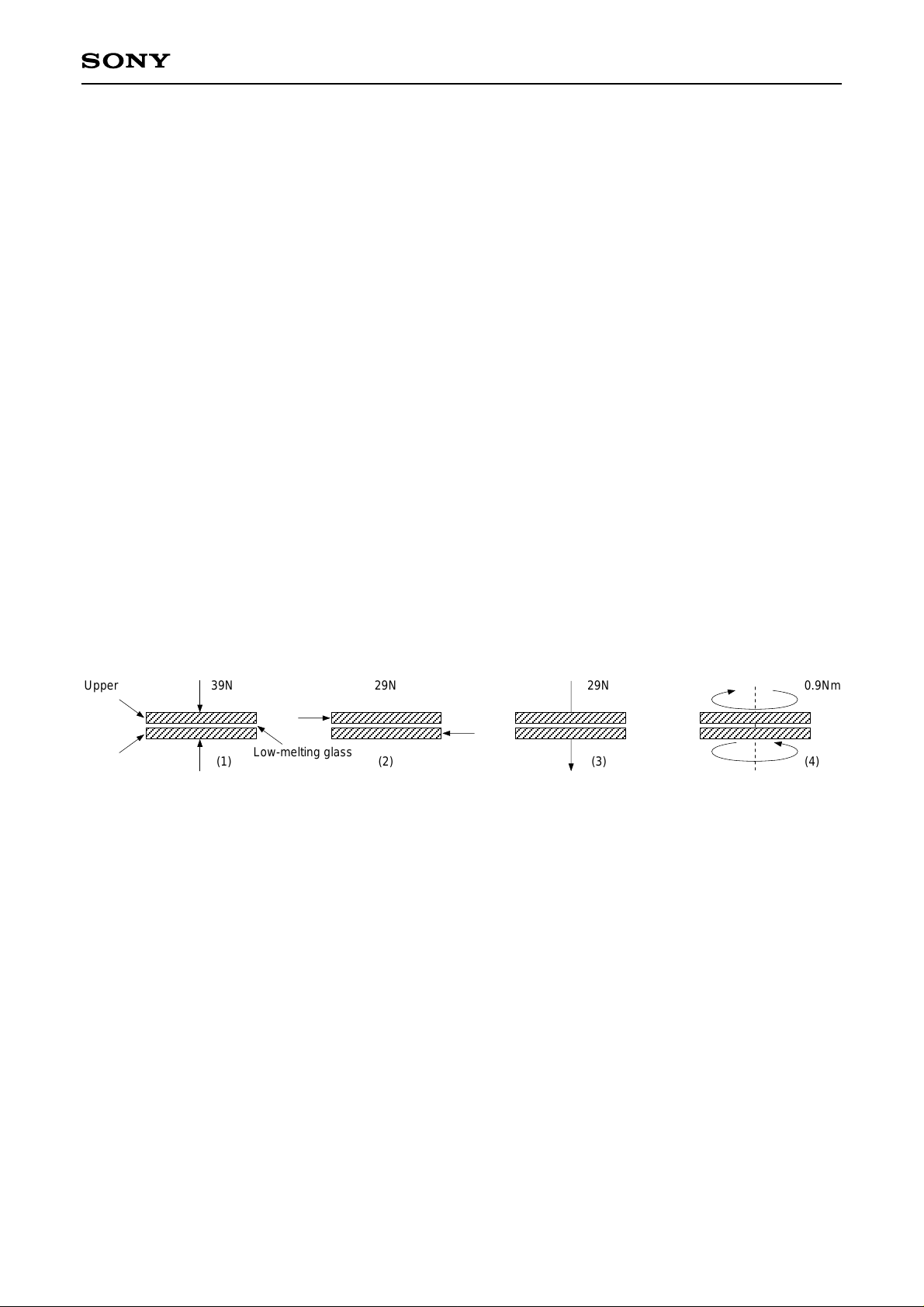

2) Notes on Handling CCD Cer-DIP Packages
The following points should be observed when handling and installing cer-DIP packages.
a) Remain within the following limits when applying static load to the ceramic portion of the package:
(1)Compressive strength:39N/surface (Do not apply load more than 0.7mm inside the outer perimeter of
the glass portion.)
(2)Shearing strength: 29N/surface
(3)Tensile strength: 29N/surface
(4)Torsional strength: 0.9Nm
ILX724K
b) In addition, if a load is applied to the entire surface by a hard component, bending stress may be
generated and the package may fracture, etc., depending on the flatness of the ceramic portion.
Therefore, for installation, either use an elastic load, such as a spring plate, or an adhesive.
Upper ceramic layer
lower ceramic layer
39N
Low-melting glass
(1)
29N 29N 0.9Nm
(2) (3) (4)
c) Be aware that any of the following can cause the glass to crack: because the upper and lower ceramic
layers are shielded by low-melting glass,
(1)Applying repetitive bending stress to the external leads.
(2)Applying heat to the external leads for an extended period of time with soldering iron.
(3)Rapid cooling or heating.
(4)Rapid cooling or impact to a limited portion of the low-melting glass with a small-tipped tool such as
tweezers.
(5)Prying the upper or lower ceramic layers away at a support point of the low-melting glass.
Note that the preceding notes should also be observed when removing a component from a board after it
has already been soldered.
3) Soldering
a) Make sure the package temperature does not exceed 80°C.
b) Solder dipping in a mounting furnace causes damage to the glass and other defects. Use a grounded 30W
soldering iron and solder each pin in less then 2 seconds. For repairs and remount, cool sufficiently.
c) To dismount an imaging device, do not use a solder suction equipment. When using an electric
desoldering tool, ground the controller. For the control system, use a zero cross type.
– 10 –
Page 11
ILX724K
4) Dust and dirt protection
a) Operate in clean environments.
b) Do not either touch glass plates by hand or have any object come in contact with glass surfaces. Should
dirt stick to a glass surface, blow it off with an air blower. (For dirt stuck through static electricity ionized
air is recommended.)
c) Clean with a cotton bud and ethyl alcohol if the glass surface is grease stained. Be careful not to scratch
the glass.
d) Keep in a case to protect from dust and dirt. To prevent dew condensation, preheat or precool when
moving to a room with great temperature differences.
5) Exposure to high temperatures or humidity will affect the characteristics. Accordingly avoid storage or
usage in such conditions.
6) CCD image sensors are precise optical equipment that should not be subject to mechanical shocks.
– 11 –
Page 12
Package Outline Unit: mm
0° to 9°
ILX724K
0.25
12
22pin DIP (400mil)
32.0 ± 0.5
21.6 (8µm × 2700Pixels)
(AT STAND OFF)
10.16
10.0 ± 0.5
9.0
11
30.6
No.1 Pixel (Green)
1. The height from the bottom to the sensor surface is 1.61 ± 0.3mm.
2. The thickness of the cover glass is 0.8mm, and the refractive index is 1.5.
M
3.5 ± 0.5
0.3
2.7
0.51
Cer-DIP
42 ALLOY
TIN PLATING
3.0g
2.54
6.53 ± 0.8
22
H
V
1
5.0 ± 0.5
4.0 ± 0.5
PACKAGE MATERIAL
LEAD TREATMENT
PACKAGE STRUCTURE
PACKAGE WEIGHT
LEAD MATERIAL
– 12 –
Loading...
