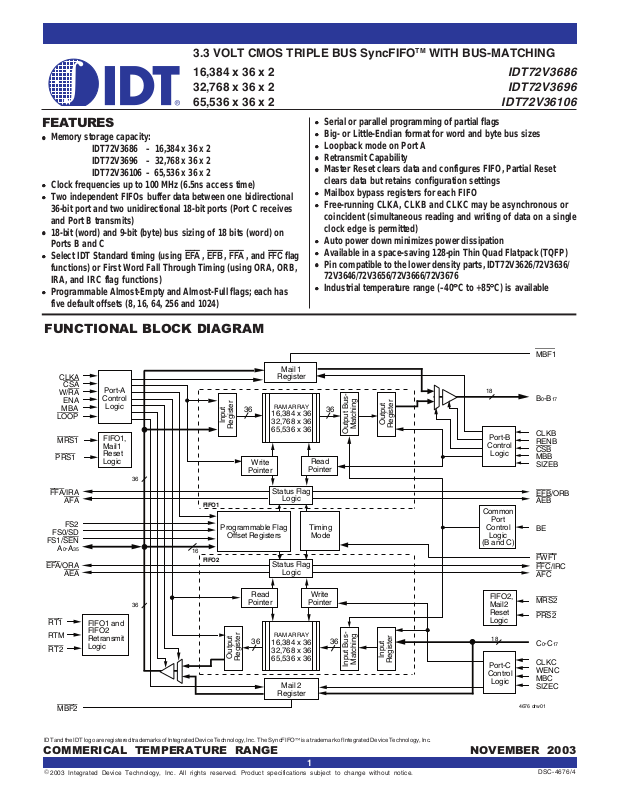

3.3 VOLT CMOS TRIPLE BUS SyncFIFOTM WITH BUS-MATCHING

16,384 x 36 x 2 32,768 x 36 x 2 65,536 x 36 x 2

FEATURES

••

• Memory storage capacity:

••

IDT72V3686 – 16,384 x 36 x 2 IDT72V3696 – 32,768 x 36 x 2 IDT72V36106 – 65,536 x 36 x 2

••

•

Clock frequencies up to 100 MHz (6.5ns access time)

••

Two independent FIFOs buffer data between one bidirectional

•

••

36-bit port and two unidirectional 18-bit ports (Port C receives and Port B transmits)

••

• 18-bit (word) and 9-bit (byte) bus sizing of 18 bits (word) on

••

Ports B and C

••

• Select IDT Standard timing (using EFA , EFB , FFA , and FFC flag

••

functions) or First Word Fall Through Timing (using ORA, ORB, IRA, and IRC flag functions)

••

• Programmable Almost-Empty and Almost-Full flags; each has

••

five default offsets (8, 16, 64, 256 and 1024)

FUNCTIONAL BLOCK DIAGRAM

Mail 1

Write

Pointer

RAM ARRAY

16,384 x 36 32,768 x 36 65,536 x 36

Status Flag

Logic

Status Flag

Logic

CLKA

CSA

W/RA

ENA

MBA

LOOP

MRS1

PRS1

FFA/IRA

AFA

FS2

FS0/SD

FS1/SEN

0-A35

EFA/ORA

AEA

Port-A

Control

Logic

FIFO1, Mail1 Reset Logic

36 36

Input

FIFO1

Programmable Flag

Offset Registers

FIFO2

IDT72V3686 IDT72V3696

IDT72V36106

••

•

Serial or parallel programming of partial flags

••

•

Big- or Little-Endian format for word and byte bus sizes

••

•

Loopback mode on Port A

••

• Retransmit Capability

••

Master Reset clears data and configures FIFO, Partial Reset

•

••

clears data but retains configuration settings

••

• Mailbox bypass registers for each FIFO

••

• Free-running CLKA, CLKB and CLKC may be asynchronous or

••

coincident (simultaneous reading and writing of data on a single clock edge is permitted)

••

Auto power down minimizes power dissipation

•

••

• Available in a space-saving 128-pin Thin Quad Flatpack (TQFP)

••

• Pin compatible to the lower density parts, IDT72V3626/72V3636/

••

72V3646/72V3656/72V3666/72V3676

••

• Industrial temperature range (–40

••

Output

Read

Pointer

Timing

Mode

Matching

Output Bus-

°°

°C to +85

°°

°C) is available

°°

Port-B

Control

Logic

Common

Port

Control

Logic

(B and C)

MBF1

0-B17

CLKB RENB

CSB

MBB SIZEB

EFB/ORB AEB

FWFT FFC/IRC

AFC

Mail 2

Write

Pointer

Matching

Input Bus-

Input

Read

Output

Pointer

RAM ARRAY

16,384 x 36 32,768 x 36 65,536 x 36

RT1

RTM

RT2

MBF2

IDT and the IDT logo are registered trademarks of Integrated Device Technology, Inc. The SyncFIFO is a trademark of Integrated Device Technology, Inc.

FIFO1 and FIFO2 Retransmit Logic

COMMERICAL TEMPERATURE RANGE



FIFO2, Mail2 Reset Logic

Port-C

Control

Logic

MRS2

PRS2

C0-C17

CLKC WENC MBC SIZEC

4676 drw01

NOVEMBER 2003

DSC-4676/4

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

DESCRIPTION

The IDT72V3686/72V3696/72V36106 are designed to run off a 3.3V supply for exceptionally low-power consumption. These devices are a monolithic, high-speed, low-power, CMOS Triple Bus synchronous (clocked) FIFO memory which supports clock frequencies up to 100 MHz and has read access times as fast as 6.5ns. Two independent 16,384/32,768/65,536 x 36 dual-port SRAM FIFOs on board each chip buffer data between a bidirectional 36-bit bus

PIN CONFIGURATION

EFA/ORA

126

PRS1/RT1

125

124

AFA

123

AEA

122

MBF2

MBA

121

120

FS0/SD

MRS1

118

119

INDEX

W/RA

ENA

CLKA

GND

A35 A34 A33 A32

Vcc

A31

A30

GND

A29 A28 A27 A26 A25

A24

A23

BE/FWFT

GND

A22

Vcc

A21

A20 A19

A18

GND

A17

A16

A15

A14

A13

Vcc

A12

GND

A11

A10

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

CSA

128

FFA/IRA

127

(Port A) and two unidirectional 18-bit buses (Port B transmits data, Port C receives data.) FIFO data can be read out of Port B and written into Port C using either 18-bit or 9-bit formats with a choice of Big- or Little-Endian configurations.

These devices are a synchronous (clocked) FIFO, meaning each port employs a synchronous interface. All data transfers through a port are gated to the LOW-to-HIGH transition of a port clock by enable signals. The clocks for each port are independent of one another and can be asynchronous or

GND

CLKC

117

116

FS1/SEN

115

MRS2

114

MBB

113

MBF1

111

112

AEB

110

AFC

109

EFB/ORB

108

FFC/IRC

107

GND

106

CSB

105

WENC

RENB

103

104

102 101

100

99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

CLKB

PRS2/RT2 LOOP

C17 C16 C15 C14

RTM MBC C13 C12 C11 C10 C9 C8 V

C7 C6 SIZEB GND C5 C4 C3 C2 C1 C0 GND B17 B16 SIZEC

B15 B14 B13 B12 GND B11 B10

FS2

GND

4676 drw02

TQFP (PK128-1, order code: PF)

TOP VIEW

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

coincident. The enables for each port are arranged to provide a simple bidirectional interface between microprocessors and/or buses with synchronous control.

Communication between each port may bypass the FIFOs via two mailbox registers. The mailbox registers' width matches the selected bus width of ports B and C. Each mailbox register has a flag (MBF1 and MBF2) to signal when new mail has been stored.

Two kinds of reset are available on these FIFOs: Master Reset and Partial Reset. Master Reset initializes the read and write pointers to the first location of the memory array and selects serial flag programming, parallel flag programming, or one of five possible default flag offset settings, 8, 16, 64, 256 or 1,024. Each FIFO has its own, independent Master Reset pin, MRS1 and MRS2.

Partial Reset also sets the read and write pointers to the first location of the memory. Unlike Master Reset, any settings existing prior to Partial Reset (i.e., programming method and partial flag default offsets) are retained. Partial Reset is useful since it permits flushing of the FIFO memory without changing any configuration settings. Each FIFO has its own, independent Partial Reset pin, PRS1 and PRS2. Note that the Retransmit Mode, RTM pin must be LOW at the point a partial reset is performed.

Both FIFO's have Retramsmit capability, when a Retransmit is performed on a respective FIFO only the read pointer is reset to the first memory location. A Retransmit is performed by using the Retransmit Mode, RTM pin in conjunction with the Retransmit pins RT1 or RT2, for each respective FIFO. Note that the two Retransmit pins RT1 and RT2 are muxed with the Partial Reset pins.

These devices have two modes of operation: In the IDT Standard mode, the first word written to an empty FIFO is deposited into the memory array. A read operation is required to access that word (along with all other words residing in memory). In the First Word Fall Through mode (FWFT), the first word written to an empty FIFO appears automatically on the outputs, no read operation required (Nevertheless, accessing subsequent words does necessitate a formal read request). The state of the BE/FWFT pin during Master Reset determines the mode in use.

Each FIFO has a combined Empty/Output Ready Flag (EFA/ORA and EFB/ ORB) and a combined Full/Input Ready Flag (FFA/IRA and FFC/IRC). The EF and FF functions are selected in the IDT Standard mode. EF indicates whether or not the FIFO memory is empty. FF shows whether the memory is full or not. The IR and OR functions are selected in the First Word Fall Through mode. IR indicates whether or not the FIFO has available memory locations. OR shows whether the FIFO has data available for reading or not. It marks the presence of valid data on the outputs.

Each FIFO has a programmable Almost-Empty flag (AEA and AEB) and a programmable Almost-Full flag (AFA and AFC). AEA and AEB indicate when

a selected number of words remain in the FIFO memory. AFA and AFC indicate when the FIFO contains more than a selected number of words.

FFA/IRA, FFC/IRC, AFA and AFC are two-stage synchronized to the Port Clock that writes data into its array. EFA/ORA, EFB/ORB, AEA, and AEB are two-stage synchronized to the Port Clock that reads data from its array. Programmable offsets for AEA, AEB, AFA, AFC are loaded in parallel using Port A or in serial via the SD input. Five default offset settings are also provided. The AEA and AEB threshold can be set at 8, 16, 64, 256, and 1,024 locations from the empty boundary and the AFA and AFC threshold can be set at 8, 16, 64, 256 or 1,024 locations from the full boundary. All these choices are made using the FS0, FS1 and FS2 inputs during Master Reset.

Interspersed Parity can also be selected during a Master Reset of the FIFO. If Interspersed Parity is selected then during parallel programming of the flag offset values, the device will ignore data line A8. If Non-Interspersed Parity is selected then data line A8 will become a valid bit.

A Loopback function is provided on Port A. When the Loop feature is selected via the LOOP pin, the data output from FIFO2 will be directed to the data input of FIFO1. If Loop is selected and Port A is set-up for write operation via W/RA pin, then data output from FIFO2 will be written to FIFO1, but will not be placed on the output Port A (A0-A35). If Port A is set-up for read operation via W/RA then data output from FIFO2 will be written into FIFO1 and placed onto Port A (A0-A35). The Loop will continue to happen provided that FIFO1 is not full and FIFO2 is not empty. If during a Loop sequence FIFO1 becomes full then any data that continues to be read out from FIFO2 will only be placed on the Port A (A0-A35) lines, provided that Port A is set-up for read operation. If during a Loop sequence the FIFO2 becomes empty, then the last word from FIFO2 will continue to be clocked into FIFO1 until FIFO1 becomes full or until the Loop function is stopped. The Loop feature can be useful when performing system debugging and remote loopbacks.

Two or more FIFOs may be used in parallel to create wider data paths. Such a width expansion requires no additional, external components. Furthermore, two IDT72V3686/72V3696/72V36106 FIFOs can be combined with unidirectional FIFOs capable of First Word Fall Through timing (i.e. the SuperSync FIFO family) to form a depth expansion.

If, at any time, the FIFO is not actively performing a function, the chip will automatically power down. During the power down state, supply current consumption (ICC) is at a minimum. Initiating any operation (by activating control inputs) will immediately take the device out of the power down state.

The IDT72V3686/72V3696/72V36106 are characterized for operation from 0°C to 70°C. Industrial temperature range (-40°C to +85°C) is available by special order. They are fabricated using IDT’s high speed, submicron CMOS technology.

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

PIN DESCRIPTIONS

Symbol Name I/O Description

A0-A35 Port A Data I/O 36-bit bidirectional data port for side A. AEA Port A Almost- O Programmable Almost-Empty flag synchronized to CLKA. It is LOW when the number of words in FIFO2

Empty Flag is less than or equal to the value in the Almost-Empty A Offset register, X2.

AEB Port B Almost- O Programmable Almost-Empty flag synchronized to CLKB. It is LOW when the number of words in FIFO1

Empty Flag is less than or equal to the value in the Almost-Empty B Offset register, X1.

AFA Port A Almost- O Programmable Almost-Full flag synchronized to CLKA. It is LOW when the number of empty locations

Full Flag in FIFO1 is less than or equal to the value in the Almost-Full A Offset register, Y1.

AFC Port C Almost- O Programmable Almost-Full flag synchronized to CLKC. It is LOW when the number of empty locations

Full Flag in FIFO2 is less than or equal to the value in the Almost-Full C Offset register, Y2. B0-B17 Port B Data O 18-bit output data port for side B. BE/FWFT Big-Endian/ I This is a dual purpose pin. During Master Reset, a HIGH on BE will select Big-Endian operation.

First Word Fall In this case, depending on the bus size, the most significant byte or word on Port A is read from

Through Select Port B first (A-to-B data flow) or is written to Port C first (C-to-A data flow). A LOW on BE will select

Little-Endian operation. In this case, the least significant byte or word on Port A is read from Port B first (A-to-B data flow) or is written to Port C first (C-to-A data flow).

After Master Reset, this pin selects the timing mode. A HIGH on FWFT selects IDT Standard mode, a LOW selects First Word Fall Through mode. Once the timing mode has been selected, the level on

FWFT must be static throughout device operation. C0-C17 Port C Data I 18-bit input data port for side C. CLKA Port A Clock I CLKA is a continuous clock that synchronizes all data transfers through Port A and can be

asynchronous or coincident to CLKB. FFA/IRA, EFA/ORA, AFA, and AEA are all synchronized to

the LOW-to-HIGH transition of CLKA. CLKB Port B Clock I CLKB is a continuous clock that synchronizes all data transfers through Port B and can be asynchronous

or coincident to CLKA. EFB/ORB and AEB are synchronized to the LOW-to-HIGH transition of CLKB. CLKC Port C Clock I CLKC is a continuous clock that synchronizes all data transfers through Port C and can be asynchronous

or coincident to CLKA. FFC/IRC and AFC are synchronized to the LOW-to-HIGH transition of CLKC. CSA Port A Chip I CSA must be LOW to enable to LOW-to-HIGH transition of CLKA to read or write on Port A. The A0-A35

Select outputs are in the high-impedance state when CSA is HIGH.

CSB Port B Chip I CSB must be LOW to enable a LOW-to-HIGH transition of CLKB to read data on Port B. The B0-B17

Select outputs are in the high-impedance state when CSB is HIGH.

EFA/ORA Port A Empty/ O This is a dual function pin. In the IDT Standard mode, the EFA function is selected. EFA indicates

Output Ready whether or not the FIFO2 memory is empty. In the FWFT mode, the ORA function is selected. ORA Flag indicates the presence of valid data on the A0-A35 outputs, available for reading. EFA/ORA is

synchronized to the LOW-to-HIGH transition of CLKA. EFB/ORB Port B Empty/ O This is a dual function pin. In the IDT Standard mode, the EFB function is selected. EFB indicates

Output Ready Flag whether or not the FIFO1 memory is empty. In the FWFT mode, the ORB function is selected. ORB

indicates the presence of valid data on the B0-B17 outputs, available for reading. EFB/ORB is synchronized

to the LOW-to-HIGH transition of CLKB. ENA Port A Enable I ENA must be HIGH to enable a LOW-to-HIGH transition of CLKA to read or write data on Port A. FFA/IRA Port A Full/ O This is a dual function pin. In the IDT Standard mode, the FFA function is selected. FFA indicates

Input Ready Flag whether or not the FIFO1 memory is full. In the FWFT mode, the IRA function is selected. IRA

indicates whether or not there is space available for writing to the FIFO1 memory. FFA/IRA is

synchronized to the LOW-to-HIGH transition of CLKA. FFC/IRC Port C Full/ O This is a dual function pin. In the IDT Standard mode, the FFC function is selected. FFC indicates

Input Ready Flag whether or not the FIFO2 memory is full. In the FWFT mode, the IRC function is selected. IRC

indicates whether or not there is space available for writing to the FIFO2 memory. FFC/IRC is

synchronized to the LOW-to-HIGH transition of CLKC.

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

PIN DESCRIPTIONS (CONTINUED)

Symbol Name I/O Description

FS0/SD Flag Offset Select 0/ I FS1/SEN and FS0/SD are dual-purpose inputs used for flag Offset register programming. During Master Reset,

Serial Data FS1/SEN and FS0/SD, together with FS2, select the flag offset programming method. Three Offset register

programming methods are available: automatically load one of five preset values (8, 16, 64, 256 or 1,024),

FS1/SEN Flag Offset Select 1/ I parallel load from Port A, and serial load.

Serial Enable

(1)

FS2

Flag Offset Select 2 I the LOW-to-HIGH transition of CLKA. When FS1/SEN is LOW, a rising edge on CLKA load the bit present on

LOOP Loopback Select I This pin selects the loopback feature for Port A. During Loopback data from FIFO2 will be directed to the input of

MBA Port A Mailbox I A HIGH level on MBA chooses a mailbox register for a Port A read or write operation. When the A0-A35

Select outputs are active, a HIGH level on MBA selects data from the mail2 register for output and a LOW level selects

MBB Port B Mailbox I A HIGH level on MBB chooses a mailbox register for a Port B read operation. When the B0-B17 outputs are

Select active, a HIGH level on MBB selects data from the mail1 register for output and a LOW level selects FIFO1 output

MBC Port C Mailbox I A HIGH level on MBC chooses the mail2 register for a Port C write operation. This pin must be HIGH during

Select Master Reset.

MBF1 Mail1 Register O MBF1 is set LOW by a LOW-to-HIGH transition of CLKA that writes data to the mail1 register. Writes to the mail1

Flag register are inhibited while MBF1 is LOW. MBF1 is set HIGH by a LOW-to-HIGH transition of CLKB when a

MBF2 Mail2 Register O MBF2 is set LOW by a LOW-to-HIGH transition of CLKC that writes data to the mail2 register. Writes to the mail2

Flag register are inhibited while MBF2 is LOW. MBF2 is set HIGH by a LOW-to-HIGH transition of CLKA when a

MRS1 Master Reset I A LOW on this pin initializes the FIFO1 read and write pointers to the first location of memory and sets the Port B

MRS2 Master Reset I A LOW on this pin initializes the FIFO2 read and write pointers to the first location of memory and sets the Port A

PRS1/ Partial Reset/ I This pin is muxed for both Partial Reset and Retransmit operations, it is used in conjunction with the RTM pin. If RTM RT1 Retransmit FIFO1 is in a LOW condition, a LOW on this pin performs a Partial Reset on FIFO1 and initializes the FIFO1 read and write

PRS2/ Partial Reset/ I This pin is muxed for both Partial Reset and Retransmit operations, it is used in conjunction with the RTM pin. If RTM RT2 Retransmit FIFO2 is in a LOW condition, a LOW on this pin performs a Partial Reset on FIFO2 and initializes the FIFO2 read and write

RENB Port B Read Enable I RENB must be HIGH to enable a LOW-to-HIGH transition of CLKB to read data on Port B. RTM Retransmit Mode I This pin is used in conjunction with the RT1 and RT2 pins. When RTM is HIGH a Retransmit is performed on FIFO1

When serial load is selected for flag Offset register programming, FS1/SEN is used as an enable synchronous to FS0/SD into the X and Y registers. The number of bit writes required to program the Offset registers is 56 for the

72V3686, 60 for the 72V3696, and 64 for the 72V36106. The first bit write stores the Y-register (Y1) MSB and the last bit write stores the X-register (X2) LSB.

FIFO1. to initiate a Loop the LOOP pin must be held LOW and the ENA pin must be HIGH.

FIFO2 output-register data for output.

Port B read is selected and MBB is HIGH. MBF1 is set HIGH following either a Master or Partial Reset of FIFO1.

Port A read is selected and MBA is HIGH. MBF2 is set HIGH following either a Master or Partial Reset of FIFO2.

output register to all zeroes. A LOW-to-HIGH transition on MRS1 selects the programming method (serial or parallel) and one of five programmable flag default offsets for FIFO1 and FIFO2. It also configures ports B and C for bus size and endian arrangement. Four LOW-to-HIGH transitions of CLKA and four LOW-to-HIGH transitions of CLKB must occur while MRS1 is LOW.

output register to all zeroes. A LOW-to-HIGH transition on MRS2, toggled simultaneously with MRS1, selects the programming method (serial or parallel) and one of the five flag default offsets for FIFO2. Four LOW-to-HIGH transitions of CLKA and four LOW-to-HIGH transitions of CLKC must occur while MRS2 is LOW.

pointers to the first location of memory and sets the Port B output register to all zeroes. During Partial Reset, the currently selected bus size, endian arrangement, programming method (serial or parallel), and programmable flag settings are all retained. If RTM is HIGH, a LOW on this pin performs a Retransmit and initializes the FIFO1 read pointer only to the first memory location.

selected bus size, endian arrangement, programming method (serial or parallel), and programmable flag settings are all retained. If RTM is HIGH, a LOW on this pin performs a Retransmit and initializes the FIFO2 read pointer only to the first memory location.

or FIFO2 respectively.

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

PIN DESCRIPTIONS (CONTINUED)

Symbol Name I/O Description

(1)

SIZEB

SIZEC

WENC Port C Write Enable I WENC must be HIGH to enable a LOW-to-HIGH transition of CLKC to write data on Port C. W/RA Port A Write/ I A HIGH selects a write operation and a LOW selects a read operation on Port A for a LOW-to-HIGH transition of

NOTE:

1. FS2, SIZEB and SIZEC inputs are not TTL compatible. These inputs should be tied to GND or V

Port B I SIZEB determines the bus width of Port B. A HIGH on this pin selects byte (9-bit) bus size. A LOW on this pin Bus Size Select selects word (18-bit) bus size. SIZEB works with SIZEC and BE to select the bus size and endian arrangement

for ports B and C. The level of SIZEB must be static throughout device operation.

(1)

Port C I SIZEC determines the bus width of Port C. A HIGH on this pin selects byte (9-bit) bus size. A LOW on this pin Bus Size Select selects word (18-bit) bus size. SIZEC works with SIZEB and BE to select the bus size and endian arrangement

for ports B and C. The level of SIZEC must be static throughout device operation.

Read Select CLKA. The A0-A35 outputs are in the HIGH impedance state when W/RA is HIGH.

CC.

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

ABSOLUTE MAXIMUM RATINGS OVER OPERATING FREE-AIR TEMPERATURE RANGE (Unless otherwise noted)

Symbol Rating Commercial Unit

CC Supply Voltage Range –0.5 to +4.6 V

(2)

V I

IK Input Clamp Current (VI < 0 or VI > VCC) ±20 mA

OK Output Clamp Current (VO = < 0 or VO > VCC) ±50 mA

OUT Continuous Output Current (VO = 0 to VCC) ±50 mA

I I

CC Continuous Current Through VCC or GND ±400 mA

STG Storage Temperature Range –65 to 150 °C

NOTES:

1. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

2. The input and output voltage ratings may be exceeded provided the input and output current ratings are observed.

Input Voltage Range –0.5 to VCC+0.5 V Output Voltage Range –0.5 to VCC+0.5 V

(1)

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Min. Typ. Max. Unit

CC Supply Voltage 3.15 3.3 3.45 V

IH High-Level Input Voltage 2 — VCC+0.5 V

IL Low-Level Input Voltage — — 0.8 V

OH High-Level Output Current — — – 4 mA

OL Low-Level Output Current — — 8 mA

A Operating Temperature 0 — 70 °C

NOTE:

1. Vcc = 3.3V ± 0.15V, JEDEC JESD8-A compliant

ELECTRICAL CHARACTERISTICS OVER RECOMMENDED OPERATING FREE-AIR TEMPERATURE RANGE (Unless otherwise noted)

IDT72V3686 IDT72V3696

IDT72V36106

Commercial

tCLK = 10, 15 ns

Symbol Parameter Test Conditions Min. Typ. Max. Unit

VOH Output Logic "1" Voltage VCC = 3.0V, IOH = –4 mA 2.4 — — V V

OL Output Logic "0" Voltage VCC = 3.0V, IOL = 8 mA — — 0.5 V

LI Input Leakage Current (Any Input) VCC = 3.6V, VI = VCC or 0 — — ±5 µA

LO Output Leakage Current VCC = 3.6V, VO = VCC or 0 — — ±5 µA

(3)

CC2

CC3

OUT

NOTES:

1. All typical values are at V

2. Vcc = 3.3V ± 0.15V, T

3. For additional I

4. Characterized values, not currently tested.

Standby Current (with CLKA, CLKB and CLKC running) VCC = 3.6V, VI = VCC - 0.2V or 0 — — 5 mA

(3)

Standby Current (no clocks running) VCC = 3.6V, VI = VCC - 0.2V or 0 — — 5 mA

(4)

Input Capacitance VI = 0, f = 1 MHz — 4 — pF

(4)

Output Capacitance VO = 0, f = 1 MHZ — 8 — pF

CC = 3.3V, TA = 25°C.

A = 0° to +70°; JEDEC JESD8-A compliant.

CC information, see Figure 1, Typical Characteristics: Supply Current (ICC) vs. Clock Frequency (fS).

(2)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

DETERMINING ACTIVE CURRENT CONSUMPTION AND POWER DISSIPATION

The I

CC(f) current for the graph in Figure 1 was taken while simultaneously reading and writing a FIFO on the IDT72V3686/72V3696/72V36106 with CLKA,

CLKB and CLKC set to fS. All data inputs and data outputs change state during each clock cycle to consume the highest supply current. Data outputs were disconnected to normalize the graph to a zero capacitance load. Once the capacitance load per data-output channel and the number of these device's inputs driven by TTL HIGH levels are known, the power dissipation can be calculated with the equation below.

CALCULATING POWER DISSIPATION

CC(f) taken from Figure 1, the maximum power dissipation (PT) of these FIFOs may be calculated by:

With I

T = VCC x ICC(f) + Σ(CL x VCC

x fo)

where: N = number of used outputs (36-bit (long word), 18-bit (word) or 9-bit (byte) bus size)

L = output capacitance load

C f

o = switching frequency of an output

100

Supply Current

CC(f)

data

= 1/2 f

TA = 25°C

= 0 pF

CC =

3.6V

CC =

3.0V

CC =

3.3V

010203040506070



Clock Frequency

Figure 1. Typical Characteristics: Supply Current (I



MHz

CC) vs. Clock Frequency (fS)

100

4676 drw03

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

TIMING REQUIREMENTS OVER RECOMMENDED RANGES OF SUPPLY VOLTAGE AND OPERATING FREE-AIR TEMPERATURE

(Vcc = 3.3V ± 0.15V; TA = 0ο C to +70ο C; JEDEC JESD8-A compliant)

IDT72V3686L10 IDT72V3686L15 IDT72V3696L10 IDT72V3696L15

IDT72V36106L10 IDT72V36106L15

Symbol Parameter Min. Max. Min. Max. Unit

S Clock Frequency, CLKA, CLKB, or CLKC — 100 — 66.7 MHz

CLK Clock Cycle Time, CLKA, CLKB, or CLKC 10 — 15 — ns

t t

CLKH Pulse Duration, CLKA, CLKB, or CLKC HIGH 4.5 — 6 — ns CLKL Pulse Duration, CLKA, CLKB, OR CLKC LOW 4.5 — 6 — ns

DS Setup Time, A0-A35 before CLKA↑ and C0-C17 before CLKC↑ 3—4—ns

t t

ENS1 Setup Time, CSA and W/RA before CLKA↑; CSB 4 — 4.5 — ns

before CLKB↑

ENS2 Setup Time, ENA, and MBA before CLKA↑; RENB 3 — 4.5 — ns

and MBB before CLKB↑; WENC and MBC before CLKC↑

RSTS Setup Time, MRS1, MRS2, PRS1, PRS2, RT1 or RT2 5—5—ns

LOW before CLKA↑ or CLKB↑

tFSS Setup Time, FS0, FS1, FS2 before MRS1 and MRS2 HIGH 7.5 — 8.5 — ns

BES Setup Time, BE/FWFT before MRS1 and MRS2 HIGH 7.5 — 7.5 — ns

SDS Setup Time, FS0/SD before CLKA↑ 3—4—ns

t t

SENS Setup Time, FS1/SEN before CLKA↑ 3—4—ns FWS Setup Time, BE/FWFT before CLKA↑ 0—0—ns

RTMS Setup Time, RTM before RT1; RTM before RT2 5—5—ns

t t

DH Hold Time, A0-A35 after CLKA↑ and C0-C17 after CLKC↑ 0.5 — 1 — ns ENH Hold Time, CSA, W/RA, ENA, and MBA after CLKA↑; CSB, 0.5 — 1 — ns

RENB, and MBB after CLKB↑; WENC and MBC after CLKC↑

RSTH Hold Time, MRS1, MRS2, PRS1, PRS2, RT1 or RT2 4—4—ns

LOW after CLKA↑ or CLKB↑

tFSH Hold Time, FS0, FS1, FS2 after MRS1 and MRS2 HIGH 2 — 2 — ns

BEH Hold Time, BE/FWFT after MRS1 and MRS2 HIGH 2 — 2 — n s

SDH Hold Time, FS0/SD after CLKA↑ 0.5 — 1 — ns

t t

SENH Hold Time, FS1/SEN HIGH after CLKA↑ 0.5 — 1 — ns SPH Hold Time, FS1/SEN HIGH after MRS1 and MRS2 HIGH 2 — 2 — ns

RTMH Hold Time, RTM after RT1; RTM after RT2 5—5—ns

(2)

SKEW1

Skew Time, between CLKA↑ and CLKB↑ for EFB/ORB and 5 — 7.5 — ns

FFA/IRA; between CLKA↑ and CLKC↑ for EFA/ORA and FFC/IRC

(2,3)

SKEW2

Skew Time, between CLKA↑ and CLKB↑ for AEB and AFA;12—12—ns between CLKA↑ and CLKC↑ for AEA and AFC

NOTES:

1. Requirement to count the clock edge as one of at least four needed to reset a FIFO.

2. Skew time is not a timing constraint for proper device operation and is only included to illustrate the timing relationship among CLKA cycle, CLKB cycle, and CLKC cycle.

3. Design simulated, not tested.

(1)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

SWITCHING CHARACTERISTICS OVER RECOMMENDED RANGES OF SUPPLY VOLTAGE AND OPERATING FREE-AIR TEMPERATURE, CL = 30PF

(Vcc = 3.3V ± 0.15V; TA = 0ο C to +70ο C; JEDEC JESD8-A compliant)

IDT72V3686L10 IDT72V3686L15 IDT72V3696L10 IDT72V3696L15

IDT72V36106L10 IDT72V36106L15

Symbol Parameter Min. Max. Min. Max. Unit

tA Access Time, CLKA↑ to A0-A35 and CLKB↑ to B0-B17 2 6.5 2 10 ns t

WFF Propagation Delay Time, CLKA↑ to FFA/IRA and CLKC↑ to 2 6.5 2 8 ns

FFC/IRC

REF Propagation Delay Time, CLKA↑ to EFA/ORA and CLKB↑ to 1 6.5 1 8 ns

EFB/ORB

PAE Propagation Delay Time, CLKA↑ to AEA and CLKB↑ to AEB 1 6.5 1 8 ns

t t

PAF Propagation Delay Time, CLKA↑ to AFA and CLKC↑ to AFC 1 6.5 1 8 ns PMF Propagation Delay Time, CLKA↑ to MBF1 LOW or MBF2 0 6.5 0 8 ns

HIGH, CLKB↑ to MBF1 HIGH, and CLKC↑ to MBF2 LOW

PMR Propagation Delay Time, CLKA↑ to B0-B17

to A0-A35

(2)

tMDV Propagation Delay Time, MBA to A0-A35 valid and MBB to 2 8 2 10 ns

B0-B17 valid

RSF Propagation Delay Time, MRS1 or PRS1 LOW to AEB 110115ns

LOW, AFA HIGH, and MBF1 HIGH and MRS2 or PRS2 LOW to AEA LOW, AFC HIGH, and MBF2 HIGH

EN Enable Time, CSA or W/RA LOW to A0-A35 Active and 2 6 2 1 0 n s

CSB LOW to B0-B17 Active

DIS Disable Time, CSA or W/RA HIGH to A0-A35 at high 1 6 1 8 ns

impedance and CSB HIGH to B0-B17 at HIGH impedance

NOTES:

1. Writing data to the mail1 register when the B0-B17 outputs are active and MBB is HIGH.

2. Writing data to the mail2 register when the A0-A35 outputs are active and MBA is HIGH.

Vcc = 3.3V ± 0.15V; TA = 0° to +70°.

(1)

and CLKC↑ 2 6.5 2 10 ns

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

SIGNAL DESCRIPTION

MASTER RESET (MRS1, MRS2)

After power up, a Master Reset operation must be performed by providing

a LOW pulse to MRS1 and MRS2 simultaneously. Afterwards, the FIFO1 memory of the IDT72V3686/72V3696/72V36106 undergoes a complete reset by taking its associated Master Reset (MRS1) input LOW for at least four Port A Clock (CLKA) and four Port B Clock (CLKB) LOW-to-HIGH transitions. The FIFO2 memory undergoes a complete reset by taking its associated Master Reset (MRS2) input LOW for at least four Port A Clock (CLKA) and four Port C Clock (CLKC) LOW-to-HIGH transitions. The Master Reset inputs can switch asynchronously to the clocks. A Master Reset initializes the associated read and write pointers to the first location of the memory and forces the Full/Input Ready flag (FFA/IRA, FFC/IRC) LOW, the Empty/Output Ready flag (EFA/ORA, EFB/ ORB) LOW, the Almost-Empty flag (AEA, AEB) LOW and the Almost-Full flag (AFA, AFC) HIGH. A Master Reset also forces the associated Mailbox Flag (MBF1, MBF2) of the parallel mailbox register HIGH. After a Master Reset, the FIFO's Full/Input Ready flag is set HIGH after two Write Clock cycles. Then the FIFO is ready to be written to.

A LOW-to-HIGH transition on the FIFO1 Master Reset (MRS1) input latches

the value of the Big-Endian (BE) input for determining the order by which bytes are transferred through Ports B and C. It also latches the values of the Flag Select (FS0, FS1 and FS2) inputs for choosing the Almost-Full and Almost-Empty offsets and programming method.

A LOW-to-HIGH transition on the FIFO2 Master Reset (MRS2) clears the flag

offset registers of FIFO2 (X2, Y2). A LOW-to-HIGH transition on the FIFO2 Master Reset (MRS2) together with the FIFO1 Master Reset input (MRS1) latches the value of the Big-Endian (BE) input for Ports B and C and also latches the values of the Flag Select (FS0, FS1 and FS2) inputs for choosing the AlmostFull and Almost-Empty offsets and programming method (for details see Table 1, Flag Programming, and Almost-Empty and Almost-Full flag offset program- ming section). The relevant Master Reset timing diagrams can be found in Figure 4 and 5.

Note that MBC must be HIGH during Master Reset (until FFA/IRA and FFC/

IRC go HIGH). MBA and MBB are "don't care" inputs1 during Master Reset.

PARTIAL RESET (PRS1, PRS2)

The FIFO1 memory of these devices undergoes a limited reset by taking its

associated Partial Reset (PRS1) input LOW for at least four Port A Clock (CLKA) and four Port B Clock (CLKB) LOW-to-HIGH transitions. The FIFO2 memory undergoes a limited reset by taking its associated Partial Reset (PRS2) input LOW for at least four Port A Clock (CLKA) and four Port C Clock (CLKC) LOWto-HIGH transitions. The RTM pin must be LOW during the time of partial reset. The Partial Reset inputs can switch asynchronously to the clocks. A Partial Reset initializes the internal read and write pointers and forces the Full/Input Ready flag (FFA/IRA, FFC/IRC) LOW, the Empty/Output Ready flag (EFA/ORA, EFB/ ORB) LOW, the Almost-Empty flag (AEA, AEB) LOW, and the Almost-Full flag (AFA, AFC) HIGH. A Partial Reset also forces the Mailbox Flag (MBF1, MBF2) of the parallel mailbox register HIGH. After a Partial Reset, the FIFO’s Full/Input Ready flag is set HIGH after two Write Clock cycles.

Whatever flag offsets, programming method (parallel or serial), and timing

mode (FWFT or IDT Standard mode) are currently selected at the time a Partial Reset is initiated, those settings will remain unchanged upon completion of the reset operation. A Partial Reset may be useful in the case where reprogramming a FIFO following a Master Reset would be inconvenient. See Figure 6 and 7 for Partial Reset timing diagrams.

RETRANSMIT (RT1, RT2)

The FIFO1 memory of these devices undergoes a Retransmit by taking its associated Retransmit (RT1) input LOW for at least four Port A Clock (CLKA) and four Port B Clock (CLKB) LOW-to-HIGH transitions. The Retransmit initializes the read pointer of FIFO1 to the first memory location.

The FIFO2 memory undergoes a Retransmit by taking its associated Retransmit (RT2) input LOW for at least four Port A Clock (CLKA) and four Port C Clock (CLKC) LOW-to-HIGH transitions. The Retransmit initializes the read pointer of FIFO1 to the first memory location.

The RTM pin must be HIGH during the time of Retransmit. Note that the RT1input is muxed with the PRS1 input, the state of the RTM pin determining whether this pin performs a Retransmit or Partial Reset. Also, the RT2 input is muxed with the PRS2 input, the state of the RTM pin determining whether this pin performs a Retransmit or Partial Reset. See Figures 30, 31, 32 and 33 for Retransmit timing diagrams.

BIG-ENDIAN/FIRST WORD FALL THROUGH (BE/FWFT)

— ENDIAN SELECTION

This is a dual purpose pin. At the time of Master Reset, the BE select function is active, permitting a choice of Big- or Little-Endian byte arrangement for data written to Port C or read from Port B. This selection determines the order by which bytes (or words) of data are transferred through those ports. For the following illustrations, note that both ports B and C are configured to have a byte (or a word) bus size.

A HIGH on the BE/FWFT input when the Master Reset (MRS1, MRS2) inputs go from LOW to HIGH will select a Big-Endian arrangement. When data is moving in the direction from Port A to Port B, the most significant byte (word) of the long word written to Port A will be read from Port B first; the least significant byte (word) of the long word written to Port A will be read from Port B last. When data is moving in the direction from Port C to Port A, the byte (word) written to Port C first will be read from Port A as the most significant byte (word) of the long word; the byte (word) written to Port C last will be read from Port A as the least significant byte (word) of the long word.

A LOW on the BE/FWFT input when the Master Reset (MRS1, MRS2) inputs go from LOW to HIGH will select a Little-Endian arrangement. When data is moving in the direction from Port A to Port B, the least significant byte (word) of the long word written to Port A will be read from Port B first; the most significant byte (word) of the long word written to Port A will be read from Port B last. When data is moving in the direction from Port C to Port A, the byte (word) written to Port C first will be read from Port A as the least significant byte (word) of the long word; the byte (word) written to Port C last will be read from Port A as the most significant byte (word) of the long word. Refer to Figure 2 and 3 for illustrations of the BE function. See Figure 4 (FIFO1 Master Reset) and 5 (FIFO2 Master Reset) for Endian Select timing diagrams.

— TIMING MODE SELECTION

After Master Reset, the FWFT select function is available, permitting a choice between two possible timing modes: IDT Standard mode or First Word Fall Through (FWFT) mode. Once the Master Reset (MRS1, MRS2) input is HIGH, a HIGH on the BE/FWFT input during the next LOW-to-HIGH transition of CLKA (for FIFO1) and CLKC (for FIFO2) will select IDT Standard mode. This mode uses the Empty Flag function (EFA, EFB) to indicate whether or not there are any words present in the FIFO memory. It uses the Full Flag function (FFA, FFC) to indicate whether or not the FIFO memory has any free space for writing.

NOTE:

1. Either a HIGH or LOW can be applied to a "don't care" input with no change to the logical operation of the FIFO. Nevertheless, inputs that are temporarily "don't care" (along with unused inputs) must not be left open, rather they must be either HIGH or LOW.

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

In IDT Standard mode, every word read from the FIFO, including the first, must be requested using a formal read operation.

Once the Master Reset (MRS1, MRS2) input is HIGH, a LOW on the BE/ FWFT input during the next LOW-to-HIGH transition of CLKA (for FIFO1) and CLKC (for FIFO2) will select FWFT mode. This mode uses the Output Ready function (ORA, ORB) to indicate whether or not there is valid data at the data outputs (A0-A35 or B0-B17). It also uses the Input Ready function (IRA, IRC) to indicate whether or not the FIFO memory has any free space for writing. In the FWFT mode, the first word written to an empty FIFO goes directly to the data outputs, no read request necessary. Subsequent words must be accessed by performing a formal read operation.

Following Master Reset, the level applied to the BE/FWFT input to choose the desired timing mode must remain static throughout FIFO operation. Refer to Figure 4 (FIFO1 Master Reset) and Figure 5 (FIFO2 Master Reset) for First Word Fall Through select timing diagrams.

PROGRAMMING THE ALMOST-EMPTY AND ALMOST-FULL FLAGS

Four registers in these FIFOs are used to hold the offset values for the AlmostEmpty and Almost-Full flags. The Port B Almost-Empty flag (AEB) Offset register is labeled X1 and the Port A Almost-Empty flag (AEA) Offset register is labeled X2. The Port A Almost-Full flag (AFA) Offset register is labeled Y1 and the Port C Almost-Full flag (AFC) Offset register is labeled Y2. The index of each register name corresponds to its FIFO number. The Offset registers can be loaded with preset values during the reset of a FIFO, programmed in parallel using the FIFO’s Port A data inputs, or programmed in serial using the Serial Data (SD) input (see Table 1).

FS0/SD, FS1/SEN and FS2 function the same way in both IDT Standard and FWFT modes.

— PRESET VALUES

To load a FIFO’s Almost-Empty flag and Almost-Full flag Offset registers with one of the five preset values listed in Table 1, the flag select inputs must be HIGH or LOW during a master reset. For example, to load the preset value of 64 into X1 and Y1, FS0, FS1 and FS2 must be HIGH when FlFO1 reset (MRS1)

returns HIGH. Flag Offset registers associated with FIFO2 are loaded with one of the preset values in the same way with FIFO2 Master Reset (MRS2) toggled simultaneously with FIFO1 Master Reset (MRS1). For relevant Preset value loading timing diagrams, see Figure 4 and 5.

— PARALLEL LOAD FROM PORT A

To program the X1, X2, Y1, and Y2 registers from Port A, perform a Master Reset on both FlFOs simultaneously with FS2 HIGH or LOW, FS0 and FS1 LOW during the LOW-to-HIGH transition of MRS1 and MRS2. The state of FS2 at this point of reset will determine whether the parallel programming method has Interspersed Parity or Non-Interspersed Parity. Refer to Table 1 for Flag Programming Flag Offset setup . It is important to note that once parallel programming has been selected during a Master Reset by holding both FS0 & FS1 LOW, these inputs must remain LOW during all subsequent FIFO operation. They can only be toggled HIGH when future Master Resets are performed and other programming methods are desired.

After this reset is complete, the first four writes to FIFO1 do not store data in RAM but load the Offset registers in the order Y1, X1, Y2, X2. For NonInterspersed Parity mode the Port A data inputs used by the Offset registers are (A13-A0), (A14-A0), or (A15-A0) for the IDT72V3686, IDT72V3696, or IDT72V36106, respectively. For Interspersed Parity mode the Port A data inputs used by the Offset registers are (A14-A9, A7-A0), (A15-A9, A7-A0), or (A16-A9, A7-A0) for the IDT72V3686, IDT72V3696, or IDT72V36106, respectively. The highest numbered input is used as the most significant bit of the binary number in each case. Valid programming values for the registers range from 1 to 16,380 for the IDT72V3686; 1 to 32,764 for the IDT72V3696; and 1 to 65,532 for the IDT72V36106. After all the Offset registers are programmed from Port A, the Port C Full/Input Ready flag (FFC/IRC) is set HIGH, and both FIFOs begin normal operation. Refer to Figure 8 for a timing diagram illustration for parallel programming of the flag offset values.

INTERSPERSED PARITY

Interspersed Parity is selected during a Master Reset of the FIFO. Refer to Table 1 for the set-up configuration of Interspersed Parity. The Interspersed

TABLE 1

FS2 FS1/SEN FS0/SD MRS1 MRS2 X1 AND Y1 REGlSTERS

HH H↑ X64 X HH HX↑ X64 HH L↑ X16 X HH LX↑ X16 HL H↑ X8 X HL HX↑ X8

LH H↑ X 256 X LH HX↑ X 256 LL H↑ X 1,024 X LL HX↑ X 1,024 LH L↑↑ Serial programming via SD Serial programming via SD

HL L↑↑ Parallel programming via Port A

LL L↑↑ IP Mode

NOTES:

1. X1 register holds the offset for AEB; Y1 register holds the offset for AFA.

2. X2 register holds the offset for AEA; Y2 register holds the offset for AFC.

3. When this method of parallel programming is selected, Port A will assume Non-Interspersed Parity.

4. When IP Mode is selected, only parallel programming of the offset values via Port A, can be performed and Port A will assume Interspersed Parity.

5. IF parallel programming is selected during a Master Reset, then FS0 & FS1 must remain LOW during FIFO operation.



 FLAG PROGRAMMING



(4, 5)

(3, 5)

(1)

X2 AND Y2 REGlSTERS

Parallel programming via Port A

IP Mode

(2)

(3, 5)

(4, 5)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

TABLE 2

CSA W/RA ENA MBA CLKA LOOP Data A(A0-A35) I/O PORT FUNCTION

H X X X X H High-Impedance None

L H L X X H Input None LH H L ↑ H Input FIFO1 write LH H H ↑ H Input Mail1 write L L L L X H Output None LLH L ↑ H Output FIFO2 read L L L H X H Output None LLH H ↑ H Output Mail2 read (set MBF2 HIGH) LH H L ↑ L Output Loop the data output of FIFO2 to input

LLH L ↑ L Output Loop the data output of FIFO2 to input

TABLE 3

CSB RENB MBB CLKB Data B (B0-B17) Outputs PORT FUNCTION

H X X X High-Impedance None

L L L X Output None LH L ↑ Output FIFO1 read L L H X Output None LH H ↑ Output Mail1 read (set MBF1 HIGH)



 PORT A ENABLE FUNCTION TABLE



 PORT B ENABLE FUNCTION TABLE



of FIFO1 only

of FIFO1 and put data on Port A

TABLE 4

WENC MBC CLKC Data C (C0-C17) Inputs PORT FUNCTION

HL ↑ Input FIFO2 write HH ↑ Input Mail2 write

L L X Input None L H X Input None

Parity function allows the user to select the location of the parity bits in the word loaded into the parallel port (A0-An) during programming of the flag offset values. If Interspersed Parity is selected then during parallel programming of the flag offset values, the device will ignore data line A8. If Non-Interspersed Parity is selected then data line A8 will become a valid bit. If Interspersed Parity is selected serial programming of the offset values is not permitted, only parallel programming can be done.

— SERIAL LOAD

To program the X1, X2, Y1, and Y2 registers serially, initiate a Master Reset with FS2 LOW, FS0/SD LOW and FS1/SEN HIGH during the LOW-to-HIGH transition of MRS1 and MRS2. After this reset is complete, the X and Y register values are loaded bit-wise through the FS0/SD input on each LOW-to-HIGH transition of CLKA that the FS1/SEN input is LOW. There are 56-, 60-, or 64bit writes needed to complete the programming for the IDT72V3686, IDT72V3696, or IDT72V36106, respectively. The four registers are written in the order Y1, X1, Y2 and finally, X2. The first-bit write stores the most significant bit of the Y1 register and the last-bit write stores the least significant bit of the X2 register. Each register value can be programmed from 1 to 16,380 (IDT72V3686), 1 to 32,764 (IDT72V3696), or 1 to 65,532 (IDT72V36106).

When the option to program the Offset registers serially is chosen, the Port A Full/Input Ready (FFA/IRA) flag remains LOW until all register bits are written. FFA/IRA is set HIGH by the LOW-to-HIGH transition of CLKA after the last bit is loaded to allow normal FIFO1 operation. The Port B Full/Input Ready (FFC/



 PORT C ENABLE FUNCTION TABLE



IRC) flag also remains LOW throughout the serial programming process, until all register bits are written. FFC/IRC is set HIGH by the LOW-to-HIGH transition of CLKC after the last bit is loaded to allow normal FIFO2 operation.

See Figure 9 timing diagram, Serial Programming of the Almost-Full Flag

and Almost-Empty Flag Offset Values after Reset (IDT Standard and FWFT Modes).

FIFO WRITE/READ OPERATION

The state of the Port A data (A0-A35) outputs is controlled by Port A Chip Select (CSA) and Port A Write/Read Select (W/RA). The A0-A35 outputs are in the high-impedance state when either CSA or W/RA is HIGH. The A0-A35 outputs are active when both CSA and W/RA are LOW.

Data is loaded into FIFO1 from the A0-A35 inputs on a LOW-to-HIGH transition of CLKA when CSA is LOW, W/RA is HIGH, ENA is HIGH, MBA is LOW, and FFA/IRA is HIGH. Data is read from FIFO2 to the A0-A35 outputs by a LOW-to-HIGH transition of CLKA when CSA is LOW, W/RA is LOW, ENA is HIGH, MBA is LOW, and EFA/ORA is HIGH (see Table 2). FIFO reads and writes on Port A are independent of any concurrent Port B or Port C operation.

The state of the Port B data (B0-B17) outputs is controlled by the Port B Chip Select (CSB). The B0-B17 outputs are in the high-impedance state when CSB is HIGH. The B0-B17 outputs are active when CSB is LOW.

Data is read from FIFO1 to the B0-B17 outputs by a LOW-to-HIGH transition of CLKB when CSB is LOW, RENB is HIGH, MBB is LOW and EFB/

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

ORB is HIGH (see Table 3). FIFO reads on Port B are independent of any concurrent Port A and Port C operations.

Data is loaded into FIFO2 from the C0-C17 inputs on a LOW-to-HIGH transition of CLKC when WENB is HIGH, MBC is LOW, and FFC/IRC is HIGH (see Table 4). FIFO writes on Port C are independent of any concurrent Port A and Port B operation.

The setup and hold time constraints for CSA and W/RA with regard to CLKA as well as CSB with regard to CLKB are only for enabling write and read operations and are not related to high-impedance control of the data outputs. If ENA is LOW during a clock cycle, either CSA or W/RA may change states during the setup and hold time window of the cycle. This is also true for CSB when RENB is LOW.

When operating the FIFO in FWFT mode and the Output Ready flag is LOW, the next word written is automatically sent to the FIFO’s output register by the LOW-to-HIGH transition of the port clock that sets the Output Ready flag HIGH. When the Output Ready flag is HIGH, subsequent data is clocked to the output registers only when a read is selected using CSA, W/RA, ENA and MBA at Port A or using CSB, RENB and MBB at Port B.

When operating the FIFO in IDT Standard mode, the first word will cause the Empty Flag to change state on the second LOW-to-HIGH transition of the Read Clock. The data word will not be automatically sent to the output register. Instead, data residing in the FIFO’s memory array is clocked to the output register only when a read is selected using CSA, W/RA, ENA and MBA at Port A or using CSB, RENB and MBB at Port B. Relevant write and read timing diagrams for Port A can be found in Figure 10 and 15. Relevant read and write timing

diagrams for Port B and Port C, together with Bus-Matching and Endian select operation, can be found in Figure 11 to 14.

LOOPBACK (LOOP)

A Loopback function is provided on Port A and is selected by setting the LOOP pin LOW. When the Loop feature is selected, the data output from FIFO2 will be directed to the data input of FIFO1. If Loop is selected and Port A is set-up for write operation via the W/RA pin being HIGH, then data output from FIFO2 will be written to FIFO1, on every LOW-to-HIGH transition of CLKA, provided CSA is LOW and ENA is HIGH. However, FIFO2 data output will not be placed on the output Port A (A0-A35). If Port A is set-up for read operation via the W/RA pin being LOW, then data output from FIFO2 will be written into FIFO1 on every LOW-to-HIGH transition of CLKA, provided CSA is LOW and ENA is HIGH. Also FIFO2 data will be output to Port A (A0-A35). When the LOOP pin is HIGH then Port A operates in the normal manner. Refer to Table 2 for the input set-up of the Loop feature.

The Loop operation will continue to happen provided that FIFO1 is not full and FIFO2 is not empty. If during a Loop sequence FIFO1 becomes full then any data that continues to be read out from FIFO2 will only be placed on the Port A (A0-A35) lines, (provided that Port A is set-up for read operation). If during a Loop sequence the FIFO2 becomes empty, then the last word from FIFO2 will continue to be clocked into FIFO1 until FIFO1 becomes full or until the Loop function is stopped. The Loop feature can be useful when performing system debugging and remote loopbacks. See Figures 34 and 35 for Loopback timing diagrams.

TABLE 5

(X1+1) to [16,384-(Y1+1)] (X1+1) to [32,768-(Y1+1)] (X1+1) to [65,536-(Y1+1)] H H H H

(16,384-Y1) to 16,383 (32,768-Y1) to 32,767 (65,536-Y1) to 65,535 H H L H

NOTES:

1. When a word loaded to an empty FIFO is shifted to the output register, its previous FIFO memory location is free.

2. Data in the output register does not count as a "word in FIFO memory". Since in FWFT mode, the first word written to an empty FIFO goes unrequested to the output register (no read operation necessary), it is not included in the FIFO memory count.

3. X1 is the almost-empty offset for FIFO1 used by AEB. Y1 is the almost-full offset for FIFO1 used by AFA. Both X1 and Y1 are selected during a FIFO1 reset or port A programming.

4. The ORB and IRA functions are active during FWFT mode; the EFB and FFA functions are active in IDT Standard mode.

TABLE 6

(X2+1) to [16,384-(Y2+1)] (X2+1) to [32,768-(Y2+1)] (X2+1) to [65,536-(Y2+1)] H H H H

(16,384-Y2) to 16,383 (32,768-Y2) to 32,767 (65,536-Y2) to 65,535 H H L H

NOTES:

1. When a word loaded to an empty FIFO is shifted to the output register, its previous FIFO memory location is free.

3. X2 is the almost-empty offset for FIFO2 used by AEA. Y2 is the almost-full offset for FIFO2 used by AFC. Both X2 and Y2 are selected during a FIFO2 reset or port A programming.

4. The ORA and IRC functions are active during FWFT mode; the EFA and FFC functions are active in IDT Standard mode.



 FIFO1 FLAG OPERATION (IDT Standard and FWFT modes)



Number of Words in FIFO Memory

IDT72V3686

(3)

000LLHH

1 to X1 1 to X1 1 to X1 H L H H

16,384 32,768 65,536 H H L L



 FIFO2 FLAG OPERATION (IDT Standard and FWFT modes)



Number of Words in FIFO Memory

(3)

000LLHH

1 to X2 1 to X2 1 to X2 H L H H

16,384 32,768 65,536 H H L L

IDT72V3696

(3)

(1,2)

IDT72V36106

(3)

Synchronized Synchronized

to CLKB to CLKA

EFB/ORB AEB AFA FFA/IRA

Synchronized Synchronized

to CLKA to CLKC

EFA/ORA AEA AFC FFC/IRC

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

SYNCHRONIZED FIFO FLAGS

Each FIFO is synchronized to its port clock through at least two flip-flop stages.

This is done to improve flag signal reliability by reducing the probability of metastable events when CLKA operates asynchronously with respect to either CLKB or CLKC. EFA/ORA, AEA, FFA/IRA, and AFA are synchronized to CLKA. EFB/ORB and AEB are synchronized to CLKB. FFC/IRC and AFC are synchronized to CLKC. Tables 5 and 6 show the relationship of each port flag to FIFO1 and FIFO2.

EMPTY/OUTPUT READY FLAGS (EFA/ORA, EFB/ORB)

These are dual purpose flags. In the FWFT mode, the Output Ready (ORA,

ORB) function is selected. When the Output Ready flag is HIGH, new data is present in the FIFO output register. When the Output Ready flag is LOW, the previous data word is present in the FIFO output register and attempted FIFO reads are ignored.

In the IDT Standard mode, the Empty Flag (EFA, EFB) function is selected.

When the Empty Flag is HIGH, data is available in the FIFO’s RAM memory for reading to the output register. When the Empty Flag is LOW, the previous data word is present in the FIFO output register and attempted FIFO reads are ignored.

The Empty/Output Ready flag of a FIFO is synchronized to the port clock that

reads data from its array. For both the FWFT and IDT Standard modes, the FIFO read pointer is incremented each time a new word is clocked to its output register. The state machine that controls an Output Ready flag monitors a write pointer and read pointer comparator that indicates when the FIFO memory status is empty, empty+1, or empty+2.

In FWFT mode, from the time a word is written to a FIFO, it can be shifted to

the FIFO output register in a minimum of three cycles of the Output Ready flag synchronizing clock. Therefore, an Output Ready flag is LOW if a word in memory is the next data to be sent to the FlFO output register and three cycles of the port clock that reads data from the FIFO have not elapsed since the time the word was written. The Output Ready flag of the FIFO remains LOW until the third LOW-to-HIGH transition of the synchronizing clock occurs, simultaneously forcing the Output Ready flag HIGH and shifting the word to the FIFO output register.

In IDT Standard mode, from the time a word is written to a FIFO, the Empty

Flag will indicate the presence of data available for reading in a minimum of two cycles of the Empty Flag synchronizing clock. Therefore, an Empty Flag is LOW if a word in memory is the next data to be sent to the FlFO output register and two cycles of the port Clock that reads data from the FIFO have not elapsed since the time the word was written. The Empty Flag of the FIFO remains LOW until the second LOW-to-HIGH transition of the synchronizing clock

occurs, forcing

the Empty Flag HIGH; only then can data be read.

A LOW-to-HIGH transition on an Empty/Output Ready flag synchronizing

clock begins the first synchronization cycle of a write if the clock transition occurs at time tSKEW1 or greater after the write. Otherwise, the subsequent clock cycle can be

the first synchronization cycle (see Figure 16, 17, 18 and 19).

FULL/INPUT READY FLAGS (FFA/IRA, FFC/IRC)

These are dual purpose flags. In FWFT mode, the Input Ready (IRA and

IRC) function is selected. In IDT Standard mode, the Full Flag (FFA and FFC) function is selected. For both timing modes, when the Full/Input Ready flag is HIGH, a memory location is free in the FIFO to receive new data. No memory locations are free when the Full/Input Ready flag is LOW and attempted writes to the FIFO are ignored.

The Full/Input Ready flag of a FlFO is synchronized to the port clock that writes

data to its array. For both FWFT and IDT Standard modes, each time a word is written to a FIFO, its write pointer is incremented. The state machine that

controls a Full/Input Ready flag monitors a write pointer and read pointer comparator that indicates when the FlFO memory status is full, full-1, or full-2. From the time a word is read from a FIFO, its previous memory location is ready to be written to in a minimum of two cycles of the Full/Input Ready flag synchronizing clock. Therefore, an Full/Input Ready flag is LOW if less than two cycles of the Full/Input Ready flag synchronizing clock have elapsed since the next memory write location has been read. The second LOW-to-HIGH transition on the Full/Input Ready flag synchronizing clock after the read sets the Full/Input Ready flag HIGH.

A LOW-to-HIGH transition on a Full/Input Ready flag synchronizing clock

begins the first synchronization cycle of a read if the clock transition occurs at

SKEW1 or greater after the read. Otherwise, the subsequent clock cycle

time t can be the first synchronization cycle (see Figure 20, 21, 22, and 23).

ALMOST-EMPTY FLAGS (AEA, AEB)

The Almost-Empty flag of a FIFO is synchronized to the port clock that reads data from its array. The state machine that controls an Almost-Empty flag monitors a write pointer and read pointer comparator that indicates when the FIFO memory status is almost-empty, almost-empty+1, or almost-empty+2. The almost-empty state is defined by the contents of register X1 for AEB and register X2 for AEA. These registers are loaded with preset values during a FIFO reset, programmed from Port A, or programmed serially (see the Almost-Empty flag and Almost-Full flag offset programming section). An Almost-Empty flag is LOW when its FIFO contains X or less words and is HIGH when its FIFO contains (X+1) or more words. A data word present in the FIFO output register has been read from memory.

Two LOW-to-HIGH transitions of the Almost-Empty flag synchronizing clock are required after a FIFO write for its Almost-Empty flag to reflect the new level of fill. Therefore, the Almost-Full flag of a FIFO containing (X+1) or more words remains LOW if two cycles of its synchronizing clock have not elapsed since the write that filled the memory to the (X+1) level. An Almost-Empty flag is set HIGH by the second LOW-to-HIGH transition of its synchronizing clock after the FIFO write that fills memory to the (X+1) level. A LOW-to-HIGH transition of an AlmostEmpty flag synchronizing clock begins the first synchronization cycle if it occurs at time tSKEW2 or greater after the write that fills the FIFO to (X+1) words. Otherwise, the subsequent synchronizing clock cycle may be the first synchronization cycle. (See Figure 24 and 25).

ALMOST-FULL FLAGS (AFA, AFC)

The Almost-Full flag of a FIFO is synchronized to the port clock that writes data to its array. The state machine that controls an Almost-Full flag monitors a write pointer and read pointer comparator that indicates when the FIFO memory status is almost-full, almost-full-1, or almost-full-2. The almost-full state is defined by the contents of register Y1 for AFA and register Y2 for AFC. These registers are loaded with preset values during a FlFO reset, programmed from Port A, or programmed serially (see Almost-Empty flag and Almost-Full flag offset programming section). An Almost-Full flag is LOW when the number of words in its FIFO is greater than or equal to (16,384-Y), (32,768-Y), or (65,536-Y) for the IDT72V3686, IDT72V3696, or IDT72V36106 respectively. An AlmostFull flag is HIGH when the number of words in its FIFO is less than or equal to [16,384-(Y+1)], [32,768-(Y+1)], or [65,536-(Y+1)] for the IDT72V3686, IDT72V3696, or IDT72V36106 respectively. Note that a data word present in the FIFO output register has been read from memory.

Two LOW-to-HIGH transitions of the Almost-Full flag synchronizing clock are required after a FIFO read for its Almost-Full flag to reflect the new level of fill. Therefore, the Almost-Full flag of a FIFO containing [16,384/32,768/65,536(Y+1)] or less words remains LOW if two cycles of its synchronizing clock have not elapsed since the read that reduced the number of words in memory to

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

[16,384/32,768/65,536-(Y+1)]. An Almost-Full flag is set HIGH by the second LOW-to-HIGH transition of its synchronizing clock after the FIFO read that reduces the number of words in memory to [16,384/32,768/65,536-(Y+1)]. A LOW-to-HIGH transition of an Almost-Full flag synchronizing clock begins the first synchronization cycle if it occurs at time t

SKEW2 or greater after the read that

reduces the number of words in memory to [16,384/32,768/65,536-(Y+1)]. Otherwise, the subsequent synchronizing clock cycle may be the first synchronization cycle (see Figure 26 and 27).

MAILBOX REGISTERS

Each FIFO has an 18-bit bypass register allowing the passage of command and control information from Port A to Port B or from Port C to Port A without putting it in queue. The Mailbox Select (MBA, MBB and MBC) inputs choose between a mail register and a FIFO for a port data transfer operation. The usable width of both the Mail1 and Mail2 registers matches the selected bus size for ports B and C.

When sending data from Port A to Port B via the Mail1 Register, the following is the case: A LOW-to-HIGH transition on CLKA writes data to the Mail1 Register when a Port A write is selected by CSA, W/RA, and ENA with MBA HIGH. If the selected Port B bus size is 18 bits, then the usable width of the Mail1 Register employs data lines A0-A17. (In this case, A18-A35 are don’t care inputs.) If the selected Port B bus size is 9 bits, then the usable width of the Mail1 Register employs data lines A0-A8. (In this case, A9-A35 are don’t care inputs.)

When sending data from Port C to Port A via the Mail2 Register, the following is the case: A LOW-to-HIGH transition on CLKC writes data to the Mail2 Register when a Port C write is selected by WENC with MBC HIGH. If the selected Port C bus size is 18 bits, then the usable width of the Mail2 Register employs data lines C0-C17. If the selected Port C bus size is 9 bits, then the usable width of the Mail2 Register employs data lines C0-C8. (In this case, C9-C17 are don’t care inputs.)

Writing data to a mail register sets its corresponding flag (MBF1 or MBF2) LOW. Attempted writes to a mail register are ignored while the mail flag is LOW.

When data outputs of a port are active, the data on the bus comes from the FIFO output register when the port Mailbox select input is LOW and from the mail register when the port mailbox select input is HIGH.

The Mail1 Register Flag (MBF1) is set HIGH by a LOW-to-HIGH transition on CLKB when a Port B read is selected by CSB, and RENB with MBB HIGH. For an 18-bit bus size, 18 bits of mailbox data are placed on B0-B17. For the 9-bit bus size, 9 bits of mailbox data are placed on B0-B8. (In this case, B9-B17 are indeterminate.)

The Mail2 Register Flag (MBF2) is set HIGH by a LOW-to-HIGH transition on CLKA when a Port A read is selected by CSA, W/RA, and ENA with MBA HIGH. The data in a mail register remains intact after it is read and changes only when new data is written to the register. For an 18-bit bus size, 18 bits of mailbox data appear on A18-A35. (In this case, A0-A17 are indeterminate.) For a 9bit bus size, 9 bits of mailbox data appear on A18-A26. (In this case, A0-A17 and A27-A35 are indeterminate.)

The data in a mail register remains intact after it is read and changes only when new data is written to the register. The Endian Select feature has no effect on mailbox data.

Note that MBC must be HIGH during Master Reset (until FFA/IRA and FFC/ IRC go HIGH. MBA and MBB are don't care inputs during Master Reset. For mail register and mail register flag timing diagrams, see Figure 28 and 29.

BUS SIZING

Port B may be configured in either an 18-bit word or a 9-bit byte format for data read from FIFO1. Port C may be configured in either an 18-bit word or a 9-bit byte format for data written to FIFO2. The bus size can be selected independently for Ports B and C. The level applied to the Port B Size Select (SIZEB) input determines the Port B bus size and the level applied to the Port C Size Select (SIZEC) input determines the Port C bus size. These levels should be static throughout FIFO operation. Both bus size selections are implemented at the completion of Master Reset, by the time the Full/Input Ready flag is set HIGH, as shown in Figure 2 and 3.

Two different methods for sequencing data transfer are available for Ports B and C regardless of whether the bus size selection is byte- or word-size. They are referred to as Big-Endian (most significant byte first) and Little-Endian (least significant byte first). The level applied to the Big-Endian Select (BE) input during the LOW-to-HIGH transition of MRS1 and MRS2 selects the endian method that will be active during FIFO operation. This selection applies to both ports B and C. The endian method is implemented at the completion of Master Reset, by the time the Full/Input Ready flag is set HIGH, as shown in Figure 2 and 3 (see Endian Selection section).

Only 36-bit long word data is written to or read from the two FIFO memories on these devices. Bus-Matching operations are done after data is read from the FIFO1 RAM (Port B) and before data is written to the FIFO2 RAM (Port C). The Endian select operations are not available when transferring data via mailbox registers. Furthermore, both the word- and byte-size bus selections limit the width of the data bus that can be used for mail register operations. In this case, only those byte lanes belonging to the selected word- or byte-size bus can carry mailbox data. The remaining data outputs will be indeterminate. The remaining data inputs will be don’t care inputs. For example, when a wordsize bus is selected on Port B, then mailbox data can be transmitted only from A0-A17 to B0-B17. When a byte-size bus is selected on Port B, then mailbox data can be transmitted only from A0-A8 to B0-B8. Similarly, when a word-size bus is selected on Port C, then mailbox data can be transmitted only from C0C17 to A18-A35. When a byte-size bus is selected on Port C, then mailbox data can be transmitted only from C0-C8 to A18-A26.

BUS-MATCHING FIFO1 READS

Data is read from the FIFO1 RAM in 36-bit long word increments. Since Port B can have a byte or word size, only the first one or two bytes appear on the selected portion of the FIFO1 output register, with the rest of the long word stored in auxiliary registers. In this case, subsequent FIFO1 reads output the rest of the long word to the FIFO1 output register in the order shown by Figure 2.

When reading data from FIFO1 in byte format, the unused B9-B17 outputs are indeterminate.

BUS-MATCHING FIFO2 WRITES

Data is written to the FIFO2 RAM in 36-bit long word increments. Data written to FIFO2 with a byte or word bus size stores the initial bytes or words in auxiliary registers. The CLKC rising edge that writes the fourth byte or the second word of long word to FIFO2 also stores the entire long word in the FIFO2 memory. The bytes are arranged in the manner shown in Figure 3.

When writing data to FIFO2 in byte format, the unused C9-C17 inputs are don't care inputs.

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO

(e)

WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

BYTE ORDER ON PORT A:

BYTE ORDER ON PORT B:

BE SIZEB

H L

BE SIZEB

L L

A35A27

A18

A26

B17

B9 B8  B0

A17

A9

B17

B9 B8 B0

(b) WORD SIZE  BIG ENDIAN

B9 B8 B0

B17

B9 B8 B0

A0

Write to FIFO1

1st: Read from FIFO1

2nd: Read from FIFO1

1st: Read from FIFO1

2nd: Read from FIFO1

BE SIZEB

H H

BE SIZEB

L H

B9 B8 B0

B17

B9 B8 B0

B17

B9 B8  B0

B17

B9 B8  B0

(d) BYTE SIZE  BIG ENDIAN

B17

B9 B8  B0

B17

B9 B8 B0

B17

B9 B8 B0

1st: Read from FIFO1

2nd: Read from FIFO1

3rd: Read from FIFO1

4th: Read from FIFO1

1st: Read from FIFO1

2nd: Read from FIFO1

3rd: Read from FIFO1

B17

B9 B8  B0

BYTE SIZE  LITTLE ENDIAN

Figure 2. Port B Bus Sizing

4th: Read from FIFO1

4676 drw04

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO

(e)

WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36



A18

BYTE ORDER ON PORT A:

BYTE ORDER ON PORT C:

BE SIZEC

H L

A35A27

A26



C9 C8 C0

C17

C17C9 C8 C0

(b) WORD SIZE  BIG ENDIAN



C9 C8 C0

C17

BE SIZEC

L L

C17



C9 C8 C0

A17

COMMERCIAL TEMPERATURE RANGE



Read from FIFO2

1st: Write to FIFO2

2nd: Write to FIFO2

1st: Write to FIFO2

2nd: Write to FIFO2

BE SIZEC

H H

BE SIZEC

L H

C17



C9 C8 C0



C9 C8 C0

C17



C9 C8 C0

C17



C9 C8 C0

C17

(d) BYTE SIZE  BIG ENDIAN

C17



C9 C8 C0



C17



1st: Write to FIFO2

2nd: Write to FIFO2

3rd: Write to FIFO2

4th: Write to FIFO2

1st: Write to FIFO2

2nd: Write to FIFO2



C17

BYTE SIZE  LITTLE ENDIAN

Figure 3. Port C Bus Sizing



C0C17C9



3rd: Write to FIFO2

4th: Write to FIFO2

4676 drw05

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

CLKA

CLKB

RSTS

MRS1

BES

BE/FWFT

FS2,FS1, FS0

WFF

FSS

0,1

FFA/IRA

(2)

REF

EFB/ORB

RSF

AEB

RSF

AFA

RSF

MBF1

RTM LOW

LOOP

NOTES:

1. PRS1 and MBC must be HIGH during Master Reset until the rising edge of FFA/IRA goes HIGH.

2. If BE/FWFT is HIGH, then EFB/ORB will go LOW one CLKB cycle earlier than in this case where BE/FWFT is LOW.

HIGH

Figure 4. FIFO1 Master Reset and Loading X1 and Y1 with a Preset Value of Eight (IDT Standard and FWFT Modes)

RSTH

BEH

FSH

FWS

FWFT

WFF

4676 drw06

CLKC

CLKA

tRSTS

(3)

MRS2

BE/FWFT

FS2,FS1, FS0

tWFF tWFF

BES tBEH

0,1

FFC/IRC

(2)

tREF

EFA/ORA

tRSF

AEA

tRSF

AFC

tRSF

MBF2

RTM LOW

LOOP

NOTES:

1. PRS2 and MBC must be HIGH during Master Reset until the rising edge of FFC/IRC goes HIGH.

2. If BE/FWFT is HIGH, then EFA/ORA will go LOW one CLKA cycle earlier than in this case where BE/FWFT is LOW.

3. MRS2 must toggle simultaneously with MRS1.

HIGH

Figure 5. FIFO2 Master Reset and Loading X2 and Y2 with a Preset Value of Eight (IDT Standard and FWFT Modes)

tRSTH

tFWS

FWFT

tFSHtFSS

4676 drw07

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

CLKA

CLKB

RSTS

PRS1

WFF

FFA/IRA

(2)

REF

EFB/ORB

RSF

AEB

RSF

AFA

RSF

MBF1

RTM LOW

NOTES:

1. MRS1 must be HIGH during Partial Reset.

2. If BE/FWFT is HIGH, then EFB/ORB will go LOW one CLKB cycle earlier than in this case where BE/FWFT is LOW.

Figure 6. FIFO1 Partial Reset (IDT Standard and FWFT Modes)

RSTH

WFF

4676 drw08

CLKC

CLKA

RSTS

PRS2

WFF

FFC/IRC

(2)

REF

EFA/ORA

RSF

AEA

RSF

AFC

RSF

MBF1

NOTES:

1. MRS2 must be HIGH during Partial Reset.

2. If BE/FWFT is HIGH, then EFA/ORA will go LOW one CLKA cycle earlier than in this case where BE/FWFT is LOW.

Figure 7. FIFO2 Partial Reset (IDT Standard and FWFT Modes)

RSTH

WFF

4676 drw09

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

CLKA

MRS1, MRS2

FSS

FSH

FS2

FS1,FS0

FFA/IRA

FSS

0,0

FSH

WFF

ENS2

ENH

SKEW1

(1)

ENA

A0-A35

AFA Offset

(Y1)

AEB Offset

(X1)

AFC Offset

(Y2)

AEA Offset

(X2)

CLKC

FFC/IRC

NOTES:

SKEW1 is the minimum time between the rising CLKA edge and a rising CLKC edge for FFC/IRC to transition HIGH in the next cycle. If the time between the rising edge of CLKA and rising

1. t edge of CLKC is less than t

2. CSA = LOW, W/RA = HIGH, MBA = LOW. It is not necessary to program Offset register on consecutive clock cycles.

SKEW1, then FFC/IRC may transition HIGH one CLKC cycle later than shown.

First Word to FIFO1

WFF

4676 drw10

Figure 8. Parallel Programming of the Almost-Full Flag and Almost-Empty Flag Offset Values after Reset (IDT Standard and FWFT Modes)

CLKA

MRS1, MRS2

FSS

FSH

FS2

WFF

(1)

FFA/IRA

FSS

SPH

SENS

SENH

SENS

SKEW

SENH

FS1/SEN

SDS

(3)

FS0/SD

AFA Offset

(Y1) MSB

CLKC

FFC/IRC

NOTES:

1. t

SKEW1 is the minimum time between the rising CLKA edge and a rising CLKC edge for FFC/IRC to transition HIGH in the next cycle. If the time between the rising edge of CLKA and rising

edge of CLKC is less than t

2. It is not necessary to program Offset register bits on consecutive clock cycles. FIFO write attempts are ignored until FFA/IRA, FFC/IRC is set HIGH.

3. Programmable offsets are written serially to the SD input in the order AFA offset (Y1), AEB offset (X1), AFC offset (Y2), and AEA offset (X2).

SKEW1, then FFC/IRC may transition HIGH one CLKC cycle later than shown.

SDH

SDS

AEA Offset

(X2) LSB

SDH

WFF

4676 drw11

Figure 9. Serial Programming of the Almost-Full Flag and Almost-Empty Flag Offset Values after Reset (IDT Standard and FWFT Modes)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLK

CLKH

CLKL

CLKA

COMMERCIAL TEMPERATURE RANGE

FFA/IRA

HIGH

CSA

W/RA

MBA

ENA

A0-A35

NOTE:

1. Written to FIFO1.

ENS1

ENS2

ENH

(1)

ENS2

ENH

(1)

ENS2

No Operation

Figure 10. Port A Write Cycle Timing for FIFO1 (IDT Standard and FWFT Modes)

ENH

4676 drw12

CLKC

FFC/IRC HIGH

ENS2

ENH

ENS2

ENH

MBC

ENS2

ENH

ENS2

ENH

WENC

C0-C17

DATA SIZE TABLE FOR WORD WRITES TO FIFO2

SIZE MODE

SIZEC BE C17-C9 C8-C0 A35-A27 A26-A18 A17-A9 A8-A0

LH1ABABCD

LL1CDABCD

(1)

WRITE DATA WRITTEN DATA READ FROM FIFO2

NO. TO FIFO2

2CD

2AB

4676 drw13

NOTE:

1. BE is selected at Master Reset; SIZEB and SIZEC must be static throughout device operation.

Figure 11. Port C Word Write Cycle Timing for FIFO2 (IDT Standard and FWFT Modes)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLKC

COMMERCIAL TEMPERATURE RANGE

FFC/IRC

HIGH

ENS2

ENH

MBC

ENS2

ENH

ENS2

ENH

WENC

C0-C8

4676 drw14

DATA SIZE TABLE FOR BYTE WRITES TO FIFO2

SIZE MODE

SIZEC BE C8-C0 A35-A27 A26-A18 A17-A9 A8-A0

HH A B CD

HL A B CD

NOTE:

1. BE is selected at Master Reset; SIZEB and SIZEC must be static throughout device operation.

(1)

WRITE DATA WRITTEN DATA READ FROM FIFO2

NO. TO FIFO2

1A 2B 3C 4D 1D 2C 3B 4A

Figure 12. Port C Byte Write Cycle Timing for FIFO2 (IDT Standard and FWFT Modes)

CLKB

EFB/ORB

HIGH

CSB

MBB

ENS2

ENH

RENB

No Operation

B0-B17

(Standard Mode)

B0-B17

(FWFT Mode)

MDV

Previous Data

DATA SIZE TABLE FOR WORD READS FROM FIFO1

SIZE MODE

SIZEB BE A35-A27 A26-A18 A17-A9 A8-A0 B17-B9 B8-B0

HH A B C D1A B

HL A B C D1 C D

NOTE:

1. BE is selected at Master Reset; SIZEB and SIZEC must be static throughout device operation.

(1)

DATA WRITTEN TO FIFO1 READ DATA READ FROM FIFO1

Figure 13. Port B Word Read Cycle Timing for FIFO1 (IDT Standard and FWFT Modes)

NO.

2 C D

2A B

DIS

4676 drw15

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLKB

COMMERCIAL TEMPERATURE RANGE

EFB/ORB

HIGH

CSB

MBB

ENS2

ENH

RENB

(Standard Mode)

B0-B8

(FWFT Mode)

MDV

Previous Data

MDV

NOTE:

1. Unused bytes B9-B17 are indeterminate for byte-size reads.

DATA SIZE TABLE FOR BYTE READS FROM FIFO1

SIZE MODE

SIZEB BE A35-A27 A26-A18 A17-A9 A8-A0 B8-B0

HH ABCD

HL ABCD

NOTE:

1. BE is selected at Master Reset; SIZEB must be static throughout device operation.

(1)

DATA WRITTEN TO FIFO1 READ DATA READ FROM FIFO1

Figure 14. Port B Byte Read Cycle Timing for FIFO1 (IDT Standard and FWFT Modes)

NO.

1A 2B 3C 4D

1D 2C 3B 4A

No Operation

Read 5Read 2 Read 3

DIS

4676 drw16

CLKA

EFA/ORA

W/RA

MBA

A0-A35

(

Standard Mode)

A0-A35

(FWFT Mode)

NOTE:

1. Read From FIFO2.

CSA

ENA

CLKH

CLK

CLKL

HIGH

ENS2

MDV

Previous Data

MDV

ENH

(1)

ENS2

ENH

(1)

Figure 15. Port A Read Cycle Timing for FIFO2 (IDT Standard and FWFT Modes)

ENS2

No Operation

(1)

ENH

DIS

4676 drw17

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLKA

CLKH

CLK

CLKL

COMMERCIAL TEMPERATURE RANGE

CSA

WRA

MBA

ENA

IRA

A0-A35

CLKB

ORB

CSB

MBB

RENB

LOW

HIGH

ENS2

FIFO1 Empty

LOW

ENH

SKEW1

CLKH

CLK

CLKL

(1)

ENS2

REF

ENH

4676 drw18

B0-B17

NOTES:

SKEW1 is the minimum time between a rising CLKA edge and a rising CLKB edge for ORB to transition HIGH and to clock the next word to the FIFO1 output register in three CLKB cycles.

1. t If the time between the rising CLKA edge and rising CLKB edge is less than t cycle later than shown.

2. If Port B size is word or byte, ORB is set LOW by the last word or byte read from FIFO1, respectively (the word-size case is shown).

SKEW1, then the transition of ORB HIGH and load of the first word to the output register may occur one CLKB

Figure 16. ORB Flag Timing and First Data Word Fall Through when FIFO1 is Empty (FWFT Mode)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLKA

COMMERCIAL TEMPERATURE RANGE

tCLK

tCLKH tCLKL

CSA

WRA

MBA

ENA

FFA

A0-A35

CLKB

EFB

CSB

MBB

RENB

B0-B17

LOW

HIGH

tENS2

HIGH

tDS tDH

FIFO1 Empty

LOW

tENH

tSKEW1

tCLKH

tCLK

tCLKL

(1)

tREF

tENS2

tREF

tENH

4676 drw 19

NOTES:

SKEW1 is the minimum time between a rising CLKA edge and a rising CLKB edge for EFB to transition HIGH in the next CLKB cycle. If the time between the rising CLKA edge and rising

1. t CLKB edge is less than t

2. If Port B size is word or byte, EFB is set LOW by the last word or byte read from FIFO1, respectively (the word-size case is shown).

SKEW1, then the transition of EFB HIGH may occur one CLKB cycle later than shown.

Figure 17.

EFB

Flag Timing and First Data Read Fall Through when FIFO1 is Empty (IDT Standard Mode)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLKC

ENS2

ENH

MBC

ENS2

ENH

WENC

IRC

C0-C17

CLKA

ORA

HIGH

Write 1

FIFO2 Empty

Write 2

SKEW1

CLKH

CLK

CLKL

(1)

COMMERCIAL TEMPERATURE RANGE

CLK

CLKH

CLKL

REF

CSA

W/RA

MBA

LOW

ENS2

ENH

ENA

A0-A35

NOTES:

SKEW1 is the minimum time between a rising CLKC edge and a rising CLKA edge for ORA to transition HIGH and to clock the next word to the FIFO2 output register in three CLKA cycles.

1. t If the time between the CLKC edge and the rising CLKA edge is less than t cycle later than shown.

2. If Port C size is word or byte, t

SKEW1 is referenced to the rising CLKC edge that writes the last word or byte write of the long word, respectively.

Old Data in FIFO2 Output Register

SKEW1, then the transition of ORA HIGH and load of the first word to the output register may occur one CLKA

4676 drw 20

Figure 18. ORA Flag Timing and First Data Word Fall through when FIFO2 is Empty (FWFT Mode)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLKC

ENS2

ENH

MBC

ENS2

ENH

WENC

FFC

C0-C17

CLKA

EFA

CSA

HIGH

Write 1

FIFO2 Empty

LOW

Write 2

SKEW1

CLKH

CLK

CLKL

(1)

COMMERCIAL TEMPERATURE RANGE

CLK

CLKH

REF

CLKL

REF

MBA

LOW

ENS2

ENH

W/RA

ENA

A0-A35

NOTES:

SKEW1 is the minimum time between a rising CLKC edge and a rising CLKA edge for EFA to transition HIGH in the next CLKA cycle. If the time between the rising CLKC edge and rising

1. t

CLKA edge is less than t

2. If Port C size is word or byte, t

SKEW1, then the transition of EFA HIGH may occur one CLKA cycle later than shown.

SKEW1 is referenced to the rising CLKC edge that writes the last word or byte of the long word, respectively.

Figure 19.

EFA

Flag Timing and First Data Read when FIFO2 is Empty (IDT Standard Mode)

4676 drw 21

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLK

CLKH

CLKL

CLKB

COMMERCIAL TEMPERATURE RANGE

CSB

MBB

RENB

ORB

B0-B17

CLKA

IRA

CSA

W/RA

MBA

LOW

ENS2

HIGH

Previous Word in FIFO1 Output Register

FIFO1 Full

LOW

HIGH

ENH

SKEW1

(1)

CLKH

CLK

CLKL

WFF

ENS2

WFF

ENH

ENA

A0-A35

NOTES:

SKEW1 is the minimum time between a rising CLKB edge and a rising CLKA edge for IRA to transition HIGH in the next CLKA cycle. If the time between the rising CLKB edge and rising

1. t CLKA edge is less than t

2. If Port B size is word or byte, t

SKEW1, then IRA may transition HIGH one CLKA cycle later than shown.

SKEW1 is referenced to the rising CLKB edge that reads the last word or byte write of the long word, respectively (the word-size case is shown).

Write

To FIFO1

4676 drw 22

Figure 20. IRA Flag Timing and First Available Write when FIFO1 is Full (FWFT Mode)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLK

CLKH

CLKL

CLKB

CSB

LOW

MBB

ENS2

ENH

RENB

EFB

B0-B17

CLKA

FFA

CSA

HIGH

Previous Word in FIFO1 Output Register

FIFO1 Full

LOW

SKEW1

(1)

CLKH

CLK

CLKL

WFF

COMMERCIAL TEMPERATURE RANGE

WFF

W/RA

HIGH

ENS2

ENH

MBA

ENS2

ENH

ENA

A0-A35

NOTES:

SKEW1 is the minimum time between a rising CLKB edge and a rising CLKA edge for FFA to transition HIGH in the next CLKA cycle. If the time between the rising CLKB edge and rising

1. t

CLKA edge is less than t

2. If Port B size is word or byte, t

SKEW1, then FFA may transition HIGH one CLKA cycle later than shown.

SKEW1 is referenced from the rising CLKB edge that reads the last word or byte of the long word, respectively (the word-size case is shown).

Figure 21.

FFA

Flag Timing and First Available Write when FIFO1 is Full (IDT Standard Mode)

Write

To FIFO1

4676 drw 23

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLK

CLKH

CLKL

CLKA

COMMERCIAL TEMPERATURE RANGE

CSA

W/RA

MBA

ENA

ORA

A0-A35

CLKC

IRC

MBC

WENC

C0-C17

LOW

ENS2

HIGH

Previous Word in FIFO2 Output Register

SKEW1

FIFO2 Full

ENH

(1)

CLKH

CLK

CLKL

Next Word From FIFO2

WFF

ENS2

Write

To FIFO2

WFF

ENH

4676 drw 24

NOTES:

SKEW1 is the minimum time between a rising CLKC edge and a rising CLKC edge for IRC to transition HIGH in the next CLKC cycle. If the time between the rising CLKA edge and rising

1. t

CLKC edge is less than t

2. If Port C size is word or byte, IRC is set LOW by the last word or byte write of the long word, respectively (the word-size case is shown).

SKEW1, then IRC may transition HIGH one CLKC cycle later than shown.

Figure 22. IRC Flag Timing and First Available Write when FIFO2 is Full (FWFT Mode)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

CLK

CLKH

CLKL

CLKA

COMMERCIAL TEMPERATURE RANGE

CSA

W/RA

MBA

LOW

ENS2

ENH

ENA

EFA

A0-A35

CLKC

FFC

HIGH

Previous Word in FIFO2 Output Register

SKEW1

FIFO2 Full

(1)

CLKH

CLK

CLKL

WFF

Next Word From FIFO2

ENS2

WFF

ENH

MBC

ENS2

ENH

ENC

C0-C17

NOTES:

SKEW1 is the minimum time between a rising CLKA edge and a rising CLKC edge for FFC to transition HIGH in the next CLKC cycle. If the time between the rising CLKA edge and rising

1. t

CLKC edge is less than t

2. If Port C size is word or byte, FFC is set LOW by the last word or byte write of the long word, respectively (the word-size case is shown).

SKEW1, then FFC may transition HIGH one CLKC cycle later than shown.

Write

To FIFO2

4676 drw 25

FFC

Figure 23.

Flag Timing and First Available Write when FIFO2 is Full (IDT Standard Mode)

CLKA

ENS2

ENH

ENA

(1)

SKEW2

CLKB

AEB

X1 Word in FIFO1

ENH

PAE

(X1+1) Words in FIFO1

ENS2

RENB

4676 drw 26

NOTES:

SKEW2 is the minimum time between a rising CLKA edge and a rising CLKB edge for AEB to transition HIGH in the next CLKB cycle. If the time between the rising CLKA edge and rising

1. t

CLKB edge is less than t

2. FIFO1 Write (CSA = LOW, W/RA = LOW, MBA = LOW), FIFO1 read (CSB = LOW, MBB = LOW). Data in the FIFO1 output register has been read from the FIFO.

3. If Port B size is word or byte, AEB is set LOW by the last word or byte read from FIFO1, respectively.

SKEW2, then AEB may transition HIGH one CLKB cycle later than shown.

Figure 24. Timing for

AEB

when FIFO1 is Almost-Empty (IDT Standard and FWFT Modes)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

CLKC

ENS2

ENH

WENC

(1)

SKEW2

CLKA

AEA

X2 Words in FIFO2

ENH

PAE

(X2+1) Words in FIFO2

ENS2

ENA

NOTES:

1. t

SKEW2 is the minimum time between a rising CLKC edge and a rising CLKA edge for AEA to transition HIGH in the next CLKA cycle. If the time between the rising CLKC edge and rising

CLKA edge is less than t

2. FIFO2 Write (MBC = LOW), FIFO2 read ( CSA = LOW, W/RA = LOW, MBA = LOW). Data in the FIFO2 output register has been read from the FIFO.

3. If Port C size is word or byte, t

CLKA

SKEW2, then AEA may transition HIGH one CLKA cycle later than shown.

SKEW2 is referenced to the rising CLKC edge that writes the last word or byte of the long word, respectively.

Figure 25. Timing for

AEA

when FIFO2 is Almost-Empty (IDT Standard and FWFT Modes)

(1)

SKEW2

ENS2

ENH

4676 drw 27

ENA

AFA

[D-(Y1+1)] Words in FIFO1

PAF

(D-Y1) Words in FIFO1

PAF

CLKB

ENS2

ENH

RENB

NOTES:

1. t

SKEW2 is the minimum time between a rising CLKA edge and a rising CLKB edge for AFA to transition HIGH in the next CLKA cycle. If the time between the rising CLKA edge and rising

CLKB edge is less than t

2. FIFO1 Write (CSA = LOW, W/RA = HIGH, MBA = LOW), FIFO1 read (CSB = LOW, MBB = LOW). Data in the FIFO1 output register has been read from the FIFO.

3. D = Maximum FIFO Depth = 16,384 for the IDT72V3686, 32,768 for the IDT72V3696, 65,536 for the IDT72V36106.

4. If Port B size is word or byte, t

CLKC

SKEW2, then AFA may transition HIGH one CLKA cycle later than shown.

SKEW2 is referenced from the rising CLKB edge that reads the last word or byte of the long word, respectively.

AFA

Figure 26. Timing for

when FIFO1 is Almost-Full (IDT Standard and FWFT Modes)

(1)

SKEW2

ENS2

ENH

4676 drw 28

WENC

PAF

AFC

[D-(Y2+1)] Words in FIFO2

PAF

(D-Y2) Words in FIFO2

CLKA

ENS2

ENH

ENA

NOTES:

1. t

SKEW2 is the minimum time between a rising CLKC edge and a rising CLKA edge for AFC to transition HIGH in the next CLKC cycle. If the time between the rising CLKC edge and rising

CLKA edge is less than t

2. FIFO2 write (MBC = LOW), FIFO2 read (CSA = LOW, W/RA = LOW, MBA = LOW). Data in the FIFO2 output register has been read from the FIFO.

3. D = Maximum FIFO Depth = 16,384 for the IDT72V3686, 32,768 for the IDT72V3696, 65,536 for the IDT72V36106.

4. Port C size is word or byte, AFC is set LOW by the last word or byte write of the long word, respectively.

SKEW2, then AFC may transition HIGH one CLKC cycle later than shown.

Figure 27. Timing for

AFC

when FIFO2 is Almost-Full (IDT Standard and FWFT Modes)

4676 drw 29

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

CLKA

CSA

ENS1

ENH

W/RA

ENS2

ENH

MBA

ENS2

ENH

ENA

A0-A35

CLKB

PMF

MBF1

CSB

MBB

ENS2

ENH

RENB

B0-B17

NOTE:

1. If Port B is configured for word size, data can be written to the Mail1 register using A0-A17 (A18-A35 are don't care inputs). In this first case B0-B17 will have valid data. If Port B is configured for byte size, data can be written to the Mail1 Register using A0-A8 (A9-A35 are don't care inputs). In this second case, B0-B8 will have valid data (B9-B17 will be indeterminate).

FIFO1 Output Register

Figure 28. Timing for Mail1 Register and

MDV

PMR

W1 (Remains valid in Mail1 Register after read)

MBF1

Flag (IDT Standard and FWFT Modes)

DIS

4676 drw 30

CLKC

ENS2

ENH

MBC

ENS2

ENH

ENC

C0-C17

CLKA

PMF

MBF2

CSA

W/RA

MBA

ENS2

ENH

ENA

A0-A35

NOTE:

1. If Port C is configured for word size, data can be written to the Mail2 register using C0-C17. In this first case, A18-A35 will have valid data (A0-A17 will be indeterminate). If Port C is configured for byte size, data can be written to the Mail2 register using C0-C8 (C9-C17 are don't care inputs). In this second case, A18-A26 will have valid data (A0-A17 and A27-A35 will be indeterminate).

FIFO2 Output Register

Figure 29. Timing for Mail2 Register and

MDV

PMR

W1 (Remains valid in Mail2 Register after read)

MBF2

Flag (IDT Standard and FWFT Modes)

DIS

4676 drw 31

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

CLKA

CLKB

342

ENS2

ENH

RENB

RSTS

RSTH

RT1

RTMS

RTMH

RTM

REF

(2)

REF

(2)

EFB

B0-Bn

NOTES:

1. CSB = LOW

2. Retransmit setup is complete after EFB returns HIGH, only then can a read operation begin.

3. W1 = first word written to the FIFO1 after Master Reset on FIFO1.

4. No more than D-2 may be written to the FIFO1 between Reset of FIFO1 (Master or Partial) and Retransmit setup. Therefore, FFA will be LOW throughout the Retransmit setup procedure. D = 16,384, 32,768 and 65,536 for the IDT72V3686, IDT72V3696 and IDT72V36106 respectively.

4676 drw 32

Figure 30. Retransmit Timing for FIFO1 (IDT Standard Mode)

CLKC

CLKA

342

ENS2

ENH

ENA

RSTH

RTMH

RT2

RTMS

RSTS

RTM

REF

(2)

REF

(2)

EFA

A0-An

NOTES:

1. CSA = LOW

2. Retransmit setup is complete after EFA returns HIGH, only then can a read operation begin.

3. W1 = first word written to the FIFO1 after Master Reset on FIFO2.

4. No more than D-2 may be written to the FIFO1 between Reset of FIFO2 (Master or Partial) and Retransmit setup. Therefore, FFC will be LOW throughout the Retransmit setup procedure. D = 16,384, 32,768 and 65,536 for the IDT72V3686, IDT72V3696 and IDT72V36106 respectively.

4676 drw 33

Figure 31. Retransmit Timing for FIFO2 (IDT Standard Mode)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

CLKA

CLKB

RENB

RT1

LOW

RTMS

RSTS

342

RSTH

RTMH

RTM

REF

(2)

REF

(2)

ORB

B0-Bn

NOTES:

1. CSB = LOW

2. Retransmit setup is complete after ORB returns HIGH, only then can a read operation begin.

3. W1 = first word written to the FIFO1 after Master Reset on FIFO1.

4. No more than D-2 may be written to the FIFO1 between Reset of FIFO1 (Master or Partial) and Retransmit setup. Therefore, IRA will be LOW throughout the Retransmit setup procedure. D = 16,385, 32,769 and 65,537 for the IDT72V3686, IDT72V3696 and IDT72V36106 respectively.

4676 drw 34

Figure 32. Retransmit Timing for FIFO1 (FWFT Mode)

CLKC

CLKA

ENA

LOW

RSTS

342

RSTH

RT2

RTMS

RTMH

RTM

REF

(2)

REF

(2)

ORA

A0-An

NOTES:

1. CSA = LOW

2. Retransmit setup is complete after ORA returns HIGH, only then can a read operation begin.

3. W1 = first word written to the FIFO2 after Master Reset on FIFO2.

4. No more than D-2 may be written to the FIFO2 between Reset of FIFO2 (Master or Partial) and Retransmit setup. Therefore, IRC will be LOW throughout the Retransmit setup procedure. D = 16,385, 32,769 and 65,537 for the IDT72V3686, IDT72V3696 and IDT72V36106 respectively.

4676 drw 35

Figure 33. Retransmit Timing for FIFO2 (FWFT Mode)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

COMMERCIAL TEMPERATURE RANGE

tCLKH

tCLKL

CLKA

LOOP

CSA

W/RA

MBA

tCLK

tENS2

tENH

tENS2

tENH

tENS2

tENH

ENA

tMDV

tEN

A0-A35

Write to FIFO 1

NOTES:

1. Data is read from FIFO2 and written into FIFO1 & placed on Port A simultaneously. The first data word written into FIFO1 is the Previous Data Word (Wn-1)

2. All FIFO status flags operate as normal, based on the contents of respective FIFO's.

3. Loopback is available in both Standard IDT and FWFT modes. The diagram above is for both.

Wn-1

(1)

Write to FIFO 1

No Operation

Wn+1

Figure 34. Loopback Operation (FIFO2 data transfer to FIFO1 and Port A)

tDIS

4676 drw 36

tCLKH

tCLK

tCLKL

CLKA

LOOP

CSA

W/RA

MBA

tENS2

tENH

tENS2

tENH

tENS2

ENA

tMDV

(4)

WRITE

to FIFO 1

A0-A35

NOTES:

1. Data is read from FIFO2 and written into FIFO1 only. The data from FIFO2 is NOT placed on Port A. Port A is held in the high impedance state.

2. All FIFO status flags operate as normal, based on the contents of respective FIFO's.

3. Loopback is available in both Standard IDT and FWFT modes. The diagram above is for both.

4. Write operations to FIFO1 cannot be accessed via Port A.

tEN

Write to FIFO 1

HIGH-Z

Wn-1

(1)

Write to FIFO 1

No Operation

Wn+1

tENH

tDIS

4676 drw 37

Figure 35. Loopback Operation (FIFO2 data transfer to FIFO1)

IDT72V3686/72V3696/72V36106 3.3V CMOS TRIPLE BUS SyncFIFO WITH BUS-MATCHING 16,384 x 36 x 2, 32,768 x 36 x 2, 65, 536 x 36

PARAMETER MEASUREMENT INFORMATION

From Output

Under Test

510Ω

PROPAGATION DELAY

LOAD CIRCUIT

COMMERCIAL TEMPERATURE RANGE

3.3V

330Ω

(1)

30 pF

Timing

Input

Data,

Enable

1.5V

Input

VOLTAGE WAVEFORMS

SETUP AND HOLD TIMES

Output

Enable

1.5V

PLZ

Low-Level

Output

High-Level

Output

PHZ

VOLTAGE WAVEFORMS

ENABLE AND DISABLE TIMES

NOTE:

1. Includes probe and jig capacitance.

1.5V GND

High-Level

Input

Low-Level

Input

1.5V

GND

VOLTAGE WAVEFORMS

PULSE DURATIONS

1.5V

PZL

1.5V

PZH

1.5V

GND

Input

In-Phase

Output

1.5V

GND

VOLTAGE WAVEFORMS

PROPAGATION DELAY TIMES

4676 drw 38

Figure 36. Load Circuit and Voltage Waveforms

ORDERING INFORMATION

IDT

NOTE:

1. Industrial temperature range is available by special order.

XXXXXX

Device Type

XXX

Power Speed Package

XX X

Process/

Temperature

Range

BLANK

10 15

72V3686 72V3696 72V36106

Commercial (0°C to +70°C)

Thin Quad Flat Pack (TQFP, PK128-1)

CLK

Commercial Only

Low Power

16,384 x 36 x 2  3.3V Triple Bus SyncFIFO with Bus-Matching 32,768 x 36 x 2  3.3V Triple Bus SyncFIFO with Bus-Matching 65,536 x 36 x 2  3.3V Triple Bus SyncFIFO with Bus-Matching

Clock Cycle Time (t Speed in Nanoseconds

)

4676 drw 39

DATASHEET DOCUMENT HISTORY

11/08/2000 pgs. 1, 7, 9, 10, 13, 22 and 39 12/14/2000 pgs. 5 and 6. 03/27/2001 pgs. 7 and 8. 11/04/2003 pg. 1.

CORPORATE HEADQUARTERS for SALES: for TECH SUPPORT:

2975 Stender Way 800-345-7015 or 408-727-6116 408-330-1753 Santa Clara, CA 95054 fax: 408-492-8674 e-mail: FIFOhelp@idt.com

www.idt.com

Datasheet IDT72V3686, IDT72V3696, IDT72V36106 Datasheet (IDT)

Specifications and Main Features

Frequently Asked Questions

User Manual
