ICS9342

Third party brands and names are the property of their respective owners.

9342 Rev E 9/06/00

Pin Configuration

48-Pin 300mil SSOP

Recommended Application:

Power PC System Clock

Output Features:

• 12- CPUs @ 3.3V, up to 146MHz

• 1- PCIREF @ 3.3V, up to 73MHz

• 1 - OUT 3.3V, 64MHz

• 1 - OUT/2 3.3V, OUT/2MHz

• 2 - REF @ 3.3V, 14.318MHz

Features:

• Up to 146MHz frequency support

• Support power management: CPU, PCI stop and power
down mode.

• Spread spectrum for EMI control (0 to -0.5%, ± 0.25%).

• Uses external 14.318MHz crystal

• FS pins for frequency select

• Support for industrial temperature range (-40C° to 85C°)

Key Specifications:

• CPU Output Skew: <200ps

• CPU - PCI Output Skew: <500ps

• CPU Output Jitter: <150ps

• PCI Output Jitter: <500ps

133MHz Clock Generator and Integrated Buffer for PowerPC™

VDDREF

REF1
REF0

GNDREF

X1
X2

*PD#

*CPU-STOP#

VDD

GND

*PCI_STOP#

*SS_EN#

VDDPCI
PCIREF
GNDPCI

*FS0
*FS1

*FS2
VDDFP
GNDFP

*TEST#/OUT

*BOOST#/OUT_DIV2

*PDFP#

VDDA

OUTSEL1*
VDDCPU
GNDCPU
CPU0
CPU1
CPU2
VDDCPU
GNDCPU
CPU3
CPU4
CPU5
VDDCPU
GNDCPU
CPU6
CPU7
CPU8
VDDCPU
GNDCPU
CPU9
CPU10
CPU11
VDDCPU
GNDCPU
OUTSEL0*

ICS9342

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25

* Internal pull-up resistor of 120K to VDD

on indicated inputs.

Functionality

Block Diagram

SS_EN#

OUTSEL (1:0)

PLL2

PLL1

Spread

Spectrum

OUT

OUT/DIV2

CPUCLK (11:0)

12

2

PCIREF

X1

X2

XTAL
OSC

CPU

DIVDER

PCI

DIVDER

Stop

Stop

FS (2:0)

PD#

PDFP#

TEST#

BOOST#

Control

Logic

Config.

Reg.

/ 2

REF (1:0)

TSET2SF1SF0SF

UPC

zHM

ICP

zHM

FER

zHM

1111 33.33133.33813.41
1110 00.00133.33813.41
1101 33.3833.33813.41
1100 66.6633.33813.41
1011 33.33166.66813.41
1010 00.00166.66813.41
1001 33.3866.66813.41
1000 66.6666.66813.41

ICS reserves the right to make changes in the device data identified in
this publication without further notice. ICS advises its customers to
obtain the latest version of all device data to verify that any
information being relied upon by the customer is current and accurate.

2

ICS93 42

Third party brands and names are the property of their respective owners.

Pin Configuration

General Description

The ICS9342 generates all clocks required for high speed PowerPC RISC microprocessor systems. With a zero delay buffer
chip such as the ICS9112-17 multiple PCI clock outputs can be generated in phase with PCIREF.

Spread Spectrum may be enabled by driving the SS_EN# pin low. Spread spectrum typically reduces system EMI by 8dB to
10dB. This simplifies EMI qualification without resorting to board design iterations or costly shielding. The ICS9342
employs a proprietary closed loop design, which tightly controls the percentage of spreading over process and temperature
variations.

PIN NUMBER PIN NAME TYPE DESCRIPTION

1 VDDREF PWR Ref(1:0), XTAL power supply, nominal 3.3V

2,3 REF[1:0] OU T 14.318 MHz reference clocks

4 GNDREF PWR Ground pin for the REF outputs
5 X1 IN Crystal input,nominally 14.318M H z.
6 X2 OUT Crystal output, nominally 14.318MHz.
7 PD # IN Pow ers down chip, active low .
8 CPU_STOP# IN Stops all CPUCLKs [11:0] at logic 0 level, when input low

9 VDD PWR 3.3V power for the digital core.
10 GND PWR Ground pin for the digital core.
11 PCI_STO P# IN Drives P CIREF to logic 0 level, when input low

12 SS_EN# IN

Spread spectrum is turned on by driving this input low and turned off by
drivin

g

it high.
13 VDDPCI PWR Power supply for PCIREF, nominal 3.3V.
14 PCIREF OU T Reference clock for PCI Zero Delay Buffer.
15 GNDPCI PWR Ground pin for PCIREF.

18, 17, 16 FS (2:0) IN Frequency select pins.

19 VDDFP PWR 3.3V power for the Fixed PLL core.
20 GNDFP PER Ground pin for the Fixed PLL core.

OUT OUT 3.3V OUT reference clock.

TEST# IN

Logic input to select over clocking or under clocking frequencies.
(latched in

p

ut)

OUT_DIV2 OUT 3.3V 1/2 frequency OUT reference clock.

BOOST# IN Logic input to select normal or test mode frequencies. (latched input)

23 PDFP# IN

Powers down Fixed PLL. When driven to low, OUT and OUT_DIV2 clocks
will be sto

pp

ed

24 VDDA PWR 3.3V power for the PLL core

48, 25 OUTSEL(1:0) IN Frequency select pins for OUT and OUT_DIV2 clocks.
26, 31, 36, 41, 46 GNDCPU PWR Ground pin for CPU clocks.
27, 32, 37, 42, 47 VDDCPU PWR 3.3V power supply for CPU clocks.

21

22

3

ICS93 42

Third party brands and names are the property of their respective owners.

Frequency Selection

1LES_TUO0LES_TUO

TUO

)zHM(

2VID_TUO

)zHM(

FER

)zHM(

118442813.41

100402813.41

014623813.41

0084#84813.41

#TSOOB#TSET2SF1SF0SF

UPC

zHM

ICP

zHM

FER

zHM

EULAV/EPYTSS

delbaneSSfI

X 1 111 33.33133.33813.41daerpSnwoD%5.0-ot0
X1110 00.00133.33813.41daerpSnwoD%5.0-ot0
X1101 33.3833.33813.41daerpSnwoD%5.0-ot0
X1100 66.6633.33813.41daerpSnwoD%5.0-ot0
X1011 33.33166.66813.41daerpSnwoD%5.0-ot0
X1010 00.00166.66813.41daerpSnwoD%5.0-ot0
X1001 33.3866.66813.41daerpSnwoD%5.-ot0
X 1 000 66.6666.66813.41daerpSnwoD%5.0-ot0

1 0 111 26.6416.63813.41daerpSretneC%52.0+
10110 99.9016.63813.41daerpSretneC%52.0+
10101 85.196.63813.41daerpSretneC%52.0+
10100 13.376.63813.41daerpSretneC%52.0+
10011 26.6413.37813.41daerpSretneC%52.0+
10010 99.9013.37813.41daerpSretneC%52.0+
10001 85.193.37813.41daerpSretneC%52.0+

1 0 000 13.373.37813.41daerpSretneC%52.0+
0 0 111 89.91100.03813.41daerpSretneC%52.0+
00110 00.0900.03813.41daerpSretneC%52.0+
00101 39.4700.03813.41daerpSretneC%52.0+
00100 8/feR=ICP,4/feR=UPC,edoMtseT
00011 89.91100.06813.41daerpSretneC%52.0+
00010 00.0900.06813.41daerpSretneC%52.0+
00001 39.4700.06813.41daerpSretneC%52.0+
0 0 000 stuptuolla,etatsirT

4

ICS93 42

Third party brands and names are the property of their respective owners.

Absolute Maximum Ratings

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 V

Logic Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND –0.5 V to V

DD

+0.5 V

Ambient Operating Temperature . . . . . . . . . . . . . -40°C to +85°C

Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . –65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are
stress specifications only and functional operation of the device at these or any other conditions above those listed in the
operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended
periods may affect product reliability.

Electrical Characteristics - Input/Supply/Common Output Parameters

TA = 0 - 70º C; Sup p ly Voltage VDD = 3.3 V +/-5% (unles s otherwise stated)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

Input High Voltage V

IH

2V

DD

+0.3 V

Input Low Voltage V

IL

VSS-0.3 0.8 V

Input High Current I

IH

VIN = V

DD

0.1 5

µ

A

Input Low C u rrent I

IL1

VIN = 0 V; Inputs with no pull-up resistors -5 2.0

µ

A

Input Low C u rrent I

IL2

VIN = 0 V; Inputs with pull-up resistors -200 -100

µ

A

I

DD3.3OP 66

Select @ 66MHz; Max discrete cap loads 134 175

Operating I

DD3.3OP 83

Select @ 83MHz; Max discrete cap loads 165 200

Supply Current I

DD3.3OP1 00

Select @ 100MHz; Max discrete cap loads 198 225

I

DD3.3OP1 33

Select @ 133MHz; Max discrete cap loads 254 300

Power Down

Supply Current

Input frequency F

i

VDD = 3.3 V 12 14.318 16 MHz

C

IN

Logic Inputs 5 pF

C

INX

X1 & X2 pins 13.5 18 22.5 pF

Transition Time

1

T

Tran s

To 1st crossing of target Freq. 3 ms

Settling Time

1

T

S

From 1st crossing to 1% target Freq. 1 ms

Clk Stabilization

1

T

STAB

From VDD = 3.3 V to 1% target Freq. 3 ms

Skew

1

t

CPU -PCI

VT = 1.5 V 190 500 ps

Input Capacitance

1

mA

PD# = 0I

DD3.3PD

313 400

µ

A

5

ICS93 42

Third party brands and names are the property of their respective owners.

Electrical Characteristics - PCI

TA = 0 - 70º C; VDD = 3.3 V +/-5%; CL =30 pF

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

Output Impedance R

DSP1

1

VO = V

DD

*(0.5) 12 21 55 Ω

Output Impedance R

DSN1

1

VO = V

DD

*(0.5) 12 21.2 55 Ω

Output High Voltage V

OH1

IOH = -11 mA 2.4

Output Low Voltage V

OL1

IOL = 9.4 mA 0.17 0.4 V

Output High Current I

OH1

VOH = 2.0 V -60 -22 mA

Output Low Current I

OL1

VOL = 0.8 V 25 47 mA

Rise Time

1

t

r1

VOL = 0.4 V, VOH = 2.4 V 0.5 1 2 ns

Fall Time

1

t

f1

VOH = 2.4 V, VOL = 0.4 V 0.5 0.9 2 ns

Duty Cycle

1

d

t1

VT = 1.5 V 45 50 55 %

Jitter, Cycle-to-cycle

1

t

jcyc-cyc1

VT = 1.5 V

170 500 ps

1

Guaranteed by design, not 100% tested in production.

Electrical Characteristics - CP U

TA = 0 - 70º C; VDD = 3.3 V +/-5%; CL = 20 pF (unless otherwise stated)

PARAM ETER SYMBOL CONDITIONS MIN TYP MAX UNITS

Output Impedance R

DSP2B

1

VO = VDD*(0.5) 13.5 20 45

Ω

Output Impedance R

DSN2B

1

VO = VDD*(0.5) 13.5 29 45

Ω

Output High Voltage V

OH2B

IOH = -8.0 mA 2 2.4 V

Output Low Voltage V

OL2B

IOL = 12 mA 0.32 0.4 V

Output High Current I

OH2B

VOH =1.7 V -37 -16 mA

Output Low Current I

OL2B

VOL = 0.7 V 19 26 mA

Rise Time t

r2B

1

VOL = 0.4 V, VOH = 2.4 V 1.13 2 ns

Fall Time t

f2B

1

VOH = 2.4 V, VOL = 0.4 V 1.27 2 ns
VT = 1.5 V; Cpu@ 66M, 83M, 100M 45 52 56
VT = 1.5 V; Cpu@133M & 146.6M 51 56 60

Skew t

sk2B

1

VT = 1.5 V 187 200 ps
VT = 1.5 V; Normal 95 150
VT = 1.5 V; Spread, CPU = 91.58MHz 143 200
VT = 1.5 V; Spread, CPU remaining freq. 143 175

1

Guaranteed by design, not 100% tested in production.

Duty Cycle d

t2B

1

%

Jitter, Cycle-to-cycle

tj

cyc-cyc2B

1

ps

6

ICS93 42

Third party brands and names are the property of their respective owners.

Electrical Ch aracteristics - REF, OUT, OUT/2

TA = 0 - 70º C; VDD = 3.3 V +/-5%; CL = 20 pF (unless otherwise stated)

SYMBOL CONDITIONS MIN TYP M A X UNITS

R

DSP5

1

VO = VDD*(0.5) 20 34 60

Ω

R

DSN5

1

VO = VDD*(0.5) 20 31 60

Ω

V

OH5

IOH = -12 mA 2.4 2.9 V

V

OL5

IOL = 10 mA 0.33 0.4 V

I

OH5

VOH = 2.0 V -30 -20 mA

I

OL5

VOL = 0.8 V 16 23 mA

Rise Time

1

t

r5

VOL = 0.4 V, VOH = 2.4 V; OUT 1.5 1.8 4 ns

Fall Time

1

t

f5

VOH = 2.4 V, VOL = 0.4 V; OUT 1.5 2 4 n s

Duty Cycle

1

d

t5

VT = 1.5 V; OUT 45 52 55 %

Rise Time

1

t

r5

VOL = 0.4 V, VOH = 2.4 V; OUT/2 1.5 2.2 4 ns

Fall Time

1

t

f5

VOH = 2.4 V, VOL = 0.4 V; OUT/2 1.5 2.1 4 ns

Duty Cycle

1

d

t5

VT = 1.5 V; OUT/2 45 50 55 %

Rise Time

1

t

r5

VOL = 0.4 V, VOH = 2.4 V; REF 1.5 2.7 4 ns

Fall Time

1

t

f5

VOH = 2.4 V, VOL = 0.4 V; REF 1.5 2.8 4 ns

Duty Cycle

1

d

t5

VT = 1.5 V; REF 45 50 55 %

t

jcyc-cyc5

VT = 1.5 V; OUT, OUT/2 280 500 ps

t

jcyc-cyc5

VT = 1.5 V; REF

450 1000 ps

1

Guaranteed by design, not 100% tested in production.

Jitter, Cycle-to-cycle1

Jitter, Cycle-to-cycle

1

PARAM ETER

Output Low Voltage

Output High Current

Output High Voltage

Output Impedance

REF

OUT

OUT/2

Output Low Current

7

ICS93 42

Third party brands and names are the property of their respective owners.

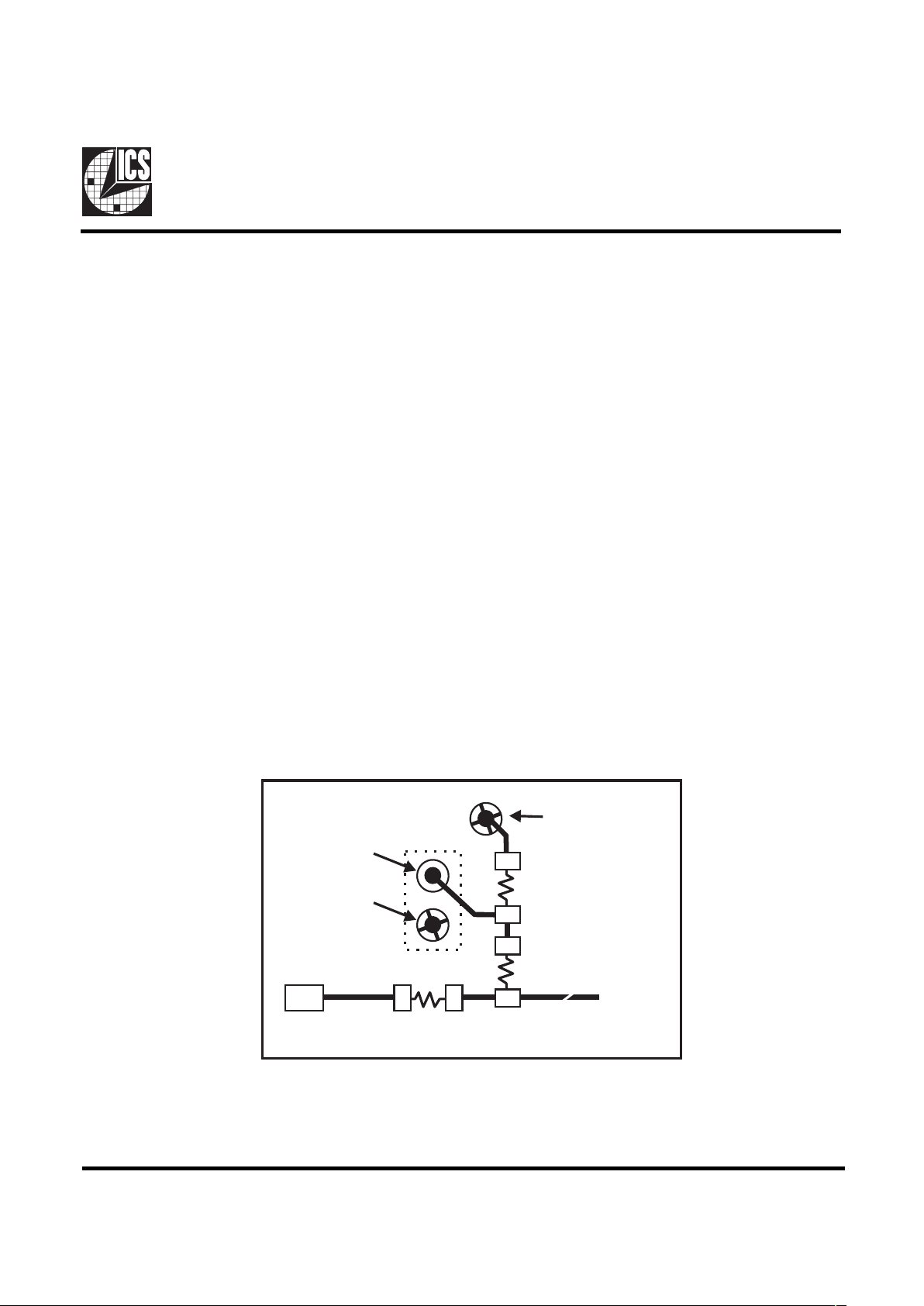

Fig. 1

Shared Pin Operation ­Input/Output Pins

The I/O pins designated by (input/output) on the ICS9342
serve as dual signal functions to the device. During initial
power-up, they act as input pins. The logic level (voltage)
that is present on these pins at this time is read and stored
into a 5-bit internal data latch. At the end of Power-On reset,
(see AC characteristics for timing values), the device changes
the mode of operations for these pins to an output function.
In this mode the pins produce the specified buffered clocks
to external loads.

To program (load) the internal configuration register for
these pins, a resistor is connected to either the VDD (logic 1)
power supply or the GND (logic 0) voltage potential. A 10
Kilohm (10K) resistor is used to provide both the solid
CMOS programming voltage needed during the power-up
programming period and to provide an insignificant load on
the output clock during the subsequent operating period.

Via to
VDD

Clock trace to load

Series Term. Res.

Programming
Header

Via to Gnd

Device
Pad

2K 

8.2K 

Figure 1 shows a means of implementing this function
when a switch or 2 pin header is used. With no jumper is
installed the pin will be pulled high. With the jumper in
place the pin will be pulled low. If programmability is not
necessary, than only a single resistor is necessary. The
programming resistors should be located close to the series
termination resistor to minimize the current loop area. It is
more important to locate the series termination resistor
close to the driver than the programming resistor.

8

ICS93 42

Third party brands and names are the property of their respective owners.

#DP#PFDP2VID_TUO,1TUOFER,ICP,UPC

11 GNINNURGNINNUR

10 DEPPOTSGNINNUR

01 DEPPOTSDEPPOTS

00 DEPPOTSDEPPOTS

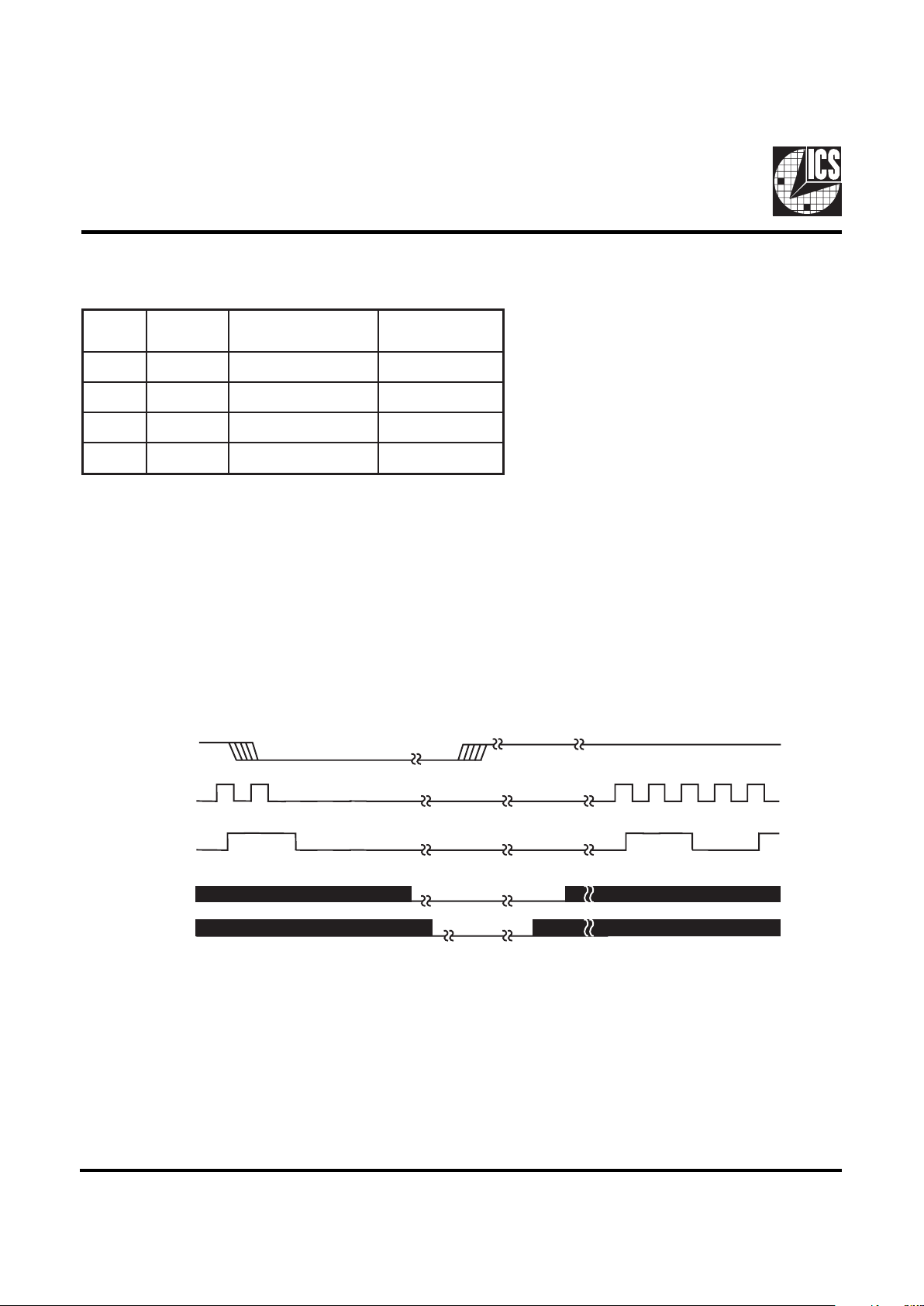

Power Management

PD# Timing Diagram

The power down selection is used to put the part into a very low power state without turning off the power to the part. PD# is
an asynchronous active low input. This signal needs to be synchronized internal to the device prior to powering down the
clock synthesizer.

Internal clocks are not running after the device is put in power down. When PD# is active low all clocks need to be driven to
a low value and held prior to turning off the VCOs and crystal. The power up latency needs to be less than 3 mS. The power
down latency should be as short as possible but conforming to the sequence requirements shown below. The REF and OUT
clocks are expected to be stopped in the LOW state as soon as possible. Due to the state of the internal logic, stopping and
holding the REF clock outputs in the LOW state may require more than one clock cycle to complete.

Notes:

1. All timing is referenced to the Internal CPU (defined as inside the ICS9342 device).

2. As shown, the outputs Stop Low on the next falling edge after PD# goes low.

3. PD# is an asynchronous input and metastable conditions may exist. This signal is synchronized inside this part.

4. The shaded sections on the VCO and the Crystal signals indicate an active clock.

5. Diagrams shown with respect to 133MHz. Similar operation when CPU is 100MHz.

CPU

PCIREF

VCO

Crystal

PD#

9

ICS93 42

Third party brands and names are the property of their respective owners.

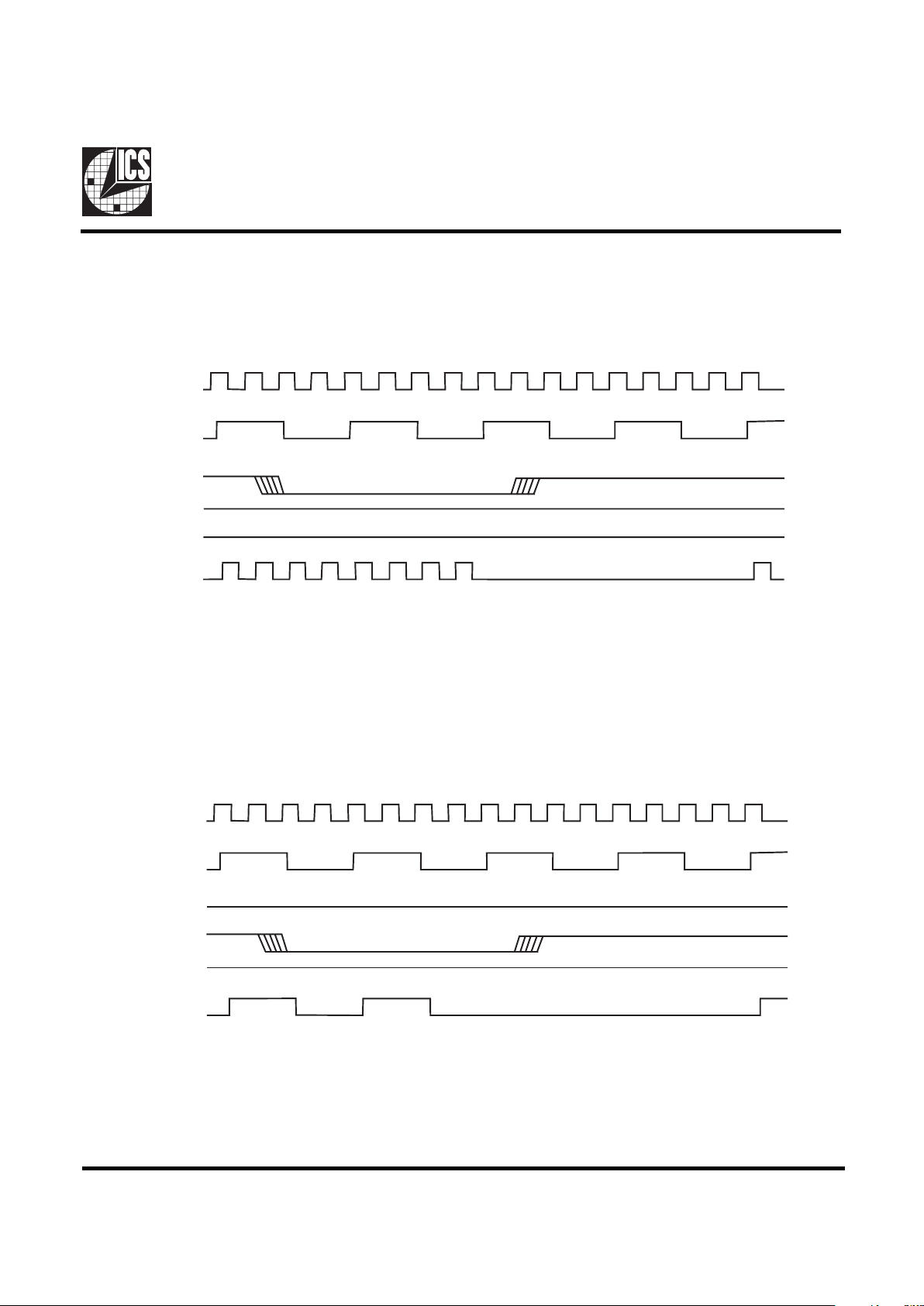

PCI_STOP# Timing Diagram

PCI_STOP# is an input to the clock synthesizer. It is used to turn off the PCIREF clock for low power operation. PCIREF clock
is required to be stopped in a low state and started such that a full high pulse width is guaranteed.

Notes:

1. All timing is referenced to CPUCLK.

2. Internal means inside the chip.

3. All other clocks continue to run undisturbed.

4. PD# and CPU_STOP# are shown in a high state.

CPUCLK

(internal)

(internal)

(externall)

PCICLK

PCI_STOP#

CPU_STOP#

PD#

PCIREF

CPU_STOP# Timing Diagram

CPU_STOP# is an asynchronous input to the clock synthesizer. It is used to turn off the CPU clocks for low power operation.
CPU_STOP# is asserted asynchronously by the external clock control logic with the rising edge of free running PCI clock
(and hence CPU clock) and must be internally synchronized to the external output. All other clocks will continue to run while
the CPU clocks are disabled. The CPU clocks must always be stopped in a low state and started in such a manner as to
guarantee that the high pulse width is a full pulse.

Notes:

1. All timing is referenced to the internal CPUCLK.

2. The internal label means inside the chip and is a reference only. This in fact may not be the way that the control is designed.

3. PD# and PCI_STOP# are shown in a high state.

CPUCLK

(internal)

(internal)

(externall)

PCICLK

PCI_STOP#

CPU_STOP#

PD#

CPUCLK

10

ICS93 42

Third party brands and names are the property of their respective owners.

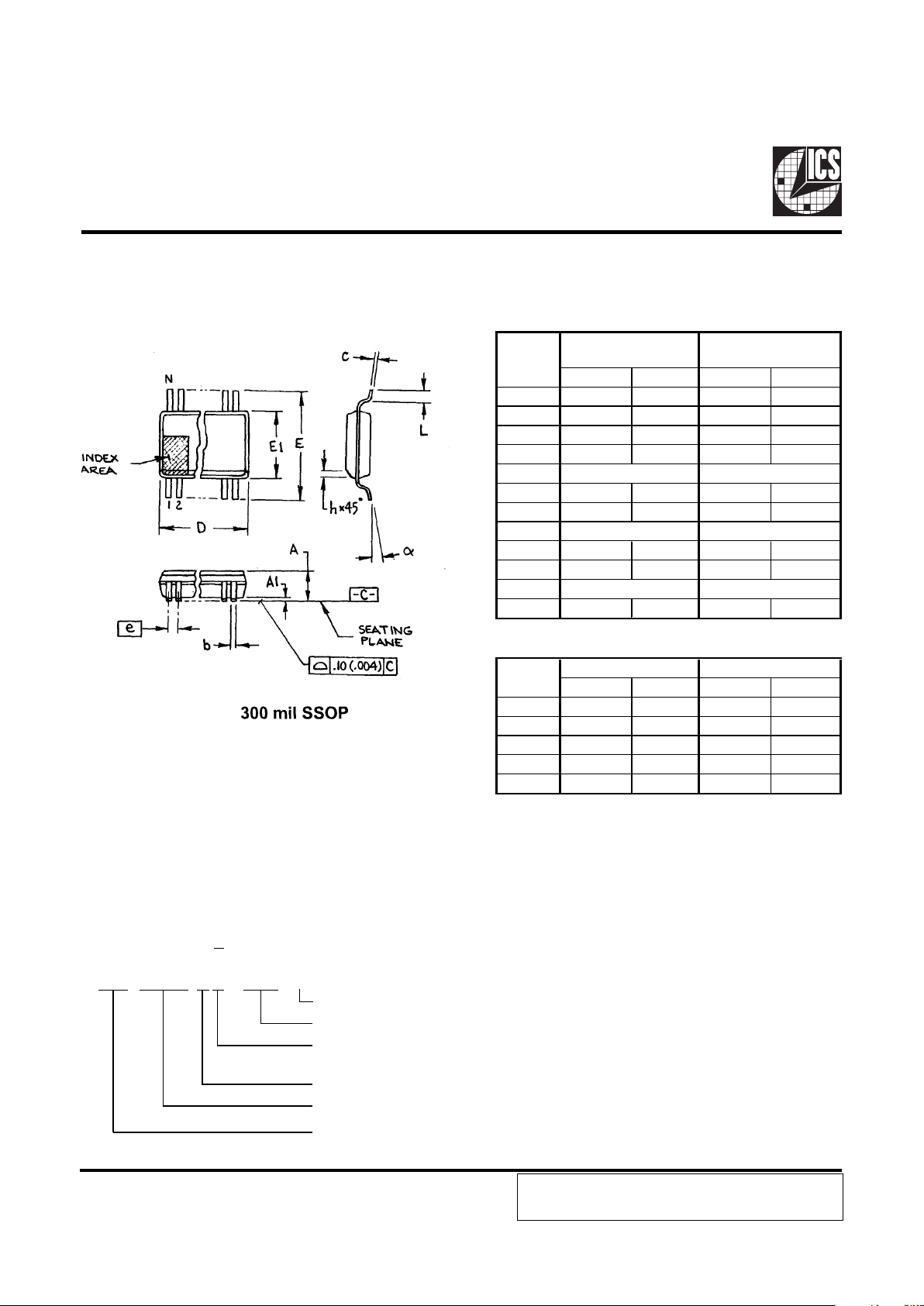

Ordering Information

ICS9342yF-T

Designation for tape and reel packaging
Pattern Number (2 or 3 digit number for parts with ROM code patterns)
Package Type

F=SSOP

Revision Designator (will not correlate with datasheet revision)

Device Type (consists of 3 or 4 digit numbers)
Prefix

ICS, AV = Standard Device

Example:

ICS XXXX y F - PPP - T

MIN MA X MIN MA X

A 2.413 2.794 .095 .110

A1 0.203 0.406 .008 .016

b 0.203 0.343 .008 .0135
c 0.127 0.254 .005 .010
D
E 10.033 10.668 .395 .420

E1 7.391 7.595 .291 .299

e 0.635 BASIC 0.025 BASIC
h 0.381 0.635 .015 .025
L 0.508 1.016 .020 .040
N

α

0° 8° 0° 8°

VARIATIONS

MIN MA X MIN MA X

28 9.398

9.652

.370 .380

34 11.303

11.557

.445 .455

48 15.748

16.002

.620 .630

56 18.288

18.542

.720 .730

64 20.828

21.082

.820 .830

SYMBOL

SEE VARIATIONS

SEE VARIATIONS

In Millimeters

COMMON DIMENSIONS

In Inc he s

COMMON DIMENSIONS

SEE VARIATIONS

N

D mm.

D (inch)

SEE VARIATIONS

ICS reserves the right to make changes in the device data identified in
this publication without further notice. ICS advises its customers to
obtain the latest version of all device data to verify that any
information being relied upon by the customer is current and accurate.
