General Description Features
ICS9248-20
Block Diagram
Pentium/ProTM System Clock Chip
9248-20 Rev B 12/03/98
Pin Configuration
48-Pin SSOP
Pentium is a trademark on Intel Corporation.
Generates system clocks for CPU, IOAPIC, PCI, plus
14.314 MHz REF (0:2), USB, and Super I/O
Supports single or dual processor systems
Supports Spread Spectrum modulation for CPU & PCI
clocks, down spread -0.5%
Skew from CPU (earlier) to PCI clock (rising edges for
100/33.3MHz) 1.5 to 4ns
Two fixed outputs at 48MHz.
Separate 2.5V and 3.3V supply pins
2.5V or 3.3V output: CPU, IOAPIC
3.3V outputs: PCI, REF, 48MHz
No power supply sequence requirements
Uses external 14.318MHz crystal, no external load cap
required for C
L
=18pF crystal
48 pin 300 mil SSOP
The ICS9248-20 is a Clock Synthesizer chip for Pentium and
PentiumPro CPU based Desktop/Notebook systems that will
provide all necessary clock timing.
Features include four CPU and eight PCI clocks. Three
reference outputs are available equal to the crystal frequency.
Additionally, the device meets the Pentium power-up
stabilization requirement, assuring that CPU and PCI clocks
are stable within 2ms after power-up.
PD# pin enables low power mode by stopping crystal OSC
and PLL stages. Other power management features include
CPU_STOP#, which stops CPU (0:3) clocks, and PCI_STOP#,
which stops PCICLK (0:6) clocks.
High drive CPUCLK outputs typically provide greater than 1
V/ns slew rate into 20pF loads. PCICLK outputs typically
provide better than 1V/ns slew rate into 30pF loads while
maintaining 50±5% duty cycle. The REF clock outputs typically
provide better than 0.5V/ns slew rates.
The ICS9248-20 accepts a 14.318MHz reference crystal or
clock as its input and runs on a 3.3V core supply.
Power Groups
VDD = Supply for PLL core
VDD1 = REF (0:2), X1, X2
VDD2 = PCICLK_F, PCICLK (0:6)
VDD3 = 48MHz0, 48MHz1
VDDL1 = IOAPIC (0:1)
VDDL2 = CPUCLK (0:3)
Ground Groups
GND = Ground for PLL core
GND1 = REF (0:2), X1, X2
GND2 = PCICLK_F, PCICLK (0:6)
GND3 = 48MHz0, 48MHz1
GNDL1 = IOAPIC (0:1)
GNDL2 = CPUCLK (0:3)
ICS reserves the right to make changes in the device data identified in this
publication without further notice. ICS advises its customers to obtain the
latest version of all device data to verify that any information being relied
upon by the customer is current and accurate.
Page 2
PB
ICS9248-20
Pin Descriptions
Select Functions
Notes:
1. TCLK is a test clock driven on the X1 (crystal
in pin) input during test mode.
2. -0.5% modulation down spread from the
selected frequency.
ytilanoitcnuFUPC
,ICP
F_ICP
FERCIPAOI
zHM84
noitceleS
etatsirTZ-IHZ-IHZ-IHZ-IHZ-IH
edomtseT2/KLCT
1
6/KLCT
1
KLCT
1
KLCT
1
2/KLCT
1
murtcepSdaerpSdetaludoM
2
detaludoM
2
zHM813.41zHM813.41zHM0.84
#66/001LES1SF0SFnoitcnuF
000 etatS-irT
001 )devreseR(
010 )devreseR(
011 ICP3.33,UPCzHM6.66evitcA
100 edoMtseT
101 )devreseR(
110 )devreseR(
111 ICP3.33,UPCzHM001evitcA
REBMUNNIPEMANNIPEPYTNOITPIRCSED
74,2,1)2:0(FERTUOtuptuokcolczHM813.41
31DNGRWPstuptuoFERrofdnuorG
41XNI
daolFp33lanretnisah,tupnilatsyrCzHM813.41NI_LATX
2Xmorfrotsiserkcabdeefdnapac
52XTUOFp33pacdaollanretnisah,tuptuolatsyrCTUO_LATX
81,21,62DNGRWPstuptuoICProfdnuorG
7F_KLCICPTUOtuptuoICPgninnuReerF
71,61,41,31,11,01,8)6:0(KLCICPTUOV3.3elbitapmocLTT.stuptuokcolcICP
51,92DDVRWPV3.3yllanimon,stuptuoKLCICProfrewoP
33,91DDVRWPV3.3yllanimon,erocrofrewopdetalosI
23,02DNGRWPerocrofdnuorgdetalosI
123DDVRWPV3.3yllanimon,stuptuozHM84rofrewoP
32,22)1:0(zHM84TUOstuptuozHM84
423DNGRWPstuptuozHM84rofdnuorG
52#6.66/001LESNI
zHM6.66rozHM001gnilbanerofniptceleS
)zHM3.33suonorhcnyssyawlaICP(zHM6.66=L,zHM001=H
72,62)1:0(SFNIsniptceleSycneuqerF
82#DAERPSNIWOLnehwerutaefmurtcepSdaerpSselbanE
92#DPNIwolevitca,pihcnwodsrewoP
03#POTS_UPCNIwolnehwlevel"0"cigoltaskcolcUPCstlaH
13#POTS_ICPNIwolnehwlevel"0"cigoltasuBICPstlaH
14,732LDDVRWPV5.2yllanimon,stuptuoUPCrofrewoP
83,432LDNGRWP.stuptuoUPCrofdnuorG
04,93,63,53)0:3(KLCUPCTUOV5.2@stuptuokcolctsoHdnaUPC
24C/N- detcennocyllanretnitoN
341LDNGRWPstuptuoCIPAOIrofdnuorG
54,44)1:0(CIPAOITUOV5.2@)zHM813.41(stuptuoCIPAOI
641LDDVRWPV5.2yllanimon,stuptuoCIPAOIrofrewoP
841DDVRWPV3.3lanimon,2X,1X,)2:0(FERrofylppuS
Page 3
3
ICS9248-20
T echnical Pin Function Descriptions
VDD(1,2,3)
This is the power supply to the internal core logic of the
device as well as the clock output buffers for REF(0:2),
PCICLK_F, PCICLK (0:6), 48MHz0, 48MHz1.
This pin operates at 3.3V volts. Clocks from the listed buffers
that it supplies will have a voltage swing from Ground to this
level. For the actual guaranteed high and low voltage levels
for the Clocks, please consult the DC parameter table in this
data sheet.
VDDL1,2
This is the power supply for the CPUCLK (0:3) and IOAPIC
output buffers. The voltage level for these outputs may be 2.5
or 3.3volts. Clocks from the buffers that each supplies will
have a voltage swing from Ground to this level. For the actual
Guaranteed high and low voltage levels of these Clocks,
please consult the DC parameter table in this Data Sheet.
GND (1,2,3)
This is the ground to the internal core logic of the device as
well as the clock output buffers for REF(0:2), PCICLK_F,
PCICLK (0:6), 48MHz 0, 48MHz1.
GNDL (1,2)
This is the ground for the CPUCLK (0:3) and IOAPIC output
buffers.
X1
This input pin serves one of two functions. When the device
is used with a Crystal, X1 acts as the input pin for the
reference signal that comes from the discrete crystal. When
the device is driven by an external clock signal, X1 is the
device input pin for that reference clock. This pin also
implements an internal Crystal loading capacitor that is
connected to ground. With a nominal value of 33pF no
external load cap is needed for a C
L
=17 to 18pF crystal.
X2
This Output pin is used only when the device uses a Crystal as
the reference frequency source. In this mode of operation, X2
is an output signal that drives (or excites) the discrete Crystal.
The X2 pin will also implement an internal Crystal loading
capacitor nominally 33pF.
CPUCLK (0:3)
These Output pins are the Clock Outputs that drive processor
and other CPU related circuitry that requires clocks which are
in tight skew tolerance with the CPU clock. The voltage
swing of these Clocks is controlled by the Voltage level
applied to the VDDL2 pin of the device. See the Functionality
Table for a list of the specific frequencies that are available
for these Clocks and the selection codes to produce them.
48MHz (0:1)
This is a fixed frequency Clock output that is typically used to
drive Super I/O devices. Outputs 0 and 1 are defined as
48MHz.
IOAPIC (0:1)
This Output is a fixed frequency Output Clock that runs at the
Reference Input (typically 14.31818MHz) . Its voltage level
swing is controlled by VDDL1 and may operate at 2.5 or
3.3volts.
REF(0:2)
The REF Outputs are fixed frequency Clocks that run at the
same frequency as the Input Reference Clock X1 or the
Crystal (typically 14.31818MHz) attached across X1 and X2.
PCICLK_F
This Output is equal to PCICLK(0:6) and is FREE RUNNING,
and will not be stopped by PCI_STOP#.
PCICLK (0:6)
These Output Clocks generate all the PCI timing requirements
for a Pentium/Pro based system. They conform to the current
PCI specification. They run at 33.3 MHz.
SELECT 100/66.6MHz#
This Input pin controls the frequency of the Clocks at the
CPUCLK, PCICLK and SDRAM output pins. If a logic 1
value is present on this pin, the 100MHz Clock will be
selected. If a logic 0 is used, the 66.6MHz frequency will
be selected. The PCI clock is multiplexed to be 33.3MHz for
both select cases. PCI is synchronous at the rising edge of PCI
to the CPU rising edge (with the skew making CPU early).
PWR_DWN#
This is an asynchronous active Low Input pin used to Power
Down the device into a Low Power state by not removing the
power supply. The internal Clocks are disabled and the VCO
and Crystal are stopped. Powered Down will also place all
the Outputs in a low state at the end of their current cycle. The
latency of Power Down will not be greater than 3ms.
CPU_STOP#
This is a synchronous active Low Input pin used to stop the
CPUCLK clocks in an active low state. All other Clocks
including SDRAM clocks will continue to run while this
function is enabled. The CPUCLKs will have a turn ON
latency of at least 3 CPU clocks.
PCI_STOP#
This is a synchronous active Low Input pin used to stop the
PCICLK clocks in an active low state. It will not affect
PCICLK_F nor any other outputs.
Page 4
PB
ICS9248-20
Power Management
ICS9248-20 Power Management Requirements
Clock Enable Configuration
Full clock cycle timing is guaranteed at all times after the system has initially powered up except where noted. During power up
and power down operations using the PD# select pin will not cause clocks of a shorter or longer pulse than that of the running
clock. The first clock pulse coming out of a stopped clock condition may be slightly distorted due to clock network charging
circuitry. Board routing and signal loading may have a large impact on the initial clock distortion also.
Notes.
1. Clock on latency is defined from when the clock enable goes active to when the first valid clock comes out of the device.
2. Clock off latency is defined from when the clock enable goes inactive to when the last clock is driven low out of the device.
3. Power up latency is when PD# goes inactive (high) to when the first valid clocks are output by the device.
4. Power down has controlled clock counts applicable to CPUCLK, PCICLK only.
The REF and IOAPIC will be stopped independent of these.
LANGISETATSLANGIS
ycnetaL
eerffosegdegnisirfo.oN
KLCICPgninnur
#POTS_UPC)delbasiD(0
2
1
)delbanE(1
1
1
#POTS_ICP)delbasiD(0
2
1
)delbanE(1
1
1
#DP)noitarepOlamroN(1
3
sm3
)nwoDrewoP(0
4
xam2
#POTS_UPC#POTS_ICP#NWD_RWPKLCUPCKLCICP
,skcolCrehtO
,FER
,sCIPAOI
0zHM84
1zHM84
latsyrCsOCV
XX 0 woLwoLdeppotSffOffO
00 1 woLwoLgninnuRgninnuRgninnuR
011 woLzHM3.33gninnuRgninnuRgninnuR
10 1 zHM6.66/001woLgninnuRgninnuRgninnuR
11 1 zHM6.66/001zHM3.33gninnuRgninnuRgninnuR
Page 5
5
ICS9248-20

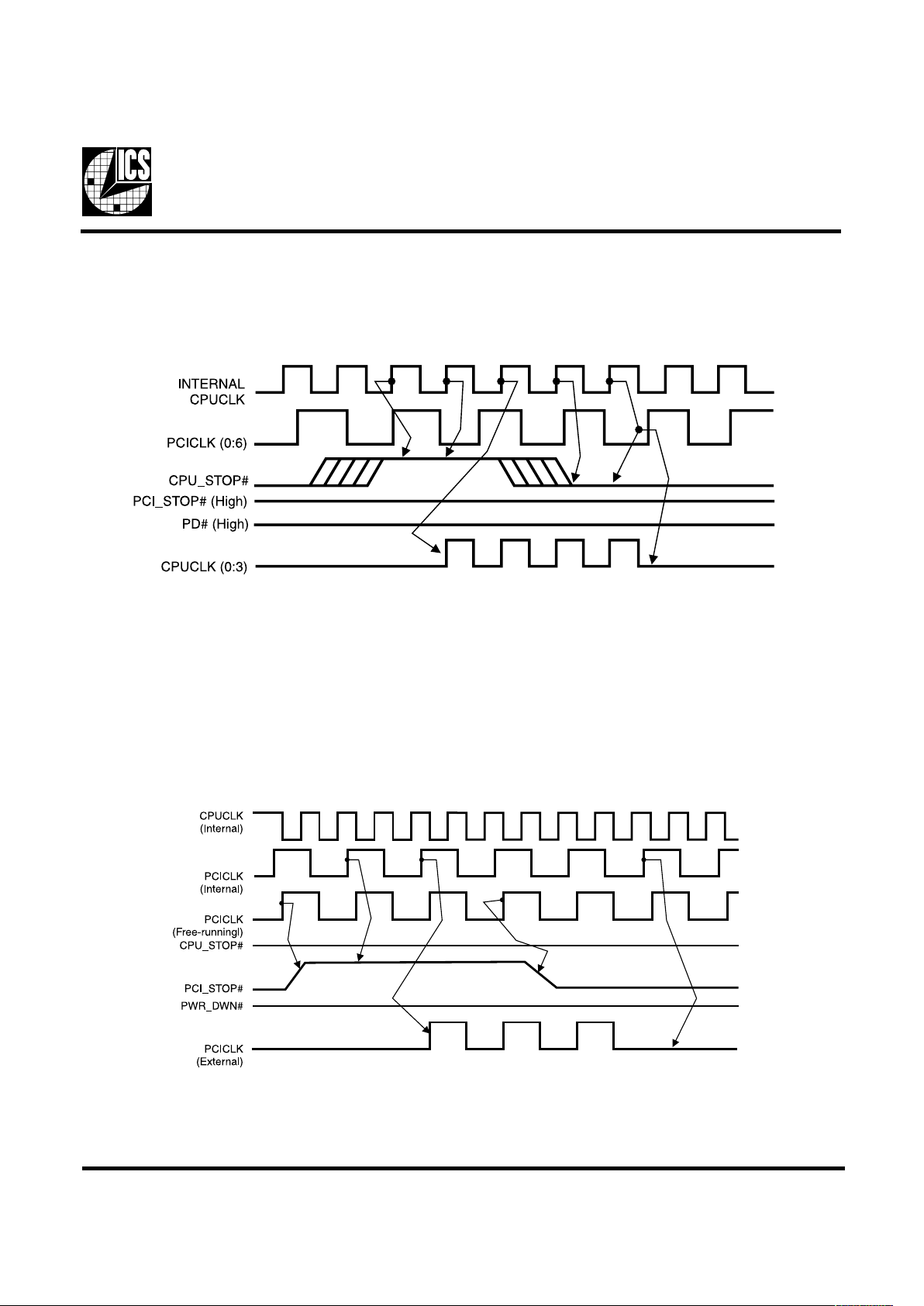

PCI_STOP# Timing Diagram
PCI_STOP# is an asynchronous input to the ICS9248-20. It is used to turn off the PCICLK (0:6) clocks for low power operation.
PCI_STOP# is synchronized by the ICS9248-20 internally. The minimum that the PCICLK (0:6) clocks are enabled
(PCI_STOP# high pulse) is at least 10 PCICLK (0:6) clocks. PCICLK (0:6) clocks are stopped in a low state and started with
a full high pulse width guaranteed. PCICLK (0:6) clock on latency cycles are only one rising PCICLK. Clock off latency is one
PCICLK clock.
CPU_STOP# Timing Diagram
CPUSTOP# is an asychronous input to the clock synthesizer. It is used to turn off the CPUCLKs for low power operation.
CPU_STOP# is synchronized by the ICS9248-20. The minimum that the CPUCLK is enabled (CPU_STOP# high pulse) is 100
CPUCLKs. All other clocks will continue to run while the CPUCLKs are disabled. The CPUCLKs will always be stopped in a
low state and start in such a manner that guarantees the high pulse width is a full pulse. CPUCLK on latency is less than 4
CPUCLKs and CPUCLK off latency is less than 4 CPUCLKs.
Notes:
1. All timing is referenced to the internal CPUCLK.
2. CPU_STOP# is an asynchronous input and metastable conditions may exist. This
signal is synchronized to the CPUCLKs inside the ICS9248-20.
3. All other clocks continue to run undisturbed.
4. PD# and PCI_STOP# are shown in a high (true) state.
Notes:
1. All timing is referenced to the Internal CPUCLK (defined as inside the ICS9148 device.)
2. PCI_STOP# is an asynchronous input, and metastable conditions may exist. This signal is required to be synchronized
inside the ICS9248-20.
3. All other clocks continue to run undisturbed.
4. PD# and CPU_STOP# are shown in a high (true) state.
Page 6
PB
ICS9248-20
PD# Timing Diagram
The power down selection is used to put the part into a very low power state without turning off the power to the part. PD# is
an asynchronous active low input. This signal is synchronized internally by the ICS9248-20 prior to its control action of
powering down the clock synthesizer. Internal clocks will not be running after the device is put in power down state. When PD#
is active (low) all clocks are driven to a low state and held prior to turning off the VCOs and the Crystal oscillator. The power
on latency is guaranteed to be less than 3ms. The power down latency is less than three CPUCLK cycles. PCI_STOP# and
CPU_STOP# are dont care signals during the power down operations.
Notes:
1. All timing is referenced to the Internal CPUCLK (defined as inside the ICS9148 device).
2. PD# is an asynchronous input and metastable conditions may exist. This signal is synchronized inside the ICS9148.
3. The shaded sections on the VCO and the Crystal signals indicate an active clock is being generated.
Page 7
7
ICS9248-20
Absolute Maximum Ratings
Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 V
Logic Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only and functional operation of the device at these or any other conditions above those listed in the operational
sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect
product reliability.
Ele ctrical Charact eristics - I nput/Supply /Common O ut p ut Par amet ers
TA = 0 - 70C ; S upply Voltage VDD = V
DDL
= 3.3 V + /-5% (unless othe rwise stated)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Input High Voltage V
IH
2V
DD
+0.3 V
Input Low Voltage V
IL
VSS-0.3 0.8 V
Input High Current I
I
H
V
I
N
= V
DD
0.1 5 µ A
Input Low Current I
I
L1
V
I
N
= 0 V; Inputs with no pull-up resistors -5 2.0 µA
Input Low Current I
IL2
VIN = 0 V; Inputs with pull-up res istors -200 -100 µA
Operating I
DD3.3OP66CL
= 0 pF ; Select @ 66MH z 60 170 mA
Supply Curr e nt I
DD3.3OP100CL
= 0 pF ; Select @ 100MH z 66 170 mA
Power Down
Supply Curr e nt
I
DD3.3PD
CL = 0 pF ; With input addres s to Vdd or GND 70 600 µA
Input frequency F
i
VDD = 3.3 V; 11 14.318 16 MHz
C
IN
Logic I nputs 5 pF
C
INX
X1 & X2 pins 27 36 45 pF
Transition Time
1
T
t
rans
To 1st crossing of target Freq. 3 ms
Settli ng Ti m e
1
T
s
From 1s t c rossing to 1% tar ge t Fr e q. 5 ms
Clk Stabilization
1
T
STAB
From VDD = 3.3 V to 1% ta rget Fr eq. 3 ms
Skew
1
T
CPU-PCI1VT
= 1.5 V ; 1.5 3 4 ns
1
Gua ranteed by desi gn, not 100% tested in production.
Input C a pacitance
1
Electri cal Character i sti cs - I nput/ Supply/Com mon O utput Paramet ers
TA = 0 - 70C; Supply Voltage VDD = 3.3 V +/- 5%, V
DDL
= 2. 5 V +/- 5% (unless otherwis e s t at ed)
PARAMETER SY MBOL CON DITIONS MIN TYP MAX UNITS
Operating I
DD2.5OP66
CL = 0 pF; Sele c t @ 66.8 MHz 16 72 m A
Suppl y C urrent I
DD2.5OP100
CL = 0 pF; Selec t @ 100 MHz 23 100 mA
Skew
1
t
CPU-PCI2
VT = 1.5 V; VTL = 1.25 V
1.5 3 4 ns
1
G ua ranteed by design, not 100% te sted in production.
Page 8
PB
ICS9248-20
Electri cal Characteri st i cs - CPUCLK
TA = 0 - 70C; VDD = 3.3 V +/- 5 %, V
DDL
= 2.5 V +/ -5%; CL = 10 - 20 pF ( u nle ss otherw i se stated)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output High Voltage V
OH2BIOH
= -12.0 mA 2 2.3 V
Output Low Voltage V
OL2B
IOL = 12 mA 0.2 0.4 V
O utput High Current I
OH2B
VOH = 1 .7 V -41 -19 mA
Ou tput Low Current I
OL2B
VOL = 0.7 V 19 37 mA
Rise Time t
r
2B
1
VOL = 0.4 V, VOH = 2.0 V 1.25 1.6 ns
Fall Time t
f2B
1
VOH = 2.0 V, VOL = 0 .4 V 1 1.6 ns
Duty Cycle d
t
2B
1
VT = 1.25 V 454855%
Skew t
s
k2B
1
VT = 1.25 V 30 1 75 ps
Jitter, Cycle- to-cycle t
jcyc-cyc2B
1
VT = 1.25 V 150 200 ps
Jitter, One Sigma t
j1s2B
1
VT = 1.25 V 40 1 50 ps
Jitter, Abs olute
t
jabs2B
1
VT = 1.25 V
-250 140 +250 ps
1
G ua ranteed by de sign, not 100% te sted in pr oduc t ion .
Electrical Characterist ics - I O A PIC
TA = 0 - 70C; VDD = 3.3 V + /-5%, V
DDL
= 2. 5 V +/- 5% ; CL = 20 pF
PARA METER S YMBOL COND I TI ONS MIN TYP MAX U NITS
Output High Voltage V
OH4B
IOH = -18 mA 2 2.2 V
Output Low Voltage V
OL4B
IOL = 18 mA 0.33 0.4 V
O utput High Curr e nt I
OH4B
VOH = 1 .7 V -41 -28 mA
Ou tput L o w Current I
OL4B
VOL = 0. 7 V 29 37 mA
Rise Time
1
T
r4B
VOL = 0. 4 V, VOH = 2.0 V 1.5 2 ns
Fa ll T ime
1
T
f4B
VOH = 2.0 V, VOL = 0.4 V 1.3 2 ns
Duty Cycle
1
D
t4B
VT = 1.25 V 455455%
Skew
1
t
sk4B
1
VT = 1.25 V 60 250 ps
Jitter, O ne Sigma
1
T
j1s4B
VT = 1.25 V 1 3 %
Jitter, Abs olute
1
T
jabs4B
VT = 1.25 V
-5 5 %
1
G uaranteed by design, not 100% te s te d in production.
Page 9
9
ICS9248-20
Electrical Characteri stics - PCICLK
TA = 0 - 70C; VDD = V
DDL
= 3. 3 V +/- 5% ; CL = 30 pF
PARA METER S Y MBOL CO NDI TIONS MIN TYP MAX U NITS
O utput High Vo ltage V
OH1
IOH = -11 mA 2.4 3.1 V
Output Low Voltage V
OL1
IOL = 9 . 4 mA 0.1 0.4 V
O utput High Current I
OH1
VOH = 2. 0 V -62 -22 mA
O utput L ow Curr en t I
OL1
VOL = 0.8 V 16 57 mA
Rise Tim e
1
t
r
1
VOL = 0.4 V, VOH = 2.4 V 1.5 2 ns
Fa ll T ime
1
t
f
1
VOH = 2.4 V, VOL = 0.4 V 1.1 2 ns
Duty Cycle
1
d
t
1
VT = 1.5 V 455055%
Skew
1
t
sk1
VT = 1. 5 V 140 500 ps
Jitter, O ne Sigma
1
t
j1s1
VT = 1. 5 V 17 1 50 ps
Jitter, A bs olute
1
t
jabs1
VT = 1. 5 V
-500 70 500 ps
1
G ua ranteed by des ign, not 100% tes ted in production.
Electrical Characteristi cs - REF
TA = 0 - 70C; VDD = V
DDL
= 3.3 V +/-5%; CL = 10 - 20 pF ( unle ss othe rwise stated)
PARA METER S YMBOL COND I TI ONS MIN TYP MAX U N I TS
Output High Voltage V
OH5
IOH = -12 mA 2.6 3.1 V
Output Low Voltage V
OL5
IOL = 9 mA 0.17 0.4 V
O utput High Curr e nt I
OH5
VOH = 2 .0 V -44 -22 mA
O utput L o w Current I
OL5
VOL = 0. 8 V 29 42 mA
Rise Time
1
t
r
5
VOL = 0. 4 V, VOH = 2.4 V 1.4 2 ns
Fa ll T ime
1
t
f
5
VOH = 2.4 V, VOL = 0.4 V 1.1 2 ns
Duty Cycle
1
d
t
5
VT = 1.5 V 455355%
Jitter, O ne Sigma
1
t
j1s5
VT = 1.5 V 1 3 %
Jitter, Abs olute
1
t
jabs5
VT = 1.5 V
35%
1
G ua ranteed by des ign, not 100% teste d in production.
Page 10
PB
ICS9248-20
Electrical Characteri stics - 48 M Hz
TA = 0 - 70C; VDD = V
DDL
= 3.3 V +/-5%; CL = 10 - 20 pF ( unle s s otherwise state d)
PARA METER S Y MBOL CO NDITI O NS MIN TYP MAX UN I TS
Frequency Accur a cy
1
F
ACC48m
167 ppm
Output High Voltage V
OH5
IOH = -12 mA 2.6 3 V
Output Low Voltage V
OL5
IOL = 9 mA 0.14 0.4 V
O utput High Curr e nt I
OH5
VOH = 2 . 0 V -44 -22 mA
O utput L o w Current I
OL5
VOL = 0. 8 V 16 42 mA
Rise Time
1
t
r5
VOL = 0. 4 V, VOH = 2.4 V 1.2 4 ns
Fa ll T ime
1
t
f5
VOH = 2.4 V, VOL = 0.4 V 1.2 4 ns
Duty Cycle
1
d
t5
VT = 1.5 V 455255%
Jitter, O ne Sigma
1
t
j1s5
VT = 1.5 V 1 3 %
Jitter, Ab so lute
1
t
jabs5
VT = 1.5 V
35%
1
G ua ranteed by des ign, not 100% teste d in production.
Page 11
11
ICS9248-20

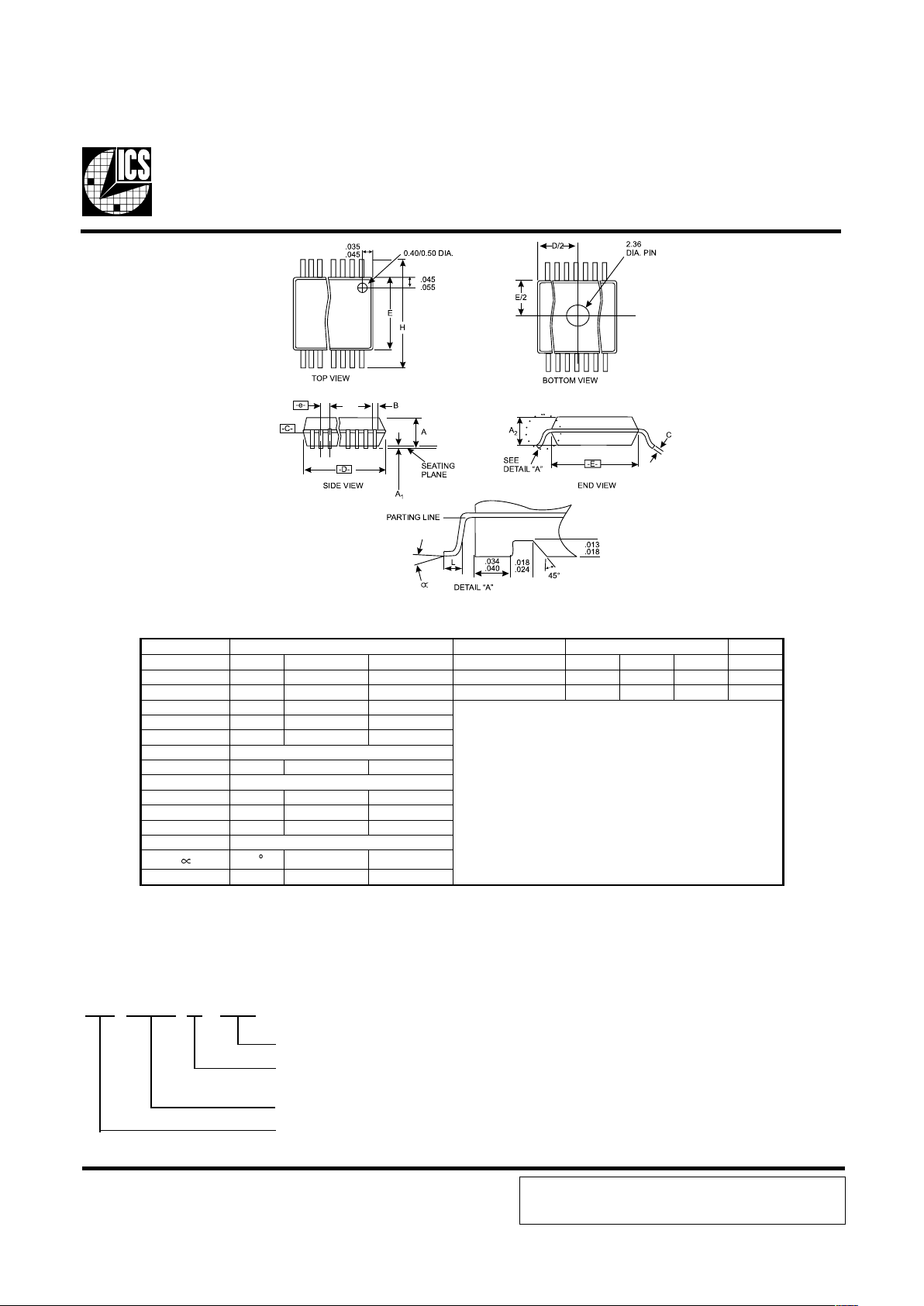

Ordering Information
ICS9248F-20
Pattern Number (2 or 3 digit number for parts with ROM code patterns)
Package Type
F=SSOP
Device Type (consists of 3 or 4 digit numbers)
Prefix
ICS, AV = Standard Device
Example:
ICS XXXX F - PPP
This table in inches
SSOP Package
LOBMYS SNOISNEMIDNOMMOC SNOITAIRAV D N
.NIM.MON.XAM.NIM.MON.XAM
A590.101.011.CA026.526.036.84
1A800.210.610.DA027.527.037.65
2A880.090.290.
B800.010.5310.
C500.600.5800.
DsnoitairaVeeS
E292.692.992.
eCSB520.0
H004.604.014.
h010.310.610.
L420.230.040.
NsnoitairaVeeS
µ
°0°5 °8
X580.390.001.
ICS reserves the right to make changes in the device data identified in this
publication without further notice. ICS advises its customers to obtain the
latest version of all device data to verify that any information being relied
upon by the customer is current and accurate.
Loading...
