PRELIMINARY INFORMATION
ICS554-01
LOW SKEW 1 TO 4 CLOCK BUFFER PECL IN, PECL OUT
Description
The ICS554-01 is a low skew clock buffer with a single
complimentary PECL input to four PECL outputs. Part
of ICS’ Clock Blocks
PECL clock buffer. For parts which do not require PECL
inputs or outputs, see the ICS553 for a 1 to 4 low skew
buffer, or the ICS552-02 for a 1 to 8 low skew buffer. For
more than 8 outputs see the MK74CBxxx Buffalo
series of clock drivers.
ICS makes many non-PLL and PLL based low skew
output devices as well as Zero Delay Buffers to
synchronize clocks. Contact us for all of your clocking
needs.
TM
family, this is our lowest skew
TM

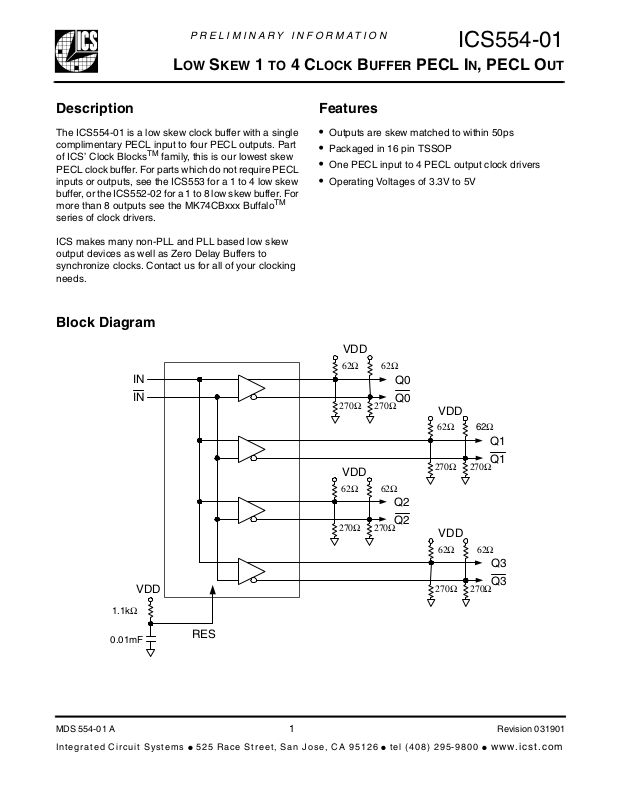

Block Diagram
IN
IN
Features
• Outputs are skew matched to within 50ps
• Packaged in 16 pin TSSOP
• One PECL input to 4 PECL output clock drivers
• Operating Voltages of 3.3V to 5V
VDD
62Ω 62Ω
Q0
270Ω 270Ω
Q0
VDD
62Ω 62Ω
Q1
Q1
VDD
62Ω 62Ω
270Ω 270Ω
Q2
270Ω 270Ω
Q2
VDD
62Ω 62Ω
Q3
VDD
1.1kΩ
0.01mF
MDS 554-01 A 1 Revision 031901
Integrated Circuit Systems ● 525 Race Street, San Jose, CA 95126 ● tel (408) 295-9800 ● www.icst.com
RES
270Ω 270Ω
Q3
Page 2
PRELIMINARY INFORMATION ICS554-01
12
1
11
2
10
3
9
NC
4
VDD
5
6
VDD
7
Q0
8
Q3
Q3
Q2
Q1
IN
GND GND
16
15
14
13
IN
RES
16 Pin TSSOP
Q0
Q1
Q2
Pin Assignment
LOW SKEW 1 TO 4 CLOCK BUFFER PECL IN, PECL OUT
Pin Descriptions
Pin
Number
1 NC - No Connect.
2 VDD Power Connect to +2.5 V, +3.3V or +5.0V. Must be the same as pin 15.
3Q0
4 Q0 Output Clock Output Q0
5 Q1 Output Clock Output Q1
6Q1
7 GND Power Ground
8 IN Input PECL Clock Input
9IN
10 GND Power Ground
11 Q2
12 Q2 Output Clock Output Q2
13 Q3 Output Clock Output Q3
14 Q3
15 VDD Power Connect to +2.5V, +3.3V or +5.0V. Must be the same as pin 2
MDS 554-01 A 2 Revision 031901
Integrated Circuit Systems ● 525 Race Street, San Jose, CA 95126 ● tel (408) 295-9800 ● www.icst.com
16 RES Input Bias Resistor Input.
Pin
Name
Output Clock Output Q0
Output Clock Output Q1
Output Clock Output Q2
Output Clock Output Q3
Pin
Typ e
Input Complementary PECL Clock Input
Pin Description
Page 3
PRELIMINARY INFORMATION ICS554-01
External Components
The ICS554-01 requires a decoupling capacitor of 0.01µF to be connected between VDD on pin 2 and
GND on pin 7, as well as between VDD on pin 15 and GND on pin 10. These decoupling capacitors should
be placed as close to the device as possible. A 0.01µF capacitor must be placed between the RES (pin 16)
and Ground, also, a resistor must be connected between the RES (pin 16) and VDD. Another eight
resistors are needed for the PECL outputs as shown on the block diagram on page 1. Suggested values of
these resistors are shown in the Block Diagram, but they can be varied to change the differential pair
output swing, and the DC level. Refer to Application Note, MAN09.
To achieve the low output skews that the ICS554-01 is capable of, careful attention must be paid to board
layout. Essentially, all 8 outputs must have identical terminations, identical loads, and identical trace
geometries. If they do not, the output skew will be degraded. For example, using a 30Ω series termination
on one output (with 33Ω on the others) will cause at least 15ps of skew.
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the ICS554-01. These ratings,
which are standard values for ICS commercially rated parts, are stress ratings only. Functional operation of
the device at these or any other conditions above those indicated in the operational sections of the
specifications is not implied. Exposure to absolute maximum rating conditions for extended periods can
affect product reliability. Electrical parameters are guaranteed only over the recommended operating
temperature range.
LOW SKEW 1 TO 4 CLOCK BUFFER PECL IN, PECL OUT
Item Rating
Supply Voltage, VDD 7V
All Inputs and Outputs -0.5V to VDD+0.5V
Ambient Operating Temperature 0 to +70°C
Storage Temperature -65 to +150°C
Junction Temperature 175°C
Soldering Temperature 260°C
Recommended Operation Conditions
Parameter Min. Typ. Max. Units
Ambient Operating Temperature 0 – +70 °C
Power Supply Voltage (measured in respect to GND) +3.15 +5.25 V
MDS 554-01 A 3 Revision 031901
Integrated Circuit Systems ● 525 Race Street, San Jose, CA 95126 ● tel (408) 295-9800 ● www.icst.com
Page 4
PRELIMINARY INFORMATION ICS554-01
DC Electrical Characteristics
VDD=3.3V ±5%, Ambient temperature 0 to +70°C, unless stated otherwise
Parameter Symbol Conditions Min. Typ. Max. Units
Operating Voltage VDD 3.15 5.25 V
Peak to Peak Input Voltage IN 0.3 1.0 V
Input Common Mode Range IN VDD=3.3V VDD-2.0 VDD-0.6 V
Input Common Mode Range IN VDD=5V VDD-3.7 VDD-0.6 V
Input High Voltage, OE V
Input Low Voltage, OE V
Output High Voltage V
Output Low Voltage V
Operating Supply Current IDD No load, 135 MHz 67 mA
Short Circuit Current, 2.5V I
Short Circuit Current, 3.3V I
Short Circuit Current, 5V I
Notes: 1. V
2. IDD includes the current through the external resistors which can be modified.
and VOL can be set by the external resistor values on the PECL outputs.
OH
LOW SKEW 1 TO 4 CLOCK BUFFER PECL IN, PECL OUT
– 2 – VDD V
–––0.4 V
±40 mA
±50 mA
±60 mA
OH
OL
OS
OS
OS
IH
IL
Note 1 VDD-1.2 V
Note 1 ––VDD-2.0 V
AC Electrical Characteristics
VDD = 3.3V ±5%, Ambient Temperature 0 to +70° C, unless stated otherwise
Parameter Symbol Conditions Min. Typ. Max. Units
Input Frequency 0 200 MHz
Propagation Delay (VDD=3.3V) 4 ns
Propagation Delay (VDD=5V) 3 ns
Output to output skew. Crossing point of pair 0 50 ps
MDS 554-01 A 4 Revision 031901
Integrated Circuit Systems ● 525 Race Street, San Jose, CA 95126 ● tel (408) 295-9800 ● www.icst.com
Page 5
PRELIMINARY INFORMATION ICS554-01
LOW SKEW 1 TO 4 CLOCK BUFFER PECL IN, PECL OUT
Package Outline and Package Dimensions (16 pin TSSOP, 173 Mil. Narrow Body)
Package dimensions are kept current with JEDEC Publication No. 95
Millimeters Inches
Symbol MinMaxMinMax
A -- 1.20 -- 0.047
a 0.05 0.15 0.002 0.006
b 0.19 0.30 0.007 0.012
c 0.09 0.20 0.0035 0.008
E
H
D 4.90 5.10 0.193 0.201
E 4.30 4.50 0.169 0.177
e 0.65 Basic 0.0256 Basic
H 6.40 Basic 0.252 Basic
L 0.45 0.75 0.018 0.030
D
a
A
c
be
L
Ordering Information
Part / Order Number Marking (both) Shipping
packaging
ICS554G-01 ICS (top line) Tubes 16 pin TSSOP 0 to +70° C
ICS554G-01T 554G-01 (2nd line) Tape and Reel 16 pin TSSOP 0 to +70° C
While the information presented herein has been checked for both accuracy and reliability, Integrated Circuit Systems (ICS)
assumes no responsibility for either its use or for the infringement of any patents or other rights of third parties, which would
result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in normal commercial
applications. Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary
environmental requirements are not recommended without additional processing by ICS. ICS reserves the right to change any
circuitry or specifications without notice. ICS does not authorize or warrant any ICS product for use in life support devices or
critical medical instruments.
Package Temperature
MDS 554-01 A 5 Revision 031901
