PRELIMINARY INFORMATION

ICS541

PLL Clock Divider

Description

The ICS541 is a cost effective way to produce a
high quality clock output divided from a clock
input. The chip accepts a clock input up to
135 MHz at 3.3 V, and by using proprietary Phase
Locked Loop (PLL) techniques, produces a divide
by 1, 2, 4, or 8 of the input clock. There are two
outputs on the chip, one being a low-skew divide
by two of the other. So, for instance, if an 80 MHz
input clock is used, the ICS541 can produce low
skew 80 MHz and 40 MHz clocks, or 40 MHz
and 20 MHz clocks, or 20 MHz and 10MHz
clocks. The chip has an all-chip power down mode
that stops the outputs low, and an OE pin that tri­states the outputs.

The ICS541 is a member of the ICS
ClockBlocks™ family of clock building blocks.
See the ICS542 and ICS543 for other clock
dividers, and the ICS300, 501, 502, and 503 for
clock multipliers.

Features

• Packaged in 8 pin SOIC

• Low cost clock divider

• Low skew (500ps) outputs. One is ÷ 2 of other.

• Easy to use with other generators and buffers

• Input clock frequency up to 135 MHz at 3.3 V

• Input clock frequency up to 156 MHz at 5.0 V

• Tolerant of poor input clock duty cycle, jitter.

• Output clock duty cycle of 45/55

• Power Down turns off chip

• Output Enable

• Full CMOS clock swings with 25mA drive
capability at TTL levels

• Advanced, low power CMOS process

• Operating voltages of 3.0 to 5.5 V

Block Diagram

S1, S0

Input Clock

VDD GND

2

PLL,

Divider and

Selection

Circuitry

Output

Buffer

÷2

Output

Buffer

OE (both outputs)

CLK

CLK/2

MDS 541 B 1 Revision 082500 Printed 11/14/00

Integrated Circuit Systems, Inc. •525 Race Street• San Jose•CA• 95126• [phone]tel • www.icst.com

PRELIMINARY INFORMATION

Power Down All

ICS541

PLL Clock Divider

Pin Assignment

ICLK
VDD

GND

S0

1 8
2

3
4

7
6

5

CLK

CLK/2

OE

S1

Clock Decoding Table

S1 S0 CLK CLK/2
#5 #4 pin #8 pin #7

0 0
0 1 Input/4 Input/8
1 0 Input Input/2
1 1 Input/2 Input/4

0 = connect directly to ground.

8 pin SOIC

1 = connect directly to VDD.

Pin Descriptions

Number Name Type Description

1 ICLK CI Clock input.
2 VDD P Connect to +3.3V or +5V.
3 GND P Connect to ground.
4 S0 I Select 0 for output clock. Connect to GND or VDD, per decoding table above.
5 S1 I Select 1 for output clock. Connect to GND or VDD, per decoding table above.
6 OE I Output Enable. Tri-states both output clocks when low.
7 CLK/2 O Clock output per Table above. Low skew divide by two of pin 8 clock.
8 CLK O Clock output per Table above.

Key: CI = clock input, I = input, O = output, P = power supply connection

External Components

The ICS541 requires a 0.01 µF decoupling capacitor to be connected between VDD and GND. It must
be connected close to the ICS541 to minimize lead inductance. No external power supply filtering is
required for this device. A 33 Ω terminating resistor can be used next to each output pin. If a 3.3 V input
clock is applied to the ICLK pin, with the ICS541 at 5 V, the clock must be AC coupled.

MDS 541 B 2 Revision 082500 Printed 11/14/00

Integrated Circuit Systems, Inc. •525 Race Street• San Jose•CA• 95126• [phone]tel • www.icst.com

PRELIMINARY INFORMATION

ABSOLUTE MAXIMUM RATINGS (stresses beyond these can permanently damage the device)

DC CHARACTERISTICS (VDD = 5.0V unless otherwise noted)

AC CHARACTERISTICS (VDD = 5.0V unless otherwise noted)

ICS541

PLL Clock Divider

Electrical Specifications

Parameter Conditions Minimum Typical Maximum Units

Supply Voltage, VDD Referenced to GND 7 V
Inputs Referenced to GND -0.5 VDD+0.5 V
Clock Output Referenced to GND -0.5 VDD+0.5 V
Ambient Operating Temperature 0 70 C
Soldering Temperature Max of 10 seconds 260 C
Storage temperature -65 150 C

Operating Voltage, VDD 3 5.5 V
Input High Voltage, VIH, ICLK only, Note 1 ICLK (Pin 1) (VDD/2)+1 V
Input Low Voltage, VIL, ICLK only, Note 1 ICLK (Pin 1) (VDD/2)-1 V
Input High Voltage, VIH S0, S1, OE 2 V
Input Low Voltage, VIL S0, S1, OE 0.8 V
Output High Voltage, VOH IOH=-25mA 2.4 V
Output Low Voltage, VOL IOL=25mA 0.4 V
Output High Voltage, VOH, CMOS level IOH=-4mA VDD-0.4 V
IDD Operating Supply Current, 80 in, 40+20 out No Load, 5.0V 15 mA
IDD Operating Supply Current, 40 in, 40+20 out No Load, 3.3V 8 mA
Short Circuit Current Each Output ±70 mA
Input Capacitance, S1, S0, OE Pins 4, 5, 6 4 pF

Input Frequency, clock input at VDD = 5V 4 156 MHz
Input Frequency, clock input at VDD = 3.3V 4 135 MHz
Skew of output clocks rising edges at VDD/2 500 ps
Output Clock Rise Time 0.8 to 2.0V 1 ns
Output Clock Fall Time 2.0 to 0.8V 1 ns
Output Clock Duty Cycle at VDD/2 45 49 to 51 55 %

Note 1: CMOS level input; nominal trip point is VDD/2.

MDS 541 B 3 Revision 082500 Printed 11/14/00

Integrated Circuit Systems, Inc. •525 Race Street• San Jose•CA• 95126• [phone]tel • www.icst.com

PRELIMINARY INFORMATION

Inches

Millimeters

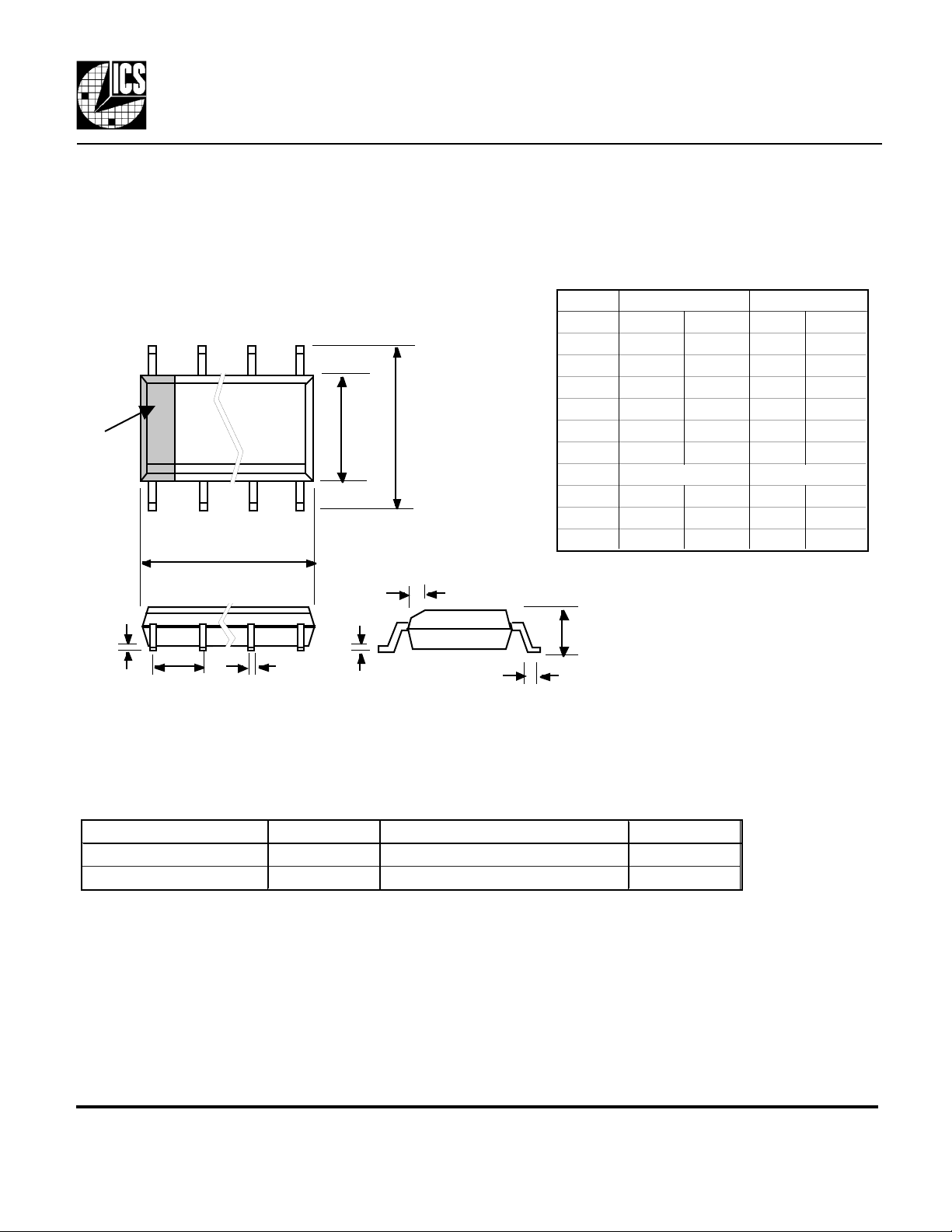

Package Outline and Package Dimensions
(For current dimensional specifications, see JEDEC Publication No. 95.)

8 pin SOIC

Symbol Min Max Min Max

A 0.0532 0.0688 1.35 1.75

A1

B 0.0130 0.0200 0.33 0.51

E H

INDEX

AREA

1 2

C

D 0.1890 0.1968 4.80 5.00

E 0.1497 0.1574 3.80 4.00

e

H 0.2284 0.2440 5.80 6.20

h 0.0099 0.0195 0.25 0.50
L 0.0160 0.0500 0.41 1.27

h x 45°

D

ICS541

PLL Clock Divider

0.0040 0.0098 0.10 0.24

0.0075 0.0098 0.19 0.24

A1 C

A

e

B

L

Ordering Information

Part/Order Number Marking Package Temperature

ICS541M ICS541M 8 pin SOIC 0 to 70 C

ICS541MT ICS541M 8 pin SOIC on tape and reel 0 to 70 C

While the information presented herein has been checked for both accuracy and reliability, Integrated Circuit Systems (ICS) assumes no responsibility for either its use or for the
infringement of any patents or other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in
normal commercial applications. Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary environmental requirements
are not recommended without additional processing by ICS. ICS reserves the right to change any circuitry or specifications without notice. ICS does not authorize or warrant any
ICS product for use in life support devices or critical medical instruments.

ClockBlocks is a trademark of ICS
