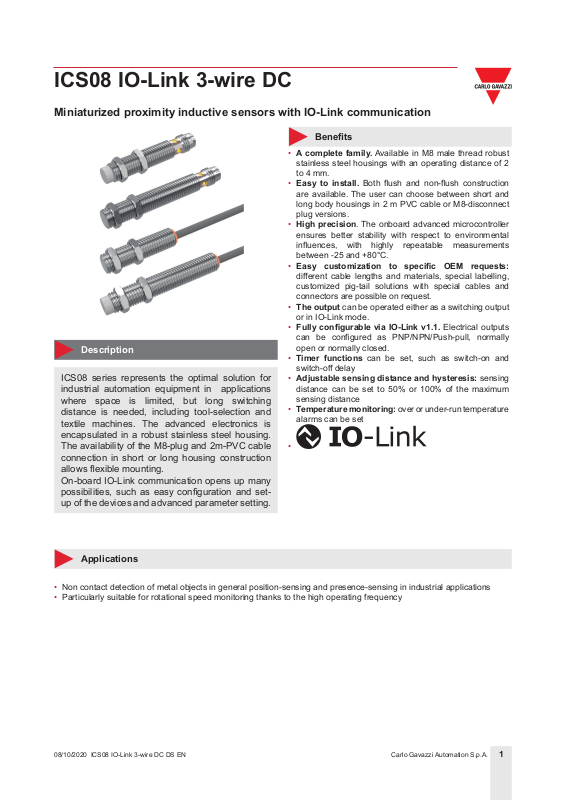

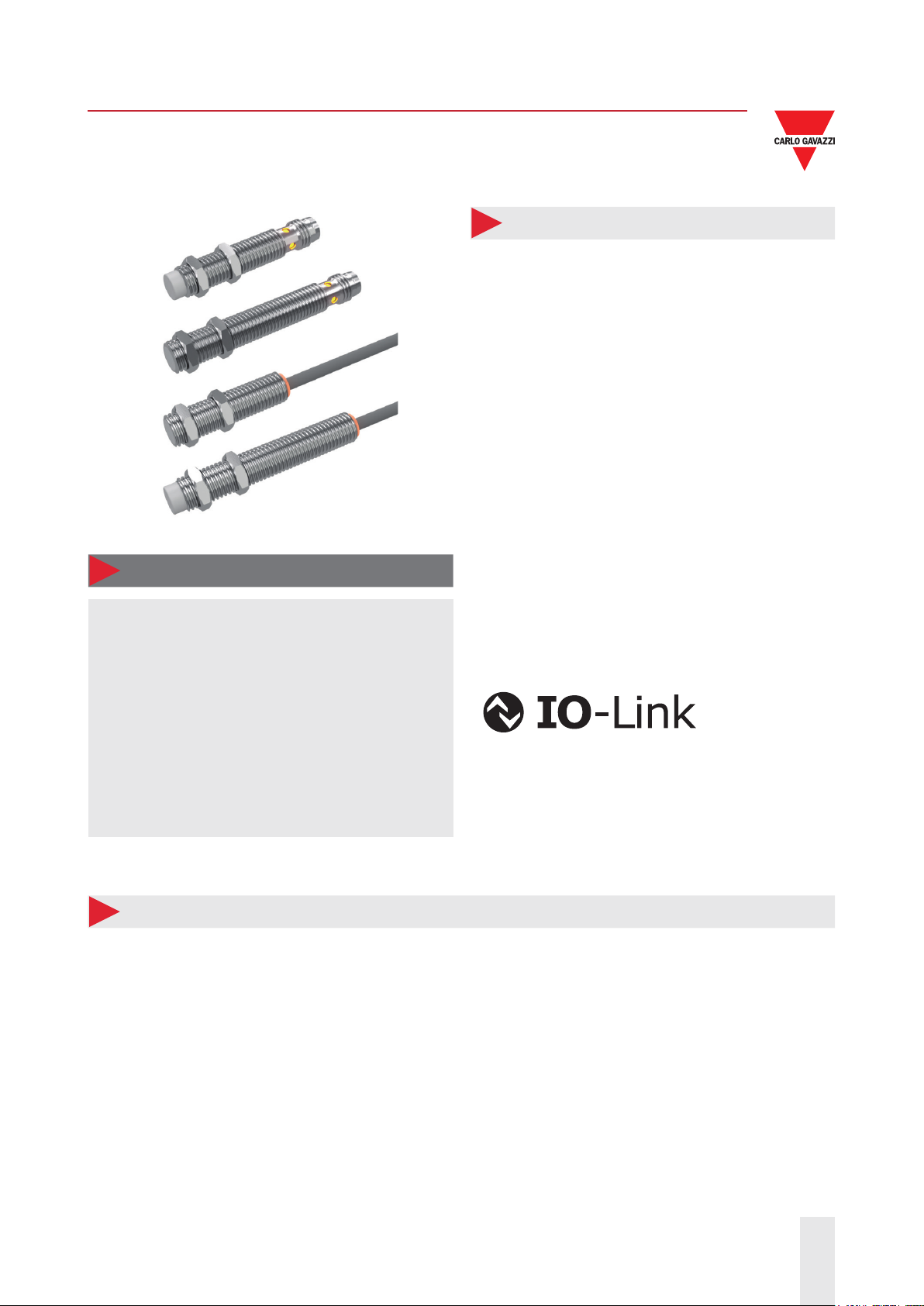

Datasheet ICS08S30F20A2IO Specification

ICS08 IO-Link 3-wire DC

Miniaturized proximity inductive sensors with IO-Link communication

Benets

• A complete family. Available in M8 male thread robust

stainless steel housings with an operating distance of 2
to 4 mm.

• Easy to install. Both ush and non-ush construction

are available. The user can choose between short and
long body housings in 2 m PVC cable or M8-disconnect
plug versions.

• High precision. The onboard advanced microcontroller

ensures better stability with respect to environmental

inuences, with highly repeatable measurements

between -25 and +80°C.

• Easy customization to specic OEM requests:

di󰀨erent cable lengths and materials, special labelling,

customized pig-tail solutions with special cables and
connectors are possible on request.

• The output can be operated either as a switching output

or in IO-Link mode.

• Fully congurable via IO-Link v1.1. Electrical outputs

can be congured as PNP/NPN/Push-pull, normally

Description

ICS08 series represents the optimal solution for
industrial automation equipment in applications
where space is limited, but long switching
distance is needed, including tool-selection and
textile machines. The advanced electronics is
encapsulated in a robust stainless steel housing.
The availability of the M8-plug and 2m-PVC cable
connection in short or long housing construction

allows exible mounting.

On-board IO-Link communication opens up many

possibilities, such as easy conguration and set-

up of the devices and advanced parameter setting.

open or normally closed.

• Timer functions can be set, such as switch-on and

switch-o󰀨 delay

• Adjustable sensing distance and hysteresis: sensing

distance can be set to 50% or 100% of the maximum
sensing distance

• Temperature monitoring: over or under-run temperature

alarms can be set

•

Applications

• Non contact detection of metal objects in general position-sensing and presence-sensing in industrial applications

• Particularly suitable for rotational speed monitoring thanks to the high operating frequency

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

1

ICS08 IO-Link 3-wire DC

Main functions

• Integrated diagnostic function with ashing LED in the event of a short circuit or overload

• The devices can be operated in IO-Link mode once connected to an IO-Link master, or in standard I/O mode.

• In IO-Link mode the switching signals of the sensor are made available in the process data via the IO-Link interface.

• Several sensor functions can be set via the IO-Link interface:

► Adjustable switching distance: 50% or 100% of the maximum switching distance.
► Adjustable hysteresis: standard or increased value.
► Divider function: the sensor gives a signal after a specied number of actuation pulses has been

reached.

► Switch-on delay: the switching pulse is generated after the sensor actuation.
► Switch-o󰀨 delay: the generation of the switch signal is delayed by the set time after sensor actuation.
► Temperature error: temperature is out of specications.
► Temperature over-run and under-run: temperature is out of the limits dened by the user.

References

Order code

I C S 08 IO

Enter the code option instead of

Code Option Description

I - Inductive sensor
C - Cylindrical housing with threaded barrel
S - Stainless steel housing

08 - M8 housing

IO - IO-Link programmable version

S30 Short housing with thread barrel of 30 mm
L45 Long housing with thread length of 45 mm

F Flush
N Non-ush

20 Sensing distance 2mm

40 Sensing distance 4mm
M5 M8 plug
A2 2 m PVC cable

Additional characters can be used for customized versions.

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

2

A

A

DB C A B C

B

C

D

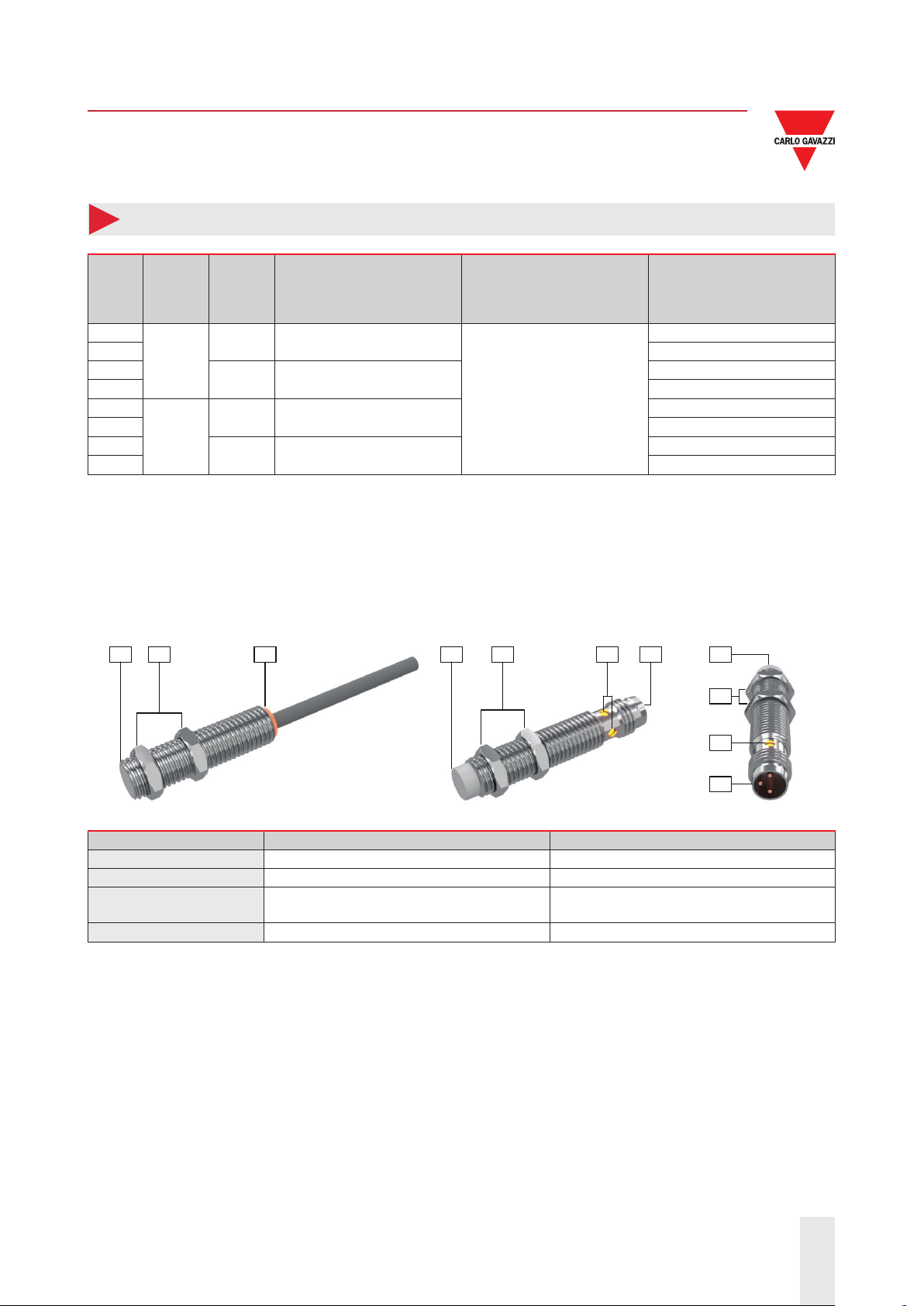

Selection guide

ICS08 IO-Link 3-wire DC

Con-

nec-

tion

Cable

Plug ICS08S30F20M5IO

Cable

Plug ICS08S30N40M5IO

Cable

Plug ICS08L45F20M5IO

Cable

Plug ICS08L45N40M5IO

Body

style

Short

Long

Detec-

tion

princi-

ple

Flush

Non­ush

Flush

Non­ush

Rated operating distance

Sn

Congurable: 1 or 2mm

Factory setting: 2mm

Congurable: 2 or 4mm

Factory setting: 4mm

Congurable: 1 or 2mm

Factory setting: 2mm

Congurable: 2 or 4mm

Factory setting: 4mm

Output type Ordering no.

ICS08S30F20A2IO

Congurable: NPN/PNP/

push-pull

NO/NC

Factory setting: PNP, NO

ICS08S30N40A2IO

ICS08L45F20A2IO

ICS08L45N40A2IO

Structure

Element Component Function

A Sensing face Flush or non-ush
B 2 nuts For sensor mounting

C LED

D M8, 3 pin, male connector For plug versions only

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Yellow LED: Output ashing: short circuit or

overload indication

Carlo Gavazzi Automation S.p.A.

3

Y

S

T

Distance [Thou]

[Thou]

[mm]

Distance [mm]

Distance [Thou]

[Thou]

[mm]

Distance[mm]

Sensing

Detection

ICS08 IO-Link 3-wire DC

Rated operating distance S

n

2 mm ush or 4 mm non-ush

Programmable via IO-Link: 50% or 100% of the maximum S
The operating distance is measured according to IEC 60947-5-2, using a

standard target moving axially.
This target is square shape 1 mm thickness, made of steel e.g. type Fe 360

Reference target

as dened in ISO 630 and it shall be of the rolled nish.

The length of the side of the square is equal to
– the diameter of the circle inscribed on the active surface of the sensing face,
or
– three times the rated operating distance Sn whichever is greater

Assured operating sensing distance
(Sa)

E󰀨ective operating distance (Sr) 0.9 x Sn ≤ Sr ≤ 1.1 x S
Usable operating distance (Su) 0.9 x Sr ≤ Su ≤ 1.1 x S

0 ≤ Sa ≤ 0.81 x Sn (e.g. with Sn of 2 mm, Sa is 0 ... 1.62 mm)

n

r

Temperature drift ≤ +/-10%
Hysteresis (H) Programmable via IO-Link: standard or increased

X

-4 4122028364452606876

4

2

0

S

-2

-4

00,2 0,40,6 0,81 1,21,4 1,61,8 2

T

197

131,3

65,6

0

-65,7

-131,3

-197

S: sensor
T: target

-19,70 19,7 39,4 59,1 78,8 98,5 118,2137,9 157,6

6

4

2

0

S

-2

-4

-6

-0,5 00,5 11,5 22,5 33,5 4

n

276

207

138

T

69

0

-69

-138

-207

-276

Fig. 1 Flush Fig. 2 Non-ush

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

4

ICS08 IO-Link 3-wire DC

Correction factors

The specic operating distance Sn refers to dened measuring conditions. The following data have to be

considered as general guidelines.

Fe360 : Steel

CrNi : Chrome-nickel

CuZn : Brass
Al : Aluminium
Cu : Copper

Sr : E󰀨ective operating distance

Fig. 3 The rated operating distance is reduced by
the use of metals and alloys other than Fe360. The
most important reduction factors for inductive prox-

imity sensors are shown in the gure.

Accuracy

Repeat accuracy (R) ≤ 5%

Features

Power Supply

Rated operational voltage (Ub) 10 to 30 VDC (ripple included)
Ripple (U
No load supply current (Io) ≤ 17 mA

Power ON delay (tv) ≤ 50 ms

) ≤ 10%

rpp

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

5

ICS08 IO-Link 3-wire DC

Outputs

Output functions

Output conguration

Output current (Ie) ≤ 100 mA
OFF-state current (Ir)

(only for PNP or NPN output)

Voltage drop (Ud) Max. 1.2 VDC @ 100 mA

Protection Short-circuit, reverse polarity and transients

Voltage transient 1 kV/0.5 J

Congurable via IO-Link: PNP, NPN or push-pull
Factory setting: PNP

Congurable via IO-Link: N.O. or N.C.
Factory setting: N.O.

≤ 100 μA

Response times

Operating frequency (f) ≤ 2 KHz

Indication

Standard IO mode:

Yellow LED Output Description

OFF OFF

ON ON

Blinking

f: 2Hz Short-circuit or overload
f: 1Hz Temperature alarm (if enabled)

N.O. output, target not present
N.C. output, target present

N.O. output, target present
N.C. output, target not present

IO-Link mode:

• LED is ON for 0.75 s and OFF for 0.075 s

• Possibility to disable the LED

Environmental

Ambient temperature

Ambient humidity

Vibration

Shock 30 G /11 ms. 10 shocks in X, Y and Z direction IEC 60068-2-27
Degree of protection IP67 IEC 60529; EN 60947-1

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Operating: -25° to +80°C (-13° to +176°F)
Storage: -30° to +80°C (-22° to +176°F)
Operating: 35% to 95%
Storage: 35% to 95%

10 to 55 Hz, amplitude 1.0 mm; sweep cycle 5
min; in X, Y and Z direction

Carlo Gavazzi Automation S.p.A.

IEC 60068-2-6

6

Compatibility and conformity

ICS08 IO-Link 3-wire DC

IEC 61000-4-2 Electrostatic discharge

IEC 61000-4-3 Radiated radiofre­quency

EMC protection

MTTF

d

Approvals

IEC 61000-4-4 Burst immunity 2 kV
IEC 61000-4-6 Conducted radio fre-

quency
IEC 61000-4-8 Power frequency mag-

netic elds
4513 years @ 50°C (122°F)

®

CCC is not required for products rated ≤ 36 V

Mechanical data

Cable version: short, ush: 44.8g; short, non-ush: 44.9g; long, ush: 47g;

Weight (including 2 nuts and the
packaging) max.

Mounting Flush mountable or non-ush mountable

Material

Max tightening torque 7 Nm

long, non-ush: 47.1g;
Plug version: short, ush: 16g; short, non-ush: 16.1g; long, ush: 18.4g;
long, non-ush: 18.5g.

Housing: stainless steel AISI304

Front cap: Grey thermoplastic polyester

8 kV air discharge
4 kV contact discharge

3 V/m

3 V

30 A/m

Electrical connection

Cable 2m, 3 x 0.14 mm2, Ø3.2 mm, PVC, grey, oil proof
Plug M8 x 1 quick disconnect, 3 pin, male connector

Communication

Communication Via IO-Link V1.1 or via standard I/O

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

7

+

-

1 BN

4 BK

3 BU

Out/IO-Link

Connection Diagrams

BN: brown BK: black BU: blue

ICS08 IO-Link 3-wire DC

Colour code

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

8

4

31

SW13

M8x1

4

30

SW13

LED

Ø3.2

M8x1

34

3

M8x1

4

SW13

4

7

M8x1

31

29

40

Ø2 LEDx4

1

4

3

M8x1

43

M8x1

M8x1

4

SW13

LED

Ø3.2

45
46

4

SW13

M8x1

3

LED

Ø3.2

45

49

M8x1

55

M8x1

M8x1

4

7

4

SW13

46

Ø2 LEDx4

44

58

3

1

4

3

Dimensions [mm]

ICS08 [mm]

ICS08 IO-Link 3-wire DC

LED

30

Ø3.2

Fig. 4 Short body, ush version, cable Fig. 5 Short body, non-ush version, cable

4

31

4

SW13

3

29

1

Ø2 LEDx4

4

7

3

M8x1

Fig. 6 Short body, ush version, plug Fig. 7 Short body, non-ush version, plug

Fig. 8 Long body, ush version, cable Fig. 9 Long body, non-ush version, cable

4

46

4

SW13

1

Ø2 LEDx4

3

M8x1

44

4

7

Fig. 10 Long body, ush version, plug Fig. 11 Long body, non-ush version, plug

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

9

ddd

d

≥ 3 x Sn

≥ 3 x d

≥ 2 x Sn

**

2 x ddddd

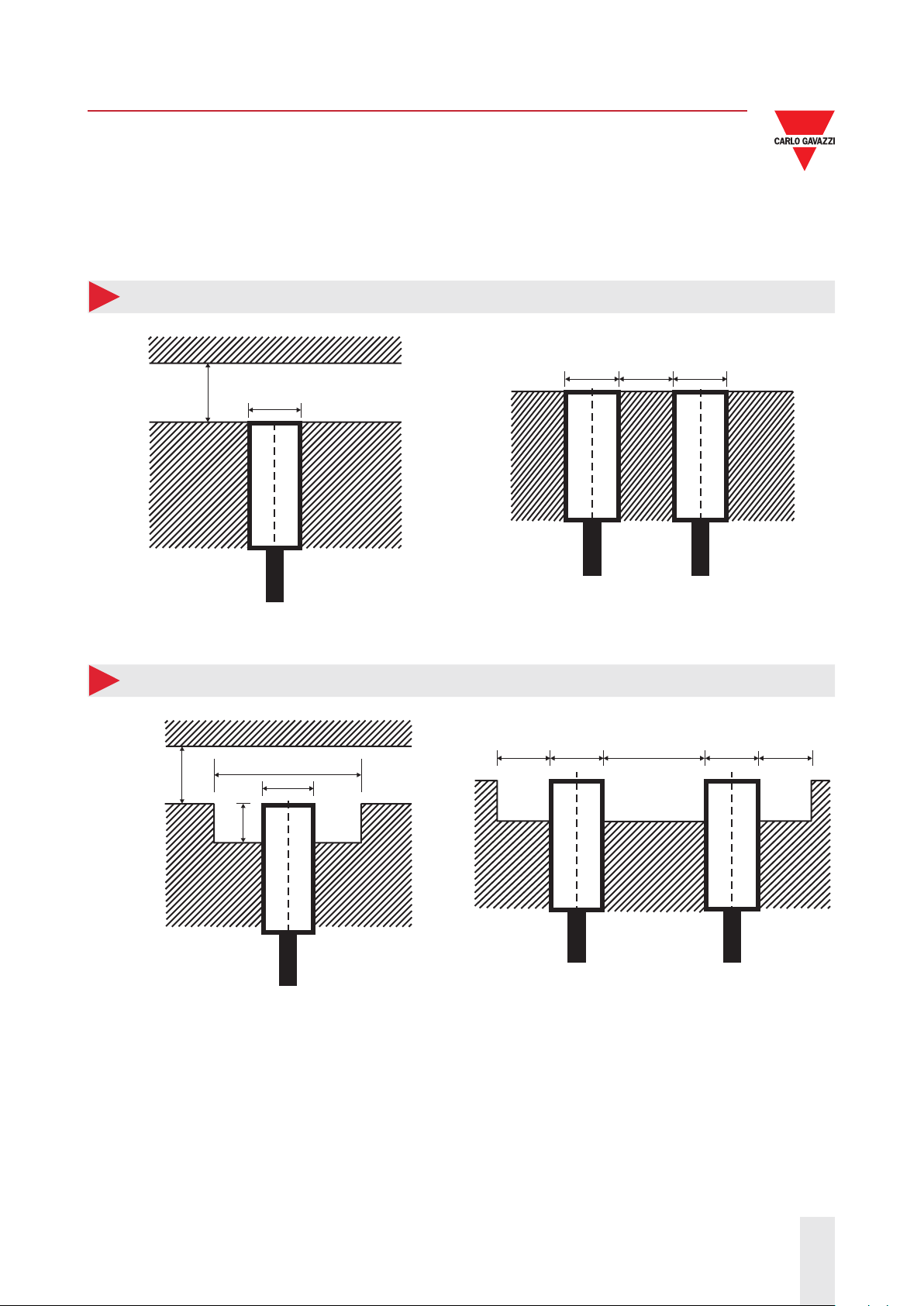

Installation

M8 ush

ICS08 IO-Link 3-wire DC

≥ 3 x Sn

Fig. 12 Flush sensor, when installed in damping

M8 non-ush

d

material

**

Fig. 13 Flush sensors, when installed together in

damping material

Fig. 14 Non-ush sensor, when installed in damping

material

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Fig. 15 Non-ush sensors, when installed together in

damping material

Carlo Gavazzi Automation S.p.A.

10

ICS08 IO-Link 3-wire DC

≥ 6 x Sn

Sensors installed opposite each other

Fig. 16 For sensors installed opposite each other, a minimum space of 6 x Sn (the nominal sensing dis-

tance) must be observed

** Free zone or non-damping material

Sn: nominal sensing distance
d: sensor diameter: 8 mm

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

11

ICS08 IO-Link 3-wire DC

Delivery contents and compatible components

Delivery contents

• Inductive proximity switch

• 2 xing nuts

• 2 lock washers

• Packaging: plastic bag

CARLO GAVAZZI compatible components

• Mounting bracket AMB8... to be purchased separately

• Connector type: CONB53... series to be purchased separately

Further reading

Information Where to nd it QR

IO-Link manual http://www.productselection.net/MANUALS/UK/IOL_IM.pdf

Mounting brackets http://www.productselection.net/Pdf/UK/AMB8_30.pdf

Connectors http://www.productselection.net/Pdf/UK/CONB5.pdf

COPYRIGHT ©2020
Content subject to change. Download the PDF: www.gavazziautomation.com

ICS08 IO-Link 3-wire DC DS EN08/10/2020

Carlo Gavazzi Automation S.p.A.

12
