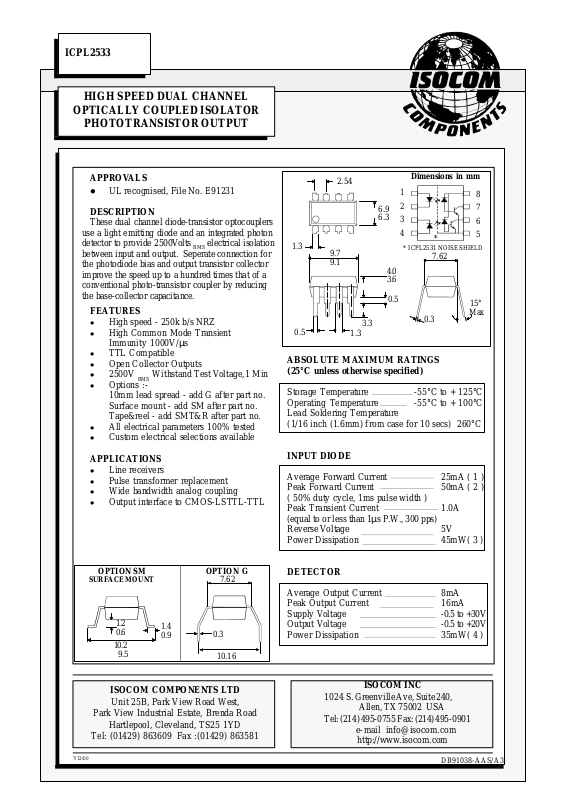

ICPL2533

HIGH SPEED DUAL CHANNEL

OPTICALLY COUPLED ISOLATOR

PHOTOTRANSISTOR OUTPUT

APPROVALS

l UL recognised, File No. E91231

DESCRIPTION

These dual channel diode-transistor optocouplers
use a light emitting diode and an integrated photon
detector to provide 2500Volts
between input and output. Seperate connection for

electrical isolation

RMS

the photodiode bias and output transistor collector
improve the speed up to a hundred times that of a
conventional photo-transistor coupler by reducing
the base-collector capacitance.

FEATURES

l High speed - 250k b/s NRZ

l High Common Mode Transient

Immunity 1000V/µs

l TTL Compatible

l Open Collector Outputs

l 2500V

l Options :-

Withstand Test Voltage,1 Min

RMS

10mm lead spread - add G after part no.
Surface mount - add SM after part no.
Tape&reel - add SMT&R after part no.

l All electrical parameters 100% tested

l Custom electrical selections available

Dimensions in mm

1
2
3
4

* ICPL2531 NOISE SHIELD

4.0

3.6

0.5

*

7.62

0.3

15°
Max

1.3

0.5

2.54

6.9

6.3

9.7

9.1

3.3

1.3

ABSOLUTE MAXIMUM RATINGS
(25°C unless otherwise specified)

Storage Temperature -55°C to + 125°C
Operating Temperature -55°C to + 100°C
Lead Soldering Temperature
(1/16 inch (1.6mm) from case for 10 secs) 260°C

8
7
6
5

APPLICATIONS

l Line receivers

l Pulse transformer replacement

l Wide bandwidth analog coupling

l Output interface to CMOS-LSTTL-TTL

OPTION GOPTION SM

SURFACE MOUNT

1.2

0.6

10.2

9.5

1.4

0.9

7.62

0.3

10.16

ISOCOM COMPONENTS LTD

Unit 25B, Park View Road West,

Park View Industrial Estate, Brenda Road

Hartlepool, Cleveland, TS25 1YD

Tel: [phone] Fax :[phone]

INPUT DIODE

Average Forward Current 25mA ( 1 )
Peak Forward Current 50mA ( 2 )
( 50% duty cycle, 1ms pulse width )
Peak Transient Current 1.0A
(equal to or less than 1µs P.W., 300 pps)
Reverse Voltage 5V
Power Dissipation 45mW( 3 )

DETECTOR

Average Output Current 8mA
Peak Output Current 16mA
Supply Voltage -0.5 to +30V
Output Voltage -0.5 to +20V
Power Dissipation 35mW( 4 )

ISOCOM INC

1024 S. Greenville Ave, Suite 240,

Allen, TX 75002 USA

Tel: [phone] Fax: [phone]

e-mail [e-mail]

http://www.isocom.com

DB91038-AAS/A3

7/12/00

ELECTRICAL CHARACTERISTICS ( TA= 0°C to 70°C Unless otherwise noted )

PARAMETER SYM DEVICE MIN TYP* MAX UNITS TEST CONDITION

15 21 % IF = 8mA, VO = 0.5V,

VCC = 4.5V, TA= 25°C

12 19 % IF = 16mA, VO = 0.5V,

VCC = 4.5V, TA= 25°C

Current Transfer Ratio CTR

(note 5,6 ) 11 14 % IF = 8mA, VO = 0.5V,

VCC = 4.5V

9 12 % IF = 16mA, VO = 0.5V,

VCC = 4.5V

0.2 0.5 V IF = 8mA, IO=0.7mA,

Logic Low Output Voltage V

(note 5 ) 0.2 0.5 V IF = 16mA, IO=1.1mA,

OL

V

CC

V

CC

0.02 500 nA IF1= IF2=0mA,TA= 25°C,
V

Logic High Output Current I

(note 5 ) 50 µA I

OH

O1

F1

V

O1

= 4.5V
= 4.5V

= V

= V

O2

= IF2= 0mA,

= V

= V

O2

= 5.5V

CC

= 15V

CC

Logic Low Supply Current I

Logic High Supply Current I

CCL

CCH

Input Forward Voltage V

(note 5 ) 1.5 1.7 V IF = 16mA, TA= 25°C

Temperature Coefficient ∆V
of Forward Voltage ∆T

(note 5 ) -1.6 mV/°C IF = 16mA

Input Reverse Voltage (note 5 ) V

Input Capacitance (note 5 ) C
Input-output Isolation Voltage V

(note 7) 50%, t = 1min. TA= 25°C

Resistance (Input to Output)(note 7) R

F

F

A

R

IN

ISO

I-O

40 µA IF1= IF2=8mA,VCC=5.5V,

V

= V

O1

= open

O2

80 µA IF1= IF2=16mA,VCC=5.5V,

V

= V

O1

= open

O2

0.05 4 µA IF1= IF2= 0mA,VCC=5.5V,
V

= VO2 = open

O1

1.5 1.7 V IF = 8mA, TA= 25°C

-1.6 mV/°C IF = 8mA

5 V IR = 10µA,TA= 25°C

60 pF f = 1MHz, VF = 0

2500 5000 V

12

10

RMS

Ω V = 500V dc

R.H.equal to or less than

Capacitance (Input to Output)(note7) C

I-O

I

I-I

Resistance (Input to Input)(note8) R 10
Capacitance (Input to Input)(note8) C

I-I

0.25 pF f = 1MHz

*All typicals at TA= 25°C

pF f = 1MHz

µA 45 % Relative Humidity

t = 5s, V = 500V dc

11

Ω V

= 500V dc

I-I

DB91038-AAS/A3

SWITCHING SPECIFICATIONS AT TA = 25°C ( VCC = 5V Unless otherwise noted )

7/12/00

PARAMETER SYM DEVICE MIN TYP MAX UNITS TEST CONDITION

0.8 1.5 µs IF = 8mA,RL= 7.5kΩ

Propagation Delay Time t
to Logic Low at Output ( fig 1 )

PHL

0.3 1.5 µs IF = 16mA,RL= 4.7kΩ,

1.0 2.5 µs IF = 8mA,RL= 7.5kΩ,

Propagation Delay Time t
to Logic High at Output ( fig 1 )

PLH

1.1 2.5 µs IF = 16mA,RL= 4.7kΩ,

(note 10 )

(note11 )

(note 10 )

(note11 )

1000 V/µs IF = 0mA, V

Common Mode Transient RL= 7.5kΩ,(note9,10 )
Immunity at Logic High CM
Level Output ( fig 2 ) 1000 V/µs IF = 0mA, V

H

RL = 4.7kΩ,(note9,11 )

-1000 V/µs IF = 8mA,V

Common Mode Transient RL = 7.5kΩ,(note9,10 )
Immunity at Logic Low CM
Level Output ( fig 2 ) -1000 V/µs IF = 16mA,VCM= 10V

L

CM

CM

CM

= 10V

= 10V

= 10V

PP

RL = 1.9kΩ,(note9,11 )

NOTES:-

1. Derate linearly above 70oC free air temperature at a rate of 0.8 mA/°C.

2. Derate linearly above 70oC free air temperature at a rate of 1.6 mA/°C.

3. Derate linearly above 70oC free air temperature at a rate of 0.9 mW/°C.

4. Derate linearly above 70oC free air temperature at a rate of 1.0 mW/°C.

5. Each channel.

6. CURRENT TRANSFER RATIO is defined as the ratio of output collector current,IO , to the forward LED
input current, IF times 100%.

7. Device considered a two-terminal device: pins 1,2,3,and 4 shorted together and pins 5,6,7,and 8 shorted
together.

8. Measured between pins 1 and 2 shorted together, and pins 3 and 4 shorted together.

9. Common mode transient immunity in Logic High level is the maximum tolerable (positive) dVcm/dt on
the leading edge of the common mode pulse VCM to assure that the output will remain in a Logic High
state (i.e. VO > 2.0V). Common mode transient immunity in Logic Low level is the maximum tolerable
(negative) dVcm/dt on the trailing edge of the common mode pulse signal, VCM to assure that the output
will remain in Logic Low state (i.e. VO< 0.8V).

10. The 7.5kΩ load represents 1 LSTTL unit load of 0.36mA and a 20kΩ pull-up resistor.

11. The 4.7kΩ load represents 1 LSTTL unit load of 0.36mA and a 8.2kΩ pull-up resistor.

12. The 2500 V

/ 1minute capability is validated by a factory 3.1k V

RMS

/ 1 second dielectric test.

RMS

PP

PP

PP

FIG.1 SWITCHING TEST CIRCUIT

PULSE
GENERATOR
ZO = 50Ω

I

F

0

V

O

1.3V

t

PHL

t

PLH

1.3V

5V

V

OL

tr = 5ns

10% Duty Cycle
1/f < 100µs

IF Monitor

I

F

100Ω

1

2

3
4

8
7

5V

R

L

V

O

6
5

CL = 15pF

DB91038-AAS/A3

7/12/00

FIG. 2 TEST CIRCUIT FOR TRANSIENT IMMUNITY AND TYPICAL WAVEFORMS

V

CM

10V

90%

10%

0V

V

O

t

r

SWITCH AT A: IF = 0mA

V

O

SWITCH AT B: IF = 16mA

Normalized Current Transfer

Ratio vs. Forward Current

1.6

1.5

1.4

1.3

1.2

1.1

1

I

F

10%

90%

t

f

5V

V

OL

A

B

V

FF

2

3

4

V

+

8
7

6

5

CM

-

5V

R

L

V

O

PULSE GEN.

Logic High Output Current vs.

Ambient Temperature

1

10

0

IF = 0mA
VO = VCC = 5V

(nA)

OH

10

10

-1

1.0

0.9

0.8

0.7

Normalized current transfer ratio

Normalized
to IF = 16mA
VO = 0.5V
VCC = 5V
TA = 25°C

1 2 5 10 20 50

Forward current IF (mA)

Normalized Current Transfer

Ratio vs. Ambient Temperature

1.3

1.2

1.1

1.0

0.9

0.8

0.7

Normalized current transfer ratio

Normalized
to IF = 16mA
VO = 0.5V
VCC = 5V
TA = 25°C

-2

10

Logic high output current I

-3

10

-55 -25 0 25 50 75 100
Ambient temperature TA ( °C )

Normalized Propagation Delay

vs. Ambient Temperature

1.5

1.4

1.3

t

PLH

t

PHL

1.2

1.1

1.0

0.9

Normalized
to IF = 16mA

0.8

Normalized propagation delay

0.7

VCC = 5V
RL = 4.7kΩ
TA = 25°C

-55 -25 0 25 50 75 100
Ambient temperature TA ( °C )

-25 0 25 50 70
Ambient temperature TA ( °C )
