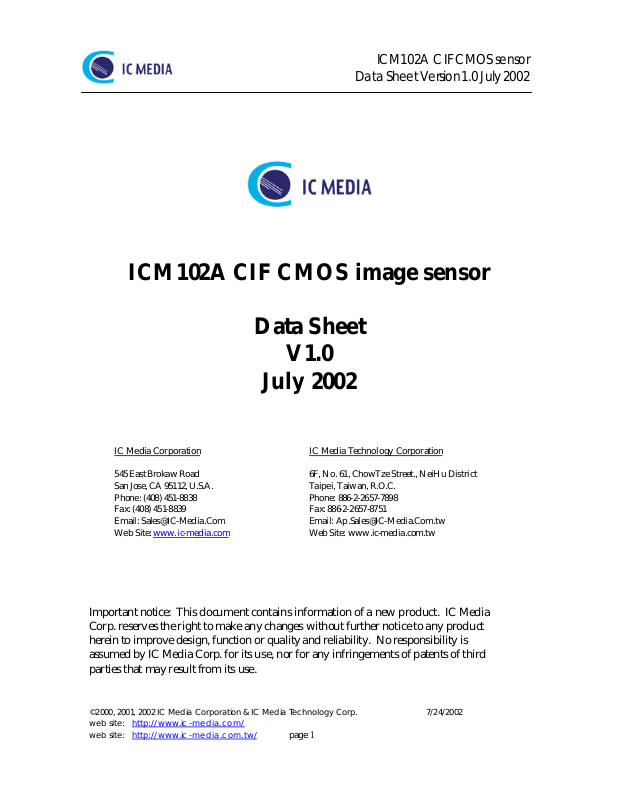

Datasheet ICM102A Datasheet (ICMED)

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

ICM102A CIF CMOS image sensor

Data Sheet

V1.0

July 2002

IC Media Corporation

545 East Brokaw Road
San Jose, CA 95112, U.S.A.
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.ic-media.com

Important notice: This document contains information of a new product. IC Media
Corp. reserves the right to make any changes without further notice to any product
herein to improve design, function or quality and reliability. No responsibility is
assumed by IC Media Corp. for its use, nor for any infringements of patents of third
parties that may result from its use.

IC Media Technology Corporation

6F, No. 61, ChowTze Street., NeiHu District
Taipei, Taiwan, R.O.C.
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.ic-media.com.tw

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 1

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

Features

• 101,376 (352x288) pixels, CIF format, used with 1/7” optical system

• Progressive readout

• Output data format: 8 -bit raw data

• Control interface: SIF

• Electronic exposure control

• On-chip 9-bit ADC

• Correlated double sampling

• Video mode at frame rate of 30/15/10/6/5/3/2/1 fps

• Dead column removal

• Flash light control

• Power down mode

• Automatic optical black compensation

• Support both master and slave mode

• Mirror image

• Single 3.3 V power supply

General Description

ICM-102A is a single-chip digital color imaging device. It incorporates a 352x288 sensor array (362x298 in
physical layout) operating at 1 ~ 30 frames per second in progressive manner. Each pixel is covered by a
color filter, which formed a so-called Bayer pattern. Correlated double sampling is performed by the
internal ADC and timing circuitry. The raw data can be adjusted by the digital gain for all pixels, or be
adjusted separately for the 4 Bayer pattern pixels. The output format is 8-bit raw data which can be fed to
other DSP, color processing, or compression chips.

Application

• Digital camcorder

• Digital still camera

• Video phone

• Video conferencing

• Video mail

• Video cellular phone

• PC camera

• Securit y system

• Visual toy

• Industrial image capture/analysis

• Environment monitor system

Key Parameters

• Number of Active Pixels: 352x288

• Number of Physical Pixels: 362x298

• Frame Rate: 30/15/10/6/5/3/2/1 fps

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 2

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

• Pixel Size: 6.0 µm x 6.0 µm

• Sensor Area: 2.2 mm x 1.8 m m

• Main Clock Frequency: up to 12 MHz

•

Exposure Time: 83 µs (@ 30 fps, 1 line, 12 MHz) ~ 164 s (@ 1 fps, 65,535 lines, 12 MHz)

• RGB Gain:1/256 to 8 for individual Bayer pattern pixels

• Sensitivity: 2.0 V/lux-sec (555 nm)

• Quantum Efficiency: 38% (555 nm)

• Dynamic Range: 53 dB (analog), 48 dB(digital)

• Digital Gain: 1 ~ 64 x @ 2N for all pixels

• Fill Factor: 28%

• RGB Gain: 11 bits format 3.8(default), 1/256 to 8 for individual Bayer pattern pixels

• S/N Ratio: 40 dB @ 75% full signal level

• Sensitive to infrared illumination source

• Power Supply: 3.3 V

• Power Requirement: 25 mA (@ 30fps, 12 MHz)

• Package: Ceramic LCC48, Plastic LCC48, Shrunk Plastic LCC48, miniature lens module (dimension

8mm x 8mm x 5.8mm)

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 3

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

1. Pin Assignment

Pin # Name Class* Function
14 CLKSEL D, I, N Clock source selection. 0: internal oscillator, 1:

CLKIN
11 CLKIN D, I, N External clock source
12 XIN A, I Oscillator in
13 XOUT A, O Oscillator out
34 PCLK D, O Pixel clock output
36 OEN D, I, N Output enable. 0: enable, 1: disable
32 SIFID D, I, N Lsb of SIF slave address
33 MSSEL D, I, U SIF master/slave selection. 0: slave, 1: master
2 SCL D,

I/O

1 SDA D,

I/O
10 POWERDN D, I, N Power down control, 0: power down, 1: active
16 RSET A, I
8 RSTN D, I, U Chip reset, active low
48 DOUT[7] D, O Data output bit 7
47 DOUT[6] D,

I/O

46 DOUT[5] D,

I/O

44 DOUT[4] D,

I/O
41 DOUT[3] D,

I/O
39 DOUT[2] D,

I/O
38 DOUT[1] D,

I/O
37 DOUT[0] D,

I/O

3 HSYNC D,

I/O
5 VSYNC D,

I/O
35 FLASH D, O Flash light control
15 RAMP A, O Analog ramp output
7, 31 VDDA P Sensor analog power
9, 30 GNDA P Sensor analog ground
19 VDDD P Sensor digital power
17 GNDD P Sensor digital ground

SIF clock

SIF data

Resistor to ground = 39 KΩ @ 12 MHz main clock

Data output bit 6; if pulled up/down, the initial
value of TIMING_CONTROL_LOW[2] (VSYNC
polarity) is 1/0
Data output bit 5; if pulled up/down, the initial
value of TIMING_CONTROL_LOW[1] (HSYNC
polarity) is 1/0
Data output bit 4; if pulled up/down, the initial
value of AD_IDL[3] (Sub ID) is 1/0
Data output bit 3; if pulled up/down, the initial
value of AD_IDL[2] (Sub ID) is 1/0
Data output bit 2; if pulled up/down, the initial
value of AD_IDL[1] (Sub ID) is 1/0
Data output bit 1; if pulled up/down, the initial
value of AD_IDL[0] (Sub ID) is 1/0
Data output bit 0; if pulled up/down, the
synchronization mode is in master/slave mode
which requires HSYNC and VSYNC operating in
output/input mode
Horizontal sync signal

Vertical sync signal

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 4

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

4, 43 VDDK P Digital power
6, 45 GNDK P Digital ground
40 VDDO P Pad power
42 GNDO P Pad ground
18 GNDS P Substrate ground

Class Code: A – Analog signal, D – Digital signal, I – Input, O – Output, P – Power or ground, U – Internal
pull-up, N – Internal pull-down

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 5

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

2. Functional Description

ICM-102A is a single-chip digital colo r imaging device. It includes a 352x288 sensor array, 352
column-level ADC, and correlated double sampling circuitry. All the programmable parameters are set
by writing into the SIF interface which can address the register file consisting of 8-bit registers. The
output format is 8-bit raw data, together with horizontal and vertical sync signals.

I2C

Interface

Timing

Control

Sensor Array

352x288

Column-Level

ADC

Correlated

Double

Sampling

Digital

Gain

RGB Output

Format Control

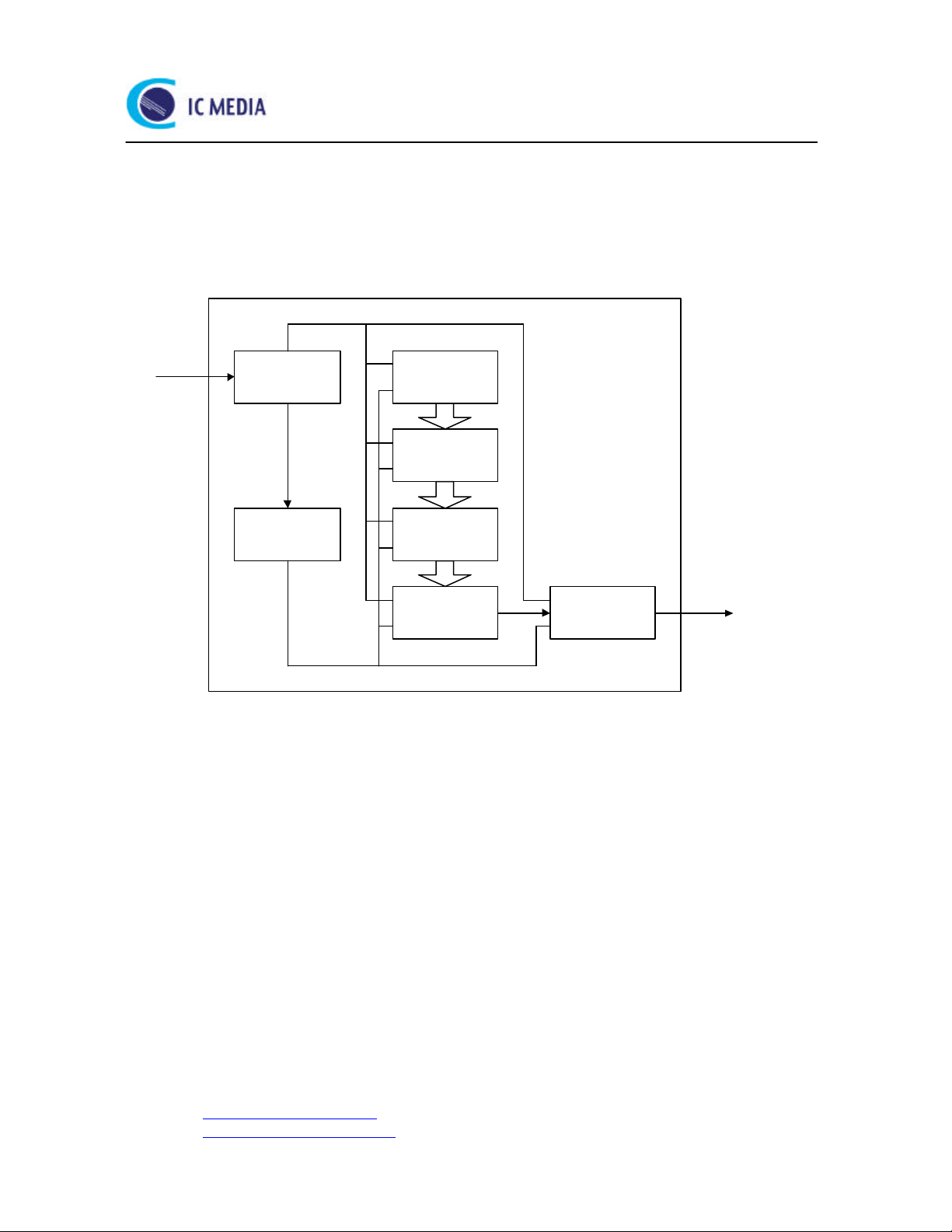

Figure 1. Block diagram

2.1 Image Array

The image array consists of 352x288 pixels. Each pixel has a light sensitive photo diode and a set of
control and transfer transistors. At the beginning of the cycle, a row of pixels is pre -charged to its
maximum value. Then the row is exposed to light for several lines worth of time and sampled by the
ADC. A “Correlated Double Sampling (CDS)” process is performed with subtracting the reset value
(sampled right before sampling the signal) from the signal value. The purpose of CDS is to eliminate the
point-wise fixed pattern noise (FPN). The output of CDS is approximately proportional to the amount of
received light, ranging from 0 to 255.

2.2 Color Filter

Each pixel is covered by a color filter. They form the Bayer Pattern as shown in Figure 3. (Row 0, Column

0) is covered by a Red filter, (Row 0, Column 1) and (Row 1, Column 0) by Green filters, and (Row 1,
Column 1) by a Blue filter. Since each pixel only gets part of the frequency band, the data need further

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 6

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

processing (i.e., color interpolation and color correction) in order to approximate the full visible spectrum.

R RG G R RG G

G B G B G B G B

R RG G R RG G

G B G B G B G B

Figure 2. Color filter Bayer pattern

2.3 Exposure and Gain Control

The brightness of the scene may change by a great amount that renders the captured image either
over-exposed or under-exposed. To accommodate for different brightness, the user may change the
exposure time by adjusting the AD_EXPOSE _TIMEH, and AD_EXPOSE_TIMEL. The exposure time is
measured in terms of the time to read out one line of data, which is equal to 83.3 µs (assuming the line
length is 500 @ 12 MHz). If the number of lines per frame is set at 400 (the default), the exposure time can
vary from 1 to 399 lines. In addition, users can adjust bit 7 to 5 of register AD_COL_BEGINH to digitally
boost the output value by 1 to 64 times @ 2N for all the pixels. Furthermore, users can adjust registers
AD_M1_L, AD_M1_H, AD_M2_L, AD_M2_H , AD_M3_L, AD_M3_H, AD_M4_L, AD_M4_H, to
optimize the individual R/G1/G2/B gain (default at 3.8 format for 1/256 to 8) of the 4 Bayer pattern
pixels separately.

2.4 Output Format

During normal operation, the output format is 8-bit raw data that ranges from 0 to 255. It may be used for
off-chip color processing or compression. A typical configuration is to connect ICM-102A to a
USB/Compression combo chip. When operated at 30 fps, the PCLK is 6 MHz when the input main clock
is 12 MHz.

In addition to the data pins, the chip also output VSYNC, HSYNC, BLANK, and PCLK. The length and
polarity of VSYNC and HSYNC can be adjusted through registers. The line and frame timing can be
adjusted through registers AD_WIDTH and AD_HEIGHT.

2.5 SIF Interface

Register programming is through SIF interface (SCL and SDA pins). The 7-bit SIF device address is 0x20
by default, but the last bit can be configured by the SIFID pin. ICM-102A can operate in either SIF master
mode or slave mode right after power up, depending on the pull-up or pull-down of the MSSEL pin.
When MSSEL is pulled low during power -up, ICM-102A’s SIF interface is operated as an SIF slave device,
waiting to be controlled by an external SIF master such as a microprocessor. When MSSEL is pulled high
during power-up , the SIF interface is first acting as an SIF master device trying to read from an external
SIF EEPROM. After that, it will fall back to behave like an SIF slave.

3. SIF Registers

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 7

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

Address Name Default Description

0x00 PART_CONTROL 0 Processing control

[0] 0: normal mode, 1: single frame mode
[1] Slope adjustment enable
[2] Exposure time control, writing a 1 will
activate the new value set in
AD_EXPOSE_TIME, when read back from it,
0 means either the exposure time change is
finished (in video mode) or the entire frame is
transmitted (in single frame mode), 1 means
either the exposure time change is still in
progress (in video mode) or the frame is yet
to finish (in single frame mode)
[6:3] Frame rate,
0: 30 fps
1: 20 fps
2: 15 fps
3: 12 fps
4: 10 fps
5: 6 fps
6: 5 fps
7: 4 fps
8: 3 fps
9: 2 fps
10: 1 fps
[7] Latent change, writing a 1 means the
changed latent registers now starts taking
effect, when the entire operation is done, the
read back value of this bit will change from 1

to 0.
0x01
0x02

0x0C AD_WIDTHL 0x01F4 [9:0] Frame width

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 8

TIMING_CONTR OL_LO
W
TIMING_CONTROL_HIG
H

0x0011 Timing control

[0] Reserved.

[1] HSYNC polarity, 0: active low, 1: active

high, the initial value is determined by

DOUT[6]

[2] VSYNC polarity, 0: active low, 1: active

high, the initial value is determined by

DOUT[5]

[3] Auto dark correction enable

[4] Reserved

[6] Flash polarity, 0: active low, 1: active high

[7] Blank polarity, 0: active low, 1: active high

[8] Reserved

[10] Capture: when in single frame mode,

writing a 1 here will start a frame capture

[11] Dead column removal mode, 0: color, 1:

black-and-white

[12] Reserved

[13] Reserved

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

0x0D AD_WIDTHH (500)
0x0E
0x0F
0x10
0x11

0x14
0x15
0x18
0x19
0x1A
0x1B
0x1C
0x1D

0x20
0x21
0x22
0x23
0x24
0x25
0x26
0x27
0x52 AD_INOUTSEL 0 [4:0] Output format

0x6E
0x6F
0x70
0x71
0x72
0x73
0x74
0x75
0x82 AD_IDL 0x1020 [3:0] Sub ID, Read from pins DOUT[4:1]

AD_HEIGHTL
AD_HEIGHTH
AD_COL_BEGINL
AD_COL_BEGINH

AD_ROW_BEGINL
AD_ROW_BEGINH
AD_HSYNC_ENDL
AD_HSYNC_ENDH
AD_VSYNC_ENDL
AD_VSYNC_ENDH
AD_EXPOSE_TIMEL
AD_EXPOSE_TIMEH

AD_M1_L
AD_M1_H
AD_M2_L
AD_M2_H
AD_M3_L
AD_M3_H
AD_M4_L
AD_M4_H

AD_DEAD0L
AD_DEAD0H
AD_DEAD1L
AD_DEAD1H
AD_DEAD2L
AD_DEAD2H
AD_DEAD3L
AD_DEAD3H

0x0190
(400)
0x0064
(100)

0x000A
(10)
0x0040
(64)
0x0003
(3)
0x018f
(399)

0x100
(256)
0x100
(256)
0x100
(256)
0x100
(256)

0x03FF [9:0] Dead column #0 in terms of real sensor

0x03FF [9:0] Dead column #1 in terms of real sensor

0x03FF [9:0] Dead column #2 in terms of real sensor

0x03FF [9:0] Dead column #3 in terms of real sensor

[15:0] Frame height, should not be less than

AD_ROW_BEGIN + 298

[9:0] Beginning of active line in terms of

column position

[10] Mirror image enable

[15:13] Digital gain

0: 1

1: 2

2: 4

3: 8

4: 16

5: 32

6: 64

[15:0] Beginning of active frame in terms of

row position

[9:0] End of horizontal sync in terms of

column position

[15:0] End of vertical sync in terms of row

position

[15:0] Exposure time in terms of number of

rows

[10:0] Gain coefficient (G1) , in unsigned

3.8(default) format

[10:0] Gain coefficient (R) , in unsigned

4.7(default) format

[10:0] Gain coefficient.(B) , in unsigned

5.6(default) format

[10:0] Gain coefficient.(G2) , in unsigned

6.5(default) format

0: default, unsigned 3.8 format

1: default, unsigned 4.7 format

2: default, unsigned 5.6 format

3: default, unsigned 6.5 format

0-7, 12-31: 8-bit raw data

8: control signals

9: row address

10: column address

11: sensor raw data

array

array

array

array

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 9

7/24/2002

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

0x83 AD_IDH (4176) during reset

[15:4] Device ID, default 0x102, can be

configured using SIF
0x84
0x85
0x86
0x87
0x90 AD_DARK_DATA 0 [7:0] When auto dark correction is disabled,

0x95
0x96

0x97
0x98
0x99
0x9A
0x9B
0x9C
0xA1
0xA2
0xA3
0xA4
0xA5
0xA6
0xA7
0xA8
0xA9
0xAA
0xAB
0xAC
0xAD AD_PART_CONTROL_C 0x06

0xAE
0Xaf
0XB0
0xB1

AD_FLASH_BEGINL
AD_FLASH_BEGINH
AD_FLASH_ENDL
AD_FLASH_ENDH

AD_SLOPE_END_TIMEL
AD_SLOPE_END_TIMEH

AD_WT_BEGINL
AD_WT_BEGINH
AD_WT_ENDL
AD_WT_ENDH
AD_SUB_EN_TIMEL
AD_SUB_EN_TIMEH
AD_WIDTHL_C
AD_WIDTHH_C
AD_HEIGHTL_C
AD_HEIGHTH_C
AD_COL_BEGINL_C
AD_COL_BEGINH_C
AD_ROW_BEGINL_C
AD_ROW_BEGINH_C
AD_HSYNC_ENDL_C
AD_HSYNC_ENDH_C
AD_VSYNC_ENDL_C
AD_VSYNC_ENDH_C

AD_WT_BEGINL_C
AD_WT_BEGINH_C
AD_WT_ENDL_C
AD_WT_ENDH_C

0x012A
(298)
0x013E
(318)

0x0155
(341)

0 Reserved

0x03FC
(1020)
0x01DA
(474)
0x01F4
(500)
0x0190
(400)
0x0064
(100)
0x000A
(10)
0x0040
(64)
0x0003
(3)

(6)
0 [9:0] Current wave table beginning point,

0x03FC
(1020)

[15:0] Flash light begin position in terms of

rows

[15:0] Flash light end position in terms of

rows

serve as the subtrahend for dark correction

[9:0] When auto slope adjustment is turned

on, if the slope counter exceeds this value, the

ramp will become steeper

Reserved

Reserved

[9:0] Current frame width, read only

[15:0] Current frame height, read only

[9:0] Current column beginning position,

read only

[9:0] Current row beginning position, read

only

[9:0] Current HSync end position, read only

[15:0] Current VSync end position, read only

[7:0] Current part control setting, read only

read only

[9:0] Current wave table end point, read only

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 10

7/24/2002

4. Electrical Characteristics

4.1 DC Characteristics

Symbol Parameter

V

Absolute

CCA

Power
Supply

VINA Absolute

Input
Voltage

V

Absolute

OUTA

Output
Voltage

T

Storage

STG

Temperatu
re

VCC Operating

Power
Supply

VIN Operating

Input
Voltage

TOPR Operating

Temperatu
re

IDD Operating

Current @
VCC=3.3 V,
25 °C

IIL Input Low

Current

IIH Input High

Current

IOZ Tri-state

Leakage
Current

CIN Input

Capacitanc
e

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

Rating

Minimum Typical Maximum

-0.3 3.8 V

-0.3 VCC + 0.3 V

-0.3 VCC + 0.3 V

0 25 65

3.0 3.3 3.6 V

0 VCC V

0 25 55

30 mA

-1 1

-1 1

-10 10

3 pF

Unit

°C

°C

µA
µA

µA

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 11

7/24/2002

COUT Output

Capacitanc
e

C

Bi-direction

BID

al Buffer
Capacitanc
e

VIL Input Low

Voltage

V

Schmitt

ILS

Input Low
Voltage

VIH Input High

Voltage

V

Schmitt

IHS

Input High
Voltage

VOL Output

Low
Voltage

VOH Output

High
Voltage

RL Input

Pull -up/do
wn
Resistance

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

3 pF

3 pF

0.3 * VCC V

1.1 V

0.7 * VCC V

1.8 V

0.4 V

2.4 V

50

KΩ

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 12

7/24/2002

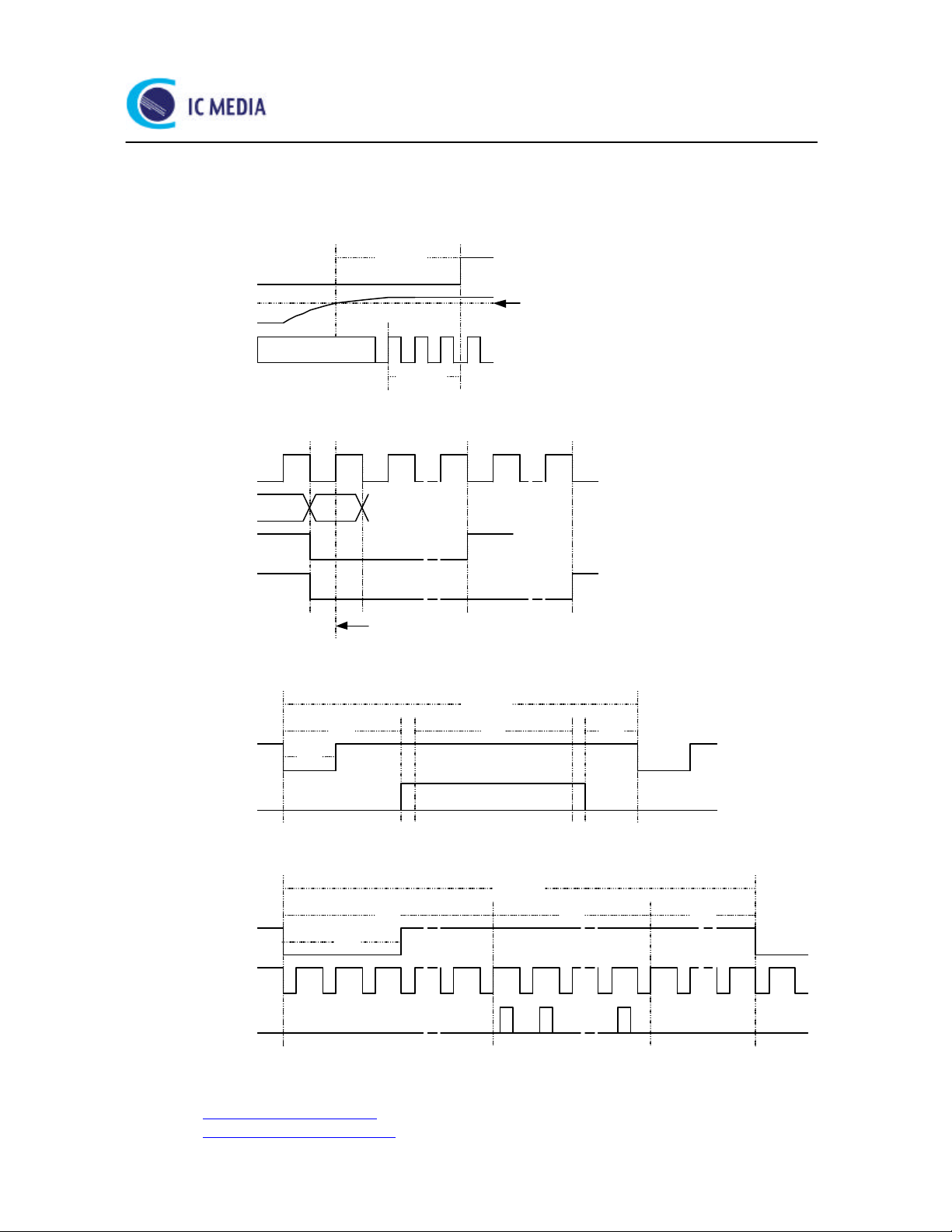

4.2 Timing

RSTN

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

Reset Timing

>2 CLKIN

VDD

CLKIN

PCLK

DOUT[7:0]

HSYNC

VSYNC

Unstable clock

>2 CLKIN

Pixel Timing

Use PCLK rising edge to latch data

100

0.9 * Vcc

Default Line Timing

500 PCLK

352

55 38

HSYNC

DOUT[7:0]

64

Column 105~ 456 is valid

Default Frame Timing

400 Rows

10

VSYNC

HSYNC

3

0 1 2 10 11 3079 308 399 0

DOUT[7:0]

Row 15 ~ 307 is valid

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 13

7/24/2002

92298

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

4.3 Pixel Clock Duty Cycle

In different frame rate mode (controlled by PART_CONTROL[6:3]), the duty cycle (high time / clock
period) of the PCLK signal is described in the following table:

Frame Rate Duty Cycle

30 50.0%
20 66.6%

15 50.0%
12 60.0%
10 50.0%
6 50.0%
5 50.0%
4 53.3%
3 50.0%
2 50.0%
1 50.0%

5. Mechanical Information

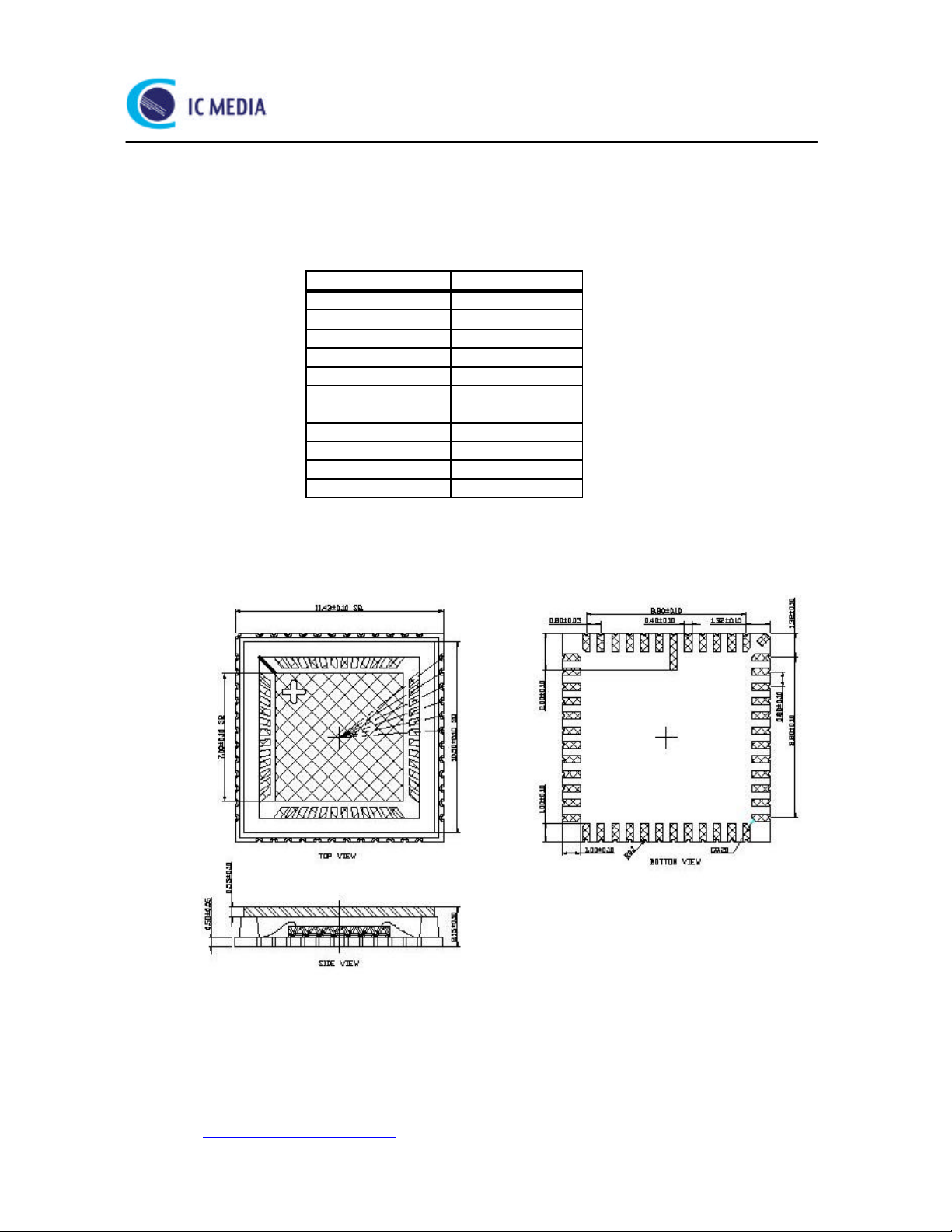

Figure 3. Shrunk Plastic LCC48 Packaging

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 14

7/24/2002

6. Ordering Information

Part number for different package:

Description Part Number

Shrunk Plastic LCC48 package, CIF resolution sensor
(3.3V)

IC Media Corporation

545 East Brokaw Road
San Jose, CA 95112, U.S.A.
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.ic -media.com

IC Media Technology Corporation

6F, No. 61, ChowTze Street., NeiHu District
Taipei, Taiwan, R.O.C.
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.ic-media.com.tw

ICM102A CIF CMOS sensor

Data Sheet Version 1.0 July 2002

ICM-102Asa

©2000, 2001, 2002 IC Media Corporation & IC Media Technology Corp.
web site: http://www.ic- media.com/

web site: http://www.ic- media.com.tw/ page 15

7/24/2002
