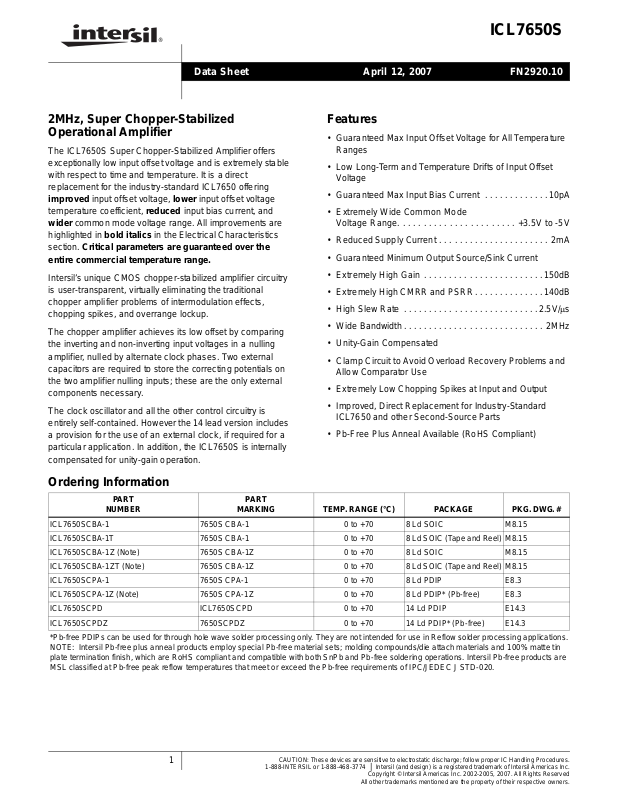

ICL7650S

Data Sheet April 12, 2007

2MHz, Super Chopper-Stabilized Operational Amplifier

The ICL7650S Super Chopper-Stabilized Amplifier offers exceptionally low input offset voltage and is extremely stable with respect to time and temperature. It is a direct replacement for the industry-standard ICL7650 offering improved input offset voltage, lower input offset voltage temperature coefficient, reduced input bias current, and wider common mode voltage range. All improvements are highlighted in bold italics in the Electrical Characteristics section. Critical parameters are guaranteed over the

entire commercial temperature range.

Intersil’s unique CMOS chopper-stabilized amplifier circuitry is user-transparent, virtually eliminating the traditional chopper amplifier problems of intermodulation effects, chopping spikes, and overrange lockup.

The chopper amplifier achieves its low offset by comparing the inverting and non-inverting input voltages in a nulling amplifier, nulled by alternate clock phases. Two external capacitors are required to store th e co rre cti ng po te n ti a ls on the two amplifier nulling inputs; these are the only external components necessary.

The clock oscillator and all the other control circuitry is entirely self-contained. However the 14 lead version includes a provision for the use of an external clock, if required for a particular application. In addition, the ICL7650S is internally compensated for unity-gain operation.

FN2920.10

Features

• Guaranteed Max Input Offset Voltage for All Temperature Ranges

• Low Long-Term and Temperature Drifts of Input Offset Voltage

• Guaranteed Max Input Bias Current . . . . . . . . . . . . .10pA

• Extremely Wide Common Mode

Voltage Range. . . . . . . . . . . . . . . . . . . . . . . +3.5V to -5V

• Reduced Supply Current . . . . . . . . . . . . . . . . . . . . . . 2mA

• Guaranteed Minimum Output Source/Sink Current

• Extremely High Gain . . . . . . . . . . . . . . . . . . . . . . . .150dB

• Extremely High CMRR and PSRR. . . . . . . . . . . . . .140dB

• High Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5V/μs

• Wide Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2MHz

• Unity-Gain Compensated

• Clamp Circuit to Avoid Overload Recovery Problems and Allow Comparator Use

• Extremely Low Chopping Spikes at Input and Output

• Improved, Direct Replacement for Industry-Standard ICL7650 and other Second-Source Parts

• Pb-Free Plus Anneal Available (RoHS Compliant)

Ordering Information

PART

NUMBER

ICL7650SCBA-1 7650S CBA-1 0 to +70 8 Ld SOIC M8.15 ICL7650SCBA-1T 7650S CBA-1 0 to +70 8 Ld SOIC (Tape and Reel) M8.15 ICL7650SCBA-1Z (Note) 7650S CBA-1Z 0 to +70 8 Ld SOIC M8.15 ICL7650SCBA-1ZT (Note) 7650S CBA-1Z 0 to +70 8 Ld SOIC (T ape and Reel) M8.15 ICL7650SCPA-1 7650S CPA-1 0 to +70 8 Ld PDIP E8.3 ICL7650SCPA-1Z (Note) 7650S CPA-1Z 0 to +70 8 Ld PDIP* (Pb-free) E8.3 ICL7650SCPD ICL7650SCPD 0 to +70 14 Ld PDIP E14.3 ICL7650SCPDZ 7650SCPDZ 0 to +70 14 Ld PDIP* (Pb-free) E14.3 *Pb-free PDIPs can be used for through hole wave solder processing only. They are not intended for use in Reflow solder processing applications.

NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

PART

MARKING TEMP. RANGE (°C) PACKAGE PKG. DWG. #

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

| Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.

Page 2

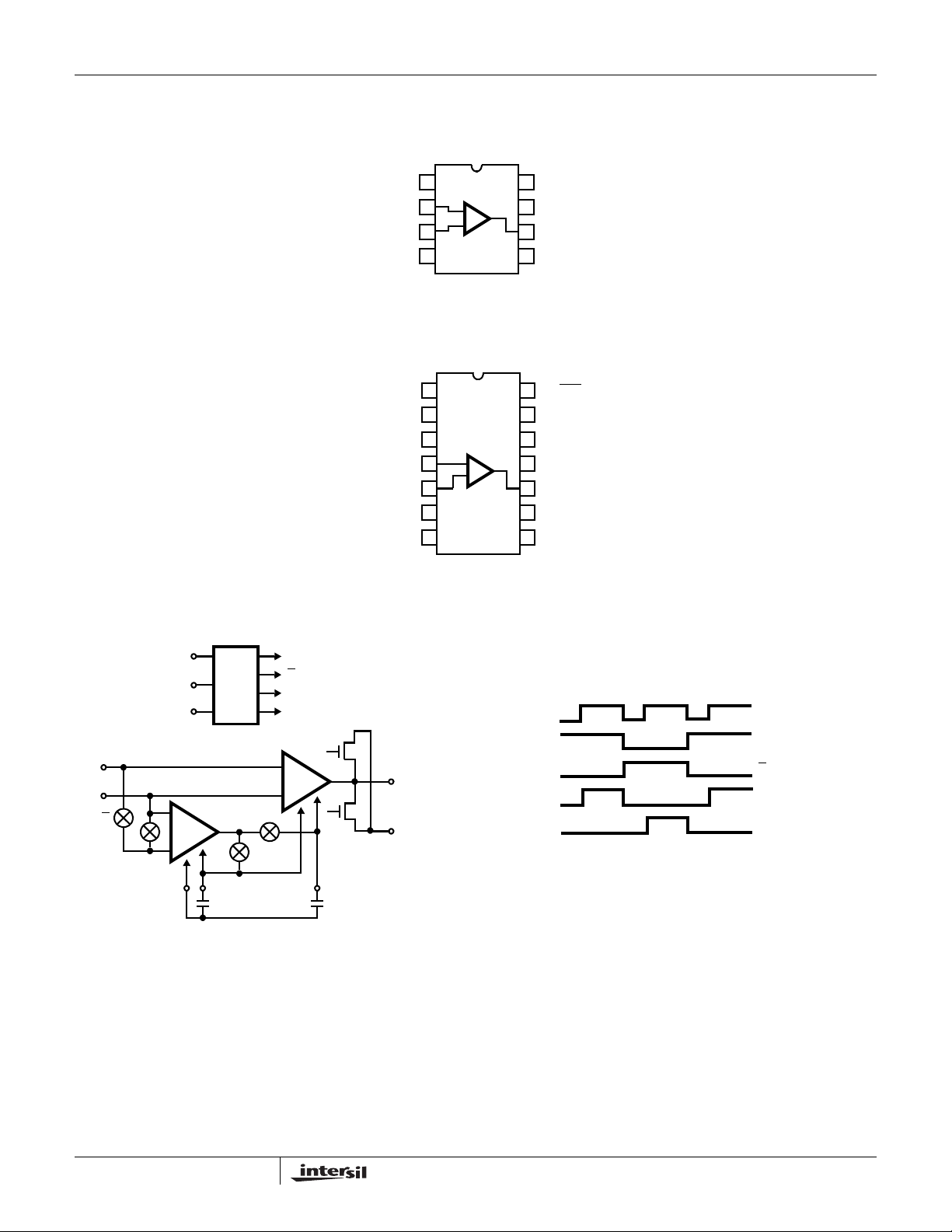

Pinouts

ICL7650S

(8 LD PDIP, SOIC)

TOP VIEW

Functional Diagram

EXTA

-IN

+IN

V-

EXTB

EXTA

NC (GUARD)

-IN

+IN

NC (GUARD)

V-

ICL7650S (14 PDIP)

TOP VIEW

EXTB

V+

OUTPUT

RETN

INT/EXT

EXT CLK IN

INT CLK OUT

V+

OUTPUT

OUT CLAMP

RETN

+IN

-IN

CAP RETURN

INT/EXT

EXT CLK IN

CLK OUT

NULL +

OSC.

EXTA

INTERNAL

B C

BIAS

+ MAIN

EXTB

EXT CLK IN

OUTPUT

CLAMP

A = CLK OUT

FN2920.10

April 12, 2007

Page 3

Absolute Maximum Ratings Thermal Information

Supply Voltage (V+ to V-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V

Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . (V+ +0.3) to (V- -0.3)

Voltage on Oscillator Control Pins. . . . . . . . . . . . . . . . . . . . V+ to V-

Duration of Output Short Circuit. . . . . . . . . . . . . . . . . . . . . Indefinite

Current to Any Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA

While Operating (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . .100μA

Operating Conditions

Temperature Range

ICL7650SC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

NOTES:

1. Limiting input current to 100μA is recommended to avoid latchup problems. Typically 1mA is safe, however this is not guaranteed. is measured with the component mounted on an evaluation PC board in free air.

2. θ

Thermal Resistance (Typical, Note 2) θ

(°C/W) θJC (°C/W)

8 Lead PDIP Package* . . . . . . . . . . . . 110 N/A

14 Lead PDIP Package . . . . . . . . . . . . 90 N/A

8 Lead SOIC Package . . . . . . . . . . . . . 160 N/A

Maximum Junction Temperature (Plastic Package) . . . . . . .+150°C

Maximum Storage Temperature Range. . . . . . . . .. -55°C to +150°C

Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp *Pb-free PDIPs can be used for through hole wave solder processing only. They are not intended for use in Reflow solder processing applications.

Electrical Specifications V

= ±5V. See Test Circuit, Unless Otherwise Specified

SUPPLY

TEMP.

PARAMETER SYMBOL TEST CONDITIONS

Input Offset Voltage (Note 3) V

(°C) MIN TYP MAX UNITS +25 - ±0.7 ±5 μV

0 to +70 - ±1 ±8 μV

Average Temperature Coefficient of Input Offset Voltage (Note 3)

Change in Input Offset with Time ΔV

Input Bias Current |I(+)|, |I(-)| I

/ΔT 0 to +70 - 0.02 - μV/°C

ΔV

/ΔT +25 - 100 - nV/√month

BIAS

+25 - 4 10 pA

0 to +70 - 520pA

Input Offset Current |I(-), |I(+)| I

+25 - 820pA

0 to +70 - 10 40 pA Input Resistance R Large Signal Voltage Gain (Note 3) A

VOL

+25 - 10

RL = 10kΩ, VO = ±4V +25 135 150 -dB

- Ω

0 to +70 130 --dB Output Voltage Swing (Note 4) V

OUT

RL = 10kΩ +25 ±4.7 ±4.85 - V

= 100kΩ +25 - ±4.95 - V

Common Mode Voltage Range (Note 3) CMVR +25 -5 -5.2 to +4 3.5 V

0 to +70 -5 - 3.5 V

Common Mode Rejection Ratio

(Note 3) Power Supply Rejection Ratio PSRR V

Input Noise Voltage e

Input Noise Current i

CMRR CMVR = -5V to +3.5V +25 120 140 -dB

0 to +70 120 --dB

= ±3V to ±8V +25 120 140 -dB

RS = 100Ω, f = DC to 10Hz

f = 10Hz +25 - 0.01 - pA/√Hz

+25 - 2 - μV

Gain Bandwidth Product GBWP +25 - 2 - MHz Slew Rate SR C Rise Time t

= 50pF, RL = 10kΩ +25 - 2.5 - V/μs

+25 - 0.2 - μs Overshoot OS +25 - 20 - % Operating Supply Range V+ to V- +25 4.5 - 16 V Supply Current I

SUPP

No Load +25 - 2 3 mA

0 to +70 - - 3.2 mA

P-P

FN2920.10

April 12, 2007

Page 4

Electrical Specifications V

PARAMETER SYMBOL TEST CONDITIONS

Output Source Current I

Output Sink Current I

Internal Chopping Frequency f Clamp ON Current (Note 5) R Clamp OFF Current (Note 5) -4V ≤ V

NOTES:

3. These parameters are guaranteed by design and characterization, but not tested at temperature extremes because thermocouple effects prevent precise measurement of these voltages in automatic test equipment.

4. OUTPUT CLAMP not connected. See typical characteristic curves for output swing vs clamp current characteristics.

5. See OUTPUT CLAMP under detailed description.

6. All significant improvements over the industry-standard ICL7650 are highlighted in bold italics.

= ±5V. See Test Circuit, Unless Otherwise Specified (Continued)

SUPPLY

TEMP.

(°C) MIN TYP MAX UNITS

O SOURCE

O SINK

Pins 13 and 14 Open +25 120 250 375 Hz

= 100kΩ +252570-μA

≤ +4V +25 - 0.001 5 nA

OUT

+25 2.9 4.5 - mA

0 to +70 2.3 - - mA

+252530-mA

0 to +70 20 - - mA

0 to +70 - - 10 nA

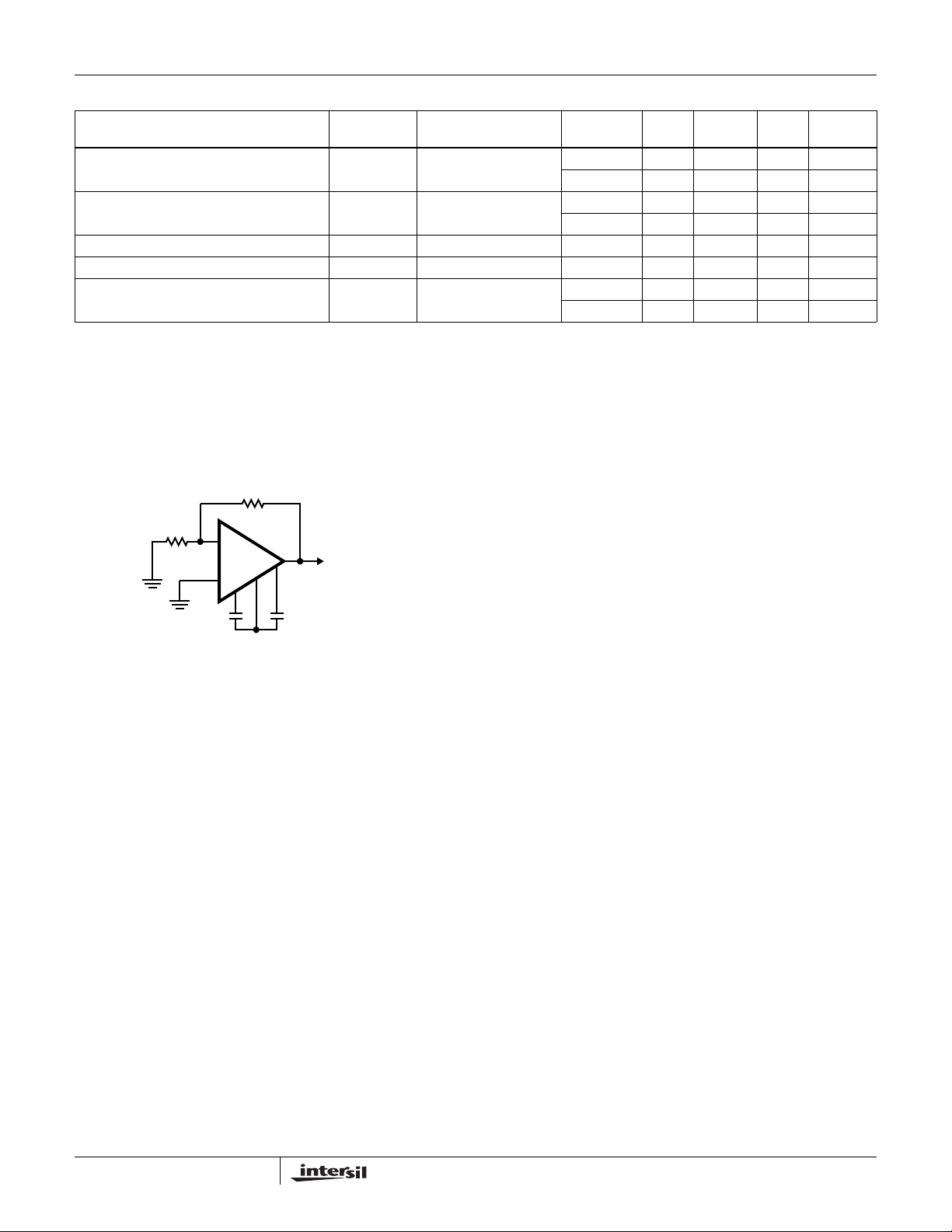

Test Circuit

1MΩ

ICL7650S

0.1μF0.1μF

OUTPUT

Application Information

Detailed Description

AMPLIFIER

The functional diagram shows the major elements of the ICL7650S. There are two amplifiers, the main amplifier, and the nulling amplifier. Both have offset-null capability. The main amplifier is connected continuously from the input to the output, while the nulling amplifier, under the control of the chopping oscillator and clock circuit, alternately nulls itself and the main amplifier. The nulling connections, which are MOSFET gates, are inherently high impedance, and two external capacitors provide the required storage of the nulling potentials and the necessary nulling-loop time constants. The nulling arrangement operates over the full common-mode and power-supply ranges, and is also independent of the output level, thus giving exceptionally high CMRR, PSRR, and A

Careful balancing of the input switches, and th e inheren t balance of the input circuit, minimizes chopper frequency charge injection at the input terminals, and also the feed forward-type injection into the compensation capacitor, which is the main cause of output spikes in this type of circuit.

VOL

INTERMODULATION

Previous chopper-stabilized amplifiers have suffered from intermodulation effects between the chopper frequ ency and input signals. These arise because the finite AC gain of the amplifier necessitates a small AC signal at the input. This is seen by the zeroing circuit as an error signal, which is chopped and fed back, thus injecting sum and difference frequencies and causing disturbances to the gain and phase vs frequency characteristics near the chopping frequency. These effects are substantially reduced in the ICL76 50S by feeding the nulling circuit with a dynamic current, corresponding to the compensation capacitor current, in such a way as to cancel that portion of the input signal due to finite AC gain. Since that is the major error contribution to the ICL7650S, the intermodulation and gain/phase disturbances are held to very low values, and can generally be ignored.

CAPACITOR CONNECTION

The null/storage capacitors should be connected to the CEXTA and CEXTB pins, with a common connection to the CRETN pin. This connection should be made directly by either a separate wire or PC trace to avoid injecting load current IR drops into the capacitive circuitry . The outside foil, where available, should be connected to CRETN.

OUTPUT CLAMP

The OUTPUT CLAMP pin allows reduction of the overload recovery time inherent with chopper-stabilized amplifiers. When tied to the inverting input pin, or summing junction, a current path between this point and the OUTPUT pin occurs just before the device output saturates. Thus uncontrolled input differentials are avoided, together with the consequent charge buildup on the correction-storage capacitors. The output swing is slightly reduced.

FN2920.10

April 12, 2007

Page 5

CLOCK

The ICL7650S has an internal oscillator, giving a chopping frequency of 200Hz, available at the CLOCK OUT pin on the 14 pin devices. Provision has also been made for the use of an external clock in these parts. The INT/EXT

pin has an internal pull-up and may be left open for normal operation, but to utilize an external clock this pin must be tied to V- to disable the internal clock. The external clock signal may then be applied to the EXT CLOCK IN pin. An internal divide-by-two provides the desired 50% input switching duty cycle. Since the capacitors are charged only when EXT CLOCK IN is high, a 50% to 80% positive duty cycle is recommended, especially for higher frequencies. The external clock can swing between V+ and V-. The logic threshold will be at about 2.5V below V+. Note also that a signal of about 400 Hz, with a 70% duty cycle, will be present at the EXT CLOCK IN pin with INT/EXT

high or open.

This is the internal clock signal before being fed to the divider. In those applications where a strobe signal is available, an

alternate approach to avoid capacitor misbalancing during overload can be used. If a strobe signal is connected to EXT CLK IN so that it is low during the time that the overload signal is applied to the amplifier, neither capacitor will be charged. Since the leakage at the capacitor pins is quite low at room temperature, the typical amplifier will drift less than 10μV/s, and relatively long measurements can be made with little change in offset.

COMPONENT SELECTION

The two required capacitors, C

EXTA

and C

EXTB

, have optimum values depending on the clock or chopping frequency. For the preset internal clock, the correct value is

0.1μF, and to maintain the same relationship between the chopping frequency and the nulling time constant this value should be scaled approximately in proportion if an external clock is used. A high quality film type capacitor such as mylar is preferred, although a ceramic or other lower-grade capacitor may prove suitable in many applications. For quickest settling on initial turn-on, low dielectric absorption capacitors (such as polypropylene) should be used. With ceramic capacitors, several seconds may be required to settle to 1μV.

STATIC PROTECTION

All device pins are static -protected by the use of input diod es. However, strong static fields and discharges should be avoided, as they can cause degraded diode junction characteristics, which may result in increased input-leakage currents.

LATCHUP AVOIDANCE

Junction-isolated CMOS circuits inherently include a parasitic 4-layer (PNPN) structure which has characteristics similar to an SCR. Under certain circumstances this junction may be triggered into a low-impedance state, resulting in excessive supply current. T o avoid this condition, no volta ge greater than

0.3V beyond the supply rails should be applied to any pin. In general, the amplifier supplies must be established either at

the same time or before any input signals are applied. If this is not possible, the drive circuits must limit input current flow to under 1mA to avoid latchup, even under fault conditions.

OUTPUT STAGE/LOAD DRIVING

The output circuit is a high-impedance type (approximately 18kΩ), and therefore with loads less than this value, the chopper amplifier behaves in some ways like a transconductance amplifier whose open-loop gain is proportional to load resistance. For example, the open-loop gain will be 17dB lower with a 1kΩ load than with a 10 k Ω load. If the amplifier is used strictly for DC, this lower gain is of little consequence, since the DC gain is typically greater than 120dB even with a 1kΩ load. However, for wideband applications, the best frequency response will be achieved with a load resistor of 10kΩ or higher. This will result in a smooth 6dB/octave response from 0.1Hz to 2MHz, with phase shifts of less than 10° in the transition region where the main amplifier takes over from the null amplifier.

THERMO-ELECTRIC EFFECTS

The ultimate limitations to ultra-high precision DC amplifiers are the thermo-electric or Peltier effects arising in thermocouple junctions of dissimilar metals, alloys, silicon, etc. Unless all junctions are at the same temperature, thermoelectric voltages typically around 0.1μV/°C, but up to tens of mV/°C for some materials, will be generated. In order to realize the extremely low offset voltages that the chopper amplifier can provide, it is essential to take special precautions to avoid temperature gradients. All components should be enclosed to eliminate air movement, especially that caused by power-dissipating elements in the system. Low thermoelectric-efficient connections should be used where possible and power supply voltages and power dissipation should be kept to a minimum. High-impedance loads are preferable, and good separation from surrounding heat-dissipating elements is advisable.

GUARDING

Extra care must be taken in the assembly of printed circuit boards to take full advantage of the low input currents of the ICL7650S. Boards must be thoroughly cleaned with TCE or alcohol and blown dry with compressed air. After cleaning, the boards should be coated with epoxy or silicone rubber to prevent contamination.

Even with properly cleaned and coated boards, leakage currents may cause trouble, particularly since the input pins are adjacent to pins that are at supply potentials. This leakage can be significantly reduced by using guarding to lower the voltage difference between the inputs and adjacent metal runs. The guard, which is a conductive ring surrounding the inputs, is connected to a low impedance point that is at approximately the same voltage as the inputs. Leakage currents from high-voltage pins are then absorbed by the guard.

FN2920.10

April 12, 2007

Page 6

INPUT

OUTPUT

INPUT

OUTPUT

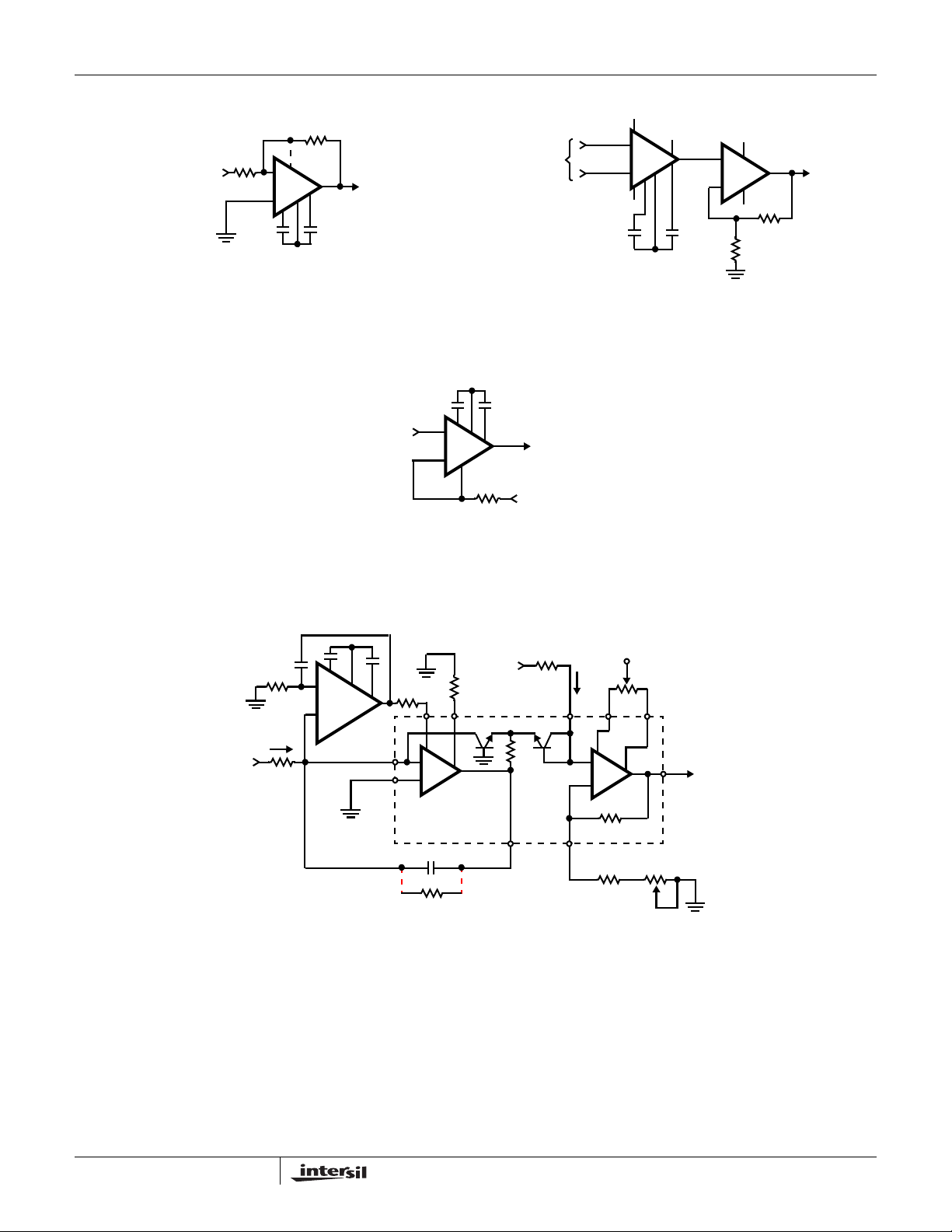

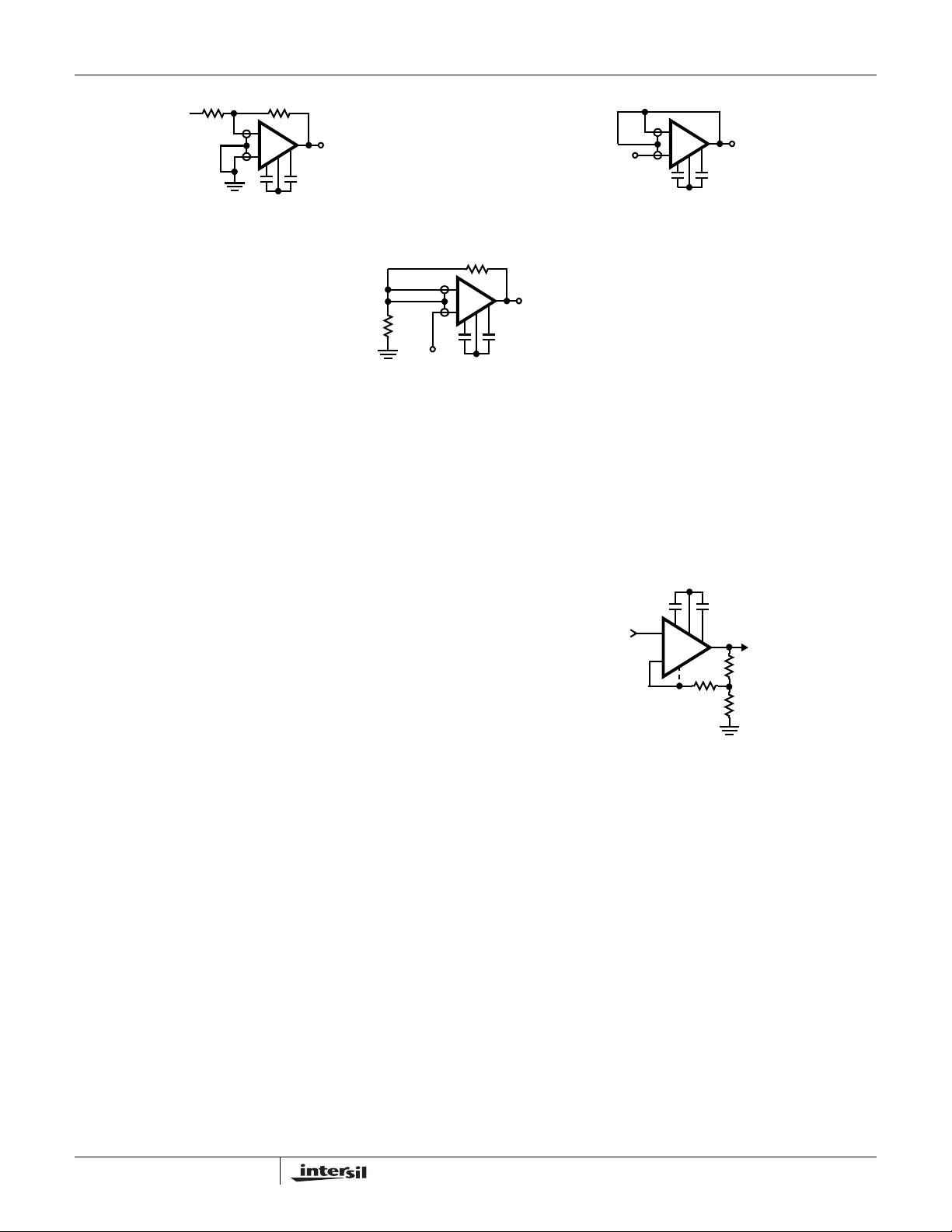

FIGURE 1A. INVERTING AMPLIFIER

INPUT

----------------------

NOTE:

FIGURE 1C. NON-INVERTING AMPLIFIER

FIGURE 1. CONNECTION OF INPUT GUARDS

PIN COMPATIBILITY

The basic pinout of the 8-pin device corresponds, where possible, to that of the industry standard 8-pin devices, the LM741, LM101, etc. The null-storing external capacitors are connected to pins 1 and 8, usually used for offset null or compensation capacitors, or simply not connected. In the case of the OP-05 and OP-07 devices, the replacement of the offset-null pot, connected between pins 1 and 8 and V+, by two capacitors from those pins to pin 5, will provide easy compatibility. As for the LM108, replacement of the compensation capacitor between pins 1 and 8 by the two capacitors to pin 5 is all that is necessary. The same operation, with the removal of any connection to pin 5, will suffice for the LM101, μA748, and similar parts.

The 14-pin device pinout corresponds most closely to that of the LM108 device, owing to the provision of “NC” pins for guarding between the input and all other pins. Since this device does not use any of the extra pins, and has no provision for offset-nulling, but requires a compensation capacitor, some changes will be required in layout to convert it to the ICL7650S.

Typical Applications

Clearly the applications of the ICL7650S will mirror those of other op amps. Anywhere that the performance of a circuit can be significantly improved by a reduction of input-offset voltage and bias current, the ICL7650S is the logical choice. Basic non-inverting and inverting amplifier circuits are shown in Figures 2 and 3. Both circuits can use the output clamping circuit to enhance the overload recovery performance. The only limitations on the replacement of other op amps by the ICL7650S are the supply voltage (±8V Max) and the output drive capability (10kΩ load for full swing). Even these limitations can be overcome using a simple booster circuit,

SHOULD BE LOW IMPEDANCE FOR

OPTIMUM GUARDING

FIGURE 1B. FOLLOWER

OUTPUT

as shown in Figure 4, to enable the full output capabilities of the LM741 (or any other standard device) to be combined with the input capabilities of the ICL7650S. The pair form a composite device, so loop gain stability, when the feedback network is added, should be watched carefully.

0.1μF

INPUT

+ 7650S

R3 + (R1||R2) ≥ 100kΩ For Full Clamp Effect

NOTE: R

FIGURE 2. NON INVERTING AMPLIFIER WIT H OPTIONAL CLAM P

||R2 indicates the parallel combination of R1 and R2.

CLAMP

0.1μF

OUTPUT

Figure 5 shows the use of the clamp circuit to advantage in a zero-offset comparator. The usual problems in using a chopper stabilized amplifier in this application are avoided, since the clamp circuit forces the inverting input to follow the input signal. The threshold input must tolerate the output clamp current ≈ V

/R without disturbing other portions of the

system. The pin configuration of the 14 pin dual in-line package is

designed to facilitate guarding, since the pins adjacent to the inputs are not used (this is different from the standard 741 and 101A pin configuration, but corresponds to that of the LM108).

FN2920.10

April 12, 2007

Page 7

INPUT

||R2) ≥ 100kΩ

For Full Clamp Effect

0.1μF

CLAMP

7650S +

OUTPUT

0.1μF

-7.5V

0.1μF

CLAMP

7650S

+7.5V +15V

0.1μF

741

-15V

10kΩ

OUT

NOTE: R1||R2 indicates the parallel combination of R1 and R2.

FIGURE 3. INVERTING AMPLIFIER WITH (OPTIONAL) CLAMP

0.1μF

CLAMP

FIGURE 5. LOW OFFSET COMPARATOR

ICL7650S

GROUND

33kΩ

150pF

ICL8048

10kΩ

NOTE: For further Applications Assistance, see AN053.

FIGURE 6. ICL8048 OFFSET NULLED BY ICL7650S

Normal logarithmic amplifiers are limited in dynamic range in the voltage-input mode by their input-offset voltage. The built-in temperature compensation and convenience features of the ICL8048 can be extended to a voltage-input dynamic range of close to 6 decades by using the ICL7650S to offset-null the ICL8048, as shown in Figure 6. The same concept can also be used with such devices as the HA2500 or HA2600 families of op amps to add very low offset voltage

7650S

200kΩ - 2MΩ

(+15V)

33kΩ

FIGURE 4. USING 741 TO BOOST OUTPUT DRIVE CAPACITY

0.1μF

OUT

REF

GAIN

715

V+

REF

2kΩ

15.9kΩ

680Ω

(LOW T.C.)

1kΩ

121316

OUT

capability to their very high slew rates and bandwidths. Note that these circuits will also have their DC gains, CMRR, and PSRR enhanced.

FN2920.10

April 12, 2007

Page 8

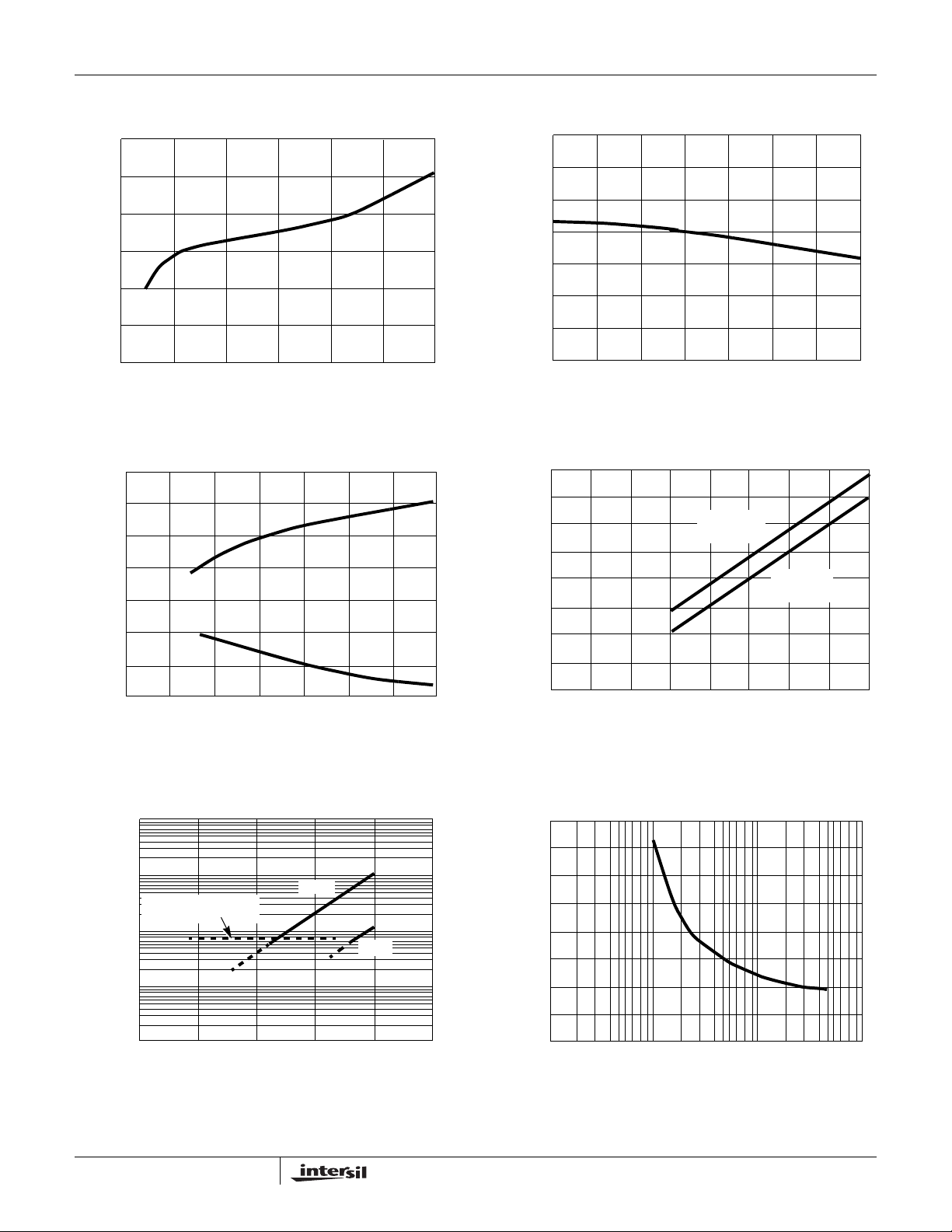

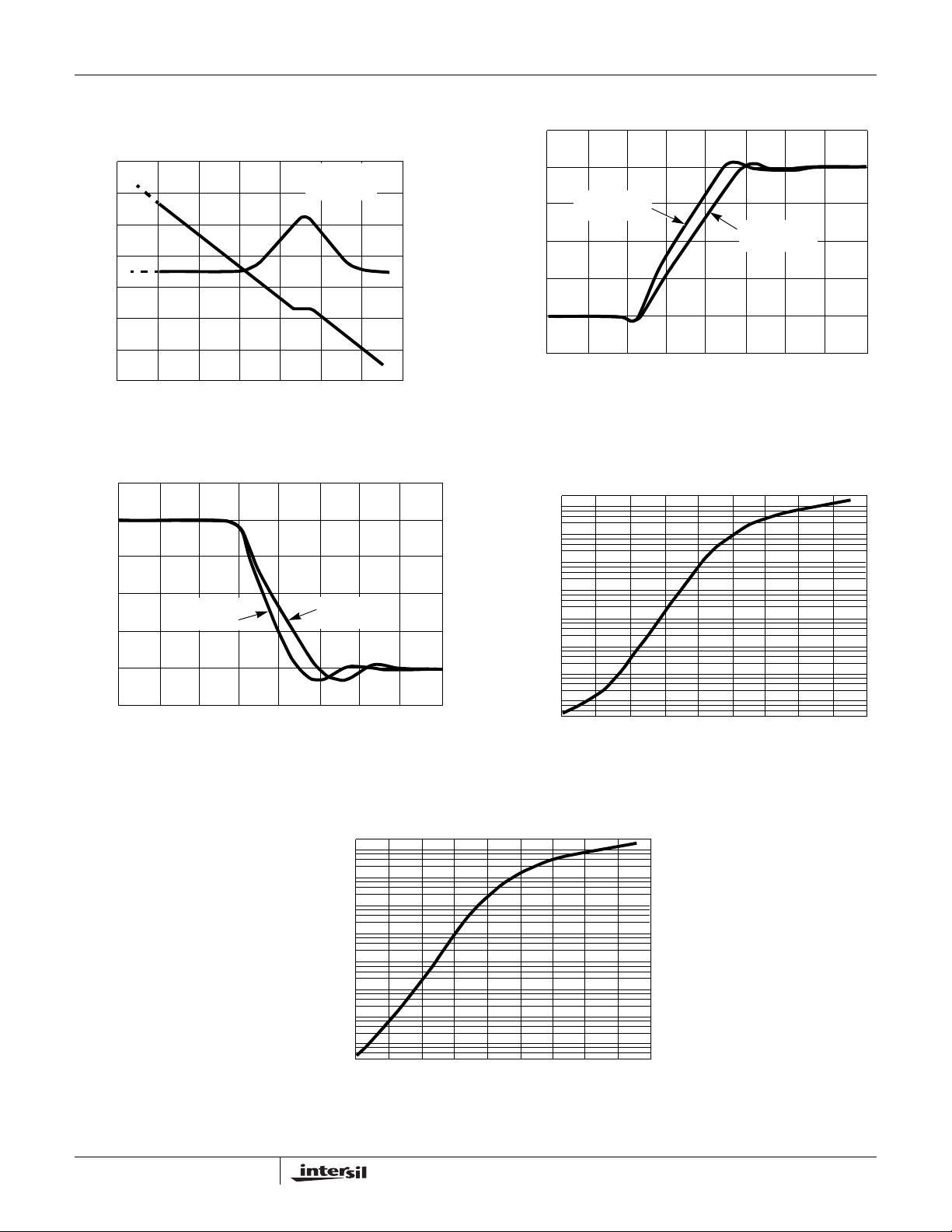

Typical Performance Curves

SUPPLY CURRENT (mA)

6 8 10 12 14 16

TOTAL SUPPLY VOLTAGE (V)

SUPPL Y CURRENT (mA)

-50 -25 0 25 50 75 100 125 TEMPERATURE (°C)

FIGURE 7. SUPPLY CURRENT vs SUPPLY VOLTAGE FIGURE 8. SUPPLY CURRENT vs AMBIENT TEMPERATURE

-10

-20

MAXIMUM OUTPUT CURRENT (mA)

-30 2 4 6 8 10 12 14 16

TOTAL SUPPLY VOLTAGE (V)

FIGURE 9. MAXIMUM OUTPUT CURRENT vs SUPPLY

VOLTAGE

COMMON MODE VOLTAGE LIMIT

012345 67 8

SUPPLY VOLTAGE (±V)

NEGATIVE

LIMIT

POSITIVE LIMIT

FIGURE 10. COMMON MODE INPUT VOLTAGE RANGE vs

SUPPLY VOLTAGE

CLOCK RIPPLE DUE TO LEAKAGE CURRENT

100

BROADBAND NOISE (A

= 1000)

REFERRED TO INPUT)

P-P

AT CAP PINS (μV

0.1 25 50 75 100 125 150

TEMPERATURE (oC)

0.1μF

1.0μF

FIGURE 11. CLOCK RIPPLE REFERRED TO THE INPUT vs

TEMPERATURE

)

P-P

10Hz NOISE VOLTAGE (μV

10 100 1k 10k

CHOPPING FREQUENCY - CLOCK OUT (Hz)

FIGURE 12. 10Hz NOISE VOLTAGE vs CHOPPING

FREQUENCY

FN2920.10

April 12, 2007

Page 9

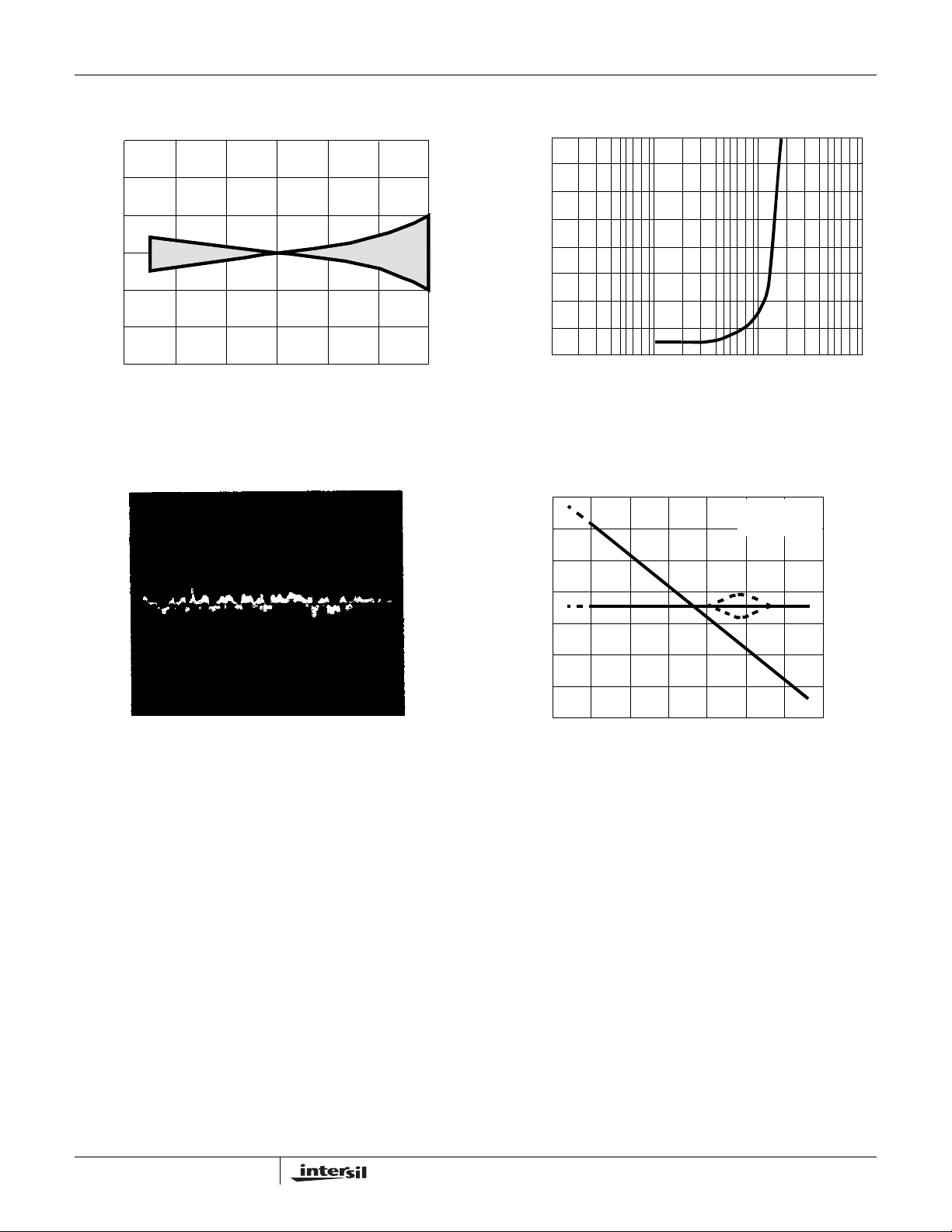

Typical Performance Curves (Continued)

-1

-2

INPUT OFFSET VOLTAGE CHANGE (μV)

-3 46810121416

TOTAL SUPPLY VOLTAGE (V)

FIGURE 13. INPUT OFFSET VOLTAGE CHANGE vs SUPPLY

VOLTAGE

OUTPUT (mV)

OFFSET VOLTAGE (μV)

10 100 1k 10k

CHOPPING FREQUENCY - CLOCK OUT (Hz)

FIGURE 14. INPUT OFFSET VOLTAGE vs CHOPPING

FREQUENCY

160

140

120

100

1ms/DIV.

20mV/DIV.

OPEN LOOP GAIN (dB)

RL = 10kΩ C

= 0.1μF

EXT

110

130

PHASE SHIFT (°)

123456789

TIME (ms)

FIGURE 15. OUTPUT WITH ZERO INPUT; GAIN = 1000;

BALANCED SOURCE IMPEDANCE = 10kΩ

0.01 0.1 1 10 100 1k 10k 100k FREQUENCY (Hz)

FIGURE 16. OPEN LOOP GAIN AND PHASE SHIFT vs

FREQUENCY

FN2920.10

April 12, 2007

Page 10

Typical Performance Curves (Continued)

160

140

120

100

OPEN LOOP GAIN (dB)

0.01 0.1 1 10 100 1k 10k 100k FREQUENCY (Hz)

RL = 10kΩ C

= 1μF

EXT

FIGURE 17. OPEN LOOP GAIN AND PHASE SHIFT vs

FREQUENCY

CLOCK OUT

-1

OUTPUT VOLTAGE (V)

-2

HIGH

CLOCK OUT LOW

110

130

-1

OUTPUT VOLTAGE (V)

PHASE SHIFT (°)

-2

CLOCK OUT

LOW

0 0.5 1.0 1.5 2.0 2.5

TIME (μs)

CLOCK OUT HIGH

NOTE: The two different responses correspond to the two phases of the clock.

FIGURE 18. VOLTAGE FOLLOWER LARGE SIGNAL PULSE

RESPONSE (NOTE)

100μA

10μA

1μA

100nA

10nA

1nA

100pA

N-CHANNEL CLAMP CURRENT

10pA

NOTE:

00.51.01.52.0 TIME (μS)

The two different responses correspond to the two phases of the clock.

FIGURE 19. VOL T AGE FOLLOWER LARGE SIGNAL PULSE

RESPONSE (NOTE)

100μA

10μA

1μA

100nA

10nA

1nA

100pA

P-CHANNEL CLAMP CURRENT

10pA

1pA

-0.8 -0.6 -0.4 -0.2 0

FIGURE 21. P-CHANNEL CLAMP CURRENT vs OUTPUT VOLTAGE

1pA

FIGURE 20. N-CHANNEL CLAMP CURRENT vs OUTPUT

OUTPUT VOLTAGE (ΔV+)

0.8 0.6 0.4 0.2 0

OUTPUT VOLTAGE (ΔV-)

VOLTAGE

FN2920.10

April 12, 2007

Page 11

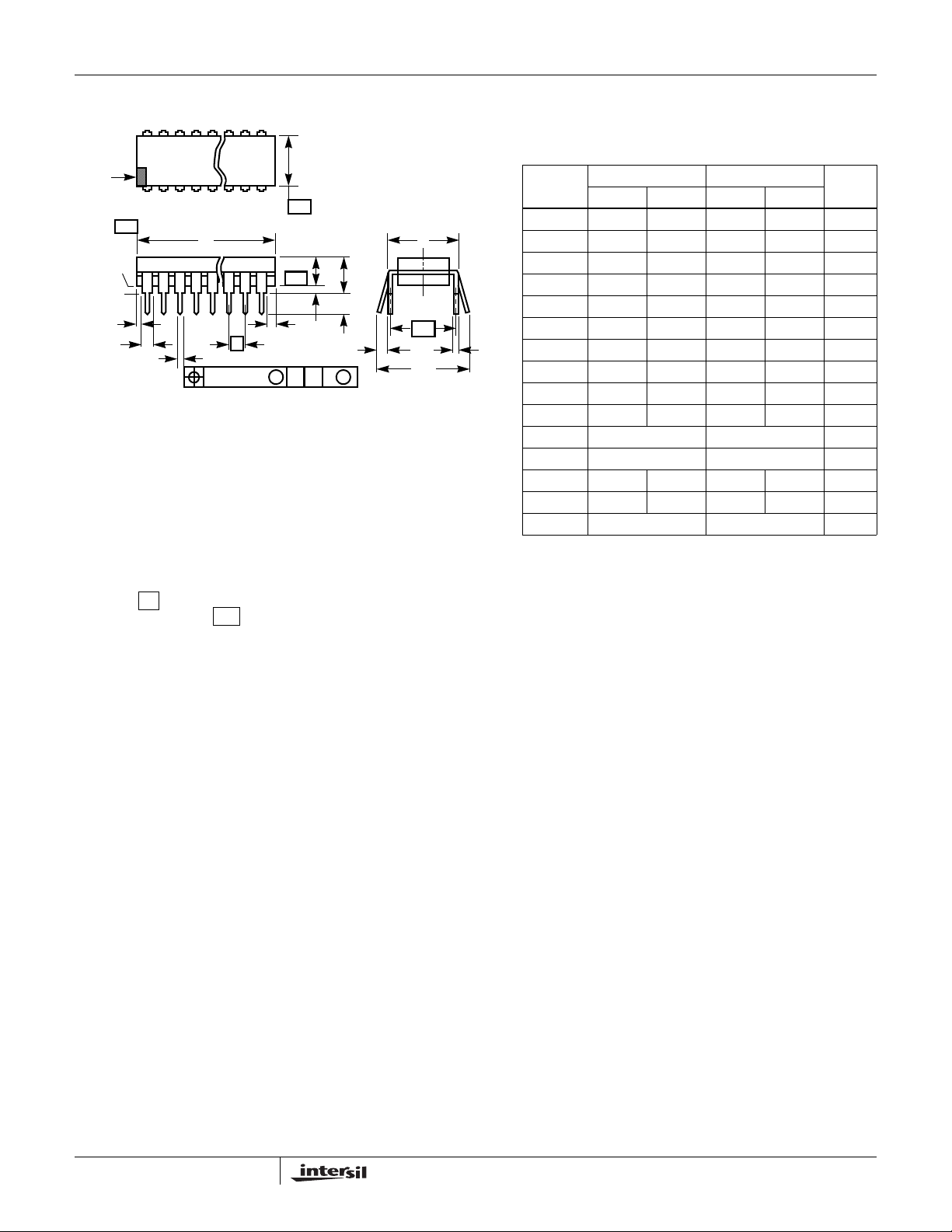

Dual-In-Line Plastic Packages (PDIP)

-C-

-B-

INDEX

AREA

BASE

PLANE

SEATING

PLANE

12 3 N/2

-AD

0.010 (0.25) C AM BS

NOTES:

1. Controlling Dimensions: INCH. In case of conflict between English and Metric dimensions, the inch dimensions control.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Symbols are defined in the “MO Series Symbol List” in Section

2.2 of Publication No. 95.

4. Dimensions A, A1 and L are measured with the package seated in JEDEC seating plane gauge GS-3.

5. D, D1, and E1 dimensions do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.010 inch (0.25mm).

6. E and are measured with the leads constrained to be per-

7. e

pendicular to datum .

and eC are measured at the lead tips with the leads uncon-

strained. e

must be zero or greater.

-C-

8. B1 maximum dimensions do not include dambar protrusions. Dambar protrusions shall not exceed 0.010 inch (0.25mm).

9. N is the maximum number of terminal positions.

10. Corner leads (1, N, N/2 and N/2 + 1) for E8.3, E16.3, E18.3, E28.3, E42.6 will have a B1 dimension of 0.030 - 0.045 inch (0.76 - 1.14mm).

E8.3 (JEDEC MS-001-BA ISSUE D)

8 LEAD DUAL-IN-LINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A-0.210 - 5.33 4

A1 0.015 - 0.39 -4 A2 0.115 0.195 2.93 4.95 -

B 0.014 0.022 0.356 0.558 -

B1 0.045 0.070 1.15 1.77 8, 10

C 0.008 0.014 0.204 0.355 D 0.355 0.400 9.01 10.16 5

D1 0.005 - 0.13 -5

E 0.300 0.325 7.62 8.25 6

E1 0.240 0.280 6.10 7.11 5

e 0.100 BSC 2.54 BSC -

0.300 BSC 7.62 BSC 6

- 0.430 - 10.92 7 L 0.115 0.150 2.93 3.81 4 N8 89

NOTESMIN MAX MIN MAX

Rev. 0 12/93

FN2920.10

April 12, 2007

Page 12

Dual-In-Line Plastic Packages (PDIP)

-C-

-B-

INDEX

AREA

BASE

PLANE

SEATING

PLANE

12 3 N/2

-AD

0.010 (0.25) C AM BS

NOTES:

1. Controlling Dimensions: INCH. In case of conflict between English and Metric dimensions, the inch dimensions control.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication No. 95.

4. Dimensions A, A1 and L are measured with the package seated in JEDEC seating plane gauge GS-3.

5. D, D1, and E1 dimensions do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.010 inch (0.25mm).

6. E and are measured with the leads constrained to be perpen-

7. e

dicular to datum .

and eC are measured at the lead tips with the leads uncon-

strained. e

-C-

must be zero or greater.

8. B1 maximum dimensions do not include dambar protrusions. Dambar protrusions shall not exceed 0.010 inch (0.25mm).

9. N is the maximum number of terminal positions.

10. Corner leads (1, N, N/2 and N/2 + 1) for E8.3, E16.3, E18.3, E28.3, E42.6 will have a B1 dimension of 0.030 - 0.045 inch (0.76 -

1.14mm).

E14.3 (JEDEC MS-001-AA ISSUE D)

14 LEAD DUAL-IN-LINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A-0.210 - 5.33 4 A1 0.015 - 0.39 -4 A2 0.115 0.195 2.93 4.95 -

B 0.014 0.022 0.356 0.558 B1 0.045 0.070 1.15 1.77 8

C 0.008 0.014 0.204 0.355 -

D 0.735 0.775 18.66 19.68 5 D1 0.005 - 0.13 -5

E 0.300 0.325 7.62 8.25 6 E1 0.240 0.280 6.10 7.11 5

e 0.100 BSC 2.54 BSC e

0.300 BSC 7.62 BSC 6

- 0.430 - 10.92 7 L 0.115 0.150 2.93 3.81 4 N14 149

NOTESMIN MAX MIN MAX

Rev. 0 12/93

FN2920.10

April 12, 2007

Page 13

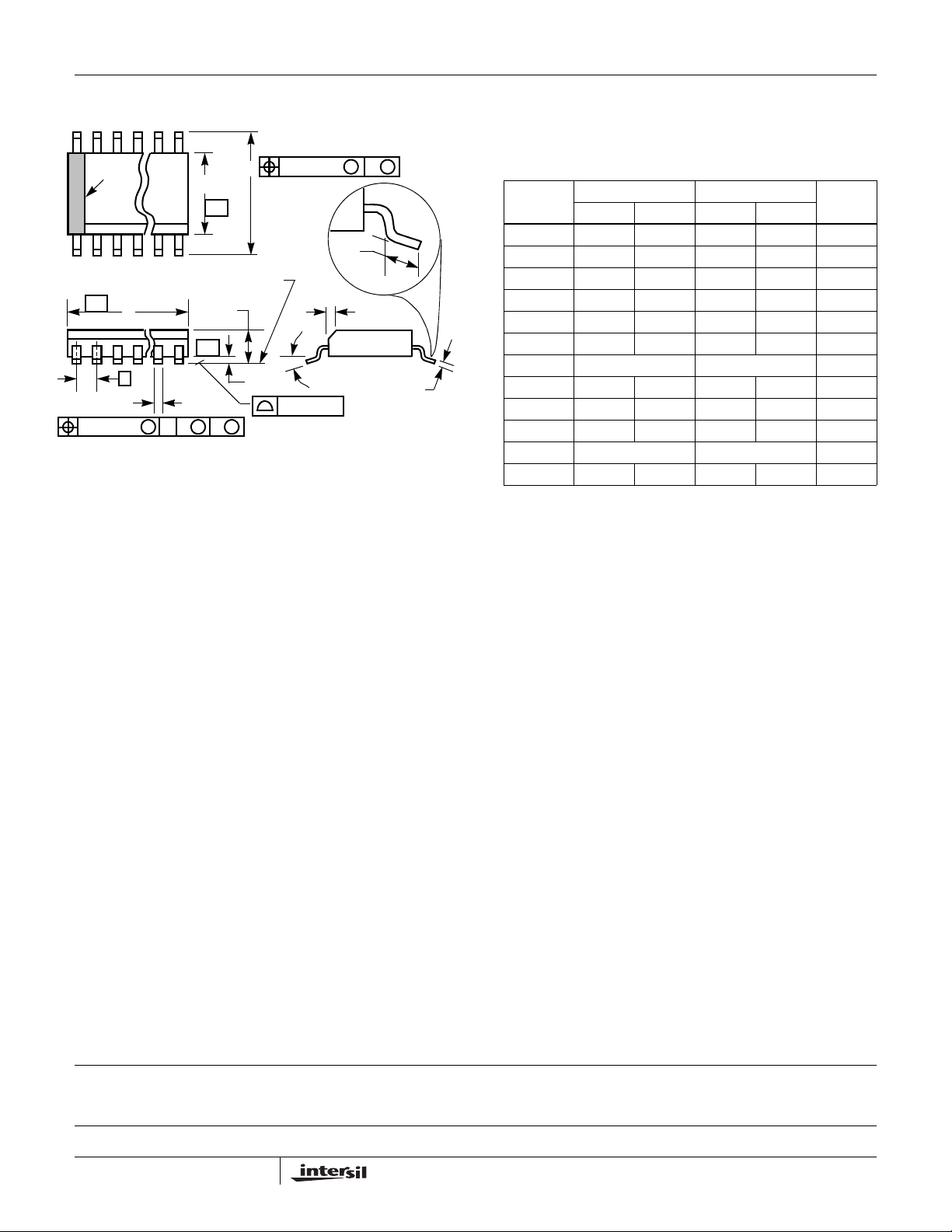

Small Outline Plastic Packages (SOIC)

INDEX AREA

123

SEATING PLANE

-AD

0.25(0.010) C AM BS

-B-

-C-

0.25(0.010) BM M

0.10(0.004)

h x 45

NOTES:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater above the seating plane, shall not exceed a maximum value of

0.61mm (0.024 inch).

10. Controlling dimension: MILLIMETER. Converted inch dimensions are not necessarily exact.

M8.15 (JEDEC MS-012-AA ISSUE C)

8 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE

INCHES MILLIMETERS

SYMBOL

A 0.0532 0.0688 1.35 1.75 -

A1 0.0040 0.0098 0.10 0.25 -

B 0.013 0.020 0.33 0.51 9

C 0.0075 0.0098 0.19 0.25 -

D 0.1890 0.1968 4.80 5.00 3

E 0.1497 0.1574 3.80 4.00 4

e 0.050 BSC 1.27 BSC -

H 0.2284 0.2440 5.80 6.20 -

h 0.0099 0.0196 0.25 0.50 5

L 0.016 0.050 0.40 1.27 6

N8 87

0° 8° 0° 8° -

NOTESMIN MAX MIN MAX

Rev. 1 6/05

All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.

Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality

Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implicat ion or oth erwise u nde r any p a tent or p at ent r ights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see www.intersil.com

FN2920.10

April 12, 2007
