ICB12, ICB18 & ICB30 IO-Link 3-wire DC
New generation inductive proximity sensors with IO-Link communication
Benets
• A complete family. Available in M12, M18 and M30
robust nickel-plated brass housings with an operating
distance of 4 to 22 mm.
• Less machine downtime. Lower risk of mechanical
damage thanks to the extended operating distance.
• Easy to install. ICB sensors have a milled section for
wrench grip and two dierent thread lengths. The user
can choose between 2 m PVC cable and M12-disconnect
plug versions.
• High precision. The onboard advanced microcontroller
ensures better stability with respect to environmental
inuences, with highly reliable repeatable measurements
between -25 and +70°C.
• Easy customization to specic OEM requests:
dierent cable lengths and materials, special labelling,
customized pig-tail solutions with special cables and
connectors are possible on request.
• The output can be operated either as a switching output
or in IO-Link mode.
Description
The new generation ICB series is a complete
family of high performance inductive sensors for
contactless and wear free detection of metallic
objects in industrial automation applications, such
as packaging, materials handling and machine
tools. The advanced electronics is enclosed in a
robust nickel-plated brass housing. It is available
in three diameters: M12, M18 and M30 with an
extended sensing distance range between 4 and
22 mm.
On-board IO-Link communication opens up many
possibilities, such as easy conguration and set-
up of the devices and advanced parameter setting.
• Fully congurable via IO-Link v1.1. Electrical outputs
can be congured as PNP/NPN/Push-pull, normally
open or normally closed.
• Timer functions can be set, such as switch-on and
switch-o delay
• Adjustable sensing distance and hysteresis: sensing
distance can be set to 33%, 50%, 75% or 100% of the
maximum sensing distance
• Temperature monitoring: over or under-run temperature
alarms can be set
•
Applications
• Non contact detection of metal objects in general position-sensing and presence-sensing in industrial applications
• Particularly suitable for rotational speed monitoring thanks to the high operating frequency
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
1
Page 2
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
Main functions
• Integrated diagnostic function with ashing LED in the event of a short circuit or overload
• The devices can be operated in IO-Link mode once connected to an IO-Link master, or in standard I/O mode.
• In IO-Link mode the switching signals of the sensor are made available in the process data via the IO-Link interface.
• Several sensor functions can be set via the IO-Link interface:
► Adjustable switching distance: 33%, 50%, 75% or 100% of the maximum switching distance.
► Adjustable hysteresis: standard or increased value.
► Divider function: the sensor gives a signal after a specied number of actuation pulses has been
reached.
► Switch-on delay: the switching pulse is generated after the sensor actuation.
► Switch-o delay: the generation of the switch signal is delayed by the set time after sensor actuation.
► Temperature error: temperature is out of specications.
► Temperature over-run and under-run: temperature is out of the limits dened by the user.
References
Order code
I C B I O
Enter the code option instead of
Code Option Description
I - Inductive sensor
C - Cylindrical housing with threaded barrel
B - Nickel-plated brass housing
12 M12 housing
IO - IO-Link programmable version
18 M18 housing
30 M30 housing
S30 Short housing with thread length of 30mm
L50 Long housing with thread length of 50mm
F Flush
N Non-ush
- Sensing distance [mm] E.g. 04 = 4mm; 14 = 14mm
04 or 08
08 or 14
15 or 22
M1 M12 plug
A2 2 m PVC cable
ICB12 ush: 4mm
ICB12 non-ush: 8mm
ICB18 ush: 8mm
ICB18 non-ush: 14mm
ICB30 ush: 15mm
ICB30 non-ush: 22mm
Additional characters can be used for customized versions.
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
2
Page 3
Selection guide
ICB12
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
Con-
nec-
tion
Cable
Plug ICB12S30F04M1IO
Cable
Plug ICB12S30N08M1IO
Cable
Plug ICB12L50F04M1IO
Cable
Plug ICB12L50N08M1IO
Body
style
Short
Long
Detec-
tion
princi-
ple
Flush
Nonush
Flush
Nonush
Rated operating dis-
tance Sn
Congurable: 33%, 50%,
75% or 100% of the
maximum Sn
Factory setting: 100%
Output type Ordering no.
Congurable: NPN/PNP/push-pull
NO/NC
Factory setting: PNP, NO
ICB12S30F04A2IO
ICB12S30N08A2IO
ICB12L50F04A2IO
ICB12L50N08A2IO
ICB18
Con-
nec-
tion
Cable
Plug ICB18S30F08M1IO
Cable
Plug ICB18S30N14M1IO
Cable
Plug ICB18L50F08M1IO
Cable
Plug ICB18L50N14M1IO
Body
style
Short
Long
Detec-
tion
princi-
ple
Flush
Nonush
Flush
Nonush
Rated operating dis-
tance Sn
Congurable: 33%, 50%,
75% or 100% of the
maximum Sn
Factory setting: 100%
Output type Ordering no.
Congurable: NPN/PNP/push-pull
NO/NC
Factory setting: PNP, NO
ICB18S30F08A2IO
ICB18S30N14A2IO
ICB18L50F08A2IO
ICB18L50N14A2IO
ICB30
Con-
nec-
tion
Cable
Plug ICB30S30F15M1IO
Cable
Plug ICB30S30N22M1IO
Cable
Plug ICB30L50F15M1IO
Cable
Plug ICB30L50N22M1IO
Body
style
Short
Long
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Detec-
tion
princi-
ple
Flush
Nonush
Flush
Nonush
Rated operating dis-
tance Sn
Congurable: 33%, 50%,
75% or 100% of the
maximum Sn
Factory setting: 100%
Output type Ordering no.
Congurable: NPN/PNP/push-pull
NO/NC
Factory setting: PNP, NO
Carlo Gavazzi Automation S.p.A.
ICB30S30F15A2IO
ICB30S30N22A2IO
ICB30L50F15A2IO
ICB30L50N22A2IO
3
Page 4
A
B
A
C
A
B C
D D
B
C
D
E
E
A
B
A
C
A
B
C
D D
B
C
D
E
E
Structure
ICB12
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
ICB18
Element Component Function
A Sensing face Flush or non-ush
B 2 nuts For sensor mounting
C Milled section For wrench grip
D LED
E M12 x 1, 4 pin, male connector For plug versions only
Green and Yellow LED: Output ashing: short
circuit or overload indication
Element Component Function
A Sensing face Flush or non-ush
B 2 nuts For sensor mounting
C Milled section For wrench grip
D LED
E M12 x 1, 4 pin, male connector For plug versions only
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Green and Yellow LED: Output ashing: short
circuit or overload indication
Carlo Gavazzi Automation S.p.A.
4
Page 5
ICB30
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
A
B
Element Component Function
A Sensing face Flush or non-ush
B 2 nuts For sensor mounting
C LED
D M12 x 1, 4 pin, male connector For plug versions only
C C
D
A
B
A
B
C
D
Green and Yellow LED: Output ashing: short
circuit or overload indication
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
5
Page 6
Y
S
T
-0,020 0,02 0,04 0,06 0,08 0,10,120,140,16
-0,32
-0,21
-0,11
0
0,1
0,21
0,31
-8
-6
-4
-2
0
2
4
6
8
-0,5 00,5 11,5 22,5 33,5 44,5
Distance [Inches]
[Inches]
[mm]
Distance [mm]
S
T
Distance [Inches]
[Inches]
[mm]
Distance [mm]
Distance [Inches]
[Inches]
[mm]
Distance [mm]
-0,2 -0,1 00,1 0,20,3 0,40,5 0,6
-0,76
-0,38
0
0,38
0,76
-24
-16
-8
0
8
16
24
-4 -2 02468101214
Distance [Inches]
[Inches]
[mm]
Distance [mm]
S
T
Sensing
Detection
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
Rated operating distance S
n
4 to 22 mm: depending on housing diameter and version (ush or non-ush)
The operating distance is measured according to IEC 60947-5-2, using a
standard target moving axially.
This target is square shape 1 mm thickness, made of steel e.g. type Fe 360
Reference target
as dened in ISO 630 and it shall be of the rolled nish.
The length of the side of the square is equal to
– the diameter of the circle inscribed on the active surface of the sensing face,
or
– three times the rated operating distance Sn whichever is greater
Assured operating sensing distance
(Sa)
0 ≤ Sa ≤ 0.81 x Sn (e.g. with Sn of 4 mm, Sa is 0 ... 3.24 mm)
Eective operating distance (Sr) 0.9 x Sn ≤ Sr ≤ 1.1 x S
Usable operating distance (Su) 0.9 x Sr ≤ Su ≤ 1.1 x S
Hysteresis (H) 1...20%
X
S: sensor
T: target
n
r
00,040,080,120,160,2 0,24 0,28 0,32
12
8
4
0
S
-4
-8
-12
012345678
T
0,55
0,37
0,18
0
-0,18
-0,37
-0,55
Fig. 1 M12 Flush
-0,020,020,060,1 0,14 0,18 0,22 0,26 0,3
12
8
4
0
S
-4
-8
-12
0 12345678
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Fig. 3 M18 Flush Fig. 4 M18 Non-ush
T
0,55
0,37
0,18
0
-0,18
-0,37
-0,55
Fig. 2 M12 Non-ush
Carlo Gavazzi Automation S.p.A.
6
Page 7
Distance [Inches]
[Inches]
[mm]
Distance [mm]
-0,24-0,09 0,06 0,21 0,36 0,51 0,66 0,81
-1,4
-1,05
-0,7
-0,35
0
0,35
0,7
1,05
1,4
-30
-20
-10
0
10
20
30
-6 -4 -2 0246810121416182022
Distance [Inches]
[Inches]
[mm]
Distance [mm]
S
T
-0,040,040,120,2 0,28 0,36 0,44 0,52 0,6
24
16
8
0
S
-8
-16
-24
012345678910 11 12 13 14 15 16
Fig. 5 M30 Flush Fig. 6 M30 Non-ush
Sensors with IO-Link communication
T
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
0,76
0,38
0
-0,38
-0,76
Rated operating distance S
Hysteresis (H)
n
Programmable via IO-Link: 33%, 50%, 75% or 100% of the maximum S
Factory setting: 100% of the maximum S
n
Programmable via IO-Link: standard or increased
Factory setting: standard
n

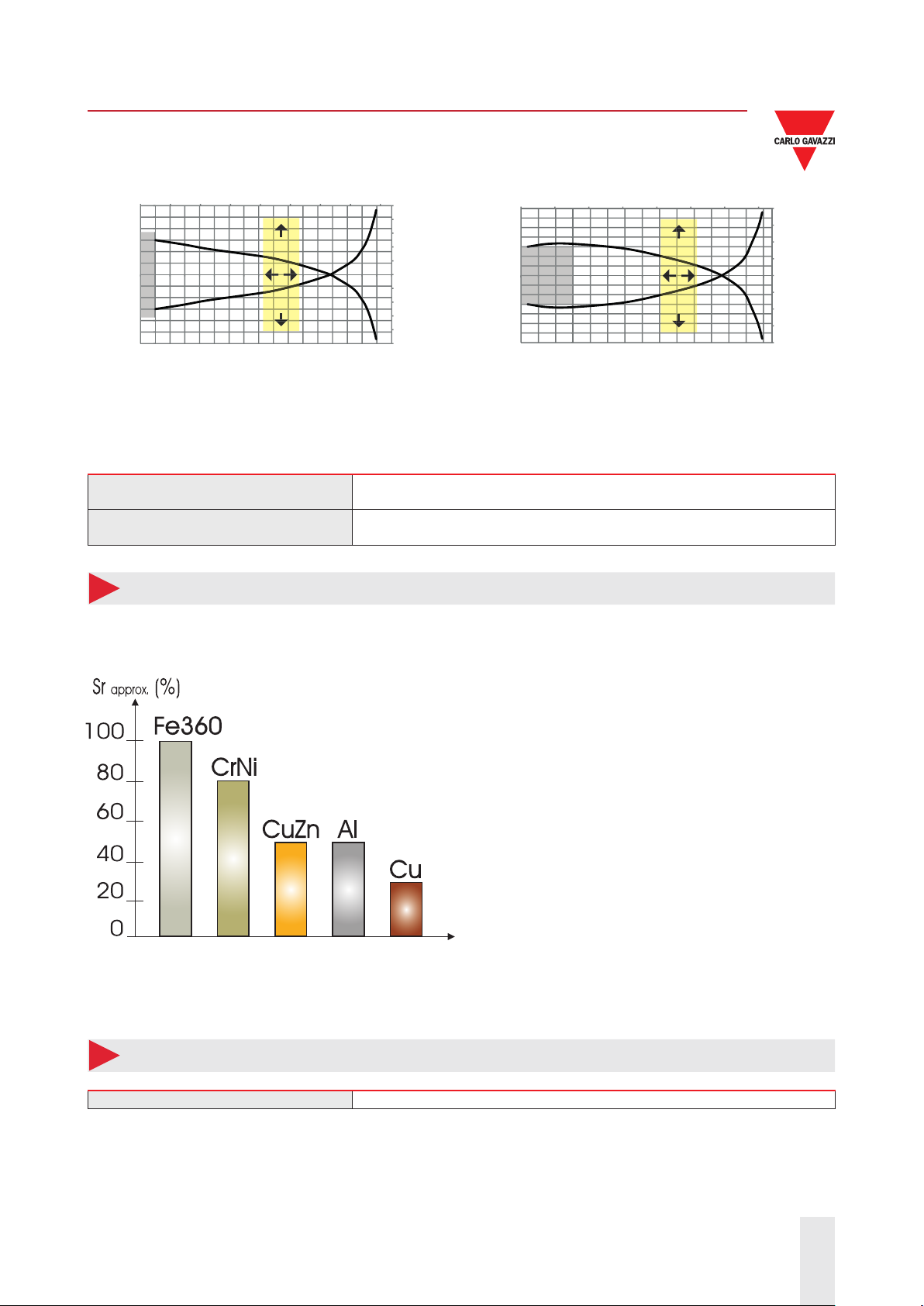

Correction factors
The specic operating distance Sn refers to dened measuring conditions. The following data have to be
considered as general guidelines.
Fe360 : Steel
CrNi : Chrome-nickel
CuZn : Brass
Al : Aluminium
Cu : Copper
Sr : Eective operating distance
Fig. 7 The rated operating distance is reduced by
the use of metals and alloys other than Fe360. The
most important reduction factors for inductive prox-
imity sensors are shown in the gure.
Accuracy
Repeat accuracy (R) ≤ 5%
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
7
Page 8
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
Features
Power Supply
Rated operational voltage (Ub) 10 to 36 VDC (ripple included)
Ripple (U
No load supply current (Io) ≤ 20 mA
Power ON delay (tv) ≤ 50 ms
) ≤ 10%
rpp
Outputs
Output functions
Output conguration
Output current (Ie) ≤ 200 mA
OFF-state current (Ir)
(only for PNP or NPN output)
Voltage drop (Ud) Max. 2.5 VDC @ 200 mA
Protection Short-circuit, reverse polarity and transients
Voltage transient 1 kV/0.5 J
Congurable via IO-Link: PNP, NPN or push-pull
Factory setting: PNP
Congurable via IO-Link: N.O. or N.C.
Factory setting: N.O.
≤ 100 μA
Response times
≤ 2 kHz ICB12
Operating frequency (f)
≤ 1.5 kHz ICB18
≤ 1 kHz ICB30
Indication
Standard IO mode:
Yellow LED Output Description
OFF OFF
ON ON
Blinking
Green LED Output Description
OFF - Sensor is not operational
ON - Sensor is operational
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
f: 2Hz Short-circuit or overload
f: 1Hz Temperature alarm (if enabled)
N.O. output, target not present
N.C. output, target present
N.O. output, target present
N.C. output, target not present
Carlo Gavazzi Automation S.p.A.
8
Page 9
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
IO-Link mode:
Yellow LED Output Description
OFF / ON SIO Shows SIO status if no short circuit or temperature errors.
Blinking
Disabled - Possibility to disable the LED
Green LED:
• LED is ON for 0.75 s and OFF for 0.075 s
• Possibility to disable the LED
Environmental
f: 2 Hz Short-circuit or overload
f: 1 Hz Temperature alarm (if enabled)
Ambient temperature for cable versions
Ambient temperature for plug versions
Ambient humidity
Vibration
Shock 30 G /11 ms. 10 shocks in X, Y and Z direction IEC 60068-2-27
Rough handling shocks 2 times from 1m, 100 times from 0.5m IEC 60068-2-31
Degree of protection IP67 IEC 60529; EN 60947-1
Operating: -25° to +70°C (-13° to +158°F)
Storage: -30° to +80°C (-22° to +176°F)
Operating: -40° to +70°C (-40° to +158°F)
Storage: -40° to +80°C (-40° to +176°F)
Operating: 35% to 95%
Storage: 35% to 95%
10 to 55 Hz, amplitude 1.0 mm; sweep cycle 5
min; in X, Y and Z direction
IEC 60068-2-6
Compatibility and conformity
8 kV air discharge
4 kV contact discharge
3 V/m (ICB30: 12 V/m)
3 V (ICB30: 10 V)
30 A/m
EMC protection
MTTF
d
IEC 61000-4-2 Electrostatic discharge
IEC 61000-4-3 Radiated radiofrequency
IEC 61000-4-4 Burst immunity 2 kV (ICB30: 4 kV)
IEC 61000-4-6 Conducted radio fre-
quency
IEC 61000-4-8 Power frequency mag-
netic elds
ICB12: 3963 years @50°C (122°F)
ICB18: 3945,2 years @50°C (122°F)
ICB30: 3479,3 years @50°C (122°F)
Approvals
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
®
CCC is not required for products rated ≤ 36 V
Carlo Gavazzi Automation S.p.A.
9
Page 10
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
Mechanical data
Cable version: short, ush: 76.2g; short, non-ush: 76.8g; long, ush:
82.2g; long, non-ush: 82.8g;
M12
Plug version: short, ush: 29.5g; short, non-ush: 30.1g; long, ush:
35.2g; long, non-ush: 35.8g.
Cable version: short, ush: 100.3g; short, non-ush: 102.8g; long, ush:
Weight (including 2 nuts and the
packaging) max.
Mounting Flush mountable or non-ush mountable
Material
Max tightening torque
112.6g; long, non-ush: 115.1g;
M18
Plug version: short, ush: 57.4g; short, non-ush: 59.9g; long, ush:
69.8g; long, non-ush: 72.3g.
Cable version: short, ush: 191.1g; short, non-ush: 197.6g; long, ush:
219.4g; long, non-ush: 226g;
M30
Plug version: short, ush: 127g; short, non-ush: 133.5g; long, ush:
159.6g; long, non-ush: 166.1g.
Housing: Nickel-plated brass
Front cap: Grey thermoplastic polyester
ICB12: 10 Nm
ICB18: 25 Nm
ICB30: 30 Nm
Electrical connection
Cable
Plug M12 x 1, 4 pin, male connector
ICB12 and ICB18: 2m, 3 x 0.25 mm2, Ø4.1 mm, PVC, grey, oil proof
ICB30: 2m, 3 x 0.34 mm2, Ø5.2 mm, PVC, grey, oil proof
Communication
Communication Via IO-Link V1.1 or via standard I/O
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
10
Page 11
+
-
+
-
+
-
1 BN
4 BK
3 BU
+
-
+
-
1 BN
4 BK
3 BU
Out/IO-Link
Connection Diagrams
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
1 BN
4 BK
3 BU
Fig. 8 NPN - Normally open Fig. 9 NPN - Normally closed
1 BN
4 BK
3 BU
1 BN
4 BK
Fig. 10 PNP - Normally open
Wire colors in accordance with EN 60947-5-2
BN: brown BK: black BU: blue
3 BU
Fig. 11 PNP - Normally closed
Fig. 12 IO-Link
Colour code
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
11
Page 12
4
SW17
M12x1
Ø4.1
LED
7.5
30
32
2x lock washer
4
SW17
36
2x lock washer
2x lock washer
M12x1
50.2
2x lock washer
M12x1
54.2
2x lock washer
4
SW17
52
2x lock washer
4
SW17
56
2x lock washer
M12x1
70.2
2x lock washer
4
SW17
M12x1
M12x1
Ø3 LEDx4
7.5
11.1
53.2
50
8.2
4
74.2
1
4
2
3
Dimensions [mm]
ICB12 [mm]
Fig. 13 Short body, ush version, cable Fig. 14 Short body, non-ush version, cable
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
LED
M12x1
7.5
4
30
Ø4.1
4
1
Ø3 LEDx4
7.5
8.2
11.1
M12x1
4
1
33.2
4
SW17
Ø3 LEDx4
8.2
3
2
33.2
4
SW17
M12x1
7.5
11.1
30
4
30
Fig. 15 Short body, ush version, plug Fig. 16 Short body, non-ush version, plug
M12x1
50
7.5
LED
Ø4.1
M12x1
4
50
LED
7.5
Fig. 17 Long body, ush version, cable Fig. 18 Long body, non-ush version, cable
4
1
4
53.2
SW17
Ø3 LEDx4
8.2
3
2
3
2
Ø4.1
M12x1
7.5
11.1
50
Fig. 19 Long body, ush version, plug Fig. 20 Long body, non-ush version, plug
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
12
Page 13
2x lock washer
4 SW24
32
2x lock washer
M18x1
4 SW24
LED
Ø4.1
7.5
30
42
10
2x lock washer
M12x1
54
2x lock washer
4
SW24
36.5
Ø3 LEDx4
8
M18x1
M12x1
7.5
11
10
30
64
1
4
2
3
2x lock washer
4 SW24
52
2x lock washer
4 SW24
M18x1
LED
Ø4.1
7.5
10
50
62
2x lock washer
M18x1
4
SW24
56.5
50
74
7.5
11
8
Ø3 LEDx4
M12x1
1
4
2
3
2x lock washer
84
M12x1
ICB12, ICB18 & ICB30 IO-Link 3-wire DC

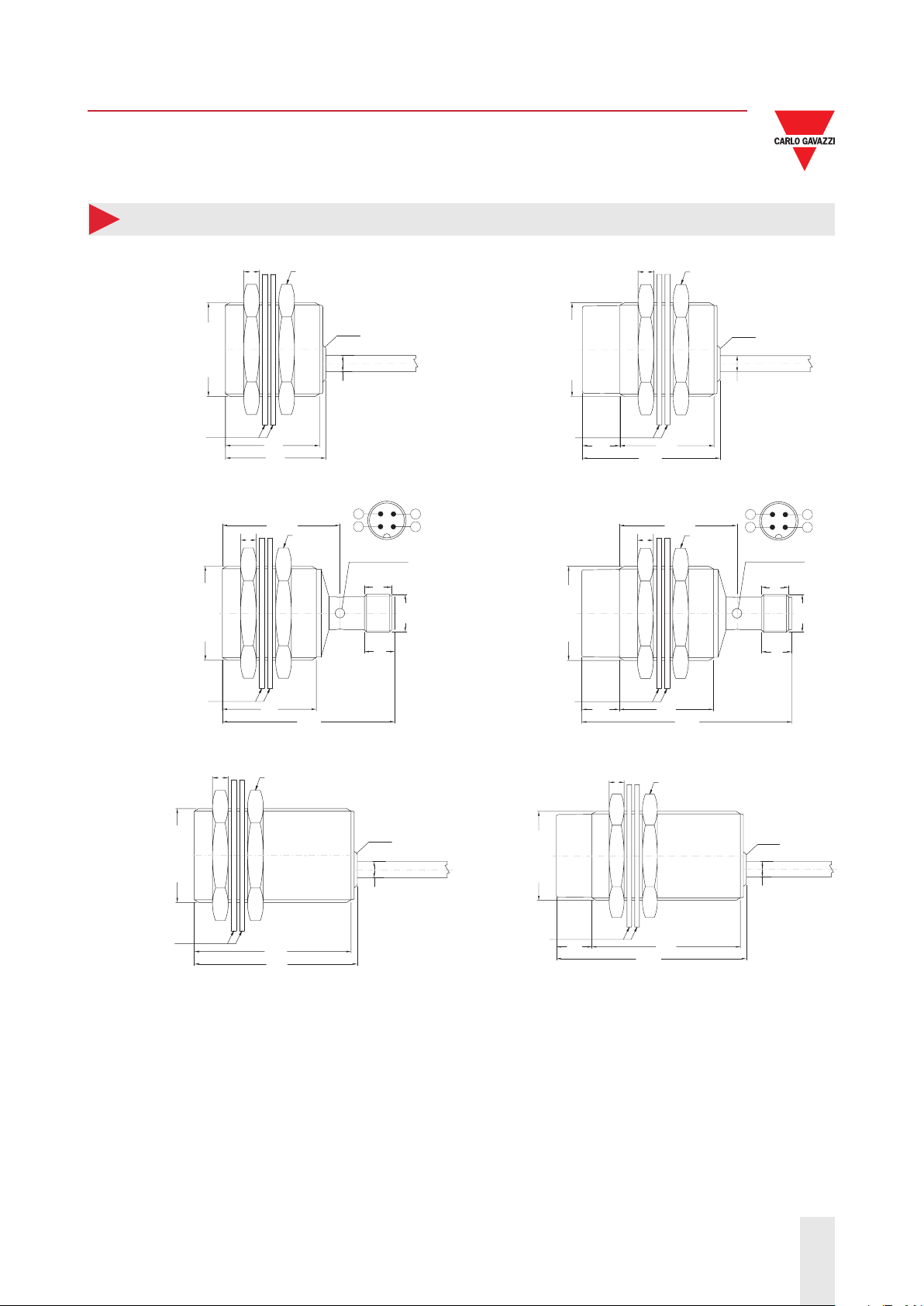

ICB18 [mm]
LED
M18x1
7.5
Ø4.1
30

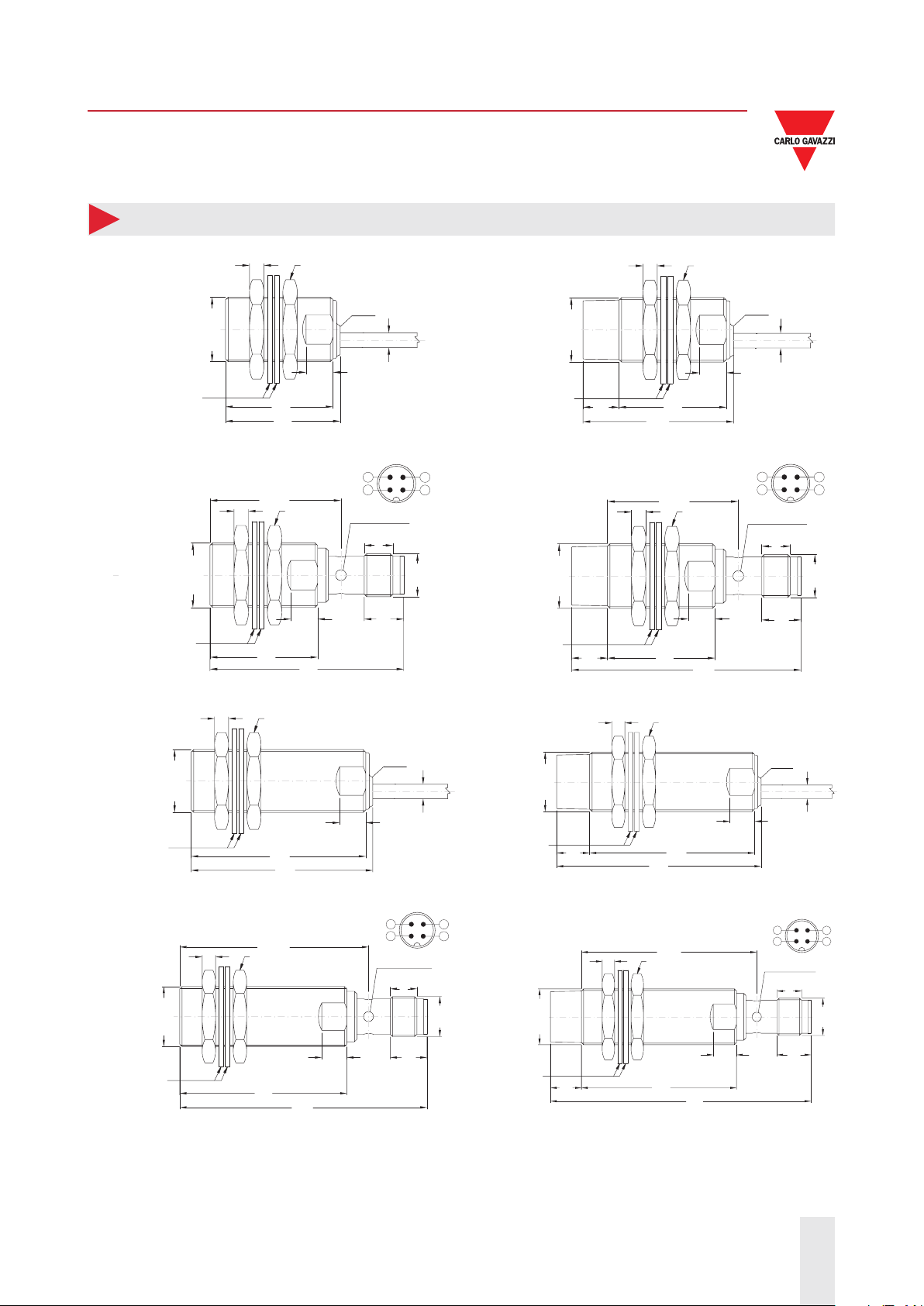

Fig. 21 Short body, ush version, cable Fig. 22 Short body, non-ush version, cable
M18x1
36.5
4 SW24
7.5 11
30
4
1
Ø3 LEDx4
8
3
2
Fig. 23 Short body, ush version, plug Fig. 24 Short body, non-ush version, plug
LED
M18x1
7.5
Ø4.1
50
Fig. 25 Long body, ush version, cable Fig. 26 Long body, non-ush version, cable
4
M18x1
10
Fig. 27 Long body, ush version, plug Fig. 28 Long body, non-ush version, plug
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
56.5
SW24
7.5 11
50
Carlo Gavazzi Automation S.p.A.
4
1
Ø3 LEDx4
8
13
3
2
Page 14
2x lock washer
M30x1.5
5
SW36
LED
Ø5.2
30
32
5
2x lock washer
44
2x lock washer
55
2x lock washer
M12x1
67
2x lock washer
M30x1.5
5
SW36
LED
Ø5.2
50
52
2x lock washer
5
64
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
ICB30 [mm]
SW36
LED
M30x1.5
Ø5.2
12 30
Fig. 29 Short body, ush version, cable Fig. 30 Short body, non-ush version, cable
M30x1.5
37.5
5
SW36
30
4
1
Ø3 LEDx4
3
2
8
M12x1
9
M30x1.5
12
37.5
5
SW36
30
4
1
Ø3 LEDx4
8
9
Fig. 31 Short body, ush version, plug Fig. 32 Short body, non-ush version, plug
SW36
LED
M30x1.5
Ø5.2
12
50
3
2

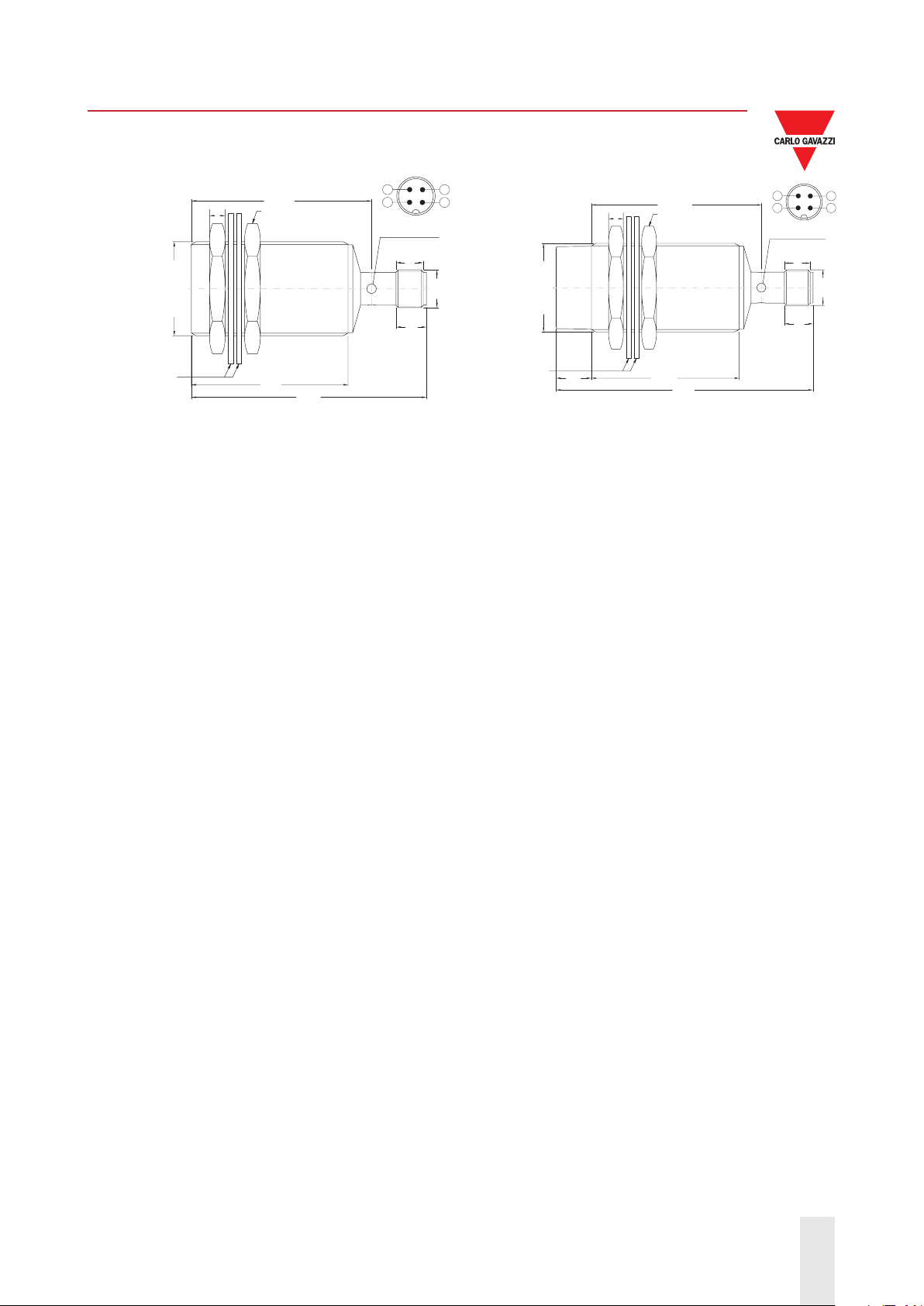

Fig. 33 Long body, ush version, cable Fig. 34 Long body, non-ush version, cable
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
14
Page 15
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
2x lock washer
M30x1.5
SW36
5
57.5
Ø3 LEDx4
8
9
M12x1
50
75
1
4
2
3
2x lock washer
M12x1
87
4
1
Ø3 LEDx4
M30x1.5
12
5
57.5
SW36
50
Fig. 35 Long body, ush version, plug Fig. 36 Long body, non-ush version, plug
3
2
8
9
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
15
Page 16
ddd
d
≥ 3 x Sn
≥ 3 x d
≥ 2 x Sn
**
2 x ddddd
Installation
M12, M18 and M30 ush
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
≥ 3 x Sn
Fig. 37 Flush sensor, when installed in damping
M12 and M18 non-ush
d
material
**
Fig. 38 Flush sensors, when installed together in
damping material
Fig. 39 Non-ush sensor, when installed in damping
material
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Fig. 40 Non-ush sensors, when installed together in
damping material
Carlo Gavazzi Automation S.p.A.
16
Page 17
d
≥ 3 x Sn
≥ 4 x d
≥ 2 x Sn
**
4 x ddddd
≥ 6 x Sn
M30 non-ush
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
Fig. 41 Non-ush sensor, when installed in damping
material
Fig. 42 Non-ush sensor, when installed together in
damping material
Sensors installed opposite each other
Fig. 43 For sensors installed opposite each other, a minimum space of 6 x Sn (the nominal sensing dis-
tance) must be observed
** Free zone or non-damping material
Sn: nominal sensing distance
d : sensor diameter (12 mm for ICB12, 18 mm for ICB18, 30 mm for ICB30)
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
17
Page 18
ICB12, ICB18 & ICB30 IO-Link 3-wire DC
Delivery contents and compatible components
Delivery contents
• Inductive proximity switch
• 2 xing nuts
• 2 lock washers
• Packaging: plastic bag
CARLO GAVAZZI compatible components
• Mounting bracket AMB8... to be purchased separately
• Connector type: CONB1... series to be purchased separately
Further reading
Information Where to nd it QR
IO-Link manual http://www.productselection.net/MANUALS/UK/IOL_IM.pdf
Mounting brackets http://www.productselection.net/Pdf/UK/AMB8_30.pdf
Connectors http://www.productselection.net/Pdf/UK/CONB14NF.pdf
COPYRIGHT ©2018
Content subject to change. Download the PDF: www.productselection.net
ICB12, ICB18 & ICB30 IO-Link 3-wire DC DS EN21/05/2018
Carlo Gavazzi Automation S.p.A.
18
Loading...
