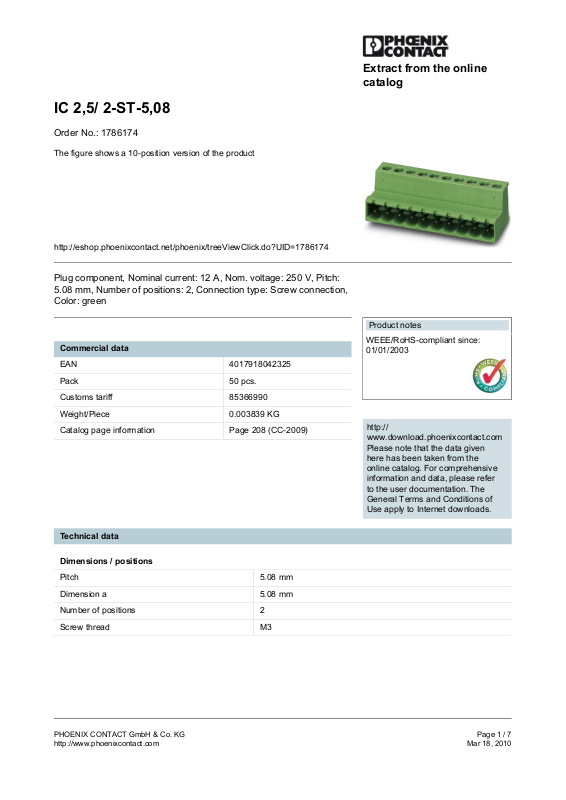

Page 1
IC 2,5/ 2-ST-5,08
Order No.: 1786174
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1786174
Extract from the online
catalog
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch:
5.08 mm, Number of positions: 2, Connection type: Screw connection,
Color: green
Commercial data
EAN 4017918042325
Pack 50 pcs.
Customs tariff 85366990
Weight/Piece 0.003839 KG
Catalog page information Page 208 (CC-2009)
Technical data
Product notes
WEEE/RoHS-compliant since:
01/01/2003
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Dimensions / positions
Pitch 5.08 mm
Dimension a 5.08 mm
Number of positions 2
Screw thread M3
PHOENIX CONTACT GmbH & Co. KG Page 1 / 7
http://www.phoenixcontact.com Mar 18, 2010
Page 2
IC 2,5/ 2-ST-5,08 Order No.: 1786174
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1786174
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm
Technical data
Insulating material group I
Rated surge voltage (III/3) 4 kV
Rated surge voltage (III/2) 4 kV
Rated surge voltage (II/2) 4 kV
Rated voltage (III/2) 320 V
Rated voltage (II/2) 630 V
Connection in acc. with standard EN-VDE
Nominal current I
Nominal voltage U
N
N
12 A
250 V
Nominal cross section 2.5 mm²
Maximum load current 12 A
Insulating material PA
Inflammability class acc. to UL 94 V0
Internal cylindrical gage A3
Stripping length 7 mm
Connection data
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 2.5 mm²
Conductor cross section stranded min. 0.2 mm²
Conductor cross section stranded max. 2.5 mm²
Conductor cross section stranded, with ferrule
0.25 mm²
without plastic sleeve min.
Conductor cross section stranded, with ferrule
2.5 mm²
without plastic sleeve max.
Conductor cross section stranded, with ferrule
0.25 mm²
with plastic sleeve min.
Conductor cross section stranded, with ferrule
2.5 mm²
with plastic sleeve max.
Conductor cross section AWG/kcmil min. 24
Conductor cross section AWG/kcmil max 12
2 conductors with same cross section, solid min. 0.2 mm²
2 conductors with same cross section, solid max. 1 mm²
PHOENIX CONTACT GmbH & Co. KG Page 2 / 7
http://www.phoenixcontact.com Mar 18, 2010
Page 3
IC 2,5/ 2-ST-5,08 Order No.: 1786174
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1786174
2 conductors with same cross section, stranded
0.2 mm²
min.
2 conductors with same cross section, stranded
1.5 mm²
max.
2 conductors with same cross section, stranded,
0.25 mm²
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
1 mm²
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
0.5 mm²
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
1.5 mm²
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
Certification CB, CSA, CUL, GOST, UL, VDE-PZI
CSA
Nominal voltage U
Nominal current I
N
N
300 V
10 A
AWG/kcmil 28-12
CUL
Nominal voltage U
Nominal current I
N
N
300 V
10 A
AWG/kcmil 30-12
UL
Nominal voltage U
Nominal current I
N
N
300 V
10 A
AWG/kcmil 30-12
Accessories
Item Designation Description
Assembly
1755477 MSTB-BL Keying cap, for forming sections, plugs onto header pin, green
insulating material
PHOENIX CONTACT GmbH & Co. KG Page 3 / 7
http://www.phoenixcontact.com Mar 18, 2010
Page 4
IC 2,5/ 2-ST-5,08 Order No.: 1786174
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1786174
General
1733169 EBP 2- 5 Insertion bridge, fully insulated, for plug connectors with 5.0 or
5.08 mm pitch, no. of positions: 2
1803934 KGG-MSTB 2,5/ 2 Cable housing, Number of positions: 2, Dimension a: 10 mm,
Color: green
1783779 KGS-MSTB 2,5/ 8 Cable housing, Number of positions: 8, Dimension a: 40 mm,
Color: green
Marking
0804293 SK 5,08/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Plug/Adapter
1734401 CR-MSTB Coding section, inserted into the recess in the header or the
inverted plug, red insulating material
Tools
1205053 SZS 0,6X3,5 Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
Additional products
Item Designation Description
General
1872693 A-ICV 2,5/ 2-G-5,08 Base strip, Nominal current:12 A, Nominal voltage:250 V,
Mounting type:DIN rail mounting, Number of positions:2,
Pitch:5.08 mm, Color:green
1873058 FKC 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Springcage conn., Color: green
1902110 FKCT 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Springcage conn., Color: green
1873951 FKCVR 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Springcage conn., Color: green
1873650 FKCVW 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Springcage conn., Color: green
1777280 FRONT-MSTB 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
PHOENIX CONTACT GmbH & Co. KG Page 4 / 7
http://www.phoenixcontact.com Mar 18, 2010
Page 5
IC 2,5/ 2-ST-5,08 Order No.: 1786174
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1786174
1786404 IC 2,5/ 2-G-5,08 Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08
mm, Number of positions: 2, Color: green, Assembly: Soldering
1785942 ICV 2,5/ 2-G-5,08 Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08
mm, Number of positions: 2, Color: green, Assembly: Soldering
1757019 MSTB 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1808816 MSTBC 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Crimp
connection, Color: green
1809501 MSTBC 2,5/ 2-STZ-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Crimp
connection, Color: green
1769010 MSTBP 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1779987 MSTBT 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1824120 MSTBU 2,5/ 2-STD-5,08 Plug component, Nominal current:12 A, Nom. voltage:320 V,
Pitch:5.08 mm, Number of positions:2, Connection type:Screw
connection, Assembly:Direct mounting, Color:green
1792249 MVSTBR 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1792757 MVSTBW 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1883255 QC 1/ 2-ST-5,08 Plug component, Nominal current: 10 A, Nom. voltage: 500
V, Pitch: 5.08 mm, Number of positions: 2, Connection type:
Insulation displacement connection QUICKON, Color: green
1826283 SMSTB 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1853010 TMSTBP 2,5/ 2-ST-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
PHOENIX CONTACT GmbH & Co. KG Page 5 / 7
http://www.phoenixcontact.com Mar 18, 2010
Page 6
IC 2,5/ 2-ST-5,08 Order No.: 1786174
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1786174
Diagrams/Drawings
Dimensioned drawing
PHOENIX CONTACT GmbH & Co. KG Page 6 / 7
http://www.phoenixcontact.com Mar 18, 2010
Page 7
IC 2,5/ 2-ST-5,08 Order No.: 1786174
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1786174
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2010 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG Page 7 / 7
http://www.phoenixcontact.com Mar 18, 2010
