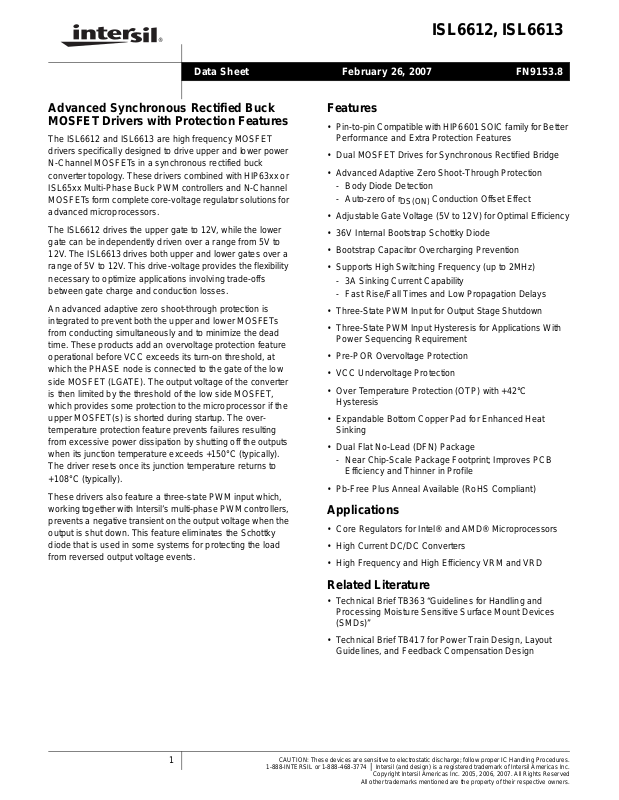

ISL6612, ISL6613
Data Sheet February 26, 2007
Advanced Synchronous Rectified Buck
MOSFET Drivers with Protection Features
The ISL6612 and ISL6613 are high frequency MOSFET
drivers specifically designed to drive upper and lower power
N-Channel MOSFETs in a synchronous rectified buck
converter topology. These drivers combined with HIP63xx or
ISL65xx Multi-Phase Buck PWM controllers and N-Channel
MOSFET s form complete core-voltage regulator solutions for
advanced microprocessors.
The ISL6612 drives the upper gate to 12V, while the lower
gate can be independently driven over a range from 5V to
12V. The ISL6613 drives both upper and lower gates over a
range of 5V to 12V. This drive-voltage provides the flexibility
necessary to optimize applications involving trade-offs
between gate charge and conduction losses.
An advanced adaptive zero shoot-through protection is
integrated to prevent both the upper and lower MOSFETs
from conducting simultaneously and to minimize the dead
time. These products add an overvoltage protection feature
operational before VCC exceeds its turn-on threshold, at
which the PHASE node is connected to the gate of the low
side MOSFET (LGATE). The output voltage of the converter
is then limited by the threshold of the low side MOSFET,
which provides some protection to the microprocessor if the
upper MOSFET(s) is shorted during startup. The overtemperature protection feature prevents failures resulting
from excessive power dissipation by shutting off the outputs
when its junction temperature exceeds +150°C (typically).
The driver resets once its junction temperature returns to
+108°C (typically).
These drivers also feature a three-state PWM input which,
working together with Intersil’s multi-phase PWM controllers,
prevents a negative transient on the output voltage when the
output is shut down. This feature eliminates the Schottky
diode that is used in some systems for protecting the load
from reversed output voltage events.
FN9153.8
Features
• Pin-to-pin Compatible with HIP6601 SOIC family for Better
Performance and Extra Protection Features
• Dual MOSFET Drives for Synchronous Rectified Bridge
• Advanced Adaptive Zero Shoot-Through Protection
- Body Diode Detection
- Auto-zero of r
• Adjustable Gate Voltage (5V to 12V) for Optimal Efficiency
• 36V Internal Bootstrap Schottky Diode
• Bootstrap Capacitor Overcharging Prevention
• Supports High Switching Frequency (up to 2MHz)
- 3A Sinking Current Capability
- Fast Rise/Fall Times and Low Propagation Delays
• Three-State PWM Input for Output Stage Shutdown
• Three-State PWM Input Hysteresis for Applications With
Power Sequencing Requirement
• Pre-POR Overvoltage Protection
• VCC Undervoltage Protection
• Over Temperature Protection (OTP) with +42°C
Hysteresis
• Expandable Bottom Copper Pad for Enhanced Heat
Sinking
• Dual Flat No-Lead (DFN) Package
- Near Chip-Scale Package Footprint; Improves PCB
Efficiency and Thinner in Profile
• Pb-Free Plus Anneal Available (RoHS Compliant)
Conduction Offset Effect
DS(ON)
Applications
• Core Regulators for Intel® and AMD® Microprocessors
• High Current DC/DC Converters
• High Frequency and High Efficiency VRM and VRD
Related Literature
• Technical Brief TB363 “Guidelines for Handling and
Processing Moisture Sensitive Surface Mount Devices
(SMDs)”
• Technical Brief TB417 for Power Train Design, Layout
Guidelines, and Feedback Compensation Design
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
| Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2005, 2006, 2007. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.
ISL6612, ISL6613

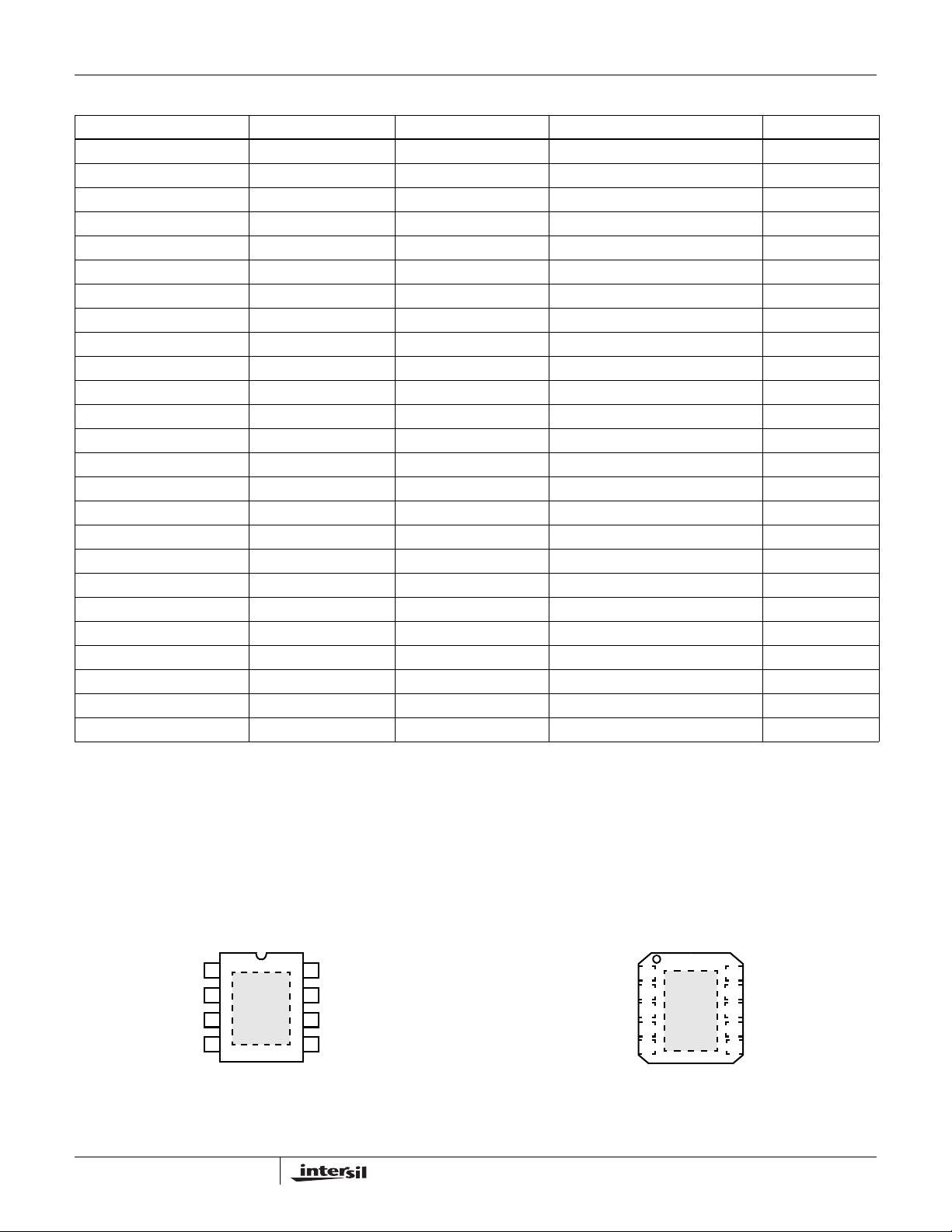

Ordering Information
PART NUMBER PART MARKING TEMP. RANGE (°C) PACKAGE PKG. DWG. #
ISL6612CB ISL66 12CB 0 to +85 8 Ld SOIC M8.15
ISL6612CBZ (Note) 6612 CBZ 0 to +85 8 Ld SOIC (Pb-Free) M8.15
ISL6612CBZA (Note) 6612 CBZ 0 to +85 8 Ld SOIC (Pb-Free) M8.15
ISL6612CR 612C 0 to +85 10 Ld 3x3 DFN L10.3x3
ISL6612CRZ (Note) 612Z 0 to +85 10 Ld 3x3 DFN (Pb-Free) L10.3x3
ISL6612ECB ISL66 12ECB 0 to +85 8 Ld EPSOIC M8.15B
ISL6612ECBZ (Note) 6612 ECBZ 0 to +85 8 Ld EPSOIC (Pb-Free) M8.15B
ISL6612EIB ISL66 12EIB -40
ISL6612EIBZ (Note) 6612 EIBZ -40
ISL6612IB ISL66 12IB -40
ISL6612IBZ (Note) 6612 IBZ -40
ISL6612IR 612I -40
ISL6612IRZ (Note) 12IZ -40
ISL6613CB ISL66 13CB 0 to +85 8 Ld SOIC M8.15
ISL6613CBZ (Note) 6613 CBZ 0 to +85 8 Ld SOIC (Pb-Free) M8.15
ISL6613CR 613C 0 to +85 10 Ld 3x3 DFN L10.3x3
ISL6613CRZ (Note) 613Z 0 to +85 10 Ld 3x3 DFN (Pb-Free) L10.3x3
ISL6613ECB ISL66 13ECB 0 to +85 8 Ld EPSOIC M8.15B
ISL6613ECBZ (Note) 6613 ECBZ 0 to +85 8 Ld EPSOIC (Pb-Free) M8.15B
ISL6613EIB ISL66 13EIB -40
ISL6613EIBZ (Note) 6613 EIBZ -40
ISL6613IB ISL66 13IB -40
ISL6613IBZ (Note) 6613 IBZ -40
ISL6613IR 613I -40
ISL6613IRZ (Note) 13IZ -40
Add “-T” suffix for tape and reel.
to +85 8 Ld EPSOIC M8.15B
to +85 8 Ld EPSOIC (Pb-Free) M8.15B
to +85 8 Ld SOIC M8.15
to +85 8 Ld SOIC (Pb-Free) M8.15
to +85 10 Ld 3x3 DFN L10.3x3
to +85 10 Ld 3 x 3 DFN (Pb-Fre e ) L10.3x3
to +85 8 Ld EPSOIC M8.15B
to +85 8 Ld EPSOIC (Pb-Free) M8.15B
to +85 8 Ld SOIC M8.15
to +85 8 Ld SOIC (Pb-Free) M8.15
to +85 10 Ld 3x3 DFN L10.3x3
to +85 10 Ld 3 x 3 DFN (Pb-Fre e ) L10.3x3
NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin
plate termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are
MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
Pinouts
ISL6612CB, ISL6613CB
(8 LD SOIC)
ISL6612ECB, ISL6613ECB
(8 LD EPSOIC)
TOP VIEW
UGATE
BOOT
PWM
GND
1
2
GND
3
4
2
8
7
6
5
PHASE
PVCC
VCC
LGATE
ISL6612CR, ISL6613CR
(10 LD 3x3 DFN)
TOP VIEW
BOOT
N/C
PWM
GND
1
2
GND
3
4
5
UGATE
10
9
8
7
6
PHASE
PVCC
N/C
VCC
LGATE
FN9153.8
February 26, 2007
ISL6612, ISL6613

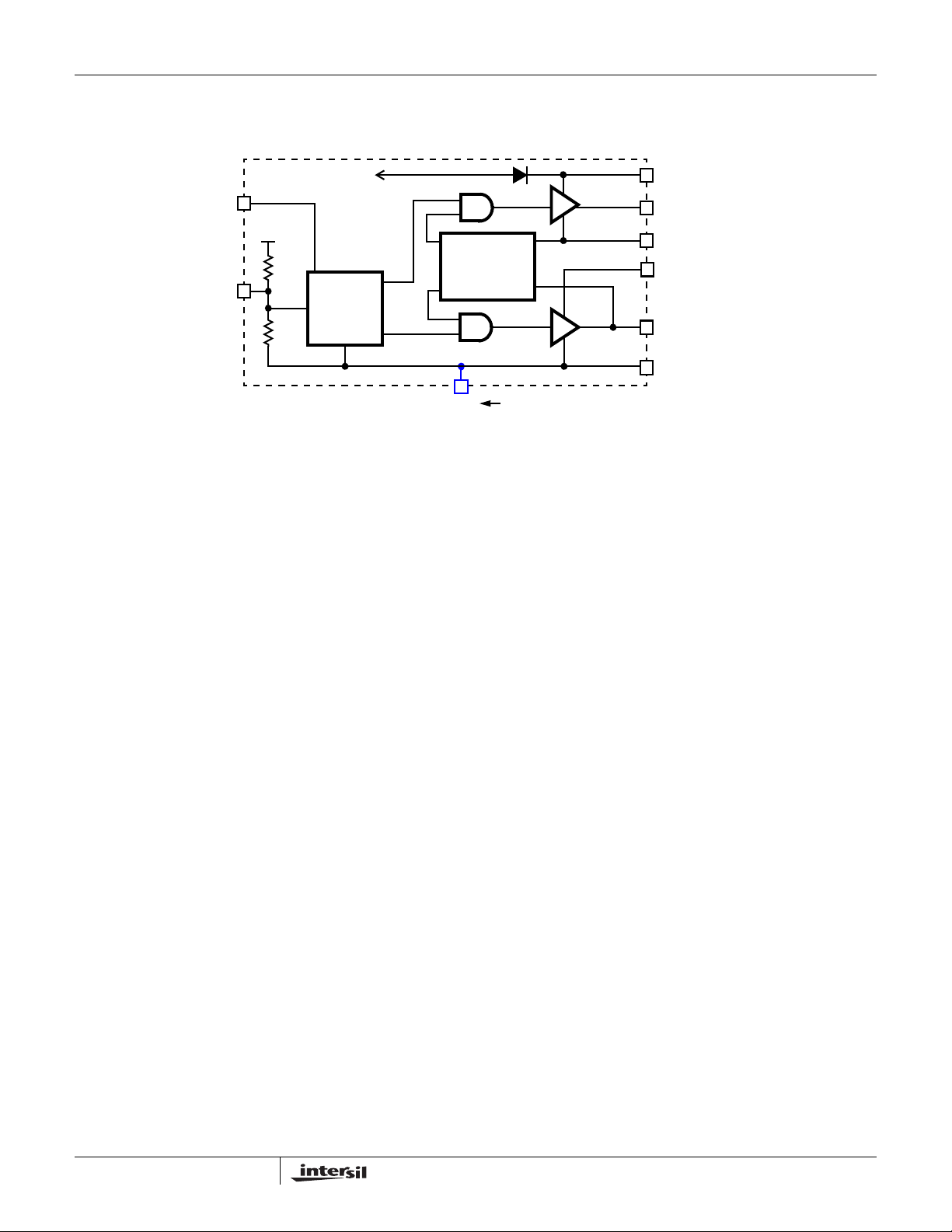

Block Diagram
VCC
PWM
+5V
10k
8k
UVCC
OTP AND
PRE-POR OVP
FEATURES
POR/
CONTROL
LOGIC
ISL6612 AND ISL6613
SHOOT-
THROUGH
PROTECTION
PAD
FOR DFN AND EPSOIC-DEVICES, THE PAD ON THE BOTTOM SIDE OF
THE PACKAGE MUST BE SOLDERED TO THE CIRCUIT’S GROUND.
(LVCC)
BOOT
UGATE
PHASE
PVCC
UVCC = VCC FOR ISL6612
UVCC = PVCC FOR ISL6613
LGATE
GND
3
FN9153.8
February 26, 2007
ISL6612, ISL6613

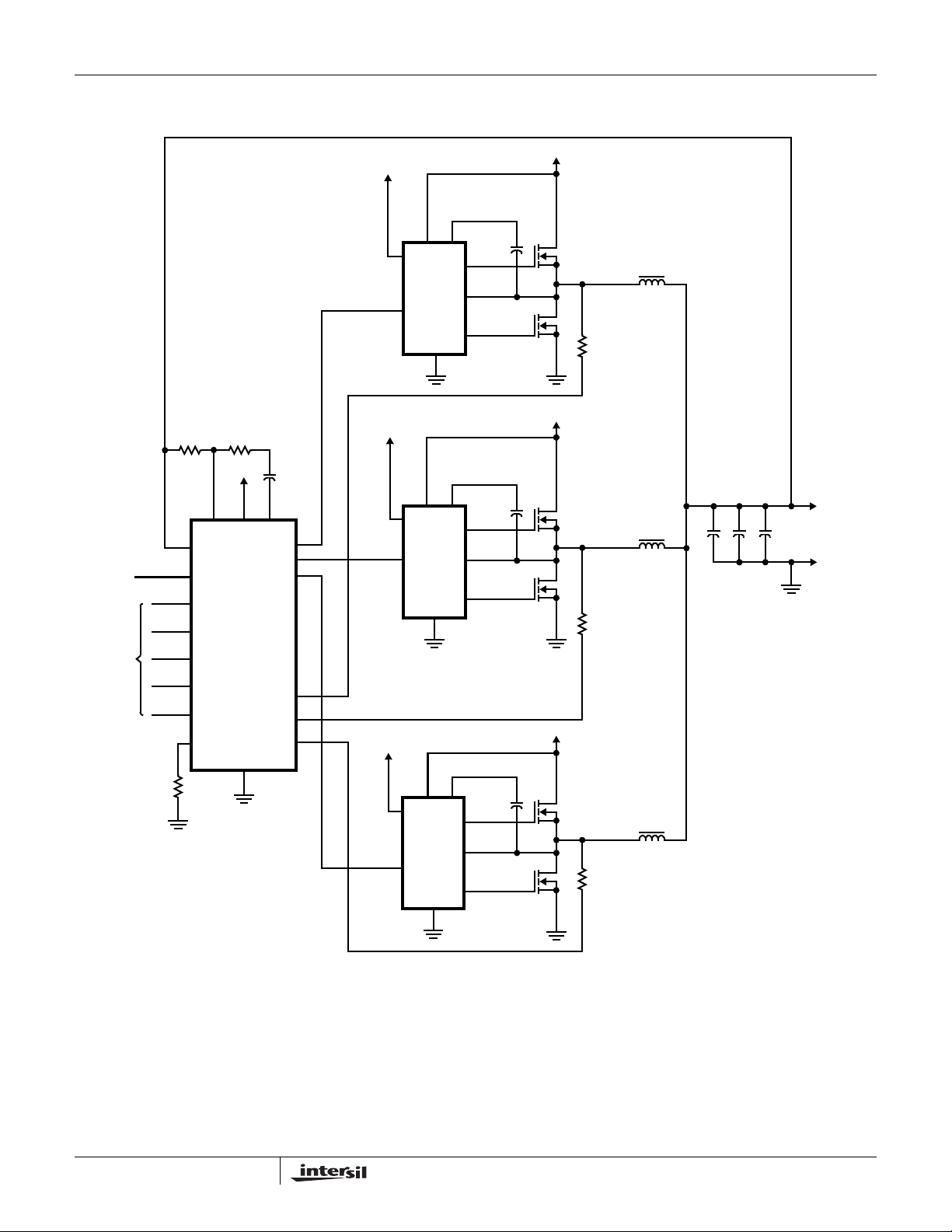

Typical Application - 3 Channel Converter Using ISL65xx and ISL6612 Gate Drivers
VSEN
PGOOD
VFB
VCC
+5V
COMP
PWM1
PWM2
PWM3
+5V TO 12V
PVCC
PWM
+5V TO 12V
PVCC
PWM
VCC
ISL6612
GND
VCC
ISL6612
BOOT
UGATE
PHASE
LGATE
BOOT
UGATE
PHASE
LGATE
+12V
+12V
+V
CORE
VID
FS
MAIN
CONTROL
ISL65xx
GND
ISEN1
ISEN2
ISEN3
GND
+5V TO 12V
VCC
PVCC
PWM
GND
ISL6612
+12V
BOOT
UGATE
PHASE
LGATE
4
FN9153.8
February 26, 2007
ISL6612, ISL6613
Absolute Maximum Ratings Thermal Information
Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V
Supply Voltage (PVCC) . . . . . . . . . . . . . . . . . . . . . . . . . VCC + 0.3V
Input Voltage (V
BOOT Voltage (V
BOOT To PHASE Voltage (V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 16V (<10ns, 10µJ)
UGATE. . . . . . . . . . . . . . . . . . . V
V
LGATE. . . . . . . . . . . . . . . . . . . . . . GND - 0.3V
PHASE
) . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to 7V
PWM
BOOT-GND
). . . . . . . . . . . . . . . . . . . . . . . . . . . .36V
BOOT-PHASE
). . . . . -0.3V to 15V (DC)
- 0.3VDC to V
PHASE
- 3.5V (<100ns Pulse Width, 2µJ) to V
to V
GND - 5V (<100ns Pulse Width, 2µJ) to V
DC
BOOT
BOOT
PVCC
PVCC
+ 0.3V
+ 0.3V
+ 0.3V
+ 0.3V
PHASE. . . . . . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3VDC to 15VDC
GND - 8V (<400ns, 20µJ) to 30V (<200ns, V
ESD Rating
BOOT-GND
<36V)
Human Body Model . . . . . . . . . . . . . . . . . . . .Class I JEDEC STD
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTES:
is measured with the component mounted on a high effective thermal conductivity test board in free air.
1. θ
JA
is measured in free air with the component mounted on a high effective thermal conductivity test board with “direct attach” features. See
2. θ
JA
Tech Brief TB379.
3. For θ
, the “case temp” location is the center of the exposed metal pad on the package underside.
JC
Thermal Resistance θ
(°C/W) θJC (°C/W)
JA
8 Ld SOIC Package (Note 1) . . . . . . . . 100 N/A
8 Ld EPSOIC Package (Notes 2, 3). . . 50 7
10 Ld DFN Package (Notes 2, 3). . . . . 48 7
Maximum Junction Temperature (Plastic Package) . . . . . . .+150°C
Maximum Storage Temperature Range. . . . . . . . . .-65°C to +150°C
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . . +300°C
(SOIC - Lead Tips Only)
Recommended Operating Conditions
Ambient Temperature Range. . . . . . . . . . . . . . . . . . .-40°C to +85°C
Maximum Operating Junction Temperature. . . . . . . . . . . . . +125°C
Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . .12V ±10%
Supply Voltage Range, PVCC . . . . . . . . . . . . . . . . 5V to 12V ±10%
Electrical Specifications Recommended Operating Conditions, Unless Otherwise Noted.
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
VCC SUPPLY CURRENT
Bias Supply Current I
Gate Drive Bias Current I
VCC
I
VCC
PVCC
I
PVCC
POWER-ON RESET AND ENABLE
VCC Rising Threshold T
VCC Rising Threshold T
VCC Falling Threshold T
VCC Falling Threshold T

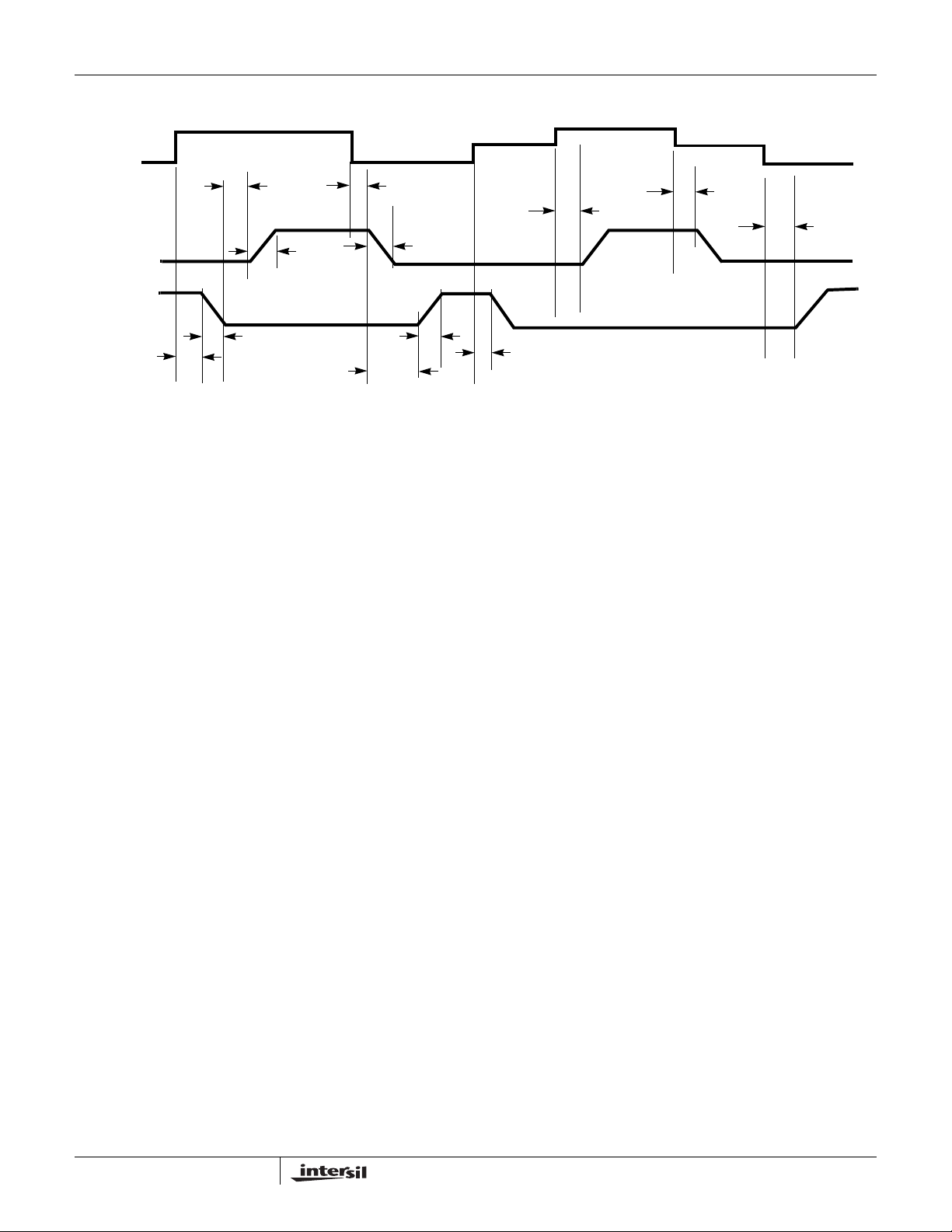

PWM INPUT (See “TIMING DIAGRAM” on page 7)
Input Current I
PWM
PWM Rising Threshold VCC = 12V - 3.00 - V
PWM Falling Threshold VCC = 12V - 2.00 - V
Typical Three-State Shutdown Window VCC = 12V 1.80 2.40 V
Three-State Lower Gate Falling Threshold VCC = 12V - 1.50 - V
Three-State Lower Gate Rising Threshold VCC = 12V - 1.00 - V
Three-State Upper Gate Rising Threshold VCC = 12V - 3.20 - V
Three-State Upper Gate Falling Threshold VCC = 12V - 2.60 - V
Shutdown Holdoff Time t
TSSHD
ISL6612, f
ISL6613, f
ISL6612, f
ISL6613, f
ISL6612, f
ISL6613, f
ISL6612, f
ISL6613, f
= 0°C to +85°C 9.35 9.80 10.00 V
A
= -40°C to +85°C 8.35 9.80 10.00 V
A
= 0°C to +85°C 7.35 7.60 8.00 V
A
= -40°C to +85°C 6.35 7.60 8.00 V
A
V
= 5V - 450 - µA
PWM
V
PWM
= 300kHz, V
PWM
= 300kHz, V
PWM
= 1MHz, V
PWM
= 1MHz, V
PWM
= 300kHz, V
PWM
= 300kHz, V
PWM
= 1MHz, V
PWM
= 1MHz, V
PWM
= 12V - 7.2 - mA
VCC
= 12V - 4.5 - mA
VCC
= 12V - 11 - mA
VCC
= 12V - 5 - mA
VCC
= 12V - 2.5 - mA
PVCC
= 12V - 5.2 - mA
PVCC
= 12V - 7 - mA
PVCC
= 12V - 13 - mA
PVCC
= 0V - -400 - µA
- 245 - ns
5
FN9153.8
February 26, 2007
ISL6612, ISL6613
Electrical Specifications Recommended Operating Conditions, Unless Otherwise Noted. (Continued)
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
UGATE Rise Time t
LGATE Rise Time t
UGATE Fall Time t
LGATE Fall Time t
UGATE Turn-On Propagation Delay (Note 4) t
LGATE Turn-On Propagation Delay (Note 4) t
UGATE Turn-Off Propagation Delay (Note 4) t
LGATE Turn-Off Propagation Delay (Note 4) t
LG/UG Three-State Propagation Delay (Note 4) t
RU
RL
FU
FL
PDHU
PDHL
PDLU
PDLL
PDTS
OUTPUT (Note 4)
Upper Drive Source Current I
Upper Drive Source Impedance R
Upper Drive Sink Current I
Upper Drive Transition Sink Impedance R
Upper Drive DC Sink Impedance R
Lower Drive Source Current I
Lower Drive Source Impedance R
Lower Drive Sink Current I
Lower Drive Sink Impedance R
U_SOURCEVPVCC
U_SOURCE
U_SINK
U_SINK_TR
U_SINK_DC
L_SOURCEVPVCC
L_SOURCE
L_SINK
L_SINK
OVER TEMPERATURE SHUTDOWN
Thermal Shutdown Setpoint - 150 - °C
Thermal Recovery Setpoint - 108 - °C
NOTE:
4. Guaranteed by design. Not 100% tested in production.
V
= 12V, 3nF Load, 10% to 90% - 26 - ns
PVCC
V
= 12V, 3nF Load, 10% to 90% - 18 - ns
PVCC
V
= 12V, 3nF Load, 90% to 10% - 18 - ns
PVCC
V
= 12V, 3nF Load, 90% to 10% - 12 - ns
PVCC
V
= 12V, 3nF Load, Adaptive - 10 - ns
PVCC
V
= 12V, 3nF Load, Adaptive - 10 - ns
PVCC
V
= 12V, 3nF Load - 10 - ns
PVCC
V
= 12V, 3nF Load - 10 - ns
PVCC
V
= 12V, 3nF Load - 10 - ns
PVCC
= 12V, 3nF Load - 1.25 - A
150mA Source Current 1.25 2.0 3.0 Ω
V
= 12V, 3nF Load - 2 - A
PVCC
70ns with Respect to PWM Falling - 1.3 2.2 Ω
150mA Source Current 0.9 1.65 3.0 Ω
= 12V, 3nF Load - 2 - A
150mA Source Current 0.85 1.25 2.2 Ω
V
= 12V, 3nF Load - 3 - A
PVCC
150mA Sink Current 0.60 0.80 1.35 Ω
Functional Pin Description
PACKAGE PIN #
1 1 UGATE Upper gate drive output. Connect to gate of high-side power N-Channel MOSFET.
2 2 BOOT Floating bootstrap supply pin for the upper gate drive. Connect the bootstrap capacitor between this pin and the
- 3, 8 N/C No Connection.
3 4 PWM The PWM signal is the control input for the driver. The PWM signal can enter three distinct sta tes during operation;
4 5 GND Bias and reference ground. All signals are referenced to this node. It is also the power ground return of the driver.
5 6 LGATE Lower gate drive output. Connect to gate of the low-side power N-Channel MOSFET.
6 7 VCC Connect this pin to a +12V bias supply. Place a high quality low ESR ceramic capacitor from this pin to GND.
7 9 PVCC This pin supplies power to both upper and lower gate drives in ISL6613; only the lower gate drive in ISL6612. Its
8 10 PHASE Connect this pin to the SOURCE of the upper MOSFET and the DRAIN of the lower MOSFET. This pin provides
9 11 PAD Connect this pad to the power ground plane (GND) via thermally enhanced connection.
PIN
SYMBOL FUNCTIONSOIC DFN
PHASE pin. The bootstrap capacitor provides the charge to turn on the upper MOSFET. See “Internal Bootstrap
Device” on page 8 for guidance in choosing the capacitor value.
see “Three-State PWM Inpu t” on page 7 for further details. Connect this pin to the PWM output of the controller.
operating range is +5V to 12V. Place a high quality low ESR ceramic capacitor from this pin to GND.
a return path for the upper gate drive.
6
FN9153.8
February 26, 2007
Description
ISL6612, ISL6613
PWM
t
PDLU
t
FU
t
RL
FIGURE 1. TIMING DIAGRAM
UGATE
LGATE
t
PDLL
t
PDHU
t
RU
t
FL
t
PDHL
Operation
Designed for versatility and speed, the ISL6612 and ISL6613
MOSFET drivers control both high-side and low-side
N-Channel FETs of a half-bridge power train from one
externally provided PWM signal.
Prior to VCC exceeding its POR level, the Pre-POR
overvoltage protection function is activated; the upper gate
(UGATE) is held low and the lower gate (LGATE), controlled by
the Pre-POR overvoltage protection circuits, is connected to the
PHASE. Once the VCC voltage surpasses the VCC Rising
Threshold (see “Electrical Specifications” on page 5), the PWM
signal takes control of gate transitions. A rising edge on PWM
initiates the turn-off of the lower MOSFET (see Timing
Diagram). After a short propagation delay [t
gate begins to fall. Typical fall times [t
] are provided in
FL
“Electrical Specifications” on page5. Adaptive shoot-through
circuitry monitors the PHASE voltage and determines the upper
gate delay time [t
]. This prevents both the lower and
PDHU
upper MOSFETs from conducting simultaneously . Once this
delay period is complete, the upper gate drive begins to rise
[t
] and the upper MOSFET turns on.
RU
A falling transition on PWM results in the turn-off of the upper
MOSFET and the turn-on of the lower MOSFET. A short
propagation delay [t
gate begins to fall [t
] is encountered before the upper
PDLU
]. Again, the adaptive shoot-through
FU
circuitry determines the lower gate delay time, t
PHASE voltage and the UGATE voltage are monitored, and
the lower gate is allowed to rise after PHASE drops below a
level or the voltage of UGATE to PHASE reaches a level
depending upon the current direction (See the following
section for details). The lower gate then rises [t
the lower MOSFET.
PDLL
], the lower
. The
PDHL
], turning on
RL
1.5V<PWM<3.2V
t
TSSHD
t
PDTS
1.0V<PWM<2.6V
t
TSSHD
Advanced Adaptive Zero Shoot-Through Deadtime
Control (Patent Pending)
These drivers incorporate a unique adaptive deadtime control
technique to minimize deadtime, resulting in high efficiency
from the reduced freewheeling time of the lower MOSFETs’
body-diode conduction, and to prevent the upper and lower
MOSFETs from conducting simultaneously. This is
accomplished by ensuring either rising gate turns on its
MOSFET with minimum and sufficient delay af ter the oth er
has turned off.
During turn-off of the lower MOSFET, the PHASE voltage is
monitored until it reaches a -0.2V/+0.8V trip point for a
forward/reverse current, at which time the UGATE is released
to rise. An auto-zero comparator is used to correct the r
drop in the phase voltage preventing from false detection of the
-0.2V phase level during r
conduction period. In the case
DS(ON
of zero current, the UGATE is released after 35ns delay of the
LGATE dropping below 0.5V. During the phase detection, the
disturbance of LGATE’s falling transition on the PHASE node is
blanked out to prevent falsely tripping. Once the PHASE is
high, the advanced adaptive shoot-through circuitry monitors
the PHASE and UGA TE volt ages during a PWM falling edge
and the subsequent UGATE turn-off. If either the UGATE falls
to less than 1.75V above the PHASE or the PHASE falls to less
than +0.8V , the LGATE is released to turn on.
Three-State PWM Input
A unique feature of these drivers and other Intersil drivers is
the addition of a shutdown window to the PWM input. If the
PWM signal enters and remains within the shutdown window
for a set holdoff time, the driver outputs are disabled and
both MOSFET gates are pulled and held low. The shutdown
state is removed when the PWM signal moves outside the
shutdown window. Otherwise, the PWM rising and falling
thresholds (outlined in “Electrical Specifications” on page5)
determine when the lower and upper gates are enabled.
t
PDTS
DS(ON)
7
FN9153.8
February 26, 2007
ISL6612, ISL6613
This feature helps prevent a negative transient on the output
voltage when the output is shut down, eliminating the
Schottky diode that is used in some systems for protecting
the load from reversed output voltage events.
In addition, more than 400mV hysteresis also incorporates
into the three-state shutdown window to eliminate PWM
input oscillations due to the capacitive load seen by the
PWM input through the body diode of the controller’s PWM
output when the power-up and/or power-down sequence of
bias supplies of the driver and PWM controller are required.
Power-On Reset (POR) Function
During initial startup, the VCC voltage rise is monitored.
Once the rising VCC voltage exceeds 9.8V (typically),
operation of the driver is enabled and the PWM input signal
takes control of the gate drives. If VCC drops below the
falling threshold of 7.6V (typically), operation of the driver is
disabled.
Pre-POR Overvoltage Protection
Prior to VCC exceeding its POR level, the upper gate is held
low and the lower gate is controlled by the overvoltage
protection circuits during initial startup. The PHASE is
connected to the gate of the low side MOSFET (LGATE),
which provides some protection to the microprocessor if the
upper MOSFET(s) is shorted during initial startup. For
complete protection, the low side MOSFET should have a
gate threshold well below the maximum voltage rating of the
load/microprocessor.
When VCC drops below its POR level, both gates pull low
and the Pre-POR overvoltage protection circuits are not
activated until VCC resets.
Internal Bootstrap Device
Both drivers feature an internal bootstrap schottky diode.
Simply adding an external capacitor across the BOOT and
PHASE pins completes the bootstrap circuit. The bootstrap
function is also designed to prevent the bootstrap capacitor
from overcharging due to the large negative swing at the
trailing-edge of the PHASE node. This reduces voltage
stress on the boot to phase pins.
The bootstrap capacitor must have a maximum voltage
rating above UVCC + 5V and its capacitance value can be
chosen from the following equation:
Q
GATE
C
BOOT_CAP
Q
GATE
where Q
at V
GS1
control MOSFETs. The ΔV
allowable droop in the rail of the upper gate drive.
--------------------------------------
≥
ΔV
BOOT_CAP
QG1UVCC•
------------------------------------
V
GS1
is the amount of gate charge per upper MOSFET
G1
•=
N
Q1
gate-source voltage and NQ1 is the number of
BOOT_CAP
term is defined as the
(EQ. 1)
As an example, suppose two IRLR7821 FET s are chosen as
the upper MOSFETs. The gate charge, Q
sheet is 10nC at 4.5V (V
Q
is calculated to be 53nC for UVCC (i.e. PVCC in
GATE
) gate-source voltage. Then the
GS
, from the data
G
ISL6613, VCC in ISL6612) =12V. We will assume a 200mV
droop in drive voltage over the PWM cycle. We find that a
bootstrap capacitance of at least 0.267μF is required.
1.6
1.4
1.2
1.0
(µF)
0.8
0.6
BOOT_CAP
C
0.4
0.2
20nC
0.0

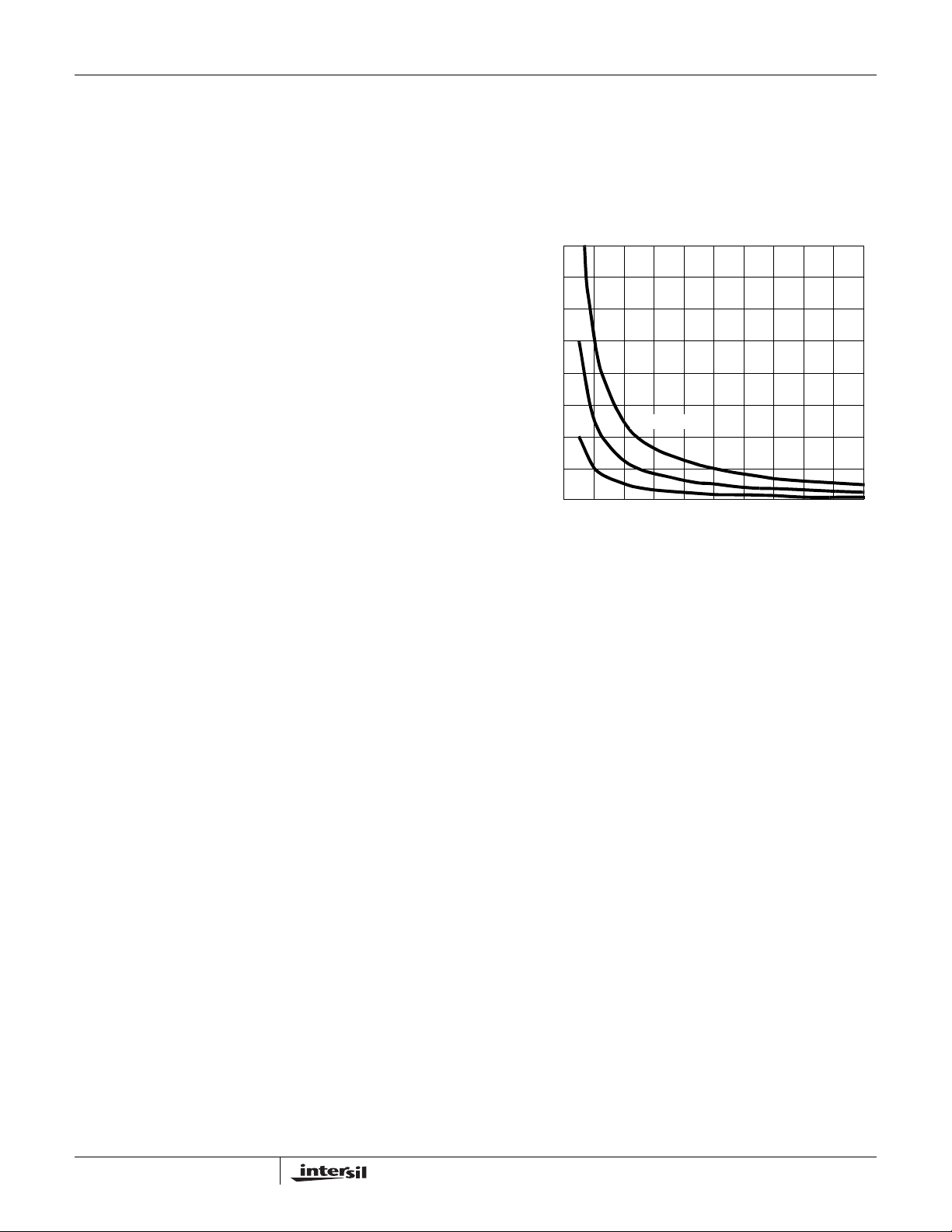

FIGURE 2. BOOTSTRAP CAPACITANCE vs BOOT RIPPLE
Q
50nC
VOLTAGE
= 100nC
GATE
0.30.0 0.1 0.2 0.4 0.5 0.6 0.90.7 0.8 1.0
ΔV
BOOT_CAP
(V)
Gate Drive Voltage Versatility
The ISL6612 and ISL6613 provide the user flexibility in
choosing the gate drive voltage for efficiency optimization.
The ISL6612 upper gate drive is fixed to VCC [+12V], but the
lower drive rail can range from 12V down to 5V depending
on what voltage is applied to PVCC. The ISL6613 ties the
upper and lower drive rails together. Simply applying a
voltage from 5V up to 12V on PVCC sets both gate drive rail
voltages simultaneously.
Over-Temperature Prot ection (OTP)
When the junction temperature of the IC exceeds +150°C
(typically), both upper and lower gates turn off. The driver
stays off and does not return to normal operation until its
junction temperature comes down below +108°C (typically).
For high frequency applications, applying a lower voltage to
PVCC helps reduce the power dissipation and lower the
junction temperature of the IC. This method reduces the risk
of tripping OTP.
Power Dissipation
Package power dissipation is mainly a function of the
switching frequency (f
external gate resistance, and the selected MOSFET’s inte rnal
gate resistance and total gate charge. Calculating the power
dissipation in the driver for a desired application is critical to
ensure safe operation. Exceeding the maximum allowable
power dissipation level will push the IC beyond the maximum
recommended operating junction temperature of +125°C. The
), the output drive impedance, the
SW
8
FN9153.8
February 26, 2007
ISL6612, ISL6613
maximum allowable IC power dissipation for the SO8 package
is approximately 800mW at room temperature, while the
power dissipation capacity in the EPSOIC and DFN
packages, with an exposed heat escape p ad, is more than 2W
and 1.5W, resp ectively. Both EPSOIC and DFN packages are
more suitable for high frequency applications. See “Layout
Considerations” on page 9 for thermal transfer improvement
suggestions. When designing the driver into an application, it
is recommended that the following calculation is used to
ensure safe operation at the desired frequency for the
selected MOSFETs. The total gate drive power losses due to
the gate charge of MOSFETs and the driver’s internal circuitry
and their corresponding average driver current can be
estimated using Equation 2 and Equation 3, respectively,
P
Qg_TOTPQg_Q1PQg_Q2IQ
QG1UVCC
•
P
Qg_Q1
P
Qg_Q2
⎛⎞
I
⎜⎟
DR
⎝⎠
where the gate charge (Q
---------------------------------------
V
GS1
QG2LVCC
•
--------------------------------------
V
GS2
QG1UVCC NQ1••
------------------------------------------------------
V
GS1
2
+
G1
particular gate to source voltage (V
corresponding MOSFET datasheet; I
VCC•++=
2
• NQ1•=
F
SW
• NQ2•=
F
SW
Q
LVCC NQ2••
G2
-----------------------------------------------------
V
GS2
and QG2) is defined at a
and V
GS1
Q
GS2
is the driver’s total
quiescent current with no load at both drive outputs; N
and N
are number of upper and lower MOSFETs,
Q2
(EQ. 2)
+•=
F
SWIQ
(EQ. 3)
) in the
Q1
respectively; UVCC and LVCC are the drive voltages for
both upper and lower FETs, respectively. The I
Q*
VCC
product is the quiescent power of the driver without
capacitive load and is typically 116mW at 300kHz.
The total gate drive power losses are dissipated among the
resistive components along the transition path. The drive
resistance dissipates a portion of the total gate drive power
losses, the rest will be dissipated by the external gate
resistors (R
and R
GI2
and RG2) and the internal gate resistors (R
G1
) of MOSFETs. Figures 3 and 4 show the typical
GI1
upper and lower gate drives turn-on transition path. The
power dissipation on the driver can be roughly estimated as:
DRPDR_UPPDR_LOWIQ
VCC•++=
UVCC
BOOT
PHASE
D
C
GD
R
HI1
R
LO1
G1
G
R
GI1R
C
GS
S
C
DS
Q
1

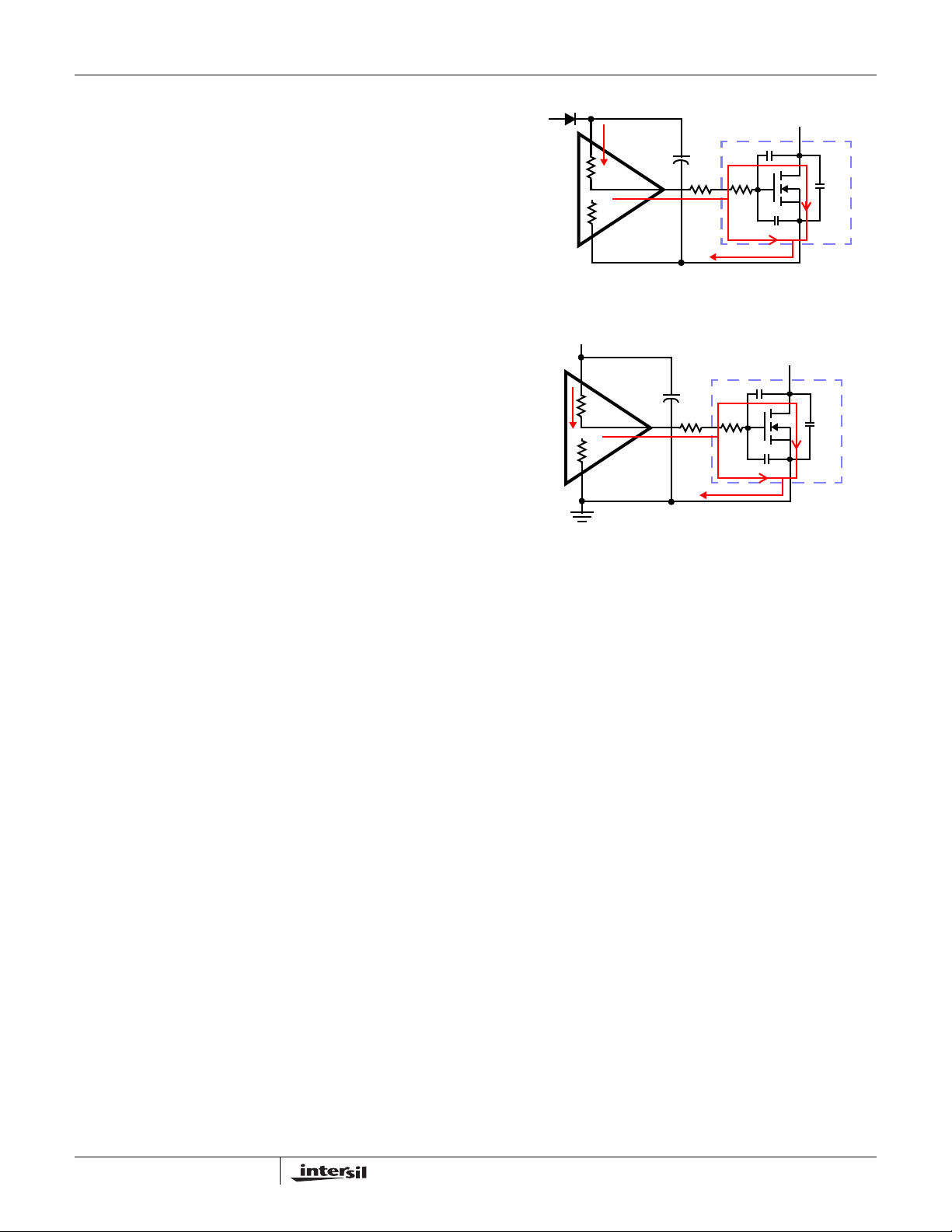

FIGURE 3. TYPICAL UPPER-GATE DRIVE TURN-ON PATH
LVCC
D
C
GD
R
HI2
R
LO2
G
R
GI2
R
G2
C
GS
S
C
DS
Q
2
FIGURE 4. TYPICAL LOWER-GATE DRIVE TURN-ON PATH
Layout Considerations
For heat spreading, place copper underneath the IC whether
it has an exposed pad or not. The copper area can be
extended beyond the bottom area of the IC and/or
connected to buried copper plane(s) with thermal vias. This
combination of vias for vertical heat escape, extended
copper plane, and buried planes for heat spreading allows
the IC to achieve its full thermal potential.
Place each channel power component as close to each
other as possible to reduce PCB copper losses and PCB
parasitics: shortest distance between DRAINs of upper FETs
and SOURCEs of lower FETs; shortest distance between
DRAINs of lower FETs and the power ground. Thus, smaller
amplitudes of positive and negative ringing are on the
switching edges of the PHASE node. However, some space
in between the power components is required for good
airflow. The traces from the drivers to the FETs should be
kept short and wide to reduce the inductance of the traces
and to promote clean drive signals.
⎛⎞
DR_UP
DR_LOW
EXT1RG1
⎜⎟
⎝⎠
R
HI1
--------------------------------------
R
+
HI1REXT1
R
⎛⎞
HI2
--------------------------------------
⎜⎟
R
+
⎝⎠
HI2REXT2
R
GI1
-------------
+=
N
Q1
R
LO1
----------------------------------------
+
R
+
LO1REXT1
R
LO2
----------------------------------------
+
R
+
LO2REXT2
R
EXT2RG2
P
Qg_Q1
---------------------
•=
P
---------------------
•=
R
-------------
+=
N
2
Qg_Q2
2
GI2
Q2
(EQ. 4)
9
FN9153.8
February 26, 2007
ISL6612, ISL6613

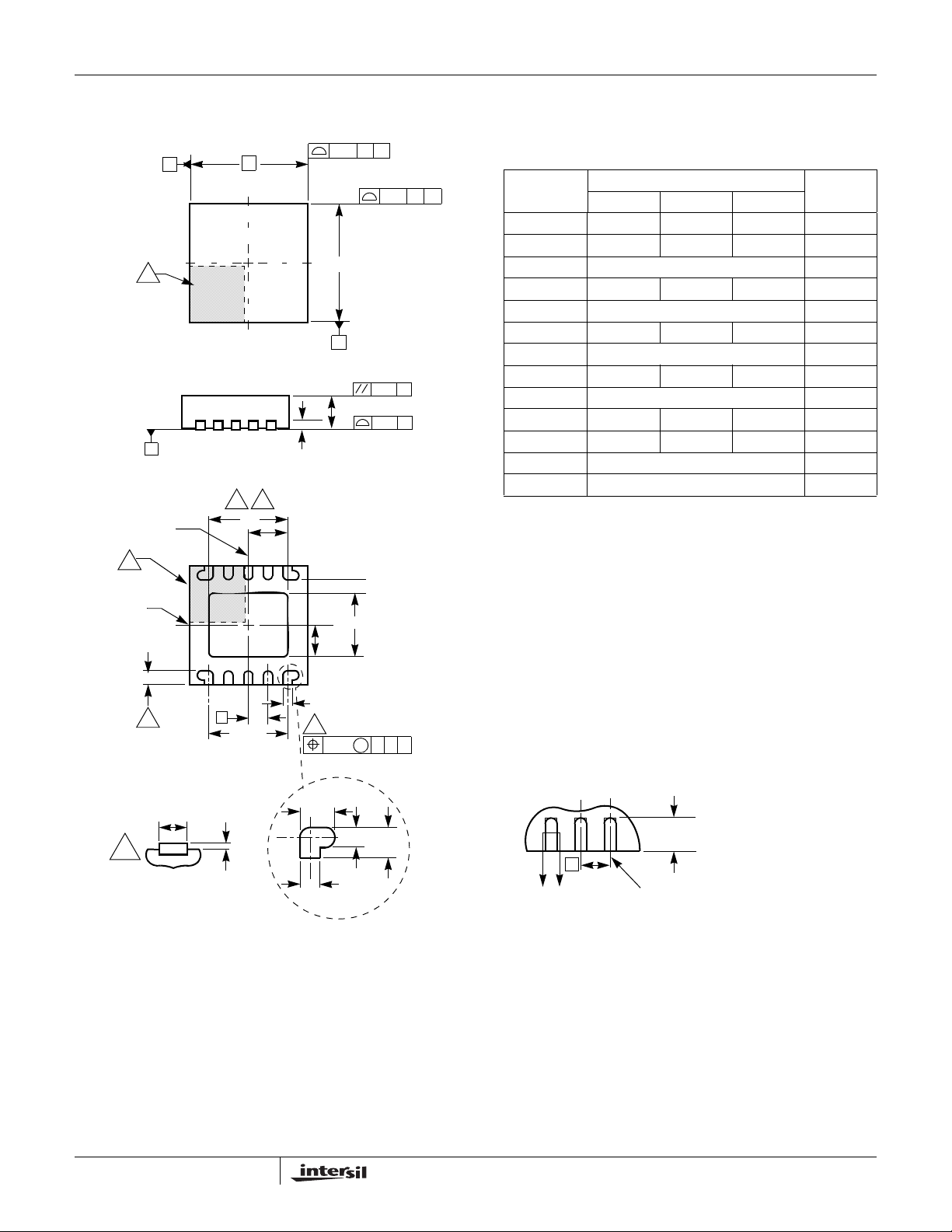

Dual Flat No-Lead Plastic Package (DFN)
INDEX
SEATING
(DATUM B)
6
INDEX
AREA
(DATUM A)
NX (b)
5
SECTION "C-C"
6
AREA
C
PLANE
NX L
8
A
12
D
TOP VIEW
SIDE VIEW
8
7
D2
D2/2
N-1N
e
(Nd-1)Xe
REF.
BOTTOM VIEW
(A1)
2X
A3
NX b
5
0.415
0.15
C
E
B
A
NX
E2
E2/2
0.10 MC
0.200
NX b
C
A
0.152XB
0.10 C
C
0.08
k
AB
NX L
L10.3x3
10 LEAD DUAL FLAT NO-LEAD PLASTIC PACKAGE
MILLIMETERS
C
SYMBOL
NOTESMIN NOMINAL MAX
A 0.80 0.90 1.00 -
A1 - - 0.05 -
A3 0.20 REF -
b 0.18 0.23 0.28 5,8
D 3.00 BSC -
D2 1.95 2.00 2.05 7,8
E 3.00 BSC -
E2 1.55 1.60 1.65 7,8
e 0.50 BSC -
k0.25 - - L0.300.35 0.40 8
N102
Nd 5 3
Rev. 3 6/04
NOTES:
1. Dimensioning and tolerancing conform to ASME Y14.5-1994.
2. N is the number of terminals.
3. Nd refers to the number of terminals on D.
4. All dimensions are in millimeters. Angles are in degrees.
5. Dimension b applies to the metallized terminal and is measured
between 0.15mm and 0.30mm from the terminal tip.
6. The configuration of the pin #1 identifier is optional, but must be
located within the zone indicated. The pin #1 identifier may be
either a mold or mark feature.
7. Dimensions D2 and E2 are for the exposed pads which provide
improved electrical and thermal performance.
8. Nominal dimensions are provided to assist with PCB Land
Pattern Design efforts, see Intersil Technical Brief TB389.
C
L
L
e
CC
FOR ODD TERMINAL/SIDE
TERMINAL TIP
10
FN9153.8
February 26, 2007
ISL6612, ISL6613

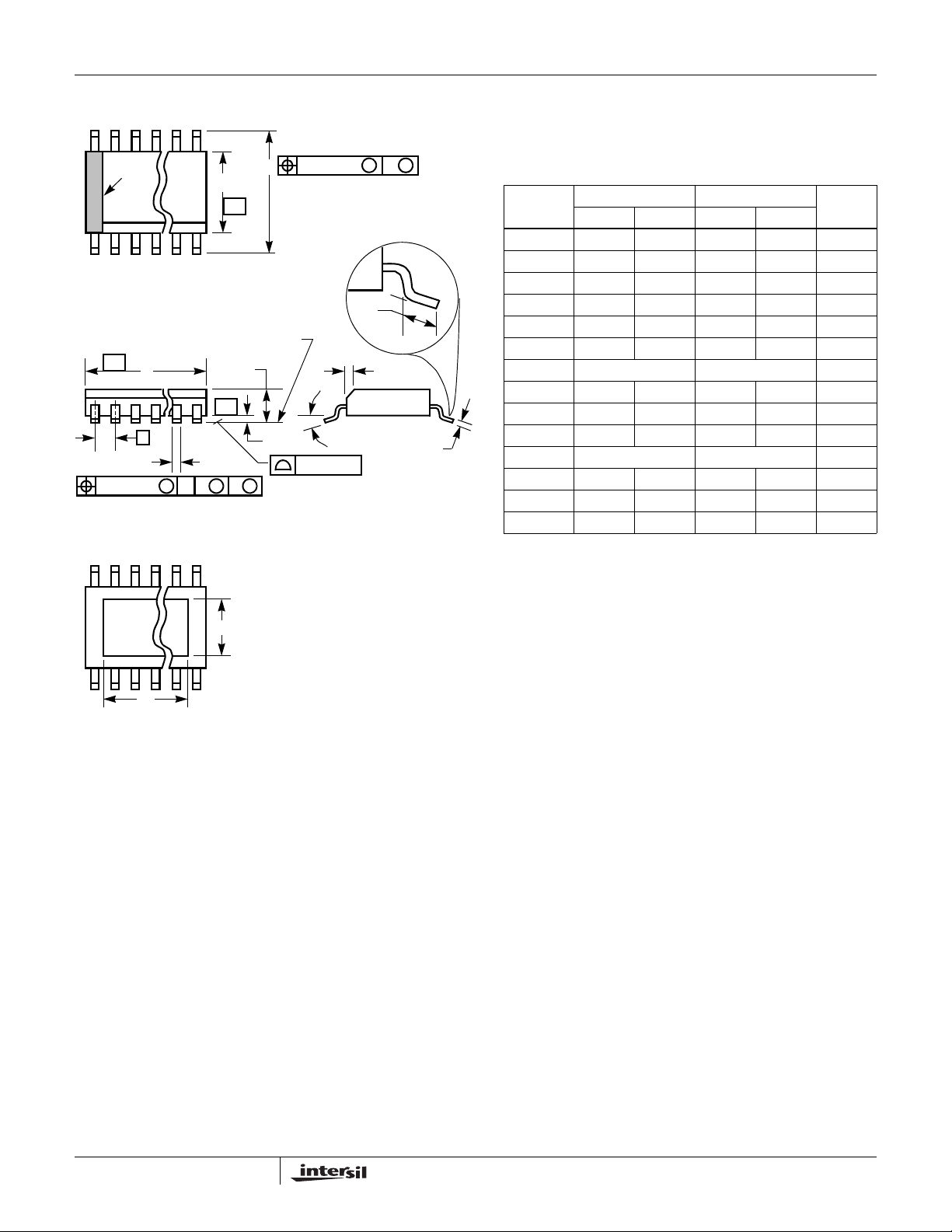

Small Outline Exposed Pad Plastic Packages (EPSOIC)
N
INDEX
AREA
123
TOP VIEW
-AD
e
B
0.25(0.010) C AM BS
SIDE VIEW
123
N
P
BOTTOM VIEW
E
H
-B-
SEATING PLANE
A
-C-
A1
M
P1
0.25(0.010) BM M
L
h x 45
α
0.10(0.004)
M8.15B
8 LEAD NARROW BODY SMALL OUTLINE EXPOSED PAD
PLASTIC PACKAGE
INCHES MILLIMETERS
SYMBOL
A 0.056 0.066 1.43 1.68 -
A1 0.001 0.005 0.03 0.13 -
B 0.0138 0.0192 0.35 0.49 9
C 0.0075 0.0098 0.19 0.25 D 0.189 0.196 4.80 4.98 3
E 0.150 0.157 3.31 3.39 4
o
e 0.050 BSC 1.27 BSC H 0.230 0.244 5.84 6.20 h 0.010 0.016 0.25 0.41 5
L 0.016 0.035 0.41 0.64 6
C
N8 87
α
0° 8° 0° 8° -
P - 0.094 - 2.387 11
P1 - 0.094 - 2.387 11
NOTES:
1. Symbols are defined in the “MO Series Symbol List” in Section
2.2 of Publication Number 95.
2. Dimensioning and tolerancing per ANSI Y14.5M-1982.
3. Dimension “D” does not include mold flash, protrusions or gate
burrs. Mold flash, protrusion and gate burrs shall not exceed
0.15mm (0.006 inch) per side.
4. Dimension “E” does not include interlead flash or protrusions.
Interlead flash and protrusions shall not exceed 0.25mm (0.010
inch) per side.
5. The chamfer on the body is optional. If it is not present, a visual
index feature must be located within the crosshatched area.
6. “L” is the length of terminal for soldering to a substrate.
7. “N” is the number of terminal positions.
8. Terminal numbers are shown for reference only.
9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater
above the seating plane, shall not exceed a maximum value of
0.61mm (0.024 inch).
10. Controlling dimension: MILLIMETER. Converted inch
dimensions are not necessarily exact.
11. Dimensions “P” and “P1” are thermal and/or electrical enhanced
variations. Values shown are maximum size of exposed pad
within lead count and body size.
NOTESMIN MAX MIN MAX
Rev. 3 6/05
11
FN9153.8
February 26, 2007
ISL6612, ISL6613

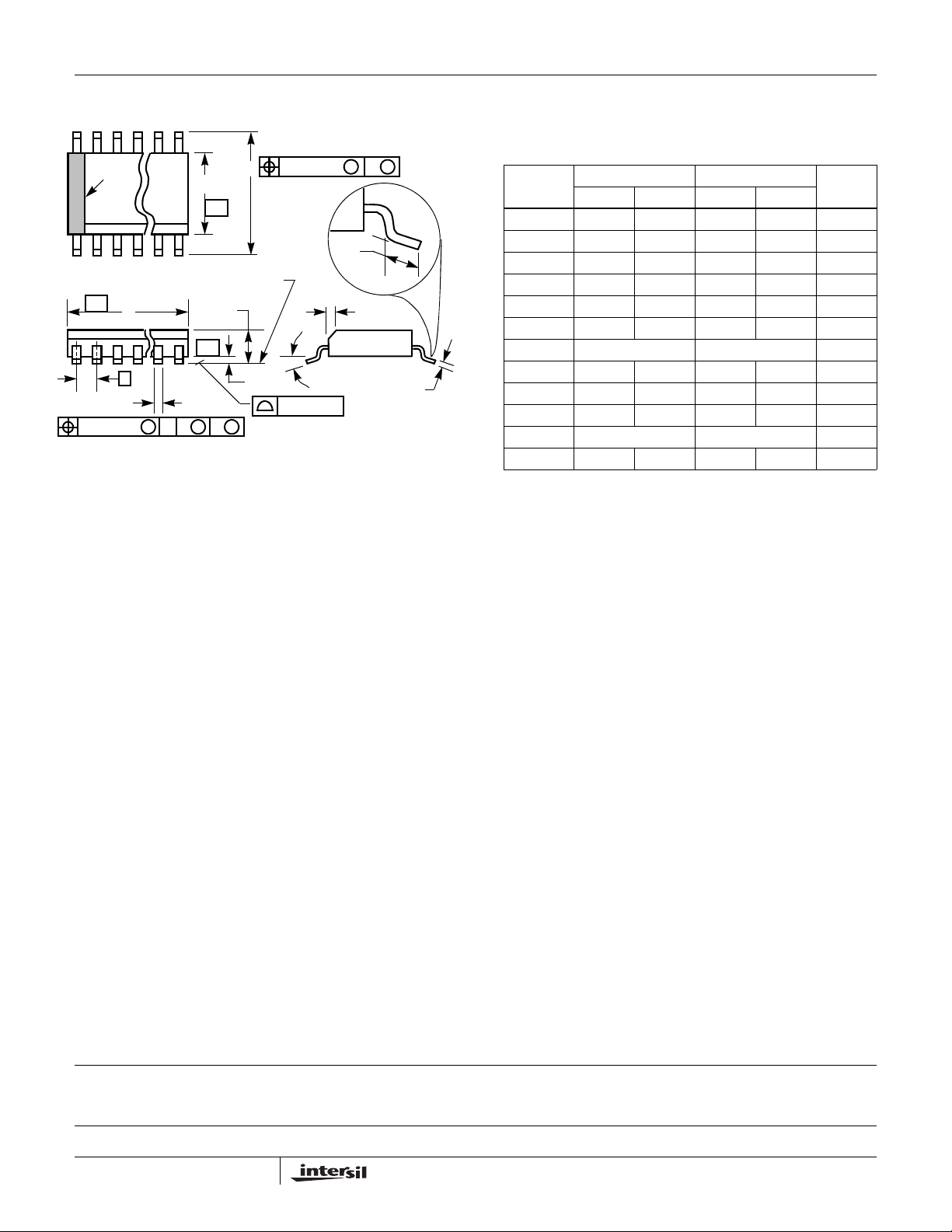

Small Outline Plastic Packages (SOIC)
N
INDEX
AREA
123
-A-
E
-B-
SEATING PLANE
D
A
-C-
0.25(0.010) BM M
H
L
h x 45°
α
e
B
0.25(0.010) C AM BS
M
NOTES:
1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of
Publication Number 95.
2. Dimensioning and tolerancing per ANSI Y14.5M-1982.
3. Dimension “D” does not include mold flash, protrusions or gate burrs.
Mold flash, protrusion and gate burrs shall not exceed 0.15mm (0.006
inch) per side.
4. Dimension “E” does not include interlead flash or protrusions. Interlead flash and protrusions shall not exceed 0.25mm (0.010 inch) per
side.
5. The chamfer on the body is optional. If it is not present, a visual index
feature must be located within the crosshatched area.
6. “L” is the length of terminal for soldering to a substrate.
7. “N” is the number of terminal positions.
8. Terminal numbers are shown for reference only.
9. The lead width “B”, as measured 0.36mm (0.014 inch) or greater
above the seating plane, shall not exceed a maximum value of
0.61mm (0.024 inch).
10. Controlling dimension: MILLIMETER. Converted inch dimensions
are not necessarily exact.
A1
C
0.10(0.004)
M8.15 (JEDEC MS-012-AA ISSUE C)
8 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE
INCHES MILLIMETERS
SYMBOL
A 0.0532 0.0688 1.35 1.75 -
A1 0.0040 0.0098 0.10 0.25 -
B 0.013 0.020 0.33 0.51 9
C 0.0075 0.0098 0.19 0.25 -
D 0.1890 0.1968 4.80 5.00 3
E 0.1497 0.1574 3.80 4.00 4
e 0.050 BSC 1.27 BSC -
H 0.2284 0.2440 5.80 6.20 -
h 0.0099 0.0196 0.25 0.50 5
L 0.016 0.050 0.40 1.27 6
N8 87
α
0° 8° 0° 8° -
NOTESMIN MAX MIN MAX
Rev. 1 6/05
All Intersil U.S. products are manufactured, assembled and tested utilizing ISO9000 quality systems.
Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without
notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implicat ion or oth erwise u nde r any p a tent or p at ent r ights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see www.intersil.com
12
FN9153.8
February 26, 2007
Loading...
