PRODUCT INFORMATION PACKET
Model No: 182TCDW7001
Catalog No: I103A
3,3600,DP,182T,1/60/115/208-230
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: 182TCDW7001, Catalog No:I103A 3,3600,DP,182T,1/60/115/208-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 75.5 % Duty Continous
Insulation Class
KVA Code G Frame 182T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code
3 Hp
32.0/17.1-16.1 A
1.15
F
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
2.2 kW
3500 rpm
1
L
6206
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Selective Counterclockwise
Capacitor Start Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 1.125 in Shaft Extension 2.81 in
Assembly/Box Mounting
Outline Drawing
Rigid base
13.69 in
W8
035555-950
Motor Orientation
Frame Length

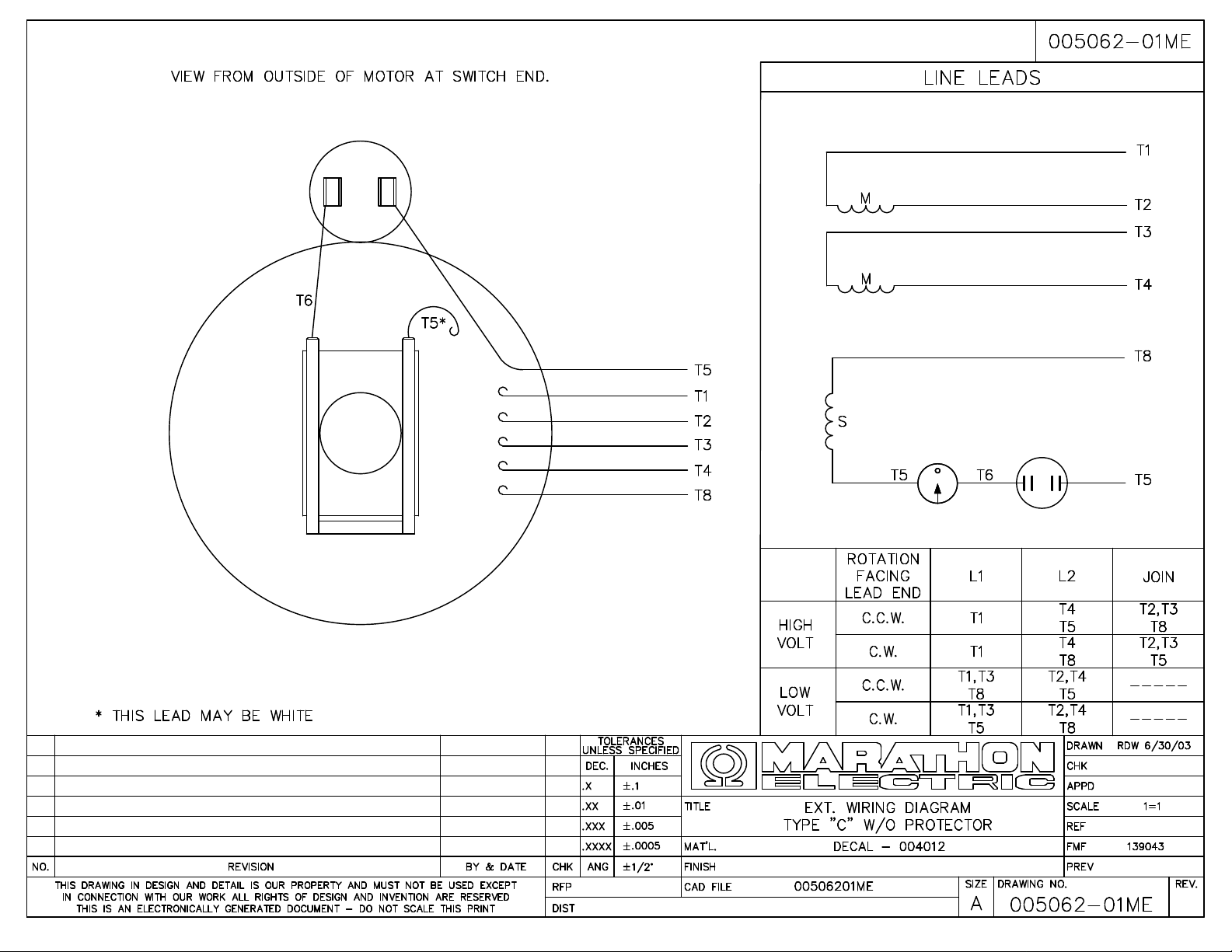

Connection Diagram
Shaft Up
9.50 in
005062.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 5
3 of 5
10/21/2013 4:34:09 AM - Converted by Connexus
6/29/2007 11:01:42 AM -
4 of 5
CERTIFICATION DATA SHEET
Model#: 182TCDW7001 AA WINDING#: C8219 R1 3
CONN. DIAGRAM: 005062.01ME ASSEMBLY: W8
OUTLINE: 035555-950
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3 2.24 3600 3500 182T DP G L
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 115/208-230 32/17.1-16.1 ACROSS THE
LINE
CONTINUOUSF4 1.15 40 3300
FULL LOAD EFF: 75.5 3/4 LOAD EFF: 74.7 1/2 LOAD EFF: 70.6 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 80 3/4 LOAD PF: 73.9 1/2 LOAD PF: 63.1 0 CAP START IND RUN 17.2 / 8.6
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
4.5 LB-FT 159.8 / 79.9 7.3 LB-FT 162 10.5 LB-FT 233 45
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA 0 LB-FT^2 0.5 LB-FT^2 10 SEC. - 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID SHAFT UP FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1045 (C-240) ROLLED STEEL
6207 6205
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 01:07:18 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
