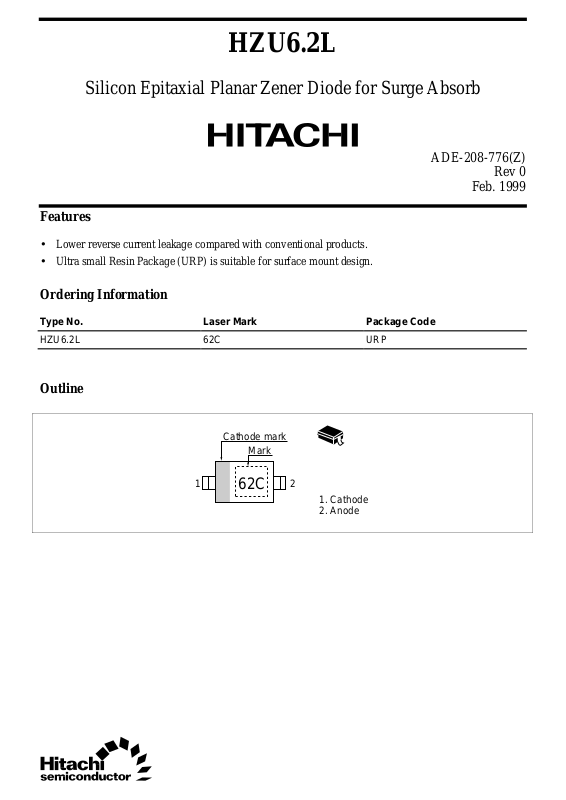

HZU6.2L
Silicon Epitaxial Planar Zener Diode for Surge Absorb
ADE-208-776(Z)
Rev 0
Feb. 1999
Features
• Lower reverse current leakage compared with conventional products.
• Ultra small Resin Package (URP) is suitable for surface mount design.
Ordering Information
Type No. Laser Mark Package Code
HZU6.2L 62C URP

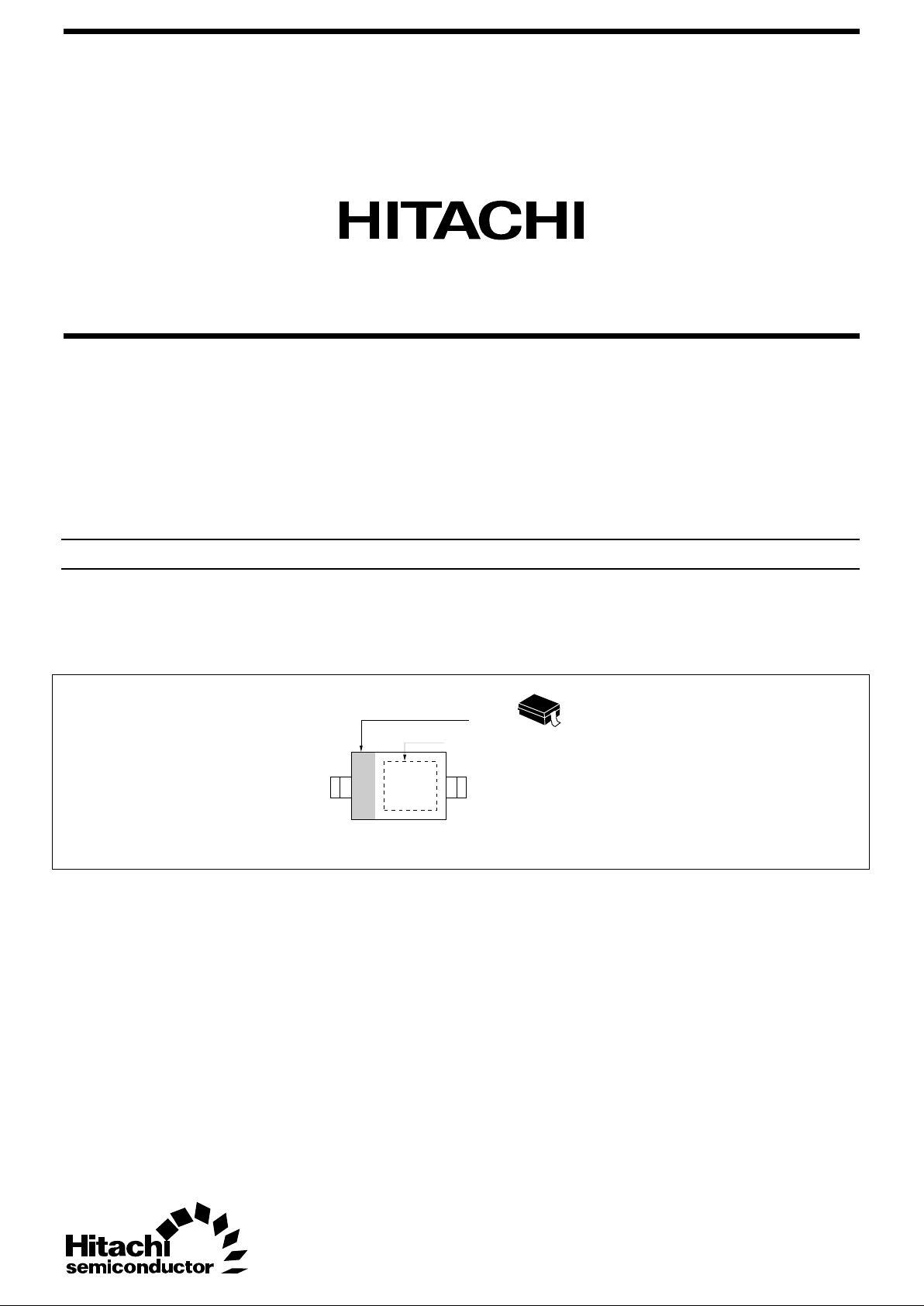

Outline
Cathode mark
Mark
12
1. Cathode
2. Anode
62C
Page 2
HZU6.2L
2
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Value Unit
Power dissipation Pd
*1
150 mW
Junction temperature Tj 150 °C
Storage temperature Tstg -55 to +150 °C
Note 1. See Fig.2.
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test Condition
Zener voltage V
Z
5.80 6.60 V IZ = 5 mA, 40ms pulse
Reverse current I
R
100 nA VR = 5.0V
Dynamic resistance r
d
30 Ω IZ = 5 mA
Page 3
HZU6.2L
3

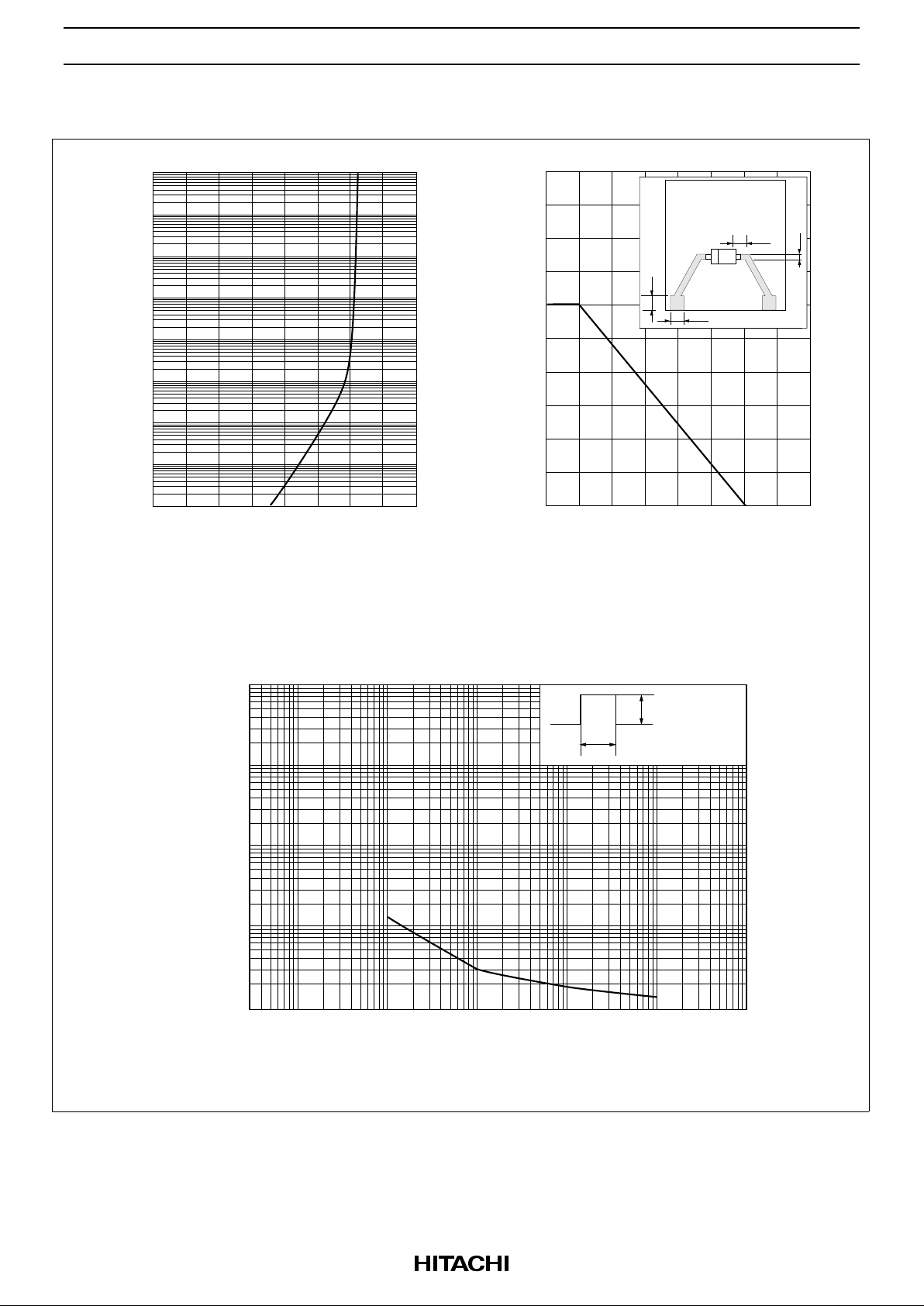

Main Characteristic
250
200
150
100
50
200
150100
50
0
0
Fig.2 Power Dissipation Vs. Ambient Temperature
Ambient Temperature Ta (°C)
Power Dissipation P
d
(mW)
Fig.1 Zener current Vs. Zener voltage
Zener Voltage Vz (V)
Zener Current Iz (A)
Fig.3 Surge Reverse Power Ratings
Ta = 25°C
nonrepetitive
Time t (s)
Nonrepetitive Surge Reverses Power P (W)
RSM
Polyimide board
3.0
0.8
1.5
20hx15wx0.8t
1.5
unit: mm
t
P
RSM
10 10
1.0
10 10
1.0
10
10
10
10
10
4
3
2
-5
-4 -3 -2 -1
10
012
34 5
6
8
10
-6
10
-7
10
10
-8
-5
10
-9
10
-10
-2
10
-3
10
-4
7
Page 4
HZU6.2L
4
Main Characteristic

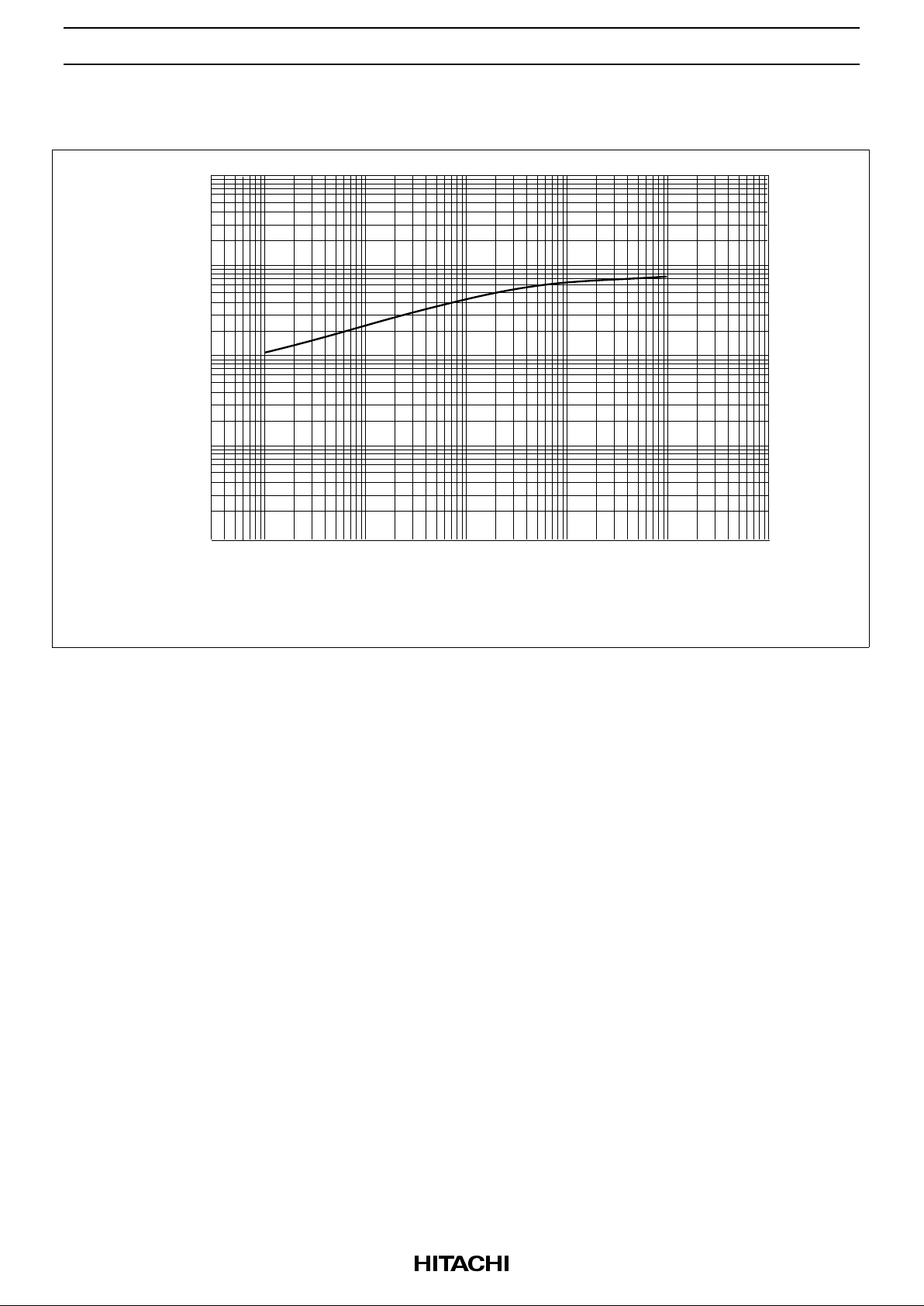

Fig.4 Transient Thermal Impedance
Time t (s)
Transient Thermal Impedance Z (°C/W)
th
1.0
10
10
10
10
4
3
2
10 10
10
10 10 1.0
-2
-1 2
3
Page 5
HZU6.2L
5

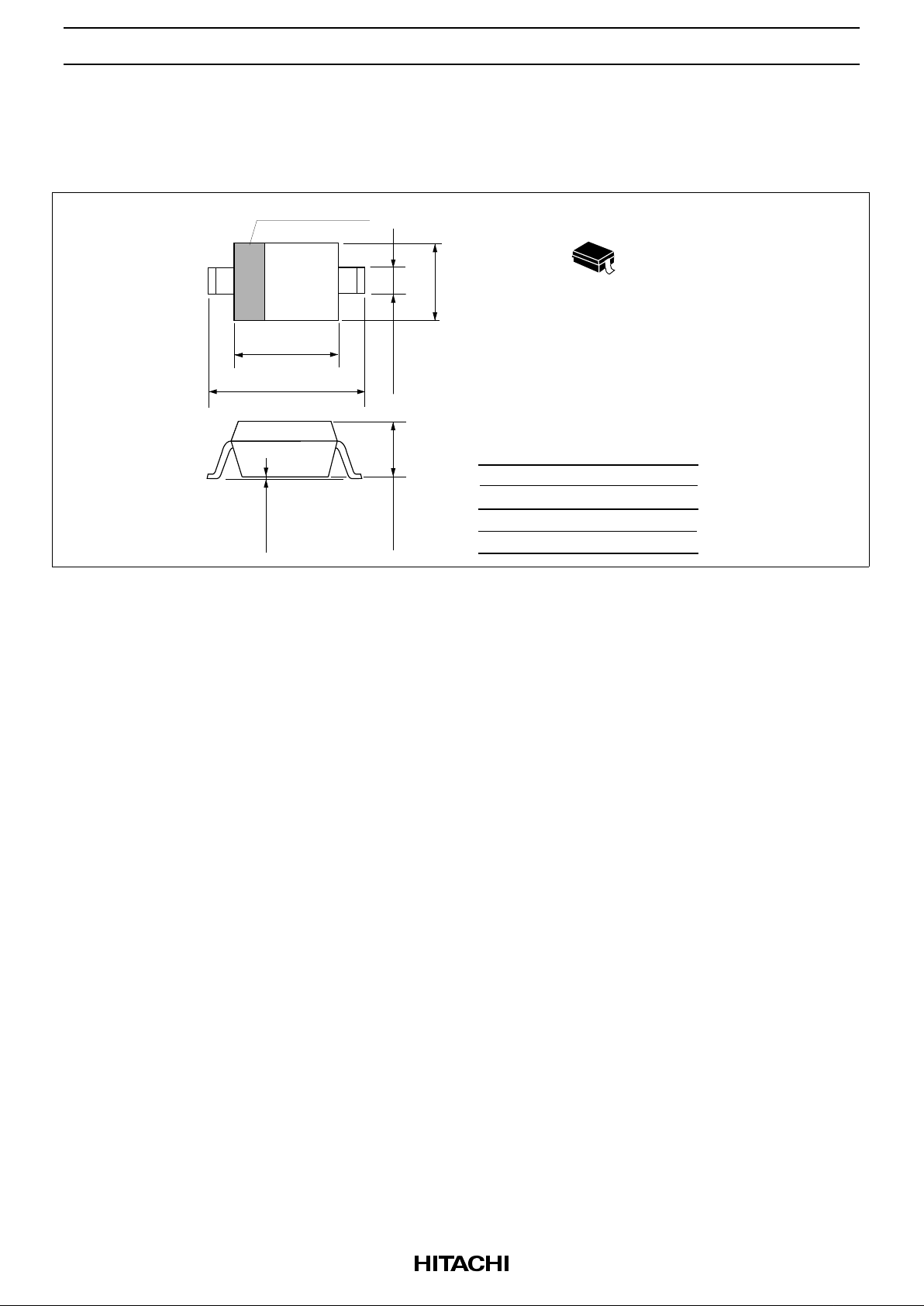

Package Dimensions
Unit : mm
1.25±0.15
2.5±0.15
1.7±0.15
0.3±0.150.9±0.15
Cathode Mark
1
2
Hitachi Code
JEDECCode
EIAJCode
Weight(g)
URP
—
—
0.004
1. Cathode
2. Anode
0 — 0.10
62C
