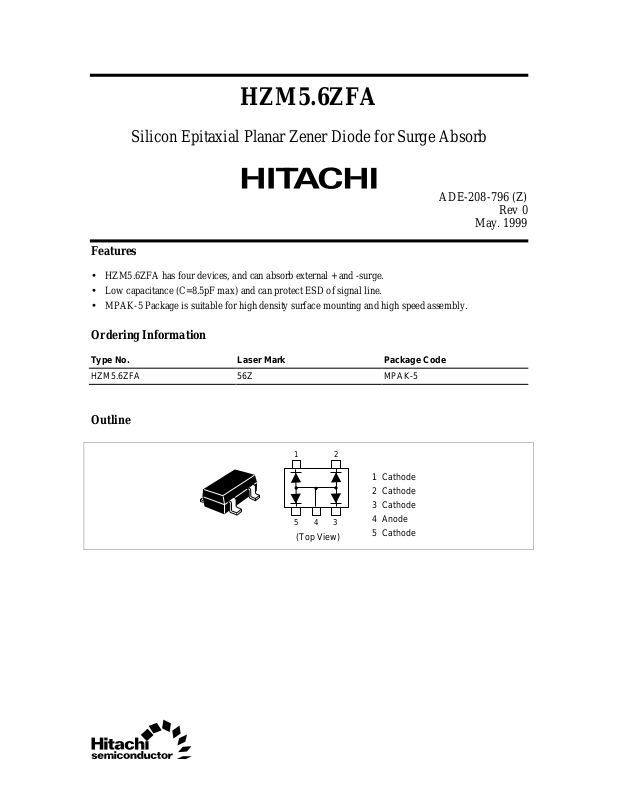

HZM5.6ZFA
Silicon Epitaxial Planar Zener Diode for Surge Absorb
ADE-208-796 (Z)
Features
• HZM5.6ZFA has four devices, and can absorb external + and -surge.
• Low capacitance (C=8.5pF max) and can protect ESD of signal line.
• MPAK-5 Package is suitable for high density surface mounting and high speed assembly.
Ordering Information
Type No. Laser Mark Package Code
HZM5.6ZFA 56Z MPAK-5
Rev 0
May. 1999
Outline
1
543
(Top View)
2
1 Cathode
2 Cathode
3 Cathode
4 Anode
5 Cathode
Page 2
HZM5.6ZFA
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Value Unit
Power dissipation Pd
*1
Junction temperature Tj 150 °C
Storage temperature Tstg -55 to +150 °C
Note 1. Four device total, See Fig.2.
200 mW
Electrical Characteristics (Ta = 25°C)
*1
Item Symbol Min Typ Max Unit Test Condition
Zener voltage V
Reverse current I
Z
R
5.31 — 5.92 V IZ = 5 mA, 40ms pulse
— — 0.5 µAVR = 2.5V
Capacitance C — 8.0 8.5 pF VR = 0V, f = 1 MHz
Dynamic resistance r
ESD-Capability
*2
d
— 8 — — kV C =150pF, R = 330 Ω, Both forward and
——80Ω IZ = 5 mA
reverse direction 10 pulse
Notes 1. Per one device.
2. Failure criterion ; IR > 0.5µA at VR = 2.5V.
2
Page 3

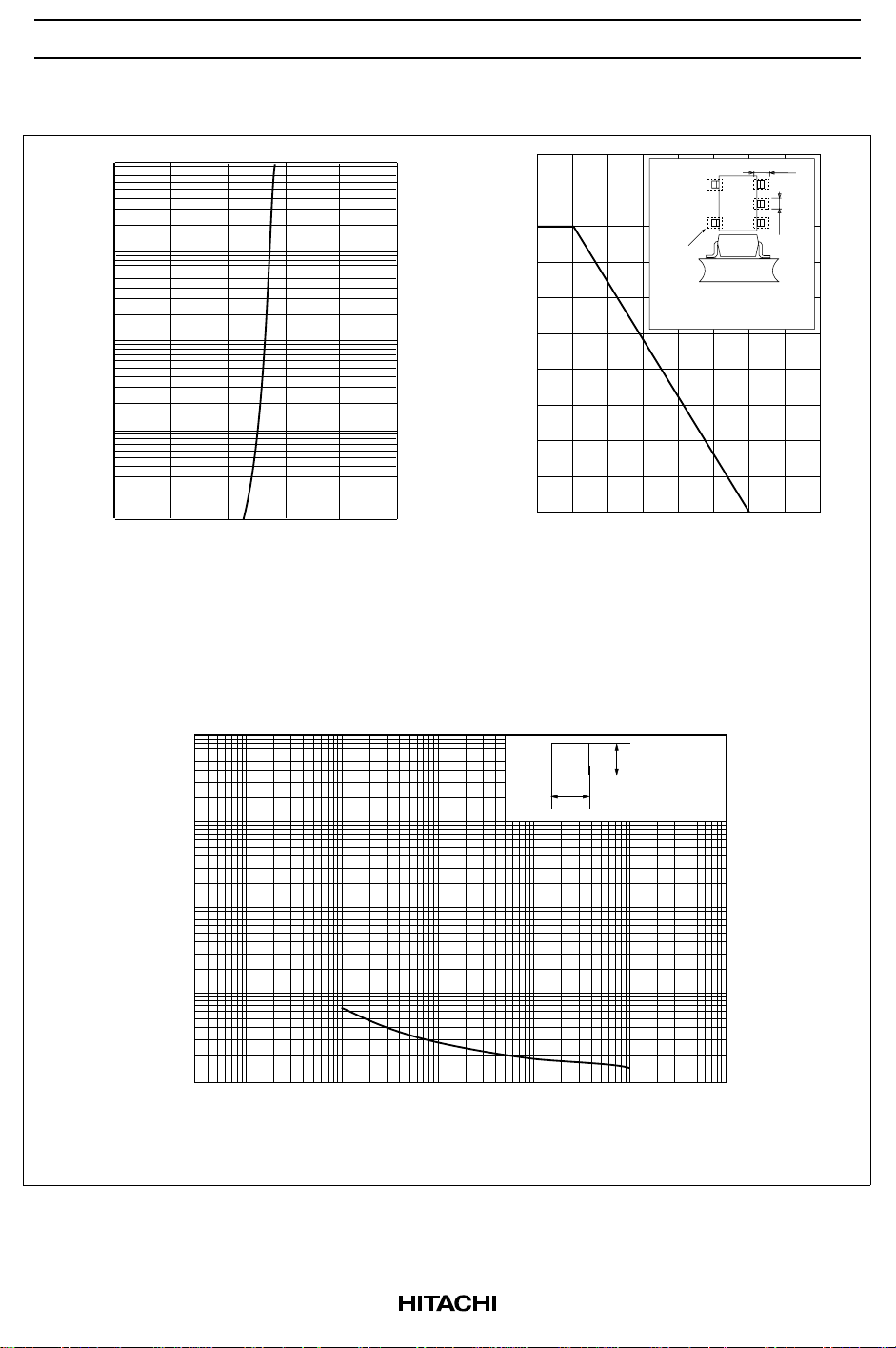

Main Characteristic
HZM5.6ZFA
-2
10
-3
10
-4
10
Zener Current Iz (A)
-5
10
-6
10
0
2
Zener Voltage Vz (V)
Fig.1 Zener current Vs. Zener voltage
250
200
(mW)
d
150
Cu Foil
Printed circuit board
×
×
25 62 1.6t mm
Material:
Glass Epoxy Resin+Cu Foil
1.0mm
0.6mm
100
50
Power Dissipation P
0
64
8
10
0
50
150100
200
Ambient Temperature Ta (¡C)
Fig.2 Power Dissipation Vs. Ambient Temperature
4
10
RSM
3
10
2
10
10
Nonrepetitive Surge Reverses Power P (W)
1.0
-5
10 10
-4 -3 -2 -1
10
Time t (s)
Fig.3 Surge Reverse Power Ratings
t
10 10
P
RSM
Ta = 25¡C
nonrepetitive
1.0
3
Page 4
HZM5.6ZFA

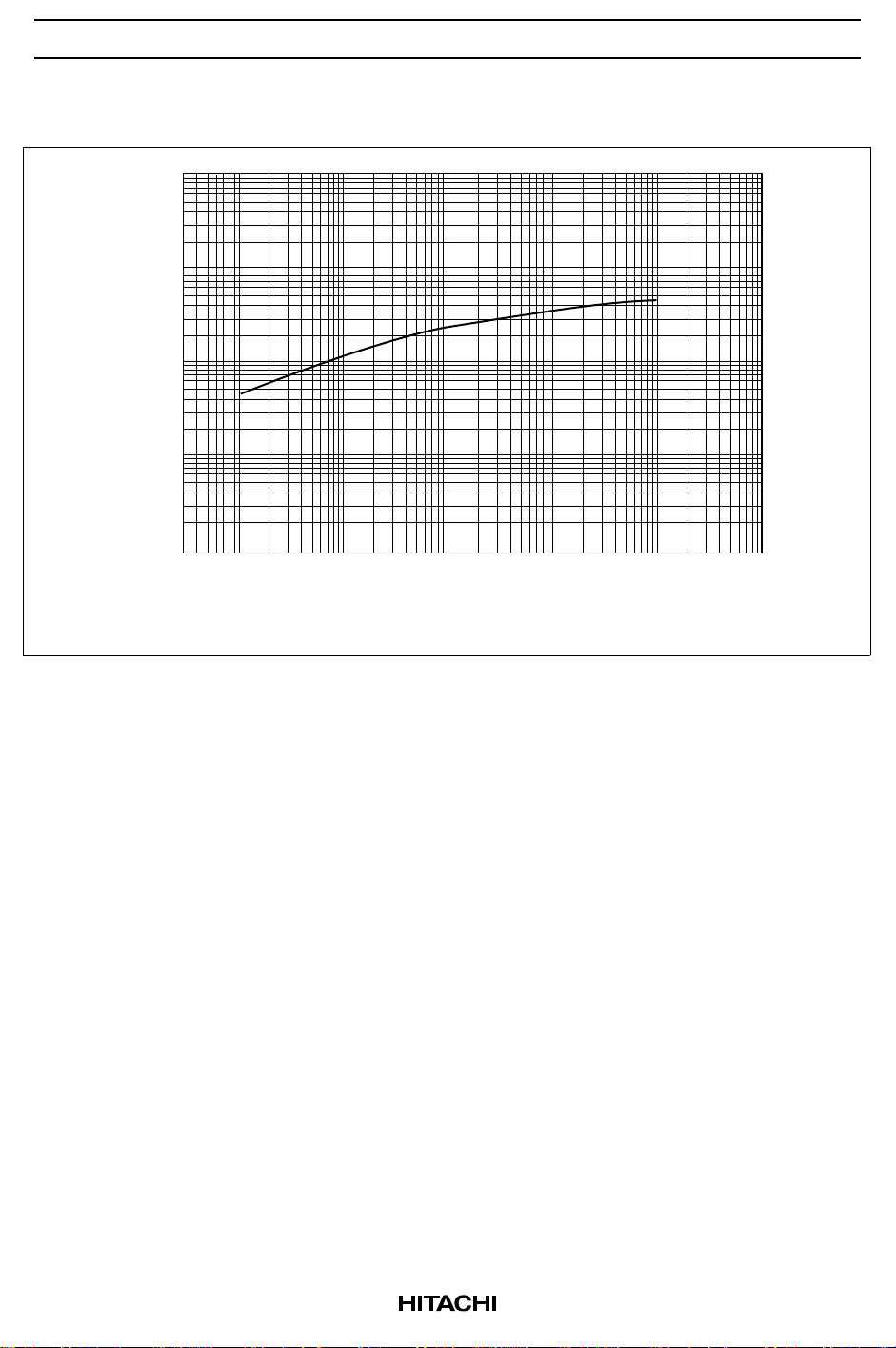

Main Characteristic
4
10
3
10
th
2
10
10
Transient Thermal Impedance Z (¡C/W)
1.0
-2
10 10 1.0
-1 2
Time t (s)
Fig.4 Transient Thermal Impedance
10 10
10
3
4
Page 5

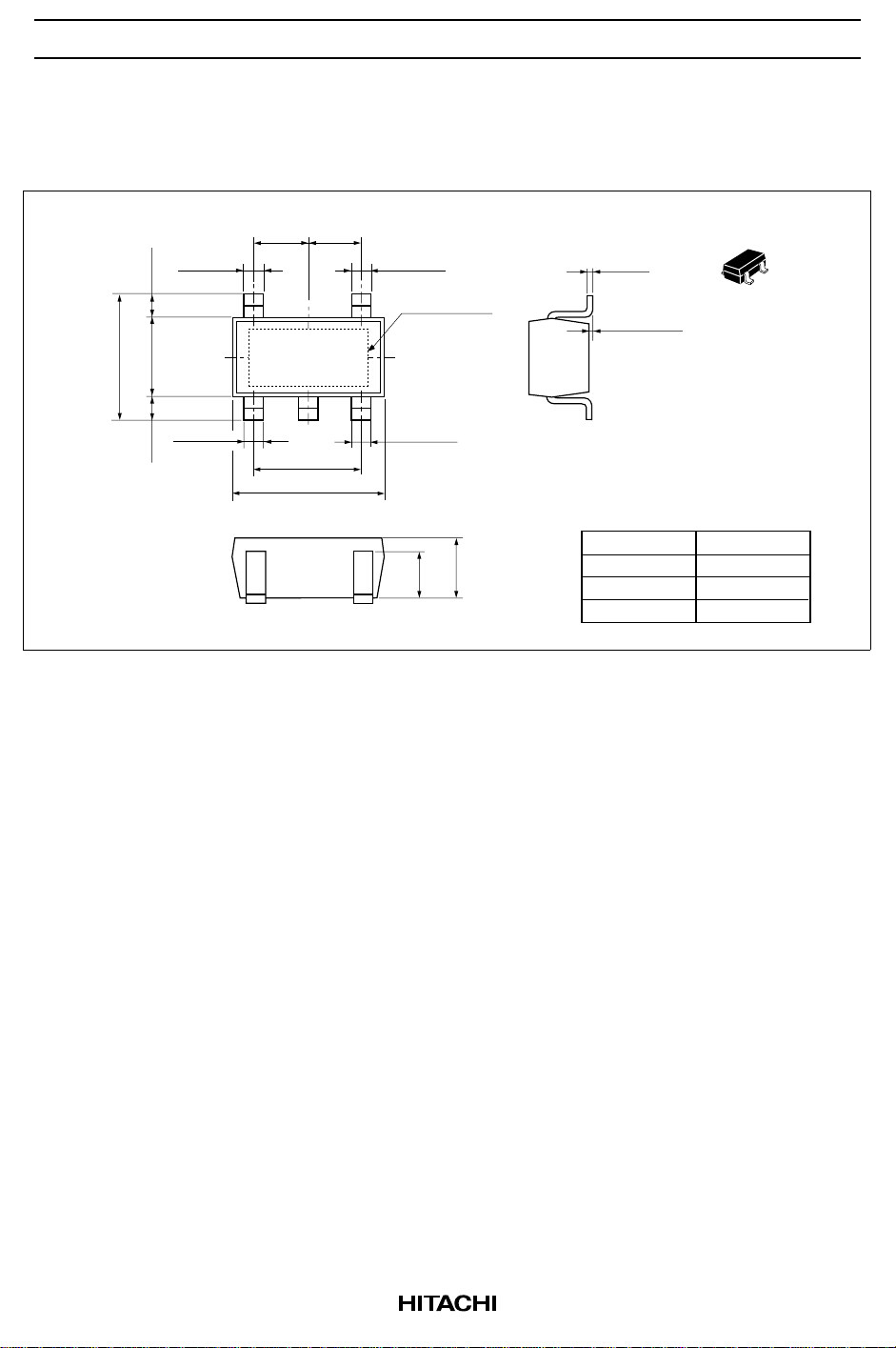

Package Dimensions
0.4±0.1
(0.6)
+ 0.2
– 0.3
+ 0.2
– 0.1
2.8
1.6
0.4±0.1
(0.6)
(0.95)
(0.95)
1
56Z
54
1.9
2.9±0.2
2
3
0.4±0.1
Laser Mark
0.4±0.1
HZM5.6ZFA
Unit : mm
0.16
0 to 0.15
1 Cathode
2 Cathode
3 Cathode
4 Anode
5 Cathode
(0.8)
+ 0.2
1.1
– 0.1
Hitachi Code
JEDEC Code
EIAJ Code
Weight (g)
MPAK-5
—
—
0.013
5
Page 6
