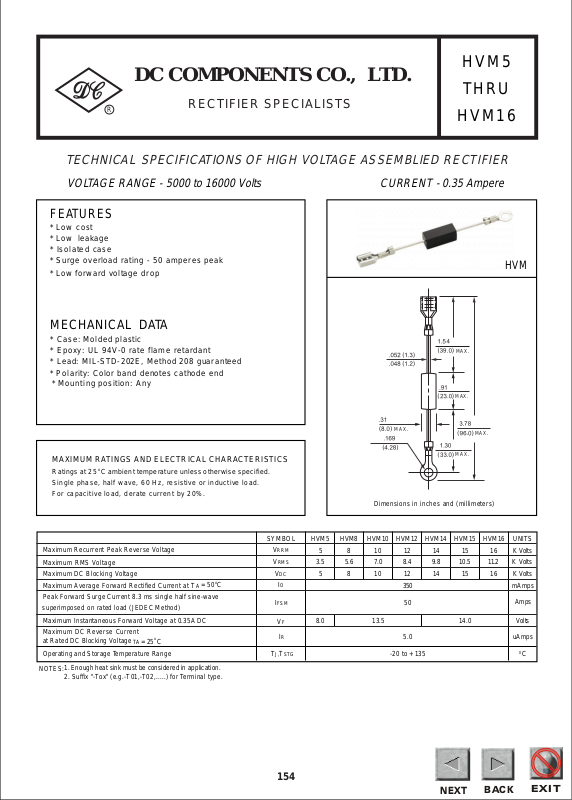

Page 1
DC COMPONENTS CO., LTD.
NEXT
BACK
EXIT
BACK
EXIT
EXIT
R
RECTIFIER SPECIALISTS
HVM5
THRU
HVM16
TECHNICAL SPECIFICATION
VOLTAGE RANGE - 5000 to 16000 Volts
S OF HIGH VOLTAGE ASSEMBLIED RECTIFIER
FEATURES
* Low cost
* Low leakage
* Isolated case
* Surge overload rating - 50 amperes peak
* Low forward voltage drop
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25oC ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
CURRENT - 0.35 Ampere
MAX
.
MAX.
MAX.
Dimensions in inches and (millimeters)
MAX.
MAX.
HVM
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
= 50oC
Maximum Average Forward Rectified Current at T
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at 0.35A DC Volts
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Operating and Storage Temperature Range
1. Enough heat sink must be considered in application.
NOTES:
2. Suffix "-Tox" (e.g.-T01,-T02,.....) for Terminal type.
TA
= 25
o
C
A
V
V
V
I
TJ,T
HVM5 HVM10 HVM12HVM8 HVM14 HVM15 HVM16
RRM
RMS
DC
I
O
FSM
V
I
R
F
STG
510128 141516
3.5 7.0 8.45.6 9.8 10.5 11.2
51012
8 141516
350
50
8.0 14.0
13.5
5.0
-20 to + 135
UNITS
K Volts
K Volts
K Volts
mAmps
uAmps
154
Amps
0
C
Page 2

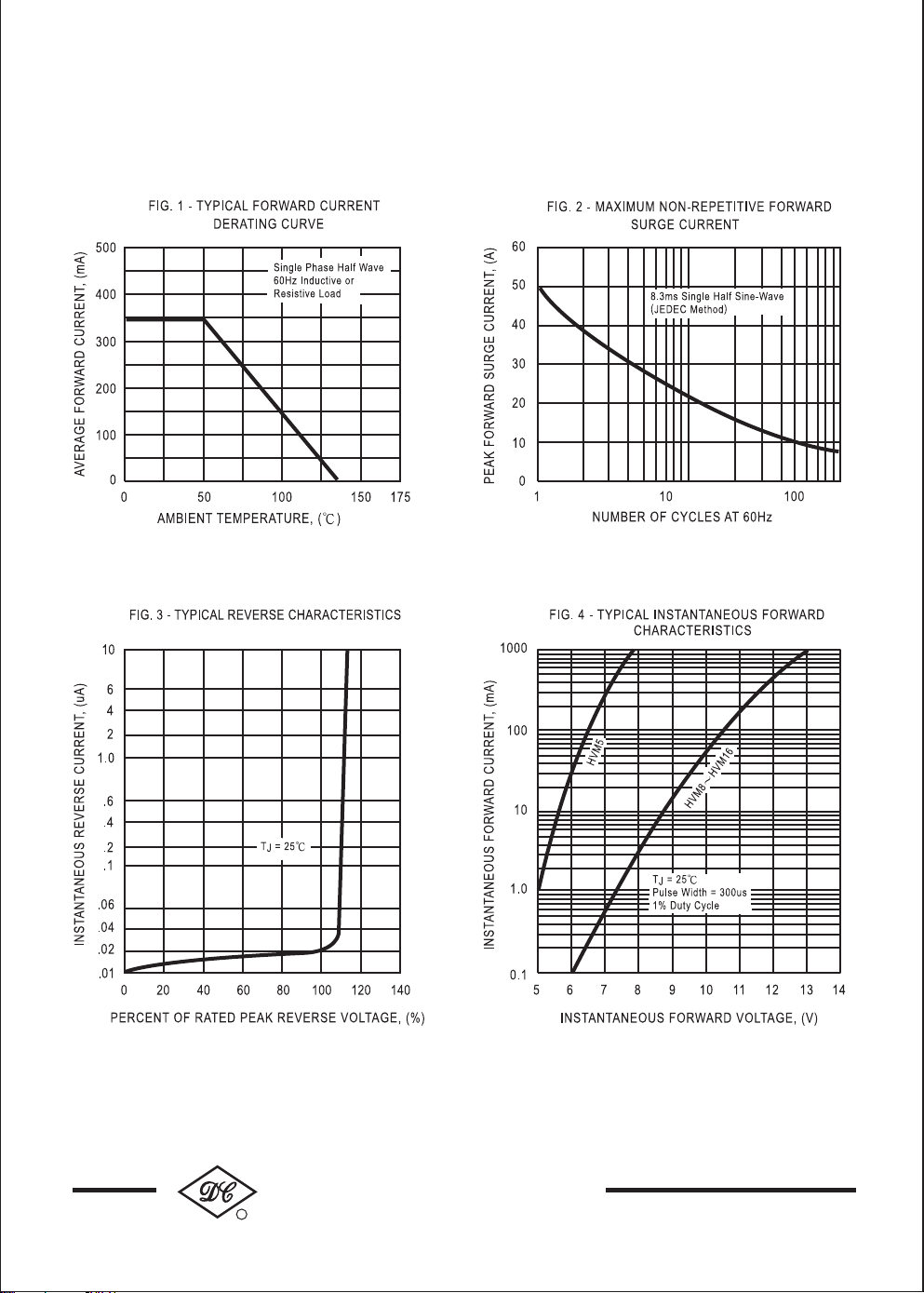

RA TING AND CHARACTERISTIC CURVES (HVM5 THRU HVM16)
BACK
EXIT
EXIT
DC COMPONENTS CO., LTD.
R
155
