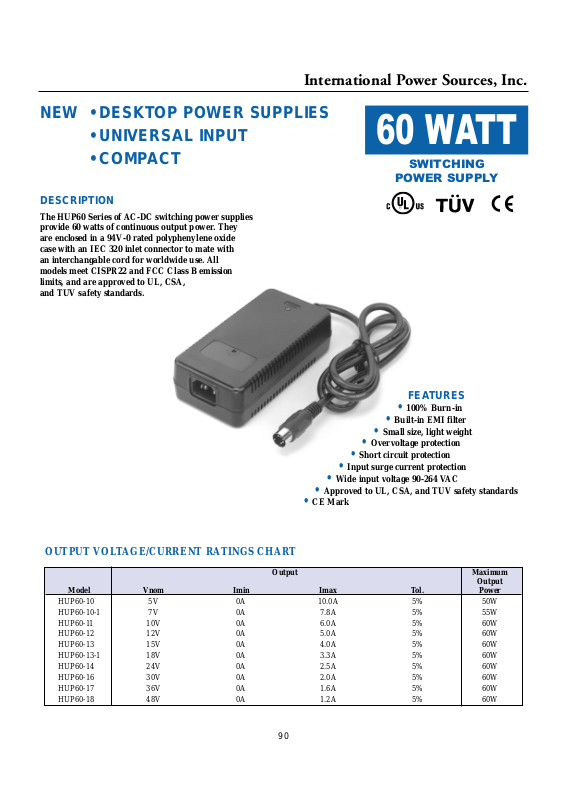

Page 1
90
DESCRIPTION

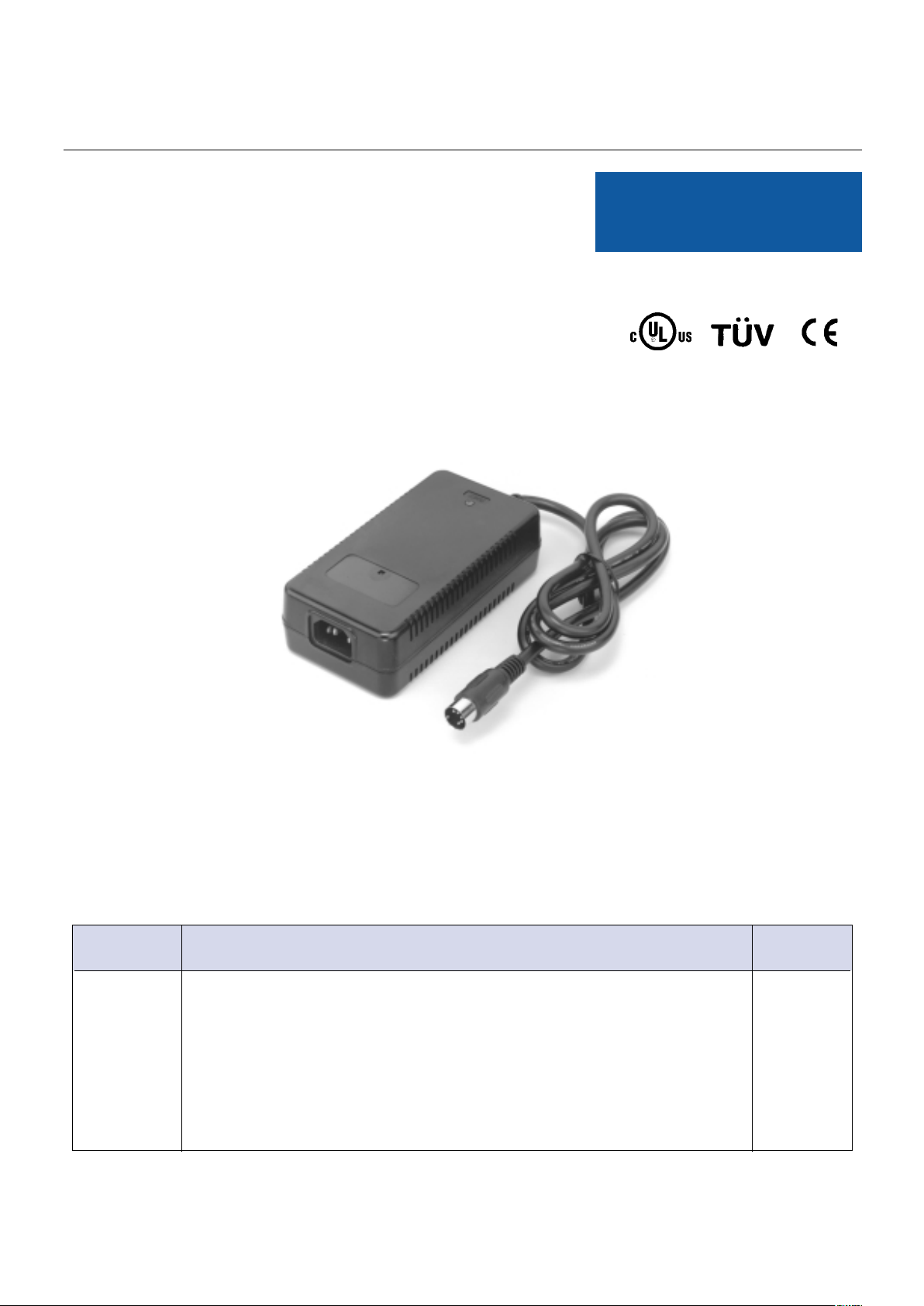

The HUP60 Series of AC-DC switching power supplies
provide 60 watts of continuous output power. They
are enclosed in a 94V-0 rated polyphenylene oxide
case with an IEC 320 inlet connector to mate with
an interchangable cord for worldwide use. All
models meet CISPR22 and FCC Class B emission
limits, and are approved to UL, CSA,
and TUV safety standards.
FEATURES
•
100% Burn-in
•
Built-in EMI filter
• Small size, light weight
•
Overvoltage protection
•
Short circuit protection
• Input surge current protection
• Wide input voltage 90-264 VAC
• Approved to UL, CSA, and TUV safety standards
•
CE Mark
Output Maximum
Output
Model Vnom Imin Imax Tol. Power
HUP60-10 5V 0A 10.0A 5% 50W
HUP60-10-1 7V 0A 7.8A 5% 55W
HUP60-11 10V 0A 6.0A 5% 60W
HUP60-12 12V 0A 5.0A 5% 60W
HUP60-13 15V 0A 4.0A 5% 60W
HUP60-13-1 18V 0A 3.3A 5% 60W
HUP60-14 24V 0A 2.5A 5% 60W
HUP60-16 30V 0A 2.0A 5% 60W
HUP60-17 36V 0A 1.6A 5% 60W
HUP60-18 48V 0A 1.2A 5% 60W
OUTPUT VOLTAGE/CURRENT RATINGS CHART
NEW • DESKTOP POWER SUPPLIES
• UNIVERSAL INPUT
• COMPACT
International Power Sources, Inc.
60 WATT
SWITCHING
POWER SUPPLY
Page 2
91
GENERAL SPECIFICATIONS
All specifications are typical at nominal line, full load, and 25°C.
Efficiency: 65% min at 60W output
Hold-up time: 5msec minimum
Line regulation: ±0.5% maximum at full load
Inrush current: 15 amps@115 VAC, or
30 amps@230 VAC at 25°C cold start
Withstand voltage: 3000 VAC from input to output
1500 VAC from input to ground
500 VAC from output to ground
Insulation resistance: 50 Mohm min. from output to ground
Operating temperature: 0°C to +70°C*
Storage temperature: –40°C to +85°C
MTBF: 100,000 hours minimum at
full load at 25°C ambient
EMI requirements: Meets conducted and radiated
limits of:
a) FCC20780 Level B
b) CISPR 22 Class B
Safety requirements: Approved to:
a) UL 1950
b) CSA C22.2 No. 234
c) EN60950
INPUT SPECIFICATIONS
Input voltage: 90 to 264 VAC
Input frequency: 47 to 63 Hz
Input current: 1.6A maximum
Safety ground:
leakage current: 0.75mA max. @ 240VAC 50Hz
OUTPUT SPECIFICATIONS
Output voltage: See rating chart
Output current: See rating chart
Output power range: 0 to 60 Watts
Ripple and noise: 1% peak to peak maximum
Overvoltage protection:
Provided on output #1 only;
set at 112-132% of its nominal
output voltage
Overcurrent protection:
All outputs protected to short
circuit conditions
Temperature coefficient: All outputs ±0.04%/°C maximum
Transient response: Maximum excursion of 4% or better
on all models. Recovers to 1% of
final value within 500us after a
25% step load change.
*
Derate linearly from 100% load at 40°C to 50% load at 70°C

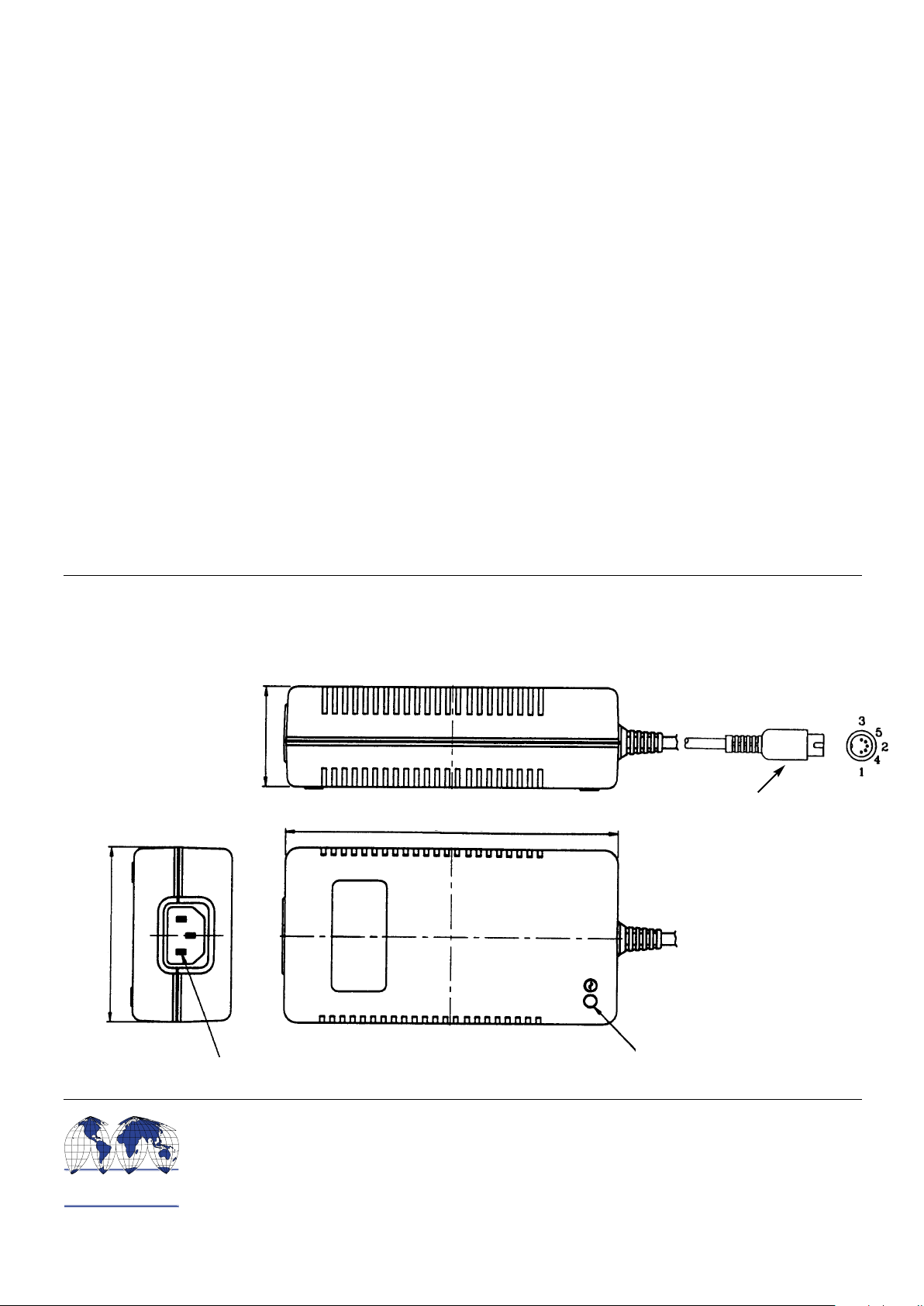

MECHANICAL SPECIFICATIONS
NOTES:
1. Dimensions shown in inches (mm).
2. Tolerance 0.02 (0.5) maximum.
3. Cable length is 48.0”.
4. Optional output connectors
available consult factory.
5. Weight: 350 grams approx.
5.75 (146)
* AMP Receptacle No. 212044-1 or Equivalent
DC OUTPUT
5-PIN DIN PLUG
PINS 1,2,4: COMMON
PINS 3,5: OUTPUT
POWER LED
AC INPUT
IEC 320 INLET
PIN #
1.69 (43)
2.99 (76)
*
Your Source of Power ...
260 Hopping Brook Road, Holliston, MA 01746
TEL: (508) 429-4440 FAX: (800) 226-2100
http://www.intlpower.com
International
Power Sources, Inc.
