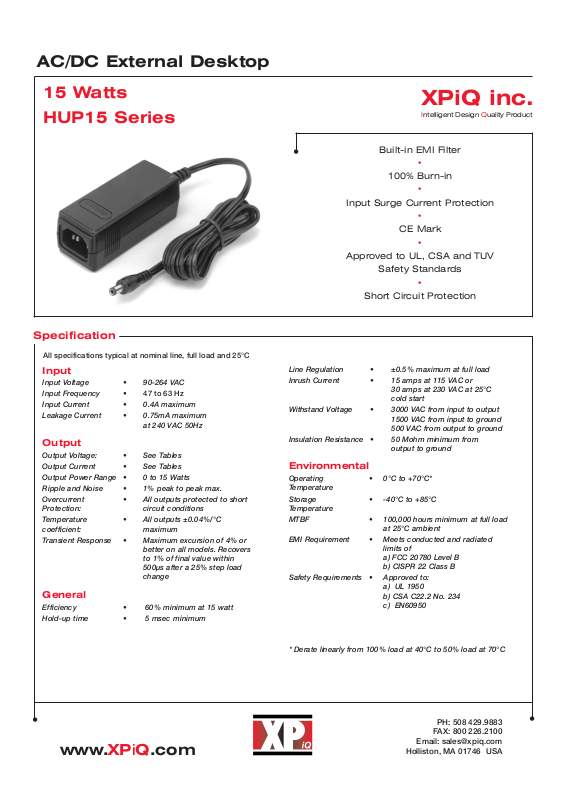

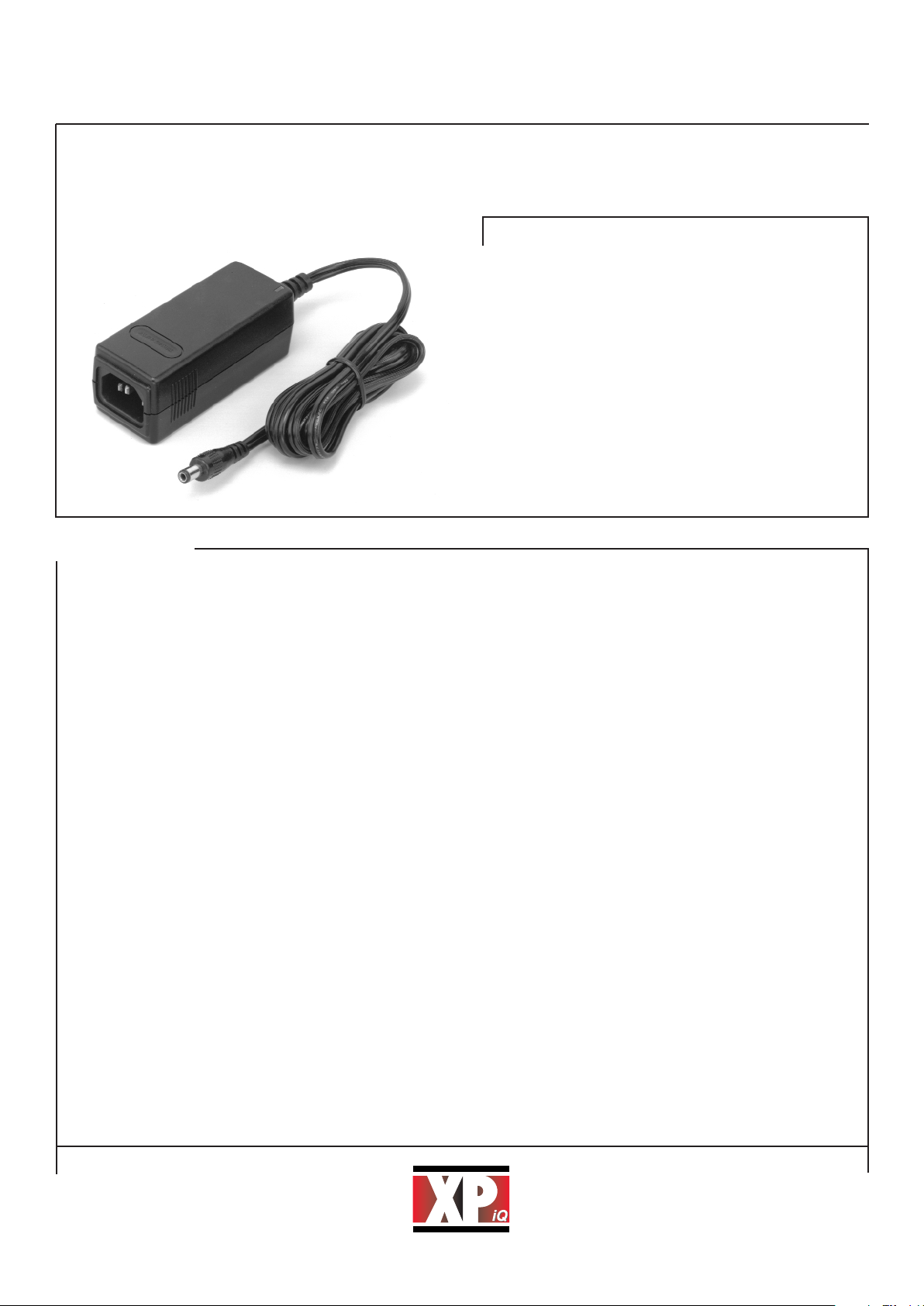

Page 1
•
•
Input
Input Voltage • 90-264 VAC
Input Frequency • 47 to 63 Hz
Input Current • 0.4A maximum
Leakage Current • 0.75mA maximum
at 240 VAC 50Hz
Output
Output Voltage: • See Tables
Output Current • See Tables
Output Power Range • 0 to 15 Watts
Ripple and Noise • 1% peak to peak max.
Overcurrent • All outputs protected to short
Protection: circuit conditions
Temperature • All outputs ±0.04%/°C
coefficient: maximum
Transient Response • Maximum excursion of 4% or
better on all models. Recovers
to 1% of final value within
500µs after a 25% step load
change
General
Efficiency • 60% minimum at 15 watt
Hold-up time • 5 msec minimum
Line Regulation • ±0.5% maximum at full load
Inrush Current • 15 amps at 115 VAC or
30 amps at 230 VAC at 25°C
cold start
Withstand Voltage • 3000 VAC from input to output
1500 VAC from input to ground
500 VAC from output to ground
Insulation Resistance • 50 Mohm minimum from
output to ground
Environmental
Operating • 0°C to +70°C*
Temperature
Storage • -40°C to +85°C
Temperature
MTBF • 100,000 hours minimum at full load
at 25°C ambient
EMI Requirement • Meets conducted and radiated
limits of
a) FCC 20780 Level B
b) CISPR 22 Class B
Safety Requirements • Approved to:
a) UL 1950
b) CSA C22.2 No. 234
c) EN60950
* Derate linearly from 100% load at 40°C to 50% load at 70°C
15 Watts
HUP15 Series
AC/DC External Desktop
Specification
•
Intelligent Design Quality Product
XPiQ inc.
Built-in EMI Filter
•
100% Burn-in
•
Input Surge Current Protection
•
CE Mark
•
Approved to UL, CSA and TUV
Safety Standards
•
Short Circuit Protection
All specifications typical at nominal line, full load and 25°C
PH: 508 429.9883
FAX: 800 226.2100
Email: [email protected]
Holliston, MA 01746 USA
www.XPiQ.com
HUP15.qxd 6/6/03 3:29 pm Page 1
Page 2

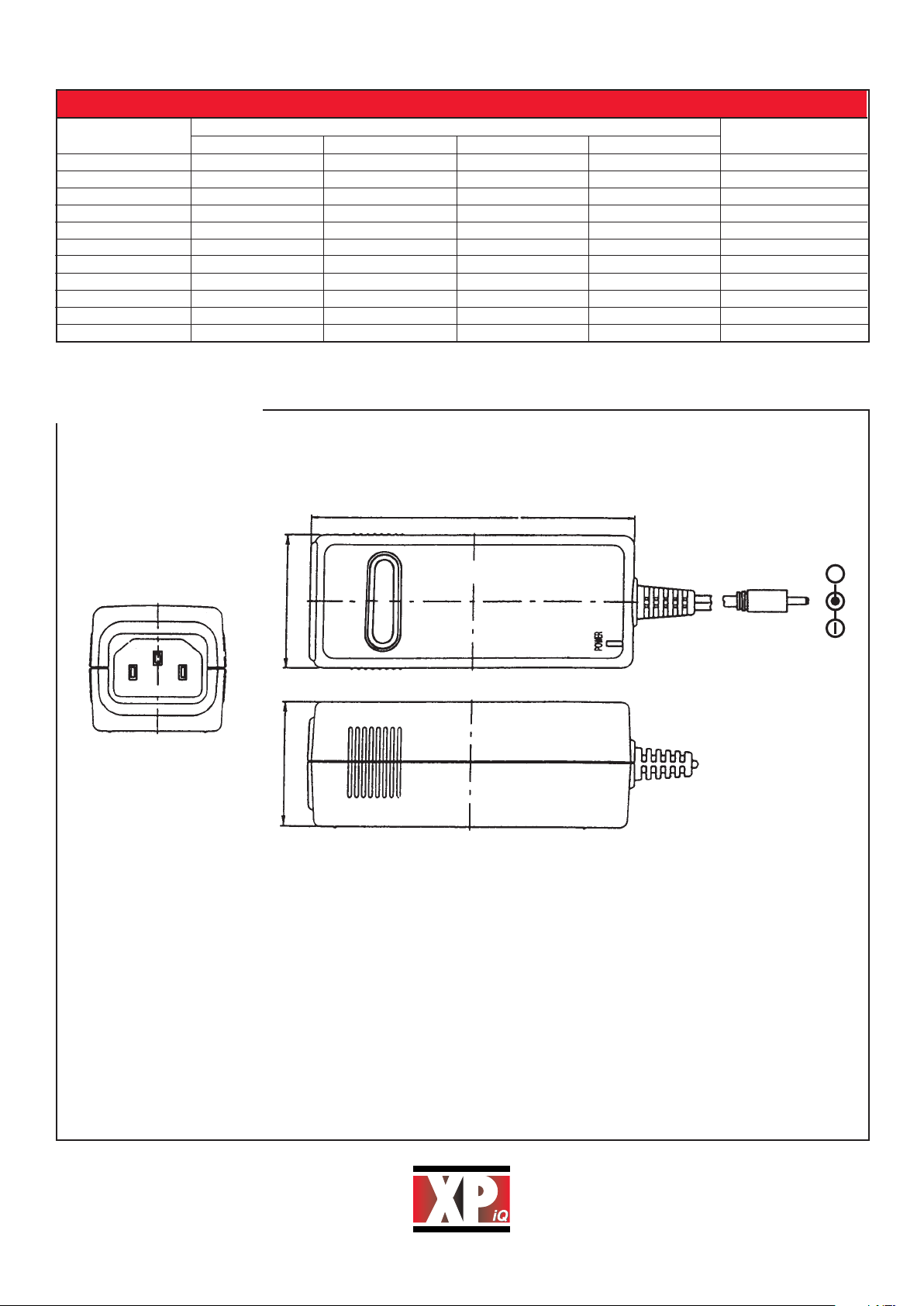

Mechanical Details
NOTES:
1. Dimensions shown in inches (mm).
2. Tolerance 0.02 (0.5) maximum.
3. Output connector is 5.5mm outer diameter barrel. Inner diameter is 2.5mm with
center positive (+)/outer shell negative (-) polarity.
4. Output cable length is 72.0”.
5. Optional input/output connectors available consult factory.
6. Weight: 135 g approx.
3.58 (91)
1.50 (38)
1.42 (36)
+
Maximum Output Models
Output Power Vnom Imin Imax Tol.* Number
8.25 W 3.3 V 0 A 2.50 A 5% HUP15A-00
12 W 5.0 V 0 A 2.40 A 5% HUP15A-10
15 W 7.0 V 0 A 1.70 A 5% HUP15A-10-1
15 W 10.0 V 0 A 1.50 A 5% HUP15A-11
15 W 12.0 V 0 A 1.25 A 5% HUP15A-12
15 W 15.0 V 0 A 1.00 A 5% HUP15A-13
15 W 18.0 V 0 A 0.80 A 5% HUP15A-13-1
15 W 24.0 V 0 A 0.62 A 5% HUP15A-14
15 W 30.0 V 0 A 0.50 A 5% HUP15A-16
15 W 36.0 V 0 A 0.40 A 5% HUP15A-17
15 W 48.0 V 0 A 0.30 A 5% HUP15A-18
OUTPUT VOLTAGE & CURRENT RATINGS HUP15
PH: 508 429.9883
FAX: 800 226.2100
Email: [email protected]
Holliston, MA 01746 USA
www.XPiQ.com
HUP15.qxd 6/6/03 3:29 pm Page 2
