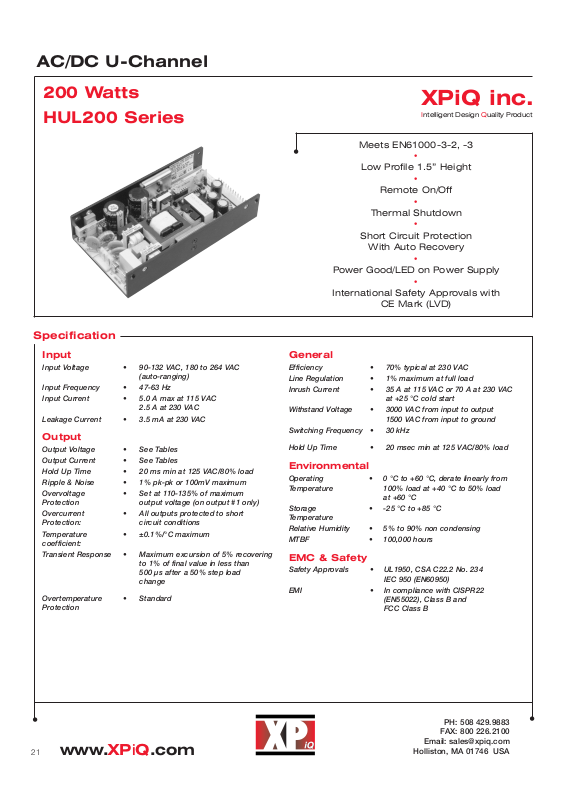

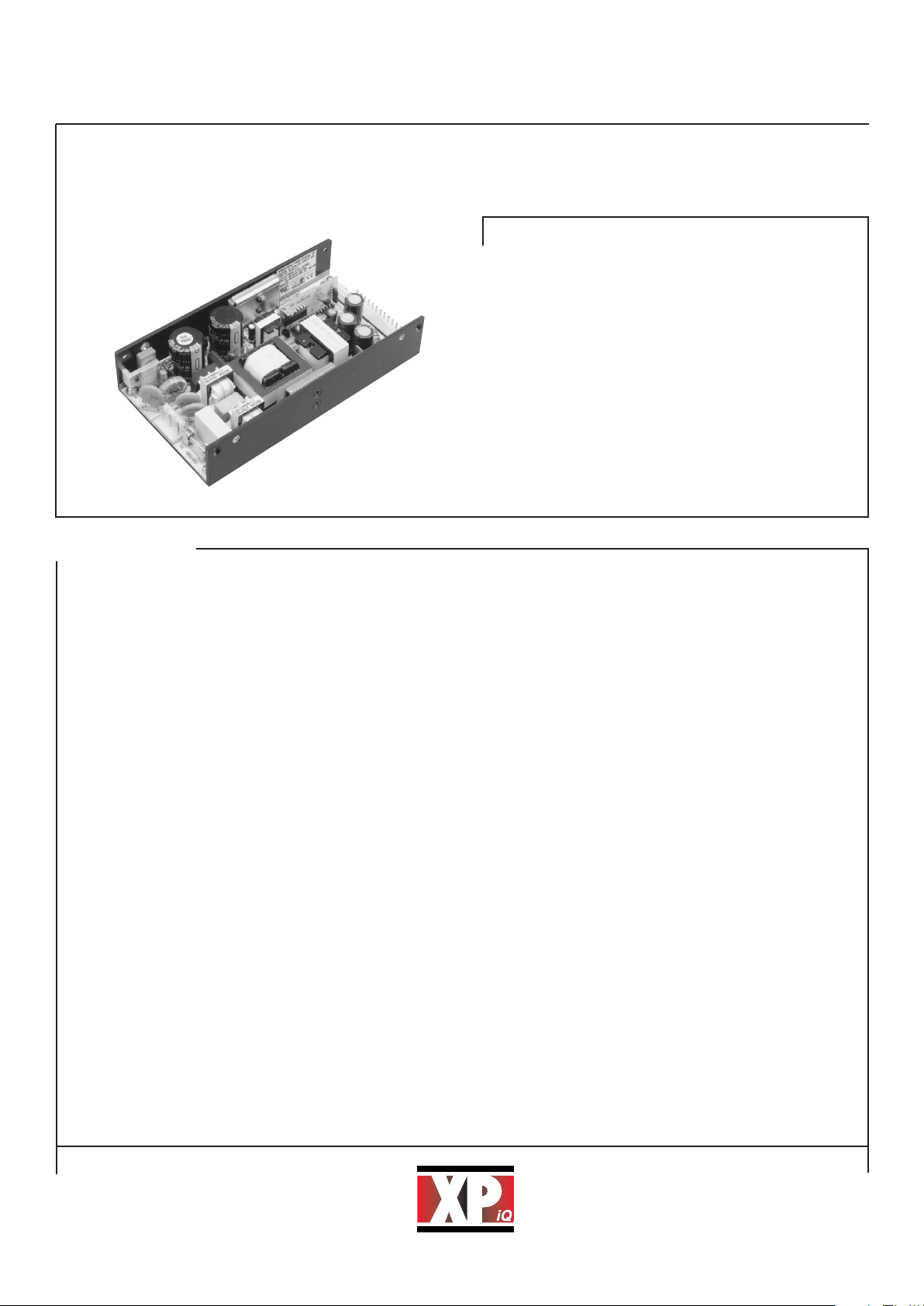

Page 1
•
•
Input
Input Voltage • 90-132 VAC, 180 to 264 VAC
(auto-ranging)
Input Frequency • 47-63 Hz
Input Current • 5.0 A max at 115 VAC
2.5 A at 230 VAC
Leakage Current • 3.5 mA at 230 VAC
Output
Output Voltage • See Tables
Output Current • See Tables
Hold Up Time • 20 ms min at 125 VAC/80% load
Ripple & Noise • 1% pk-pk or 100mV maximum
Overvoltage • Set at 110-135% of maximum
Protection output voltage (on output #1 only)
Overcurrent • All outputs protected to short
Protection: circuit conditions
Temperature • ±0.1%/°C maximum
coefficient:
Transient Response • Maximum excursion of 5% recovering
to 1% of final value in less than
500 µs after a 50% step load
change
Overtemperature • Standard
Protection
General
Efficiency • 70% typical at 230 VAC
Line Regulation • 1% maximum at full load
Inrush Current • 35 A at 115 VAC or 70 A at 230 VAC
at +25 °C cold start
Withstand Voltage • 3000 VAC from input to output
1500 VAC from input to ground
Switching Frequency • 30 kHz
Hold Up Time • 20 msec min at 125 VAC/80% load
Environmental
Operating • 0 °C to +60 °C, derate linearly from
Temperature 100% load at +40 °C to 50% load
at +60 °C
Storage • -25 °C to +85 °C
Temperature
Relative Humidity • 5% to 90% non condensing
MTBF • 100,000 hours
EMC & Safety
Safety Approvals • UL1950, CSA C22.2 No. 234
IEC 950 (EN60950)
EMI • In compliance with CISPR22
(EN55022), Class B and
FCC Class B
200 Watts
HUL200 Series
AC/DC U-Channel
Specification
•
PH: 508 429.9883
FAX: 800 226.2100
Email: [email protected]
Holliston, MA 01746 USA
www.XPiQ.com
21
Intelligent Design Quality Product
XPiQ inc.
Meets EN61000-3-2, -3
•
Low Profile 1.5” Height
•
Remote On/Off
•
Thermal Shutdown
•
Short Circuit Protection
With Auto Recovery
•
Power Good/LED on Power Supply
•
International Safety Approvals with
CE Mark (LVD)
HUL200.qxd 16/5/03 4:17 pm Page 1
Page 2
Output #1 Output #2 Output #3 Output #4 Model
Vnom Imin Imax Tol. Vnom Imin Imax Tol. Vnom Imin Imax Tol. Vnom Imin Imax Tol. Number
3.3 V 0.5 A 30.0 A 2% HUL200-10-1
5.0 V 0.5 A 40.0 A 2% HUL200-10
12.0 V 0.5 A 16.7 A 2% HUL200-12
15.0 V 0.5 A 13.3 A 2% HUL200-13
24.0 V 0.5 A 8.3 A 2% HUL200-14
48.0 V 0.5 A 4.1 A 2% HUL200-18
+5.0 V 0.5 A 20.0 A 5% +12 V 0 A 8.0 A 5% HUL200-23
+5.0 V 0.5 A 20.0 A 5% +15 V 0 A 6.6 A 5% HUL200-24
+5.0 V 0.5 A 20.0 A 5% +24 V 0 A 4.2 A 5% HUL200-25
+5.0 V 0.5 A 20.0 A 5% +12 V 0 A 8.0 A 5% F12 V 0 A 1 A 5% HUL200-31
+5.0 V 0.5 A 20.0 A 5% +15 V 0 A 5.0 A 5% F15 V 0 A 1 A 5% HUL200-32
+5.0 V 0.5 A 20.0 A 5% +12 V 0 A 6.0 A 5% -5.0 V 0 A 1 A 5% F12 V 0 A 1 A 5% HUL200-40
+5.0 V 0.5 A 20.0 A 5% +24 V 0 A 3.0 A 5% -12.0 V 0 A 1 A 5% F12 V 0 A 1 A 5% HUL200-45
+5.0 V 0.5 A 20.0 A 5% +15 V 0 A 5.0 A 5% –5.0 V 0 A 1 A 5% F15 V 0 A 1 A 5% HUL200-46
PH: 508 429.9883
FAX: 800 226.2100
Email: [email protected]
Holliston, MA 01746 USA
www.XPiQ.com
22

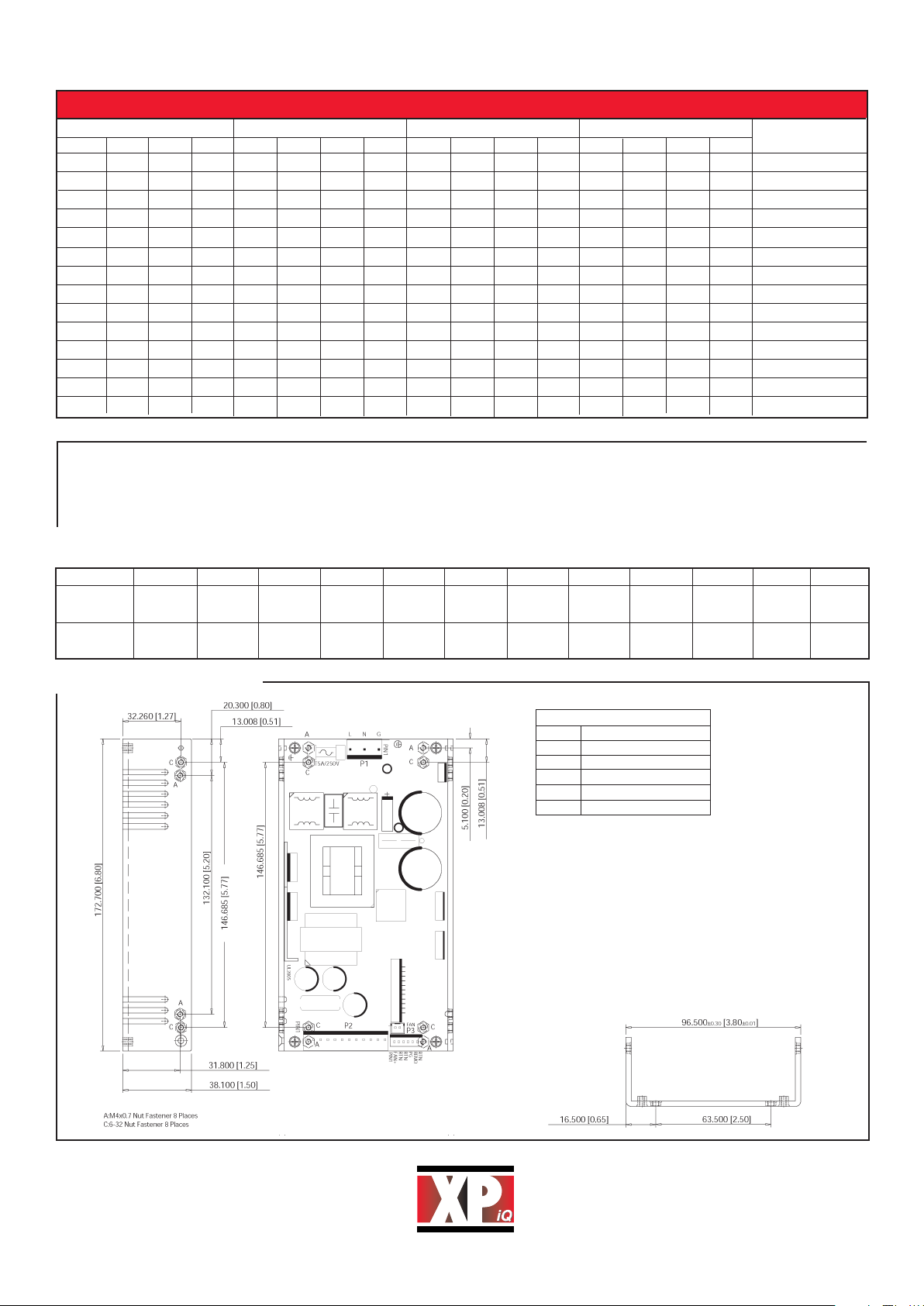

Mechanical Details
NOTES:
1. Dimensions shown in mm (inches).
2. Tolerance 0.5 (0.02) maximum.
3. Input connector P1 mates with Molex housing 09-91-0500
and Molex 2478/2578/8818 Series crimp terminal.
4. Output connector P2 mates with Molex housing 09-91-1200
and Molex 2478/2578/8818 Series crimp terminal.
5. Connector P3 mates with JST XHP-6 or equivalent.
5. Weight: 800 grams approx.
Single Output P3 Pinout
Pin 1 FAN+
Pin 2 Return
Pin 3 Return
Pin 4 Power Good
Pin 5 Remote ON/OFF
Pin 6 Return
1. Use part number UL200-XX for product without harmonic correction. Example: UL200-10.
2. Total output power for HUL200-10-1 is 73 W convection cooled, 100 W with 18.7cfm forced air cooling.
3. Output #4 is floating. It can be connected externally for positive or negative output.
4. Total output power for HUL200 single output models is 150 W convection cooled, 200 W with 18.7 cfm forced air cooling.
5. Total output power for HUL200 multi output models is 100 W convection cooled, 200 W with 18.7 cfm forced air cooling.
Notes
•
Pin Chart
Pin 1 2 3 4 5 6 7 8 9 10 11 12
Single O/P Output Output Output Output Output Output Return Return Return Return Return Return
Models #1 #1 #1 #1 #1 #1
Multiple Output Common Common Common Common Output Output Output Output Output Output Output #4
O/P Models #3 Return Return Return Return #1 #1 #1 #1 #2 #4 Return
Output Connector P2
OUTPUT VOLTAGE & CURRENT RATINGS HUL200
Multi output models have three separate 2 pin connectors for
Fan, Power Good and Remote ON/OFF. These are clearly
marked on the PCB.
Rev 1.0
HUL200.qxd 16/5/03 4:17 pm Page 2
