Input
Input Voltage • 90-132 VAC, 180-264 VAC
Input Frequency • 47-63 Hz
Inrush Current • 35 A max at 110 VAC
70 A max at 230 VAC
Input Current • 5 A max at 115 VAC
2.5A max at 230 VAC
Output
Output Voltage • See Tables
Output Current • 175 Watts
Output Voltage • ±5%
Adjustment
Minimum Load • V1 = 2 A, V3 = 0.3 A, V2 & V4 = 0 A
Line Regualtion • ±1% maximum
Load Regulation • ±4% maximum
Ripple & Noise • 1% or 50mV pk-pk maximum
whichever is greater
Transient Response • Maximum excursion of 5% recovering
to 1% of final value in less than
500µs after a 50% step load change
Temperature • ±0.1%/°C maximum
Coefficient
Hold Up Time • 20 ms min at 120 VAC/80% load
Overvoltage • 130%, recycle input to reset
Protection
Overcurrent • 110% - 135% with auto recovery
Protection
Overtemperature • 85 °C with auto recovery
Protection
Remote Sense • On V2 only. Compensates for up
to 0.5 V drop
Fan Output • 12V/300mA
General
Efficiency • 70% minimum
Power Density • 4.5 W/in3
MTBF • 100,000 hours min to MIL-HBK-217F
Size • 6.8” x 3.8” x 1.5”
Weight • 700 grams approx.
Signals • Green LED = On
Power Good: Logic High within 100 to
500 msec of regulation
Logic Low at least 1 msec before loss
of regulation
Environmental
Operating • 0°C to 70°C
Temperature Derate from 100% load at 50 °C to
50% load at 70 °C
Cooling • 18.7 CFM required
Humidity • 5% to 90% RH, non-condensing
Storage • -20°C to +85°C
Temperature
Safety and EMC
Safety Approvals • UL1950, CSA C22.2 No. 234,
EN60950
EMI/EMC • EN61000-3-2, -3,
CISPR22 Class B and FCC
Class B conducted CE Mark LVD

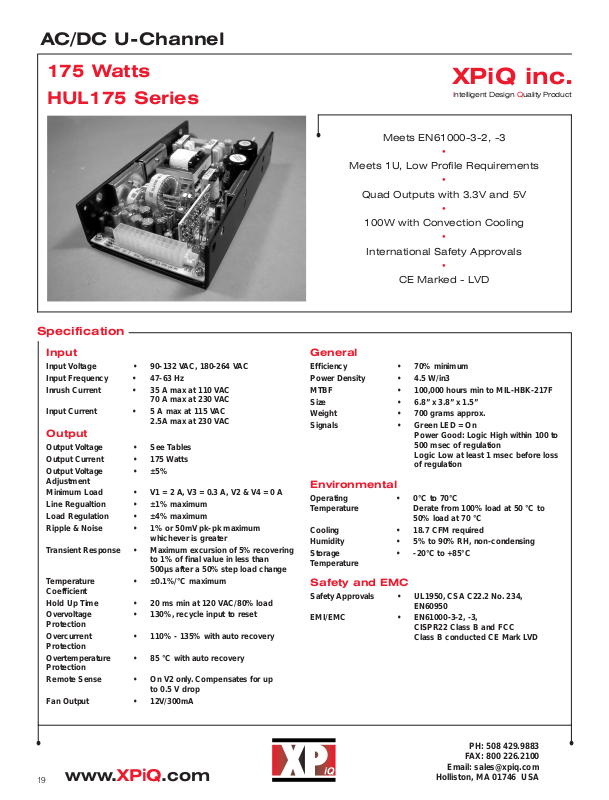

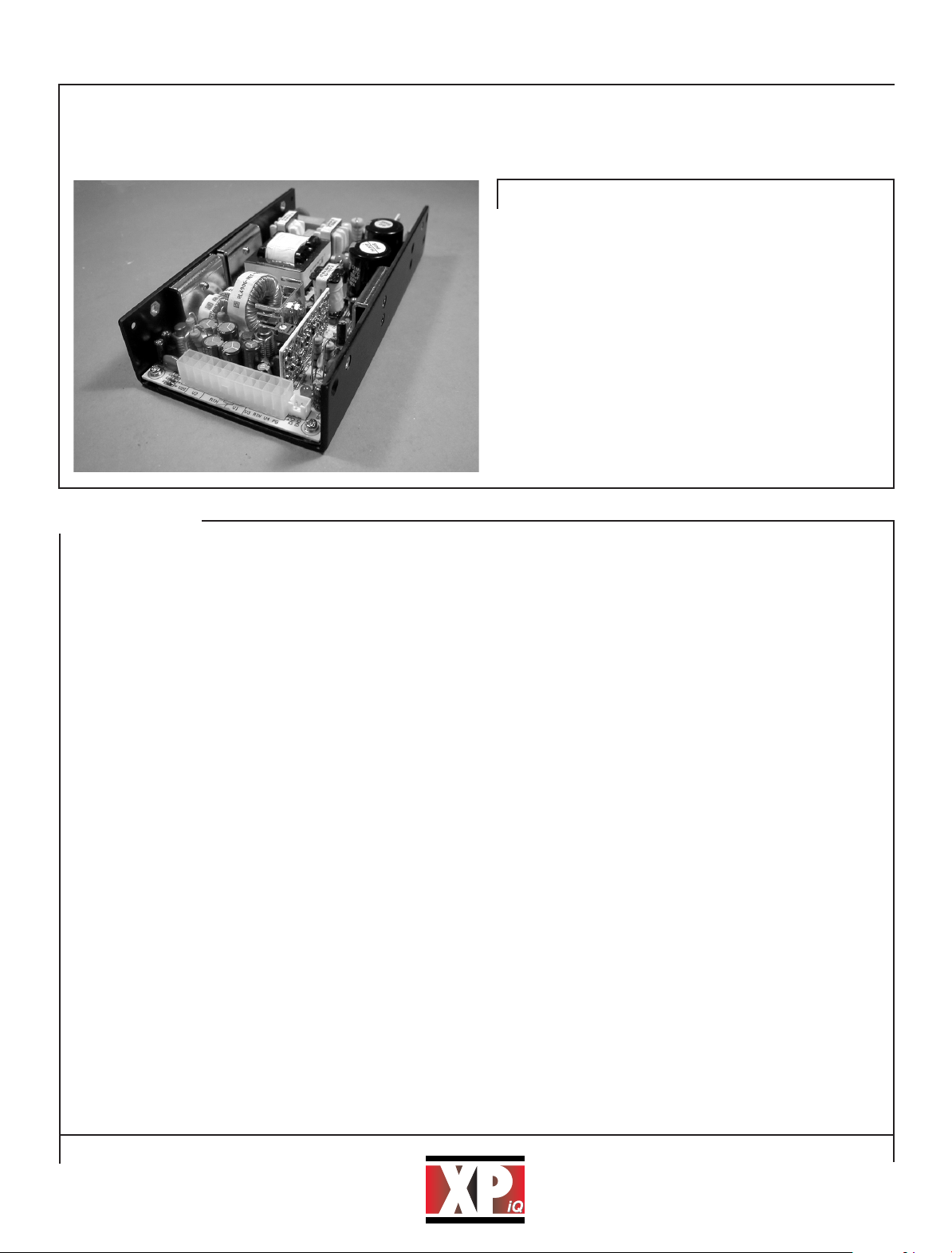

175 Watts
HUL175 Series
AC/DC U-Channel
Specification
•
Intelligent Design Quality Product
XPiQ inc.
Meets EN61000-3-2, -3
•
Meets 1U, Low Profile Requirements
•
Quad Outputs with 3.3V and 5V
•
100W with Convection Cooling
•
International Safety Approvals
•
CE Marked - LVD
PH: 508 429.9883
FAX: 800 226.2100
Email: [email protected]
Holliston, MA 01746 USA
www.XPiQ.com
19
Page 2

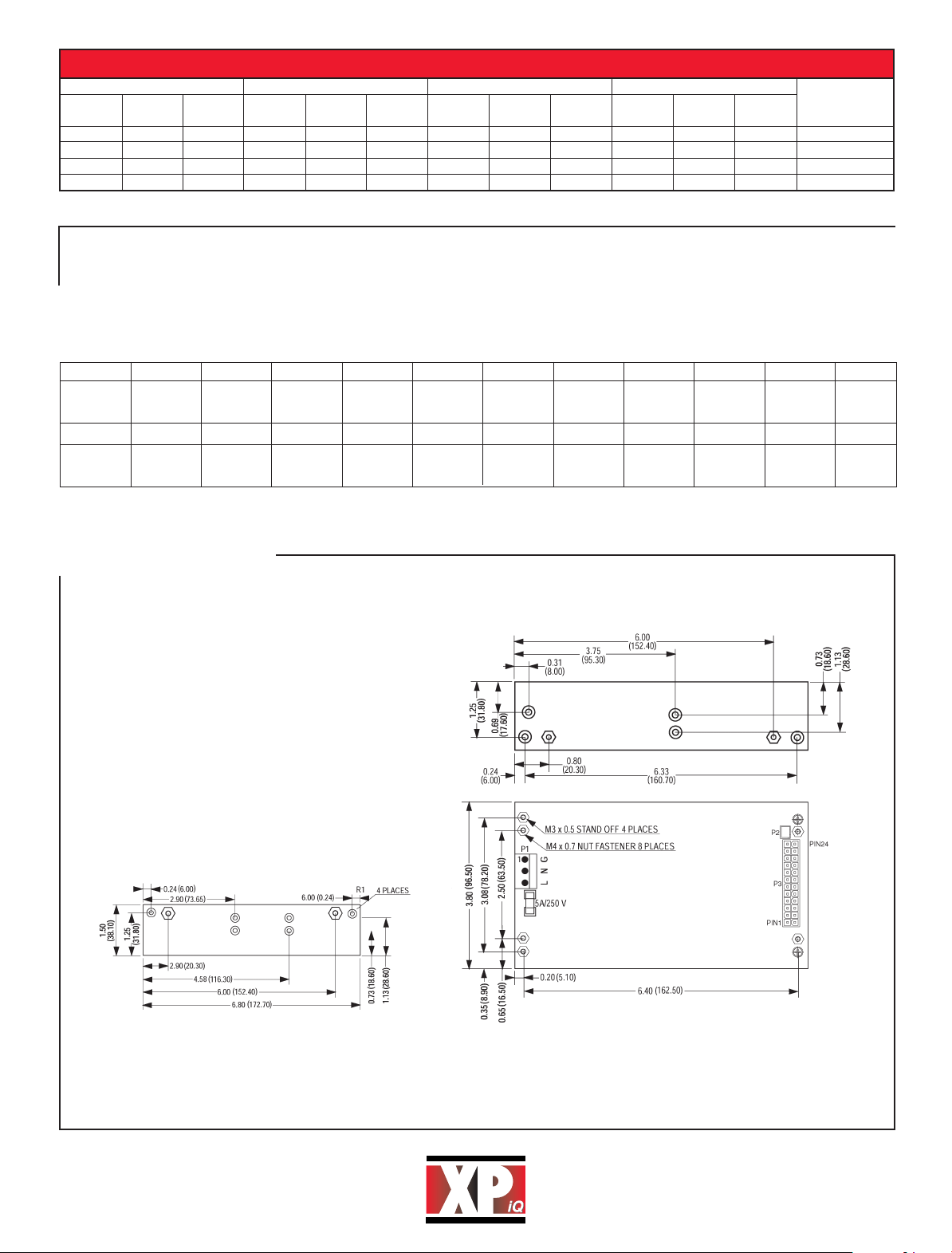

Mechanical Details
Output 1 Output 2 Output 3 Output 4 Model
Output Conv. Max Output Conv. Max Output Conv. Max Output Conv. Max Number
V1 Cooled 18 CFM V2 Cooled 18 CFM V3 Cooled 18 CFM V4 Cooled 18 CFM
5.0 V 10.0 A 15.0 A 3.3 V 10.0 A 20.0 A 12.0 V 2.2 A 3.0 A -5.0 V 0.7 A 1.0 A HUL175-40-3
5.0 V 10.0 A 15.0 A 3.3 V 10.0 A 20.0 A 12.0 V 2.2 A 3.0 A -12.0 V 0.7 A 1.0 A HUL175-42-3
5.0 V 10.0 A 15.0 A 3.3 V 10.0 A 20.0 A 24.0 V 1.5 A 2.0 A -12.0 V 0.7 A 1.0 A HUL175-45-3
5.0 V 10.0 A 15.0 A 3.3 V 10.0 A 20.0 A 15.0 V 2.2 A 3.0 A -15.0 V 0.7 A 1.0 A HUL175-46-3
OUTPUT VOLTAGE & CURRENT RATINGS HUL175
1. Total regulation for V1, V2 and V3 = ±5%. V4 = ±3%. Total regulation includes tolerance, line regulation and load regulation.
2. Total combined output power for the 3.3 V and 5.0 V not to exceed 126 W with 18.7 CFM or 70 W with no air.
3. Maximum load continuous output power is 175W with minimum 18.7 CFM forced air cooling or 100 W with convection cooled.
4. Outputs are fully isolated.
Notes
•
12 34 567 89101112
+Sense Output Output
Return Return Return
Output Output Output
Return
Output Power
Output #2 #2 #2 #1 #1 #3 #4 Good
13 14 15 16 17 18 19 20 21 22 23 24
-Sense Output Output
Return Return Return
Output Output Output
Return
Output
Return
Output #2 #2 #2 #1 #1 #3 #4
Pin Chart
NOTES:
1. Dimensions shown in mm (inches).
2. Tolerance 0.5mm (0.02) maximum.
3. Input connector P1 mates with Molex
housing 09-91-0500 and Molex
2478/2578/8818 Series crimp terminal
4. Output connector P3 mates with Molex.
housing 39-01-2240 and Molex 44476
Series crimp terminal.
5. P2 Connector is JST XHP-2 for an external 12V/300 mA fan.
6. Weight: 700 grams approx.
