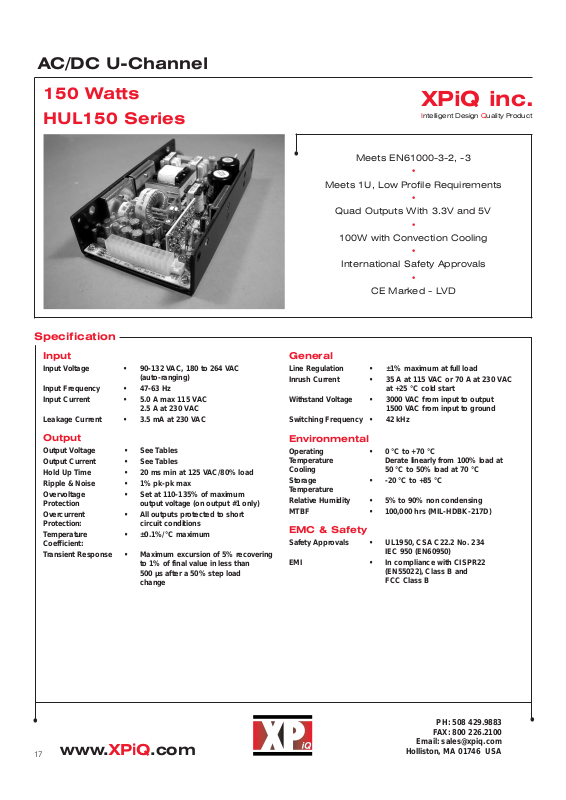

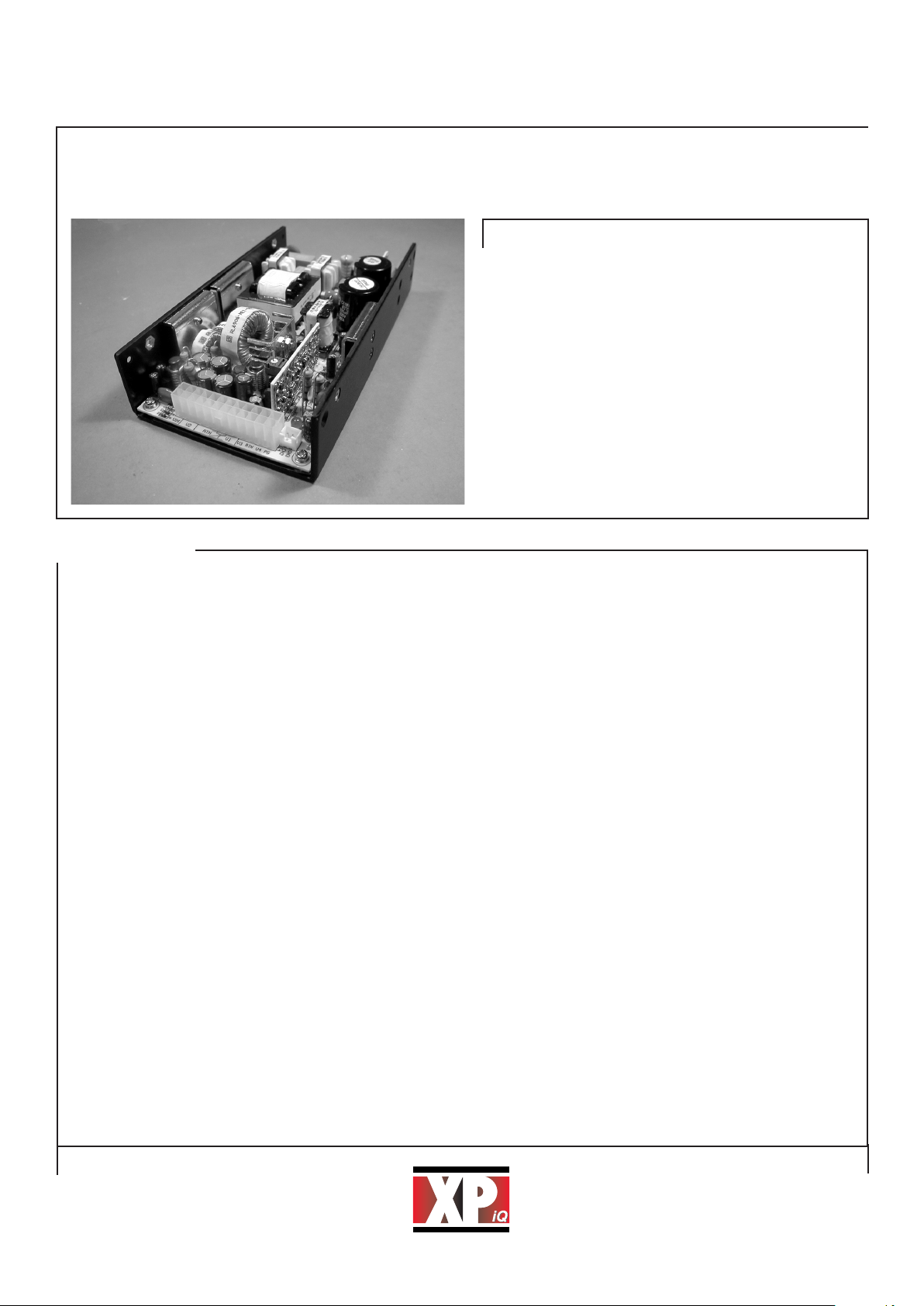

Page 1
•
•
Input
Input Voltage • 90-132 VAC, 180 to 264 VAC
(auto-ranging)
Input Frequency • 47-63 Hz
Input Current • 5.0 A max 115 VAC
2.5 A at 230 VAC
Leakage Current • 3.5 mA at 230 VAC
Output
Output Voltage • See Tables
Output Current • See Tables
Hold Up Time • 20 ms min at 125 VAC/80% load
Ripple & Noise • 1% pk-pk max
Overvoltage • Set at 110-135% of maximum
Protection output voltage (on output #1 only)
Overcurrent • All outputs protected to short
Protection: circuit conditions
Temperature • ±0.1%/°C maximum
Coefficient:
Transient Response • Maximum excursion of 5% recovering
to 1% of final value in less than
500 µs after a 50% step load
change
General
Line Regulation • ±1% maximum at full load
Inrush Current • 35 A at 115 VAC or 70 A at 230 VAC
at +25 °C cold start
Withstand Voltage • 3000 VAC from input to output
1500 VAC from input to ground
Switching Frequency • 42 kHz
Environmental
Operating • 0 °C to +70 °C
Temperature Derate linearly from 100% load at
Cooling 50 °C to 50% load at 70 °C
Storage • -20 °C to +85 °C
Temperature
Relative Humidity • 5% to 90% non condensing
MTBF • 100,000 hrs (MIL-HDBK-217D)
EMC & Safety
Safety Approvals • UL1950, CSA C22.2 No. 234
IEC 950 (EN60950)
EMI • In compliance with CISPR22
(EN55022), Class B and
FCC Class B
150 Watts
HUL150 Series
AC/DC U-Channel
Specification
•
Intelligent Design Quality Product
XPiQ inc.
Meets EN61000-3-2, -3
•
Meets 1U, Low Profile Requirements
•
Quad Outputs With 3.3V and 5V
•
100W with Convection Cooling
•
International Safety Approvals
•
CE Marked - LVD
PH: 508 429.9883
FAX: 800 226.2100
Email: [email protected]
Holliston, MA 01746 USA
www.XPiQ.com
17
Page 2

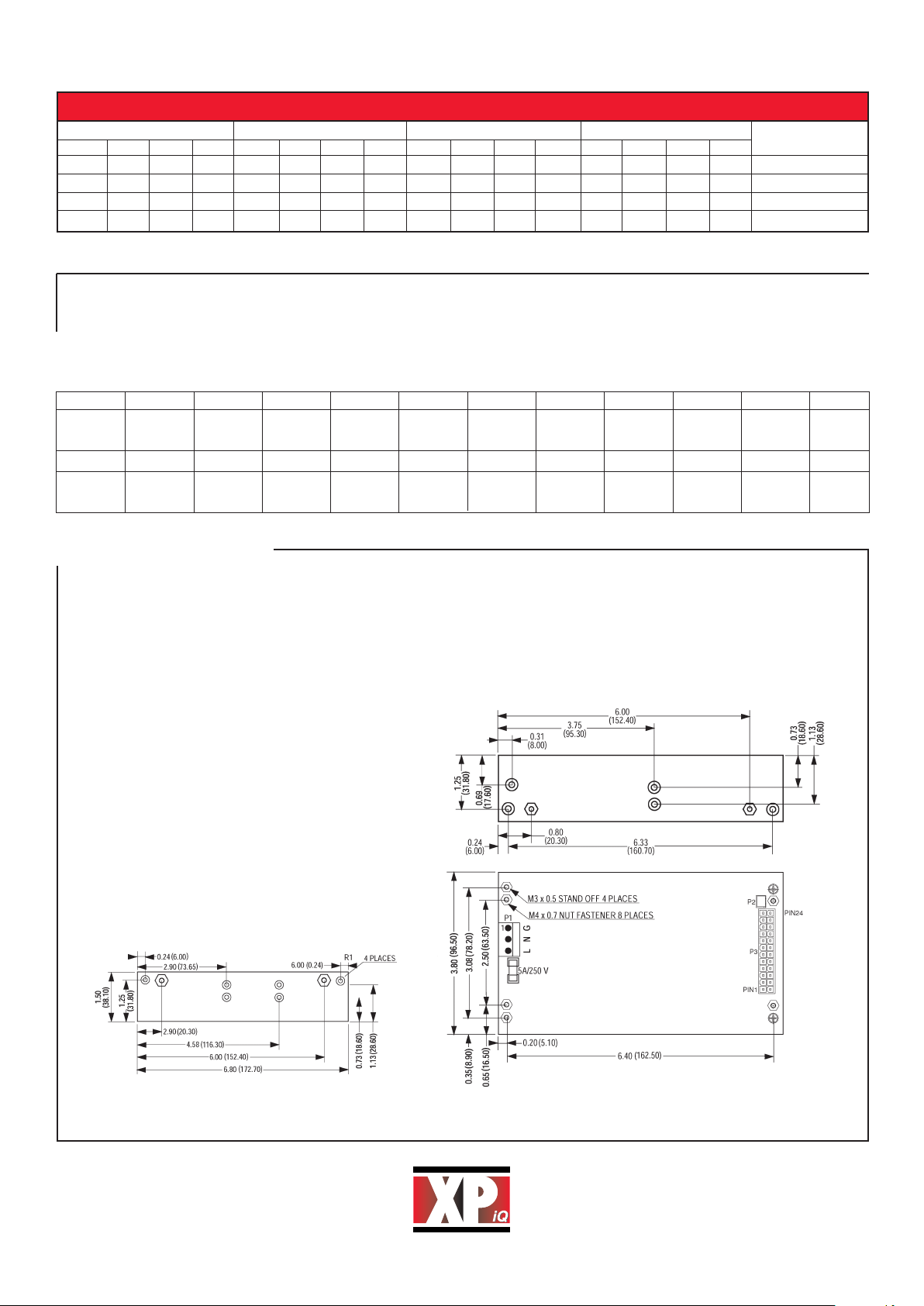

Mechanical Details
1. Use part number UL150-XX-X for product without harmonic correction. Example: UL150-42-3.
2. Total output power for HUL150 is 150 W with 20 CFM forced air cooling, 100 W convection cooled.
3. Total combined output power for the +5 V and +3.3 V not to exceed 100 W with 20 CFM or 70 W with no air.
Notes
•
12 34 567 89101112
3.3V Output Output
Return Return Return
Output Output Output
Return
Output Power
+Sense #2 #2 #1 #1 #3 #4 Good
13 14 15 16 17 18 19 20 21 22 23 24
3.3V Output Output
Return Return Return
Output Output Output
Return
Output
Return
-Sense #2 #2 #1 #1 #3 #4
Pin Chart
NOTES:
1. Dimensions shown in mm (inches).
2. Tolerance 0.5mm [0.02] maximum.
3. Input connector P1 mates with Molex housing 09-91-0500 and Molex 2478/2578/8818 Series crimp terminal.
4. Output connector P3 mates with Molex housing 39-01-2240 and Molex 44476 Series crimp terminal.
5. P2 Connector is JST XHP-2 for an external 12V fan.
6. Weight: 600 grams approx.
Output #1 Output #2 Output #3 Output #4 Model
Vnom Imin Imax Tol. Vnom Imin Imax Tol. Vnom Imin Imax Tol. Vnom Imin Imax Tol. Number
+5 V 2.0 A 15 A 5% +3.3 V 0 A 15 A 5% +12 V 0.5 A 3 A 5% -12 V 0 A 1 A 3% HUL150-42-3
+5 V 2.0 A 15 A 5% +3.3 V 0 A 15 A 5% +15 V 0.5 A 3 A +10/-5% -15 V 0 A 1 A 3% HUL150-46-3
+5 V 2.0 A 15 A 5% +3.3 V 0 A 15 A 5% +12 V 0.5 A 3 A 5% -5 V 0 A 1 A 3% HUL150-40-3
+5 V 2.0 A 15 A 5% +3.3 V 0 A 15 A 5% +24 V 0.5 A 2 A 5% -12 V 0 A 1 A 3% HUL150-45-3
OUTPUT VOLTAGE & CURRENT RATINGS HUL150
18
PH: 508 429.9883
FAX: 800 226.2100
Email: [email protected]
Holliston, MA 01746 USA
www.XPiQ.com
