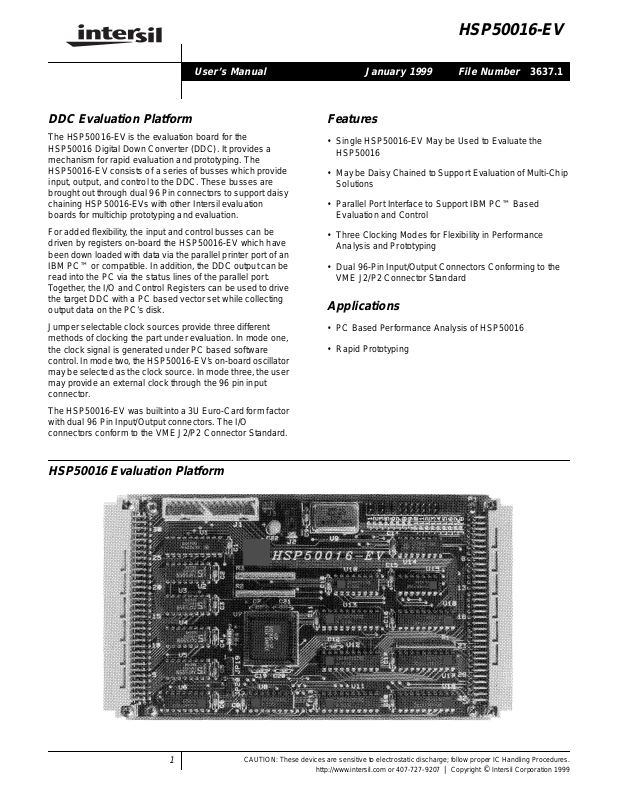

HSP50016-EV

User’s Manual January 1999 File Number

DDC Evaluation Platform

The HSP50016-EV is the evaluation board for the
HSP50016 Digital Down Converter (DDC). It provides a
mechanism for rapid evaluation and prototyping. The
HSP50016-EV consists of a series of busses which provide
input, output, and control to the DDC. These busses are
brought out through dual 96 Pin connectors to support daisy
chaining HSP50016-EVs with other Intersil evaluation
boards for multichip prototyping and evaluation.

For added flexibility, the input and control busses can be
driven by registers on-board the HSP50016-EV which have
been downloadedwithdata via the parallel printer port of an
IBM PC™ or compatible. In addition, the DDC output can be
read into the PC via the status lines of the parallel port.
Together, the I/O and Control Registers can be used to drive
the target DDC with a PC based vector set while collecting
output data on the PC’s disk.

Jumper selectable clock sources provide three different
methods of clocking the part under evaluation. In mode one,
the clock signal is generated under PC based software
control. In mode two, the HSP50016-EV’son-board oscillator
maybe selected as the clock source. In mode three, the user
may provide an external clock through the 96 pin input
connector.

3637.1

Features

• Single HSP50016-EV May be Used to Evaluate the
HSP50016

• Maybe Daisy Chained to Support Evaluation of Multi-Chip
Solutions

• Parallel Port Interface to Support IBM PC™ Based
Evaluation and Control

• Three Clocking Modes for Flexibility in Performance
Analysis and Prototyping

• Dual 96-Pin Input/Output Connectors Conforming to the
VME J2/P2 Connector Standard

Applications

• PC Based Performance Analysis of HSP50016

• Rapid Prototyping

The HSP50016-EV was builtinto a 3U Euro-Card form factor
with dual 96 Pin Input/Output connectors. The I/O
connectors conform to the VME J2/P2 Connector Standard.

HSP50016 Evaluation Platform

1

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

http://www.intersil.com or 407-727-9207

| Copyright © Intersil Corporation 1999

HSP50016-EV

Getting Started

This section describes the initial evaluation system setup for
the HSP50016-EV evaluation board. The system setup
consists of the evaluation board, software installation, and
system test to verify proper operation of the board.

Assembly

As part of the initial assembly, the HSP50016-EV must be
provided with the default jumper configuration to ensure
proper operation with the system test software. Each board
leaving the factory is supplied with the default configuration
as shown in Figure 1.

Before using the board with the supplied software, power
must be supplied to the board, and the HSP50016-EV must
be connected to the parallel port of the PC.

❏ Power is provided to the board by connecting the wall

mount power supply provided to connector J2. As an
alternative, power may be supplied by a standard 5V ±5%
supply through the J3 header or the HSP50016-EV’s 96
Pin DIN connectors P1 or P2.

❏ The HSP50016-EV is connected to the target PC by

connecting the HSP50016-EV’s26 Pin connector J1 to the
PC’s parallel port using the supplied ribbon cable.

System Requirements for the Evaluation Board
Software

The PC system targeted to run the HSP50016-EV software
(DDC-SOFT) and interface with the evaluation board must
meet the following requirements:

❏ IBM PC/XT/AT, PS/2, or 100% compatible with a minimum

of 640K of random access memory (RAM) (DDC-SOFT
does not require extended memory)

❏ At least 250kB of free disk space on the hard disk
❏ DOS Version 3.0 or higher
❏ One parallel port with 27 Pin D-Sub connector

Software Installation

The distribution diskette contains a program called
INSTALL.EXE which installs the DDC-SOFT software onto
the target hard disk. Note: The steps in this section assume
you are installing DDC-SOFT from a diskette in drive A: onto
a hard drive C:. If a different configuration is used, substitute
the letter of the drive where the diskette is located for drive
A: Substitute the letter for the hard drive for drive C:.

To start the installation program:
Make sure computer is on and the DOS prompt is displayed.
❏ Type: C:<Enter>
Create a subdirectory to contain the DDC-SOFT Programs

by typing:
❏ MD \DDCSOFT <Enter>

Change current directory to the DDCSOFT directory
❏ CD \DDCSOFT <Enter>

Start the installation process by typing:
❏ A:INSTALL <Enter>
The INSTALLprogram downloadsthe DDC-SOFTprograms,

DDCCTRL and DDCCMD, to the DDCSOFT subdirectory on
the target hard drive. In addition, a subdirectory called
DDC_CHK is created into which files used to perform
functional verification are downloaded.

Modifications to AUTOEXEC.BAT

To run the DDC-SOFT programs, DOS must be able to find
the executable files. To ensure that DOS can always find the
DDC-SOFT executables, modify the search path to include
the location of the DDC-SOFT directory. For example, if the
DDC-SOFT programs are installed on drive C: in a
subdirectory called\DDCSOFT, add the following line to the
end of the existing Path command in the AUTOEXEC.BAT
file:

❏ ;C:\DDCSOFT
If your AUTOEXEC.BAT file does not contain a PATH

command, add the following command to the file:

PATH=C:\DDCSOFT

❏ Reboot the PC so that the search path changes will take

effect.

System Test

Test software is provided to verify operation of the
HSP50016-EV Board. Prior to performing the system test, it
is assumed that the evaluation board has been assembled
and configured as described above, power has been applied
to the board, and the 26 Pin Connector J1 on board the
HSP50016-EV has been connected to the parallelport of the
target PC via the supplied cable. The system test is initiated
by the following:

Change the current directory to that which contains the
software required for the system test by typing:

❏ CD C:\DDCSOFT\DDC_CHK <Enter>
Run the system test software by typing:

❏ DDCCHK <Enter>
The DDCCHK.EXE batch file makes use of the Command

Line Interface (see Command Line Interface Section) to
initialize the evaluation board, clock a data vector through
the HSP50016-EV, and store the output to a file. The output
file is then compared, using the DOS command COMP, to a
file containing a set of vectors generated by a properly
functioning board. If the TEST_IN.DAT and TEST.OUT.DAT
files match, the assembled board passes operational
verification.

2

HSP50016-EV

When a successful compare has been done, the software
message returned is:

- Comparing files TEST_OUT.DAT and CMPRFILE.DAT

- FC: No differences encountered

The most common causes of test failuresare incorrect board
jumper settings, incorrect comm port selection, or a
corrupted eval.cfg file. It is helpful to delete the file
TEST_OUT.DAT, prior to the test, to ensure that DDC.CHK
runs properly and that a new TEST_OUT.DAT file was
created.

IQSTB SELECT

QOUT SELECT

JP20

11

JP19

P2

NOTE: if the operating system precedes DOS 6.0, the
user should answer NO to the COMP command prompt
to compare additional files. DOS Version 6.0 and above
use a different file compare command, so this step is
not necessary. DDCCHK checks the version
automatically and executes the proper compare routine.

The DDCCHK system test assumes that the LPT1 printer port
is being used for communication with the HSP50016-EV. If
another printer port is used, the Command Line Interface,
DDCCMD, m ust be used to configure the software for using
the correct port (see DDCCMD’s PPC and PP# command).

J1

CABLE

P1

JP1
JP2
JP3
JP5
JP6
JP7
JP8
JP9
JP10
JP11
JP12
JP13
JP14
JP15
JP16
JP17
JP18

J3

J2

EXT_CLK
OSC_CLK
PC_CLK
DATA_OE
ADDR0
ADDR1
ADDR2
ADDR3
ADDR4
ADDR5
ADDR6
ADDR7
DDC_CLK_INV
OUT_CLK_INV
CLK_OUT
CLK_IN
TAP_SEL

CLOCK
SELECT

OUTPUT
ENABLE

BOARD
ADDRESS

CLOCK
SELECT

FIGURE 1. LAYOUT OF HSP50016-EV SHOWING DEFAULT JUMPER CONFIGURATION

3

HSP50016-EV

HSP50016-EV Control Panel Software

The HSP50016-EV Control Panel is a graphical user
interface for controlling the operation of the HSP50016-EV
Board via an IBM PC or compatible. The control panel,
shown in Figure 3, supports loading the HSP50016's control
words; setting the state of control inputs; and specifying files
which serve as the sources and destinations for the
HSP50016's data and TAP inputs and outputs. Operation of
the control panel software is dependent on the clock source
provided to the HSP50016-EV as specified in the clock
select portion of the control panel. The HSP50016-EV
Control Panel is invoked by typing:

DDCCTRL <Enter>

Port Configuration

Communication between the Control Panel software and the
evaluationboard requires that the software knows which one
of the PC's parallel ports is being used for communication
with the HSP50016-EV and which board address the
HSP50016-EV has been configured for. The default
configuration assumes that LPT1 is being used and that the
HSP50016-EV has been configured for a board address of

0. The Port Configuration can be inspected by opening up
the port configuration window using the F9 function key. As
shown in Figure 4, the window displays the availableparallel
ports and their addresses. Also displayed are the current
port and HSP50016-EV board address being used by the
Control Panel software.

The current port and HSP50016-EV address are changed by
opening up the Port Configuration Window, using the
up/down arrow keys to select the desired parameter, and
toggling the space bar to change the selection. Proper
operation of the control panel software requires that the
HSP50016-EV board address specified in the port
configuration window matches the address jumpered in the
Address Selection Section of the HSP50016-EV’s headers
JP6-13.

Clock Select

The Clock Select portion of the control panel is used to tell
the Control Panel software which of four different clock
sources is being supplied to the HSP50016-EV. The choices
include one of two different software generated clocks
(Manual CLK or Port CLK), an oscillator clock provided by
the HSP50016-EV (Oscillator CLK), or an externally
supplied clock (External CLK). The clock mode selected
must be consistent with the Clock Select jumper position in
the HSP50016-EV’s headers JP1-3. If either Manual CLK or
Port CLK are specified in the Control Panel, the clock select
jumper must be inserted in JP3. If either Oscillator CLK or
External CLK is specified, the jumper must be inserted in
JP2 or JP1 respectively.

In Manual CLK mode, single clock pulses are sent to the
HSP50016 by depressing the F2 function key .The clock pulse
is software generatedby setting and clearing the PCCLK bit of

the Control Register U16 on the HSP50016-EV. After each
clock the HSP50016-EV's data outputs are inspected to see if
theyare ready to be read. If so, the data is read into the PC for
displayin the Control Panel. In this mode, file input and output
are supported (See File I/O Select Section).

In Port CLK mode, a free running clock is sent to the
HSP50016. The clock is started and stopped by depressing
the F2 function key. The clock pulses are software generated
by continually setting and clearing the PCCLK bit of Control
Register U16. After each clock the HSP50016-EV's data
outputs are inspected to see if they are ready to be read. If
so, the data is read into the PC for display in the Control
Panel. In this mode, file input and output are supported (see
File I/O Select Section).

In Oscillator CLK mode, the HSP50016 is supplied with a
clock by the oscillator on board the HSP50016-EV. In this
mode, the Control Panel can be used for modifying
and

IQSTRT, the control words, and the data and TAPinputs
to the DDC. However, the software is unable to provide file
based I/O to the evaluation board since the data rate
provided by the oscillator is much greater than that possible
through the parallel port of the PC. As a result, the Control
Panel disables file based I/O and the display of DDC output
in this mode.

Operation in External CLK mode is identical to that in
Oscillator CLK mode, except that the HSP50016 is supplied
with a clock through the 96 Pin DIN connector P1 on the
HSP50016-EV. Because this clock is asynchronous to the
PC, file based I/O and the DDC output displays are disabled.

The clocking mode used by the control panel is indicated by
the position of the “check mark” symbol within the Clock
Select portion of the Control Panel. A different clocking
mode may be selected by positioning the “check mark”
symbol in front of the desired clocking mode. The position of
the “check mark” is changed by using the cursor keys to
move the active window to the desired position and then
toggling the space bar to move the “check mark”.

RESET

File I/O Select

The File I/O Select portion of the Control Panel allows the
user to specify files which can be used as an input data
source or an output data destination for the HSP50016-EV.
The input data is loaded on to the input bus prior to the
software generated clock and the output data is read from
the output bus following the software generated clock.

If file based input is selected, the Control Panel software
down loads data from the specified file to registers on the
HSP50016-EV and clocks the data into the DATA0-15inputs
of the DDC. The Loop Count allows the user to simulate long
data streams by repeatedly sending the same input file.

If file based output is specified, the software reads the data
on the I and Q outputs of the HSP50016 and stores the data
in the specified file. The software automatically reads the

4

HSP50016-EV

output data and writes it into the output file as two’s
complement complex or real data. The configuration of the I,
Q, IQCLK and IQSTB pins is transparent to the user,
provided that none of the pins are three-stated and the DDC
Control Word fields Real Output, HDF Decimation Rate,
Number of Output Bits, I followed by Q and IQCLK rate are
compatible with each other. All valid output modes are
supported.

File based I/O is activated by using the space bar to toggle
the “check mark” symbol in the window proceeding the input
and output file identifiers in the control panel's file I/O
Section. If either file input or output is activated, the
respective file name must be entered in the window to the
right of the file identifier.File input or output may be disabled
at any time by toggling the respective “check mark”.

Note: File I/O is only valid when either the ‘Manual CLK’
or ‘Port CLK’ clocking modes are selected and it is
disabled if other clocking modes are specified.

Input and output data files are ASCII files whose format is
described in Appendix A. There is no limitation to the input
and output file size. Care must be taken if file output is
specified since data is collected in the file until file output is
deactivated or the DDCCTRL Program is exited.

TAP I/O files are similar, except that the TAP is available
regardless of the CLK setting. The format for the TAP input
and output files is given in Appendix B.

HSP50016 Data Inputs

The data window to the left of the HSP50016 icon is used to
specify hexadecimal values which drive the DDC's data
inputs DATA0-15. Data is entered into this window in
hexadecimal format starting with the most significant digit.
The contents of a particular data window may be edited by
following the window editing instructions in Appendix C.

If file input is selected, the data input is driven with data from
the specified file. On each clock the data window is updated
with the data sample down loaded from the file. In this mode
the data input window may not be manually updated.

HSP50016 Data I&Q Outputs

There are 32 bits available at P2. The control software for
the evaluation board performs a serial read via the PC Port.

Control Signals

The control signal portion of the control panel is used to
define the state of the DDC control signals
IQSTRT. The logical state of a control signal is set by using
the space bar to toggle the signal state in the window
preceding the specified control signal. When the evaluation
board is in Port CLK mode and
high, the DDC is automatically clocked five times. See the
HSP50016 Data Sheet for a complete description of the
control signals.

once after power up. The software DOES NOT do this
automatically.

RESET must be toggled low and high

RESET is set either low or

RESET and

Control Words

In the lower left hand corner of the control panel is a data
window which contains the hexadecimal values loaded into
the HSP50016's eight control words. The contents of a
particular control word may be updated by movingthe cursor
to the data window which is to be modified, selecting the
control word by pressing the space bar (which moves the
check mark to the desired control word) and depressing the
F4 key. A submenu pops up which parses that control word
into its various fields so that they may be examined or
modified individually.

The value entered into the data window is down loaded to
the HSP50016 and the submenu disappears when the user
depresses the F2 key. Leaving the window via the <Esc> key
ignores any changes made and returns to the main control
panel screen. If the update bit has been set, the new values
will update the configuration of the DDC and this will be
reflected in the submenu screen.

Note that all values displayed in this window are the last
values written to the control words, as opposed to
having been read from the DDC itself.

Help

Help windows are provided as a source of information for
control panel usage. The help window is activated by the F1
function key, and contains information based on the window
which is currently active.

Command Line Interface

As an alternative to the control panel, a command line
interface is provided which allows the user to control the
HSP50016-EV by issuing commands from the DOS prompt.
The commands perform basic I/O and configuration
functions by up or down loading data to the HSP50016
through the HSP50016-EV. The Command Line Program
has the following usage:

DDCCMD [Command] [ARG 1] [ARG 2] [ARG 3]

The Command specifies the action to be taken, and the
Arguments (ARG1, ARG2) represent additional data
required by the command. For example, to load Control
Word 1 with a value of 200000005(HEX) and set the update
bit, the user would type:

DDCCMD WCW 1 1 200000005 <Enter>

A summary of the command set is given in Table 2.
When several commands are to be entered consecutively,

the user may initiate the interactive command mode by
entering:

DDCCMD <Enter>

All commands are then entered as before, except that
control does not return to DOS between commands, and it is
not necessary to enter DDCCMD for each command. Note

5

HSP50016-EV

that the software automatically updates the control words
from the EVAL.CFG file upon entering the interactive mode.
Leaving the interactive mode is accomplished by typing
“quit” or “exit.”

DDCCMD gives the user the ability to control the evaluation
board via DOS batch files or system calls from a
programming language. The DDC_CHK6.BAT file discussed
in the System Test Section is an example of how the
Command Line Program might be used in a DOS batch file.

Configuration Jumpers

The Configuration Jumpers consists of the jumper headers
JP1-3 and JP5-20 as shown in Figure 1 and Table 1. Refer to
the evaluation board schematic found in the Appendices.
Most of these are self-explanatory, but the following bear
further discussion.

JP16
JP17
JP18

FIGURE 2. JUMPER CONFIGURATION IF CLOCK IS

SUPPLIED THROUGH P1 INPUT HEADER

JP15
JP16
JP17
JP18

FIGURE 3. JUMPER CONFIGURATION IF CLOCK IS

SUPPLIED THROUGH P2 OUTPUT HEADER

The jumpers JP16 and JP17 are used to select whether the
HSP50016's clock source is provided through the P1

connector or the P2 connector. If jumpers are inserted as
shown in Figure 2, a clock signal supplied through the
CLK_IN pin of the P1 input header drives a buffer whose
output clocks the HSP50016. The jumper inserted on JP16
feedsthe bufferedclock signal to the CLK_OUT pin of the P2
connector. If jumpers are inserted as shown in Figure 3, the
CLK_OUT pin of the P2 connector drives the clock buffer
which in turn drives the clock input of the HSP50016. The
jumper inserted between JP16 pin 2 and JP17 pin 2 allows
the CLKIN pin to be driven by the buffer output. NOTE: The
jumper placement shown in Figure 2 is the standard
configuration.

It is possible to configure the DDC so that the I, Q, IQCLK
and IQSTB outputs are in a high impedance state. Except for
IQSTB, these pins are pulled up on the evaluation board so
that they will not float under these conditions. Since IQSTB
can be either active high or low, it must be capable of being
pulled either way. JP19 determines whether IQSTB is pulled
up or down when it is three-stated. This jumper should be
installed such that IQSTB is pulled to its inactive state.

Note: The position of JP20 comes into play only when
parallel output from P2 is desired.

The jumper should be placed between pins 1 and 2 when
the DDC is configured for I followed by Q mode; the jumper
should be from JP20-2 to JP20-3 when I and Q are output
separately. The HSP50016-EV is shipped from the factory
with the default jumper configuration shown in Figure 1 and
Table 1. For the supplied software to properly control
operation of the HSP50016, it is assumed that the jumpers
are as specified in the default configuration; of course, once
the user is familiar with the operation of the board, this
configuration may be modified as required. The system test
software, DDCCHK, must be run using the default
configuration.

TABLE 1. DESCRIPTION OF JUMPER CONNECTIONS

JP DESCRIPTION DEFAULT

1 DDC CLK driven from external source when this jumper is installed. Only one of
2 DDC CLK driven from on board oscillator when this jumper is installed. ­3 DDC CLK driven from PC software when this jumper is installed. Installed

5 DDC DATA0-15 driven from PC software when installed, otherwise data is from external source. Must be

installed or DATA0-15 lines must be driven to avoid damage to DDC.

6-13 Selects evaluation board address. Only one of these jumpers should be installed at a time. JP6 Installed

14 Selects input clock as inverted. Installed = non-inverted. Installed
15 Selects output clock as inverted. Installed = non-inverted. Installed
16 Direct flow of input and output clocks. JP16-1 is shorted to JP16-2 and JP17-1 is shorted to JP17-2 for the
17

18 TAP inputs driven by PC (installed) or from P2 (not installed). Installed
19 IQSTB pulled up (JP19-1 shorted to JP19-2) or pulled down (JP19-2 to JP19-3). Must be installed (in ei-

20 Serial to parallel converters configured for up to 32-bit, I followed by Q (JP20-1 to JP20-2) or 16 bit, I and

DDC CLK to be driven by the PC, on board oscillator, or connector pin P1C-20. To drive CLK from P2C­20, jumper JP16-1 to JP17-1 and JP16-2 to JP17-2. JP1 must be installed in this configuration.

ther position) to avoid damage to evaluation board.

Q output separately (JP20-2 to JP20-3).

JP1, JP2 and JP3
selected
at a time.

JP16-1 to JP16-2,

-

Installed

JP17-1 to JP17-2

JP19-1 to JP19-2

JP20-2 to JP20-3

6

HSP50016-EV

HSP50016-EV CONTROL PANEL

CLOCK SELECT

MANUAL CLK

√

PORT CLK
OSC. CLK
EXTERNAL CLK

CONTROL SIGNALS

1 RESET
0 IQSTRT

CONTROL WORDS

0 000000000
1 200000001

√

2 000000000
3 000000000
4 00000006E

5 00D002100
6 000000000
7 000000002

F1 - HELP F2 - START CLOCK F3 - START JTAG F4 - CONTROL WORD F9 - PORT CFG F10 - QUIT

INPUT FILE: INPUT.DAT

√

LOOP COUNT: 1
OUTPUT FILE: OUTPUT.DAT

√

DATA FORMAT: HEX

DATA0-15 7FFF

INPUT FILE: J_INPUT.DAT

√

OUTPUT FILE: J_OUTPUT.DAT

√

DATA FILE I/O SELECT

HSP50016

DDC

CLOCK NUMBER 0

JTAG FILE I/O SELECT

(I) 0000000000

(Q) 0000000000

FIGURE 4. CONTROL PANEL SCREEN AS DISPLAYED ON PC

HSP50016-EV CONTROL PANEL

PORT CONFIGURATION

CLOCK SELECT

MANUAL CLK

√

PORT CLK
OSC. CLK
EXTERNAL CLK

AVAILABLE PRINTER PORTS

INPUT FILE: INPUT.DAT
OUTPUT FILE: OUTPUT.DAT

LPT1

FILE I/O SELECT

ADDRESS (HEX)

0x3BC

CONTROL SIGNALS

1 RESET#
0 IQSTRT#

CONTROL WORDS

0 000000000
1 200000001

√

2 000000000
3 000000000
4 00000006E

5 00D002100
6 000000000
7 000000002

F1 - HELP F2 - START CLOCK F3 - START JTAG F4 - CONTROL WORD F9 - PORT CFG F10 - QUIT

CURRENT PORT SELECTION : LPT1
CURRENT HSP50016-EV ADDRESS : 0

LPT2

LPT3

INPUT FILE: J_INPUT.DAT

√

OUTPUT FILE: J_OUTPUT.DAT

√

0x378

0x3BC

(i) 0000000000

(Q) 0000000000

FIGURE 5. PORT CONFIGURATION WINDOW AS DISPLAYED ON PC

7

HSP50016-EV

TABLE 2. COMMAND LIST FOR COMMAND LINE INTERFACE SOFTWARE

ARGUMENT

COMMAND

WCW WORD

RCW WORD

WCS CONTROL

RCS Displays the last value loaded into the evaluation board’s control register.

DIN INPUT

CLK COUNT Toggles PCCLK, the software clock to the DDC, the specified number of

RES Resets the DDC and cycles CLK five times.

IQS 0/1 Sets the state of the IQSTRT line.

RDO Reads the output I and Q data of the DDC to the screen.

PDF INPUT

ODF 0/1 Output data file format: 0 = hexadecimal, 1 = floating point.
TCK Toggle TCLK one cycle.
TRS Write TRST low, then high.
TMS 0/1 Write one bit to TMS pin.

TDI 0/1 Write one bit to TDI pin.
TDO Read one bit from TDO pin.
PTF INPUT

PP PORT

PPC S Display the printer port and HSP50016-EV board address that the DDCCMD

ERR Display the state of the error bit:

? List available commands together with a brief description.

BYE, EXIT,

QUIT

#1

NUMBER

NUMBER

REGISTER

CONTENTS

DATA

FILE

NAME

FILE

NAME

NUMBER

(1 - 3)

ARGUMENT#2ARGUMENT

#3 COMMAND DESCRIPTION

UPDATE

BIT

OUTPUT

FILE

NAME

OUTPUT

FILE

NAME

BOARD

ADDRESS

(0 - 7)

CONTROL

WORD

COUNT Process Data File: Read one sample from input file, write it to DATA0-15, re-

Loads the specified control word of the HSP50016 with the 36-bit hexadeci­mal value specified in Argument #3. Setting the update bit = 1 updates the
configuration of the DDC; update bit = 0 only modifies the control word.

Reads one of the HSP50016’s control words to the screen. If Argument #1 is
omitted, all control words are displayed.

Loads the evaluation board’s control register with a 16-bit hexadecimal value.

Does not read the current contents of the register.
Loads the HSP50016’s DATA0-15 input with the 16-bit value specified in Ar-

gument #1.

times. If Argument #1 is omitted, COUNT = 1.

peat until output data becomes available, then read outputs, write to output
file. Repeat until all samplesin the data input filehave been read. Perform this
entire process for the number of times specified by Argument #3. If Argument
#3 is omitted, input file is read one time.

Process Test File: Write bit patterns specified in input file to TAP; read TAP
output and store in output file. See Appendix B for TAP file format.

Change the printer port and HSP50016-EV board address that the DDCCMD
programisusing for communication between the PC and the evaluationboard
to those specified in arguments 1 and2. The boardaddress is set by inserting
a jumper one of the headers JP6-13.

Program is using for communication to the PC.

0 =...No error.
1 =...Software unable to execute command; e.g., a syntax error was detected
in the command line, an RDO command was executed while DDC was exe­cuting a data output cycle, and so on. A correctly executed command clears
the bit, except for ERR, BYE, EXIT and QUIT, which have no effect on the er­ror bit.

Any one of these terminates interactive mode.

8

HSP50016-EV

Hardware Overview

The HSP50016-EV was designed to facilitate prototyping
with the HSP50016 Digital Down Converter.It can be used in
a stand alone mode, in conjunction with other Intersil
evaluation boards, or be inserted into a card cage and
operate as a part of a larger system. The following
description of the board references both the Block Diagram
in Figure 6 and the Schematic Diagrams, which are included
at the back of this manual.

Bus Structure

The HSP50016-EV utilizes a set of busses for DDC input,
output and control as shown in Figure 6. The input and
output bussesconnect the DDC to the outside world through
96 Pin DIN connectors conforming to the VME J2/P2
Connector Standard. DDC control information is provided
either by control registers down loaded via the parallel port
of a PC or from the 96 Pin DIN connectors

The DDC’s input data bus,DIN0-15, is driven from the 96 Pin
DIN connector P1 (Pinout shown in Table 3). DIN0-15 may
be driven by Registers U12 and U13 which have been down
loaded with data through the ParallelPort Bus.The source of
the input data is selected by jumper JP5. Installing the
shorting jumper on JP5 selects the PC as the data source.
Removing the jumper puts the registers driving the DIN0-15
bus in a high impedance state so that the input data can be
driven from P1.

The control lines of the DDC and the board are driven by the
outputs of the Control Registers (U11, U16). These registers
are down loaded with data via the Parallel Port Bus or
through the PCD0-7 lines on P1 or P2. when the board is

controlled through the 96 Pin DIN connectors, the user must
emulate the operation of the PC interface. A description of
this operation is given below in the section describing the
Parallel Port Bus.

The DDC output is available through three different paths: It
is connected to the Select line of the PC Parallel Port
through the eight to one multiplexer U6; it is connected to the
96 Pin DIN connector P2 through the buffer U1; finally, it is
converted to parallel data by the Shift Registers U2-5 and
driven out on P2. The mapping for P2 is given in Table 4.

Parallel Port Bus

The Parallel Port Bus carries the write only parallel data and
signals required to support bidirectional data transfers
between the HSP50016-EV and the parallel port of the PC.
This bus contains eight data lines, PCD0-7, two control lines,
PCWR0-1, and the serial output line PCRD1. The control
and data lines are used to down load data into the on board
registers of the HSP50016-EV. The serial output line carries
the DDC output data back to the PC.

The Parallel Port Bus is attached to the PC by connecting
the ribbon cable provided to the PC's parallel port and to the
26 pin connector J1 on the DDC Evaluation Board. The
ribbon cable maps the Parallel Port Bus signals to the PC's
parallel port as shown in Table 5.

The Parallel Port Bus is brought out through each of the 96
Pin DIN connectors (P1, P2) so that multiple Intersil
evaluation boards can be daisy chained. This allows all of
the evaluation boards in the chain to be controlled through a
single board which has been connected to a host PC.

96 PIN INPUT CONNECTOR (P1)

EXT CLK

INPUT BUS 1

(DIN0-15)

OSC

16

CLK IN

INPUT
REG 1

SELECT ENABLE SELECT

CONFIGURATION JUMPER FIELD (JP1-3, 5-18)

OUTPUTADDRESSCLK

FIGURE 6. BLOCK DIAGRAM OF HSP50016-EV

HSP50016JC-52

PARALLEL PORT BUS

9

CONTROL BUS

CONTROL

REG

PARALLEL PORT

INTERFACE

PARALLEL PORT CONNECTOR

26 PIN CONNECTOR

16

I0-15

16

Q0-15

SHIFT REGISTER

CLK OUT

(J1)

96 PIN OUTPUT CONNECTOR (P2)

13

HSP50016-EV

TABLE 3. PIN ASSIGNMENTS FOR 96 PIN INPUT

CONNECTOR P1

ROW A

PIN

NUMBER

1 N.C. V
2 DIN0 GND DIN1
3 DIN2 N.C. DIN3
4 DIN4 N.C. DIN5
5 DIN6 N.C. DIN7
6 GND N.C. DIN8
7 DIN9 N.C. DIN10
8 DIN11 N.C. DIN12
9 DIN13 N.C. DIN14
10 DIN15 N.C. GND
11 N.C. N.C. N.C.
12 N.C. GND N.C.
13 N.C. V
14 N.C. N.C. N.C.
15 N.C. N.C. GND
16 N.C. N.C. N.C.
17 N.C. N.C. N.C.
18 N.C. N.C. N.C.
19 N.C. N.C. N.C.
20 GND N.C. CLKIN
21 GND N.C. N.C.
22 GND GND N.C.
23 GND N.C. N.C.
24 GND N.C. N.C.
25 GND N.C. N.C.
26 PCD0 N.C. PCD1
27 PCD2 N.C. PCD3
28 PCD4 N.C. PCD5
29 PCD6 N.C. PCD7
30 PCWR0 N.C. GND
31 PCWR1 GND PCRD0
32 PCRD1 V

SIGNAL

MNEMONIC

ROW B

SIGNAL

MNEMONIC

CC

CC

CC

ROW C

SIGNAL

MNEMONIC

GND

N.C.

PCRD2

TABLE 4. PIN ASSIGNMENTS FOR 96 PIN OUTPUT

CONNECTOR P2

ROW A

PIN

NUMBER

1 N.C. V
2 QO0 GND QO1
3 QO2 N.C. QO3
4 QO4 N.C. QO5
5 QO6 N.C. QO7
6 GND N.C. QO8
7 QO9 N.C. QO10
8 QO11 N.C. QO12
9 QO13 N.C. QO14
10 QO15 N.C. GND
11 N.C. N.C. IO0
12 IO1 GND IO2
13 IO3 V
14 IO5 N.C. IO6
15 IO7 N.C. GND
16 IO8 N.C. IO9
17 IO10 N.C. IO11
18 IO12 N.C. IO13
19 IO14 N.C. IO15
20 TCK.E N.C. CLKOUT
21 TMS.E N.C. IQSTB.B
22 TRST.E GND IQCLK.B
23 TDI.E N.C. IOUT.B
24 TDO.B N.C. QOUT.B
25 GND N.C. GND
26 PCD0 N.C. PCD1
27 PCD2 N.C. PCD3
28 PCD4 N.C. PCD5
29 PCD6 N.C. PCD7
30 PCWR0 N.C. GND
31 PCWR1 GND PCRD0
32 PCRD1 V

SIGNAL

MNEMONIC

ROW B

SIGNAL

MNEMONIC

CC

CC

CC

ROW C

SIGNAL

MNEMONIC

GND

IO4

PCRD2

10

HSP50016-EV

TABLE 5. SIGNAL MAPPING FOR CONNECTOR J1

PIN

NUMBER

1 N.C. N.C.
2 PCD0 (D0) N.C.
3 PCD1 (D1) PCWR0 (INIT

4 PCD2 (D2) PCWR1 (SELECT

5 PCD3 (D3) GND
6 PCD4 (D4) GND
7 PCD5 (D5) GND
8 PCD6 (D6) GND

9 PCD7 (D7) GND
10 N.C. GND
11 PCRD0 (BUSY) GND
12 PCRD2 (PAPER

13 PCRD1 (SELECT) GND

PCRD = PC Read; PCD = PC Data

TABLE 6. REGISTER TO INPUT/CONTROL BUS MAPPINGS

REGISTER

ADDRESS

0 U16 Clock and control

1 U11 DDC Control, TAP

2 U13 DDC Data input LS

3 U12 DDC Data Input MS

4-7 Not Used N.C.

J1A SIGNAL

MNEMONIC

END)

DESTINATION

REGISTER

J1B SIGNAL

MNEMONIC

PRINTER)

IN)

GND

REGISTER
FUNCTION

Byte

Byte

register. The On-Board Registers are down loaded by first
writing data to the Parallel P ort Interface's Holding Register
U17 followed b y tw o writes to the Address Register U18. By
writing the address register, data in the holding register is
loaded into one of the Registers U11, 12, 13, 16. The address
register specifies the particular register for loading as well as
the board address of the HSP50016-EV targeted for the data
download. The HSP50016-EV board address is selected by
placing a shorting jumper on one of the headers JP6-13 (see
Configuration Jumper Field Section), and the memory map for
the 8 data registers is shown in Table 6. The bit map for the
Parallel Port Interface’s Address Register is given in Table 7.

The Parallel Port Interface's Address and Holding Registers
are loaded with data from the PCD0-7 data lines of the
parallel port bus by a “low” to “high” transition on the
appropriate bus control line. Specifically, the address
register is loaded with data when a “low” to “high” transition
occurs on the PCWR0 line of the Parallel Port Bus, and the
holding register is loaded by a like transition on the PCWR1
line. The mapping of the parallel port bus signals to the PC's
parallel port is given in Table 5.

As an example, consider the loading of the least significant
byte of the data input, Register U13, as shown by the Timing
Diagram in Figure 7. First, data is down loaded to the
Parallel Port Interface's Holding Register. Next, the address
register is written with a value which contains the address of
U13 (see Table 6 for memory map), the HSP50016-EV
board address (assumed to be zero in this example), and a
“high” in the LD bit position (see Table 7 for Address Register
Bit Map). Finally, data is latched into the targeted register by
rewriting the address register with the same board and
register address but with a “low” in the LD bit position. The
“high/low” transition of the LD bit loads the data in the
holding register into the target data register on the specified
HSP50016-EV.

TABLE 7. ADDRESS REGISTER BIT MAP

LOAD

ADDRESS

NOT USED

D7 D6 D5-3 D2-0

RANGE

BOARD

ADDRESS

REGISTER

ADDRESS

Register Structure

The HSP50016-EV provides a set of registers which may be
used as a source for DDC input and control. They can be
loaded from either the parallel port or from the P1 connector.

Down Loading Data via Parallel Port
Interface

The control and input registers are down loaded from the PC
by a series of single byte writes to the to the Parallel Port
Interface. The Parallel Port Interface consists of two
decoders, an 8-bit address register, and an 8-bit holding

11

PCWR0

PCWR1

PCD0-7

FIGURE 7. TIMING DIAGRAM FOR LOADING DATA INTO

DAT A 0x42 (HEX) 0x02 (HEX)

DATA FOR

LSBYTE OF

DATA INPUT

WRITTEN TO

HOLDING REG

LSBYTE OF DATA INPUT REGISTER

ADDRESSOF

DATA INPUT

REG WRIT-

TEN TO

ADDRESS

REG

CODE TO TOG-

GLELOAD DATA

LINE FOR U13

HSP50016-EV

Up Loading Data via PC's Parallel Port

Data is up loaded to the host PC through the “Select” serial
status line of the PC's parallel port. The PC up loads data by
monitoring the state of the PCRD1 serial output line on the
HSP50016-EV's Parallel Port Bus. The mapping of the
evaluation board signals to the PC’s parallel port is given in
Table 5.

DDC Data and Control via P1 Connector

When it is desired to use P1 connector for data input, the
registers driving the data bus are three-stated by removing
the jumper JP5 (see Configuration Jumper Field Section).
The DIN0-15 pins on P1 are then used to drive the input
pins of the HSP50016. If all 16 pins are not used, then the
DIN bus should be loaded starting from bit 15 down. When

JP5 is not installed, all data input pins must either be
driven by an external data source or grounded to avoid
damage to the board.

To control the DDC from the P1 or P2 connector, the PCD0­7 bus is exercised via the connector. In this case, the user
must operate this bus in the same manner as the PC
exercises it from the parallel port as described above. No
jumper selection is necessary in this case; it is only
necessary to leave the parallel port connector J1
unconnected.

To operate the Test Access Port from P2, the shorting
jumper on JP18 is removed. The TAP pins are then
controlled directly from P2 according to the TAP
Specification. In this case, the SEL0-2 lines should be set to
0, 0, and 1 respectively.

DDC Clocking Modes

The HSP50016-EV provides the DDC with one of three
jumper selectable clock sources. The three clock choices
consist of an on-board oscillator, a user provided external
clock, and a clock generated by toggling the LSB of the
Control Register U16. The clock source is select by placing a
jumper on either JP1, 2 or 3. To support applications in
which multiple evaluation boards are daisy chained together,
a clock output line is routed to the HSP50016-EV's output
connector P2.

An external clock may be selected by inserting a jumper on
the header JP1. In this mode, an external clock supplied to
the CLKIN pin of the 96 pin Input Connector is provided to
the DDC. This configuration supports the use of a common
clock between daisy-chained evaluation boards by wiring
CLKOUT from the P2 Output Connector of one board to the
CLKIN pin of another board's P1 Input Connector. Since
there is no synchronization between the externally provided
clock and data transfers to the HSP50016-EV's I/O
Registers, the PC would typically provide the DDC with
asynchronous control in this mode.

The on-board oscillator is selected as a clock source by JP2.
In this mode, the oscillator on board the HSP50016-EV is
supplied as a clock to the DDC. Since data transfers to the
DDC via the HSP50016-EV’s I/O Registers are much slower
than the DDC’s data rate using the oscillator clock, the PC
can only be used to provide the DDC with asynchronous
control in this mode.

The LSB of the Control Register U16 is selected as the clock
source if a jumper is inserted in the header JP3. In this
mode, the clock signal is generated by using register writes
to toggle the PCCLK bit. Since the clock may be controlled
by software, input and control register writes and the output
shift register reads can be performed synchronously with the
clock. Consequently, the HSP50016-EV can be used as a
hardware modeler where input and output data vectors are
transferred via the PC's parallel port.

Configuration Jumper Field

The HSP50016-EV is configured for operation by placing
jumpers in the headers JP1-3 and JP5-18. As shown in
Table 1, the jumper field has areas dedicated for clock
selection, register output enables and board address
selection. The default jumper placement is shown in Figure 1
and Table 1. Each HSP50016-EV leaves the factory
jumpered with the default configuration.

The Clock Select jumpers are used to specify one of the
three available DDC clocking modes. These include
EXT_CLK for selection of an external clock source,
OSC_CLK for selection of the on board oscillator clock, and
PC_CLK for selection of a register driven clock using the
LSB of the CTL Control Register. The clocking modes are
described in the DDC Clocking Modes Section of this
manual. Note: Normally, only one clock source may be
selected at a time. In any mode, the input and output clocks
may be negated independently by removing the jumpers on
JP14 and JP15.

The output of the Input Registers U12 and U13 are enabled
by placing a jumper on JP5 (see Bus and Register Structure
Sections) If a jumper is removed, the output of the respective
register is three stated.

The Board Address Jumpers are used to specify the
HSP50016-EV board address used for data transfers via the
ParallelPort Bus. An address from 0 to 7 may be selected by
inserting a jumper in positions ADDR0 thru ADDR7
respectively. Only one jumper may be inserted in this field.

The jumper JP18 is used to select the source of data for the
IEEE 1149.1 Test Access Port (TAP) bus. Inserting this
jumper enables the PC to drive this bus, while removing it
enables control from the P1 connector.

JP19 selects whether the IQSTB line is pulled up or down.
Placing the jumper between header pins 1 and 2 pulls
IQSTB up, while shorting pins 2 and 3 pulls IQSTB down.
The position of the jumper is only meaningful when IQSTB is

12

HSP50016-EV

three stated, which can be programmed by setting the
proper control bits of the DDC. Even if the user has no
intention of operating in this mode, it is recommended that
JP19 be put in one position or the other to avoid the
possibility of this line floating after power up or due to being
inadvertently placed in the high impedance state. If the

shorting jumper is not installed on JP19, the IQSTB line
may oscillate and cause damage to U6.

When parallel output is desired from the P2 connector, JP20
controls the flow of data to the Shift Registers U4 and U5.
The user may read the I and Q outputs separately with 16
bits of precision by configuring the DDC to output data
separately overthe I and Q pins, setting the output precision
to 16 bits and inserting a shorting jumper on header pins 2
and 3. The parallel outputs can be read with any precision by
setting the DDC for I followed byQ and setting the jumper on
header pins 1 and 2. For this circuit to operate correctly, the
DDC must also be set for IQCLK Rate > 1, and data stable
on the falling edge of IQCLK. Note that in the schematic, the
parallel output lines are numbered assuming that the DDC
output is MSB first, although the circuit will work just as well
in LSB first mode.

HSP50016-EV Limited Warranty

Intersil warrants the HSP50016-EV to be free of defects in
material and workmanship under normal use for a period of
ninety (90) days. Intersil also warrants that the HSP50016­EV User's Manual is substantially complete and contains all
the information which Intersil considers necessary to use the
HSP50016-EV, and that the HSP50016-EV functions
substantially as described in the HSP50016-EV User's
Manual. Intersil will replace the HSP50016-EV as Intersil's
sole duty under this warranty only if you ship it, postage
prepaid, to Intersil within 90 days of such acquisition and
provide proof of date of acquisition.

HSP50016-EV Software License
Agreement

In return for the purchase price of the HSP50016-EV
product, the Purchaser receives from Intersil Corporation
(“Intersil”) a non-exclusive nontransferable (except as set
forth below) license under Intersil copyrights to use the
software subject to the following terms and conditions:

[1] The Software is protected by both United States

Copyright Law and International Treaty Provisions.
Therefore, you must treat the Software like any other
copyrighted material (e.g., a book) and may not copy,
distribute or make derivatives of any part thereof except
that the you may either a) make one copy of the Software
solely for archival purposes, or b) transfer the Software
to a single hard disk provided you keep the original
solely for backup or archival purposes.

[2] The Software may be transferred to a third party on a

permanent basis, provided you retain no copies and the
recipient agrees, in writing to Intersil, to the terms of this
Agreement.

[3] If the software package contains both 3.5" and 5.25"

disks, then you may use only the disks appropriate for
your single-user computer. You may not use the other
disks on another computer or loan, rent, lease, or
transfer them to another user except as part of the
permanent transfer (as provided above) of all Software.

This limited warranty does not extend to any products which
have been damaged as a result of accident, misuse, abuse,
or as a result of service or modification by anyone other than
Intersil or Intersil's authorized representatives.

Intersil makes no other express or implied warranty with
respect to the HSP50016-EV other than the limited warranty
set forth above. Intersil disclaims all implied warranties of
merchantability and/or fitness fora particular purpose. In any
event,all implied warranties shall be limited to the duration of
this warranty. The liability of Intersil, if any, shall under

any tort, contract or other legal theory be limited to the
actual price paid for such product and shall in no event
include incidental, consequential, special or indirect
damages of any kind, even if Intersil is aware of the
possibility of such damages.

Intersil reserves the right to reviseand make changes to this
manual and the HSP50016-EV from time to time without
obligation to notify any person of, or to provide any person
with, such revisions or changes.

13

HSP50016-EV

Appendix A

Data File Structures

The Input/Output data files used by the HSP50016-EV
Control Panel and Command Line Interface Software
contain data samples. The data files consist of a seven line
header followed by the data itself. The Header Section must
follow this format:

Line 1: Comment #1
Line 2: Comment #2
Line 3: Comment #3
Line 4: Comment #4
Line 5: Comment #6
Line 7: r 1 n
(Data sample) •

•

•

The ‘n’ on the 7th line of the header should be replaced by
the number of data samples in the file. Followingthe header,
the data samples are listed one per row.The data sample is
represented as a two’s complement floating point value
bounded by +1.0 and -1.0.

The output file format is similar, except that the data samples
are usually complex, with the real part in the first column and
the imaginary part in the second column. In this case, the “r”
int line 7 of the file header is replaced with a “c”. The
exception to this is when the DDC is in real output mode, in
which case the output file consists of one column of real data
as shown above. The file CMPRFILE.DAT installed in the
DDC_CHK subdirectory is an example of the output data file
structure.

Appendix B: TAP File Format

The input test vector file is read line by line; each set of
inputs is supplied to the part simultaneously. On the falling
edges of TCK, the output pins are read and their states are
stored in the output file. Input and output files are ASCII text.
The input file has no header or trailer, but for purposes of
clarity, it is recommended that the user include a header
such as the one shown in the example below. The first
column of bits is applied to the TDI pin, the next to TRST,
and so on as shown.

Input file example:
# Comment lines denoted by # in column 1

#TTTT
#DRMC
#I SSK
#T

1110
1011
1010
1111
1110

The output file is similar in format, with each column
corresponding to an output pin and each row representing
the state of the pins on each falling edge of TCK.

Output file example:

II

QQ
TSC
DTL
OI QBK
11100
10110
10100

Appendix C: Window Editing

KEY FUNCTION

Control-Y Deletes contents of field.
Insert Toggles insert/overwrite editing modes.
Any Character Inserts or replaces character at current cursor location.
Delete Deletes character at current cursor location.
Backspace Deletes character to the left of the cursor.
Right/Left Arrow Moves cursor right or left.
Home Positions cursor at the beginning of the current line.
End Positions cursor at the end of the current line.
Enter/Up/Down Arrow Keys Enter edited data and exit window. DDCCTRL does not accept changes until window is exited.
Space Bar Toggles control signals

All Intersil semiconductor products are manufactured, assembled and tested under ISO9000 quality systems certification.

Intersil semiconductor products are sold by description only.Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time with­out notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However,no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see web site http://www.intersil.com

14

HSP50016-EV

PCCLK

SEL0

SEL1

SRRST#

SRO E#

SEL2

PCCLK

SEL0

SEL1

SEL2

SRO E#

SRRST #

U7

U16

IQSTB SELECT

MUST BE

INSTALLED!

JP19

123

R4

10K

CLK14DATA017DATA116DATA215DATA311DATA410DATA59DATA68DATA729DATA830DATA931DATA1 032DATA1 133DATA1 235DATA1 336DATA1 437DATA1 538CCLK41CDATA44CSTB42CS#43IQSTRT#2RESET#26TCK25TMS24TRS T#21TDI

DI N0

DI N1

DI N2

DI N3

DI N4

DI N5

DI N6

DI N7

DI N8

DI N9

DI N10

DI N11

DI N12

DI N13

DI N14

DDCCLK

IQSTRT#

RESET#

PCCLK

SRRST#

SRO E#

SEL0

SEL1

SEL2

12

Q119Q218Q317Q416Q515Q614Q713Q8
D12D23D34D45D56D67D78D89CLK11OC

D0D1D2D3D4D5D6

D7

DI N15

U11

74ACT574

1

QOUT

IOUT

IQCLK

IQSTB

IQSTB

IQCLK

IOUT

QOUT

5

1

I4Q

IQCLK3IQSTB

CCLK

CDATA

CSTB

CS#

TDI . R

TRS T. R#

TMS. R

TCK. R

12

Q119Q218Q317Q416Q515Q614Q713Q8
D12D23D34D45D56D67D78D89CLK11OC

D0D1D2D3D4D5D6

D7

74ACT574

1

TDO

TDO

22

TDO

20

DI N[ 0 . . 15 ]

DI N[ 0 . . 1 5 ]

HSP50016

DI N0

DI N1

DI N2

DI N3

DI N4

DI N5

DI N6

Q119Q218Q317Q416Q515Q614Q713Q8
D12D23D34D45D56D67D78D89CLK11OC

U13

D0D1D2D3D4D5D6

1Y42Y73Y94Y
1A21B32A52B63A113B104A144B

U8

TCK. R

TMS. R

TCK. E

DI N7
12

1

D7

12

1

13

TRS T. R#

TDI . R

TMS. E

TRS T. E#

TDI . E

TSEL. R#

DI N8

DI N9

DI N10

Q119Q218Q317Q416Q515Q614Q713Q8

D12D23D34D45D56D67D78D89CLK11OC

U12

74ACT574

D0D1D2D3D4D5D6

ADRNG[ 0. . 7]

G

A/B

74ACT157

15

DI N11

DI N12

DI N13

DI N14

DI N15
12

74ACT574

1

D7

TAP SELECT

1

JP18

TSELR#

2

JP19: SELECT IQSTB# TO INACTIVE STATE WHEN 3-STATED.

WARNING: IN ORDER TO AVOID DAMAGE TO BOARD

THIS JUMPER MUST BE INSTALLED ON POWER UP!

JP18: WHEN INSTALLED, IEEE-1149 BUS IS CONTROLLED THROUGH PCD0-7;

ELSE CONTROL IS EXTERNAL

SHADING INDICATES INSTALLED FOR PC OPERATION.

IQCLK

10

R2

DDCCLK

DDCCLK

Schematic

1

2

JP5

DATA

OUTPUT

ENABLE

ADRNG0

ADRNG1

ADRNG2

ADRNG3

ADRNG4

ADRNG5

ADRNG6

Y015Y114Y213Y312Y411Y510Y69Y7

A1B2C3G16G2 A4G2 B

ADRNG7
7

5

74ACT138

D0D1D2D3D4D5D6

Q119Q218Q317Q416Q515Q614Q713Q8
D12D23D34D45D56D67D78D89CLK11OC

U17

PCD0

PCD1

PCD2

PCD3

PCD4

PCD5

7

Y015Y114Y213Y312Y411Y510Y69Y7

A1B2C3G16G2 A4G2 B

U10

TSELR#

IQSTB.P

IOUT

QOUT

OEDI N

213456789

VCC

VCC

R1

213456789

PCD0

PCD1

RNGSEL

RNG SEL

74ACT138

5

12
Q119Q218Q317Q416Q515Q614Q713Q8
D12D23D34D45D56D67D78D89CLK11OC

U18

10

PCD2

PCD3

PCD4

PCD5

PCD6

PCD7

PCD0

PCD1

PCD2

PCD3

PCD4

PCD5

PCD6

PCD7

U14

74ACT574

1

PCWR0

PCWR0

D[0..7]

ADRNG[ 0. . 7]

D7

12

74ACT574

1

PCD6

PCD7

PCWR1

PCWR1

TCK. E

PCD[ 0 . . 7 ]

TCK. E

PCD[ 0. . 7]

VCC

TDI.E

TMS. E

TRS T. E#

vcc

gnd

DI . E
T

TMS. E

TRS T. E#

vcc

gnd

15

HSP50016-EV

PCRD 1

PCRD 1

IQCLK.B

IQSTB.B

IQSTB.B

IQCLK.B

1Y1181Y2161Y3141Y4122Y192Y272Y352Y4

1A121A241A361A482A1112A2132A3152A4

U1

IQSTB

IQCLK

QOUT . B

TDO. B

IOUT.B

IOUT.B

QOUT . B

TDO. B

3

1G12G

74F244

19

17

IOUT

QOUT

TDO

IO[0..15]

IO[0..15]

OSCOUT

OSCOUT

8

OUT

U9

OSC

QO[0. . 15]

QO[0..15]

(Continued)

Schematic

5

W6Y

D04D13D22D31D415D514D613D712A11B10C

U6

IOUT

QOUT

IQSTB

IQCLK

TDO

TDO

TDO

O4

O7

IO0IO1IO2IO3I

IO5IO6I

7

9

QA15QB1QC2QD3QE4QF5QG6QH

G

74ACT151

9

7

SEL0

SEL1

SEL2

SEL0

SEL1

SEL2

SER

U3

14

IOUT

IOUT

SRCLK11SRCLR10RCLK12G

IQCLK

IQCLK

QH'

13

SRRST#

SRO E#

IQSTB

SRO E#

IQSTB

SRRST#

74F595

O1 0IO1 1IO1 2IO1 3IO1 4

IO8IO9I

QA15QB1QC2QD3QE4QF5QG6QH

SER

SRCLK11SRCLR10RCLK12G

U2

14

O1 5
I

7

9

QH'

74F595

13

QO0

QO1

QO2

QO3

QO4

QO5

QO6

QO7

7

9

QA15QB1QC2QD3QE4QF5QG6QH

SER

U5

14

123

JP20

QOUT

SELECT

QOUT

QOUT

QH'

SRCLK11SRCLR10RCLK12G

13

JUMPER PINS 1 - 2 FOR I FOLLOWED

BY Q (UP TO 32-BIT OUTPUT). NOTE

THAT THIS IS LESS THAN THE 38 BITS

THE DDC IS CAPABLE OF OUTPUTTING.

QO8

QO9

QO1 0

QO1 1

QO1 2

QO1 3

QO1 4

QO1 5

7

9

QA15QB1QC2QD3QE4QF5QG6QH

74F595

SER

U4

14

SRCLK11SRCLR10RCLK12G

QH'

74F595

13

JUMPER PINS 2 - 3 FOR SEPARATE I,

Q 16-BIT OUTPUT ONLY.

THE IQCLK RATE ≠0, BECAUSE THIS WILL

DISABLE IQCLK WHEN SET TO ZERO.

vcc

gnd

vcc

VCC

gnd

16

VCC

DI N1

DI N3

DI N5

DI N7

123456789

P1C

CLKI N

DI N8

DI N10

DI N12

DI N14

1011121314151617181920212223242526272829303132

CLKI N

HSP50016-EV

PCD1

PCD3

PCD5

PCD7

PCRD1

PCRD2

PCRD[ 0. . 2 ]

PCD[ 0 . . 7 ]

DI N[ 0 . . 15 ]

PCD[ 0. . 7 ]

DI N[ 0 . . 15]

TCK. E

TMS. E

PCRD[ 0. . 2]

TCK. E

TMS. E

PCWR0

TDI . E

TDI.E

PCWR1

PCWR0

PCWR1

vcc

gnd

vcc

gnd

VCC

TRST. E#

TRST. E#

VCC

123456789

P1B

DI N0

DI N2

DI N4

DI N6

123456789

P1A

QO1

QO3

QO5

QO7

123456789

P2C

123456789

P2B

1011121314151617181920212223242526272829303132

DI N9

DI N11

DI N13

DI N15

1011121314151617181920212223242526272829303132

QO8

QO1 0

QO1 2

QO1 4

IO0

IO2

IO4

IO6

IO9

IO11

IO13

IO15

CKOUT

IQSTB.B

IQCLK.B

IOUT.B

1011121314151617181920212223242526272829303132

1011121314151617181920212223242526272829303132

PCD0

PCD2

PCD4

PCD6

PCWR0

PCRD0

PCWR1

PCD1

PCD3

PCD5

PCD7

QOUT . B

PCRD1

PCRD2

(Continued)

Schematic

QO0

QO4

QO6

QO9

QO1 1

QO1 3

QO2

123456789

P2A

CKOUT

CKOUT

QO1 5

IO1

IO3

IO5

IO7

IO8

IO10

IO12

IO14

1011121314151617181920212223242526272829303132

PCD0

PCD2

PCD4

PCD6

TCK. E

TMS. E

TRST. E#

TDI . E

PCWR0

TDO. B

PCWR1

PCRD0

IO[0..15]

QO[0..15]

QO[ 0 . . 1 5 ]

IO[0..15]

TDO. B

TDO. B

IQSTB.B

I QCLK. B

IOUT.B

QOUT . B

IQSTB.B

IQCLK.B

IOUT.B

QOUT . B

17

HSP50016-EV

C7

.01 uF

C14

.01 uF

C21

.01 uF

C6

.01 uF

C13

.01 uF

C20

.01 uF

C5

.01 uF

C12

.01 uF

C19

.01 uF

C4

.01 uF

C11

.01 uF

C18

TCK. E

TDI . E

PCWR1

PCWR0

TMS. E

TRST. E#

TCK. E

TDI . E

PCWR1

PCWR0

TMS. E

TRST. E#

12345678910111213

J1B

PCD0

PCD1

PCD2

PCD3

PCD4

PCD5

PCD6

PCD7

123456789

J1A

PCRD2

PCRD0

101112

CONNECTER TO

PCRD1

13

CONNECTER TO

PCD[ 0. . 7]

COMPUTER

PCD[ 0 . . 7]

COMPUTER

PCRD[ 0. . 2 ]

PCRD [ 0 . . 2]

RNGSEL

DDCCLK

C3

.01 uF

C10

RNGSEL

DDCCLK

C9

C2

.01 uF

C22

22 uF

C1

.01 uF

C8

VCC

123

1

J2

2

J3

.01 uF

.01 uF

C17

.01 uF

.01 uF

C16

.01 uF

.01 uF

C15

.01 uF

(Continued)

1

2

CLKIN

EXT CLK

1

2

JP16 JP17

CLKOUT

11

U15D

74ACT86

12

13

8

U15C

74ACT86

9

10

TCK. E

TDI . E

PCWR1

TMS. E

TRST. E#

213456789

R3

VCC

10

3

U15A

1

2

1

2

JP14

DDC CLK INV

74ACT86

SHADING INDICATES

INSTALLED

FOR PC OPERATION

CKOUT

U15B

4

CKOUT

6

74ACT86

5

1

2

JP15

OUTCLK INV

JP1

CKI N

OSC CLK

1

2

1

2

JP2

JP3

OSCOUT

CLKI N

PC CLK

1

2

PCCLK

JP6

ADRNG0

1

2

ADDR 0

ADRNG1

1

2

JP7

ADDR 1

JP16, 17: NORMALLY CONNECT PIN 1 TO PIN 2 ON BOTH HEADERS;

JP14, 15: INVERT CLOCKS

JP8

TO SOURCE CLOCK FROM CKOUT, CONNECT JP6-1 TO JP7-1

AND JP6-2 TO JP7-2

ADRNG2

1

2

JP9

ADDR 2

JP1, 2, 3: SELECT EXTERNAL CLOCK, OSCILLATOR CLOCK

OR PC CLOCK WITH JUMPER OR APPROPRIATE HEADER

JP6-13: SELECT BOARD ADDRESS WITH JUMPER ACROSS ONE HEADER

ADRNG3

1

2

ADDR 3

JP10

ADRNG4

1

2

ADDR 4

JP11

ADRNG5

1

2

ADDR 5

VCC

vcc

vcc

JP12

ADRNG6

1

ADDR 6

gnd

gnd

ADRNG7

2

1

2

JP13

ADDR 7

ADRNG[ 0. . 7]

Schematic

18

CKOUT

CLKI N

PCCLK

OSCOUT
