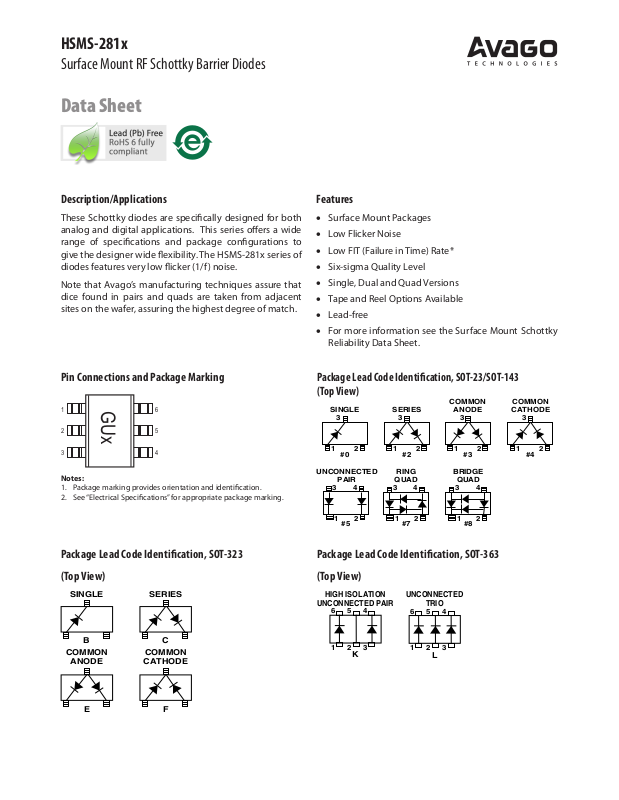

Datasheet HSMS-281x Datasheet (AVAGO)

HSMS-281x

COMMON

CATHODE

#4

UNCONNECTED

PAIR

#5

COMMON

ANODE

#3

SERIES

#2

SINGLE

#0

1 2

3

1 2

3 4

RING

QUAD

#7

1 2

3 4

BRIDGE

QUAD

#8

1 2

3 4

1 2

3

1 2

3

1 2

3

COMMON

CATHODE

F

COMMON

ANODE

E

SERIES

C

SINGLE

B

UNCONNECTED

TRIO

L

1 2 3

6 5 4

HIGH ISOLATION

UNCONNECTED PAIR

K

1 2 3

6 5 4

GUx

1

2

3

6

5

4

Surface Mount RF Schottky Barrier Diodes

Data Sheet

Description/Applications

These Schottky diodes are specically designed for both
analog and digital applications. This series oers a wide
range of specications and package congurations to
give the designer wide exibility. The HSMS‑281x series of
diodes features very low icker (1/f) noise.

Note that Avago’s manufacturing techniques assure that
dice found in pairs and quads are taken from adjacent
sites on the wafer, assuring the highest degree of match.

Pin Connections and Package Marking

Notes:

1.

Package marking provides orientation and identication.

2. See “Electrical Specications” for appropriate package marking.

Features

• Surface Mount Packages

• Low Flicker Noise

• Low FIT (Failure in Time) Rate*

• Six‑sigma Quality Level

• Single, Dual and Quad Versions

• Tape and Reel Options Available

• Lead‑free

• For more information see the Surface Mount Schottky

Reliability Data Sheet.

Package Lead Code Identication, SOT-23/SOT-143
(Top View)

Package Lead Code Identication, SOT-323

(Top View)

Package Lead Code Identication, SOT-363

(Top View)

Absolute Maximum Ratings

[1]

TC = 25°C

Symbol Parameter Unit SOT-23/SOT-143 SOT-323/SOT-363

If Forward Current (1 μs Pulse) Amp 1 1

PIV Peak Inverse Voltage V Same as VBR Same as VBR

Tj Junction Temperature °C 150 150

T

Storage Temperature °C ‑65 to 150 ‑65 to 150

stg

θjc Thermal Resistance

Notes:

1. Operation in excess of any one of these conditions may result in permanent damage to the device.

2. TC = +25°C, where TC is dened to be the temperature at the package pins where contact is made to the circuit board.

ESD WARNING: Handling Precautions Should Be Taken To Avoid Static Discharge.

[2]

°C/W 500 150

Electrical Specications TC = 25°C, Single Diode

[3]

Maximum Maximum
Minimum Maximum Forward Reverse Typical
Part Package Breakdown Forward Voltage Leakage Maximum Dynamic
Number Marking Lead Voltage Voltage VF (V) @ IR (nA) @ Capacitance Resistance

[4]

HSMS

Code Code Conguration VBR (V) VF (mV) IF (mA) VR (V) CT (pF) RD (Ω)

2810 B0 0 Single 20 410 1.0 35 200 15 1.2 15
2812 B2 2 Series
2813 B3 3 Common Anode
2814 B4 4 Common Cathode
2815 B5 5 Unconnected Pair
2817 B7 7 Ring Quad
2818 B8 8 Bridge Quad

[4]

[4]

281B B0 B Single
281C B2 C Series
281E B3 E Common Anode
281F B4 F Common Cathode
281K BK K High Isolation
Unconnected Pair
281L BL L Unconnected Trio

Test Conditions IR = 10 mA IF = 1 mA VF = 0 V IF = 5 mA
f = 1 MHz

Notes:

1. ∆VF for diodes in pairs and quads in 15 mV maximum at 1 mA.

2. ∆CTO for diodes in pairs and quads is 0.2 pF maximum.

3. Eective Carrier Lifetime (τ) for all these diodes is 100 ps maximum measured with Krakauer method at 5 mA.

4. See section titled “Quad Capacitance.”

5. RD = RS + 5.2 Ω at 25°C and If = 5 mA.

[5]

2

Quad Capacitance

C

j

R

j

R

S

Rj =

8.33 X 10-5 nT
Ib + I

s

where
Ib = externally applied bias current in amps
Is = saturation current (see table of SPICE parameters)
T = temperature, °K
n = ideality factor (see table of SPICE parameters)

Note:
To effectively model the packaged HSMS-281x product,
please refer to Application Note AN1124.

RS = series resistance (see Table of SPICE parameters)

Cj = junction capacitance (see Table of SPICE parameters)

C

1

x C2 C3 x C

4

C

DIAGONAL

= _______ + _______

C

1

+ C2 C3 + C

4

C

1

x C2 C3 x C

4

C

DIAGONAL

= _______ + _______

C

1

+ C2 C3 + C

4

1

C

ADJACENT

= C1 + ____________

1 1 1

–– + –– + ––

C2 C3C

4

Capacitance of Schottky diode quads is measured using
an HP4271 LCR meter. This instrument eectively isolates
individual diode branches from the others, allowing ac‑
curate capacitance measurement of each branch or each
diode. The conditions are: 20 mV R.M.S. voltage at 1 MHz.
Avago denes this measurement as “CM”, and it is equiva‑
lent to the capacitance of the diode by itself. The equiva‑
lent diagonal and adjacent capaci‑tances can then be cal‑
culated by the formulas given below.

In a quad, the diagonal capacitance is the capacitance be‑
tween points A and B as shown in the gure below. The
diagonal capacitance is calculated using the following
formula

The equivalent adjacent capacitance is the capacitance
between points A and C in the gure below. This capaci‑
tance is calculated using the following formula

Linear Equivalent Circuit Model Diode Chip

ESD WARNING:
Handling Precautions Should Be Taken To Avoid Static Discharge.

This information does not apply to cross‑over quad di‑
odes.

3

SPICE Parameters

Parameter Units HSMS-281x

BV V 25

CJ0 pF 1.1

EG eV 0.69

IBV A E‑5

IS A 4.8E‑9

N 1.08

RS Ω 10

PB V 0.65

PT 2

M 0.5

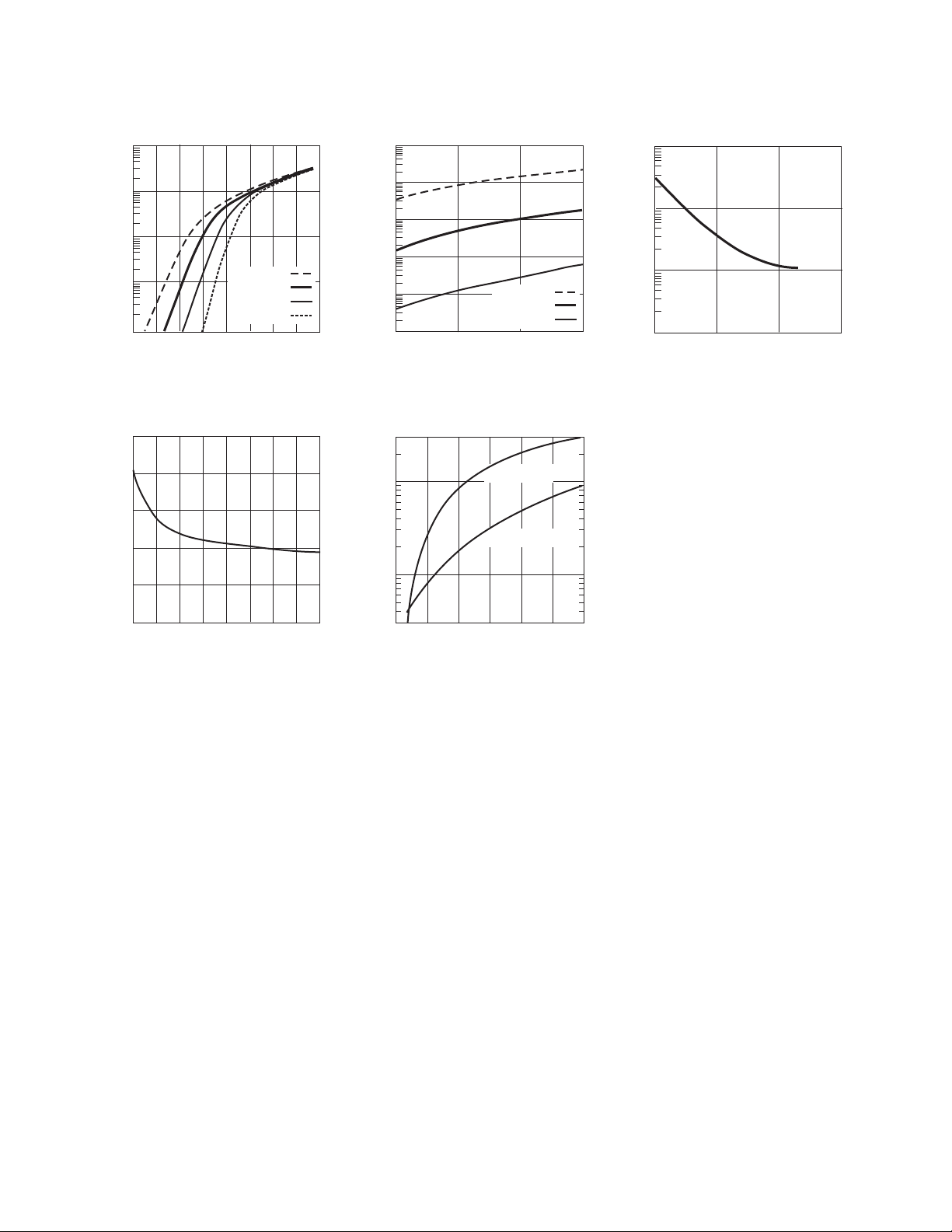

Typical Performance, TC = 25°C (unless otherwise noted), Single Diode

Figure 1. Forward Current vs. Forward Voltage at
Temperatures.

0 0.1 0.30.2 0.5 0.60.4 0.80.7

I

F

– FORWARD CURRENT (mA)

VF – FORWARD VOLTAGE (V)

0.01

10

1

0.1

100

TA = +125C
TA = +75C
TA = +25C
TA = –25C

Figure 2. Reverse Current vs. Reverse Voltage at
Temperatures.

0 5 15

I

R

– REVERSE CURRENT (nA)

VR – REVERSE VOLTAGE (V)

10

1

1000

100

10

100,000

10,000

TA = +125C
TA = +75C
TA = +25C

Figure 3. Dynamic Resistance vs. Forward
Current.

0.1 1 100

R

D

– DYNAMIC RESISTANCE ()

IF – FORWARD CURRENT (mA)

10

1

10

1000

100

Figure 4. Total Capacitance vs. Reverse Voltage.

0 2 64 10 128 1614

C

T

– CAPACITANCE (pF)

VR – REVERSE VOLTAGE (V)

0

0.75

0.50

0.25

1.25

1

VF - FORWARD VOLTAGE (V)

Figure 5. Typical Vf Match, Pairs and Quads.

30

10

1

0.3

30

10

1

0.3

I

F

- FORWARD CURRENT (mA)

V

F

- FORWARD VOLTAGE DIFFERENCE (mV)

0.2 0.4 0.6 0.8 1.0 1.2 1.4

IF (Left Scale)

VF (Right Scale)

4

Applications Information

0.026

0.039

0.079

0.022

Dimensions in inches

0.026

0.079

0.018

0.039

Dimensions in inches

Assembly Instructions

Introduction — Product Selection

Avago’s family of Schottky products provides unique solu‑
tions to many design problems.

The rst step in choosing the right product is to select
the diode type. All of the products in the HSMS‑282x fam‑
ily use the same diode chip, and the same is true of the
HSMS‑281x and HSMS‑280x families. Each family has a dif‑
ferent set of characteristics which can be compared most
easily by consulting the SPICE parameters in Table 1.

A review of these data shows that the HSMS‑280x family
has the highest breakdown voltage, but at the expense of
a high value of series resistance (Rs). In applications which
do not require high voltage the HSMS‑282x family, with a
lower value of series resistance, will oer higher current
carrying capacity and better performance. The HSMS‑281x
family is a hybrid Schottky (as is the HSMS‑280x), oering
lower 1/f or icker noise than the HSMS‑282x family.

In general, the HSMS‑282x family should be the designer’s
rst choice, with the ‑280x family reserved for high volt‑
age applications and the HSMS‑281x family for low icker
noise applications.

Table 1. Typical SPICE Parameters.

Parameter Units HSMS-280x HSMS-281x HSMS-282x

BV V 75 25 15

CJ0 pF 1.6 1.1 0.7

EG eV 0.69 0.69 0.69

IBV A 1 E‑5 1 E‑5 1 E‑4

IS A 3 E‑8 4.8 E‑9 2.2 E‑8

N 1.08 1.08 1.08

RS Ω 30 10 6.0

PB (VJ) V 0.65 0.65 0.65

PT (XTI) 2 2 2

M 0.5 0.5 0.5

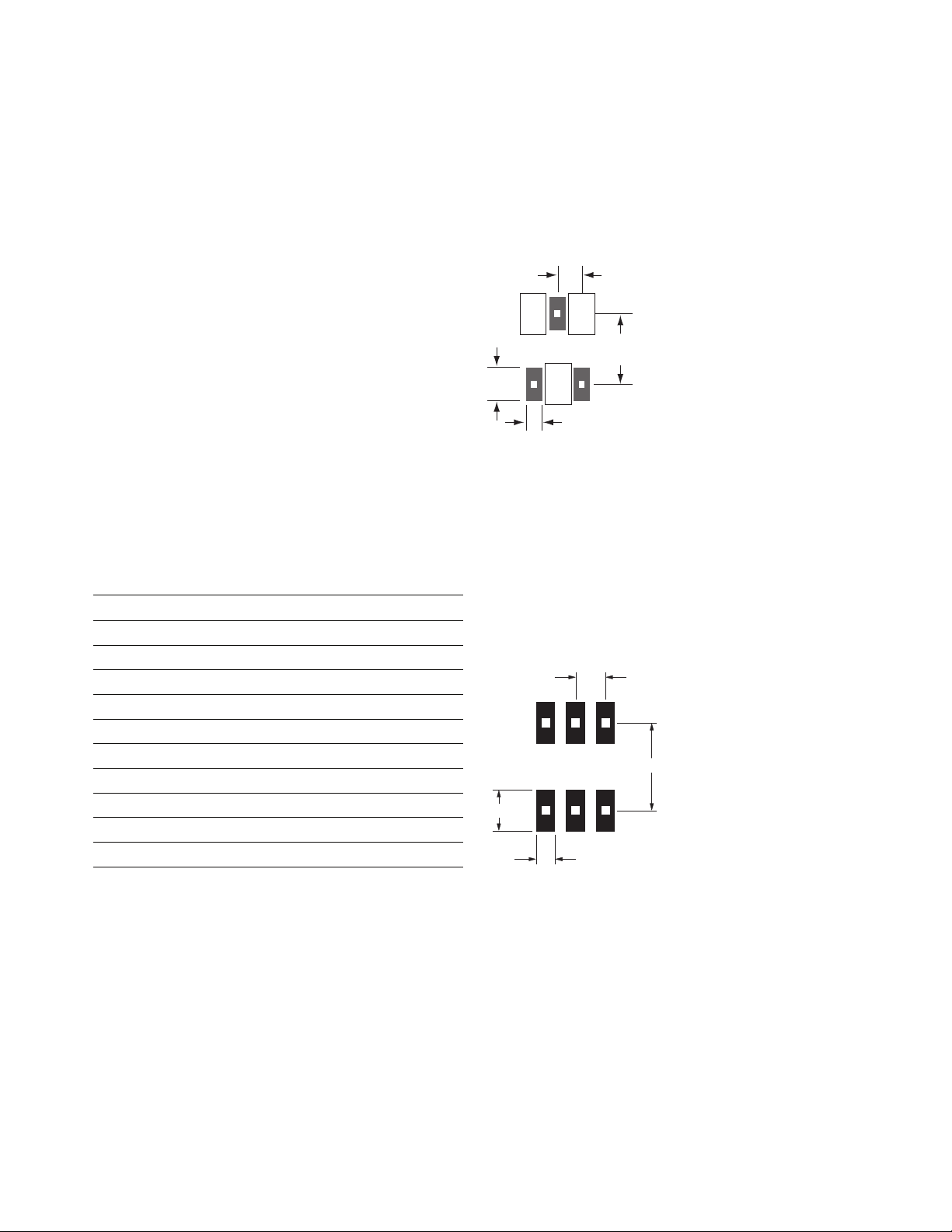

SOT-323 PCB Footprint

A recommended PCB pad layout for the miniature SOT‑
323 (SC‑70) package is shown in Figure 6 (dimensions are
in inches). This layout provides ample allowance for pack‑
age placement by automated assembly equipment with‑
out adding parasitics that could impair the performance.

Figure 6. Recommended PCB Pad Layout for Avago’s SC70 3L/SOT-323 Products.

Assembly Instructions

SOT-363 PCB Footprint

A recommended PCB pad layout for the miniature SOT‑
363 (SC‑70, 6 lead) package is shown in Figure 7 (dimen‑
sions are in inches). This layout provides ample allowance
for package placement by automated assembly equip‑
ment without adding parasitics that could impair the per‑
formance.

5

Figure 7. Recommended PCB Pad Layout for Avago’s SC70 6L/ SOT-363 Products.

25

Time

Temperature

Tp

T

L

tp

t

L

t 25° C to Peak

Ramp-up

ts

Ts

min

Ramp-down

Preheat

Critical Zone
T

L

to Tp

Ts

max

SMT Assembly

Reliable assembly of surface mount components is a com‑
plex process that involves many material, process, and
equipment factors, including: method of heating (e.g., IR
or vapor phase reow, wave soldering, etc.) circuit board
material, conductor thickness and pattern, type of solder
alloy, and the thermal conductivity and thermal mass of
components. Components with a low mass, such as the
SOT package, will reach solder reow temperatures faster
than those with a greater mass.

Avago’s SOT diodes have been qualied to the time‑tem‑
perature prole shown in Figure 8. This prole is repre‑
sentative of an IR reow type of surface mount assembly
process.

After ramping up from room temperature, the circuit
board with components attached to it (held in place with
solder paste) passes through one or more preheat zones.

The preheat zones increase the temperature of the board
and components to prevent thermal shock and begin
evaporating solvents from the solder paste. The reow
zone briey elevates the temperature suciently to pro‑
duce a reow of the solder.

The rates of change of temperature for the ramp‑up and
cool‑down zones are chosen to be low enough to not
cause deformation of the board or damage to compo‑
nents due to thermal shock. The maximum temperature
in the reow zone (T

) should not exceed 260°C.

MAX

These parameters are typical for a surface mount assem‑
bly process for Avago diodes. As a general guideline, the
circuit board and components should be exposed only
to the minimum temperatures and times necessary to
achieve a uniform reow of solder.

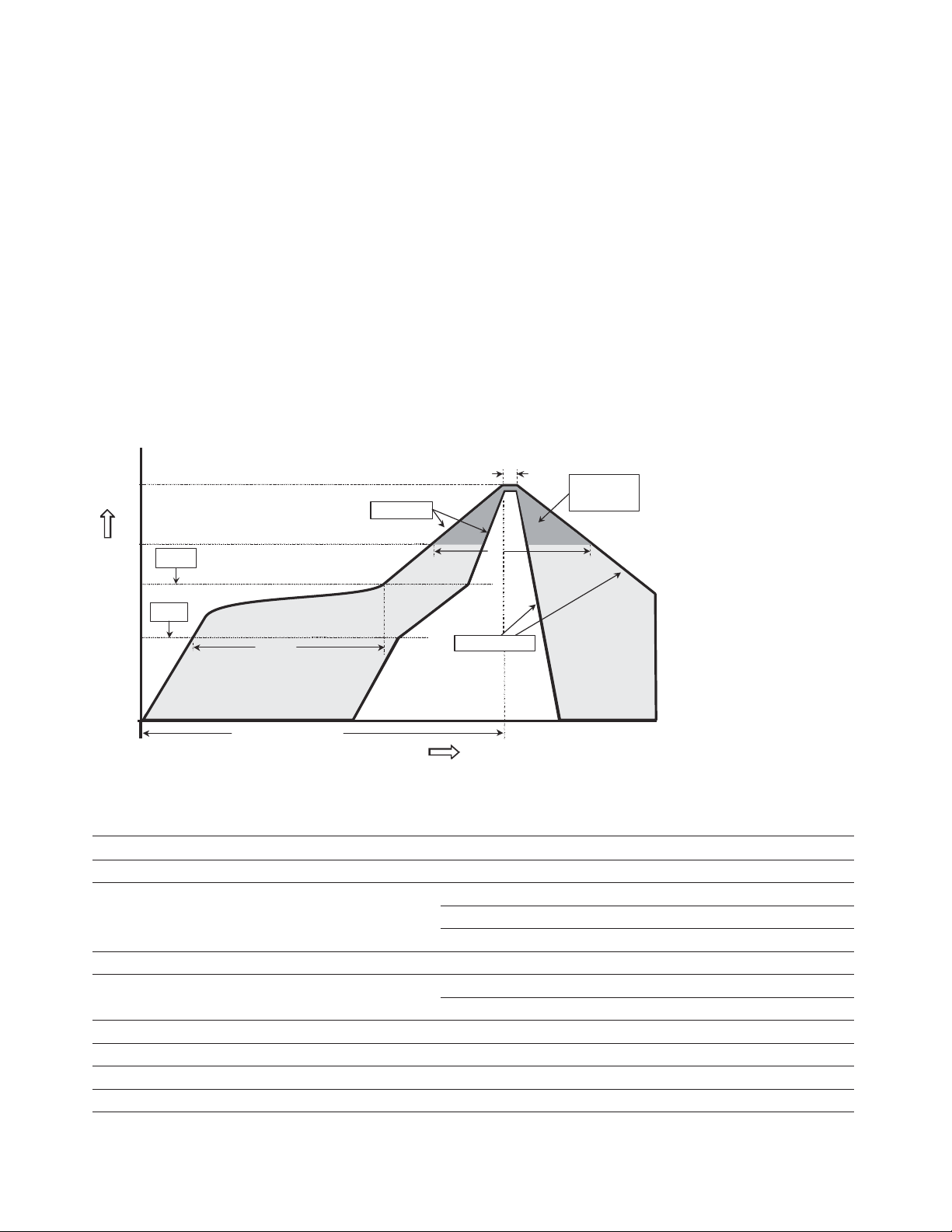

Figure 8. Surface Mount Assembly Prole.

Lead-Free Reow Prole Recommendation (IPC/JEDEC J-STD-020C)

Reow Parameter Lead-Free Assembly

Average ramp‑up rate (Liquidus Temperature (T

Preheat Temperature Min (T

Ts(max) to TL Ramp‑up Rate 3°C/second max

Time maintained above: Temperature (TL) 217°C

Peak Temperature (TP) 260 +0/‑5°C

Time within 5 °C of actual Peak temperature (tP) 20‑40 seconds

Ramp‑down Rate 6°C/second max

Time 25 °C to Peak Temperature 8 minutes max

Note 1: All temperatures refer to topside of the package, measured on the package body surface

6

to Peak) 3°C/ second max

S(max)

) 150°C

S(min)

Temperature Max (T

Time (min to max) (tS) 60‑180 seconds

Time (tL) 60‑150 seconds

) 200°C

S(max)

Part Number Ordering Information

e

B

e2

e1

E1

C

E

XXX

L

D

A

A1

Notes:
XXX-package marking
Drawings are not to scale

DIMENSIONS (mm)

MIN.

0.79

0.000

0.30

0.08

2.73

1.15

0.89

1.78

0.45

2.10

0.45

MAX.

1.20

0.100

0.54

0.20

3.13

1.50

1.02

2.04

0.60

2.70

0.69

SYMBOL

A

A1

B
C
D

E1

e
e1
e2

E

L

e

B

e1

E1

C

E

XXX

L

D

A

A1

Notes:
XXX-package marking
Drawings are not to scale

DIMENSIONS (mm)

MIN.

0.80

0.00

0.15

0.08

1.80

1.10

1.80

0.26

MAX.

1.00

0.10

0.40

0.25

2.25

1.40

2.40

0.46

SYMBOL

A

A1

B
C
D

E1

e

e1

E
L

1.30 typical

0.65 typical

No. of
Part Number Devices Container

HSMS‑281x‑TR2G 10000 13" Reel

HSMS‑281x‑TR1G 3000 7" Reel

HSMS‑281x‑BLKG 100 antistatic bag

x = 0, 2, 3, 4, 5, 7, 8, B, C, E, F, K, L

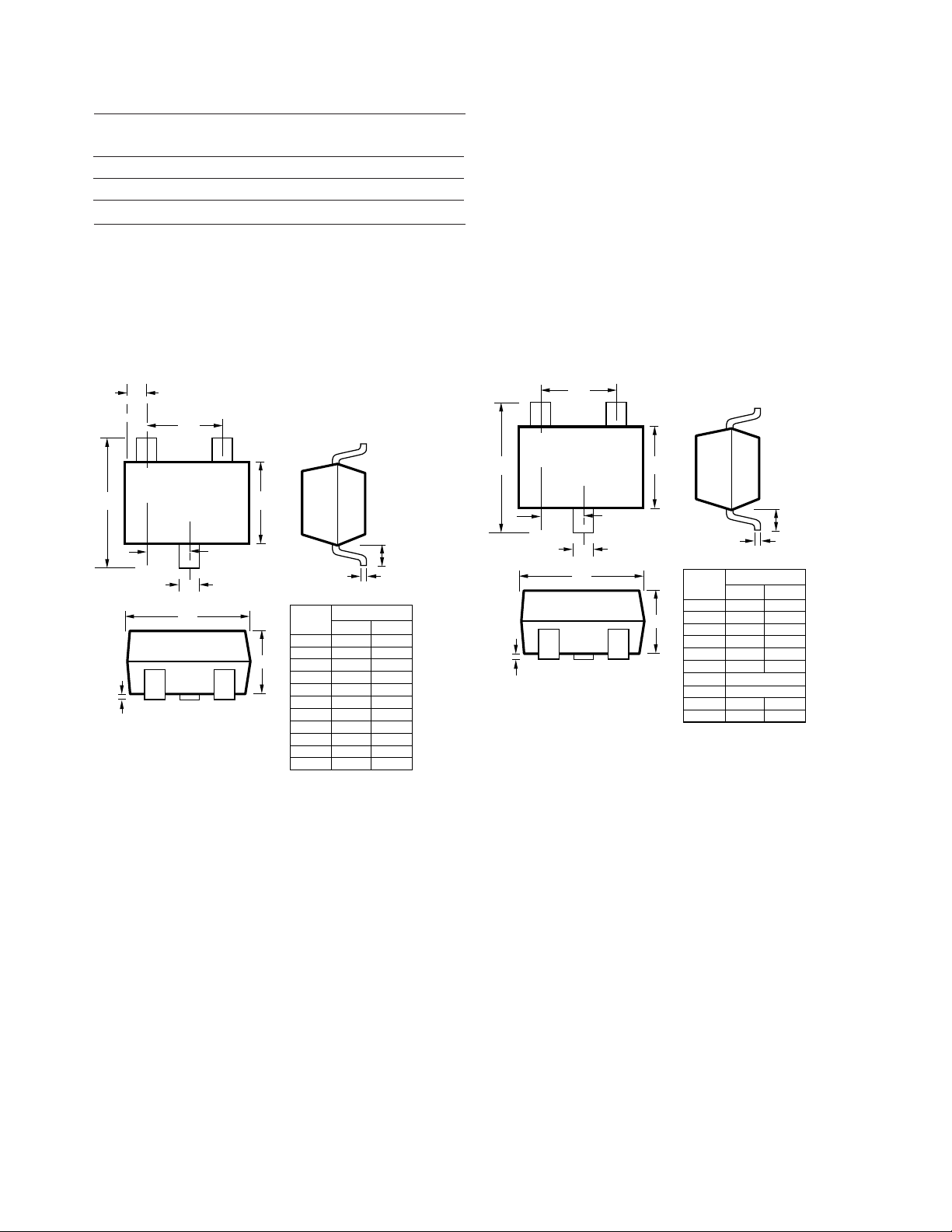

Package Dimensions

Outline 23 (SOT-23)

Outline SOT-323 (SC-70 3 Lead)

7

Note: "AB" represents package marking code.
"C" represents date code.

END VIE

W

8 mm

4 mm

TOP VIEW

ABC ABC ABC ABC

USER
FEED
DIRECTION

COVER TAPE

CARRIER

TAPE

REEL

Note: "AB" represents package marking code.
"C" represents date code.

END VIE

W

8 mm

4 mm

TOP VIEW

ABC ABC ABC ABC

END VIE

W

8 mm

4 mm

TOP VIEW

Note: "AB" represents package marking code.
"C" represents date code.

ABC ABC ABC ABC

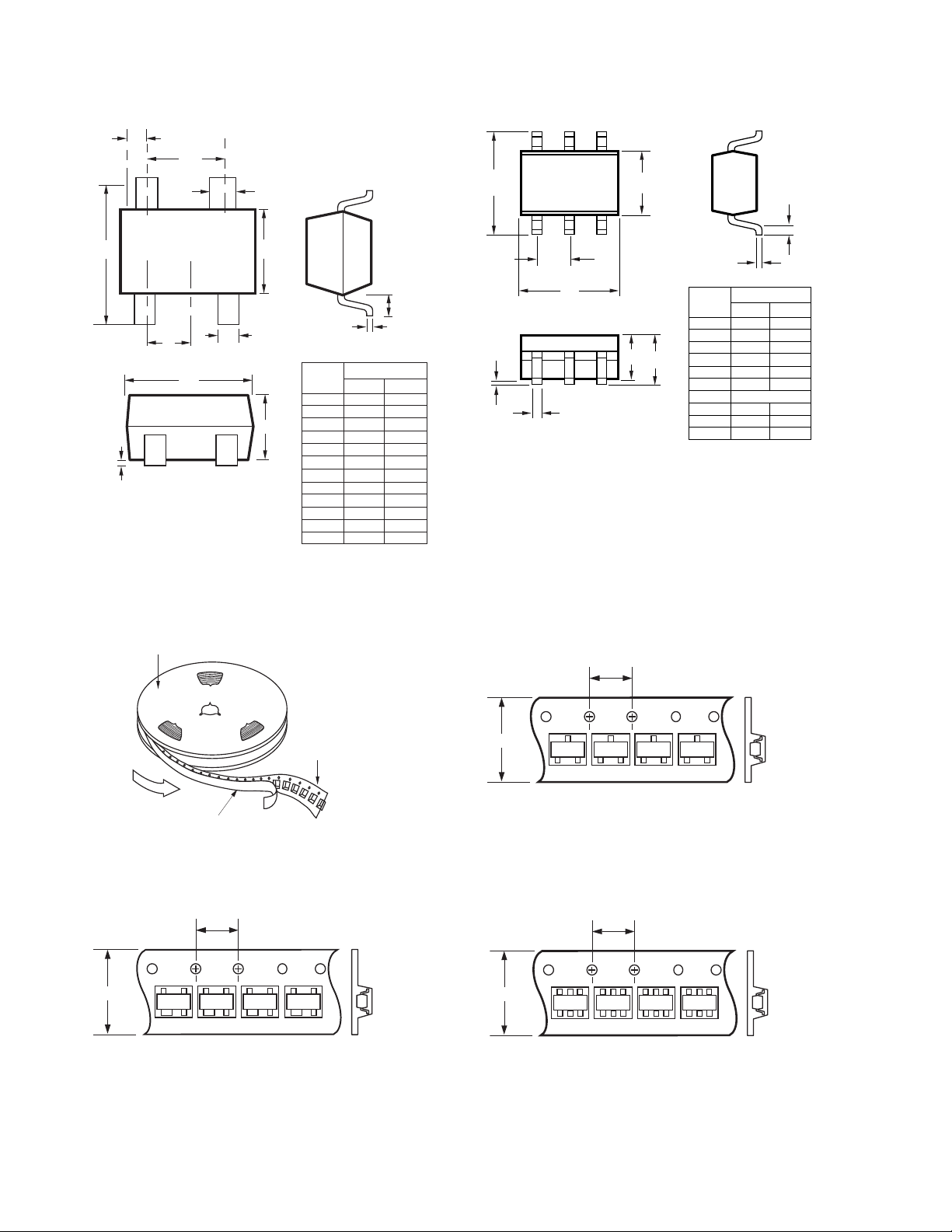

Outline 143 (SOT-143) Outline SOT-363 (SC-70 6 Lead)

e

B

e2

B1

e1

E1

C

E

XXX

L

D

A

A1

Notes:
XXX-package marking
Drawings are not to scale

DIMENSIONS (mm)

MIN.

0.79

0.013

0.36

0.76

0.086

2.80

1.20

0.89

1.78

0.45

2.10

0.45

MAX.

1.097

0.10

0.54

0.92

0.152

3.06

1.40

1.02

2.04

0.60

2.65

0.69

SYMBOL

A
A1
B
B1

C
D
E1

e
e1
e2

E

L

E

HE

D

e

A1

b

A

A2

DIMENSIONS (mm)

MIN.

1.15

1.80

1.80

0.80

0.80

0.00

0.15

0.08

0.10

MAX.

1.35

2.25

2.40

1.10

1.00

0.10

0.30

0.25

0.46

SYMBOL

E
D

HE

A
A2
A1

e

b

c

L

0.650 BCS

L

c

Device Orientation

For Outline SOT-143

8

For Outlines SOT-23, -323

For Outline SOT-363

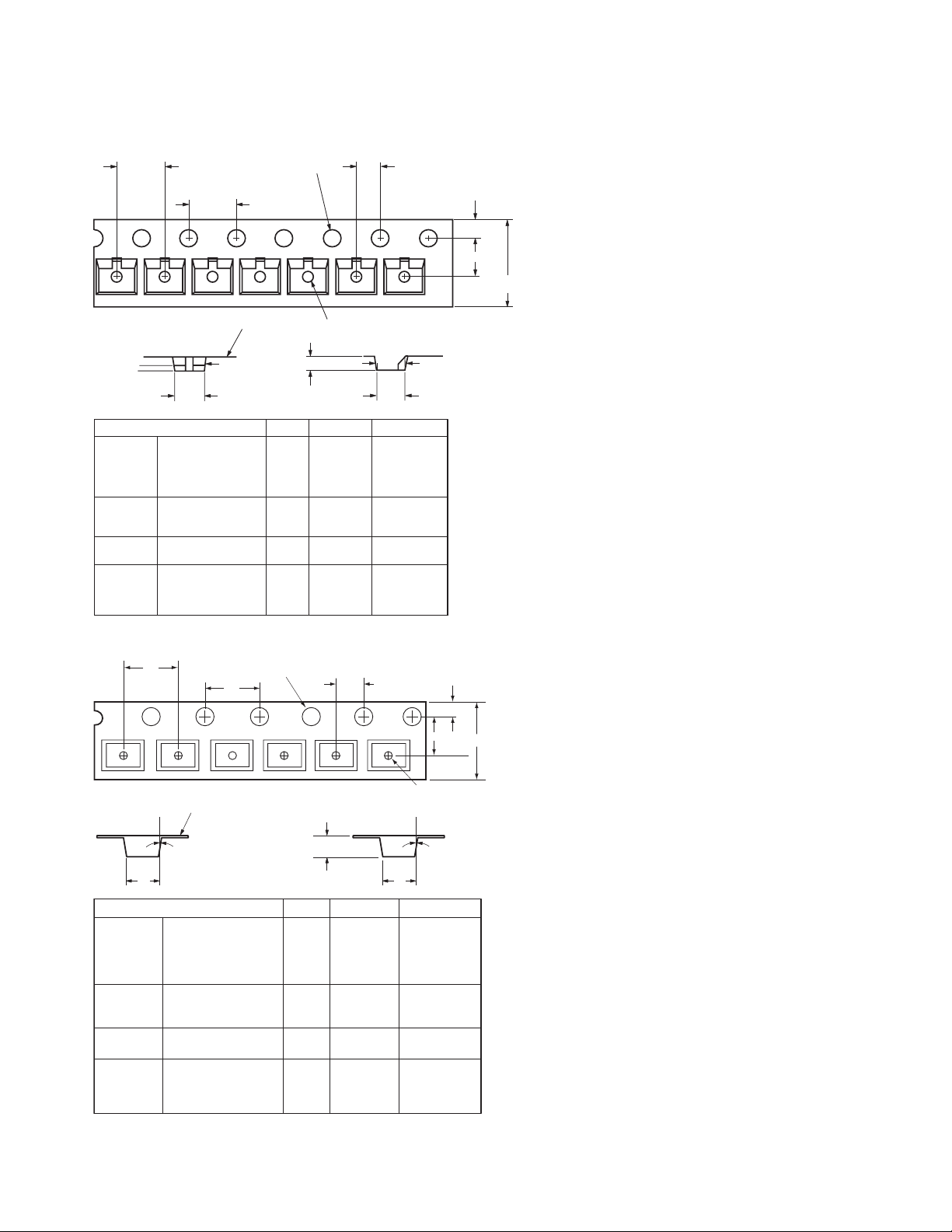

Tape Dimensions and Product Orientation

9° MAX

A

0

P

P

0

D

P

2

E

F

W

D

1

Ko

8° MAX

B

0

13.5° MAX

t1

DESCRIPTION SYMBOL SIZE (mm) SIZE (INCHES)

LENGTH
WIDTH
DEPTH
PITCH
BOTTOM HOLE DIAMETER

A

0

B

0

K

0

P
D

1

3.15 ± 0.10

2.77 ± 0.10

1.22 ± 0.10

4.00 ± 0.10

1.00 + 0.05

0.124 ± 0.004

0.109 ± 0.004

0.048 ± 0.004

0.157 ± 0.004

0.039 ± 0.002

CAVITY

DIAMETER
PITCH
POSITION

D
P

0

E

1.50 + 0.10

4.00 ± 0.10

1.75 ± 0.10

0.059 + 0.004

0.157 ± 0.004

0.069 ± 0.004

PERFORATION

WIDTH
THICKNESS

Wt18.00 + 0.30 – 0.10

0.229 ± 0.013

0.315 + 0.012 – 0.004

0.009 ± 0.0005

CARRIER TAPE

CAVITY TO PERFORATION
(WIDTH DIRECTION)

CAVITY TO PERFORATION
(LENGTH DIRECTION)

F

P

2

3.50 ± 0.05

2.00 ± 0.05

0.138 ± 0.002

0.079 ± 0.002

DISTANCE
BETWEEN
CENTERLINE

W

F

E

P

2

P

0

D

P

D

1

DESCRIPTION SYMBOL SIZE (mm) SIZE (INCHES)

LENGTH
WIDTH
DEPTH
PITCH
BOTTOM HOLE DIAMETER

A

0

B

0

K

0

P
D

1

3.19 ± 0.10

2.80 ± 0.10

1.31 ± 0.10

4.00 ± 0.10

1.00 + 0.25

0.126 ± 0.004

0.110 ± 0.004

0.052 ± 0.004

0.157 ± 0.004

0.039 + 0.010

CAVITY

DIAMETER
PITCH
POSITION

D
P

0

E

1.50 + 0.10

4.00 ± 0.10

1.75 ± 0.10

0.059 + 0.004

0.157 ± 0.004

0.069 ± 0.004

PERFORATION

WIDTH
THICKNESS

Wt18.00 + 0.30 – 0.10

0.254 ± 0.013

0.315+ 0.012 – 0.004

0.0100 ± 0.0005

CARRIER TAPE

CAVITY TO PERFORATION
(WIDTH DIRECTION)

CAVITY TO PERFORATION
(LENGTH DIRECTION)

F

P

2

3.50 ± 0.05

2.00 ± 0.05

0.138 ± 0.002

0.079 ± 0.002

DISTANCE

A

0

9° 9XAM ° MAX

t

1

B

0

K

0

For Outline SOT-23

For Outline SOT-143

9

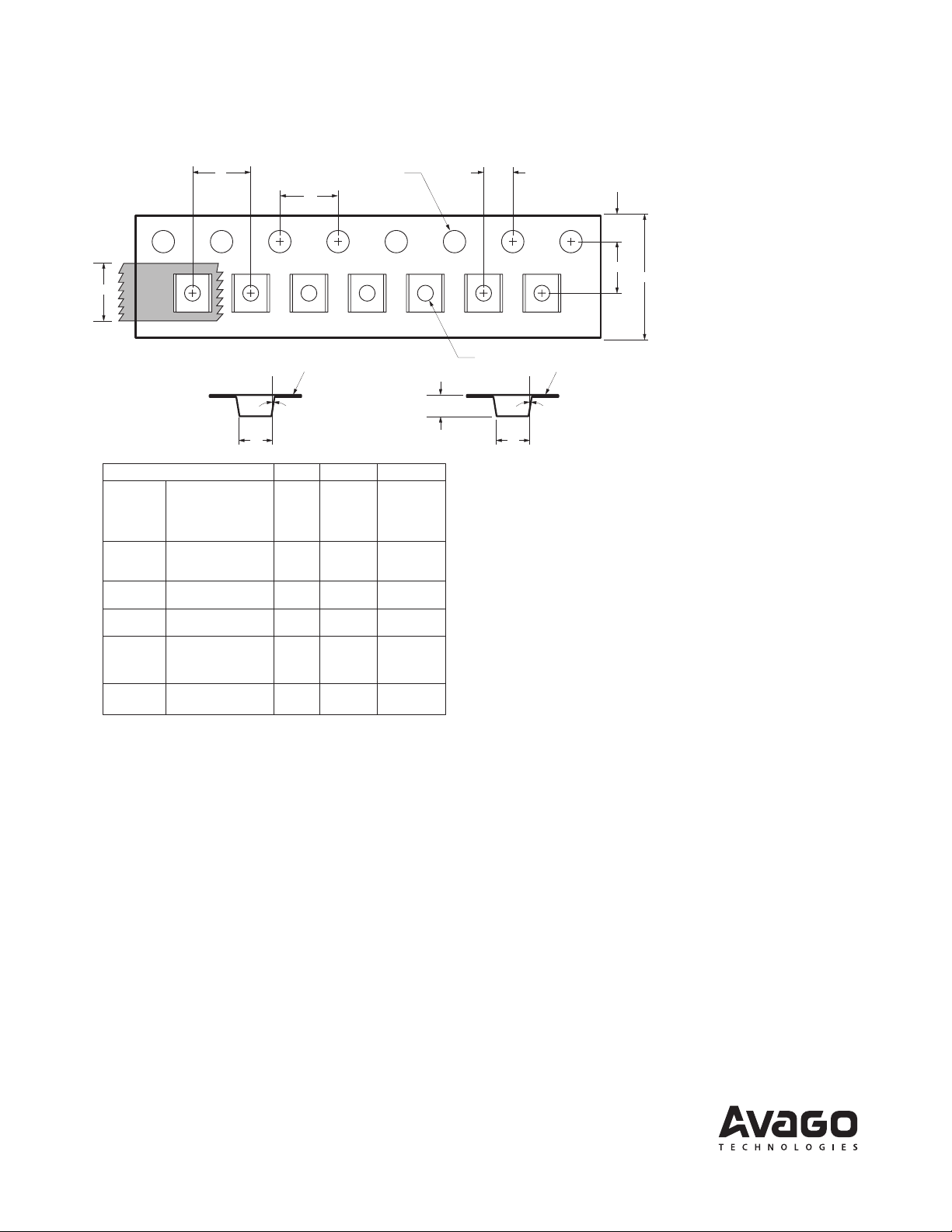

Tape Dimensions and Product Orientation

P

P

0

P

2

F

W

C

D

1

D

E

A

0

An

t1(CARRIER TAPE THICKNESS) Tt(COVER TAPE THICKNESS)

An

B

0

K

0

DESCRIPTION SYMBOL SIZE (mm) SIZE (INCHES)

LENGTH
WIDTH
DEPTH
PITCH
BOTTOM HOLE DIAMETER

A

0

B

0

K

0

P
D

1

2.40 ± 0.10

2.40 ± 0.10

1.20 ± 0.10

4.00 ± 0.10

1.00 + 0.25

0.094 ± 0.004

0.094 ± 0.004

0.047 ± 0.004

0.157 ± 0.004

0.039 + 0.010

CAVITY

DIAMETER
PITCH
POSITION

D
P

0

E

1.55 ± 0.05

4.00 ± 0.10

1.75 ± 0.10

0.061 ± 0.002

0.157 ± 0.004

0.069 ± 0.004

PERFORATION

WIDTH
THICKNESS

W
t

1

8.00 ± 0.30

0.254 ± 0.02

0.315 ± 0.012

0.0100 ± 0.0008

CARRIER TAPE

CAVITY TO PERFORATION
(WIDTH DIRECTION)

CAVITY TO PERFORATION
(LENGTH DIRECTION)

F

P

2

3.50 ± 0.05

2.00 ± 0.05

0.138 ± 0.002

0.079 ± 0.002

DISTANCE

FOR SOT-323 (SC70-3 LEAD) An 8 °C MAX

FOR SOT-363 (SC70-6 LEAD) 10 °C MAX

ANGLE

WIDTH
TAPE THICKNESS

C
T

t

5.4 ± 0.10

0.062 ± 0.001

0.205 ± 0.004

0.0025 ± 0.00004

COVER TAPE

For Outlines SOT-323, -363

For product information and a complete list of distributors, please go to our web site: www.avagotech.com

Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries.
Data subject to change. Copyright © 2005-2009 Avago Technologies. All rights reserved. Obsoletes 5989-4021EN
AV02-1367EN - May 29, 2009
