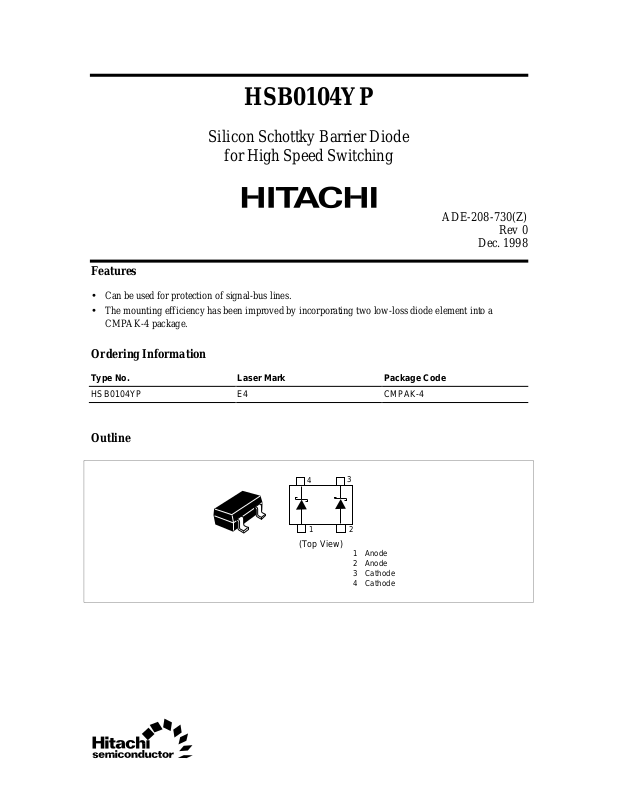

HSB0104YP
Silicon Schottky Barrier Diode
for High Speed Switching
ADE-208-730(Z)
Dec. 1998
Features
• Can be used for protection of signal-bus lines.
• The mounting efficiency has been improved by incorporating two low-loss diode element into a
CMPAK-4 package.
Ordering Information
Type No. Laser Mark Package Code
HSB0104YP E4 CMPAK-4
Rev 0
Outline
4
1
(Top View)
3
2
1 Anode
2 Anode
3 Cathode
4 Cathode
Page 2
HSB0104YP
Absolute Maximum Ratings (Ta = 25°C)
*1
Item Symbol Value Unit
Repetitive peak reverse
V
RRM
40 V
voltage
Average rectified current I
Non-Repetitive peak
I
o
FSM
*2
100 mA
3A
forward surge current
Junction temperature Tj 125 °C
Storage temperature Tstg -55 to +125 °C
Note: 1. Per one device
Note: 2. 10msec sine wave 1 pulse
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test Condition
Forward voltage V
Reverse current I
F
R
Capacitance C — 20 — pF VR = 0V, 1=1MHz
— — 0.58 V IF = 100 mA
——50µAVR = 40V
2
Page 3
Main Characteristic
HSB0104YP
1.0
-1
10
-2
10
F
-3
10
-4
10
Forward current I (A)
-5
10
-6
10
0 0.2 0.4
0.6 0.8
Forward voltage V (V)
Fig.1 Forward current Vs. Forward voltage
2
10
Pulse test
F
f=1MHz
1.0
2
10
Pulse test
10
R
1.0
Reverse current I (µA)
-1
10
-2
10
0
10 20
Reverse voltage V (V)
30 40
R
Fig.2 Reverse current Vs. Reverse voltage
50
10
Capacitance C (pF)
1.0
1.0
Reverse voltage V (V)
Fig.2 Capacitance Vs. Reverse voltage
10
40
R
3
Page 4
HSB0104YP
Package Dimensions
0.3± 0.05
Laser Mark
0.3± 0.05
2.0 ± 0.2
1.3 ± 0.2
0.65
0.65
4
E 4
1
0.65
0.65
1.3 ± 0.2
3
2
0.3± 0.05
0.3± 0.05
0.2
0.9 ± 0.1
0.425
2.1 ± 0.2
1.25 ± 0.1
0.425
+ 0.1
0.16
– 0.06
0 - 0.1
Hitachi Code
JEDEC Code
EIAJ Code
Weight (g)
Unit : mm
1 Anode
2 Anode
3 Cathode
4 Cathode
CMPAK-4
—
—
0.006
4
Page 5
