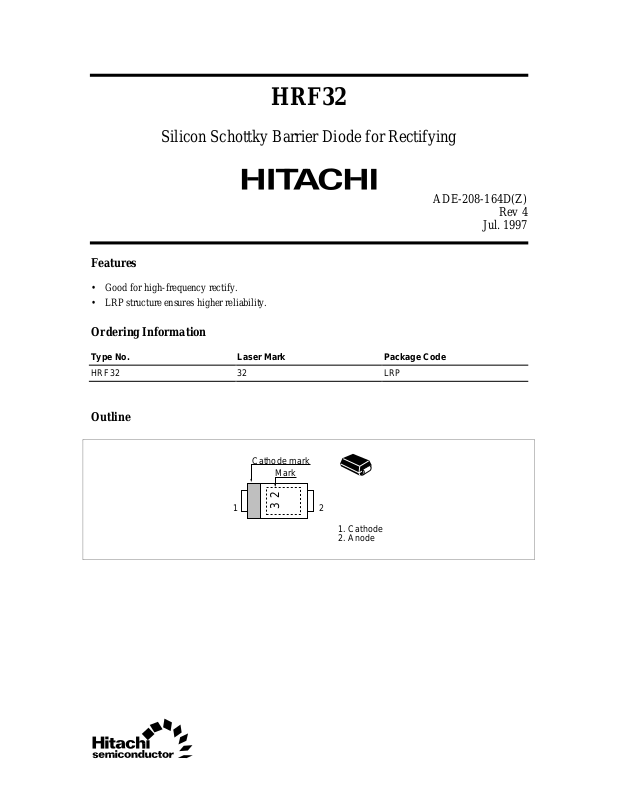

HRF32
Silicon Schottky Barrier Diode for Rectifying
ADE-208-164D(Z)
Features
• Good for high-frequency rectify.
• LRP structure ensures higher reliability.
Ordering Information
Type No. Laser Mark Package Code
HRF32 32 LRP
Rev 4
Jul. 1997
Outline
Cathode mark
Mark
12
3 2
1. Cathode
2. Anode
Page 2
HRF32
t
t
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Value Unit
Repetitive peak reverse
*1
V
RRM
voltage
Average rectified current I
Non-Repetitive peak
*1
o
*2
I
FSM
forward surge current
Junction temperature Tj 125 °C
Storage temperature Tstg -40 to +125 °C
Note: 1. See from Fig.4 to Fig.7
Note: 2. 10msec half sine wave 1 pulse
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test Condition
Forward voltage V
Reverse current I
F
R
ESD-Capability — 150 — — V C=200pF , R=0Ω, Both forward and reverse
Thermal resistance Rth(j-a) — — 108 °C/W Alumina board
Note: 1. Alumina board
— — 0.8 V IF = 1.0A
— — 1.0 mA VR = 90V
— — 157 Print board
90 V
1.0 A
20 A
direction 1 pulse.
*1
*2
(25mm ~25mm ~0.64
2.0mm
4.2mm
2.0mm
Note: 2. Print board
(25mm ~25mm ~1.64
2.0mm
4.2mm
2.0mm
2
Page 3
Main Characteristic
1.0
10
HRF32
–4
Pulse test
–1
10
–2
10
F
–3
10
–4
10
–5
10
Forward current I (A)
–6
10
–7
10
0
0.2 0.4
Forward voltage V (V)
0.6 0.8
F
Fig.1 Forward current Vs. Forward voltage
f=1MHz
Pulse test
3
10
1.0
Pulse test
–5
10
R
–6
10
Reverse current I (A)
–7
10
–8
10
0
40 6020
Reverse voltage V (V)
R
Fig.2 Reverse current Vs. Reverse voltage
80
100
2
10
Capacitance C (pF)
10
1.0 10
Reverse voltage V (V)
Fig.3 Capacitance Vs. Reverse voltage
2
10
R
3
Page 4
HRF32
Main Characteristic
1.2
1.0
(W)
d
0.8
0.6
0A
t
T
D=
D=1/6
t
\
T
D=1/3
D=1/2
Sin
DC
0.4
Forward power dissipation P
0.2
0
0
0.4
Forward current I
1.20.8
F
1.6
(A)
Fig.4 Forward p ower dissipation Vs. Forward current
(A)
1.6
DC
1.4
1.2
D=1/2
O
1.0
D=1/3
VR=V
RRM
Tj=125°C
Alumina Board
0.8
D=1/6
0.6
Average forward current I
0.4
Sin
0.2
0.10
0V
t
t
\
0.08
(W)
d
0.06
D=
T
T
D=5/6
D=2/3
D=1/2
0.04
Sin
0.02
Reverse power dissipation P
0
20
0
Reverse voltage V
80
6040
R
100
(V)
@
Fig.5 Reverse power dissipation Vs. Reverse voltage
(A)
1.6
1.4
1.2
O
DC
VR=V
RRM
Tj=125°C
Print Board
1.0
0.8
D=1/3
0.6
D=1/6
Average forward current I
0.4
Sin
D=1/2
0.2
0
25 500
Ambient temperature
75
100
Ta (°C)
125
Fig.6 Average forward current Vs. Ambient temperature
4
0
25 500
Ambient temperature
Fig.7 Average forward current Vs. Ambient temperature
75
100
Ta (°C)
125
Page 5
Package Dimensions
Cathode Mark
HRF32
Unit : mm
3 2
21
4.5 ± 0.2
5.0 ± 0.3
1.2 ± 0.3 1.2 ± 0.3
2.5 ± 0.3
1.5 ± 0.2
0.2
2.0 ± 0.3
Hitachi Code
JEDEC Code
EIAJ Code
Weight (g)
1 Cathode
2 Anode
LRP
—
—
0.058
5
Page 6
Cautions
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as failsafes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Hitachi, Ltd.
Semiconductor & Integrated Circuits.
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: Tokyo (03) 3270-2111 Fax: (03) 3270-5109
URL NorthAmerica : http:semiconductor.hitachi.com/
For further information write to:
Hitachi Semiconductor
(America) Inc.
179 East Tasman Drive,
San Jose,CA 95134
Tel: <1> (408) 433-1990
Fax: <1>(408) 433-0223
Europe : http://www.hitachi-eu.com/hel/ecg
Asia (Singapore) : http://www.has.hitachi.com.sg/grp3/sicd/index.htm
Asia (Taiwan) : http://www.hitachi.com.tw/E/Product/SICD_Frame.htm
Asia (HongKong) : http://www.hitachi.com.hk/eng/bo/grp3/index.htm
Japan : http://www.hitachi.co.jp/Sicd/indx.htm
Hitachi Europe GmbH
Electronic components Group
Dornacher Stra§e 3
D-85622 Feldkirchen, Munich
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
Hitachi Europe Ltd.
Electronic Components Group.
Whitebrook Park
Lower Cookham Road
Maidenhead
Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Fax: <44> (1628) 778322
Hitachi Asia Pte. Ltd.
16 Collyer Quay #20-00
Hitachi Tower
Singapore 049318
Tel: 535-2100
Fax: 535-1533
Hitachi Asia Ltd.
Taipei Branch Office
3F, Hung Kuo Building. No.167,
Tun-Hwa North Road, Taipei (105)
Tel: <886> (2) 2718-3666
Fax: <886> (2) 2718-8180
Copyright ' Hitachi, Ltd., 1999. All rights reserved. Printed in Japan.
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower, World Finance Centre,
Harbour City, Canton Road, Tsim Sha Tsui,
Kowloon, Hong Kong
Tel: <852> (2) 735 9218
Fax: <852> (2) 730 0281
Telex: 40815 HITEC HX
