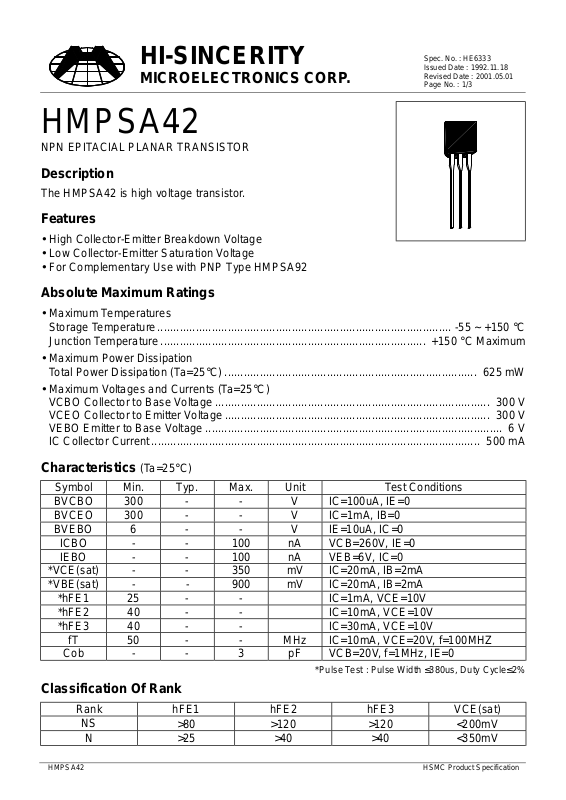

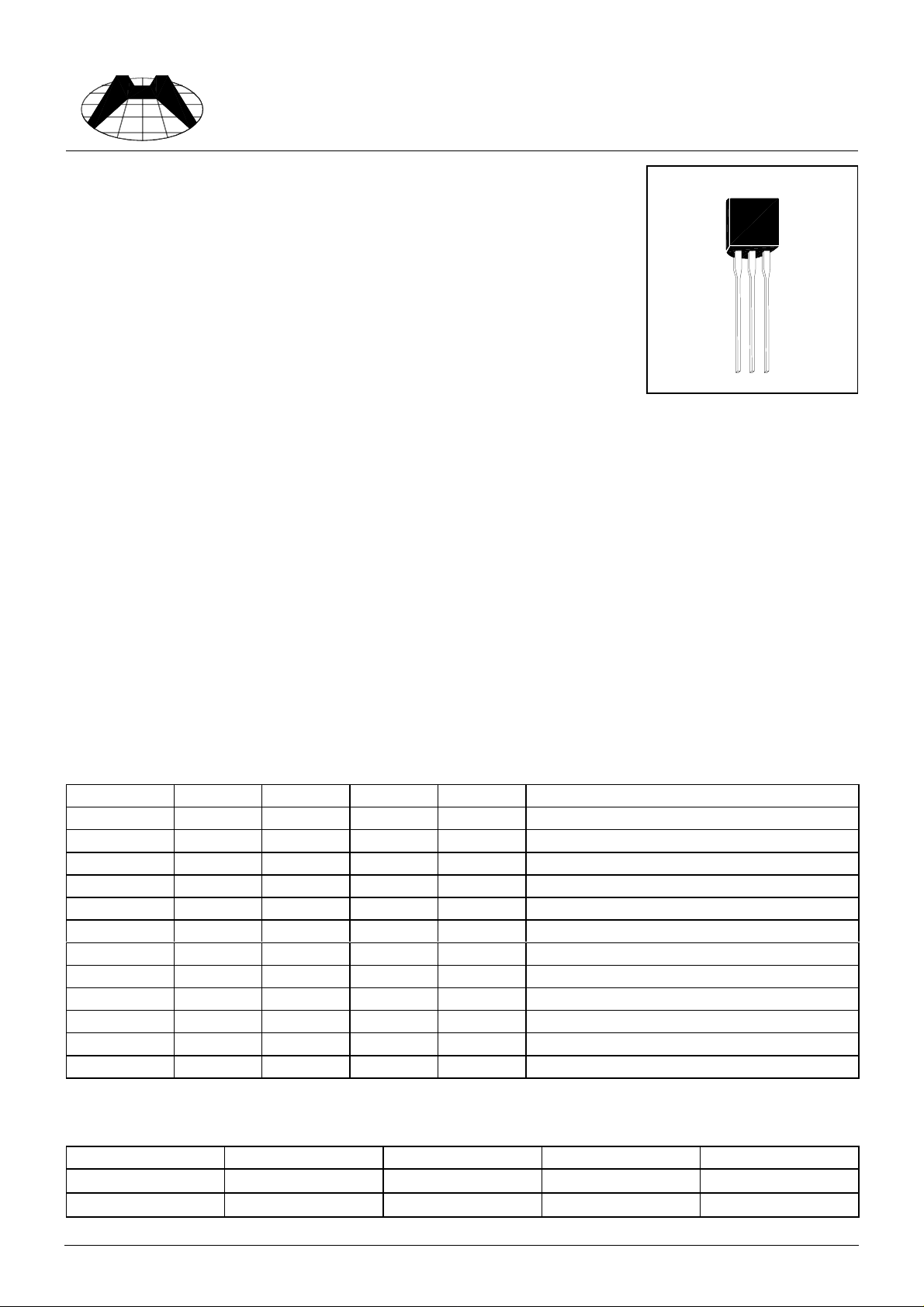

Page 1
HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : HE6333
Issued Date : 1992.11.18
Revised Date : 2001.05.01
Page No. : 1/3
HMPSA42
NPN EPITACIAL PLANAR TRANSISTOR
Description
The HMPSA42 is high voltage transistor.
Features
High Collector-Emitter Breakdown Voltage
•
Low Collector-Emitter Saturation Voltage
•
For Complementary Use with PNP Type HMPSA92
•
Absolute Maximum Ratings
Maximum Temperatures
•
Storage Temperature............................................................................................ -55 ~ +150 °C
Junction Temperature................................................................................... +150 °C Maximum
Maximum Power Dissipation
•
Total Power Dissipation (Ta=25°C)............................................................................... 625 mW
Maximum Voltages and Currents (Ta=25°C)
•
VCBO Collector to Base Voltag e...................................................................................... 300 V
VCEO Collector to Emitter Voltage ................................................................................... 300 V
VEBO Emitter to Base Voltage ............................................................................................. 6 V
IC Collector Current....................................................................................................... 500 mA
Characteristics
Symbol Min. Typ. Max. Unit Test Conditions
BVCBO 300 - - V IC=100uA, IE=0
BVCEO 300 - - V IC=1mA, IB=0
BVEBO 6 - - V IE=10uA, IC=0
ICBO - - 100 nA VCB=260V, IE=0
IEBO - - 100 nA VEB=6V, IC=0
*VCE(sat) - - 350 mV IC=20mA, IB=2mA
*VBE(sat) - - 900 mV IC=20mA, IB=2mA
*hFE1 25 - - IC=1mA, VCE=10V
*hFE2 40 - - IC=10mA, VCE=10V
*hFE3 40 - - IC=30mA, VCE=10V
fT 50 - - MHz IC=10mA, VCE=20V, f=100MHZ
Cob - - 3 pF VCB=20V, f=1MHz, IE=0
(Ta=25°C)
*Pulse Test : Pulse Width ≤380us, Duty Cycle≤2%
Classification Of Rank
Rank hFE1 hFE2 hFE3 VCE(sat)
NS
N
HMPSA42 HSMC Product Specification
80
>
25
>
>
>
120
40
>
>
120
40
200mV
<
350mV
<
Page 2
HI-SINCERITY
MICROELECTRONICS CORP.

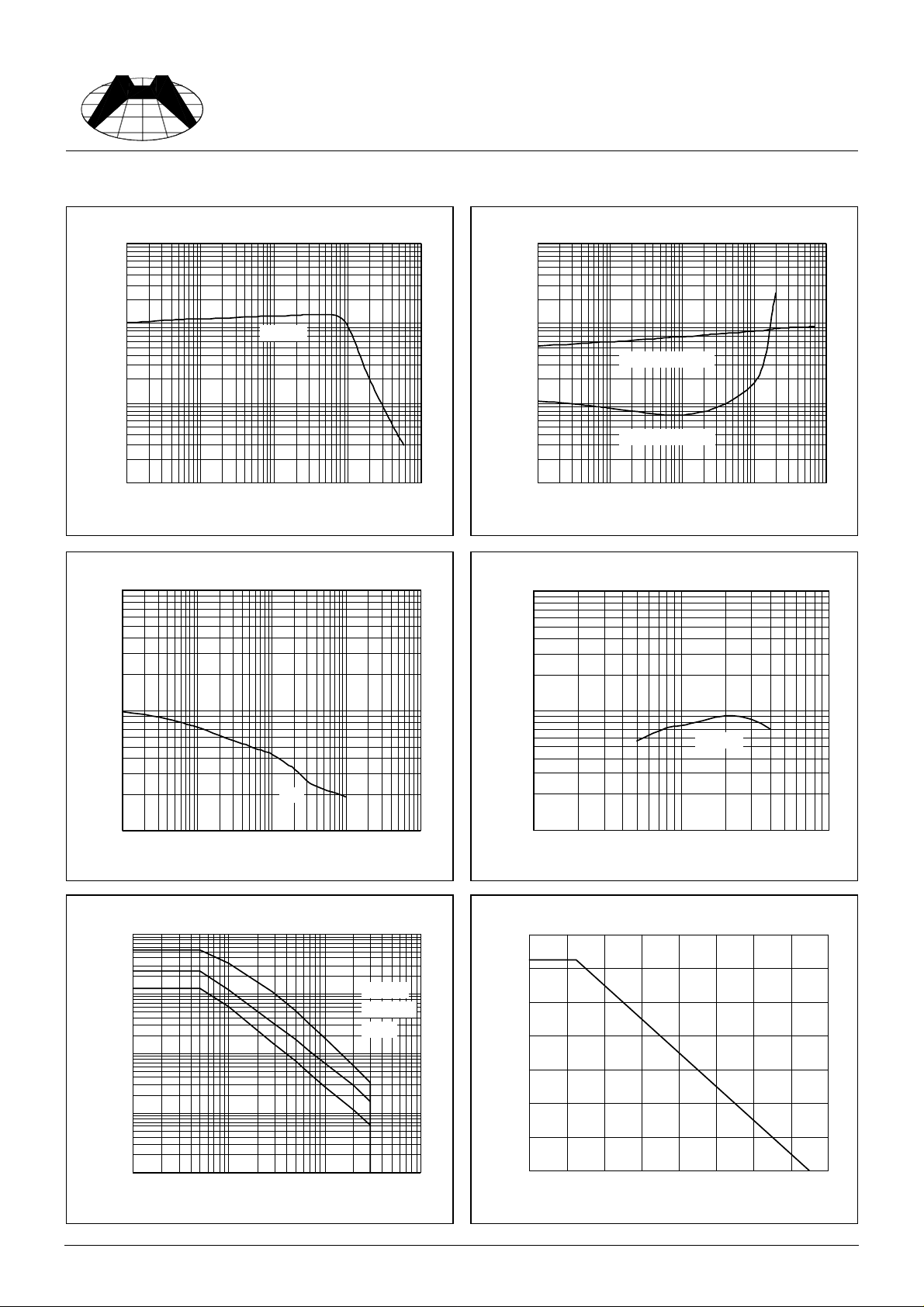

Characteristics Curve
Spec. No. : HE6333
Issued Date : 1992.11.18
Revised Date : 2001.05.01
Page No. : 2/3
1000
Current Gain & Collector Curr ent
100
hFE
10
1
0.1 1 10 100 1000
100
Capa citance & Reverse- Bi ased Volta ge
VCE=10V
Collector Curren t (m A )
10000
Saturation Voltage & Collector Current
1000
VBE(sat) @ IC=10IB
100
Satu r ation Volt age (mV)
VCE(sat) @ IC=10IB
10
0.1 1 10 100 1000
Collector Curren t (m A )
Cutoff Frequency & Ic
1000
10
Capac itanc e (pF)
Cob
1
0.1 1 10 100 1000
Reverse Biased Volt age ( V)
Safe Operating Area
10000
PT=1m s
PT=100ms
PT=1s
(mA)
C
Collector Curren t-I
1000
100
10
100
VCE=20V
Cutoff Frequency (MHz)
10
1 10 100
Collector Curren t (m A )
PD-Ta
700
600
500
400
300
200
Power Dissipation-PD(mW)
100
1
1 10 100 1000
Forwar d Biased Vol tage-Vce (V)
0
0 20 40 60 80 100 120 140 160
Ambient Temper at ure-Ta(oC)
HMPSA42 HSMC Product Specification
Page 3
HI-SINCERITY
g
MICROELECTRONICS CORP.

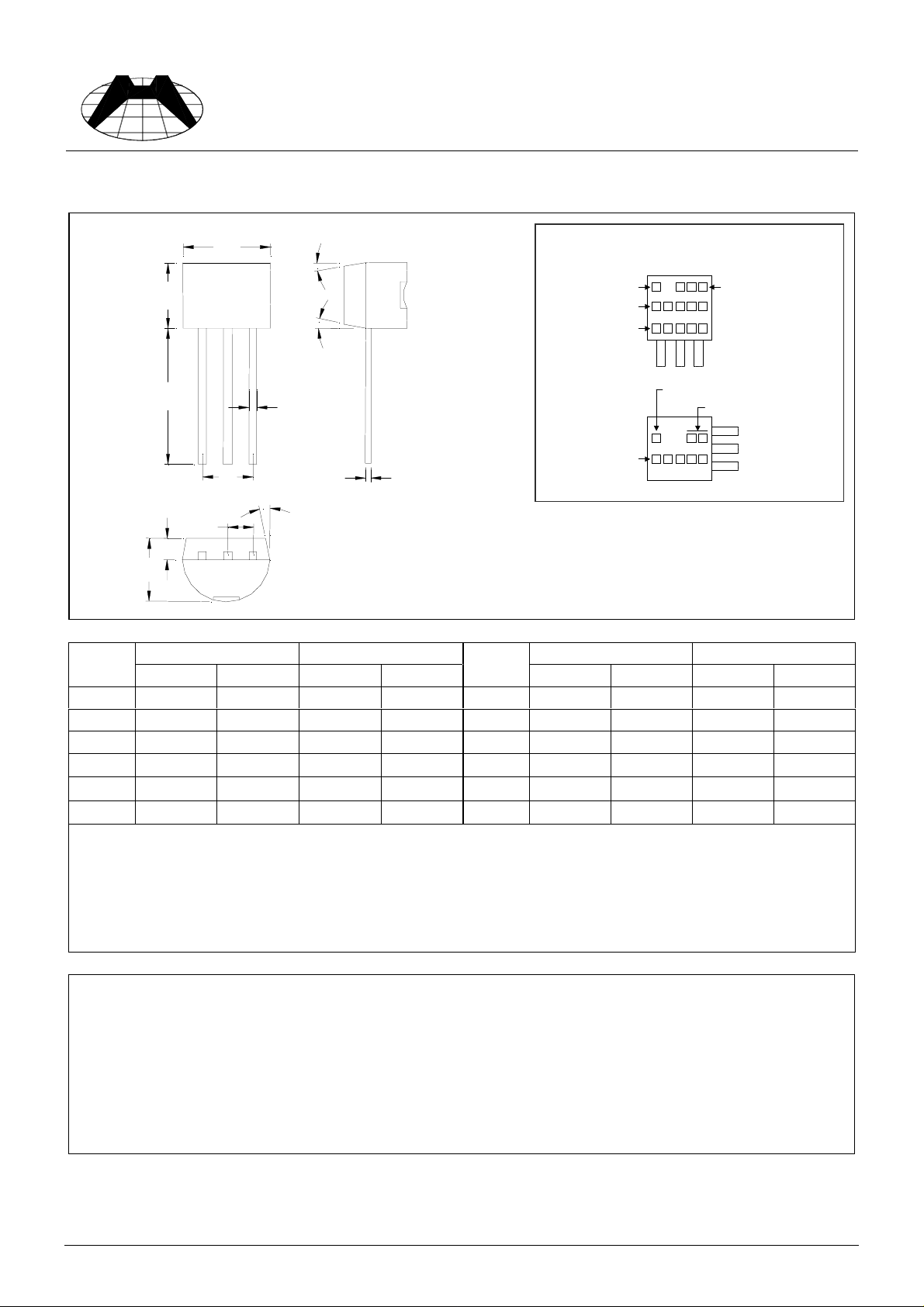

TO-92 Dimension
A
Spec. No. : HE6333
Issued Date : 1992.11.18
Revised Date : 2001.05.01
Page No. : 3/3
α
2
Marking :
C
B
31
2
α
3
HSMC Logo
Part Number
Date Code
HSMC Logo
D
Part Number
H
α
I
1
G
Style : Pin 1.Emitter 2.Base 3.Collec tor
Product Series
Laser Mark
Product Series
Ink Mark
E
DIM
F
Inches Millimeters Inches M illimeters
Min. Max. Min. Max.
3-Lead TO-92 Plastic Package
HSMC Packa
e Code : A
DIM
Min. Max. Min. Max.
A 0.1704 0.1902 4.33 4.83 G 0.0142 0.0220 0.36 0.56
B 0.1704 0.1902 4 .33 4.83 H C 0.5000 - 12.70 - I D 0.0142 0.0220 0.36 0.56
E-*0.0500 -
1.27
*
F 0.1323 0.1480 3.36 3.76
Notes :
Material :
• Lead : 42 Alloy ; solder plating
• Mold Compound : Epoxy resin family, flammability solid burning class:UL94V-0
1.Dimension and tolerance based on our Spec. dated Apr. 25,1996.
2.Controlling dimension : millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, pleas e contact your l ocal HSMC sal es office.
1
α
2
α
3
α
-
-
-
0.1000 -
*
0.0500 -
*
5
°
*
2
°
*
2
°
*
-
-
-
*:Typical
2.54
*
1.27
*
5
°
*
2
°
*
2
°
*
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
•
HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringem ent of pat ents , or application assistance.
