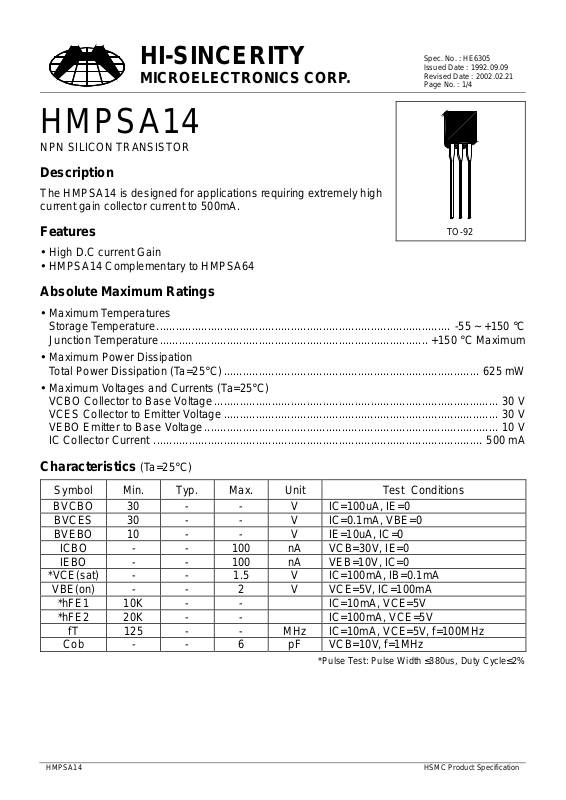

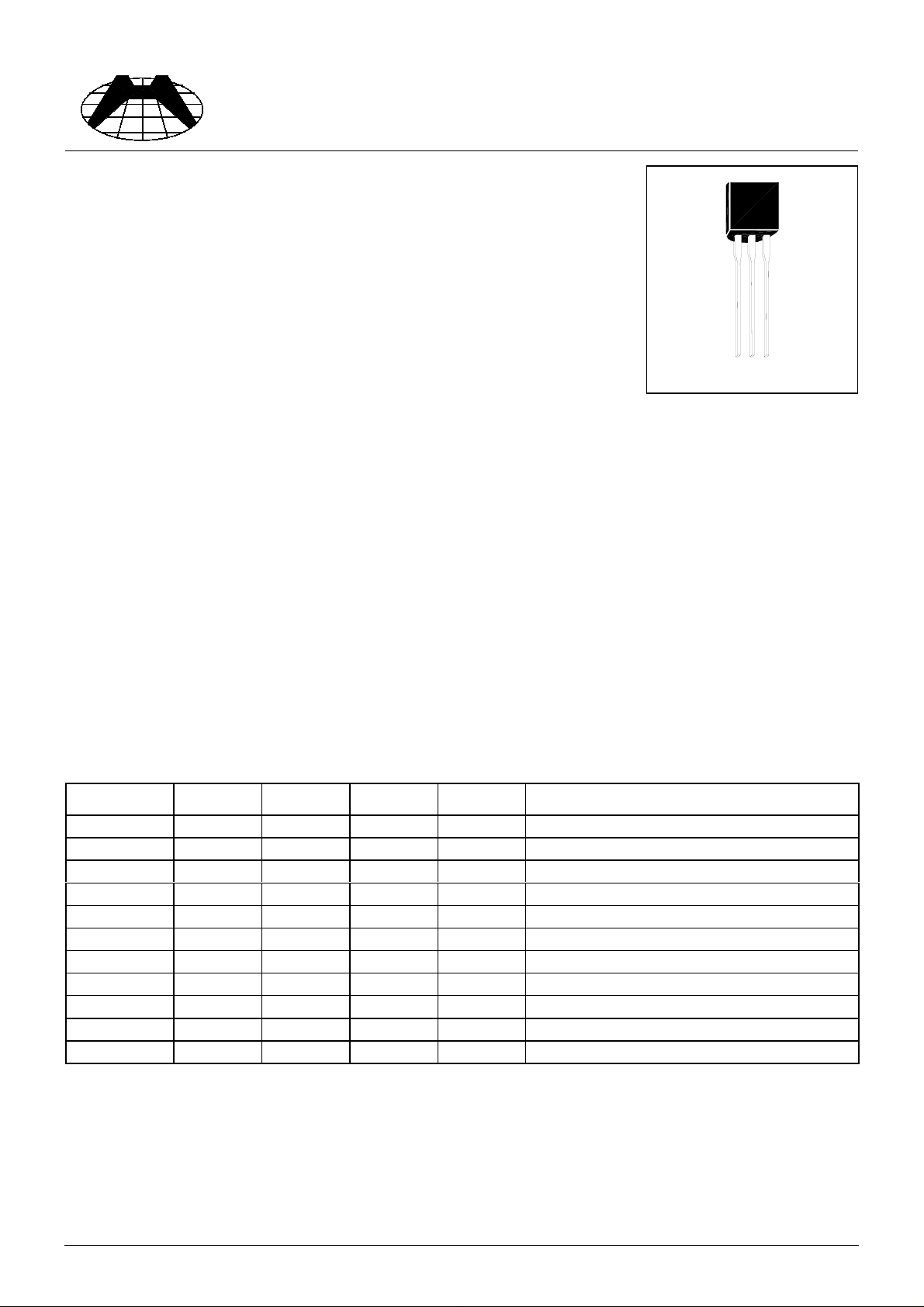

Page 1
HI-SINCERITY
MICROELECTRONICS CORP.
HMPSA14
NPN SILICON TRANSISTOR
Description
The HMPSA14 is designed for applications requiring extremely high
current gain collector current to 500mA.
Spec. No. : HE6305
Issued Date : 1992.09.09
Revised Date : 2002.02.21
Page No. : 1/4
Features
• High D.C current Gain
• HMPSA14 Complementary to HMPSA64
TO-92
Absolute Maximum Ratings
• Maximum Temperatures
Stor age Temperature............................................................................................ -55 ~ +150 °C
Junction Temperature.................................................................................... +150 °C Maximum
• Maximum Power Dissipation
Total Power Dissipation (Ta=25°C)................................................................................ 625 mW
• Maximum Voltages and Currents (Ta=25°C)
VCBO Collector to Base Voltage......................................................................................... 30 V
VCES Collector to Emitter Voltage ...................................................................................... 30 V
VEBO Emitter to Base Voltage............................................................................................ 10 V
IC Collector Current ....................................................................................................... 500 mA
Characteristics (Ta=25°C)
Symbol Min. Typ. Max. Unit Test Conditions
BVCBO 30 - - V IC=100uA, IE=0
BVCES 30 - - V IC=0.1mA, VBE=0
BVEBO 10 - - V IE=10uA, IC=0
ICBO - - 100 nA VCB=30V, IE=0
IEBO - - 100 nA VEB=10V, IC=0
*VCE(sat) - - 1.5 V IC=100mA, IB=0.1mA
VBE(on) - - 2 V VCE=5V, IC=100mA
*hFE1 10K - - IC=10mA, VCE=5V
*hFE2 20K - - IC=100mA, VCE=5V
fT 125 - - MHz IC=10mA, VCE=5V, f=100MHz
Cob - - 6 pF VCB=10V, f=1MHz
*Pulse T est: Pulse Width ≤380us, Duty Cycle≤2%
HMPSA14 HSMC Product Specification
Page 2
HI-SINCERITY
V
MICROELECTRONICS CORP.

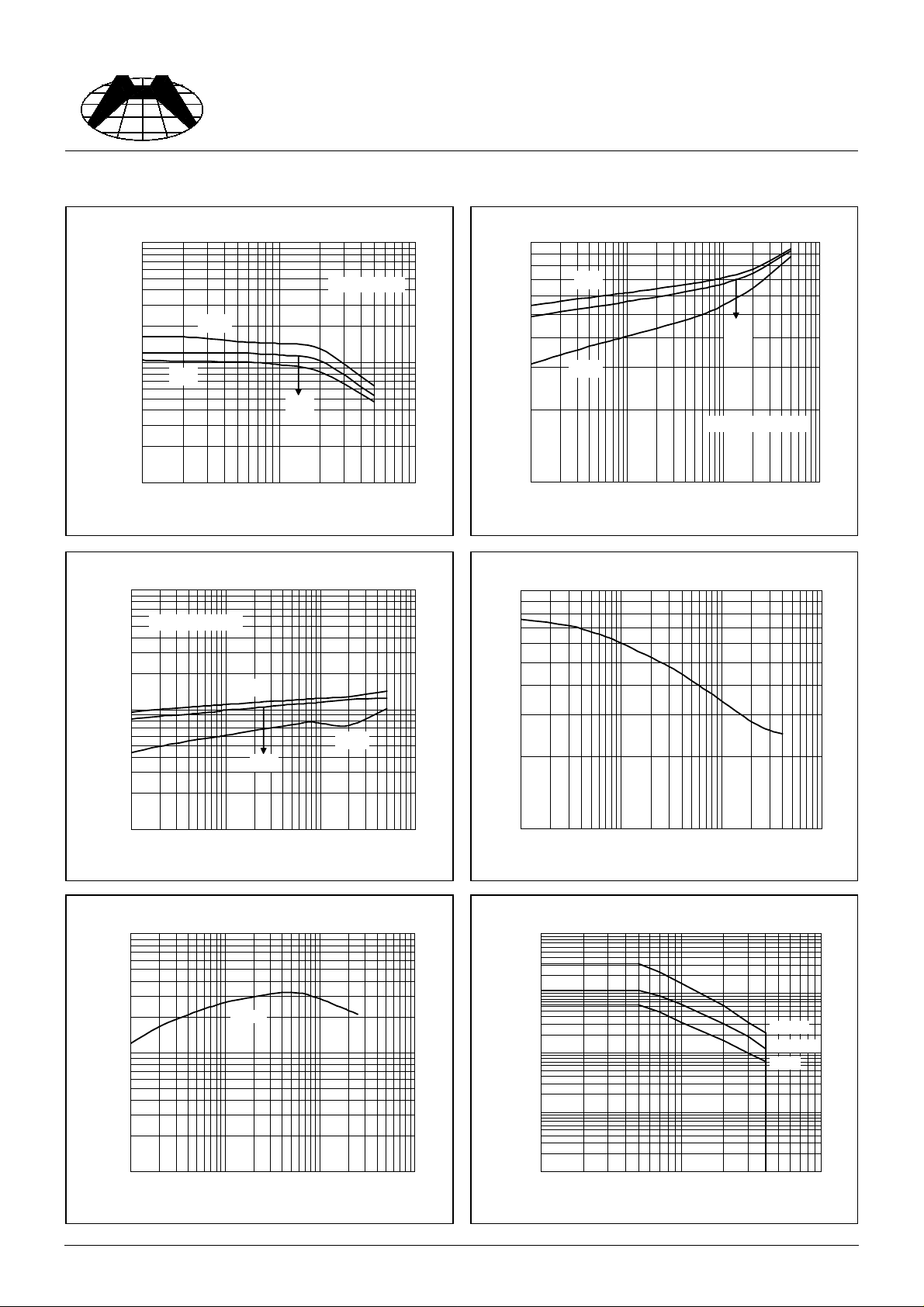

Characteristics Curve
Spec. No. : HE6305
Issued Date : 1992.09.09
Revised Date : 2002.02.21
Page No. : 2/4
1000000
Current Gain & Collector Current
125oC
100000
hFE
10000
10000
1000
25oC
75oC
10 100 1000
Collec tor Current-IC (mA)
ON Voltage & Collector Current
BE(ON)
V
@ VCE=5V
25oC
hFE @ VCE=5V
1000
25oC
75oC
125oC
Satur ation Voltag e (mV)
100
1 10 100 1000
Collector Current-IC (mA)
CE(sat)
V
@ IC=1000I
Capacit an ce & Reverse- Biased Voltage
10
Cob
Sat urati on Voltage & Collect or Current
B
ON Voltage (mV)
75oC
100
1 10 100 1000
Collec tor Current-IC (mA)
125oC
Cutoff Frequency & Collector Current
1000
VCE=5
100
Cutoff Fr eque ncy ( M Hz)...
10
1 10 100 1000
Collector Current (mA)
Capacitance (pF)
1
0.1 1 10 100
Reverse- Biased Vol tage (V)
Safe Operating A rea
10000
1000
(mA)
C
100
Collector Current-I
10
1
1 10 100
Forwar d Voltage- VCE (V)
PT=1ms
PT=100ms
PT=1s
HMPSA14 HSMC Product Specification
Page 3
HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : HE6305
Issued Date : 1992.09.09
Revised Date : 2002.02.21
Page No. : 3/4
700
600
500
400
300
200

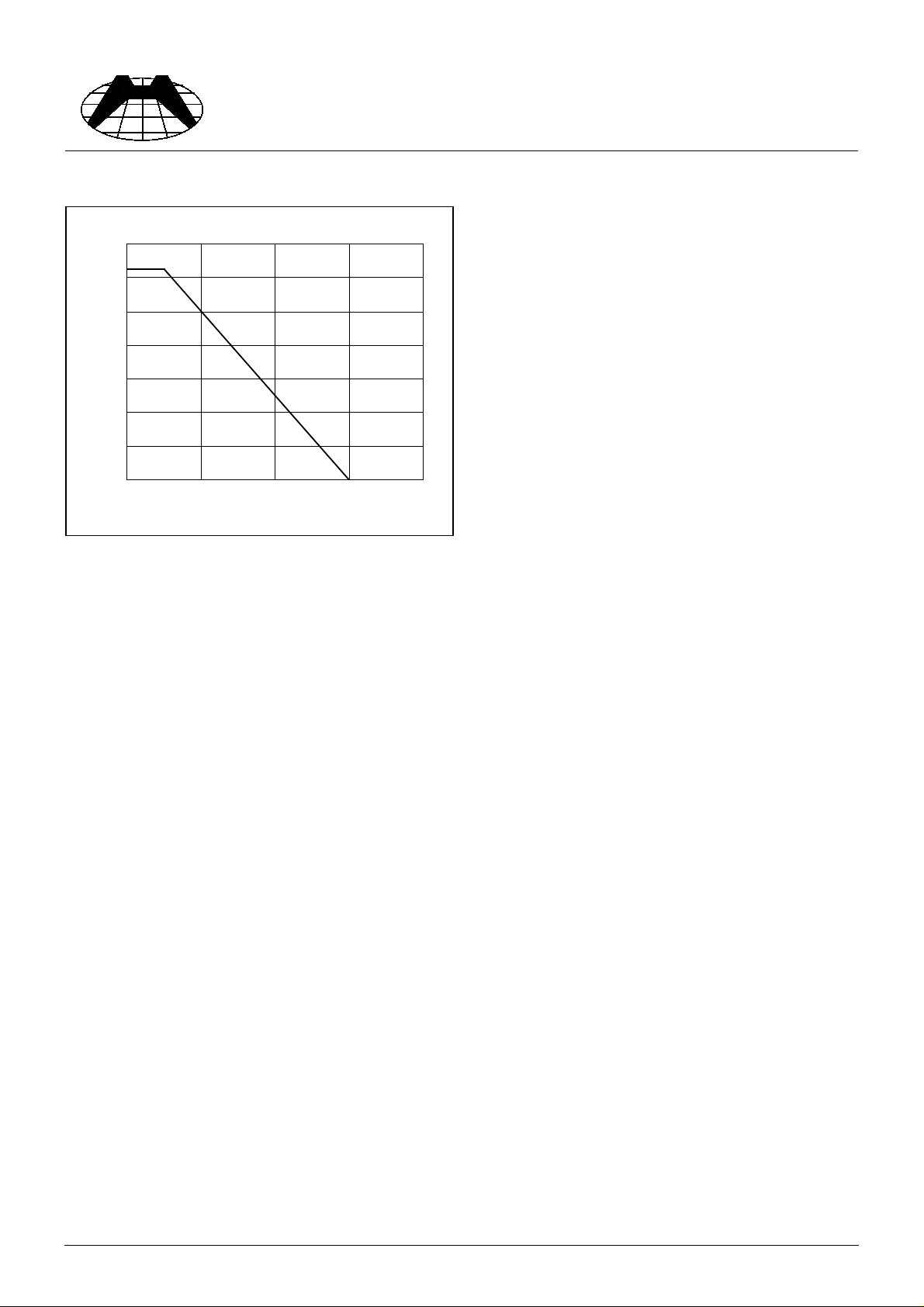

Power Dissipation-PD (mW)
100
0
0 50 100 150 200
Ambient Temperat ure- Ta (oC)
PD-Ta
HMPSA14 HSMC Product Specification
Page 4
HI-SINCERITY
g
A
MICROELECTRONICS CORP.

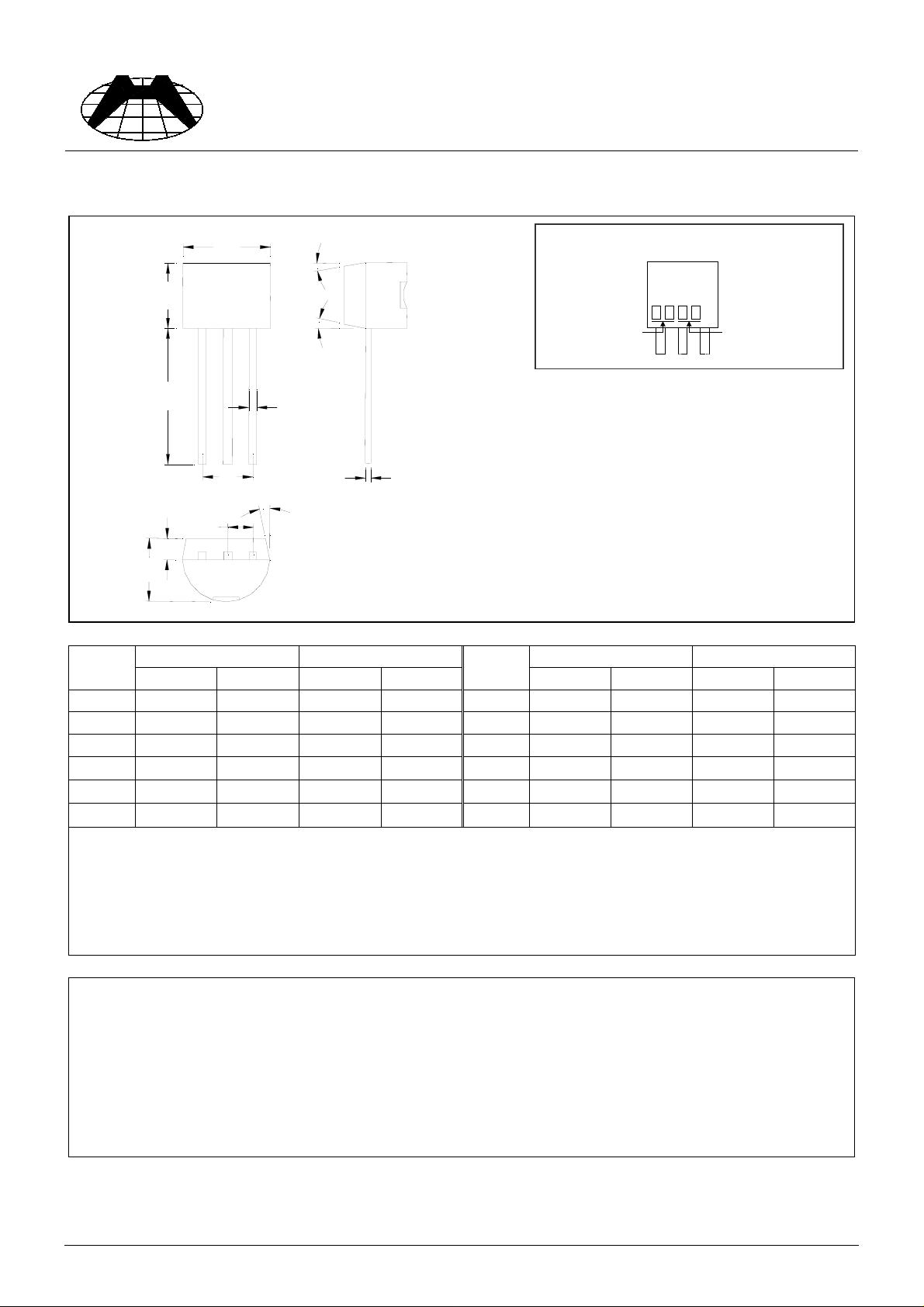

TO-92 Dimension
Spec. No. : HE6305
Issued Date : 1992.09.09
Revised Date : 2002.02.21
Page No. : 4/4
A
α2
B
31
2
Marking:
HS
PM
1A4
Date Code Control Code
α3
C
D
H
I
α1
G
Style: Pin 1.Emitter 2.Base 3.Collector
E
DIM
F
Inches Millimeters Inches Millimeters
Min. Max. Min. Max.
3-Lead TO-92 Plastic Package
HSMC Packa
e Code:
DIM
*: Typical
Min. Max. Min. Max.
A 0.1704 0.1902 4.33 4.83 G 0.0142 0.0220 0.36 0.56
B 0.1704 0.1902 4.33 4.83 H - *0.1000 - *2.54
C 0.5000 - 12.70 - I - *0.0500 - *1.27
D 0.0142 0.0220 0.36 0.56
E-*0.0500 - *1.27
F 0.1323 0.1480 3.36 3.76
Notes: 1.Dimension and tolerance based on our Spec. dated Apr. 25,1996.
2.Controlling dimension: millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, please contact your local HSMC sales office.
Material:
• Lead: 42 Alloy; solder plating
• Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
α1
α2
α3
-
-
-
*5°
*2°
*2°
-
-
-
*5°
*2°
*2°
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
• HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
• Head Office (Hi-Sincerity Microelectronics Corp.): 10F.,No. 61, Sec . 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel: 886-2-25212056 Fax: 886-2-25632712, 25368454
• Factory 1: No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel: 886-3-5983621~5 Fax: 886-3-5982931
HMPSA14 HSMC Product Specification
