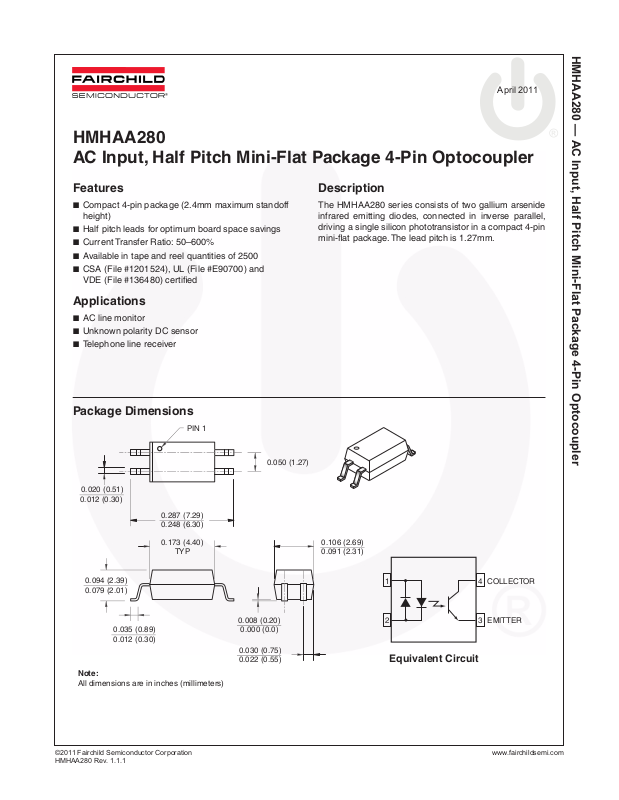

Page 1

)

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

April 2011

HMHAA280 AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

Features

■

Compact 4-pin package (2.4mm maximum standoff height)

■

Half pitch leads for optimum board space savings

■

Current Transfer Ratio: 50–600% Available in tape and reel quantities of 2500

■

CSA (File #1201524), UL (File #E90700) and VDE (File #136480) certiﬁed

Applications

AC line monitor

■

Unknown polarity DC sensor Telephone line receiver

■

Package Dimensions

Description

The HMHAA280 series consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a single silicon phototransistor in a compact 4-pin mini-ﬂat package. The lead pitch is 1.27mm.

0.050 (1.27

0.020 (0.51

0.012 (0.30

0.287 (7.29

0.248 (6.30

0.173 (4.40

0.094 (2.39

0.079 (2.01

0.008 (0.20

0.035 (0.89

0.012 (0.30

Note:

All dimensions are in inches (millimeters)

0.000 (0.0

0.030 (0.75

0.022 (0.55

0.106 (2.69

0.091 (2.31

Equivalent Circuit

COLLECTOR

3 EMITTER

Page 2

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

Absolute Maximum Ratings

= 25°C unless otherwise speciﬁed)

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Parameter Value Units

TOTAL PACKAGE

STG

OPR

EMITTER

F (avg)

F (pk)

DETECTOR

CEO

ECO

Storage Temperature -55 to +125 °C

Operating Temperature -55 to +100 °C

Continuous Forward Current 50 mA

Peak Forward Current (1µs pulse, 300pps.) 1 A

Reverse Input Voltage 6 V

Power Dissipation 60 mW

Derate linearly (above 25°C) 0.6 mW/°C

Continuous Collector Current 50 mA

Power Dissipation 150 mW

Derate linearly (above 25°C) 1.5 mW/°C

Collector-Emitter Voltage 80 V

Emitter-Collector Voltage 7 V

Page 3

Electrical Characteristics

= 25°C)

Symbol Parameter Test Conditions Min. Typ.* Max. Unit

INDIVIDUAL COMPONENT CHARACTERISTICS

Emitter

Detector

CEO

ECO

CEO

TRANSFER CHARACTERISTICS

Forward Voltage I

Reverse Current V

Breakdown Voltage Collector to Emitter

Emitter to Collector I

Collector Dark Current V

Capacitance V

= ±5mA 1.4

= 5V 5 µA

= 0.5mA, I

= 100µA, I

= 80V, I

= 0V, f = 1MHz 10 pF

= 0 80 V

= 0 7

= 0 100 nA

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

CTR DC Current Transfer Ratio I

CTR Symmetry I

CE (SAT)

Saturation Voltage I

Rise Time (Non-Saturated) I

Fall Time (Non-Saturated) I

ISOLATION CHARACTERISTICS

ISO

Steady State Isolation Voltage

*All typicals at T

= 25°C

= ±5mA, V

= ± 5mA, V

= ± 8mA, I

= 2mA, V

= 5V 50 600 %

= 5V 0.33 3.0

= 2.4mA 0.4 V

= 5V, R

= 100 Ω

3µs

1 Minute 3750 VRMS

Page 4

Typical Performance Characteristics

Fig. 1 Forward Current vs. Forward Voltage Fig. 2 Collector Current vs. Forward Current

100

TA = 25˚C

100

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

VCE = 10 V

(mA)

- FORWARD CURRENT

0.6 0.8 1.0 1.2 1.4 1.6

VF - FORWARD VOLTAGE (V) IF - FORWARD CURRENT (mA)

Fig. 3 Current Transfer Ratio vs. Forward Current

1000

VCE = 10 V

100

- CURRENT TRANSFER RATIO (%)

110100

IF - FORWARD CURRENT (mA)

VCE = 5 V

VCE = 0.4 V

TA = 25˚C

- COLLECTOR CURRENT (mA)

0.1 110100

VCE = 5 V

VCE = 0.4 V

Fig. 4 Normalized CTR vs. Temperature

2.0

)

1.5

1.0

0.5

TR (IF) / CTR (5mA

0.0

-0.5

NORMALIZED C

-40 -20 0 20 40 60 80 100

IF = 5 mA

IF = 10 mA

IF = 1 mA

IF = 0.5mA

TA - AMBIENT TEMPERATURE (°C)

Normalized to:

= 5 mA

= 5 V

= 25˚C

Fig. 5 Collector Current vs. Temperature

100

IF = 25 mA

- COLLECTOR CURRENT (mA)

0.1

-40 -20 0 20 40 60 80 100

IF = 10 mA

IF = 5 mA

IF = 1 mA

IF = 0.5 mA

VCE = 5 V

TA - AMBIENT TEMPERATURE (°C)

Page 5

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

Typical Performance Characteristics

Fig. 6 Collector Current vs. Collector-Emitter Voltage

- COLLECTOR CURRENT (mA)

(µA)

0.1

IF = 40 mA

IF = 30 mA

IF = 20 mA

12345678910

IF = 50 mA

VCE - COLLECTOR-EMITTER VOLTAGE (V)

Fig. 8 Collector Dark Current vs. Temperature

VCE = 48 V

VCE = 24 V

TA = 25˚C

IF = 10 mA

IF = 5.0 mA

IF = 1.0 mA

(Continued)

Fig. 7 Collector Current vs. Collector-Emitter Voltage

- COLLECTOR CURRENT (mA)

0.0 0.2 0.4 0.6 0.8 1.0

IF = 30 mA

IF = 20 mA

IF = 40 mA

IF = 0.5 mA

IF = 50 mA

IF = 10 mA

IF = 5 mA

IF = 2 mA

IF = 1.0 mA

VCE - COLLECTOR-EMITTER VOLTAGE (V)

Fig. 9 Switching Time vs. Load Resistance

1000

TA = 25˚C

= 16 mA

= 5 V

100

TIME (µs)

OFF

0.01

- COLLECTOR DARK CURRENT

CEO

0.001 0

VCE = 10 V

VCE = 5 V

20 40 60 80 100 1 10 100

TA - AMBIENT TEMPERATURE (˚C)

SWITCHING

0.1

RL - LOAD RESISTANCE (KΩ)

Fig. 10 Collector-Emitter Saturation Voltage

vs. Temperature

VOLTAG E (V)

- COLLECTOR-EMITTER SATURATION

CE(SAT)

0.30

0.28

0.26

0.24

0.22

0.20

0.18

0.16

0.14

0.12

0.10

-40 -20 0 20 40 60 80 100

TA - AMBIENT TEMPERATURE (˚C)

IF = 5 mA

= 1 mA

Page 6

Ordering Information

Option Description

V VDE Approved

R2 Tape and Reel (2500 units)

R2V Tape and Reel (2500 units) and VDE Approved

Marking Information

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

280

XVM1

Deﬁnitions

1Fairchild logo

2Device number

3 VDE mark (Note: Only appears on parts ordered with VDE

option – See order entry table)

4 One digit year code

5Two digit work week ranging from ‘01’ to ‘53’

6 Assembly package code

Page 7

Tape and Reel Dimensions

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

Description

Tape Width

Tape Thickness

Sprocket Hole Pitch

Sprocket Hole Diameter

Sprocket Hole Location

Pocket Location

Pocket Pitch

Pocket Dimension

Pocket Hole Diameter

Cover Tape Width

Cover Tape Thickness

Max. Component Rotation or Tilt

Devices Per Reel

Reel Diameter

Symbol

Dimensions (mm)

12.00 +0.30

1.27 Pitch

0.30 ±0.05

4.00 ±0.10

1.50 +0.10

1.75 ±0.10

5.50 ±0.10

2.00 ±0.10

8.00 ±0.10

2.80 ±0.10

7.30 ±0.10

2.30 ±0.10

1.50 Min.

9.20

0.065 ±0.010

10° Max.

2500

330mm (13")

-0.10

-0.0

Page 8

Footprint Drawing for PCB Layout

)

0.024 (0.61

0.060 (1.52

HMHAA280 — AC Input, Half Pitch Mini-Flat Package 4-Pin Optocoupler

Reﬂow Proﬁle0

0.310 (7.87

0.190 (4.83

0.050 (1.27

(Heating)

to 30 s

230°C (peak temperature) 210°C

180°C

to 60 s

Package Surface Temperature T (°C)

150 s 90 s 80 s

Time (s)

• Peak reflow temperature: 230°C (package surface temperature) for 30 seconds

• Time of temperature higher than 210°C: 60 seconds or less

• One time soldering reflow is recommended
