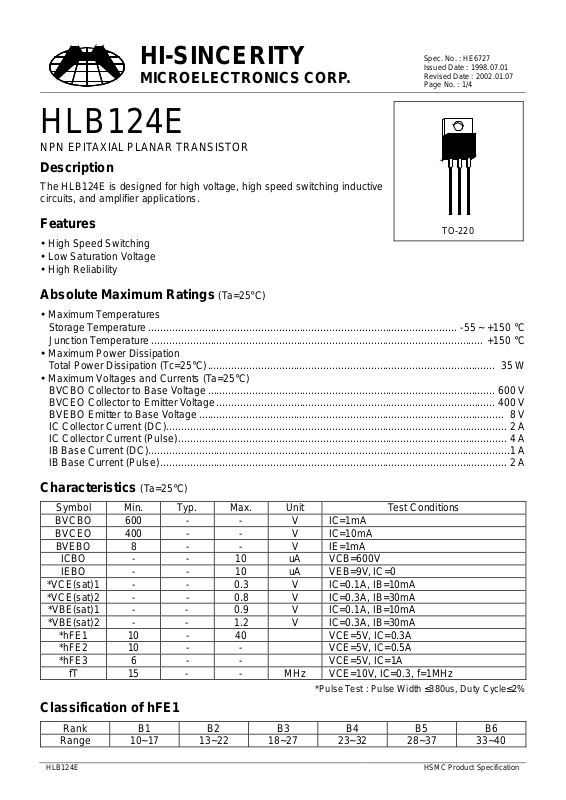

Page 1
HI-SINCERITY
MICROELECTRONICS CORP.
HLB124E
NPN EPITAXIAL PLANAR TRANSISTOR
Description
The HLB124E is designed for high voltage, high speed switching inductive
circuits, and amplifier applications.
Spec. No. : HE6727
Issued Date : 1998.07.01
Revised Date : 2002.01.07
Page No. : 1/4
Features
• High Speed Switching
• Low Saturation Voltage
• High Reliability
TO-220
Absolute Maximum Ratings (Ta=25°C)
• Maximum Temperatures
Stora ge Temperature........................................................................................................ -55 ~ +150 °C
Junction Temperature................................................................................................................ +150 °C
• Maximum Power Dissipation
Total Power Dissipation (Tc=25°C)................................................................................................. 35 W
• Maximum Voltages and Currents (Ta=25°C)
BVCBO Collector to Base Voltage................................................................................................. 600 V
BVCEO Collector to Emitter Voltage.............................................................................................. 400 V
BVEBO Emitter to Base Voltage....................................................................................................... 8 V
IC Collector Current (DC)................................................................................................................... 2 A
IC Collector Current (Pulse)............................................................................................................... 4 A
IB Base Current (DC)..........................................................................................................................1 A
IB Base Current (Pulse)..................................................................................................................... 2 A
Characteristics (Ta=25°C)
Symbol Min. Typ. Max. Unit Test Conditions
BVCBO 600 - - V IC=1mA
BVCEO 400 - - V IC=10mA
BVEBO 8 - - V IE=1mA
ICBO - - 10 uA VCB=600V
IEBO - - 10 uA VEB=9V, IC=0
*VCE(sat)1 - - 0.3 V IC=0.1A, IB=10mA
*VCE(sat)2 - - 0.8 V IC=0.3A, IB=30mA
*VBE(sat)1 - - 0.9 V IC=0.1A, IB=10mA
*VBE(sat)2 - - 1.2 V IC=0.3A, IB=30mA
*hFE1 10 - 40 VCE=5V, IC=0.3A
*hFE2 10 - - VCE=5V, IC=0.5A
*hFE3 6 - - VCE=5V, IC=1A
fT 15 - - MHz VCE=10V, IC=0.3, f=1MHz
*Pulse Test : Pulse Width ≤380us, Duty Cycle≤2%
Classification of hFE1
Rank B1 B2 B3 B4 B5 B6
Range 10~17 13~22 18~27 23~32 28~37 33~40
HLB124E HSMC Product Specification
Page 2
HI-SINCERITY
)
MICROELECTRONICS CORP.
Characteristics Curve
Spec. No. : HE6727
Issued Date : 1998.07.01
Revised Date : 2002.01.07
Page No. : 2/4
100
75oC125oC
25oC
10
hFE
hFE @ VCE=5V
1
1 10 100 1000 10000
Collect o r Current IC (mA)
Sat urati on Voltage & Collector Cu rrent
10000
Current Gai n & Collector Current
100000
10000
1000
Satur ation Voltage ( m V)
100
10
1 10 100 1000 10000
125oC
CE(sat)
V
Collect o r Current IC (mA)
25oC
On Voltage & Collector Current
1000
VCE=5V
Sat urati on Voltage & Collector Cu rrent
75oC
@ IC=10I
B
Cob
75oC
V
BE(sat)
1000
Saturat ion Voltag e ( m V)
100
100
10
Capacitance (Pf )
25oC
125oC
1 10 100 1000 10000
Collect o r Current IC (mA)
Capacita nce & Reverse- Bi ased Volta ge
@ IC=10I
On Voltage ( m V)
B
100
1 10 100 1000 10000
10
1
Switch in g T ime (us
Switching Time & Collector Current
VCC=100V, IC=5IB1=5I
Collector Current (mA)
B2
Ton
Tstg
Tf
1
1 10 100
Rev erse Biased Voltage ( V)
0.1
0.1 1 10
Collector Curren t (A)
HLB124E HSMC Product Specification
Page 3
HI-SINCERITY
)
MICROELECTRONICS CORP.
Spec. No. : HE6727
Issued Date : 1998.07.01
Revised Date : 2002.01.07
Page No. : 3/4
10000
1000
100
Collector Current (mA
10
1
1 10 100 1000
Safe Operating Area
Forwar d Vol tage (V)
PT=1 ms
PT=100 ms
PT=1 s
HLB124E HSMC Product Specification
Page 4
HI-SINCERITY
MICROELECTRONICS CORP.
TO-220AB Dimension
A
D
B
Spec. No. : HE6727
Issued Date : 1998.07.01
Revised Date : 2002.01.07
Page No. : 4/4
Marking:
E
C
HSMC Logo
Part Number
Date Code
Product Series
Rank
H
Style: Pin 1.Base 2.Collector 3.Emitter
G
I
3
M
2
K
N
1
4
OP
3-Lead TO-220AB Plastic Package
HSMC Package Code: E
*: Typical
DIM
Inches Millimeters Inches Millimeters
Min. Max. Min. Max.
DIM
Min. Max. Min. Max.
A 0.2197 0.2949 5.58 7.49 I - *0.1508 - *3.83
B 0.3299 0.3504 8.38 8.90 K 0.0295 0.0374 0.75 0.95
C 0.1732 0.185 4.40 4.70 M 0.0449 0.0551 1.14 1.40
D 0.0453 0.0547 1.15 1.39 N - *0.1000 - *2.54
E 0.0138 0.0236 0.35 0.60 O 0.5000 0.5618 12.70 14.27
G 0.3803 0.4047 9.66 10.28 P 0.5701 0.6248 14.48 15.87
H - *0.6398 - *16.25
Notes: 1.Dimension and tolerance based on our Spec. dated Sep. 07,1997.
Material:
• Lead: 42 Alloy; solder plating
• Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
2.Controlling dimension: millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, please contact your local HSMC sales office.
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
• HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
• Head Office (Hi-Sincerity Microelectronics Corp.) : 10F.,No. 61, Sec. 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel: 886-2-25212056 Fax: 886-2-25632712, 25368454
• Factory 1: No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel: 886-3-5983621~5 Fax: 886-3-5982931
HLB124E HSMC Product Specification
