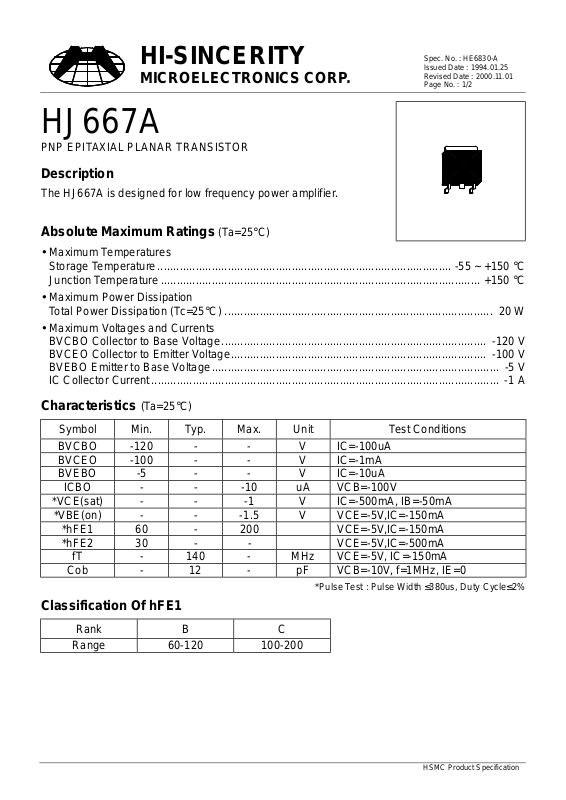

Page 1
HI-SINCERITY
MICROELECTRONICS CORP.
HJ667A
PNP EPITAXIAL PLANAR TRANSIST OR
Description
The HJ667A is designed for low frequency power amplifier.
Spec. No. : HE6830-A
Issued Date : 1994.01.25
Revised Date : 2000.11.01
Page No. : 1/2
Absolute Maximum Ratings
Maximum Temperatures
•
Storage Temperature............................................................................................ -55 ~ +150 °C
Junction Temperature.................................................................................................... +150 °C
Maximum Power Dissipation
•
Total Power Dissipation (Tc=25°C) .................................................................................... 20 W
Maximum Voltages and Currents
•
BVCBO Collector to Base Voltage................................................................................... -120 V
BVCEO Collector to Emitter Voltage................................................................................ -100 V
BVEBO Emitter to Base Voltage.......................................................................................... -5 V
IC Collector Current............................................................................................................. -1 A
Characteristics
Symbol Min. Typ. Max. Unit Test Co nditions
BVCBO -120 - - V IC=-100uA
BVCEO -100 - - V IC=-1mA
BVEBO -5 - - V IC=-10uA
ICBO - - -10 uA VCB=-100V
*VCE(sat) - - -1 V IC=-500mA, IB=-50mA
*VBE(on) - - -1.5 V VCE=-5V,IC=-150mA
*hFE1 60 - 200 VCE=-5V,IC=-150mA
*hFE2 30 - - VCE=-5V,IC=-500mA
fT - 140 - MHz VCE=-5V, IC=-150mA
Cob - 12 - pF VCB=-10V, f=1MHz, IE=0
(Ta=25°C)
(Ta=25°C)
*Pulse Test : Pulse Width ≤380us, Duty Cycle≤2%
Classification Of hFE1
Rank B C
Range 60-120 100-200
HSMC Product Specification
Page 2
HI-SINCERITY
MICROELECTRONICS CORP.
TO-252 Dimension
Spec. No. : HE6830-A
Issued Date : 1994.01.25
Revised Date : 2000.11.01
Page No. : 2/2
A
B
L
F
G
C
D
Marking :
HSMC Logo
Part Number
Date Code
Product Series
Rank
Ink Mark
Style : Pin 1.Base 2.Collector 3.Emitter
3
H
E
K
2
I
1
J
3-Lead TO-252 Plastic Surface Mount Package
HSMC Package Code : J
DIM
Inches Millimeters Inches Millimeters
Min. Max. Min. Max.
DIM
Min. Max. Min. Max.
A 0.0177 0.0217 0.45 0.55 G 0.0866 0.1102 2.20 2.80
B 0.0650 0.0768 1.65 1.95 H - *0.0906 - *2.30
C 0.0354 0.0591 0.90 1.50 I - 0.0354 - 0.90
D 0.0177 0.0236 0.45 0.60 J - 0.0315 - 0.80
E 0.2520 0.2677 6.40 6.80 K 0.2047 0.2165 5.20 5.50
F 0.2125 0.2283 5.40 5.80 L 0.0551 0.0630 1.40 1.60
Notes :
Material :
• Lead : 42 Alloy ; solder plating
• Mold Compound : Epoxy resin family, flammability solid burning class:UL94V-0
1.Dimension and tolerance based on our Spec. dated May. 05,1996.
2.Controlling dimension : millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, pleas e contact your l ocal HSMC sal es office.
*:Typical
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
•
HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringem ent of pat ents, or applic ati on assistance.
Head Office And Factory :
•
Head Office
Tel : 886-2-25212056 Fax : 886-2-25632712, 25368454
•
Factory 1 :
Tel : 886-3-5983621~5 Fax : 886-3-5982931
•
Factory 2 :
Tel : 886-3-5977061 Fax : 886-3-5979220
(Hi-Sincerity Microelectronics Corp.) : 10F.,No. 61, Sec. 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
No. 17-1, Ta-Tung Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
