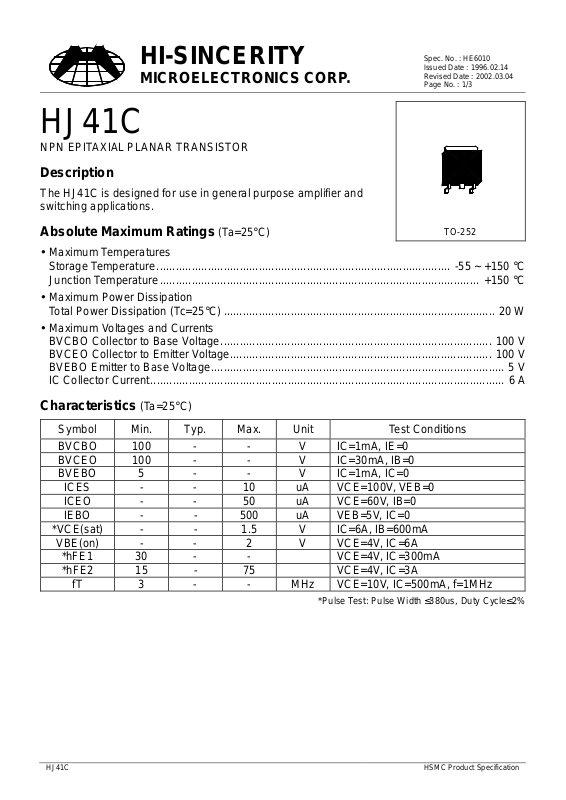

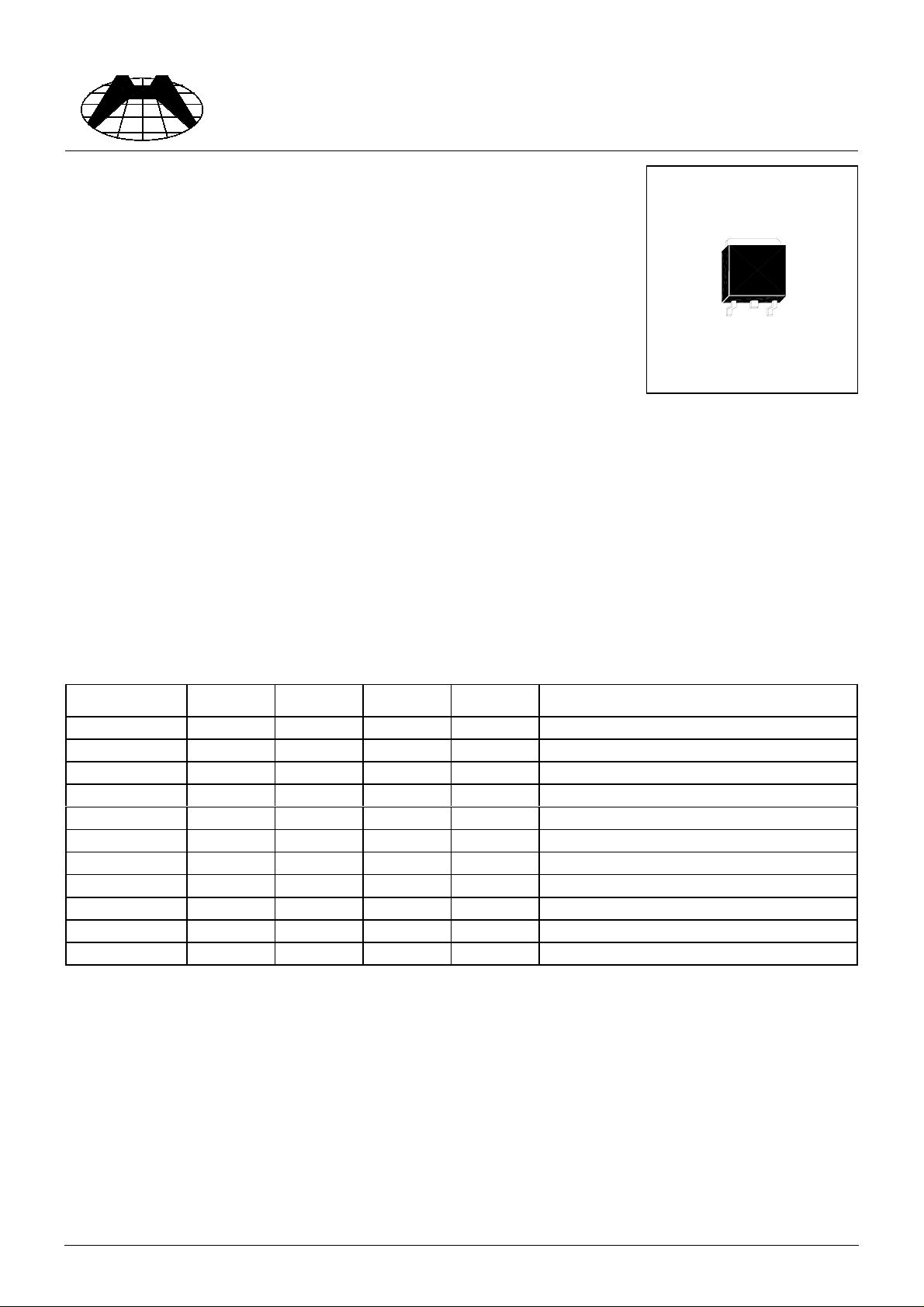

Page 1
HI-SINCERITY
MICROELECTRONICS CORP.
HJ41C
NPN EPITAXIAL PLANAR TRANSISTOR
Description
The HJ41C is designed for use in general purp ose am pl ifier and
switching applications.
Spec. No. : HE6010
Issued Date : 1996.02.14
Revised Date : 2002.03.04
Page No. : 1/3
Absolute Maximum Ratings (Ta=25°C)
• Maximum Temperatures
Stor age Temperature............................................................................................ -55 ~ +150 °C
Junction Temperature.................................................................................................... +150 °C
• Maximum Power Dissipation
Total Power Dissipation (Tc=25°C)..................................................................................... 20 W
• Maximum Voltages and Currents
BVCBO Collector to Base Voltage..................................................................................... 100 V
BVCEO Collector to Emitter Voltage.................................................................................. 100 V
BVEBO Emitter to Base Voltage............................................................................................ 5 V
IC Collector Current............................................................................................................... 6 A
TO-252
Characteristics (Ta=25°C)
Symbol Min. Typ. Max. Unit Test Co nditions
BVCBO 100 - - V IC= 1mA, IE= 0
BVCEO 100 - - V IC=30mA, IB=0
BVEBO 5 - - V IC=1mA, IC = 0
ICES - - 10 uA VCE=100V, VEB=0
ICEO - - 50 uA VCE=60V, IB=0
IEBO - - 500 uA VEB=5V, IC=0
*VCE(sat) - - 1.5 V IC=6A, IB=600mA
VBE(on) - - 2 V VCE=4V, IC=6A
*hFE1 30 - - VCE=4V, IC=300mA
*hFE2 15 - 75 VCE=4V, IC=3A
fT 3 - - MHz VCE=10V, IC=500mA, f=1MHz
*Pulse T est: Pulse Width ≤380us, Duty Cycle≤2%
HJ41C HSMC Product Specification
Page 2
HI-SINCERITY
)
MICROELECTRONICS CORP.

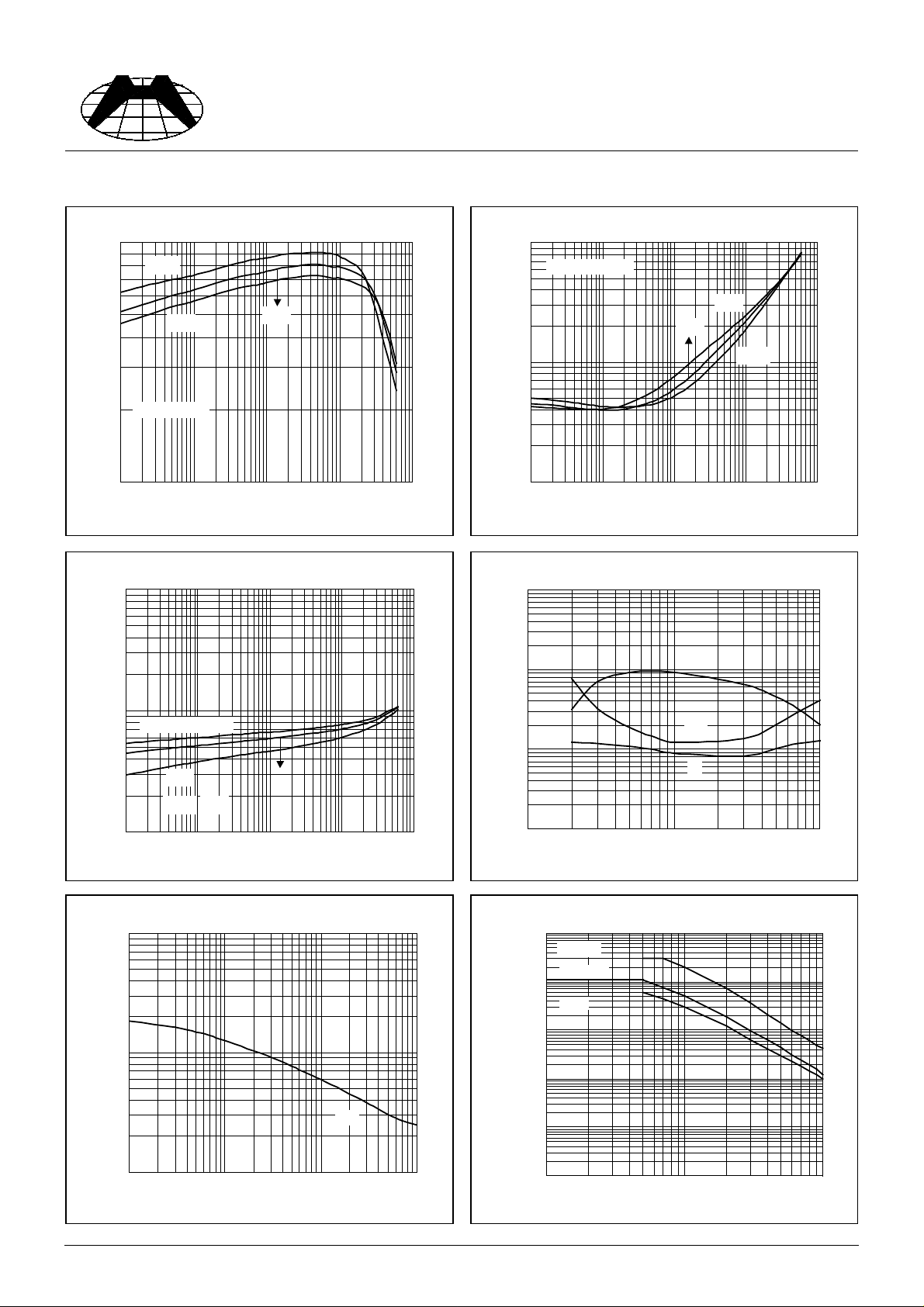

Characteristics Curve
Spec. No. : HE6010
Issued Date : 1996.02.14
Revised Date : 2002.03.04
Page No. : 2/3
100
Cur rent G ain & C o llector Current
125oC
25oC
hFE
hFE @ VCE=4V
10
1 10 100 1000 10000
10000
Collector Current- IC (mA)
ON Voltage & Collector Current
75oC
1000
Sat uration Voltage & Collect or Cur rent
CE(sat)
V
100
Satur ation Voltage ( m V)
10
1 10 100 1000 10000
10
1
Switching Time & Collector Current
B
@IC=10I
Collector Current- IC (mA)
25oC
75oC
125oC
Tstg
1000
ON Voltage (mV
BE(ON)
V
@ VCE=4V
25oC
75oC125oC
100
1 10 100 1000 10000
Collector Current-IC (mA)
Capacitance & Rev erse-Biased Voltage
1000
100
Capacitance ( pF)
Cob
Ton
0.1
Switching Times (us)...
0.01
0.1 1.0 10.0
Collector Current (A)
Tf
Safe Operating Area
100000
10000
(mA)
C
1000
Collector Current-I
PT=1ms
PT=100ms
PT=1s
100
10
10
0.1 1 10 100
Reverse-Biased Vol tage (V)
1
1 10 100
Forwar d Vol t a ge- VCE (V)
HJ41C HSMC Product Specification
Page 3
HI-SINCERITY
MICROELECTRONICS CORP.

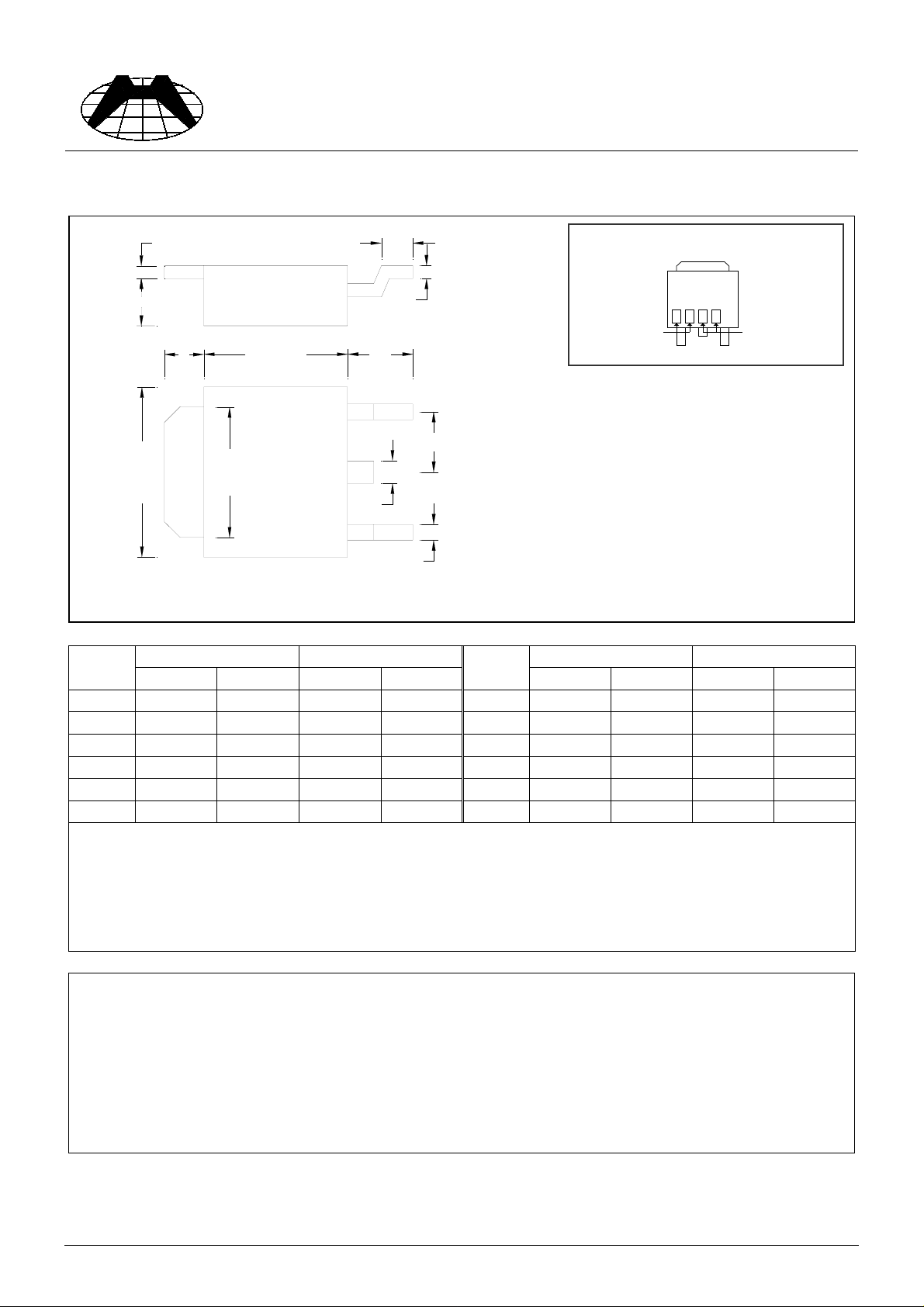

TO-252 Dimension
Spec. No. : HE6010
Issued Date : 1996.02.14
Revised Date : 2002.03.04
Page No. : 3/3
A
B
L
F
G
C
D
Marking:
Date Code
HJ
14C
Control Code
Style: Pin 1.Base 2.Collector 3.Emitter
3
H
E
K
2
I
1
J
3-Lead TO-252 Plastic Surface Mount Package
HSMC Package Code: J
*: Typical
DIM
Inches Millimeters Inches Millimeters
Min. Max. Min. Max.
DIM
Min. Max. Min. Max.
A 0.0177 0.0217 0.45 0.55 G 0.0866 0.1102 2.20 2.80
B 0.0650 0.0768 1.65 1.95 H - *0.0906 - *2.30
C 0.0354 0.0591 0.90 1.50 I - 0.0354 - 0.90
D 0.0177 0.0236 0.45 0.60 J - 0.0315 - 0.80
E 0.2520 0.2677 6.40 6.80 K 0.2047 0.2165 5.20 5.50
F 0.2125 0.2283 5.40 5.80 L 0.0551 0.0630 1.40 1.60
Notes: 1.Dimension and tolerance based on our Spec. dated May. 05,1996.
Material:
• Lead: 42 Alloy; solder plating
• Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
2.Controlling dimension: millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, please contact your local HSMC sales office.
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
• HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringement of patents, or applic ation assistance.
Head Office And Factory:
• Head Office (Hi-Sincerity Microelectronics Corp.): 10F.,No. 61, Sec . 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel: 886-2-25212056 Fax: 886-2-25632712, 25368454
• Factory 1: No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel: 886-3-5983621~5 Fax: 886-3-5982931
HJ41C HSMC Product Specification
