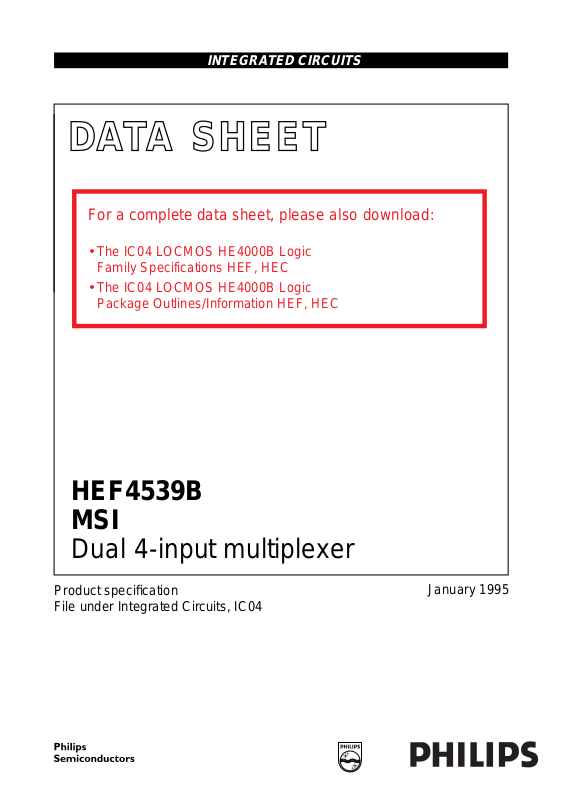

HEF4539B
MSI
Dual 4-input multiplexer
Product specification
File under Integrated Circuits, IC04
January 1995
Page 2
Philips Semiconductors Product specification
Dual 4-input multiplexer
DESCRIPTION
The HEF4539B is a dual 4-input multiplexer with common
select logic. Each multiplexer has four multiplexer inputs
(I0and I3), an active LOW enable input (E) and a
multiplexer output (O). When HIGH, E forces O of the
respective multiplexer LOW, independent of the select
inputs (S0to S1) and I0to I3. When E is LOW, S0and
S1determine which multiplexer input (I0to I3) on each of
the multiplexers is routed to the respective multiplexer
output (O).
HEF4539B
MSI
Fig.1 Functional diagram.
Fig.2 Pinning diagram.
HEF4539BP(N): 16-lead DIL; plastic
(SOT38-1)
HEF4539BD(F): 16-lead DIL; ceramic (cerdip)
(SOT74)
HEF4539BT(D): 16-lead SO; plastic
(SOT109-1)
( ): Package Designator North America
PINNING
, I1A, I2A, I
I
0A
, I1B, I2B, I
I
0B
S
, S
0
EA, E
O
, O
A
1
3A
3B
B
B
FAMILY DATA, I
multiplexer inputs
multiplexer inputs
select inputs
enable inputs (active LOW)
multiplexer outputs
LIMITS category MSI
DD
See Family Specifications
January 1995 2
Page 3
Philips Semiconductors Product specification
Dual 4-input multiplexer
HEF4539B
MSI
Fig.3 Logic diagram.
FUNCTION TABLE
INPUTS OUTPUT
S
0
S
1
E
n
O
n
XX H L
LL L I
HL L I
LH L I
HH L I
0
1
2
3
January 1995 3
Notes
1. H = HIGH state (the more positive voltage)
L = LOW state (the less positive voltage)
X = state is immaterial
Page 4
Philips Semiconductors Product specification
Dual 4-input multiplexer
HEF4539B
AC CHARACTERISTICS
V
= 0 V; T
SS
Propagation delays
In→ O
HIGH to LOW 10 t
LOW to HIGH 10 t
Sn→ O
HIGH to LOW 10 t
LOW to HIGH 10 t
En→ O
HIGH to LOW 10 t
LOW to HIGH 10 t
Output transition times 5 60 120 ns 10 ns + (1,0 ns/pF) C
HIGH to LOW 10 t
LOW to HIGH 10 t
=25°C; CL= 50 pF; input transition times ≤20 ns
amb
V
DD
V
n
SYMBOL MIN. TYP. MAX.
5 120 240 ns 93 ns + (0,55 ns/pF) C
PHL
15 30 60 ns 22 ns + (0,16 ns/pF) C
5 120 245 ns 93 ns + (0,55 ns/pF) C
PLH
15 35 65 ns 27 ns + (0,16 ns/pF) C
n
5 165 330 ns 138 ns + (0,55 ns/pF) C
PHL
15 40 80 ns 32 ns + (0,16 ns/pF) C
5 155 310 ns 128 ns + (0,55 ns/pF) C
PLH
15 40 80 ns 32 ns + (0,16 ns/pF) C
n
5 100 200 ns 73 ns + (0,55 ns/pF) C
PHL
15 30 55 ns 22 ns + (0,16 ns/pF) C
5 100 200 ns 73 ns + (0,55 ns/pF) C
PLH
15 30 55 ns 22 ns + (0,16 ns/pF) C
THL
15 20 40 ns 6 ns + (0,28 ns/pF) C
5 60 120 ns 10 ns + (1,0 ns/pF) C
TLH
15 20 40 ns 6 ns + (0,28 ns/pF) C
TYPICAL EXTRAPOLATION
FORMULA
45 90 ns 34 ns + (0,23 ns/pF) C
50 100 ns 39 ns + (0,23 ns/pF) C
65 125 ns 54 ns + (0,23 ns/pF) C
60 120 ns 49 ns + (0,23 ns/pF) C
40 80 ns 29 ns + (0,23 ns/pF) C
40 80 ns 29 ns + (0,23 ns/pF) C
30 60 ns 9 ns + (0,42 ns/pF) C
30 60 ns 9 ns + (0,42 ns/pF) C
MSI
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
V
DD
V
Dynamic power 5 700 f
dissipation per 10 2900 f
package (P) 15 8100 f
TYPICAL FORMULA FOR P (µW)
+∑(foCL) × V
i
+∑(foCL) × V
i
+∑(foCL) × V
i
DD
DD
DD
2
2
2
where
fi= input freq. (MHz)
fo= output freq. (MHz)
C
= load capacitance (pF)
L
∑ (f
) = sum of outputs
oCL
= supply voltage (V)
V
DD
APPLICATION INFORMATION
Some examples of applications for the HEF4539B are: * Data selectors * Data multiplexers
January 1995 4
