HEF4053B
MSI
Triple 2-channel analogue
multiplexer/demultiplexer
For a complete data sheet, please also download:
•The IC04 LOCMOS HE4000B Logic
Family Specifications HEF, HEC
•The IC04 LOCMOS HE4000B Logic
Package Outlines/Information HEF, HEC
Page 2
January 1995 2
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI
DESCRIPTION
The HEF4053B is a triple 2-channel analogue
multiplexer/demultiplexer with a common enable input (E).
Each multiplexer/demultiplexer has two independent
inputs/outputs (Y0and Y1), a common input/output (Z),
and select inputs (Sn). Each also contains two-bidirectional
analogue switches, each with one side connected to an
independent input/output (Y0and Y1) and the other side
connected to a common input/output (Z).
With
E LOW, one of the two switches is selected (low
impedance ON-state) by Sn. WithE HIGH, all switches are
in the high impedance OFF-state, independent of SAto SC.
VDDand VSSare the supply voltage connections for the
digital control inputs (SAto SC and E).
The VDDto VSSrange is 3 to 15 V. The analogue
inputs/outputs (Y0,Y1 and Z) can swing between VDDas a
positive limit and VEEas a negative limit. VDD−VEEmay not
exceed 15 V.
For operation as a digital multiplexer/demultiplexer, VEEis
connected to VSS(typically ground).
FAMILY DATA, I
DD
LIMITS category MSI
See Family Specifications
Fig.1 Functional diagram.
Page 3
January 1995 3
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI
HEF4053BP(N): 16-lead DIL; plastic
(SOT38-1)
HEF4053BD(F): 16-lead DIL; ceramic (cerdip)
(SOT74)
HEF4053BT(D): 16-lead SO; plastic
(SOT109-1)
( ): Package Designator North America
Fig.2 Pinning diagram.
PINNING
FUNCTION TABLE
Notes
1. H = HIGH state (the more positive voltage)
L = LOW state (the less positive voltage)
X = state is immaterial
Y
0A
to Y
0C
independent inputs/outputs
Y
1A
to Y
1C
independent inputs/outputs
S
A
to S
C
select inputs
E enable input (active LOW)
Z
A
to Z
C
common inputs/outputs
INPUTS CHANNEL
ON
ES
n
LL Y
0n−Zn
LH Y
1n−Zn
H X none
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134)
Note
1. To avoid drawing V
DD
current out of terminal Z, when switch current flows into terminals Y, the voltage drop across
the bidirectional switch must not exceed 0,4 V. If the switch current flows into terminal Z, no VDDcurrent will flow out
of terminals Y, in this case there is no limit for the voltage drop across the switch, but the voltages at Y and Z may
not exceed VDDor VEE.
Supply voltage (with reference to VDD)V
EE
−18 to + 0,5 V
Fig.3 Schematic diagram (one switch).
Page 4
January 1995 4
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI

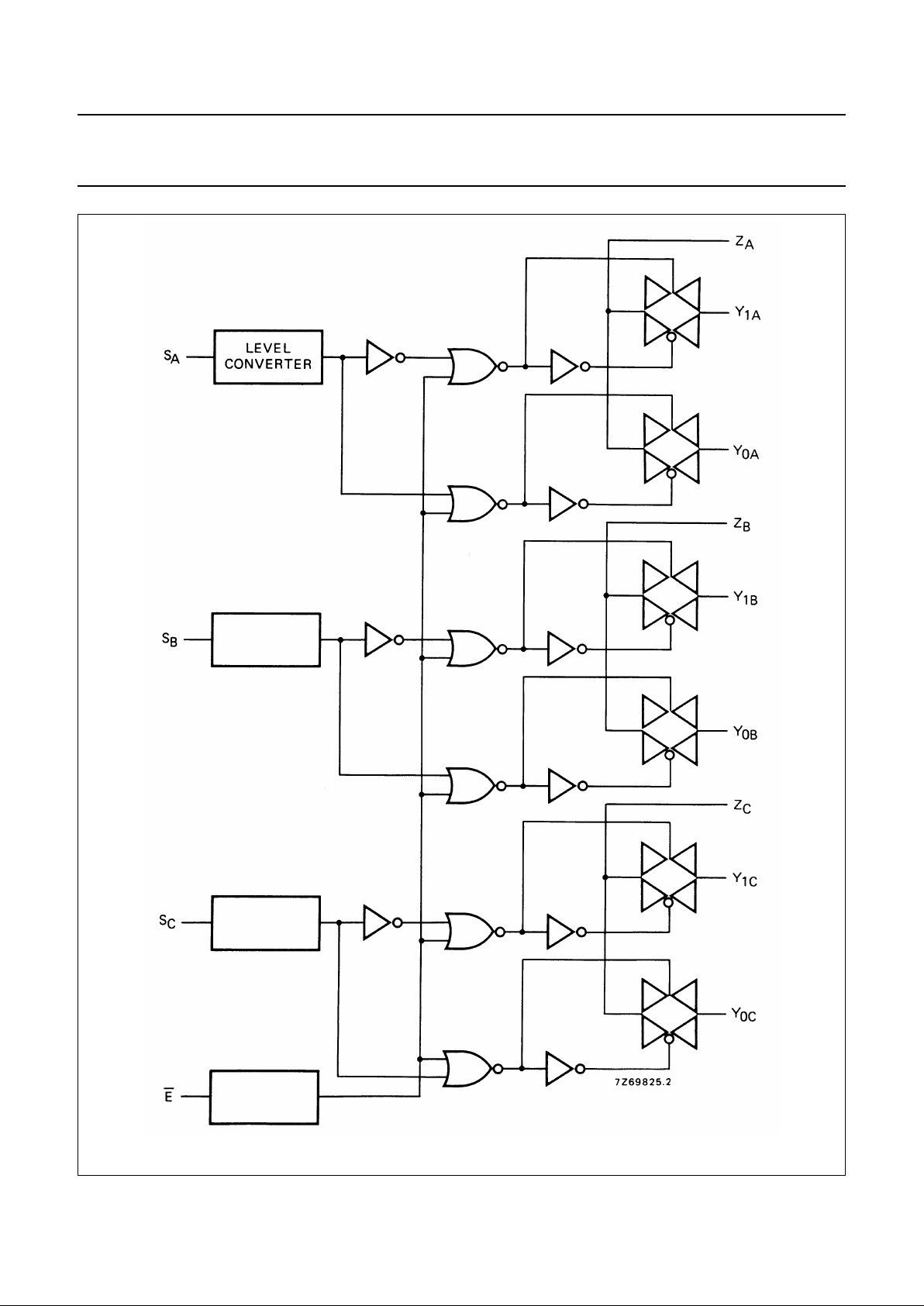

Fig.4 Logic diagram.
Page 5
January 1995 5
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI
DC CHARACTERISTICS
T
amb
=25°C
V
DD−VEE
V
SYMBOL TYP. MAX. CONDITIONS
5 350 2500 Ω
V
is
= 0 to VDD−V
EE
see Fig.6
ON resistance 10 R
ON
80 245 Ω
15 60 175 Ω
5 115 340 Ω
V
is
=0
see Fig.6
ON resistance 10 R
ON
50 160 Ω
15 40 115 Ω
5 120 365 Ω
V
is=VDD−VEE
see Fig.6
ON resistance 10 R
ON
65 200 Ω
15 50 155 Ω
‘∆’ ON resistance 5 25 −Ω
V
is
= 0 to VDD−V
EE
see Fig.6
between any two 10 ∆R
ON
10 −Ω
channels 15 5 −Ω
OFF-state leakage 5 −−nA
E at V
DD
current, all 10 I
OZZ
−−nA
channels OFF 15 − 1000 nA
OFF-state leakage 5 −−nA
E at V
SS
current, any 10 I
OZY
−−nA
channel 15 − 200 nA

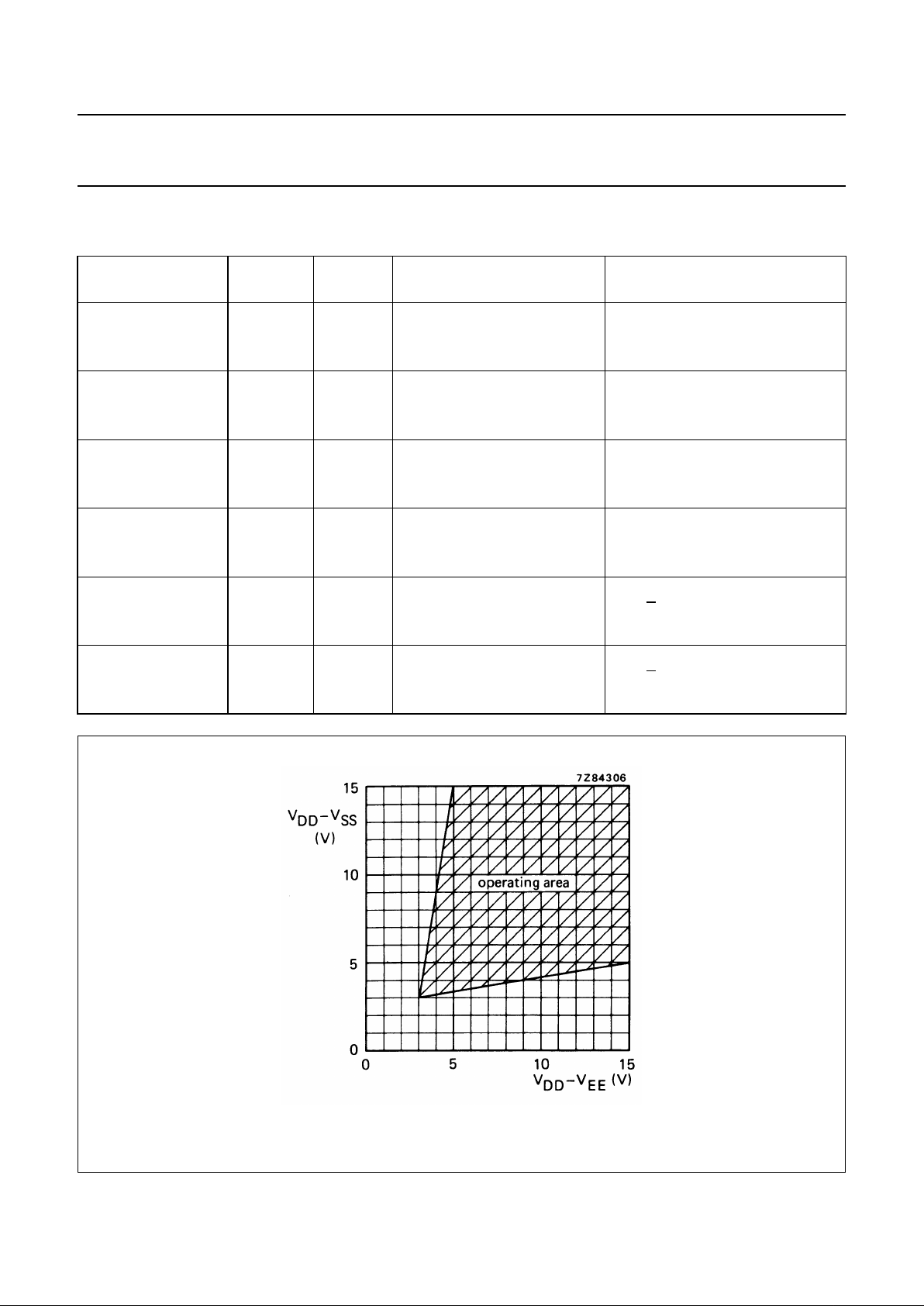

Fig.5 Operating area as a function of the supply voltages.
Page 6
January 1995 6
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI

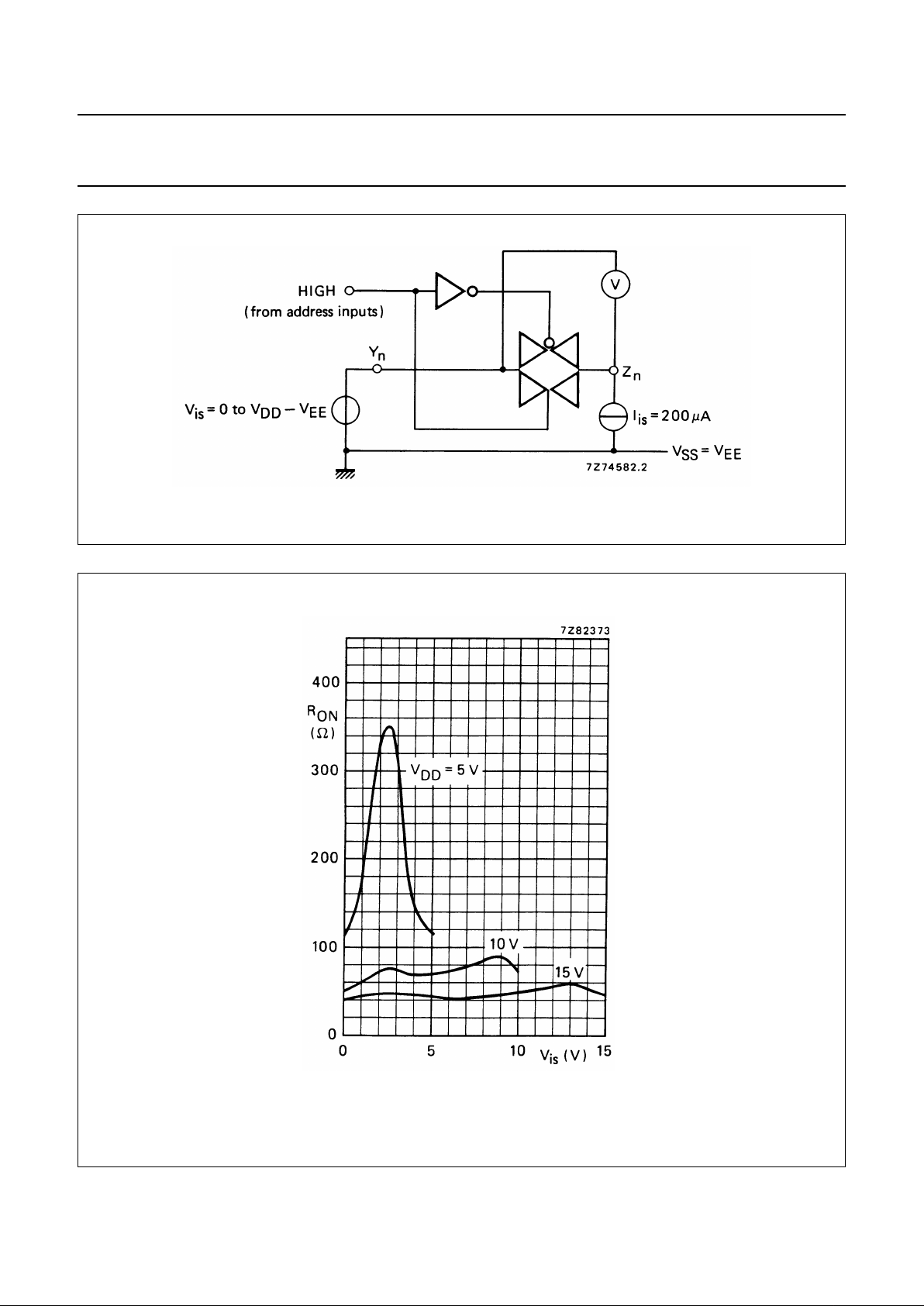

Fig.6 Test set-up for measuring RON.
Fig.7 Typical RONas a function of input voltage.
Iis= 200 µA
VSS=VEE=0V
Page 7
January 1995 7
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI
AC CHARACTERISTICS
V
EE=VSS
= 0 V; T
amb
=25°C; input transition times ≤ 20 ns
AC CHARACTERISTICS
V
EE=VSS
= 0 V; T
amb
=25°C; input transition times ≤ 20 ns
V
DD
V
TYPICAL FORMULA FOR P (µW)
Dynamic power 5 2 500 f
i
+∑(foCL) × V
DD
2
where
dissipation per 10 11 500 f
i
+∑(foCL) × V
DD
2
fi= input freq. (MHz)
package (P) 15 29 000 f
i
+∑(foCL) × V
DD
2
fo= output freq. (MHz)
C
L
= load capacitance (pF)
∑(f
oCL
) = sum of outputs
V
DD
= supply voltage (V)
V
DD
V
SYMBOL TYP. MAX.
Propagation delays
Vis→ V
os
51020ns
note 1HIGH to LOW 10 t
PHL
510ns
15 5 10 ns
51530ns
note 1LOW to HIGH 10 t
PLH
510ns
15 5 10 ns
S
n
→ V
os
5 200 400 ns
note 2HIGH to LOW 10 t
PHL
85 170 ns
15 65 130 ns
5 275 555 ns
note 2LOW to HIGH 10 t
PLH
100 200 ns
15 65 130 ns
Output disable times
E → V
os
5 200 400 ns
note 3HIGH 10 t
PHZ
115 230 ns
15 110 220 ns
5 200 400 ns
note 3LOW 10 t
PLZ
120 245 ns
15 110 215 ns
Output enable times
E → V
os
5 260 525 ns
note 3HIGH 10 t
PZH
95 190 ns
15 65 130 ns
5 280 565 ns
note 3LOW 10 t
PZL
105 205 ns
15 70 140 ns
Page 8
January 1995 8
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI
Notes
Visis the input voltage at a Y or Z terminal, whichever is assigned as input.
Vosis the output voltage at a Y or Z terminal, whichever is assigned as output.
1. RL= 10 kΩ to VEE; CL= 50 pF to VEE; E=VSS; Vis=VDD(square-wave); see Fig.8.
2. RL= 10 kΩ; CL= 50 pF to VEE; E=VSS; Sn=VDD(square-wave); Vis=VDDand RLto VEEfor t
PLH
; Vis=VEEand
RLto VDDfor t
PHL
; see Fig.8.
3. RL= 10 kΩ; CL= 50 pF to VEE; E=VDD(square-wave);
Vis=VDDand RLto VEEfor t
PHZ
and t
PZH
;
Vis=VEEand RLto VDDfor t
PLZ
and t
PZL
; see Fig.8.
4. RL= 10 kΩ; CL= 15 pF; channel ON; Vis=1⁄2V
DD (p-p)
(sine-wave, symmetrical about1⁄2VDD);
fis= 1 kHz; see Fig.9.
5. RL=1 kΩ; Vis=1⁄2V
DD (p-p)
(sine-wave, symmetrical about1⁄2VDD);
6. R
L
= 10 kΩ to VEE; CL= 15 pF to VEE; E or Sn=VDD(square-wave); crosstalk is Vos (peak
value); see Fig.8.
7. RL=1 kΩ; CL= 5 pF; channel OFF; Vis=1⁄2V
DD (p-p)
(sine-wave, symmetrical about1⁄2VDD);
8. R
L
=1 kΩ; CL= 5 pF; channel ON; Vis=1⁄2V
DD (p-p)
(sine-wave, symmetrical about1⁄2VDD);
Distortion, sine-wave 5 0,25 %
note 4response 10 0,04 %
15 0,04 %
Crosstalk between 5 − MHz
note 5any two channels 10 1 MHz
15 − MHz
Crosstalk; enable 5 − mV
note 6or address input 10 50 mV
to output 15 − mV
OFF-state 5 − MHz
note 7feed-through 10 1 MHz
15 − MHz
ON-state frequency 5 13 MHz
note 8response 10 40 MHz
15 70 MHz
V
DD
V
SYMBOL TYP. MAX.
20 log
V
os
V
is
-------- -
50 dB; see Fig. 10.–=
20 log
V
os
V
is
-------- -
50 dB; see Fig. 9.–=
20 log
V
os
V
is
-------- -
3 dB; see Fig. 9.–=
Page 9
January 1995 9
Philips Semiconductors Product specification
Triple 2-channel analogue
multiplexer/demultiplexer
HEF4053B
MSI

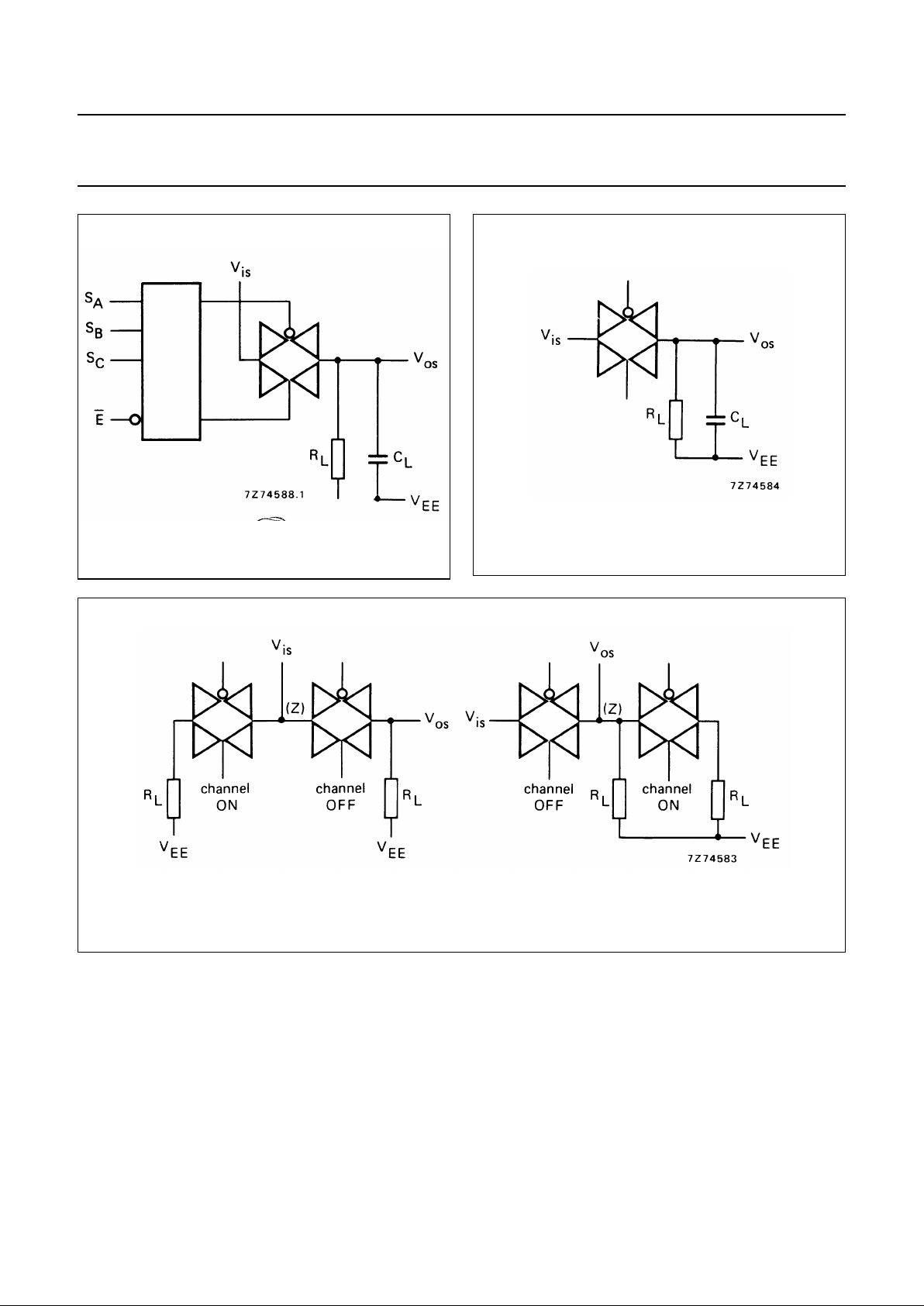

Fig.8 Fig.9
APPLICATION INFORMATION
Some examples of applications for the HEF4053B are:
• Analogue multiplexing and demultiplexing.
• Digital multiplexing and demultiplexing.
• Signal gating.
NOTE
If break before make is needed, then it is necessary to use the enable input.
Fig.10
(a)
(b)
