HEF40373B
MSI
Octal transparent latch with 3-state
outputs
For a complete data sheet, please also download:
•The IC04 LOCMOS HE4000B Logic
Family Specifications HEF, HEC
•The IC04 LOCMOS HE4000B Logic
Package Outlines/Information HEF, HEC
Page 2
January 1995 2
Philips Semiconductors Product specification
Octal transparent latch with 3-state outputs
HEF40373B
MSI
DESCRIPTION
The HEF40373B is an 8-bit transparent latch with 3-state
buffered outputs. The output stages have high current
output capability suitable for driving highly capacitive
loads. The latch outputs follow the data inputs when the
latch enable (E) is HIGH. When E is LOW, the data that
meets the set-up times is latched. The 3-state outputs are
controlled by the output enable input EO. A HIGH on
EO causes the outputs to assume a high impedance
OFF-state. The device features hysteresis on the E input
to improve noise rejection.
Schmitt-trigger action in the E input makes the circuit
highly tolerant to slower input rise and fall times.
The HEF40373B is pin and functionally compatible with
the TTL ‘373’ device.
Supply voltage range: 3 to 15 V.
Fig.1 Functional diagram. Fig.2 Pinning diagram.
HEF40373BP(N): 20-lead DIL; plastic
(SOT146-1)
HEF40373BD(F): 20-lead DIL; ceramic (cerdip)
(SOT152)
HEF40373BT(D): 20-lead SO; plastic
(SOT163-1)
( ): Package Designator North America
PINNING
FAMILY DATA, I
DD
LIMITS category MSI
See Family Specifications
D
0
to D
7
data inputs
E latch enable input
EO output enable input (active LOW)
O
0
to O
7
3-state buffered outputs
Page 3
January 1995 3
Philips Semiconductors Product specification
Octal transparent latch with 3-state outputs
HEF40373B
MSI
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
Fig.3 Logic diagram.
Fig.4 Logic diagram (one latch).
Page 4
January 1995 4
Philips Semiconductors Product specification
Octal transparent latch with 3-state outputs
HEF40373B
MSI
FUNCTION TABLE
Notes
1. H =HIGH state (the more positive voltage)
h = HIGH state (one set-up time prior to the HIGH-to-LOW enable transition)
L = LOW state (the less positive voltage)
I = LOW state (one set-up time prior to the HIGH-to-LOw enable transition)
Z = high impedance OFF-state
OPERATING MODES
INPUTS
INTERNAL
REGISTER
OUTPUTS
O0TO O
7
EO E D
n
enable & read register
LHL L L
LHH H H
latch & read register
LLI L L
LLh H H
latch register & disable outputs
HLI L Z
HLh H Z
Page 5
January 1995 5
Philips Semiconductors Product specification
Octal transparent latch with 3-state outputs
HEF40373B
MSI
RATINGS
Limiting values in accordance with the Absolute Maximum System (IEC 134)
See Family Specifications, except for:
DC CHARACTERISTICS
V
SS
=0 V
D.C. current into any input ± I
I
max. 10 mA
D.C. source or sink current into any output ± I
O
max. 25 mA
D.C. current into the supply terminals ± I max. 100 mA
V
DD
V
V
OH
V
V
OL
V
SYMBOL
T
amb
(°C)
−40 + 25 + 85
MIN. TYP. MIN. TYP. MIN. TYP.
Output current 5 4,6 0,75 0,6 1,2 0,45 mA
HIGH 10 9,5 −I
OH
1,85 1,5 3,0 1,1 mA
15 13,5 14,5 15 50 15,5 mA
Output current 5 3,6 9,3 10 24 10,7 mA
HIGH 10 8,4 −I
OH
14,4 15 46 15,0 mA
15 13,2 19,5 20 62 19,8 mA
Output current 5 0,4 2,9 2,3 5,4 1,75 mA
LOW 10 0,5 I
OL
9,5 7,6 17 5,50 mA
15 1,5 30,0 25 45 19,0 mA
Hysteresis 5 220 mV
voltage at 10 V
H
250 mV
enable input (E) 15 320 mV

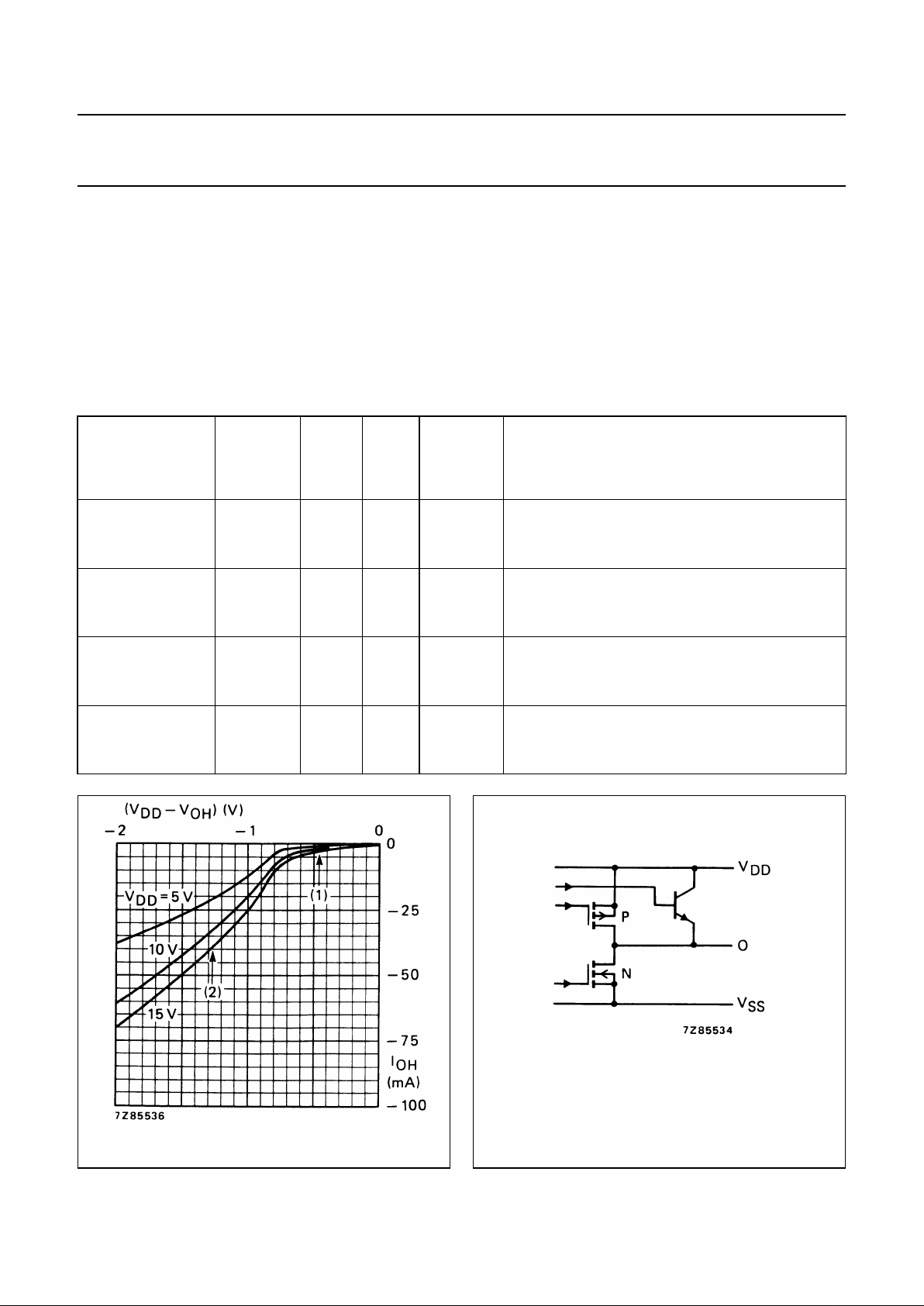

Fig.5 Typical output source current characteristic. Fig.6 Schematic diagram of output stage.
(1) P-channel MOS transistor conducting.
(2) P-channel MOS transistor and bipolar
n-p-n transistor conducting.
Page 6
January 1995 6
Philips Semiconductors Product specification
Octal transparent latch with 3-state outputs
HEF40373B
MSI
AC CHARACTERISTICS
V
SS
= 0 V; T
amb
=25°C; CL= 50 pF; input transition times ≤ 20 ns
V
DD
V
SYMBOL MIN. TYP. MAX.
TYPICAL EXTRAPOLA TION
FORMULA
Propagation delays
E → O
n
5 150 300 ns 138 ns + (0,24 ns/pF) C
L
HIGH to LOW 10 t
PHL
60 120 ns 59 ns + (0,01 ns/pF) C
L
15 40 80 ns 36 ns + (0,07 ns/pF) C
L
E → O
n
5 125 250 ns 122 ns + (0,06 ns/pF) C
L
LOW to HIGH 10 t
PLH
50 100 ns 48 ns + (0,03 ns/pF) C
L
15 40 80 ns 39 ns + (0,02 ns/pF) C
L
Output transition 5 40 80 ns
see Fig.7
times 10 t
THL
20 40 ns
HIGH to LOW 15 15 30 ns
53060ns
LOW to HIGH 10 t
TLH
20 40 ns
15 15 30 ns
3-state propagation delays
Output disable times
EO → O
n
5 65 130 ns
HIGH 10 t
PHZ
30 60 ns
15 25 50 ns
5 75 150 ns
LOW 10 t
PLZ
40 80 ns
15 30 60 ns
Output enable times
EO → O
n
5 65 130 ns
HIGH 10 t
PZH
30 60 ns
15 25 50 ns
5 85 170 ns
LOW 10 t
PZL
35 70 ns
15 25 50 ns
Set-up time 5 15 7 ns
D
n
→ E10t
su
10 5 ns
15 10 5 ns
Hold time 5 25 15 ns
D
n
→ E10t
hold
15 4 ns
15 10 3 ns
Minimum latch enable 5 60 30 ns
pulse width LOW 10 t
WEL
30 15 ns
15 20 10 ns
Page 7
January 1995 7
Philips Semiconductors Product specification
Octal transparent latch with 3-state outputs
HEF40373B
MSI
AC CHARACTERISTICS
V
SS
= 0 V; T
amb
=25°C; input transition times ≤ 20 ns
V
DD
V
TYPICAL FORMULA FOR P (µW)
Dynamic power 5 3 325 f
i
+∑(foCL) × V
DD
2
where
dissipation per 10 14 200 f
i
+∑(foCL) × V
DD
2
fi= input freq. (MHz)
package (P) 15 37 425 f
i
+∑(foCL) × V
DD
2
fo= output freq. (MHz)
C
L
= load capacitance (pF)
∑ (f
oCL
) = sum of outputs
V
DD
= supply voltage (V)

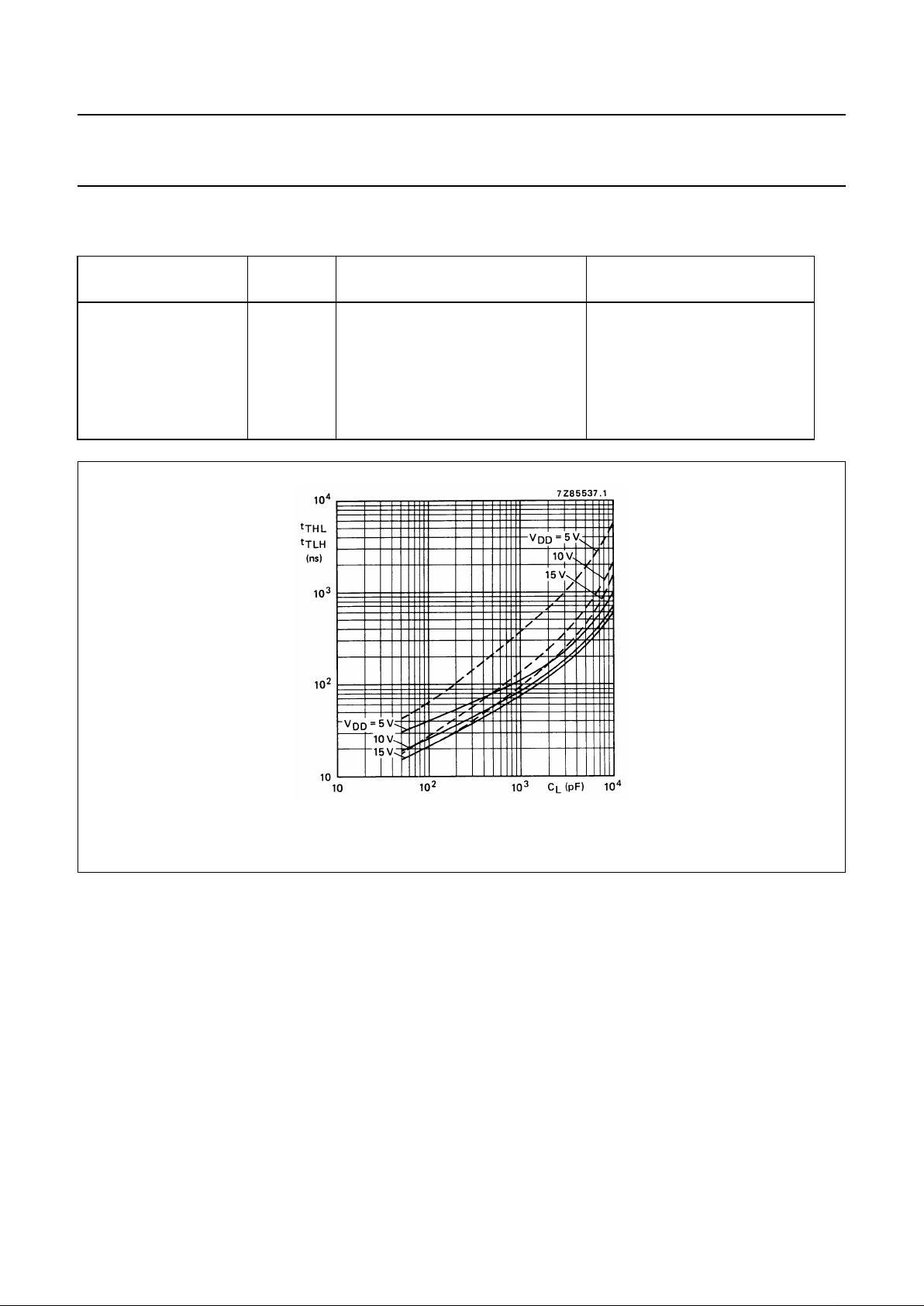

Fig.7 Output transition times as a function of the load capacitance. .
t
TLH
−−−− t
THL
