HEF40193B
MSI

4-bit up/down binary counter

For a complete data sheet, please also download:

•The IC04 LOCMOS HE4000B Logic
Family Specifications HEF, HEC

•The IC04 LOCMOS HE4000B Logic
Package Outlines/Information HEF, HEC

January 1995 2

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

DESCRIPTION

The HEF40193B is a 4-bit synchronous up/down
binary counter. The counter has a count-up clock input
(CPU), a count-down clock input (CPD), an asynchronous
parallel load input (PL), four parallel data inputs (P0to P3),
an asynchronous master reset input (MR), four counter
outputs (O0to O3), an active LOW terminal count-up
(carry) output (TCU) and an active LOW terminal
count-down (borrow) output (TCD).

The counter outputs change state on the LOW to HIGH
transition of either clock input. However, for correct
counting, both clock inputs cannot be LOW
simultaneously. The outputs

TCUand TCDare normally
HIGH. When the circuit has reached the maximum count
state of ‘15’, the next HIGH to LOW transition of CPUwill
cause TCUto go LOW. TCUwill stay LOW until CPU goes
HIGH again. Likewise, output TCDwill go LOW when the
circuit is in the zero state and CPDgoes LOW. When PL is
LOW, the information on P0to P3is asynchronously
loaded into the counter. A HIGH on MR resets the counter
independent of all other input conditions. The counter
stages are of a static toggle type flip-flop.

Fig.1 Functional diagram.

HEF40193BP(N): 16-lead DIL; plastic

(SOT38-1)

HEF40193BD(F): 16-lead DIL; ceramic (cerdip)

(SOT74)

HEF40193BT(D): 16-lead SO; plastic

(SOT109-1)

( ): Package Designator North America

Fig.2 Pinning diagram.

PINNING

PL parallel load input (active LOW)
P

0

to P

3

parallel data inputs

CP

U

count-up clock pulse input (LOW to HIGH,
edge-triggered)

CP

D

count-down clock pulse input (LOW to

HIGH, edge-triggered)
MR master reset input (asynchronous)
TC

U

buffered terminal count-up (carry) output

(active LOW)
TC

D

buffered terminal count-down

(borrow) output (active LOW)
O

0

to O3buffered counter outputs

FAMILY DATA, I

DD

LIMITS category MSI

See Family Specification

January 1995 3

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

Fig.3 Logic diagram (continued on Fig.4).

January 1995 4

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

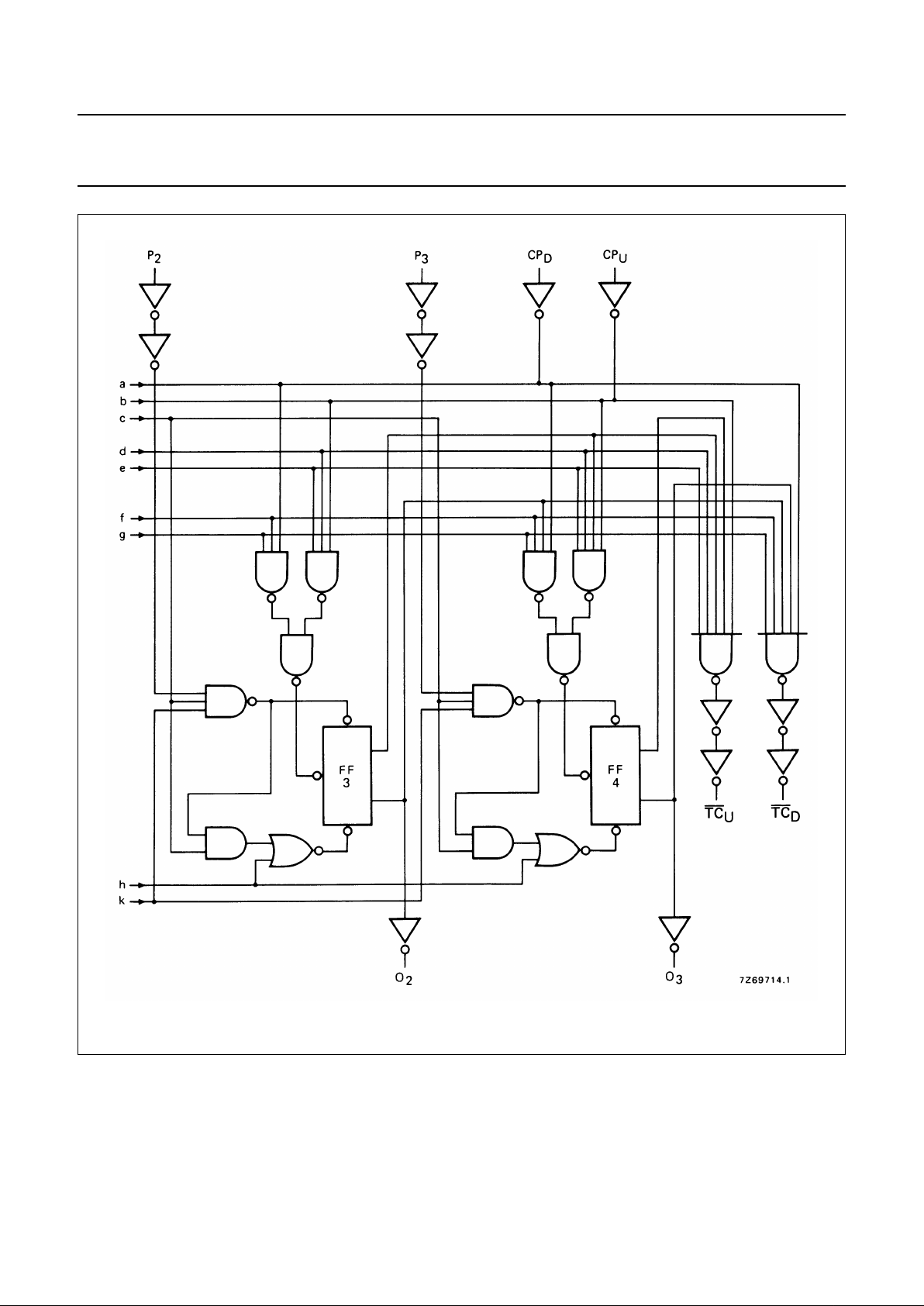

Fig.4 Logic diagram (continued from Fig.3).

January 1995 5

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

FUNCTION TABLE

MR PL CP

U

CP

D

MODE

H X X X reset (asyn.)

L L X X parallel load
L H H count-up

L H H count-down

Notes

1. H = HIGH state (the more positive voltage)
L = LOW state (the less positive voltage)
X = state is immaterial

= positive-going transition

Fig.5 State diagram.

Logic equations for terminal count:

TC

U

O0O1O2O3CP

U

⋅⋅⋅⋅=

TCDO0O1O2O3CP

D

⋅⋅⋅⋅=

AC CHARACTERISTICS

V

SS

= 0 V; T

amb

=25°C; input transition times ≤ 20 ns

V

DD

V

TYPICAL FORMULA FOR P (µW)

Dynamic power 5 600 f

i

+∑(foCL) × V

DD

2

where

dissipation per 10 2700 f

i

+∑(foCL) × V

DD

2

fi= input freq. (MHz)

package (P) 15 7500 f

i

+∑(foCL) × V

DD

2

fo= output freq. (MHz)
C

L

= load capacitance (pF)

∑ (f

oCL

) = sum of outputs

V

DD

= supply voltage (V)

January 1995 6

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

AC CHARACTERISTICS

V

SS

= 0 V; T

amb

=25°C; CL= 50 pF; input transition times ≤ 20 ns

V

DD

V

SYMBOL MIN. TYP. MAX.

TYPICAL EXTRAPOLATION

FORMULA

Propagation delays

CPU→ O

n

5 210 415 ns 183 ns + (0,55 ns/pF) C

L

HIGH to LOW 10 t

PHL

85 165 ns 74 ns + (0,23 ns/pF) C

L

15 60 120 ns 52 ns + (0,16 ns/pF) C

L

5 170 340 ns 143 ns + (0,55 ns/pF) C

L

LOW to HIGH 10 t

PLH

70 140 ns 59 ns + (0,23 ns/pF) C

L

15 50 100 ns 42 ns + (0,16 ns/pF) C

L

CPD→ O

n

5 210 425 ns 183 ns + (0,55 ns/pF) C

L

HIGH to LOW 10 t

PHL

85 170 ns 74 ns + (0,23 ns/pF) C

L

15 60 125 ns 57 ns + (0,16 ns/pF) C

L

5 170 340 ns 143 ns + (0,55 ns/pF) C

L

LOW to HIGH 10 t

PLH

70 140 ns 59 ns + (0,23 ns/pF) C

L

15 50 100 ns 42 ns + (0,16 ns/pF) C

L

CPU→ TC

U

5 125 250 ns 98 ns + (0,55 ns/pF) C

L

HIGH to LOW 10 t

PHL

50 100 ns 39 ns + (0,23 ns/pF) C

L

15 35 70 ns 27 ns + (0,16 ns/pF) C

L

5 95 185 ns 68 ns + (0,55 ns/pF) C

L

LOW to HIGH 10 t

PLH

40 80 ns 29 ns + (0,23 ns/pF) C

L

15 30 60 ns 22 ns + (0,16 ns/pF) C

L

CPD→ TC

D

5 140 280 ns 113 ns + (0,55 ns/pF) C

L

HIGH to LOW 10 t

PHL

55 110 ns 44 ns + (0,23 ns/pF) C

L

15 40 80 ns 32 ns + (0,16 ns/pF) C

L

5 100 195 ns 73 ns + (0,55 ns/pF) C

L

LOW to HIGH 10 t

PLH

40 85 ns 29 ns + (0,23 ns/pF) C

L

15 30 65 ns 22 ns + (0,16 ns/pF) C

L

MR → O

n

5 195 390 ns 168 ns + (0,55 ns/pF) C

L

HIGH to LOW 10 t

PHL

80 160 ns 69 ns + (0,23 ns/pF) C

L

15 60 120 ns 52 ns + (0,16 ns/pF) C

L

MR → TC

U

5 145 285 ns 118 ns + (0,55 ns/pF) C

L

LOW to HIGH 10 t

PLH

60 115 ns 49 ns + (0,23 ns/pF) C

L

15 45 90 ns 37 ns + (0,16 ns/pF) C

L

MR → TC

D

5 365 730 ns 338 ns + (0,55 ns/pF) C

L

HIGH to LOW 10 t

PHL

130 265 ns 119 ns + (0,23 ns/pF) C

L

15 100 205 ns 92 ns + (0,16 ns/pF) C

L

PL → O

n

5 185 360 ns 158 ns + (0,55 ns/pF) C

L

HIGH to LOW 10 t

PHL

75 150 ns 64 ns + (0,23 ns/pF) C

L

15 55 110 ns 47 ns + (0,16 ns/pF) C

L

January 1995 7

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

AC CHARACTERISTICS

V

SS

= 0 V; T

amb

=25°C; CL= 50 pF; input transition times ≤ 20 ns

5 145 290 ns 118 ns + (0,55 ns/pF) C

L

LOW to HIGH 10 t

PLH

60 120 ns 49 ns + (0,23 ns/pF) C

L

15 45 90 ns 37 ns + (0,16 ns/pF) C

L

V

DD

V

SYMBOL MIN. TYP. MAX.

TYPICAL EXTRAPOLA TION

FORMULA

Output transition

times 5 60 120 ns 10 ns + (1,0 ns/pF) C

L

HIGH to LOW 10 t

THL

30 60 ns 9 ns + (0,42 ns/pF) C

L

15 20 40 ns 6 ns + (0,28 ns/pF) C

L

5 60 120 ns 10 ns + (1,0 ns/pF) C

L

LOW to HIGH 10 t

TLH

30 60 ns 9 ns + (0,42 ns/pF) C

L

15 20 40 ns 6 ns + (0,28 ns/pF) C

L

Set-up time 5 160 80 ns

see also waveforms
Fig.6

P

n

→ PL 10 t

su

60 30 ns

15 50 25 ns

Hold time 5 10 −70 ns

P

n

→ PL 10 t

hold

5 −25 ns

15 5 −20 ns

Minimum CPUor CP

D

5 150 75 ns

pulse width; LOW 10 t

WCPL

50 25 ns

15 35 20 ns

Minimum MR 5 180 90 ns

pulse width; HIGH 10 t

WMRH

70 35 ns

15 60 30 ns

Minimum

PL 5 120 60 ns

pulse width; LOW 10 t

WPLL

45 20 ns

15 30 15 ns

Recovery time 5 125 65 ns

for MR 10 t

RMR

70 35 ns

15 50 25 ns

Recovery time 5 90 45 ns

for

PL 10 t

RPL

35 15 ns

15 25 10 ns

Maximum clock 5 2,5 5 MHz

pulse frequency 10 f

max

7 14 MHz

15 9 18 MHz

V

DD

V

SYMBOL MIN. TYP. MAX.

TYPICAL EXTRAPOLATION

FORMULA

January 1995 8

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

Fig.6 Waveforms showing recovery times for PL and MR, minimum pulse widths for CPU,CPD,PL and MR,

and set-up and hold times for P to PL. Set-up times and hold times are shown as positive values but may
be specified as negative values.

January 1995 9

Philips Semiconductors Product specification

4-bit up/down binary counter

HEF40193B

MSI

APPLICATION INFORMATION

Some examples of applications for the HEF40193B are:

• Up/down difference counting

• Multistage ripple counting

• Multistage synchronous counting

Fig.7 Timing diagram.

Fig.8 Example of cascaded HEF40193B ICs.
