INTEGRATED CIRCUITS
DATA SH EET
For a complete data sheet, please also download:
•The IC04 LOCMOS HE4000B Logic
Family Specifications HEF, HEC
•The IC04 LOCMOS HE4000B Logic
Package Outlines/Information HEF, HEC
HEF4007UB
gates
Dual complementary pair and
inverter
Product specification
File under Integrated Circuits, IC04
January 1995
Page 2
Philips Semiconductors Product specification
Dual complementary pair and inverter
HEF4007UB
gates
DESCRIPTION
The HEF4007UB is a dual complementary pair and an inverter with access to each device. It has three n-channel and
three p-channel enhancement mode MOS transistors.
Fig.1 Schematic diagram.
Fig.2 Pinning diagram.
HEF4007UBP(N): 14-lead DIL; plastic
(SOT27-1)
HEF4007UBD(F): 14-lead DIL; ceramic (cerdip)
(SOT73)
HEF4007UBT(D): 14-lead SO; plastic
(SOT108-1)
( ): Package Designator North America
PINNING
, S
S
P2
source connections to 2nd and 3rd
P3
p-channel transistors
D
P1
, D
drain connections from the 1st and 2nd
P2
p-channel transistors
D
N1,DN2
drain connections from the 1st and 2nd
n-channel transistors
S
N2,SN3
source connections to the 2nd and 3rd
n-channel transistors
D
N/P3
common connection to the 3rd p-channel
and n-channel transistor drains
G
to G3gate connections to n-channel and
1
p-channel of the three transistor pairs
FAMILY DATA, I
See Family Specifications for V
LIMITS category GATES
DD
IH/VIL
unbuffered stages
January 1995 2
Page 3
Philips Semiconductors Product specification
Dual complementary pair and inverter
HEF4007UB
AC CHARACTERISTICS
V
= 0 V; T
SS
Propagation delays
Gn→ DN; D
HIGH to LOW 10 t
LOW to HIGH 10 t
Output transition times 5 60 120 ns 10 ns + (1,0 ns/pF) C
HIGH to LOW 10 t
LOW to HIGH 10 t
=25°C; CL= 50 pF; input transition times ≤ 20 ns
amb
V
DD
V
P
5 40 80 ns 13 ns + (0,55 ns/pF) C
SYMBOL TYP. MAX.
PHL
15 15 30 ns 7 ns + (0,16 ns/pF) C
5 40 75 ns 13 ns + (0,55 ns/pF) C
PLH
15 15 30 ns 7 ns + (0,16 ns/pF) C
THL
15 20 40 ns 6 ns + (0,28 ns/pF) C
5 60 120 ns 10 ns + (1,0 ns/pF) C
TLH
15 20 40 ns 6 ns + (0,28 ns/pF) C
TYPICAL EXTRAPOLATION
FORMULA
20 40 ns 9 ns + (0,23 ns/pF) C
20 40 ns 9 ns + (0,23 ns/pF) C
30 60 ns 9 ns + (0,42 ns/pF) C
30 60 ns 9 ns + (0,42 ns/pF) C
gates
L
L
L
L
L
L
L
L
L
L
L
L
V
DD
V
TYPICAL FORMULA FOR P (µW)
Dynamic power 5 4500 f
dissipation per 10 20 000 f
package (P) 15 50 000 f
+∑(foCL) × V
i
+∑(foCL) × V
i
+∑(foCL) × V
i
DD
DD
DD
2
2
2
where
fi= input freq. (MHz)
fo= output freq. (MHz)
C
= load capacitance (pF)
L
) = sum of outputs
∑(f
oCL
V
= supply voltage (V)
DD
January 1995 3
Page 4
Philips Semiconductors Product specification
Dual complementary pair and inverter

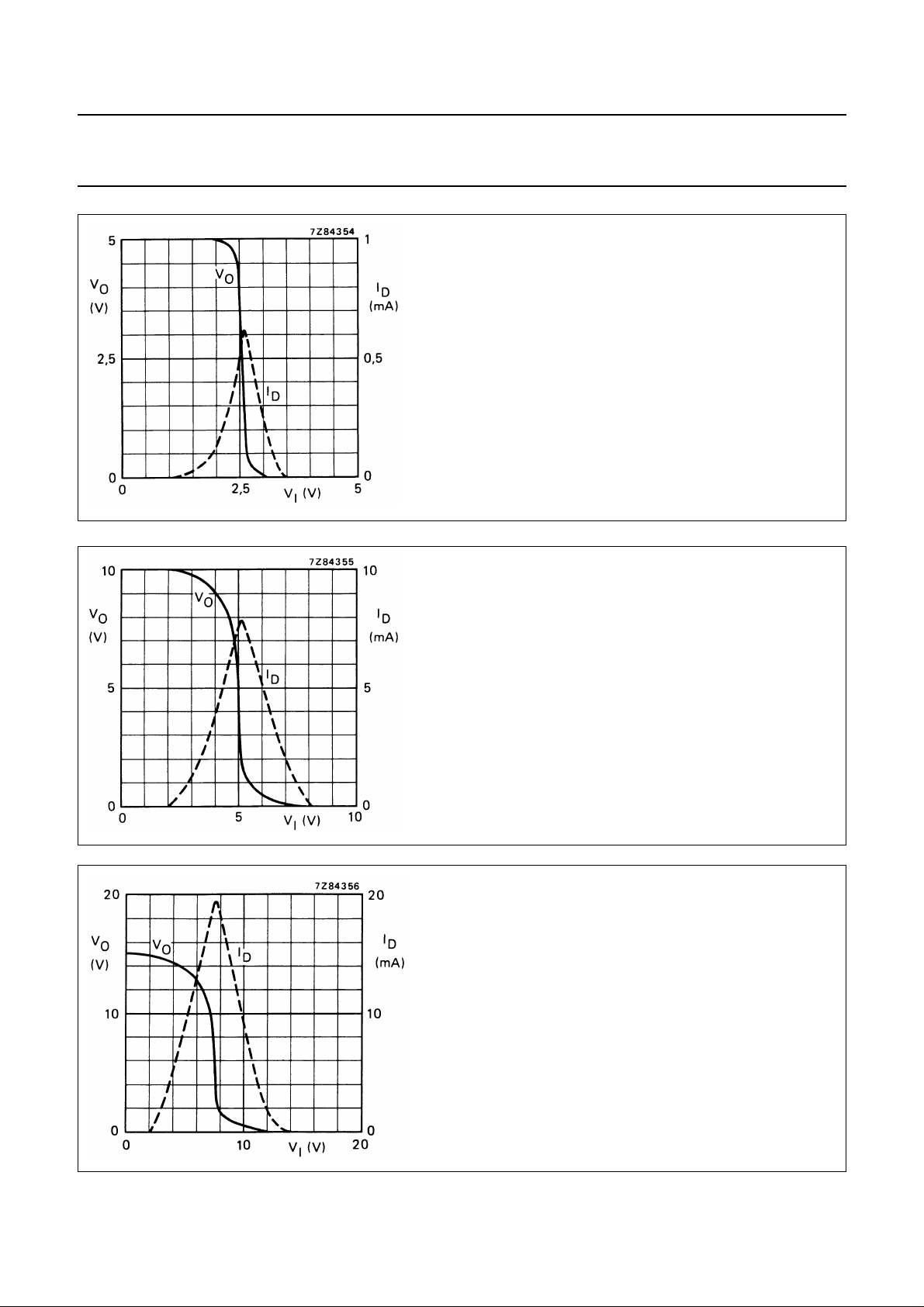

Fig.3 Typical drain current IDand output voltage VOas
functions of input voltage; VDD= 5 V; T
HEF4007UB
gates
= 25 °C.
amb
Fig.4 Typical drain current IDand output voltage VOas
Fig.5 Typical drain current IDand output voltage VOas
January 1995 4
functions of input voltage; VDD= 10 V; T
functions of input voltage; VDD= 15 V; T
amb
amb
= 25 °C.
= 25 °C.
Page 5
Philips Semiconductors Product specification
Dual complementary pair and inverter
APPLICATION INFORMATION
Some examples of applications for the HEF4007UB are:
• High input impedance amplifiers
• Linear amplifiers
• (Crystal) oscillators
• High-current sink and source drivers
• High impedance buffers.
HEF4007UB
gates

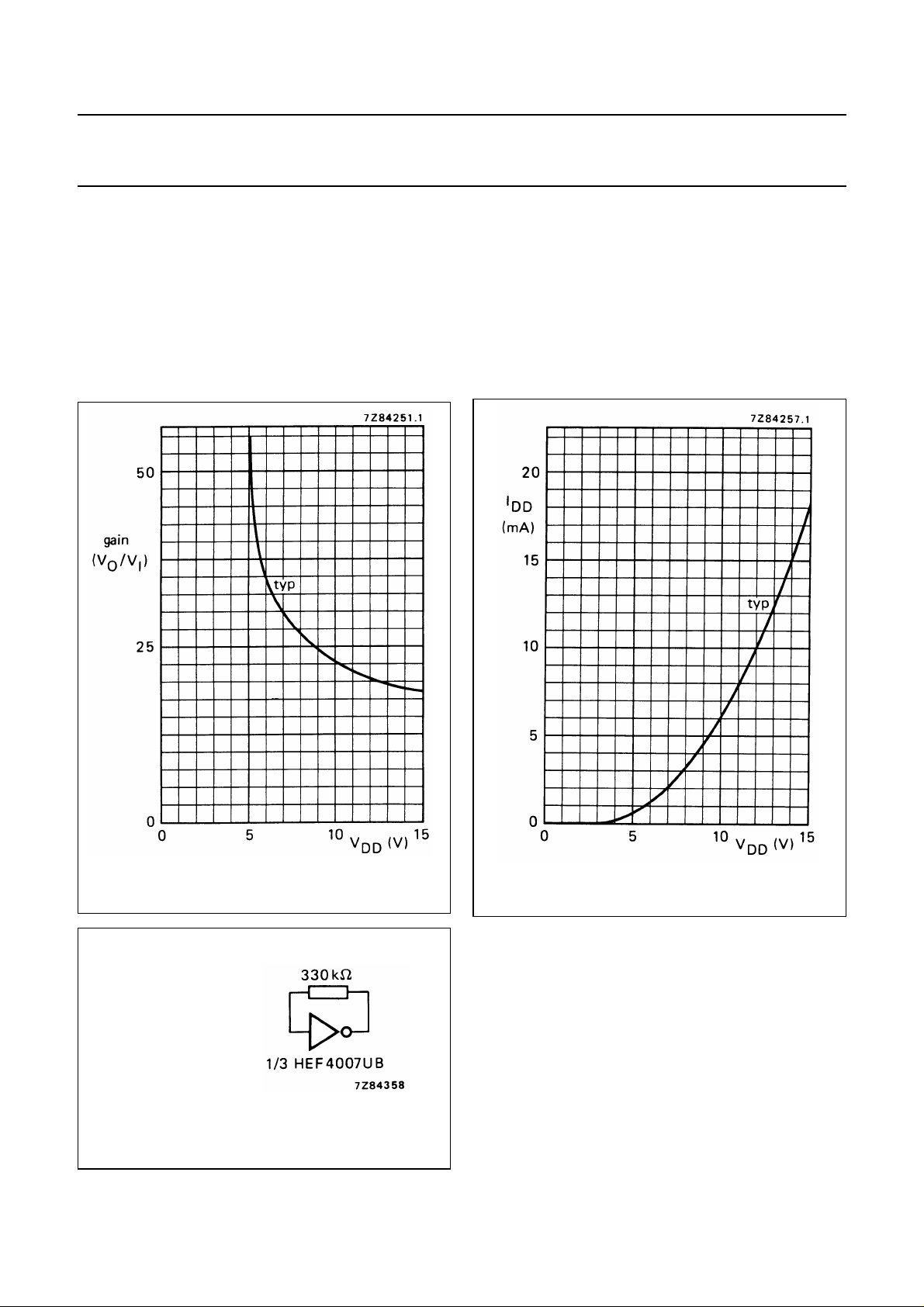

Fig.6 Voltage gain (Vo/Vi) as a function of supply
voltage.
This is also an example of an
analogue amplifier using one
HEF4007UB gate.
Fig.8 Test set-up for measuring graphs of Figs 6
and 7.
January 1995 5
Fig.7 Supply current as a function of supply
voltage.
Page 6
Philips Semiconductors Product specification
Dual complementary pair and inverter
HEF4007UB
gates

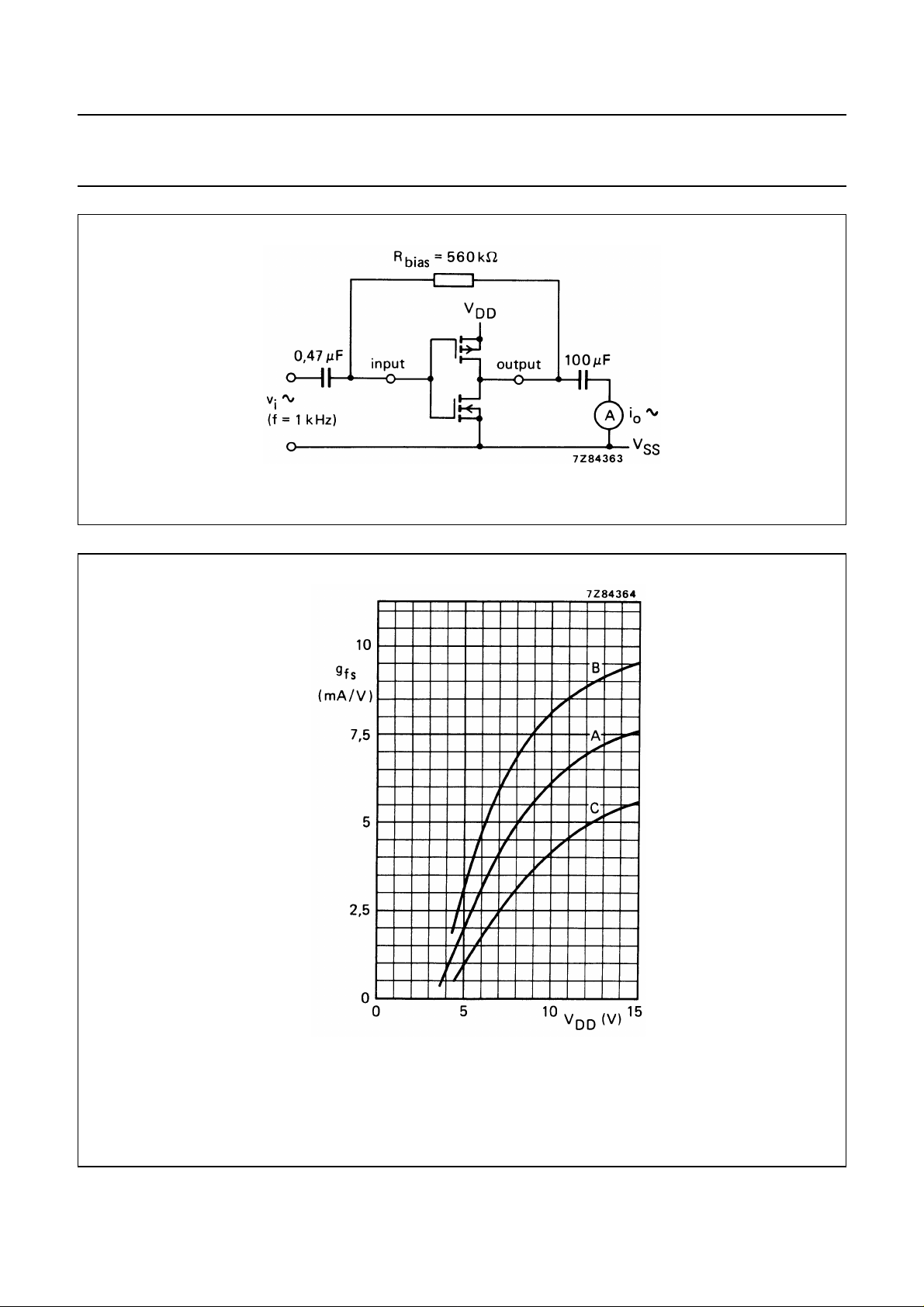

Fig.9 Test set-up for measuring forward transconductance gfs=dio/dviat vois constant (see also graph Fig.10).
A: average,
B: average + 2 s,
C: average − 2 s, in where ‘s’ is the observed standard deviation.
Fig.10 Typical forward transconductance gfsas a function of the supply voltage at T
January 1995 6
amb
=25°C.
Page 7
Philips Semiconductors Product specification
Dual complementary pair and inverter

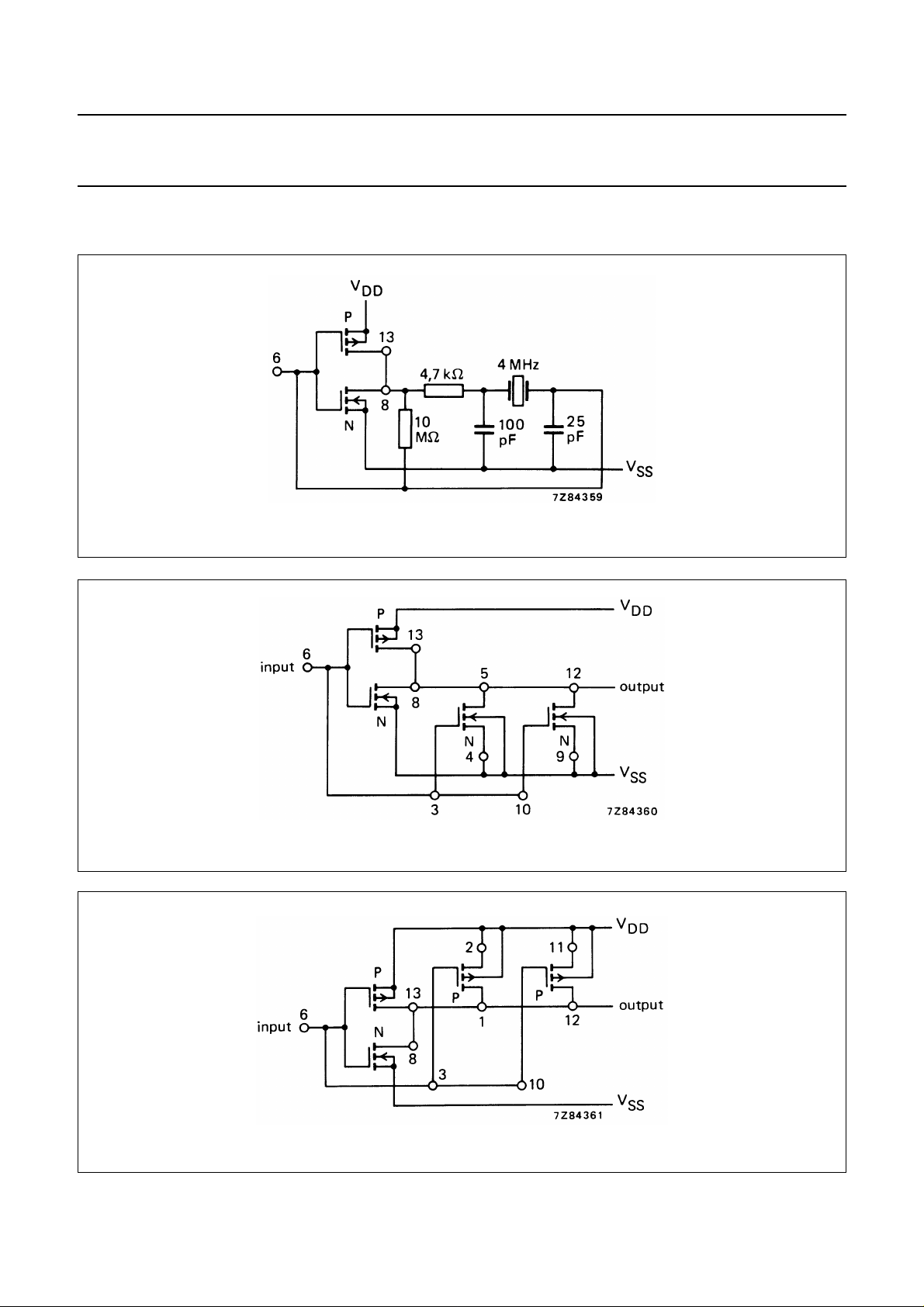

Figures 11 to 14 show some applications in which the HEF4007UB is used.
Fig.11 4 MHz crystal oscillator.
HEF4007UB
gates
Fig.12 High current sink driver.
Fig.13 High current source driver.
January 1995 7
Page 8
Philips Semiconductors Product specification
Dual complementary pair and inverter
HEF4007UB
gates
FUNCTION TABLE for Fig.14.
INPUT DISABLE OUTPUT
HLL
LLH
X H open
Notes
1. H = HIGH state (the more positive voltage)
L = LOW state (the less positive voltage)
X = state is immaterial
NOTE
Rules for maintaining electrical isolation between
transistors and monolithic substrate:
• Pin number 14 must be maintained at the most positive
(or equally positive) potential with respect to any other
pin of the HEF4007UB.
• Pin number 7 must be maintained at the most negative
(or equally negative) potential with respect to any other
pin of the HEF4007UB.
Fig.14 High impedance buffer.
Violation of these rules will result in improper transistor
operation and/or possible permanent damage to the
HEF4007UB.
January 1995 8
