Page 1
HEC
Item 项目
Performance Characteristics 使用特性
Operating Temp. Range
使用温度范围
-40 ~ +105℃
Rated voltage Range
额定电压范围
400V ~ 450V
Capacitance Tolerance
容量偏差
±20%(120Hz/20℃)
DC Leakage Current
漏电流
I=0.01CV or 5mA (whichever is smaller)（取小者）
After 5 minutes application of rated voltage at +20℃
在＋20℃下施加额定电压 5 分钟后
Where :C: Nominal capacitance in цF .V :Rated voltage in V.
此处：C：标称容量单位为цF. V：额定电压单位为 V
76
80
Dissipation Factor
损耗
0.20MAX(120Hz/20℃)
Load Life
(+105℃ 5000h)
负荷寿命
Application of rated voltage for 5000h at 105℃, the capacitor shall meet the following
limits. 在 105℃条件下施加额定电压 5000h,电容器应满足如下要求。
Capacitance change
容量变化
≤±20% of initial measured value.
≤±20%初始测量值
tanδ
损耗
≤300% of initial specified value.
≤300%初始规定值
DC leakage current
漏电流
≤Initial specified value.
≤初始规定值
Shelf Life
(+105℃ 1000h)
贮存寿命
After storage it for 1000h at 105℃ with no voltage applied, the capacitor shall meet the
following limits. 在 105℃条件下不施加额定电压 1000h 后，应满足如下要求
Capacitance change
容量变化
≤±20% of initial measured value.
≤±20%初始测量值
tanδ
损耗
≤300% of initial specified value.
≤300%初始规定值
DC leakage current
漏电流
≤Initial specified value.
≤初始规定值
Freq.(Hz)
频率
ФD(mm)
50
60
120
300
360
1K
10K
35. 42
0.65
0.74
1.00
1.09
1.10
1.16
1.22
50. 65
0.81
0.87
1.00
1.07
1.08
1.13
1.21
76. 89
0.85
0.90
1.00
1.05
1.06
1.11
1.20

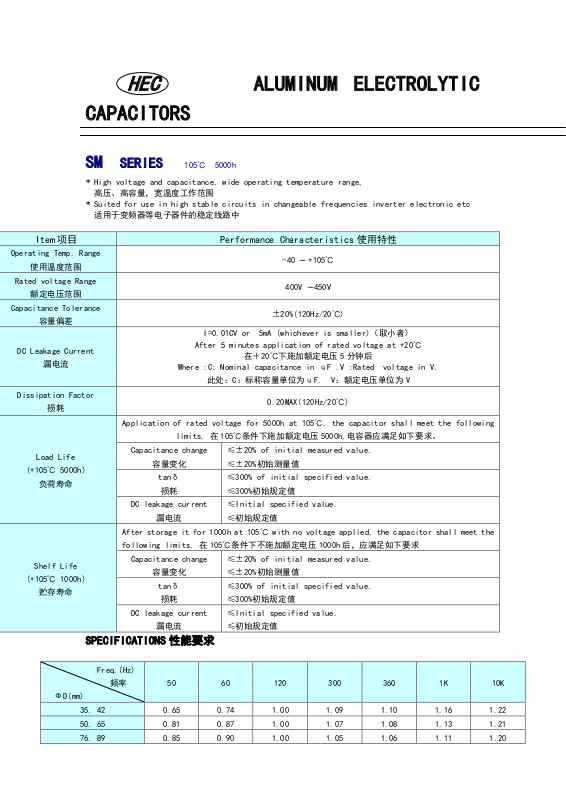

ALUMINUM ELECTROLYTIC
CAPACITORS
SM SERIES 105℃ 5000h
* High voltage and capacitance, wide operating temperature range,
高压、高容量，宽温度工作范围
* Suited for use in high stable circuits in changeable frequencies inverter electronic etc
适用于变频器等电子器件的稳定线路中
SPECIFICATIONS 性能要求
Page 2
Frequency Correction Factor for Ripple Current 纹波电流频率校正因子
HEC
CAPACITORS
SM SERIES

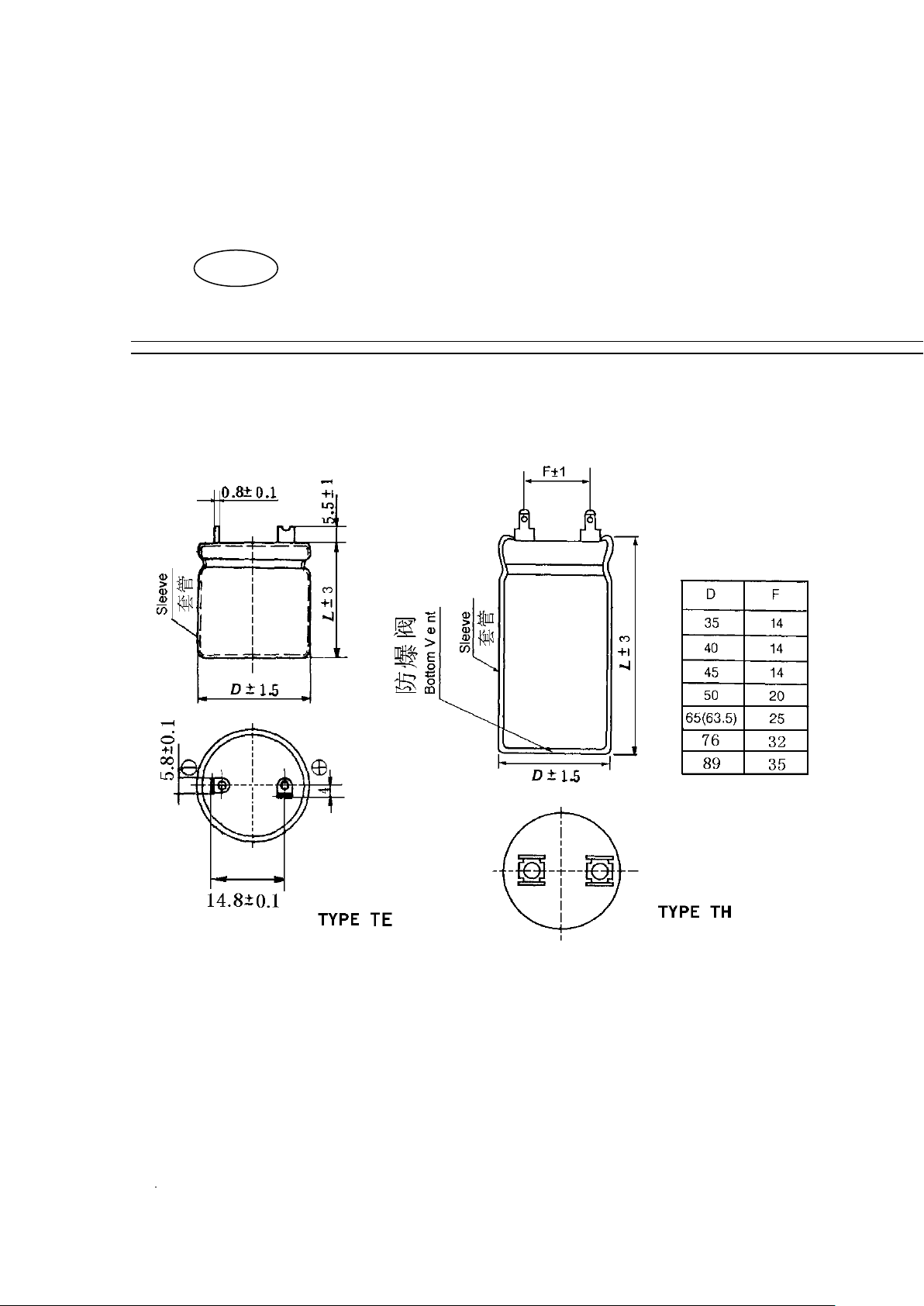

Dimensions in mm 尺寸（mm）
ALUMINUM ELECTROLYTIC

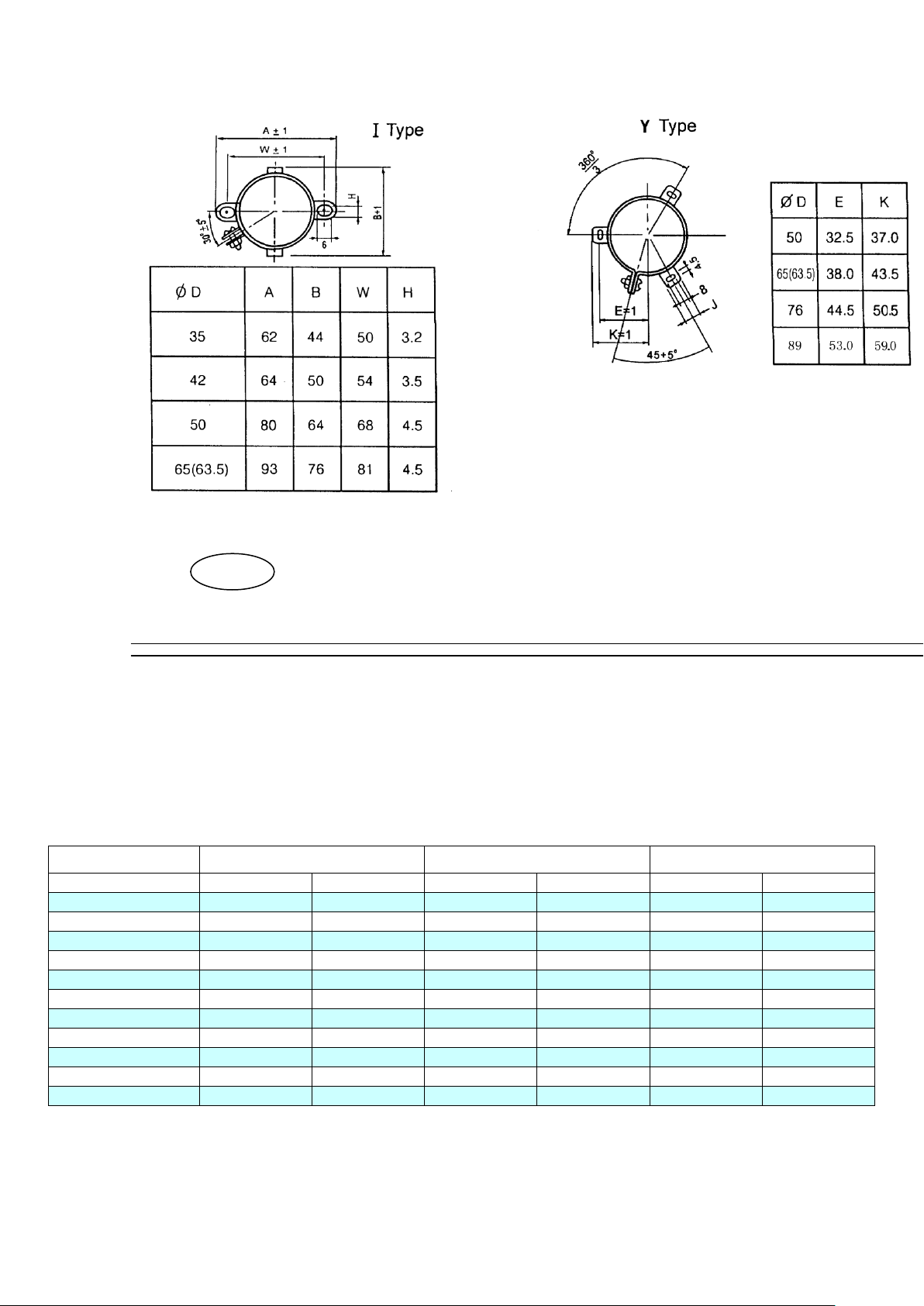

Mounting clamp 卡箍
Page 3
R. V.(V)额定电压
400
420
450
Cap.(µF)容量
DxL
I~
DxL
I~
DxL
I~
330
35x35
1950
35x35
2040
35x40
2050
360
35x35
2100
35x35
2110
35x40
2120
390
35x35
2170
35x40
2260
35x40
2270
420
35x40
2210
35x40
2410
35x45
2350
440
35x40
2350
35x40
2540
35x45
2470
470
35x40
2420
35x45
2600
35x50
2550
510
35x45
2670
35x45
2810
35x50
2670
560
35x50
2710
35x50
2930
35x60
2910
620
35x50
2870
35x60
3160
680
35x60
2950
820
35x70
3250
HEC
ALUMINUM ELECTROLYTIC
CAPACITORS
SM SERIES
Case Size/Ripple Current (mA)(120Hz/105℃) 产品尺寸/纹波电流（mA）
TE terminal type TE 端子型
DxL(mm)
Page 4
TH terminal type TH 端子型 DxL(mm)
R. V.(V)额定电压
400
450
Cap.(µF)容量
DxL
I~
DxL
I~
1,000
50×100
4800
50×100
5100
1,500
50×120
5600
50×120
5800
2,200
63.5×110
7100
63.5×120
8500
3,300
63.5×130
9500
76×110
10400
4,700
76×130
11900
76×140
13200
6,800
89×150
16600
89×160
17800
8,200
89×170
18800
