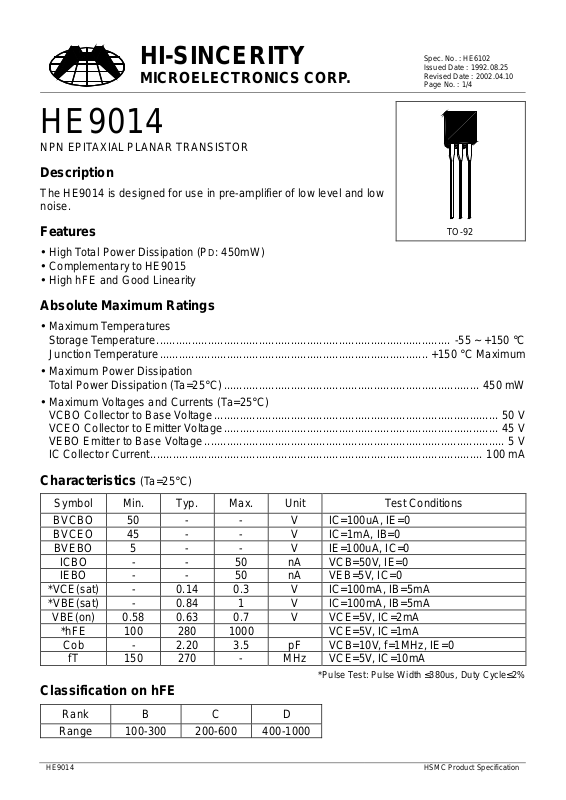

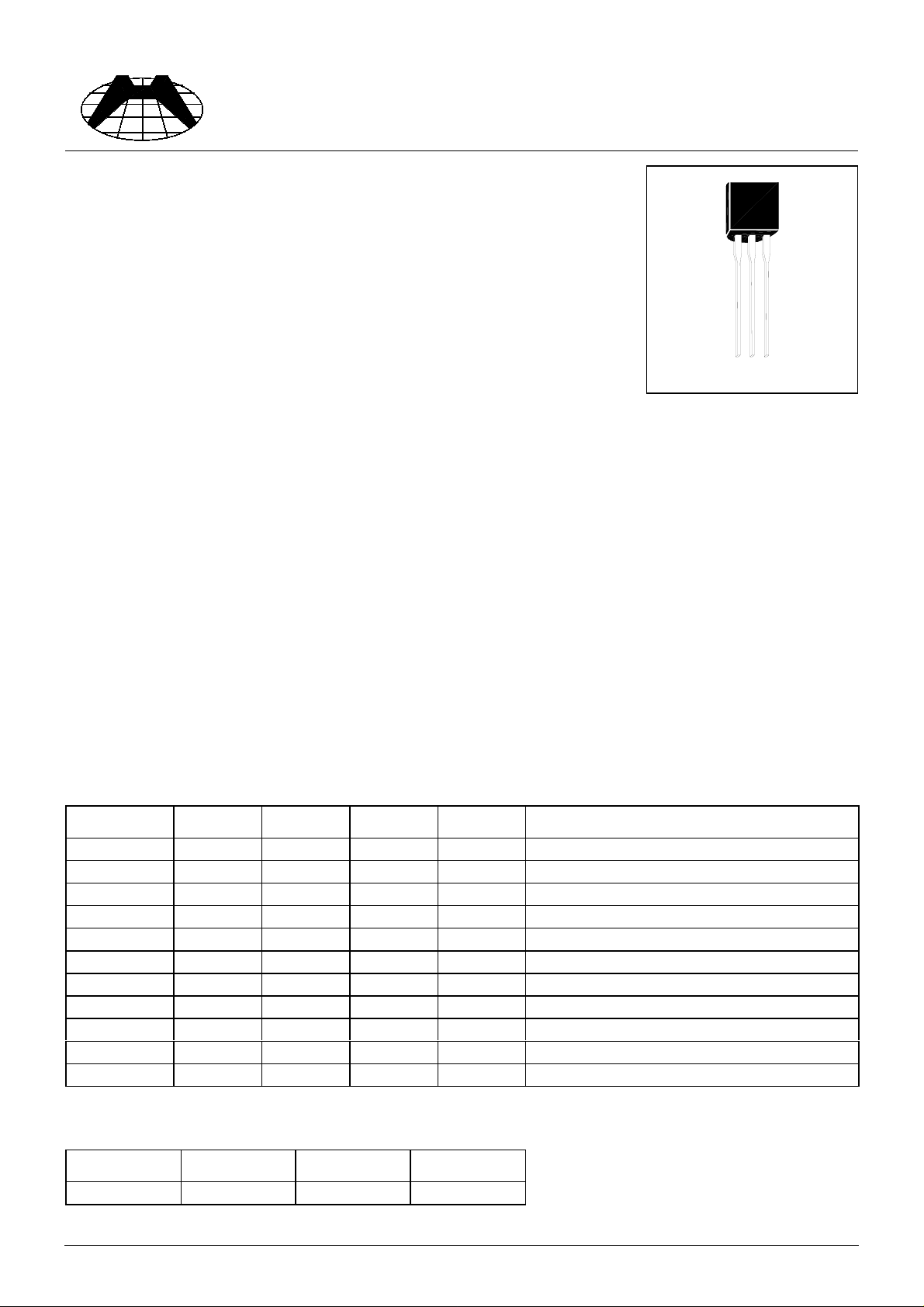

Page 1
HI-SINCERITY
MICROELECTRONICS CORP.
HE9014
NPN EPITAXIAL PLANAR TRANSISTOR
Description
The HE9014 is designed for use in pre-amplifier of low level and low
noise.
Spec. No. : HE6102
Issued Date : 1992.08.25
Revised Date : 2002.04.10
Page No. : 1/4
Features
• High Total Power Dissipation (PD: 450mW)
• Complementary to HE9015
• High hFE and Good Linearity
TO-92
Absolute Maximum Ratings
• Maximum Temperatures
Stor age Temperature............................................................................................ -55 ~ +150 °C
Junction Temperature.................................................................................... +150 °C Maximum
• Maximum Power Dissipation
Total Power Dissipation (Ta=25°C)................................................................................ 450 mW
• Maximum Voltages and Currents (Ta=25°C)
VCBO Collector to Base Voltage......................................................................................... 50 V
VCEO Collector to Emitter Voltage...................................................................................... 45 V
VEBO Emitter to Base Voltage.............................................................................................. 5 V
IC Collector Current........................................................................................................ 100 mA
Characteristics (Ta=25°C)
Symbol Min. Typ. Max. Unit Test Conditions
BVCBO 50 - - V IC=100uA, IE=0
BVCEO 45 - - V IC=1mA, IB=0
BVEBO 5 - - V IE=100uA, IC=0
ICBO - - 50 nA VCB=50V, IE=0
IEBO - - 50 nA VEB=5V, IC=0
*VCE(sat) - 0.14 0.3 V IC=100mA, IB=5mA
*VBE(sat) - 0.84 1 V IC=100mA, IB=5mA
VBE(on) 0.58 0.63 0.7 V VCE=5V, IC=2mA
*hFE 100 280 1000 VCE=5V, IC=1mA
Cob - 2.20 3.5 pF VCB=10V, f=1MHz, IE=0
fT 150 270 - MHz VCE=5V, IC=10mA
*Pulse T est: Pulse Width ≤380us, Duty Cycle≤2%
Classification on hFE
Rank B C D
Range 100-300 200-600 400-1000
HE9014 HSMC Product Specification
Page 2
HI-SINCERITY
MICROELECTRONICS CORP.

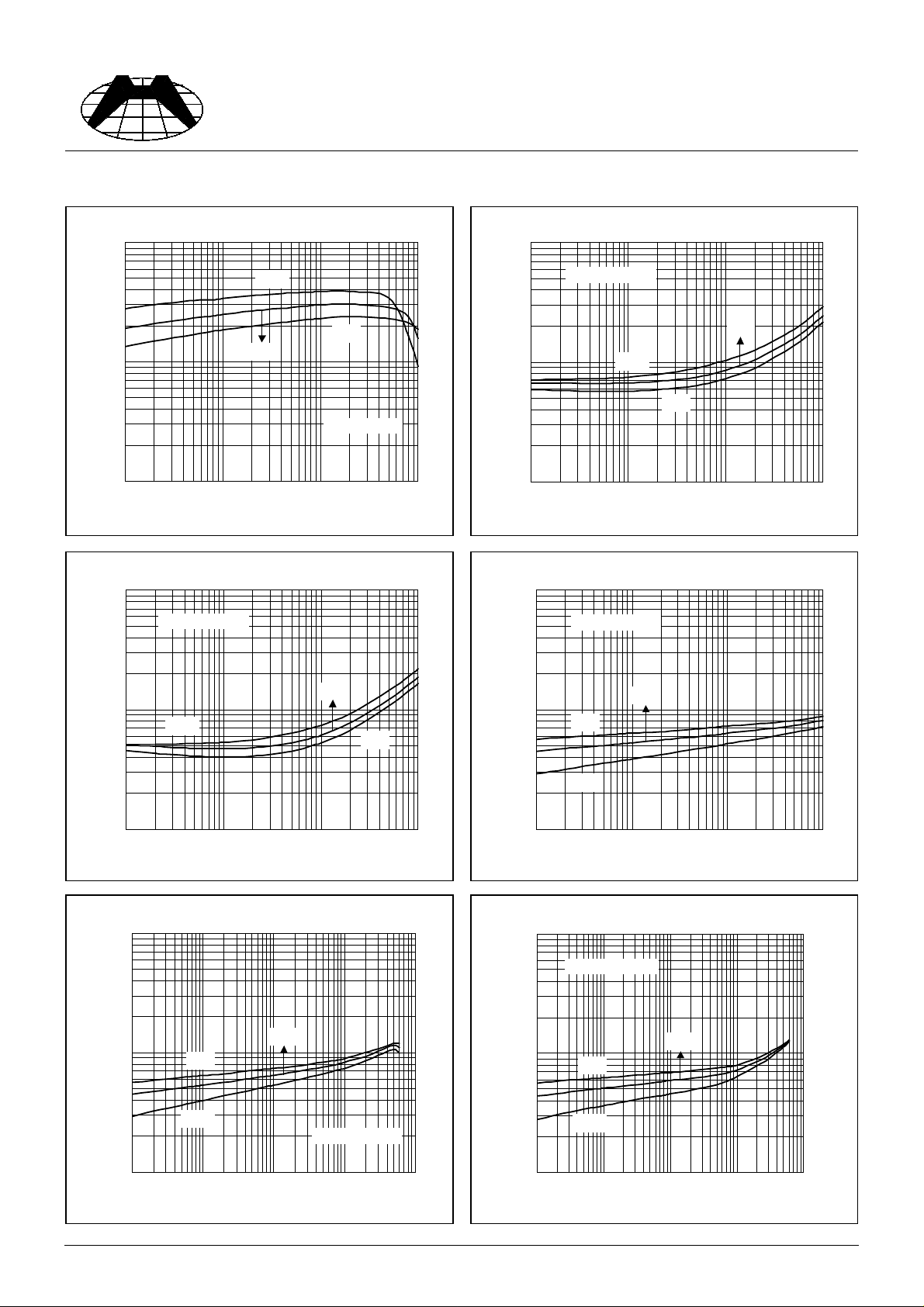

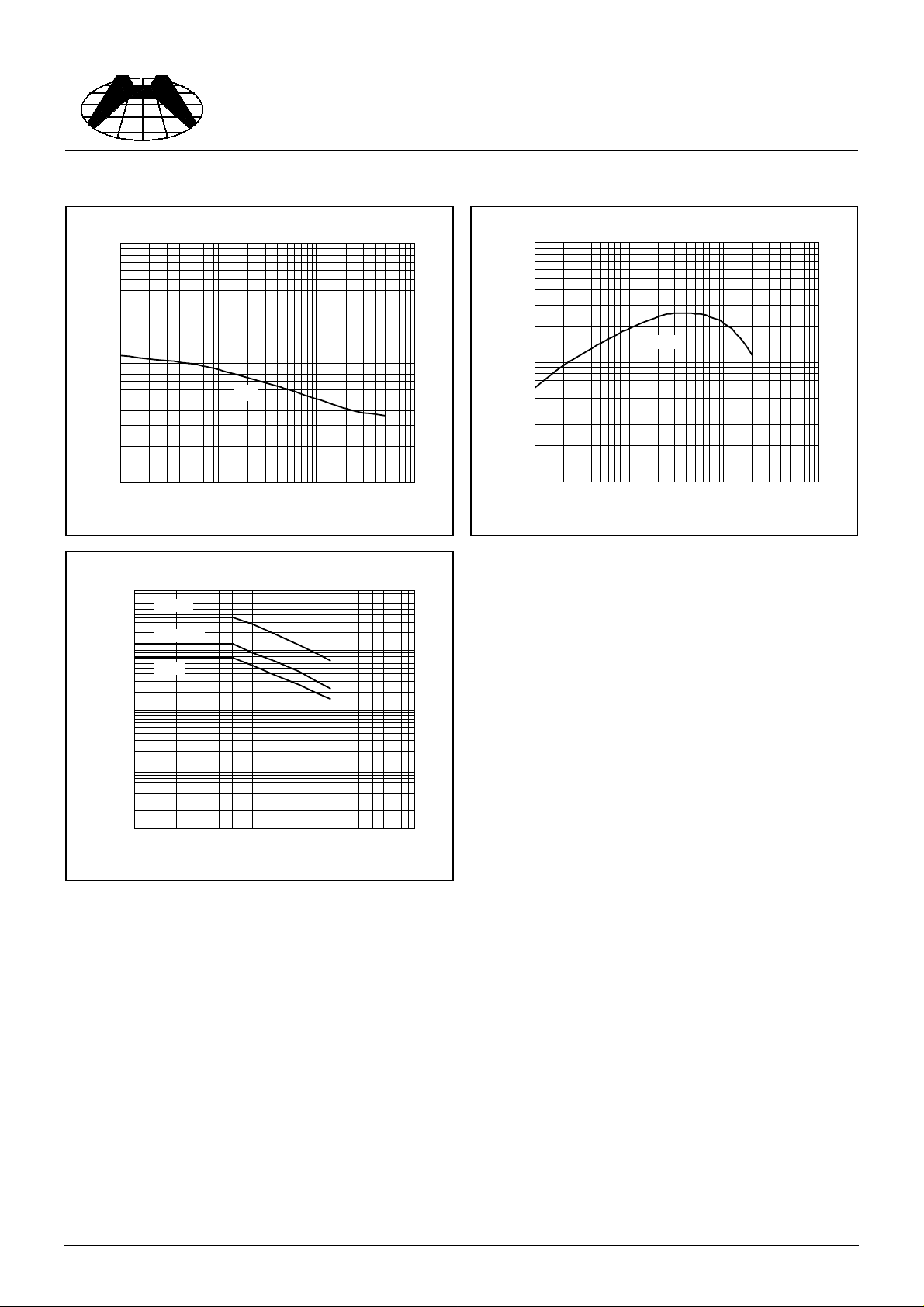

Characteristics Curve
Spec. No. : HE6102
Issued Date : 1992.08.25
Revised Date : 2002.04.10
Page No. : 2/4
1000
Current Gain & Collector Current
125oC
25oC
100
hFE
10
0.1 1 10 100
1000
Sat urati on Voltage & Coll ector Cu rrent
CE(sat)
V
@ IC=10I
75oC
hFE @ VCE=5V
Collector Current-IC (mA)
B
1000
Sat uration Voltage & Collector Current
CE(sat)
V
100
Satur ation Voltage ( m V)
10
0.1 1 10 100
10000
Sat uration Voltage & Collector Current
BE(sat)
V
B
@ IC=20I
125oC
75oC
Collector Current- IC (mA)
B
@ IC=20I
25oC
75oC
100
125oC
Saturat ion Volta ge ( m V)
10
0.1 1 10 100
Collector Current- IC (mA)
25oC
Sat urati on Voltage & Collector Curren t
10000
75oC
1000
Satur ation Voltage ( m V)
25oC
125oC
BE(sat)
V
@ IC=10I
1000
25oC
Saturat ion Volta ge ( m V)
125oC
100
0.1 1 10 100
75oC
Collector Current- IC (mA)
VBE(ON) & Col lector Current
10000
BE(ON)
V
@ VCE=5V
1000
VBE(ON) ( mV)
B
25oC
125oC
75oC
100
0.1 1 10 100 1000
Collector Current-IC (mA)
100
0.1 1 10 100 1000
Collector Curren t-IC (mA)
HE9014 HSMC Product Specification
Page 3
HI-SINCERITY
V
MICROELECTRONICS CORP.
Characteristics Curve
Spec. No. : HE6102
Issued Date : 1992.08.25
Revised Date : 2002.04.10
Page No. : 3/4
100
10
Capacitance (pF)
1
0.1 1 10 100
Cob
Rev e r se- Biased Voltage (V)
Safe Operating Area
Capacitance & Rev erse-Biased Volta ge
10000
1000
(mA)
C
PT=1ms
PT=100ms
PT=1s
1000
Cutoff Frequency & Collector Current
VCE=1
100
Cutoff Frequency (MHz)..
10
1 10 100 1000
Collector Current (m A)
100
10
Collector Current-I
1
1 10 100
Forwar d Voltage-VCE (V)
HE9014 HSMC Product Specification
Page 4
HI-SINCERITY
g
A
MICROELECTRONICS CORP.

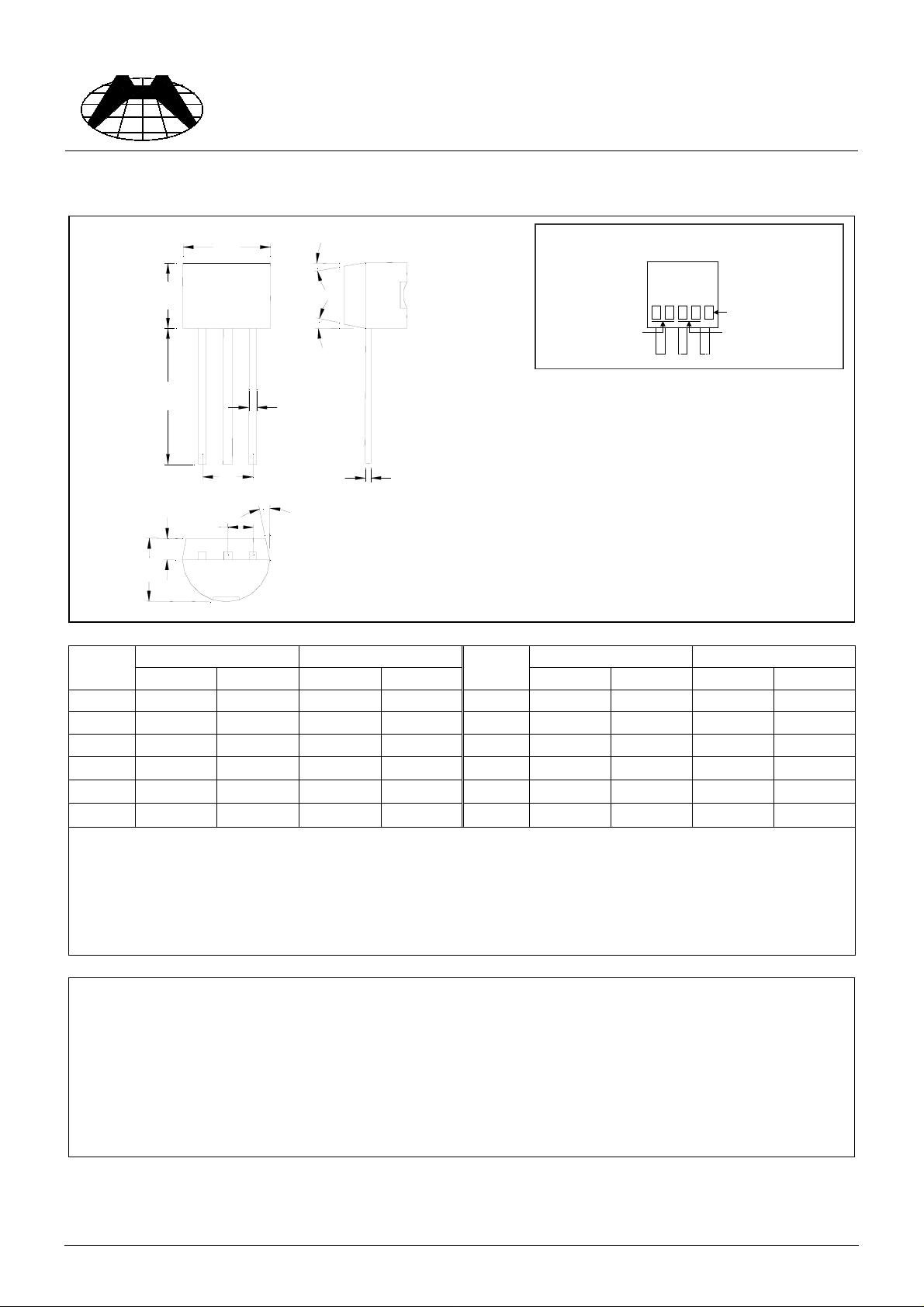

TO-92 Dimension
Spec. No. : HE6102
Issued Date : 1992.08.25
Revised Date : 2002.04.10
Page No. : 4/4
A
α2
B
31
2
Marking:
HE
091
4
Date Code Control Code
Rank
α3
C
D
H
I
α1
G
Style: Pin 1.Emitter 2.Base 3.Collector
E
DIM
F
Inches Millimeters Inches Millimeters
Min. Max. Min. Max.
3-Lead TO-92 Plastic Package
HSMC Packa
e Code:
DIM
*: Typical
Min. Max. Min. Max.
A 0.1704 0.1902 4.33 4.83 G 0.0142 0.0220 0.36 0.56
B 0.1704 0.1902 4.33 4.83 H - *0.1000 - *2.54
C 0.5000 - 12.70 - I - *0.0500 - *1.27
D 0.0142 0.0220 0.36 0.56
E-*0.0500 - *1.27
F 0.1323 0.1480 3.36 3.76
Notes: 1.Dimension and tolerance based on our Spec. dated Apr. 25,1996.
2.Controlling dimension: millimeters.
3.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
4.If there is any question with packing specification or packing method, please contact your local HSMC sales office.
Material:
• Lead: 42 Alloy; solder plating
• Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
α1
α2
α3
-
-
-
*5°
*2°
*2°
-
-
-
*5°
*2°
*2°
Important Notice:
• All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
• HSMC reserves the right to make changes to its products without notice.
• HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
• HSMC assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
• Head Office (Hi-Sincerity Microelectronics Corp.): 10F.,No. 61, Sec . 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel: 886-2-25212056 Fax: 886-2-25632712, 25368454
• Factory 1: No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel: 886-3-5983621~5 Fax: 886-3-5982931
HE9014 HSMC Product Specification
