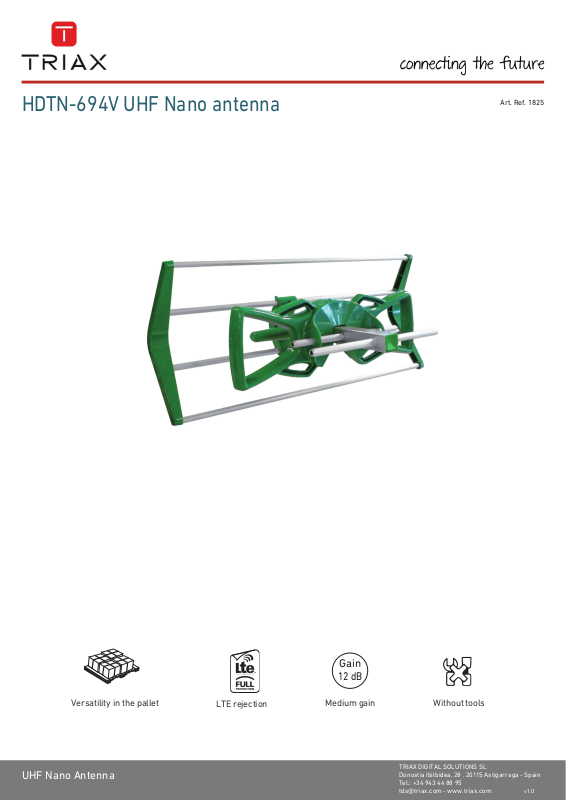

HDTN-694V UHF Nano antenna
Art. Ref. 1825
Versatility in the pallet
UHF Nano Antenna
LTE rejection
Gain
12 dB
Medium gain
Without tools
TRIA X DIGITAL SOLUT IONS SL
Donostia Ibilbidea, 28 . 20115 Astigarraga - Spain
Tel.: +34 943 44 88 95
[email protected] - www.triax.com v1.0

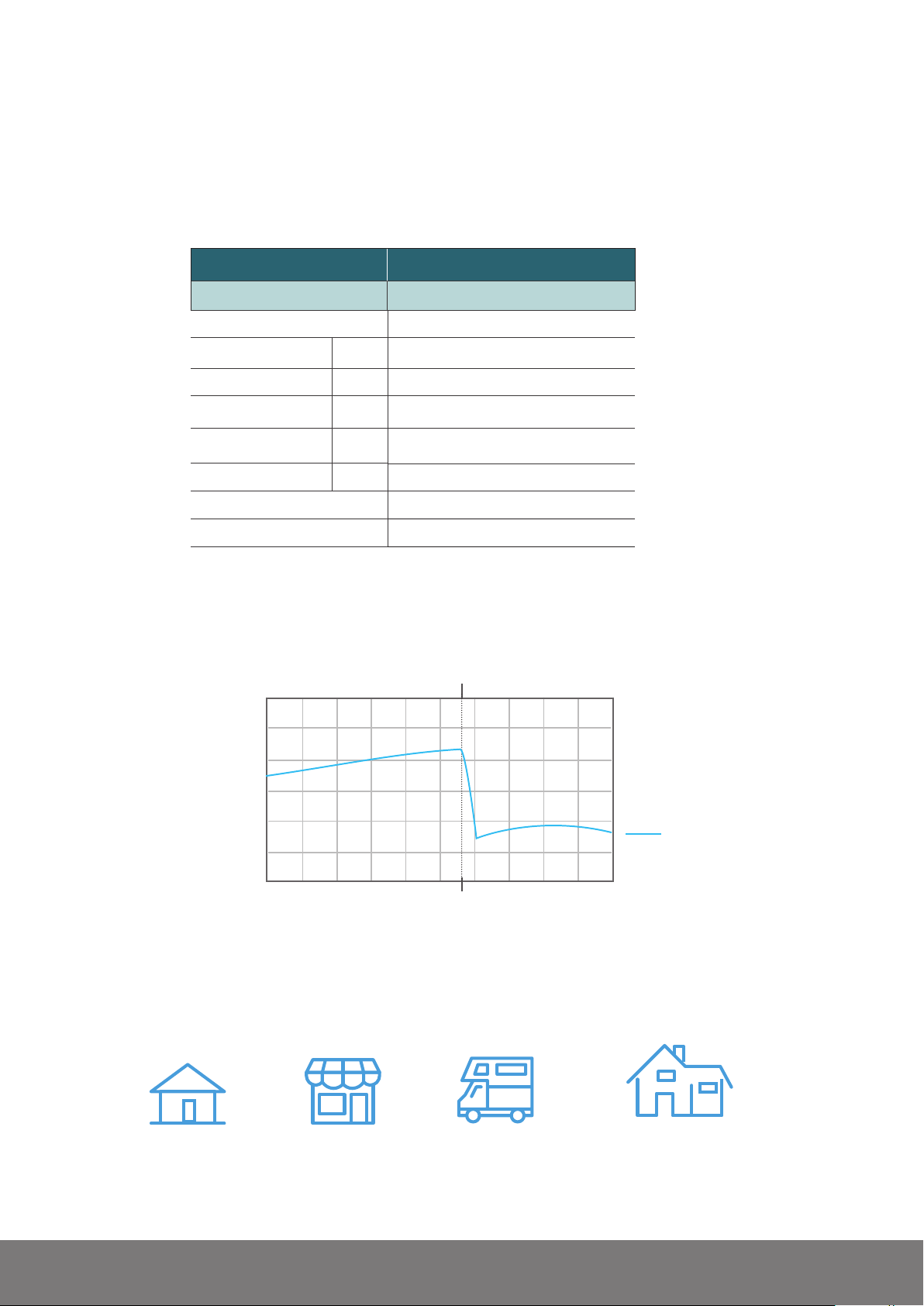

Page 2
Mains feature

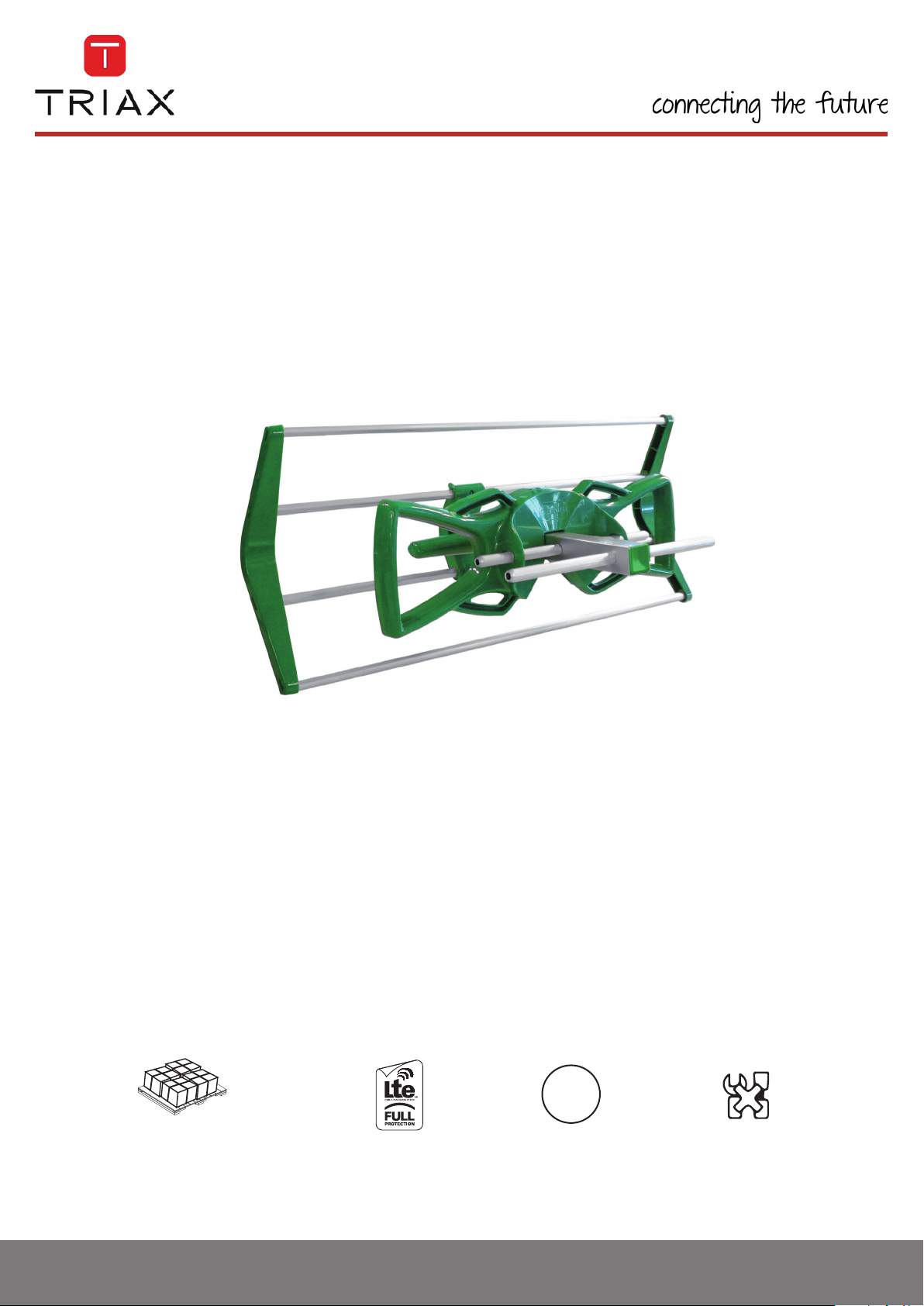

• The smallest antenna range FLASHD for reception of T V signals in the UHF
band, formed by a dihedral reflector made up of four aluminium tubes and
a dipole.
• For vertical and horizontal polarization, allowing variation of elevation angle.
• Minimum packaging volume for transpor t and easy assembly without tools.
MODEL HDTN-694V
REF. 1825
Channels 21 - 48 (470-694 MHz)
Nominal gain dB 12
Front-to-back ratio dB ≥ 16
Beamwidth H / V 60º / 80º
Windload N
Length cm 50
• Versatility in the pallet from 30cm to the desired height, in increments of
10 cm
• Cable connection: F type connector. 1 screw-on plug and 1 rubber protection
cap are supplied.
• Clamping system for masts Ø 25 to 50 mm
130 Km/h : 15
150 Km/h : 20
Quantity boxed 10
Colour Green
Gain diagrams
694 MHz
G (dB)
15
10
5
0
-5
-10
21 25 30 35 40 45 50 55 60 65 69
48
HDTN-694V
Ch
Antennas designed for installation in ...
In the bungalow In the shop
UHF Nano Antenna
In the mobile home
In the cottage
