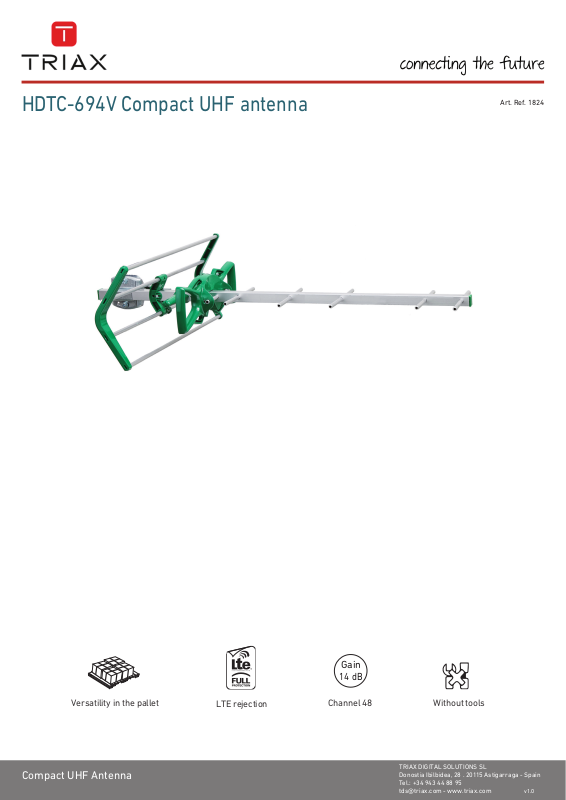

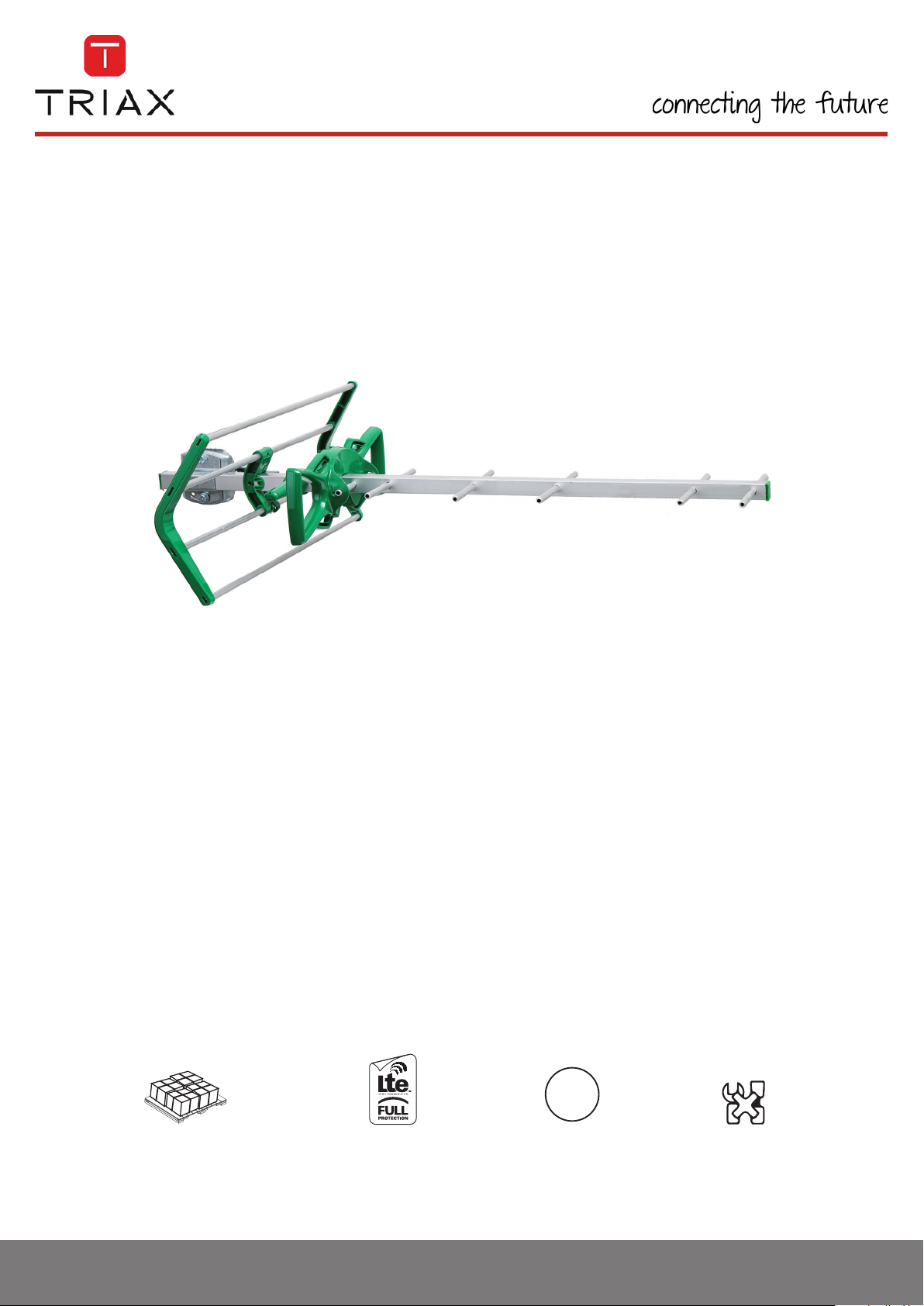

HDTC-694V Compact UHF antenna
Art. Ref. 1824
Versatility in the pallet
Compact UHF Antenna
LTE rejection
Gain
14 dB
Channel 48
Without tools
TRIA X DIGITAL SOLUT IONS SL
Donostia Ibilbidea, 28 . 20115 Astigarraga - Spain
Tel.: +34 943 44 88 95
[email protected] - www.triax.com v1.0
Page 2
Mains feature
• The smallest antenna range COMPACT for reception of TV signals in the
UHF band, formed by a dihedral reflector made up of four aluminium
tubes and a dipole.
• For vertical and horizontal polarization, allowing variation of elevation
angle
• Minimum packaging volume for transpor t and easy assembly without
tools
MODEL HDTC- 694V
REF. 182 4
• Versatility in the pallet from 30cm to the desired height, in increments
of 10c m
• Cable connection: F type connector. 1 screw-on plug and 1 rubber
protection cap are supplied
• Clamping system for masts Ø 25 to 50 mm
Channels
Nominal gain dB 14
Front-to-back ratio dB ≥ 16
Beamwidth H / V 60º / 80º
Windload N
Length cm 80
Quantity boxed 10
Colour Green
21 - 48
(470 -694 MHz)
130 Km/h : 18
150 Km/h : 23

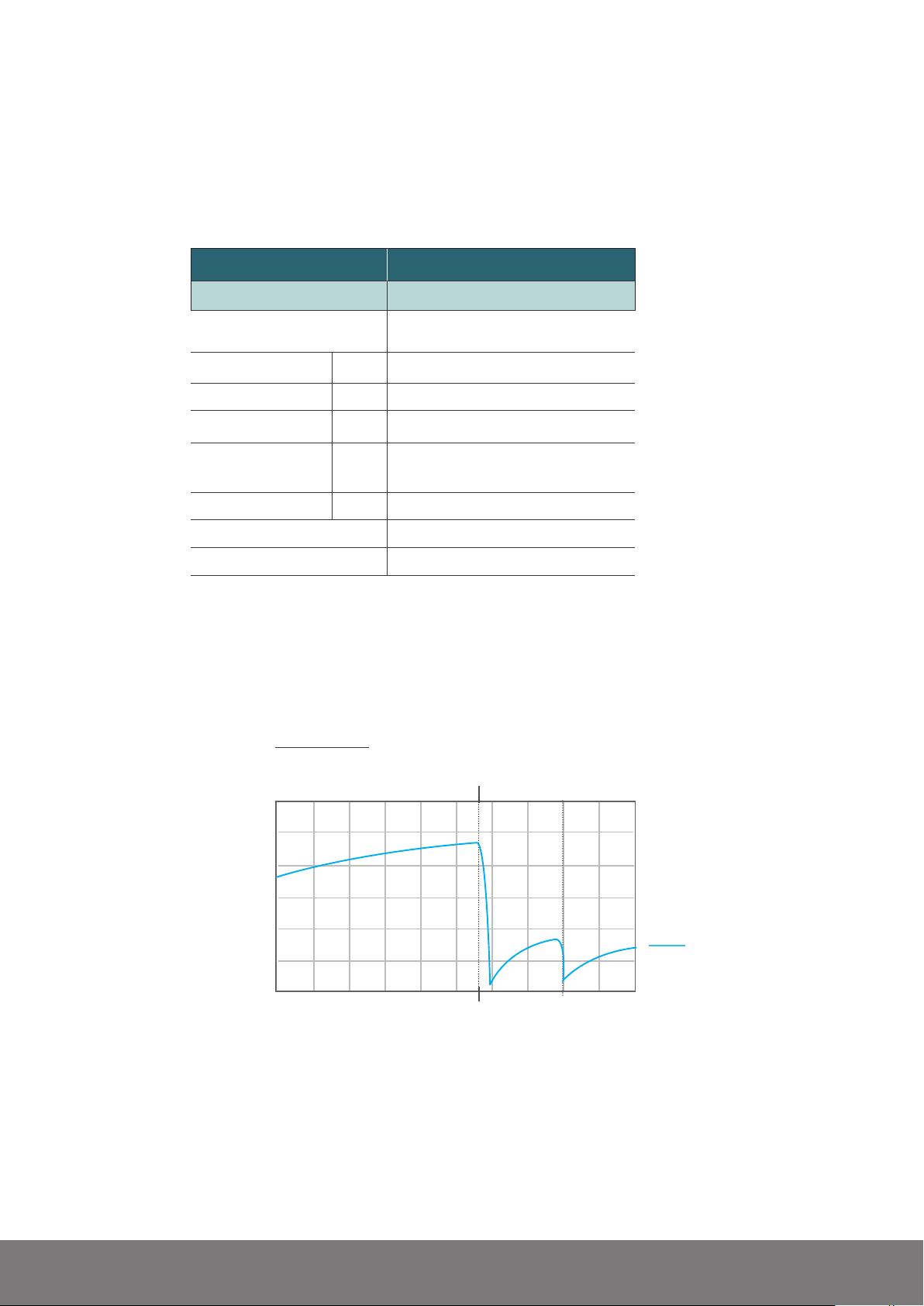

Gain diagrams
G (dB)
15
10
-5
-10
694 MHz
5
0
21 25 30 35 40 45 50 55 6560 69
48
HDTC-694V
Ch
Compact UHF Antenna
