HDSP-C8x1/C8x3
0.8” Single Digit PCB Based LED Display
Data Sheet
Description
This is 0.8” height single digit display. It utilizes GaAsP/GaP
Red, Orange, Yellow, Green and AlGaAs/GaAs Red chips.
This device is halogenated.
Ordering Information
Red Green Yellow Orange AlGaAs Red Description
HDSP-C8E1 HDSP-C8G1 HDSP-C8Y1 HDSP-C8L1 HDSP-C8A1 Common Anode, Right Hand Decimal
HDSP-C8E3 HDSP-C8G3 HDSP-C8Y3 HDSP-C8L3 HDSP-C8A3 Common Cathode, Right Hand Decimal
Features
• High reliability
• Excellent characters appearance
• Available in CA and CC
• RoHS Compliant
• Gray top surface with white diffused segments.

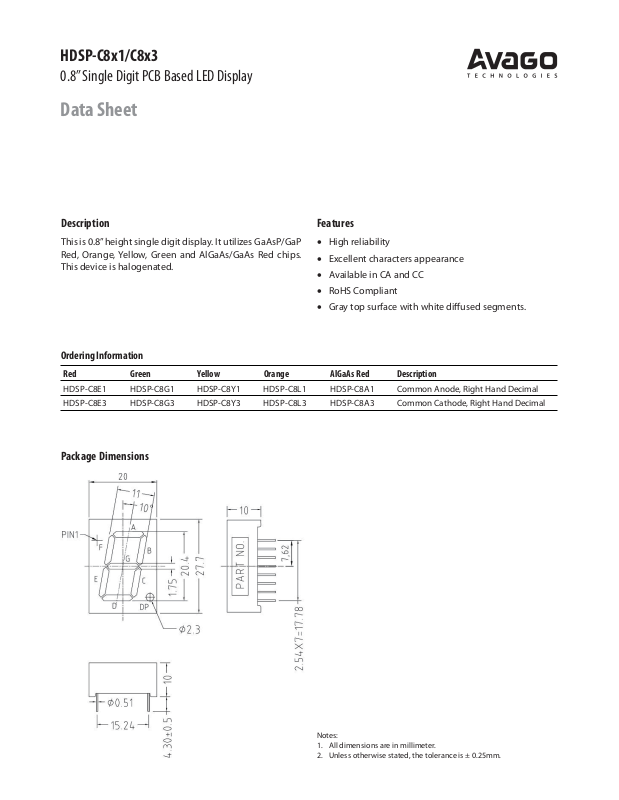

Package Dimensions
Notes:
1. All dimensions are in millimeter.
2. Unless otherwise stated, the tolerance is ± 0.25mm.
Page 2
Circuit Diagram
Absolute Maximum Ratings at TA = 25°C
Red/Yellow/
Parameter Symbol
Power Dissipation per segment or Dot Point (DP) P
Continuous Forward Current per segment I
Derating Linearly from 25°C per segment 0.33 0.33 0.33 mA/°C
Reverse Voltage per segment or DP V
Operating Temperature T
Storage Temperature T
Wave solder Condition 1.6mm below body 250°C peak for 3 secs max
D
F
R
O
S
Orange Green AlGaAs Red Units
57.5 62.5 50 mW
25 25 25 mA
5V
-40 to 85 °C
-40 to 85 °C
2
Page 3
Electrical / Optical Characteristic at TA = 25°C
Red
Parameter Symbol Min Typ Max Units Test Conditions
Average Luminous Intensity (Digit Average) I
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP V
Reverse Current I
Luminous Intensity Matching Ratio
(Segment to Segment)
v
λ
λ
R
I
v–M
p
d
F
– 4.8 – mcd IF = 10mA
– 640 – nm IF = 20mA
– 626 – nm IF = 20mA
– 2.0 2.3 V IF = 20mA
– – 100
μA
VR = 5V
2:1 IF = 10mA
Green
Parameter Symbol Min Typ Max Units Test Conditions
Average Luminous Intensity (Digit Average) I
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP V
Reverse Current I
Luminous Intensity Matching Ratio
(Segment to Segment)
v
λ
λ
R
I
v–M
p
d
F
– 5.0 – mcd IF = 10mA
– 565 – nm IF = 20mA
– 569 – nm IF = 20mA
– 2.25 2.5 V IF = 20mA
– – 100
μA
VR = 5V
2:1 IF = 10mA
Yellow
Parameter Symbol Min Typ Max Units Test Conditions
Average Luminous Intensity (Digit Average) I
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP V
Reverse Current I
Luminous Intensity Matching Ratio
(Segment to Segment)
v
λ
λ
R
I
v–M
p
d
F
– 3.8 – mcd IF = 10mA
– 587 – nm IF = 20mA
– 589 – nm IF = 20mA
– 2.15 2.3 V IF = 20mA
– – 100
μA
VR = 5V
2:1 IF = 10mA
3
Page 4
Orange
Parameter Symbol Min Typ Max Units Test Conditions
Average Luminous Intensity (Digit Average) I
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP V
Reverse Current I
Luminous Intensity Matching Ratio
(Segment to Segment)
v
λ
λ
R
I
v–M
p
d
F
– 4.5 – mcd IF = 10mA
– 610 – nm IF = 20mA
– 605 – nm IF = 20mA
– 2.15 2.3 V IF = 20mA
– – 100
μA
VR = 5V
2:1 IF = 10mA
AlGaAs Red
Parameter Symbol Min Typ Max Units Test Conditions
Average Luminous Intensity (Digit Average) I
Peak Wavelength
Dominant Wavelength
Forward Voltage per segment or DP V
Reverse Current I
Luminous Intensity Matching Ratio
(Segment to Segment)
v
λ
λ
R
I
v–M
p
d
F
– 18.2 – mcd IF = 10mA
– 660 – nm IF = 20mA
– 643 – nm IF = 20mA
– 1.85 2.0 V IF = 20mA
– – 100
μA
VR = 5V
2:1 IF = 10mA
4
Page 5

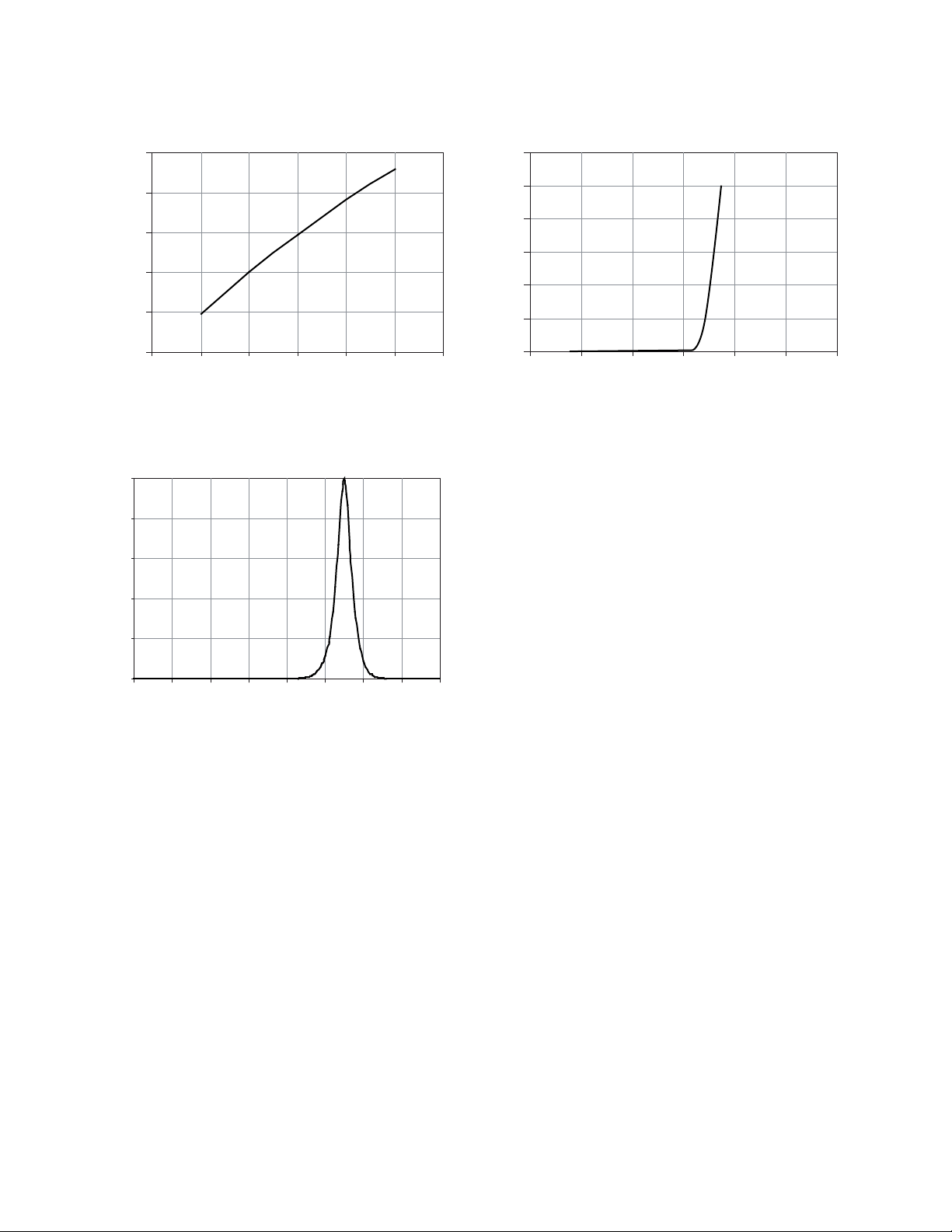

Red
2.5
2
1.5
1
(NORMALIZED AT 10 mA)
0.5
RELATIVE LUMINOUS INTENSITY
0
0 5 10 15 20 25 30
DC FORWARD CURRENT - mA
Figure 1. Relative Luminous Intensity Vs Forward Current Figure 2. Forward Voltage Vs Current
1
0.8
0.6
0.4
30
25
20
15
10
FORWARD CURRENT - mA
5
0
0 0.5 1 1.5 2 2.5 3
FORWARD VOLTAGE - V
RELATIVE INTENSITY
0.2
0
380 430 480 530 580 630 680 730 780
WAVELENGTH - nm
Figure 3. Relative Luminous Intensity Vs Wavelength
5
Page 6

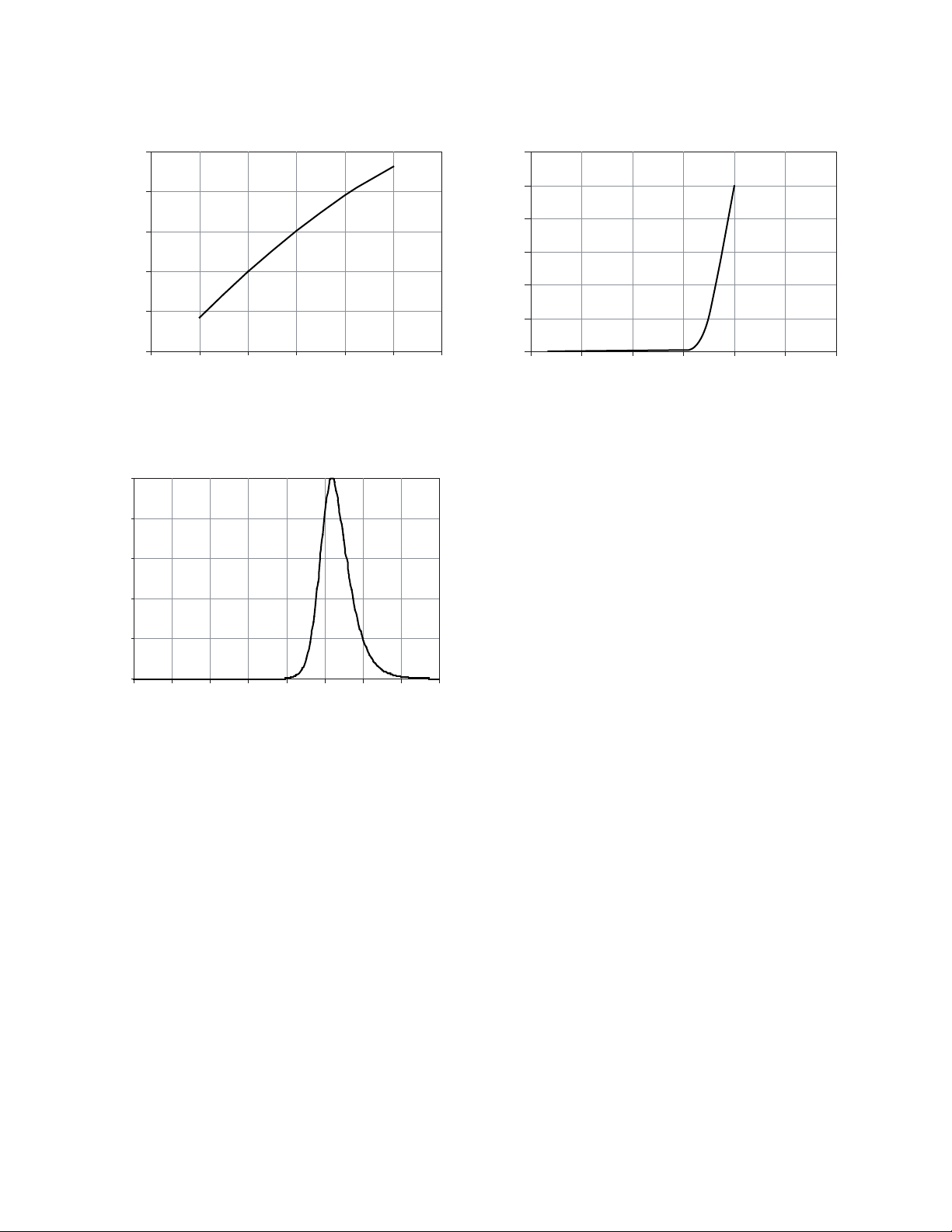

Green
3
2.5
2
1.5
1
0.5
(NORMALIZED AT 10mA)
0
RELATIVE LUMINOUS INTENSITY
-0.5
0 5 10 15 20 25 30
DC FORWARD CURRENT - mA
Figure 4. Relative Luminous Intensity Vs Forward Current Figure 5. Forward Voltage Vs Current
1.0
0.8
0.6
0.4
RELATIVE INTENSITY
0.2
30
25
20
15
10
FORWARD CURRENT - mA
5
0
0 0.5 1 1.5 2 2.5 3
FORWARD VOLTAGE - V
0.0
380 430 480 530 580 630 680 730 780
WAVELENGTH - nm
Figure 6. Relative Luminous Intensity Vs Wavelength
6
Page 7

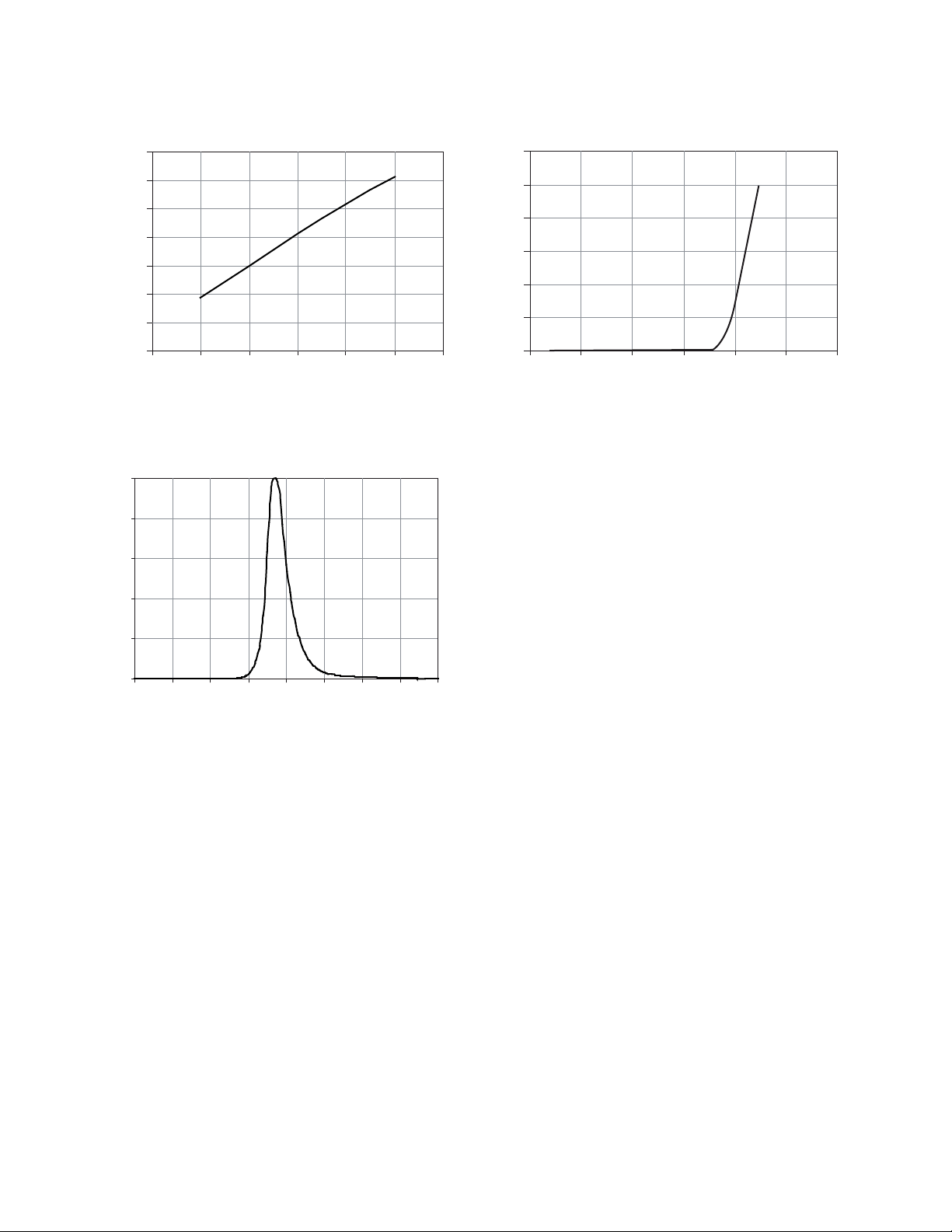

Yellow
3.5
3
2.5
2
1.5
1
(NORMALIZED AT 10mA)
RELATIVE LUMINOUS INTENSITY
0.5
0
0 5 10 15 20 25 30
DC FORWARD CURRENT - mA
Figure 7. Relative Luminous Intensity Vs Forward Current Figure 8. Forward Voltage Vs Current
1
0.8
0.6
0.4
RELATIVE INTENSITY
0.2
30
25
20
15
10
FORWARD CURRENT - mA
5
0
0 0.5 1 1.5 2 2.5 3
FORWARD VOLTAGE - V
0
380 430 480 530 580 630 680 730 780
WAVELENGTH - nm
Figure 9. Relative Luminous Intensity Vs Wavelength
7
Page 8

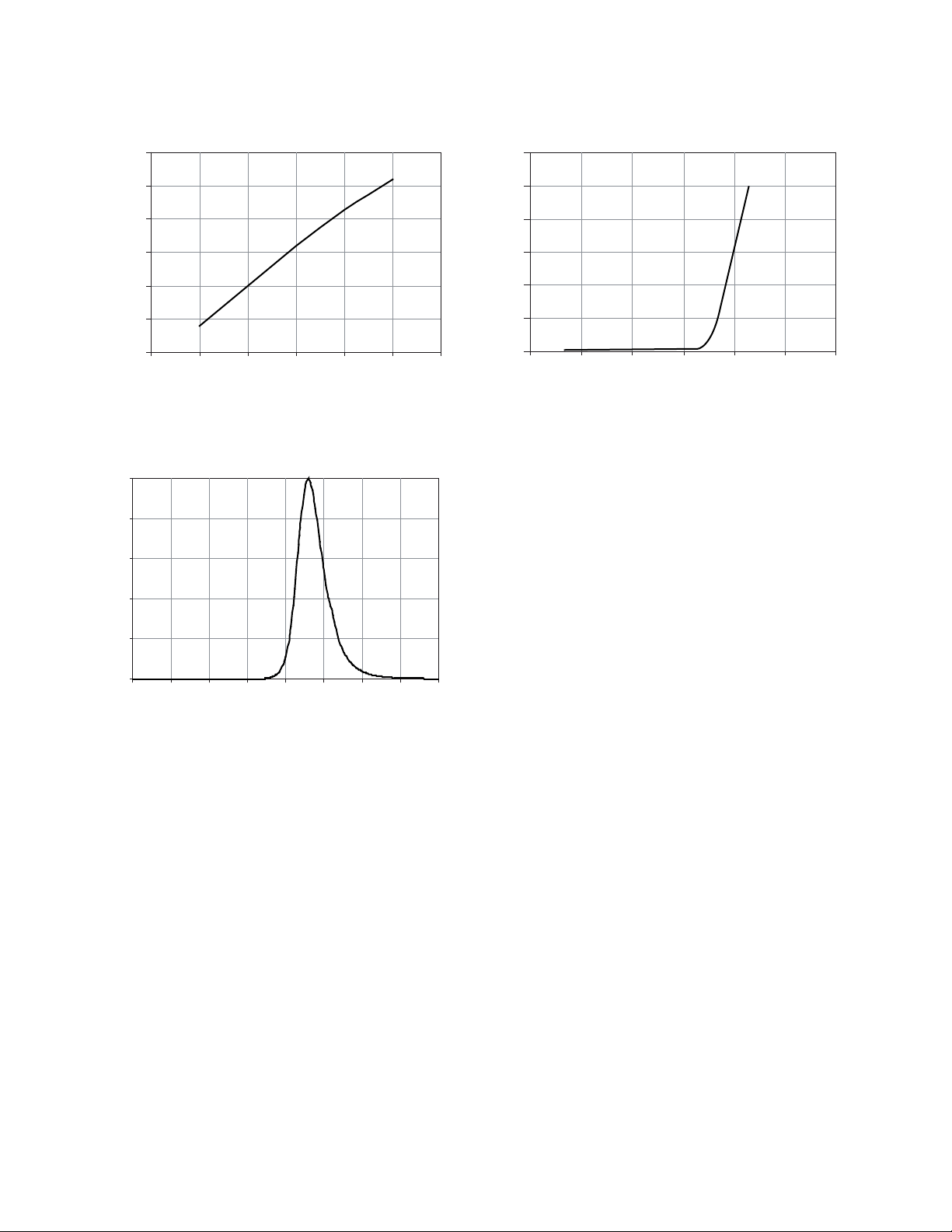

Orange
3
2.5
2
1.5
1
(NORMALIZED AT 10mA)
0.5
RELATIVE LUMINOUS INTENSITY
0
0 5 10 15 20 25 30
DC FORWARD CURRENT - mA
Figure 10. Relative Luminous Intensity Vs Forward Current Figure 11. Forward Voltage Vs Current
1
0.8
0.6
0.4
RELATIVE INTENSITY
0.2
30
25
20
15
10
FORWARD CURRENT - mA
5
0
0 0.5 1 1.5 2 2.5 3
FORWARD VOLTAGE - V
0
380 430 480 530 580 630 680 730 780
WAVELENGTH - nm
Figure 12. Relative Luminous Intensity Vs Wavelength
8
Page 9

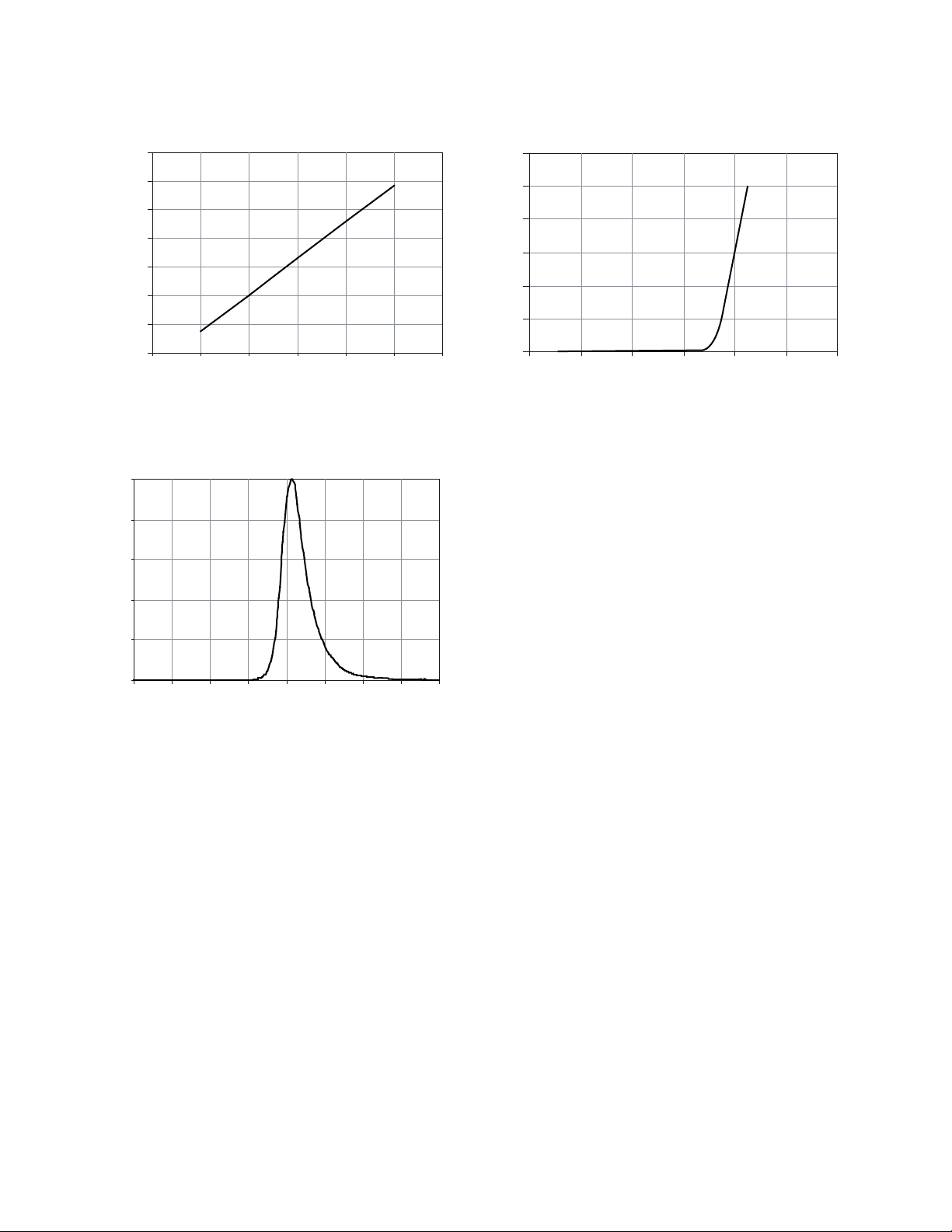

AlGaAs Red
2.5
2
1.5
1
(NORMALIZED AT 10mA)
0.5
RELATIVE LUMINOUS INTENSITY
0
0 5 10 15 20 25 30
DC FORWARD CURRENT - mA
Figure 13. Relative Luminous Intensity Vs Forward Current Figure 14. Forward Voltage Vs Current
1
0.8
0.6
0.4
RELATIVE INTENSITY
0.2
30
25
20
15
10
FORWARD CURRENT - mA
5
0
0 0.5 1 1.5 2 2.5 3
FORWARD VOLTAGE - V
0
380 430 480 530 580 630 680 730 780
WAVELENGTH - nm
Figure 15. Relative Luminous Intensity Vs Wavelength
9
Page 10

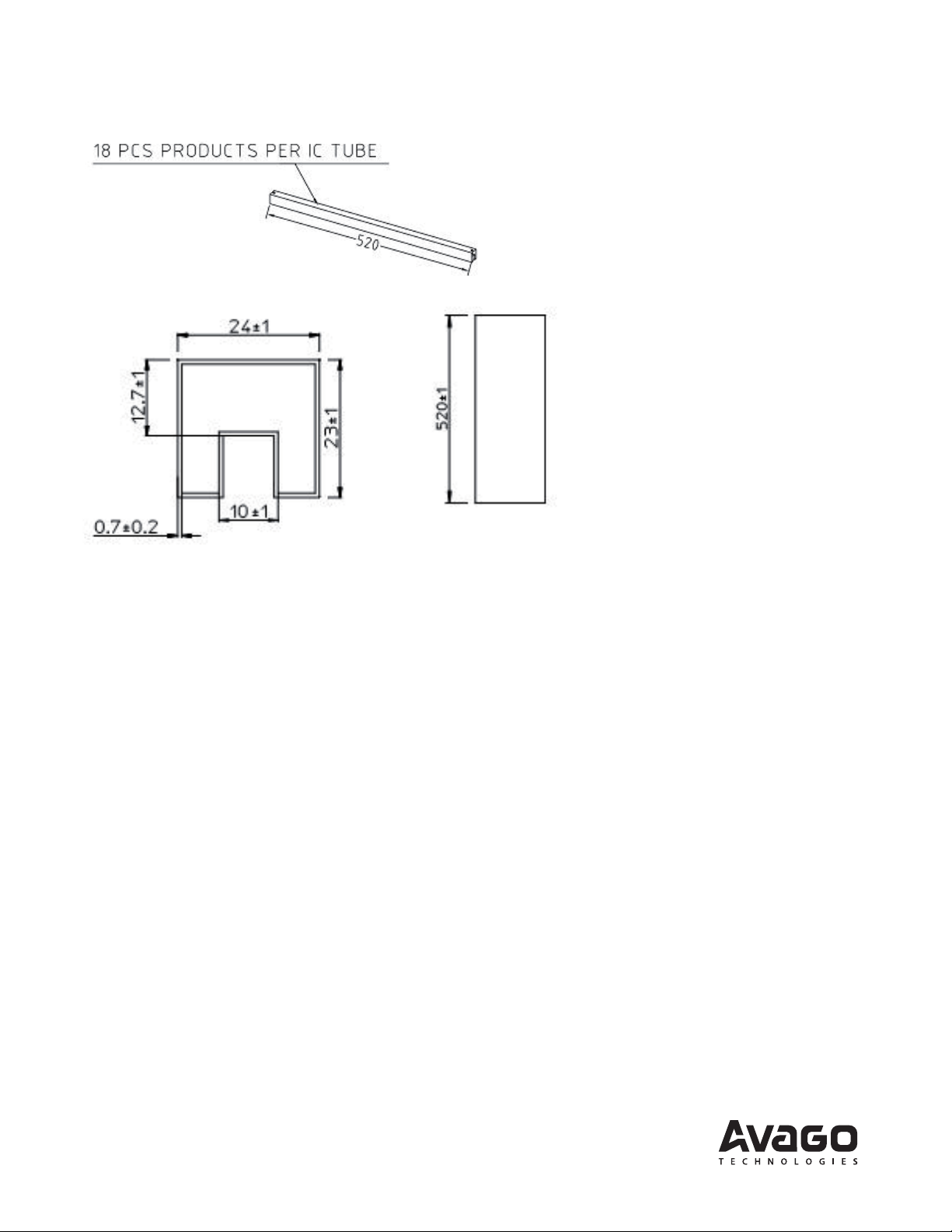

Packing Tube Specifications:
Tube Front View Tube Top View
For product information and a complete list of distributors, please go to our web site: www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries.
Data subject to change. Copyright © 2005-2010 Avago Technologies. All rights reserved.
AV02-2494EN - May 14, 2010
